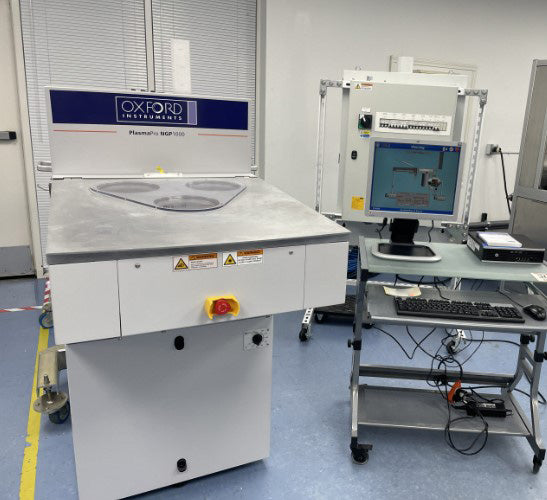

Oxford PlasmaPro NGP 1000 PECVD (Plasma-Enhanced Chemical Vapor Deposition)
- up to 450mm wafer size
- Load Locked Chamber
- System PC, Keyboard, Mouse

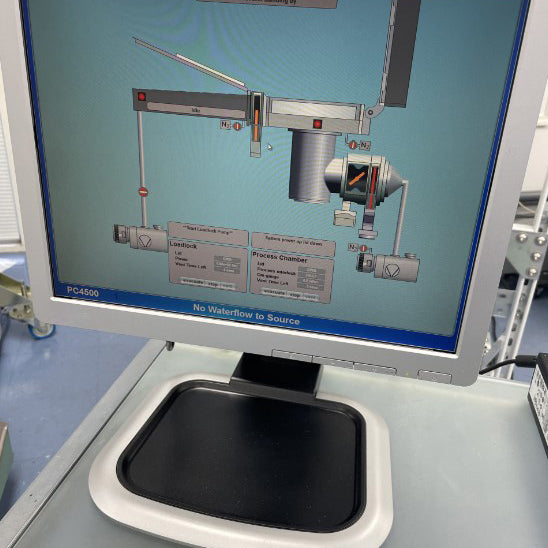

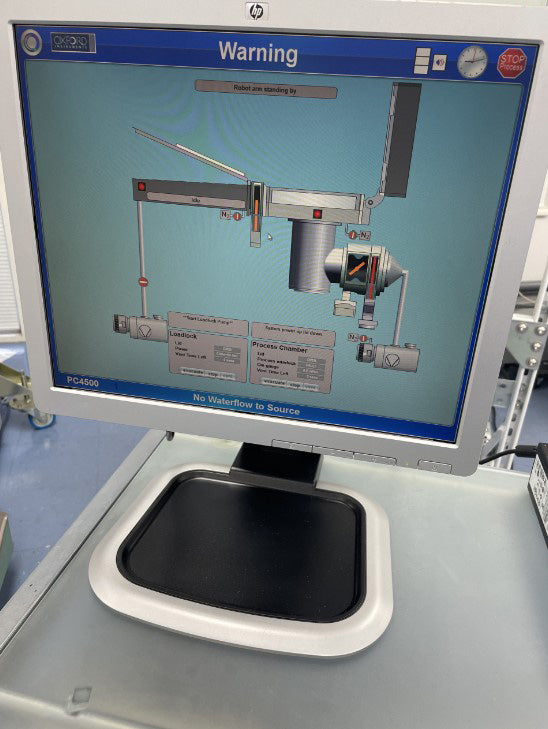

- Windows 7 w/ PC4500 Control Software
- X20 PLC

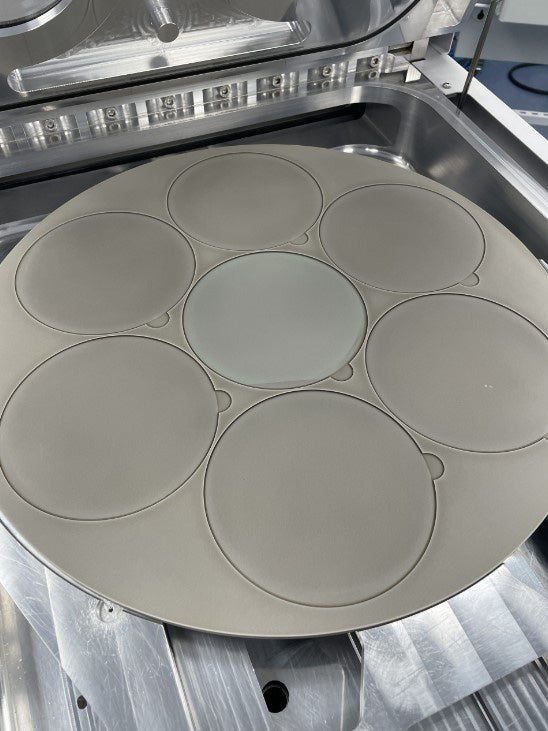

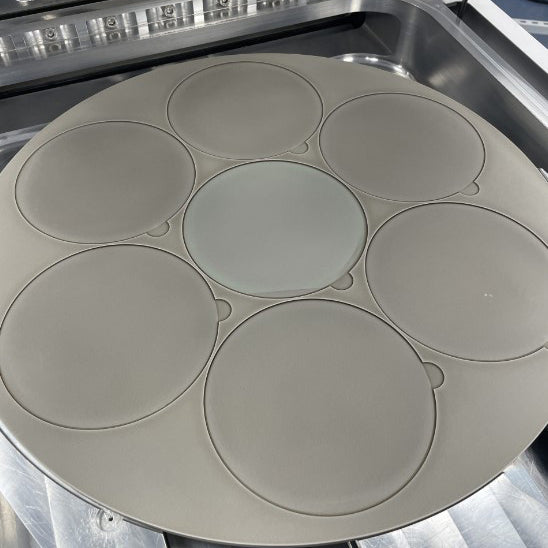

- 490mm Diameter Aluminum Lower Electrode
- Capable of running up 450mm wafers
- Up to 400*C
- Chamber Heating Kit (Heats Chamber Sidewalls to Minimize Process Deposition)
- Dual Frequency RF with Pulsing for Film Stress Control
- 600W 13.56Mhz HF RF Generator
- 600W 100khz LF RF Generator
- Gas-Shock assisted Chamber Lift Mechanism
- Adixen ADS602P Dry Pump for Process Chamber
- Load Lock vacuum pump
- Operations Manual and Documentation
X20 External Gas Box with up to 12 Gas Lines. Currently Configured for: He, CF4, N2, N20, NH3, SiH4-N2
Fully Refurbished to excellent condition
Chamber disassembled for refurbishment.
- Chamber received full wet clean
- Chamber o-rings and seals are replaced with brand new
- Electrostatic Chuck (ESC) sent out for refurbishment (if applicable)
- All MFCs rebuilt and calibrated professionally.
- All corrosive gas lines replaced with brand new
- All Non-corrosive gas lines purged
- Vacuum pumps professionally rebuilt
- Turbo pump professionally rebuilt
- Chillers serviced and fully tested
- All wiring/wire harnesses are checked, repaired or replaced if needed
- All liquid and air lines, tubing and fittings checked and replaced if necessary
- Major components disassembled for checkout, servicing, cleaning, and lubricating. Parts are repaired or replaced as needed.
- Checkout of all electronic and mechanical parts
- Machine covers are cleaned, polished or replaced as needed
- Post-refurbishment system leak and RF calibration checks, with documentation provided
- System cycle and repeatability testing completed prior to cover replacement and wipe down

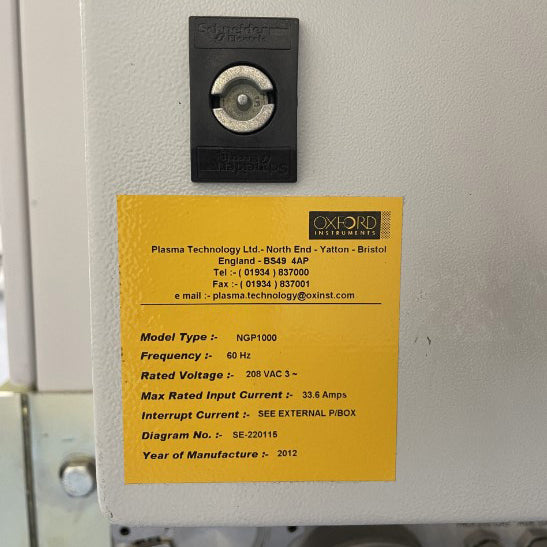

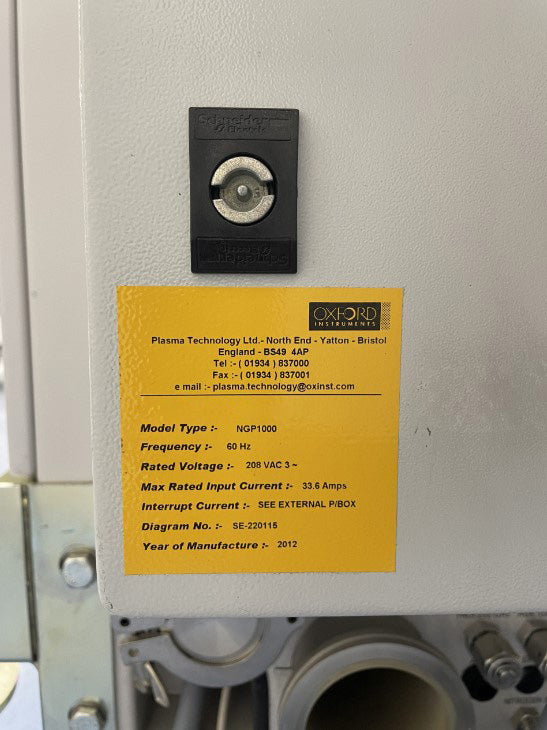

2012 Vintage
