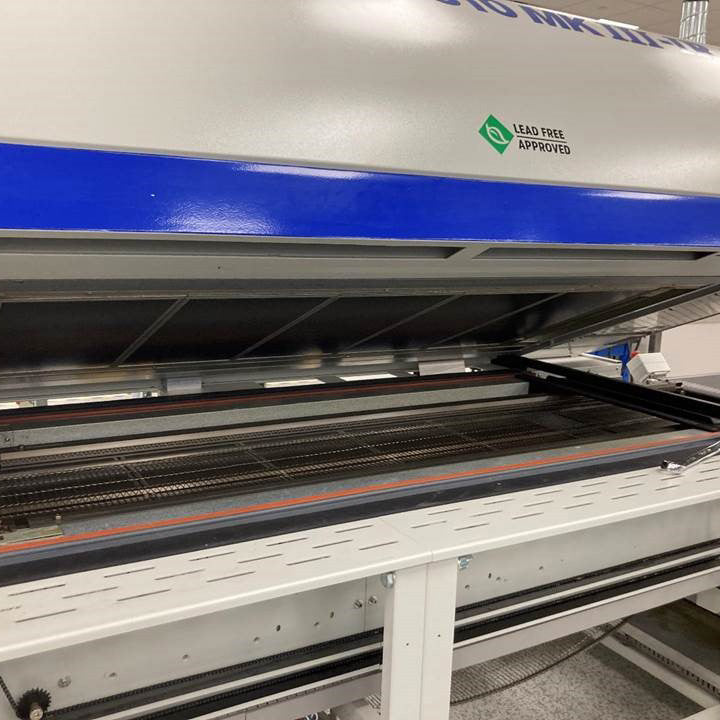

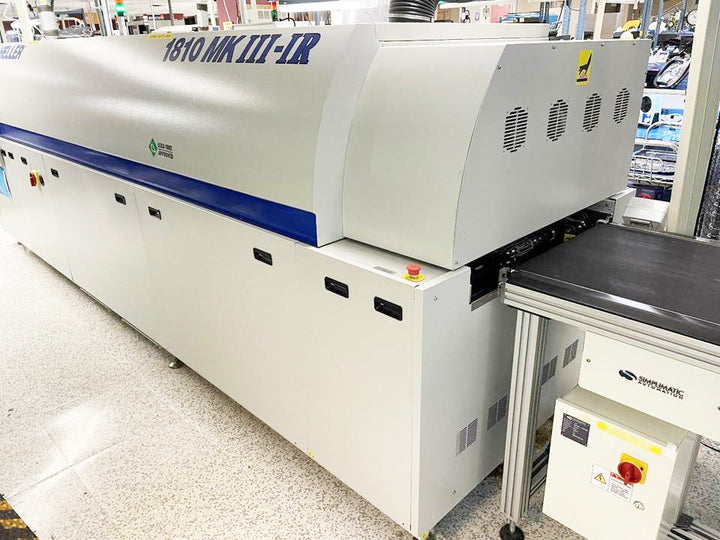

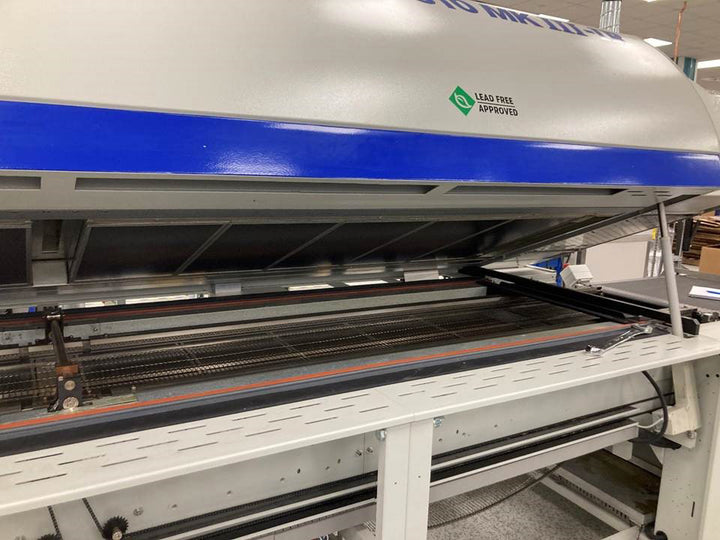

Heller 1810 MK III IR Cure Oven
Heller 1810 MK III IR Cure Oven

Heller 1810 MK III IR Cure Oven

Asset #: 80639

Make: Heller

Model: 1810 MK III IR

Last Confirm Date: June 26, 2024

Heller 1810 MK III IR Cure Oven
- 18” On Load Conveyor and 18” Off Load Conveyor
- 130" Heated Tunnel Length · No Internal Cooling Modules
- 20 Independent Temperature Controlled 350°C IR Heating Zones
- Complete KIC & ECD Profiling & Storage
- PID temperature control to ensure zone temperature stability to +/- 1°C
- Signal Light Tower to indicate system status
- 4 moveable casters for easy relocation around shop floor
- Power controlled Clamshell Hood Lift  ·  Single exhaust port for easy facilitization
- 480V, 50/60 HZ, 3 phase, 100 AMPS per phase · Left to Right Conveyor Travel
- Floor space requirements:  183"L x 54"W x 63"H
Included Options:
- Edge Hold Conveyor (Computer Controlled) with 4.8mm or .187” long EHC Pins
- Front Rail Fixed
- 18” Wide ½” Pitch Mesh Belt for Process up to - 18” Wide Products
- Automatic Lubrication System for Edge Hold Conveyor
- Slow Belt Speed Control Rang from .5” – 3” Per minute
- Battery Back-Up of Computer, Controller & Edge Hold Conveyor
- SMEMA Electrical Interface Up and Down Stream
- Audible Alarm
- Exhaust Monitoring Systems with Delayed Startup & Purge System
- 2 Bottom Side Heating Zones (Heated Tunnel Length will Increase to 130”)
- External Cooling Module
2017 Vintage
