Asset #: 80632

Make: Bruker / Veeco

Model: Dimension Fastscan

Last Confirm Date: June 26, 2024

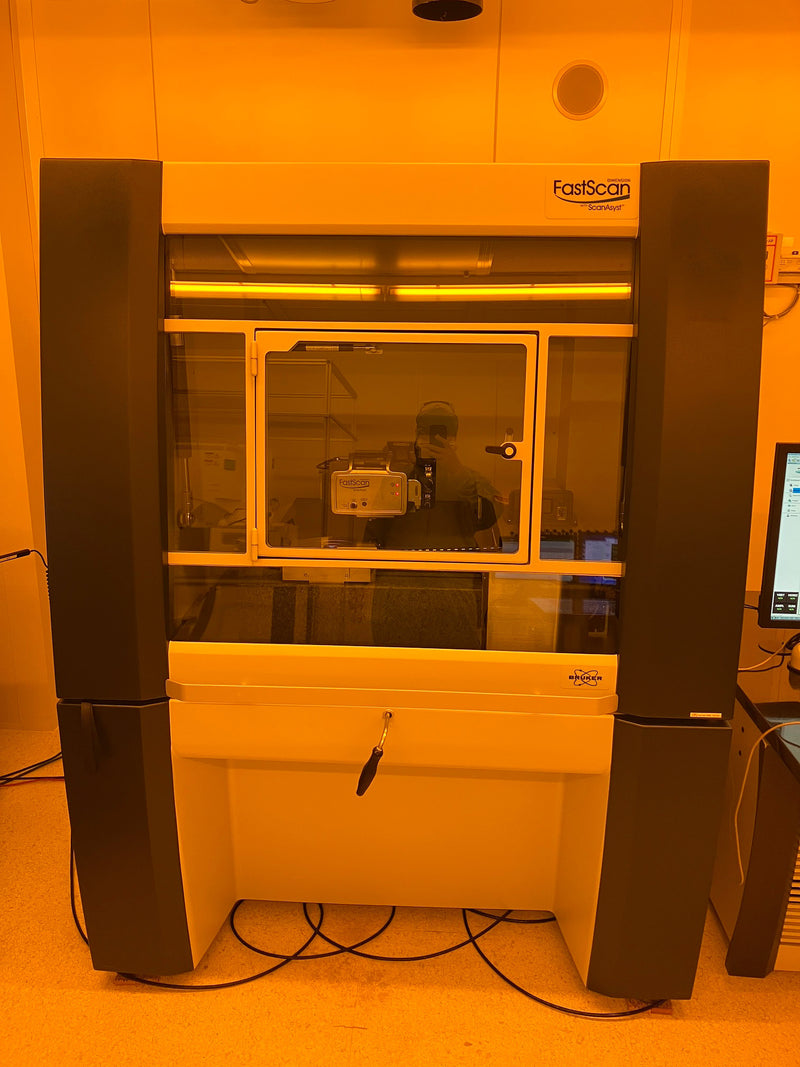

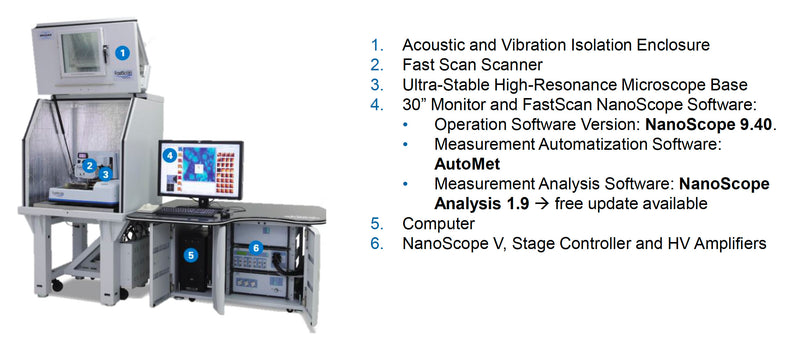

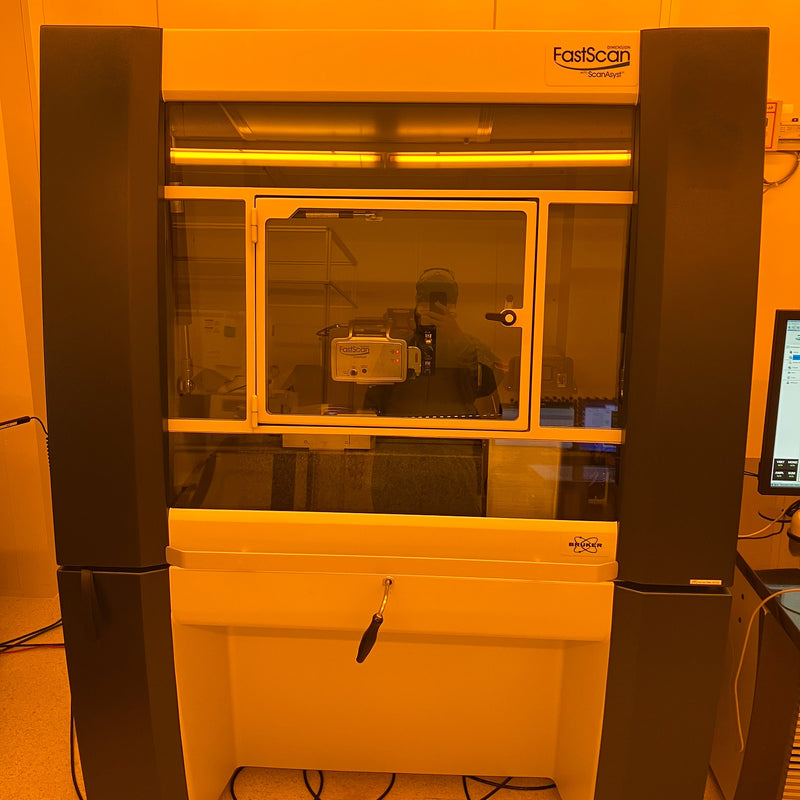

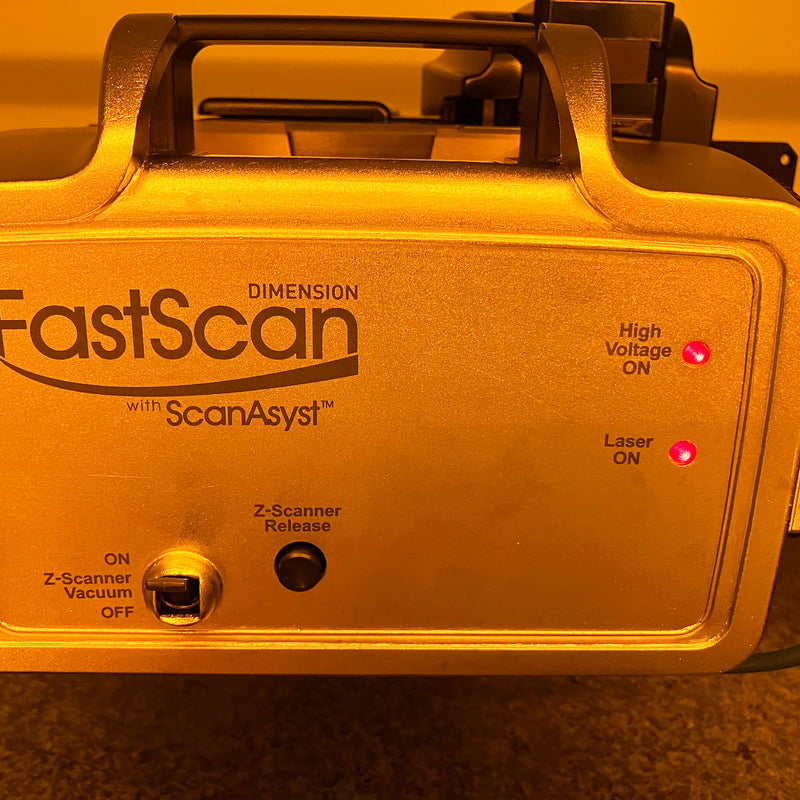

Bruker / Veeco Dimension Fastscan AFM (Atomic Force Microscope)
- X-Y scan range: 35um x 35um typical / 30um minimum
- Z range: >/= 3um
- Vertical Noise floor: <40pm RMS, sensor in appropriate environment (up to 625Hz)
- X-Y tip-velocity max (1% tracking error): >2mm/sec
- Z tip-velocity max: 12mm/sec
- X-Y position noise (closed -loop): =0.20nm RMS typical imaging BW (up to 2.5kHz in adaptive)
- Z sensor noise level: 30pm RMS typical imaging BW (up to 625Hz)
- X-Y flatness (30um range): =3nm
- Integral nonlinearily (X-Y-Z): <0.50%
- Sample size/holder:
- 210mm vacuum chuck for samples
- =210mm in diameter, =15mm thick
- 300mm vacuum chuck
- magnet holder

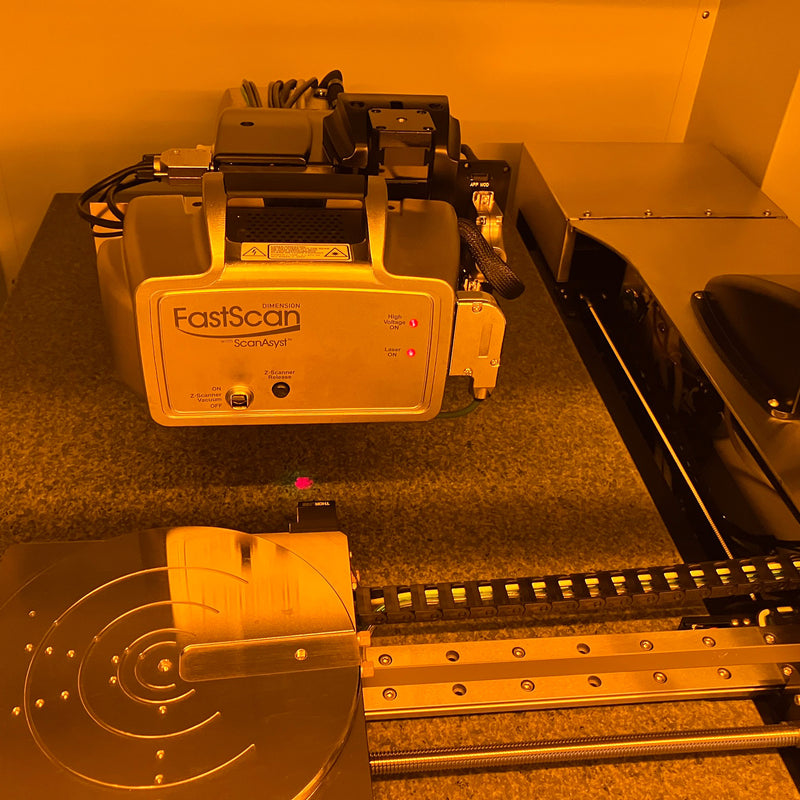

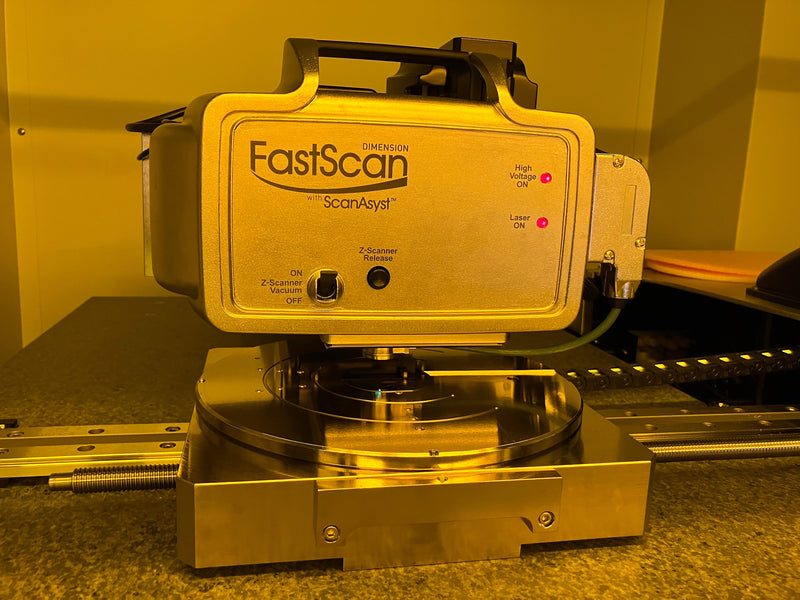

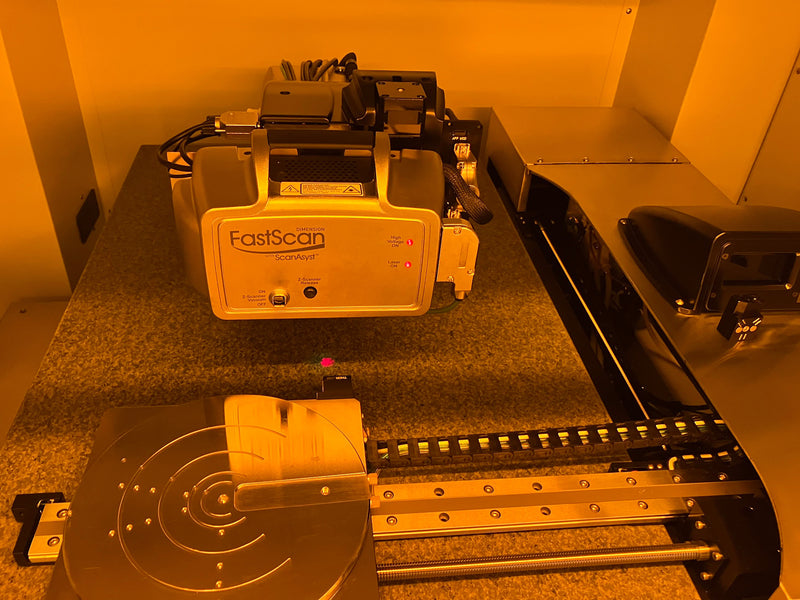

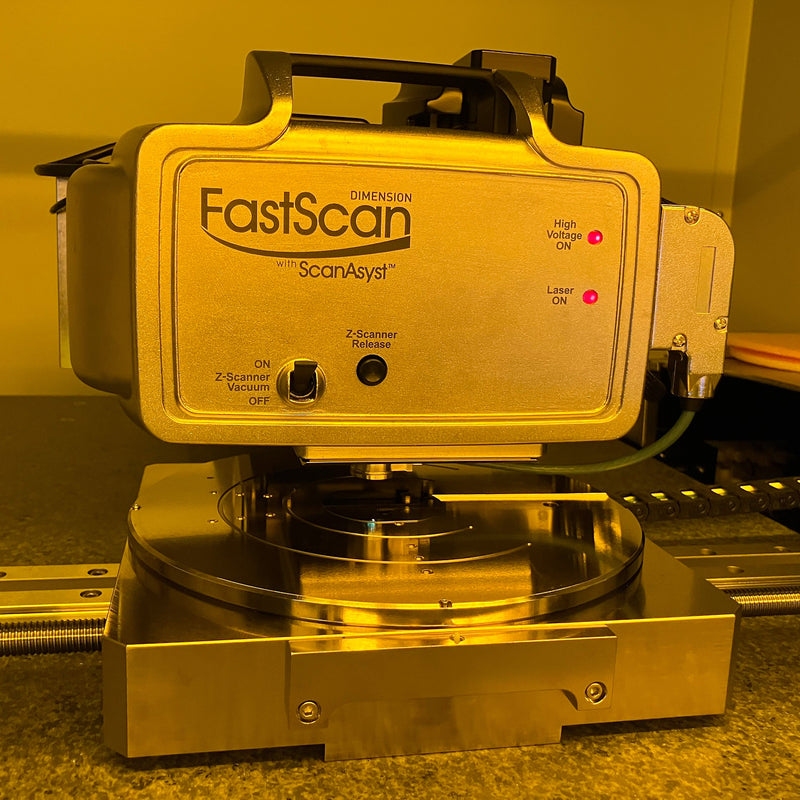

- Motorized position stage: X & Y axis:
- 150mm x 180mm inspectable area with rotating chuck
- 2um repeatability, unidirectional
- 3um repeatability, bidirectional

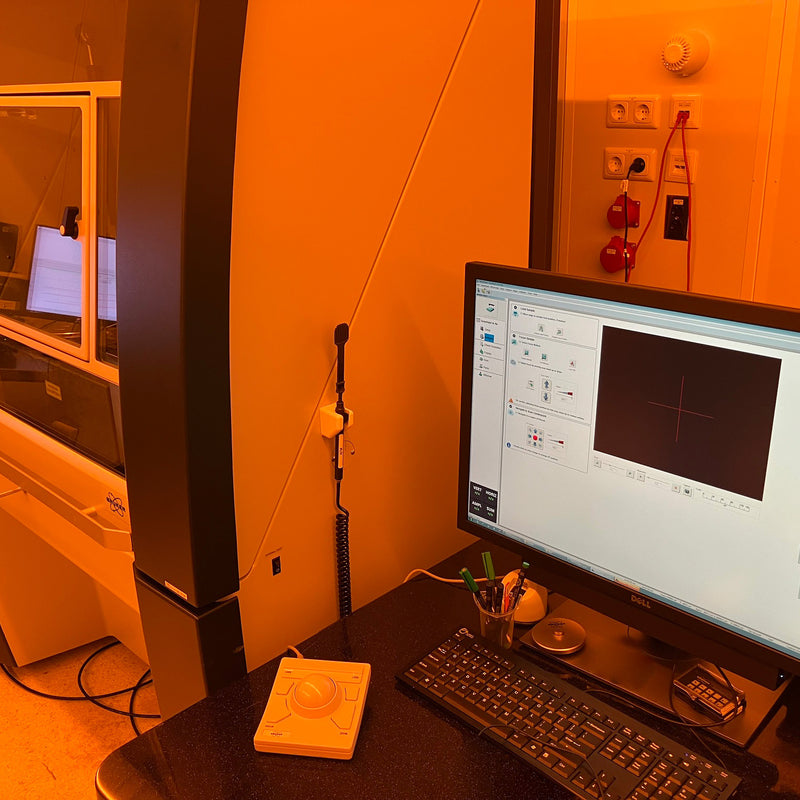

- Microscope optics:
- 5MP digital camera
- 130um to 1040um viewing area
- digital zoom and motorized focus

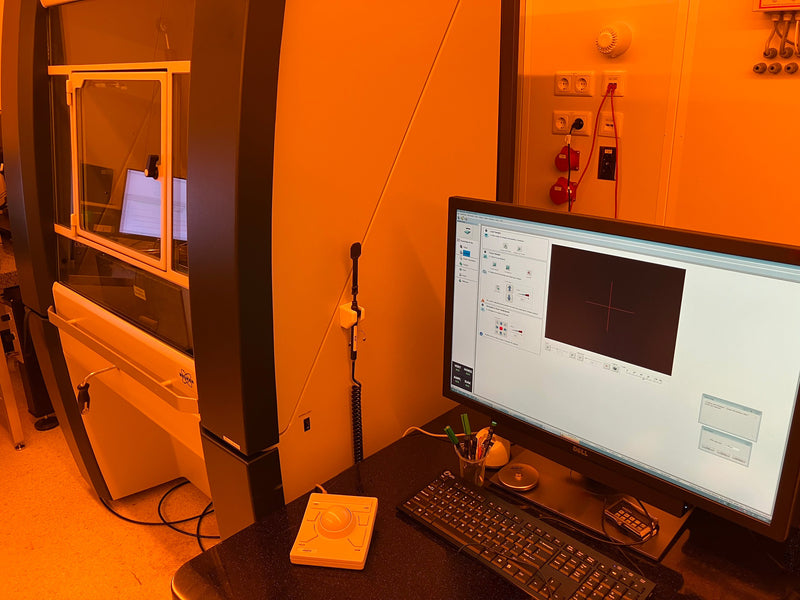

- Controller / Software: NanoScope V / NanoScope v8.15 and later
- AFM Modes: Standard
- ScanAsyst
- Nanomechanical Mapping
- TappingMode (air)
- TappingMode (fluid)
- PhaseImaging
- Contact Mode
- Lateral Force Microscopy
- Lift Mode
- MFM
- EFM
- Force Spectroscopy
- Force Volume

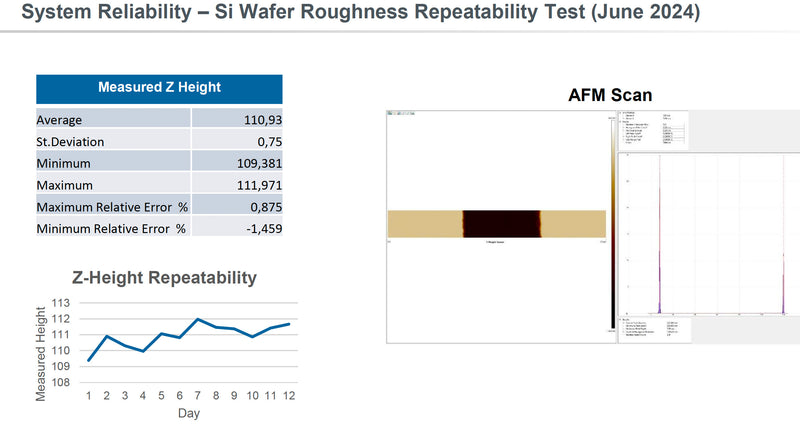

- System Reliability: 2%
- Recently Exchanged Parts:
- E-Box: 03/01/2024
- Z Scanner: 01/03/2024
- HV Amplifier: 01/2024
- Cable from NS5 Controller to FS HV Amplifier Box: 01/23/2023
- Stage Controller: 08/10/2021
- Nanoscope NS5 Controller: 07/28/2020
