Asset #: 79921

Make: Axcelis

Model: NV GSD HE

Wafer Sizes: 8 inch

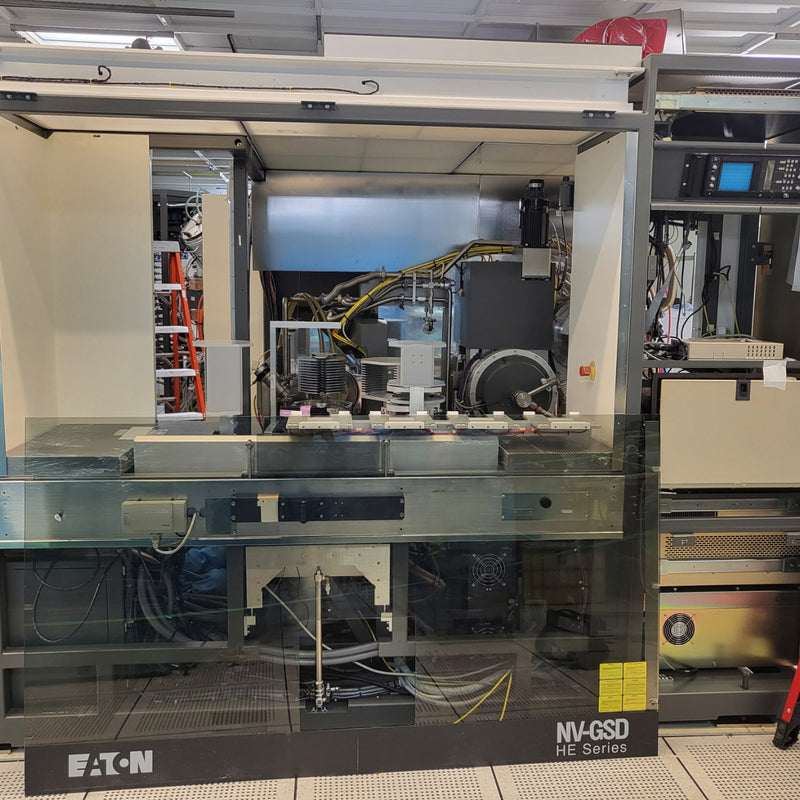

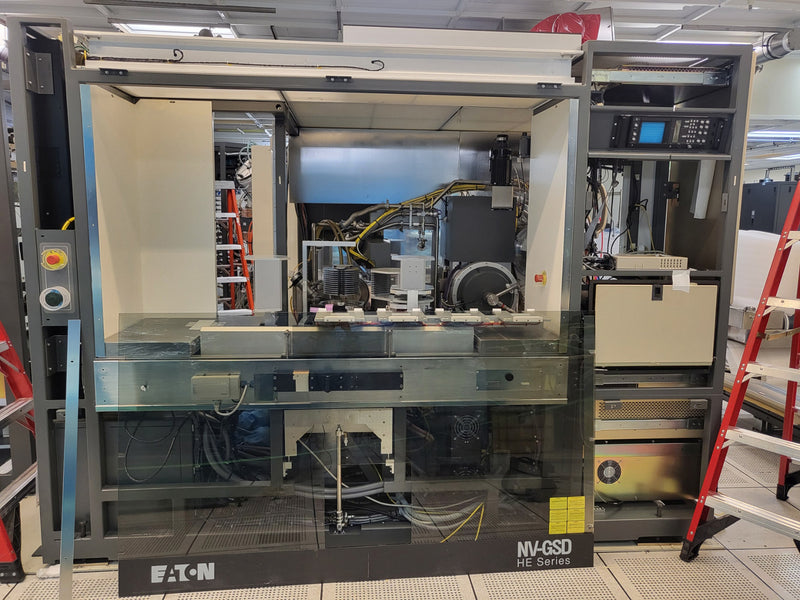

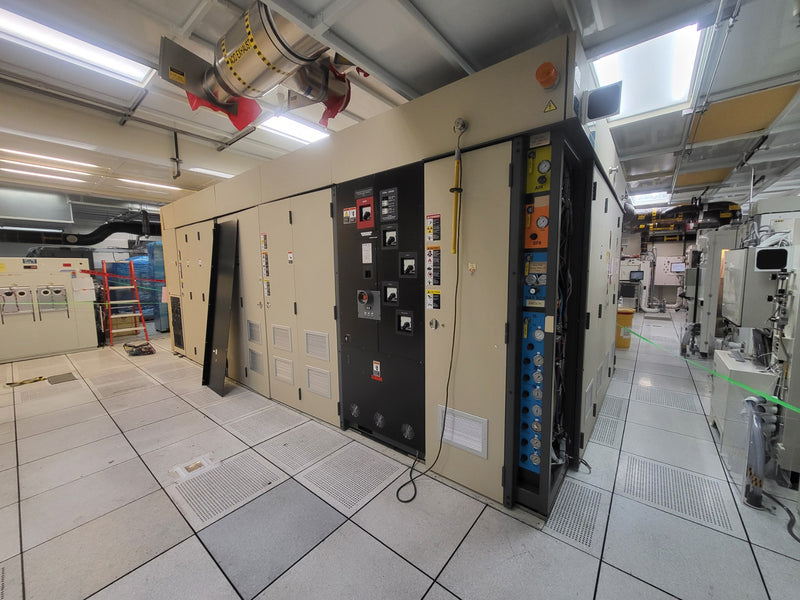

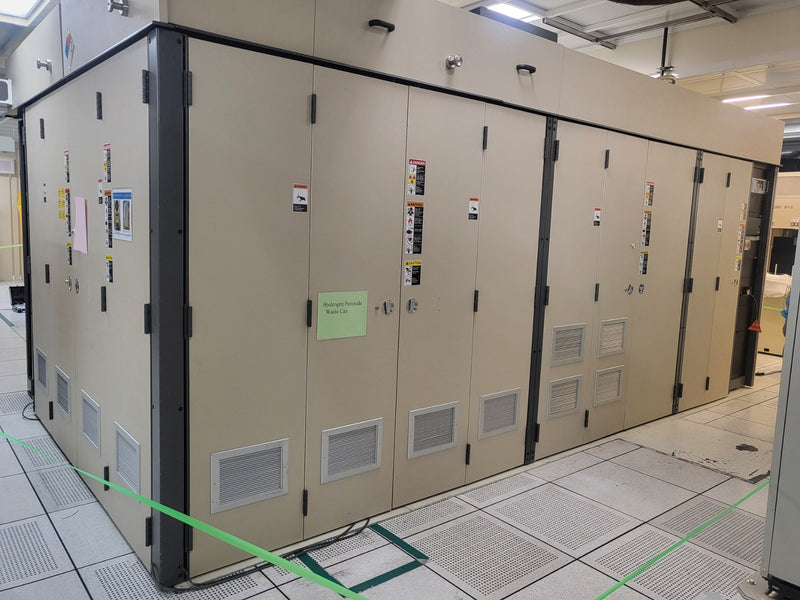

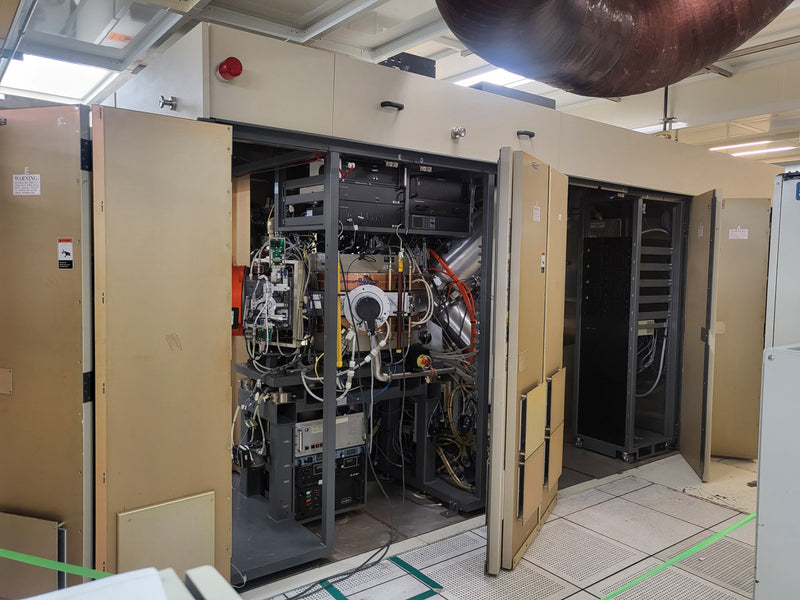

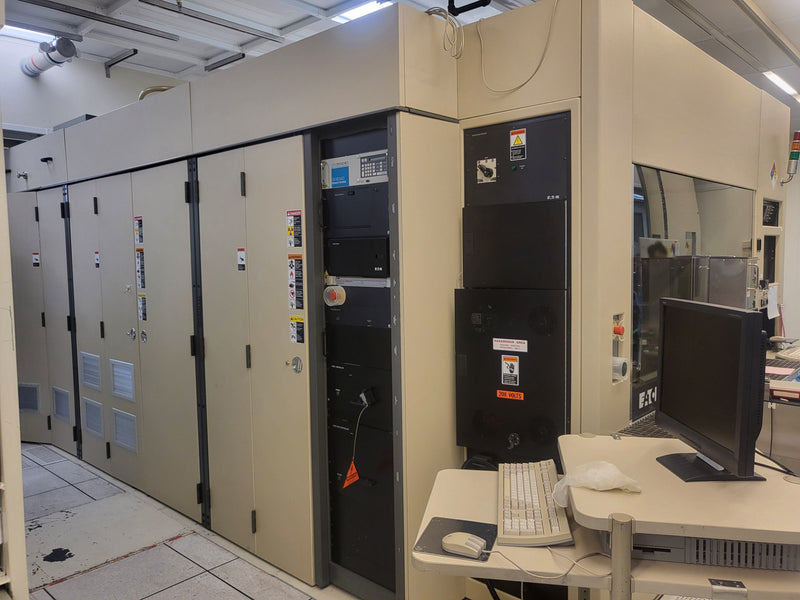

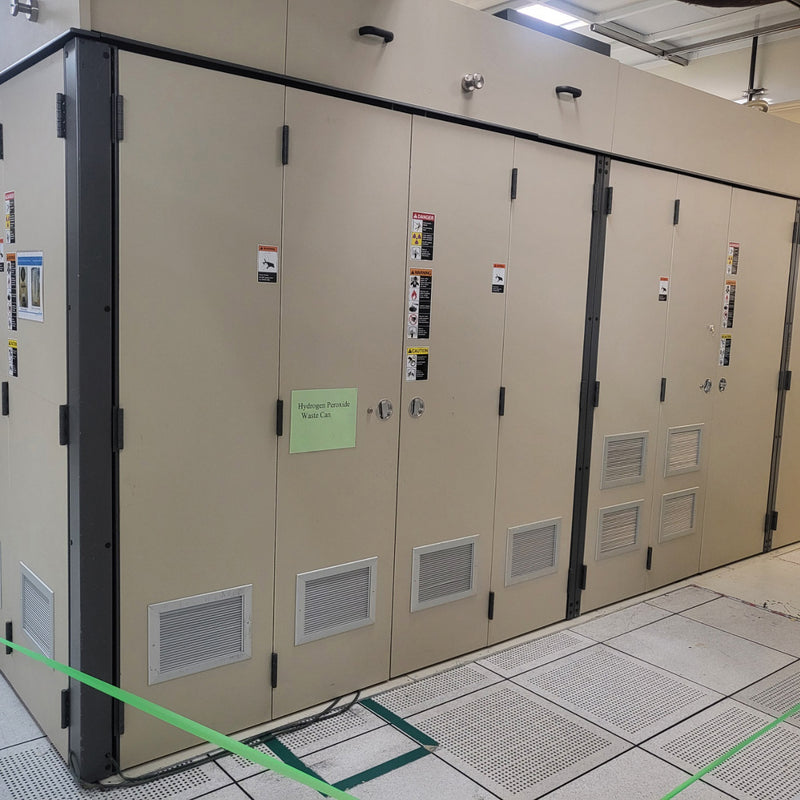

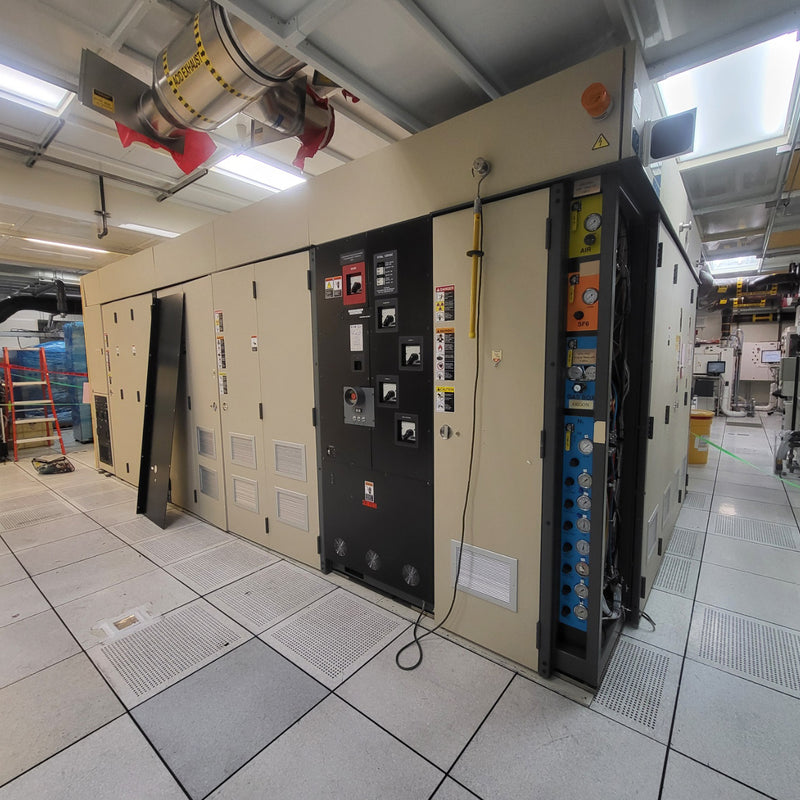

Axcelis NV GSD HE Ion Implanter, 8"
- Wafer Size: Originally 6", converted to 8"

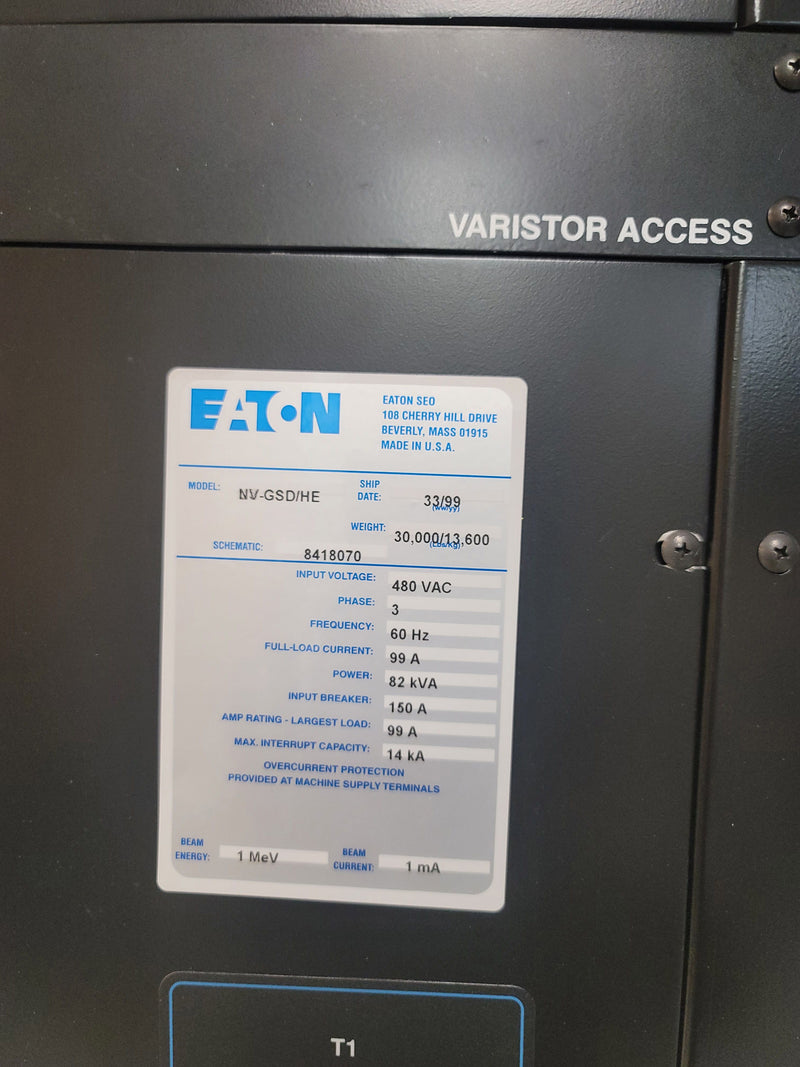

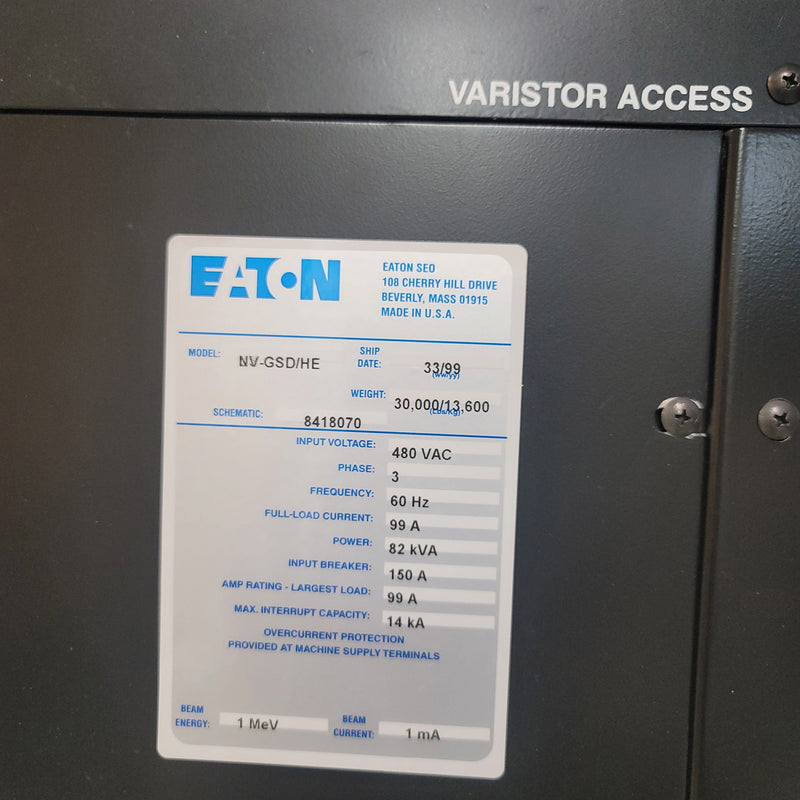

- Power Supply: 3-Phase, 480 VAC, 60 Hz
- Full Load Current: 99 A
- Power Rating: 82 kVA
- Input Breaker: 150 A
- Maximum Interrupt Capacity: 14 kA
- Beam Energy: 1 MeV
- Beam Current: 1 mA
De-facilitation / Safety Preparation
- Hazardous gas lines purged and prepared
- Hazardous gas lines cut and capped
- Hazardous chemical supply lines flushed and capped
- All chemicals and liquids removed
- Cleaning PMs performed
- FMS wires terminated
- Non-hazardous gases/liquids terminated
- Waste lines cut and capped
- Exhaust ducts removed and wrapped
- Electrical de-facilitation completed
- All openings properly capped
- Interior and exterior surfaces cleaned
Major Components

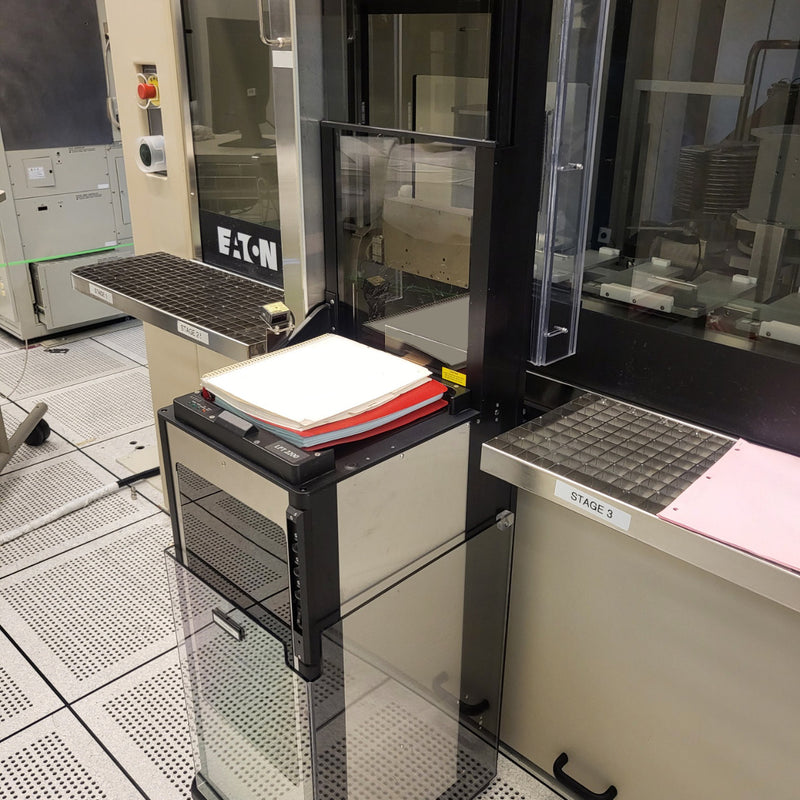

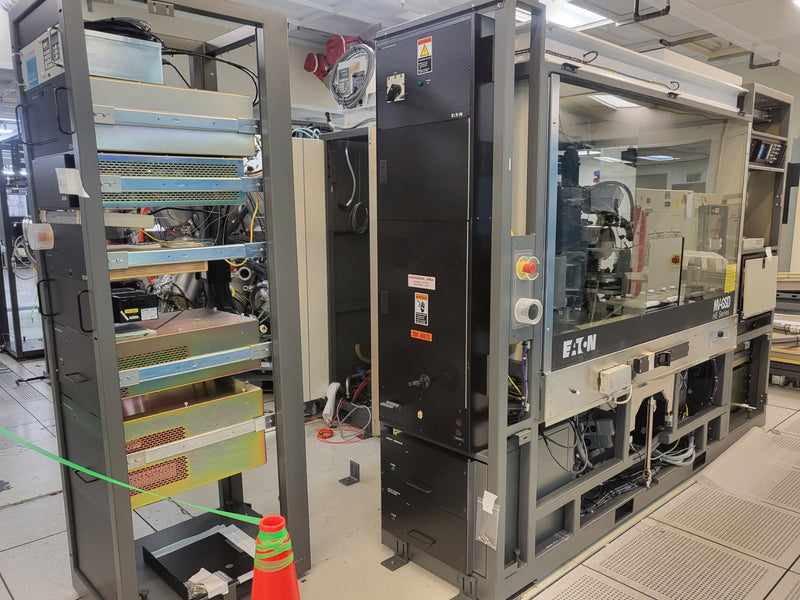

- End Station

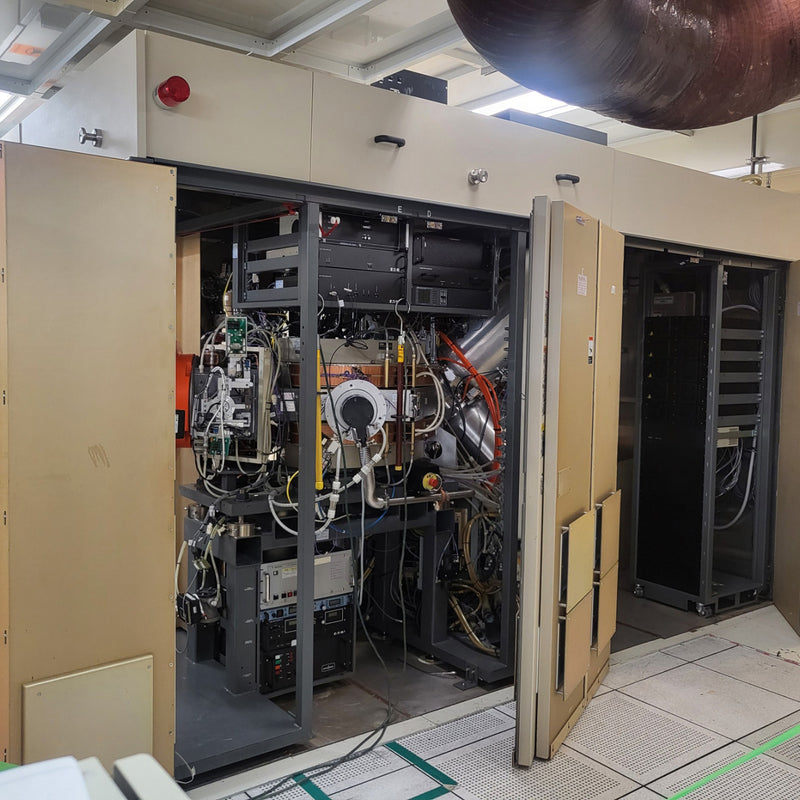

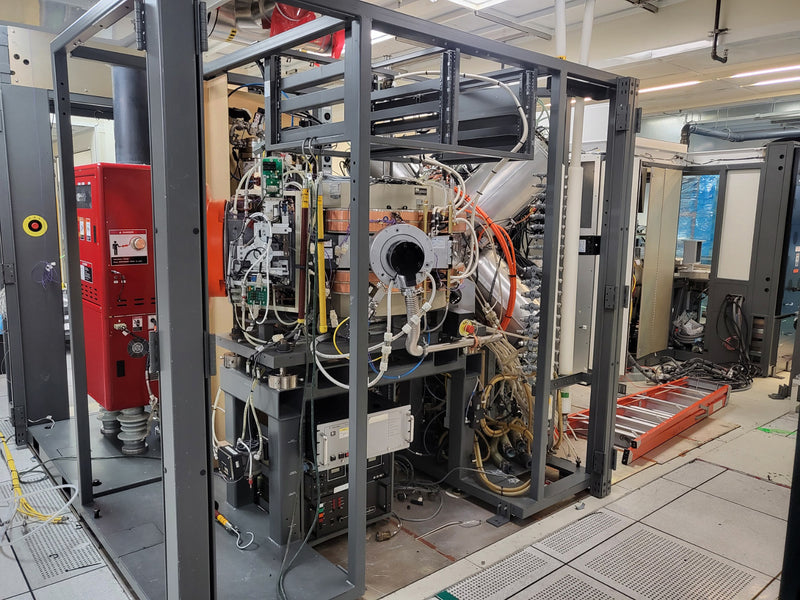

- Beam Line

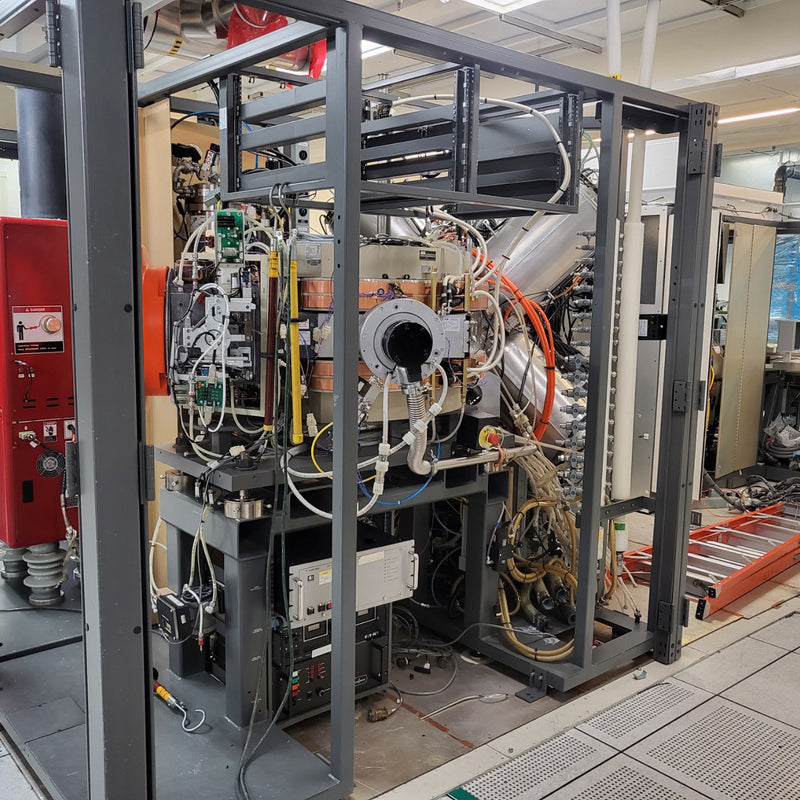

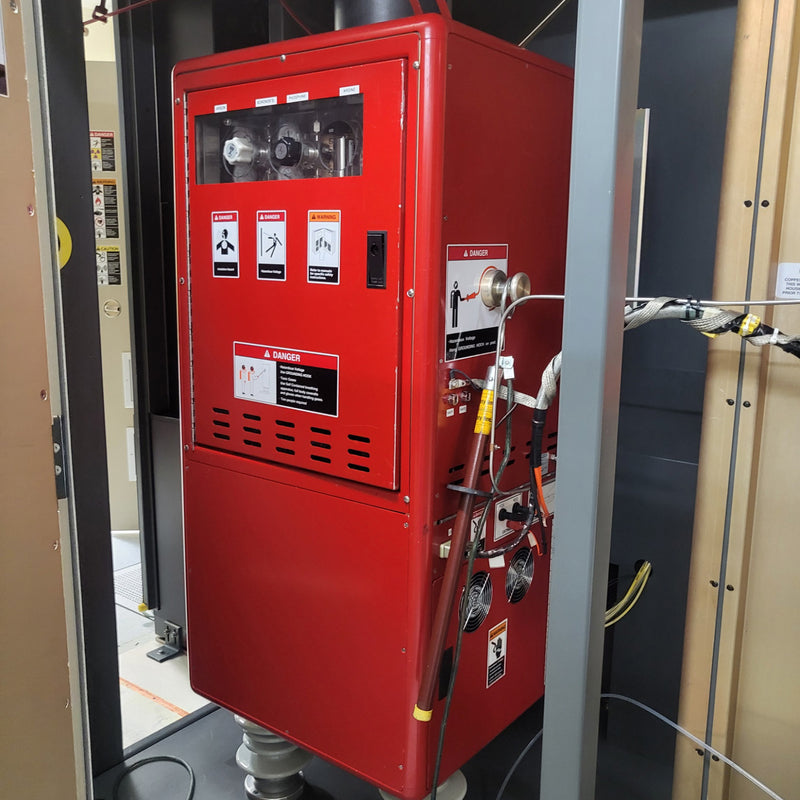

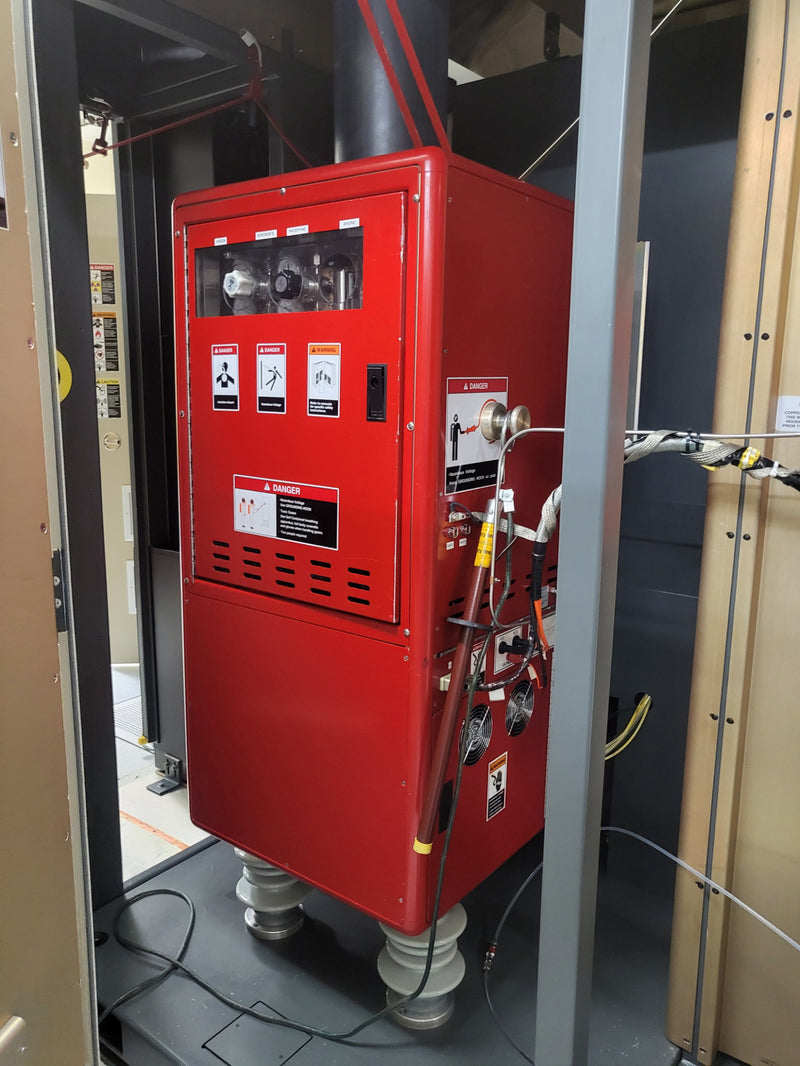

- Source Terminal

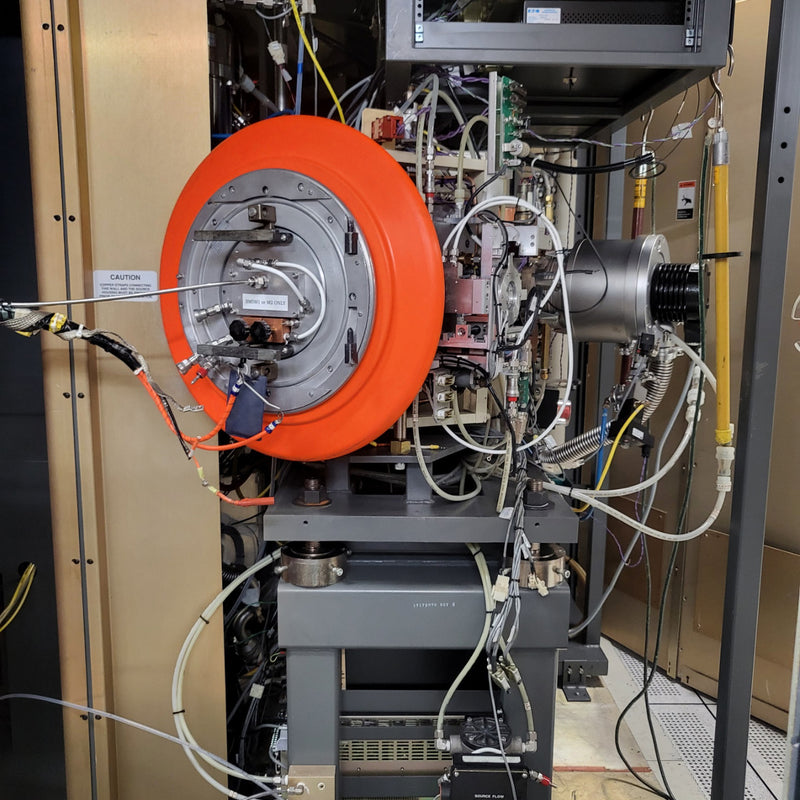

- Source Housing
- Analyzer

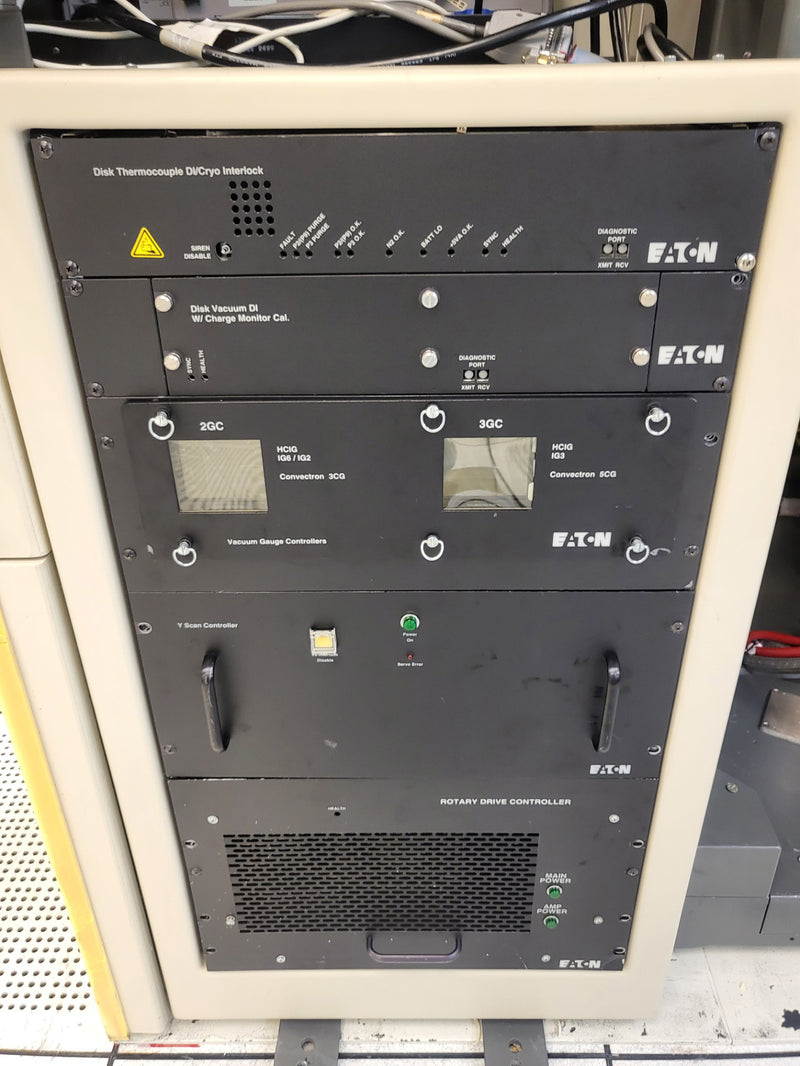

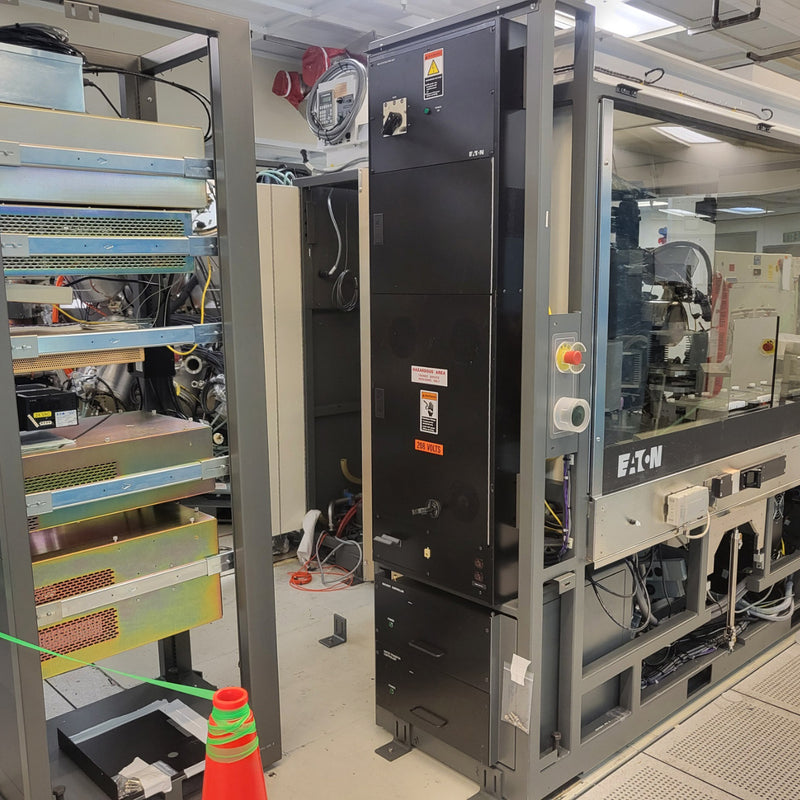

- Power racks (3)
- Gas Box: Argon, Arsine, Phosphine

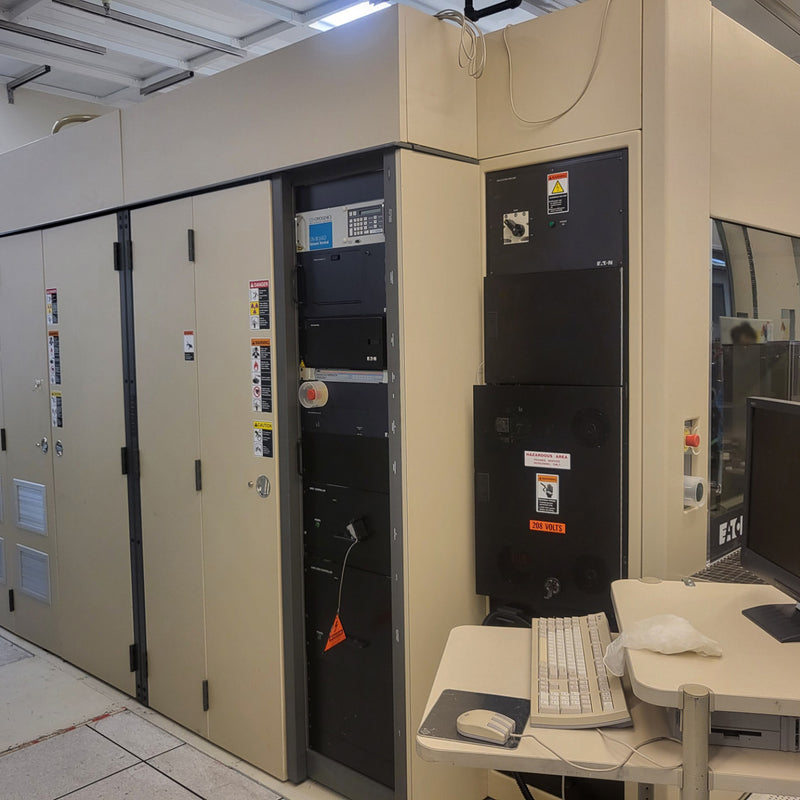

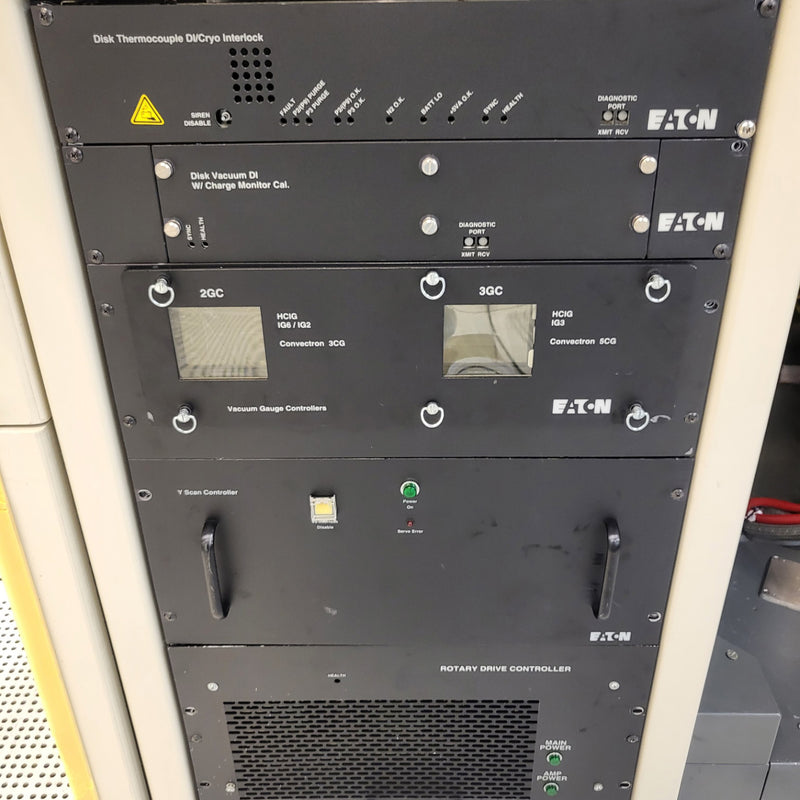

- PC & Monitor Rack

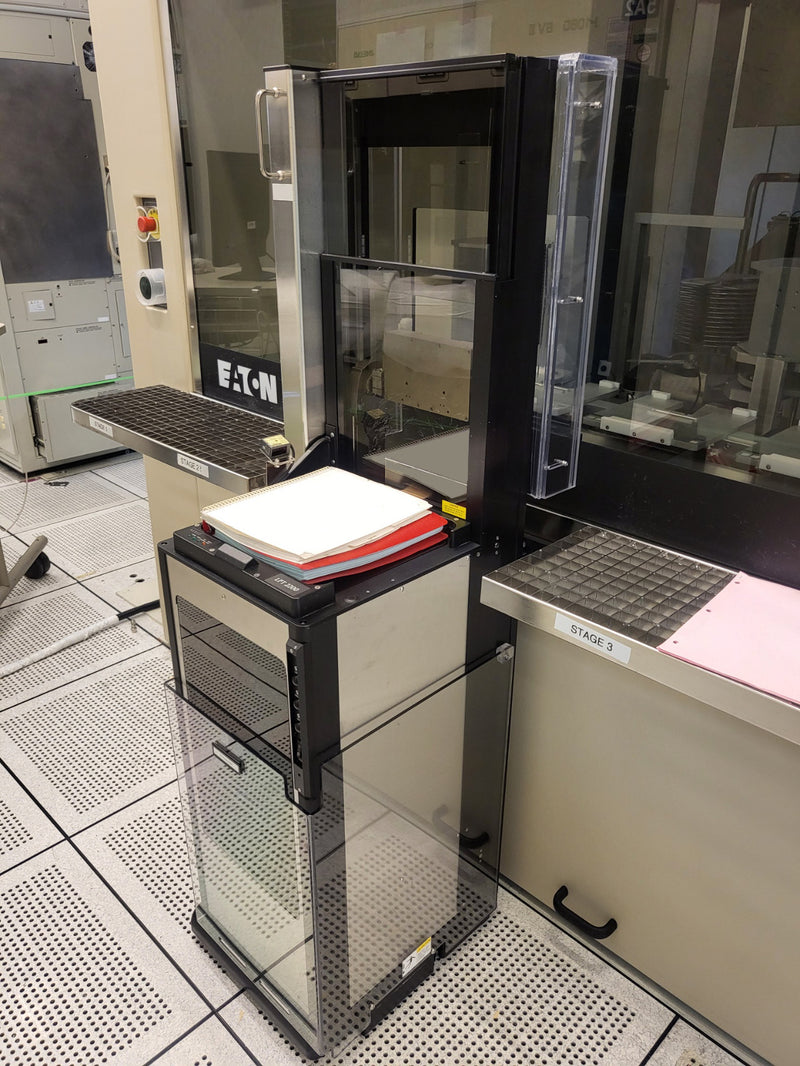

- SMIF Interface
- Top Panels: 1 & 2
- Bottom Plate

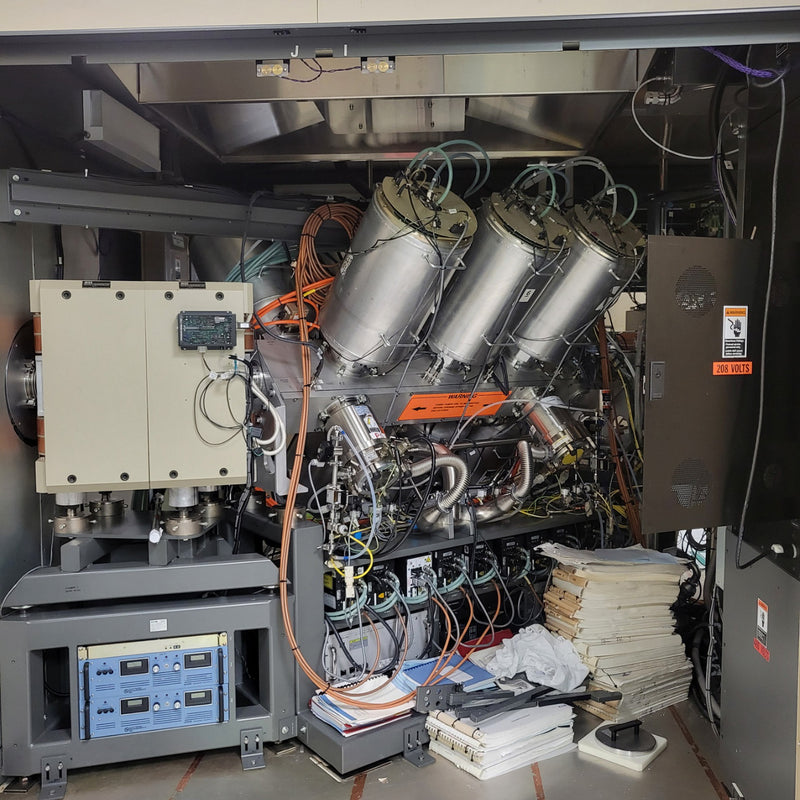

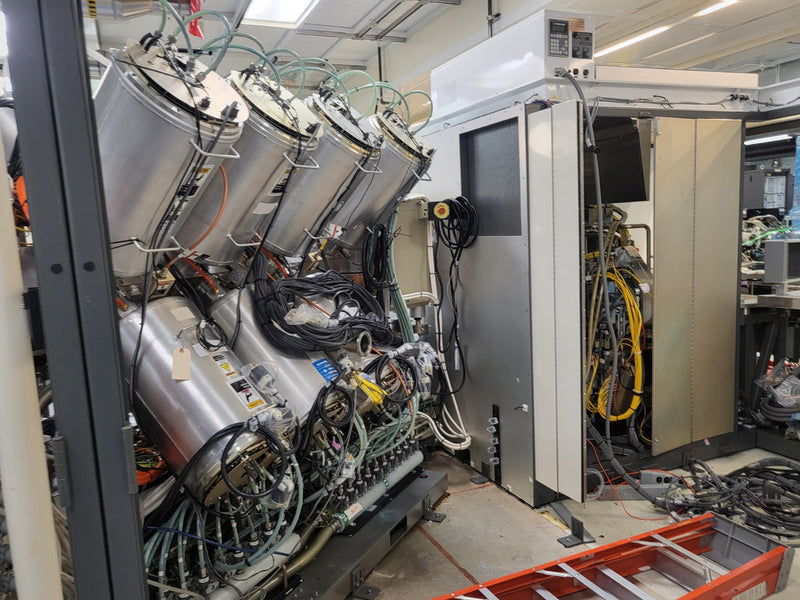

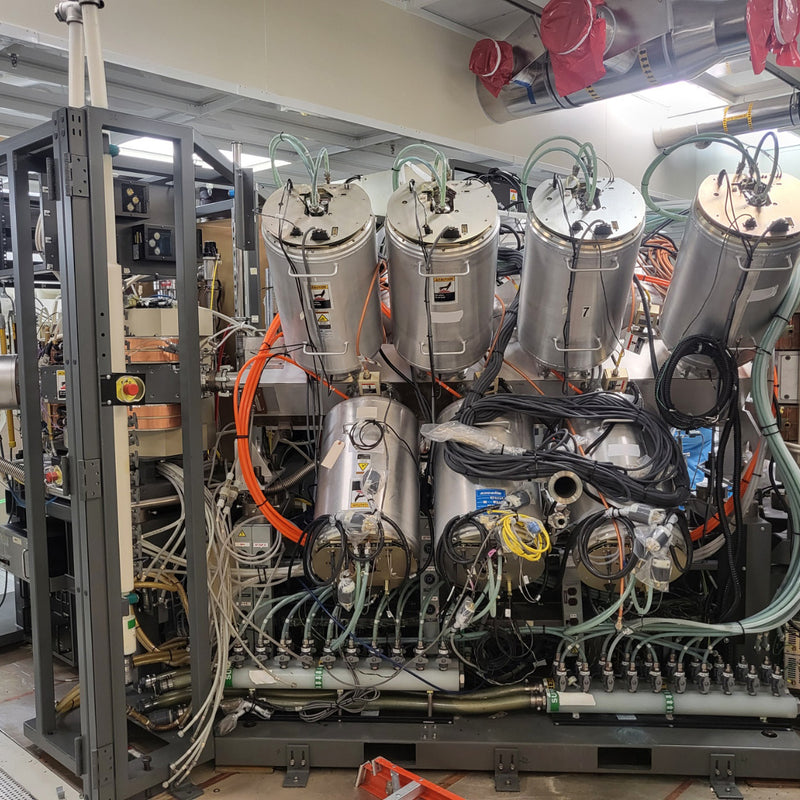

Vacuum & Cooling Equipment

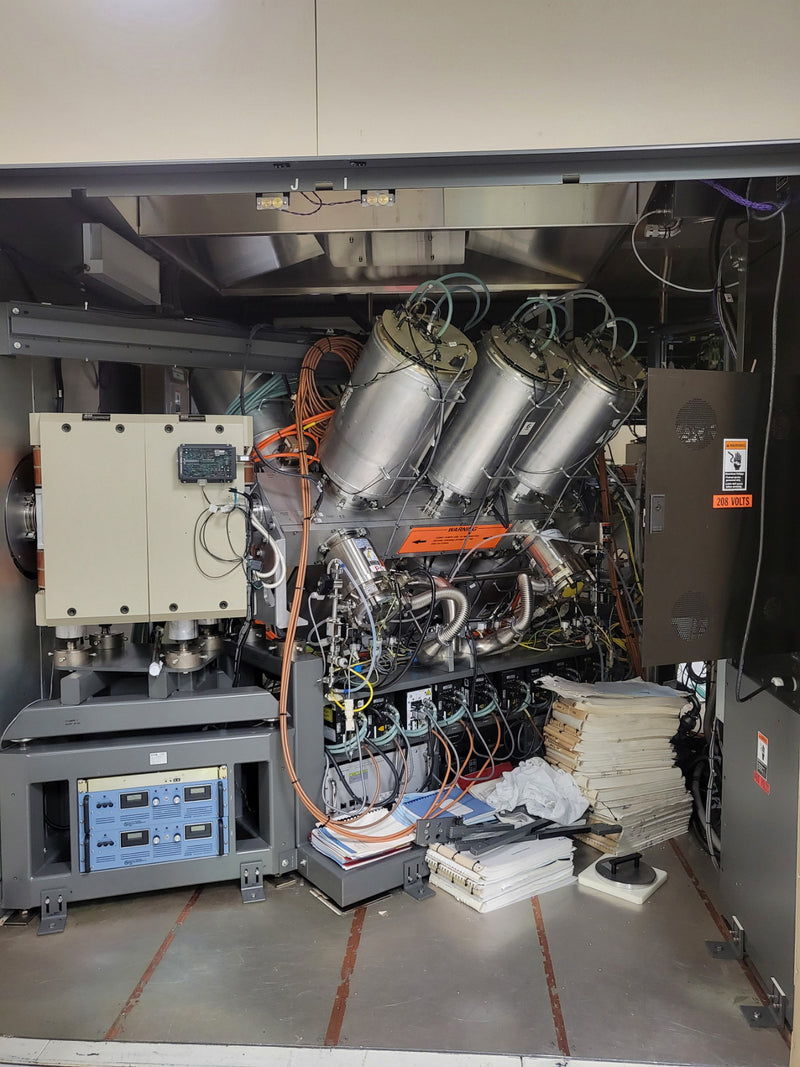

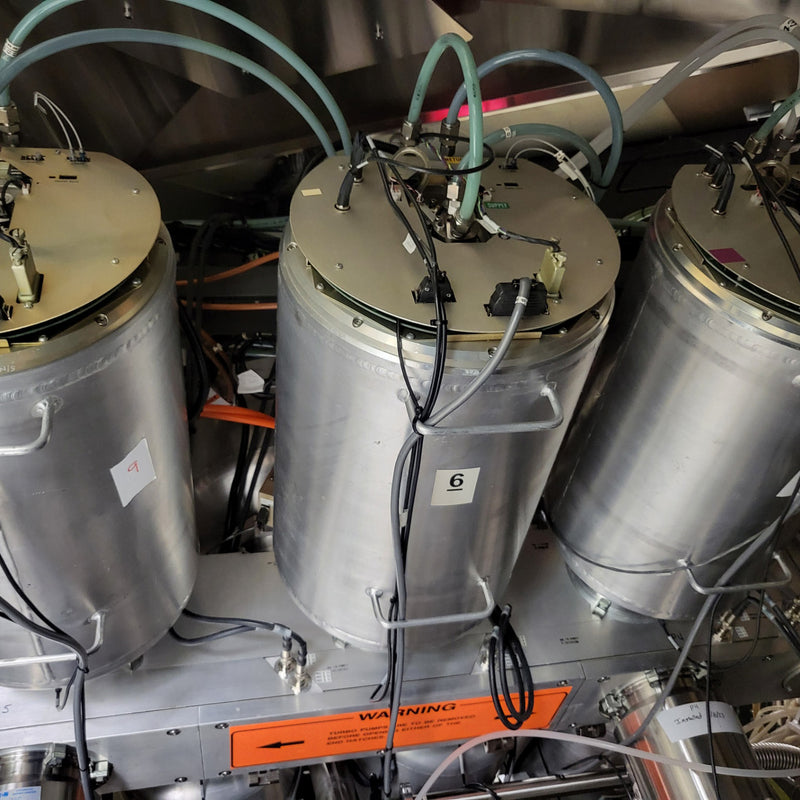

- Cryo Pumps: CTI On-Board 250F, CTI On-Board 10, CTI On-Board 8
- Compressor: CTI 9600 (2)
- Turbo Pump: Leybold 75 M
- Chillers: Affinity RWA-012J-BE03CB, Affinity CWA-200LM-015CBD
Palletized Items
- End Station Door
- Terminal Door, Hoses, Cables
- Top Plate

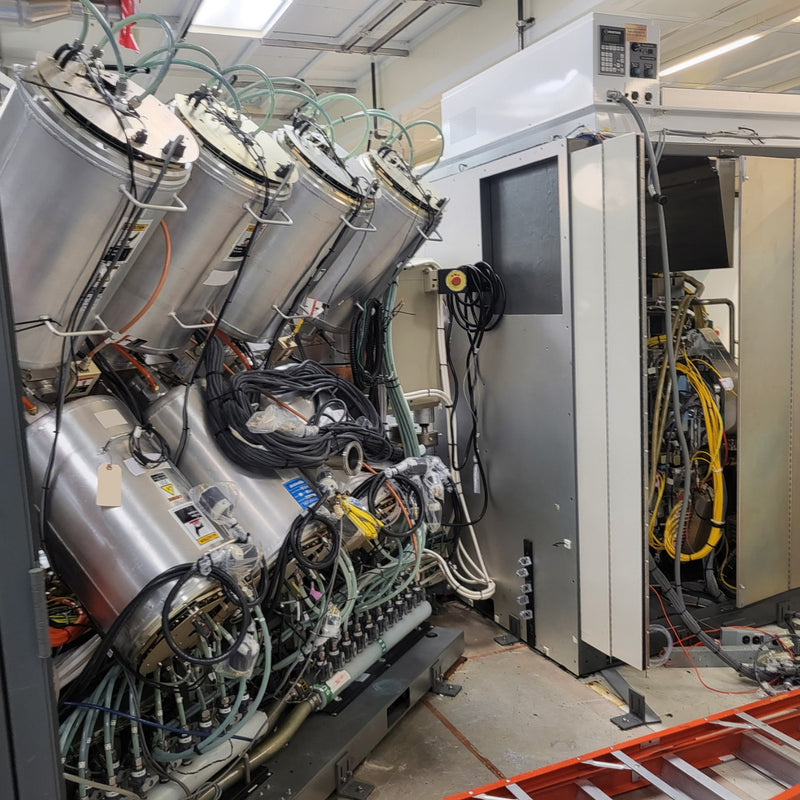

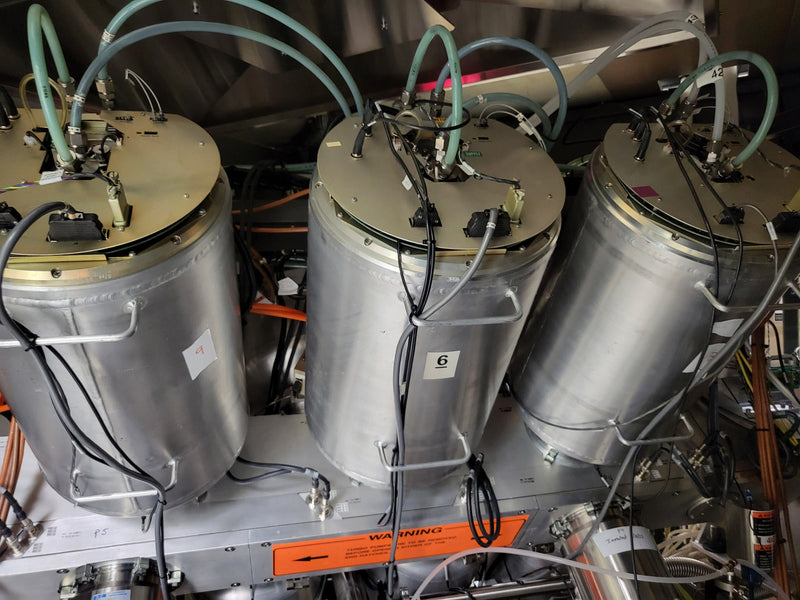

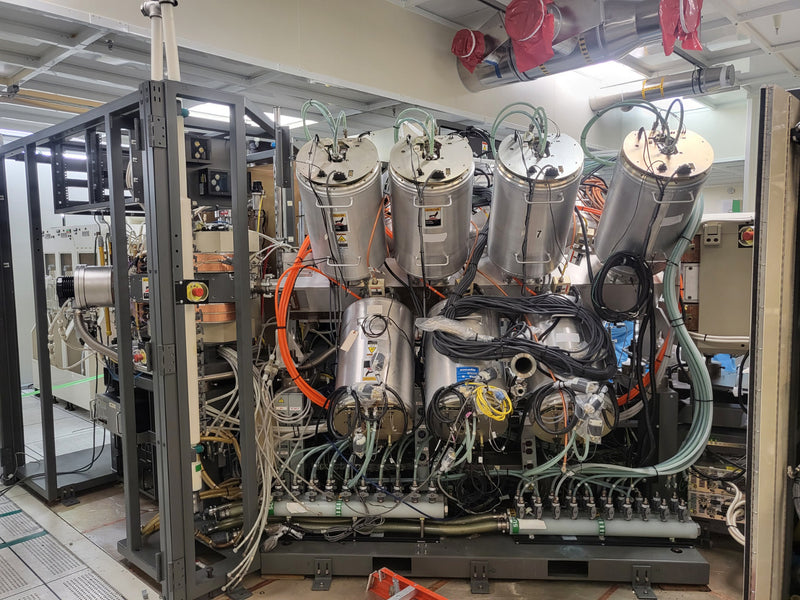

- Generators, Stack
- Beam Door
- Door, Filter
- Lamp, Filter
- Compressor
- Manuals, Accessories, Misc. Parts
1999 Vintage
