Asset #: 76785

Make: Nikon

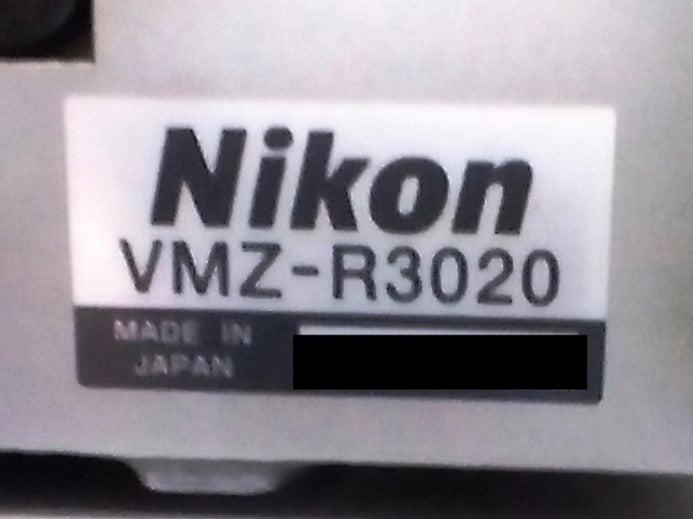

Model: VMZ R 3020

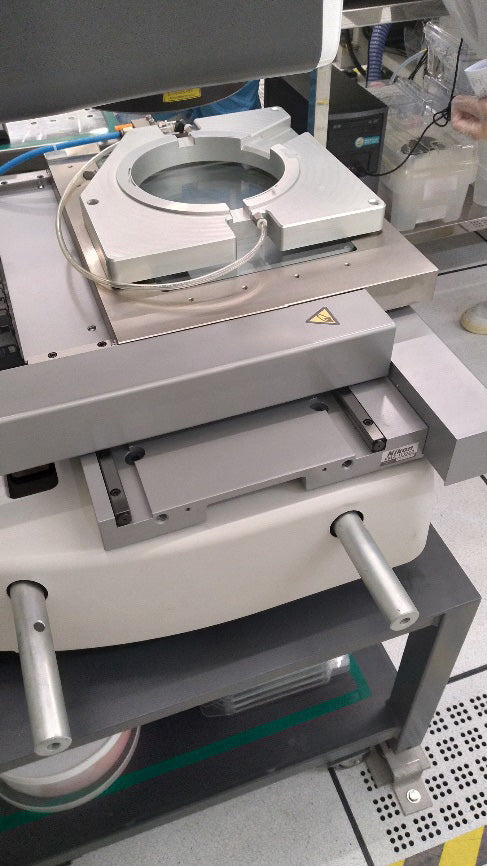

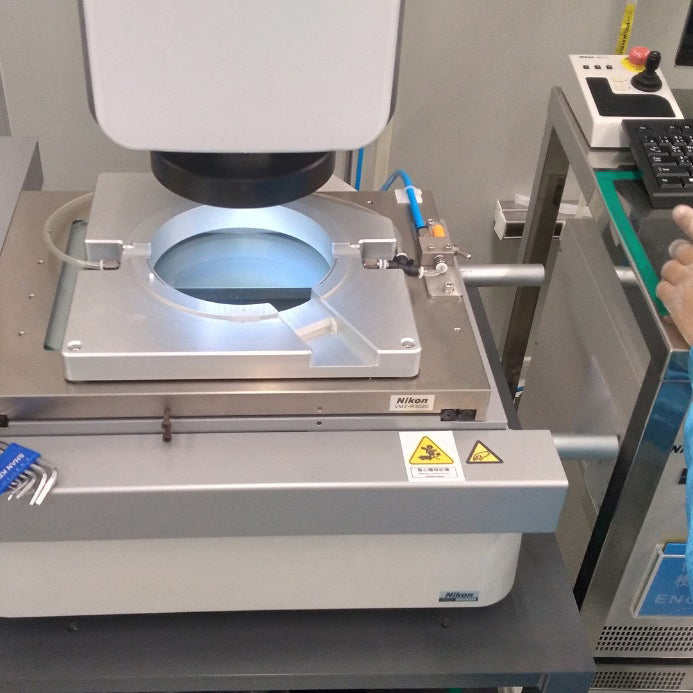

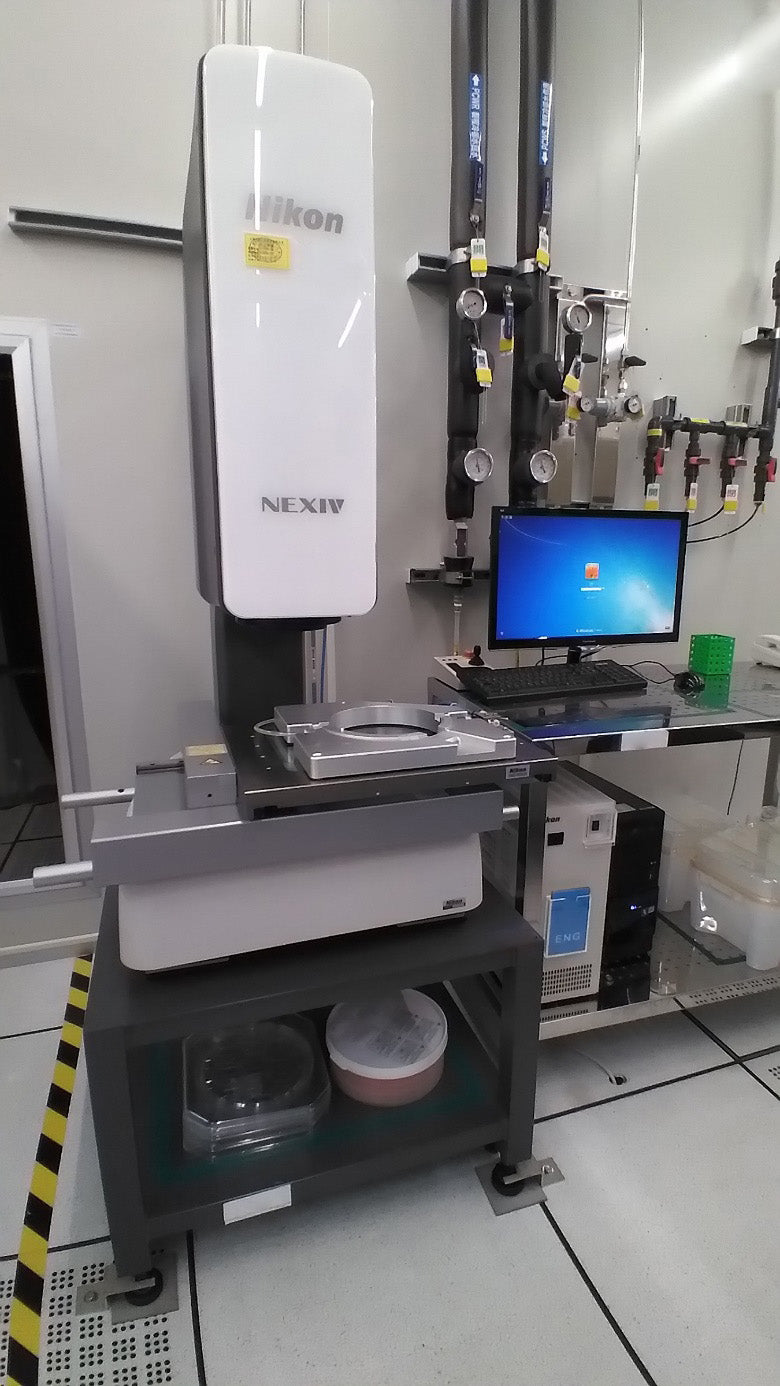

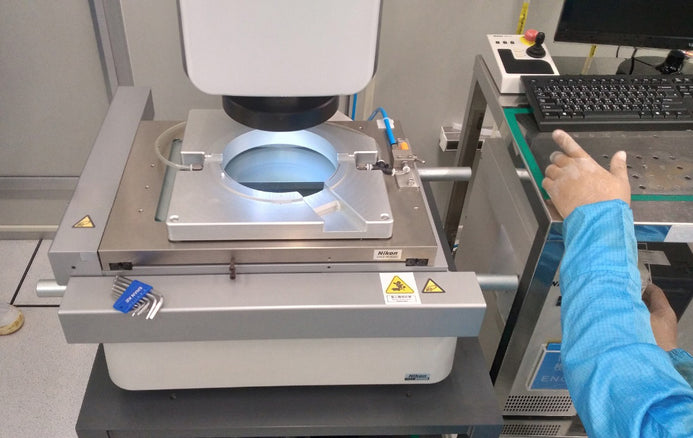

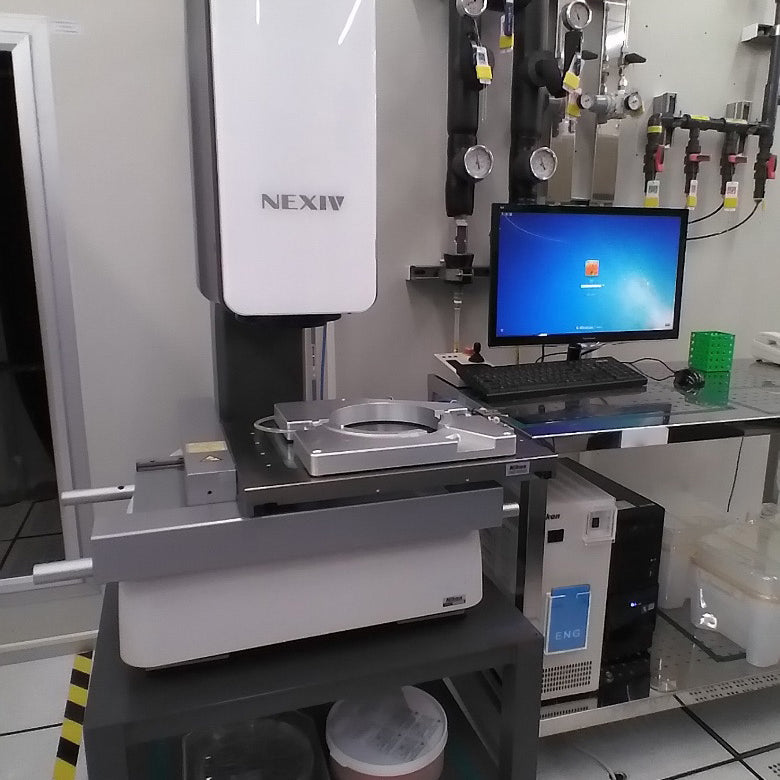

Nikon VMZ R 3020 CNC Video Measuring System
- Stroke (X x Y x Z): 300 x 200 x 200 mm
- Measurement Accuracy:
- (XY 1 axis) 1.2 + 4L / 1000μm
- (XY 2 axis) 2.0 + 4L / 1000μm
- (Z axis) 1.2 + 5L / 1000μm
- Auto Focus: Laser AF, Image AF (* If Type A selected, Laser AF is optional)

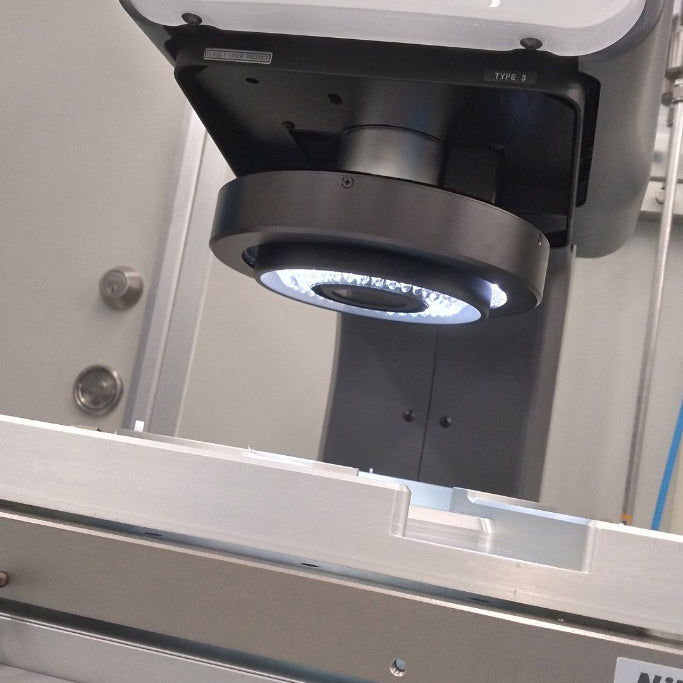

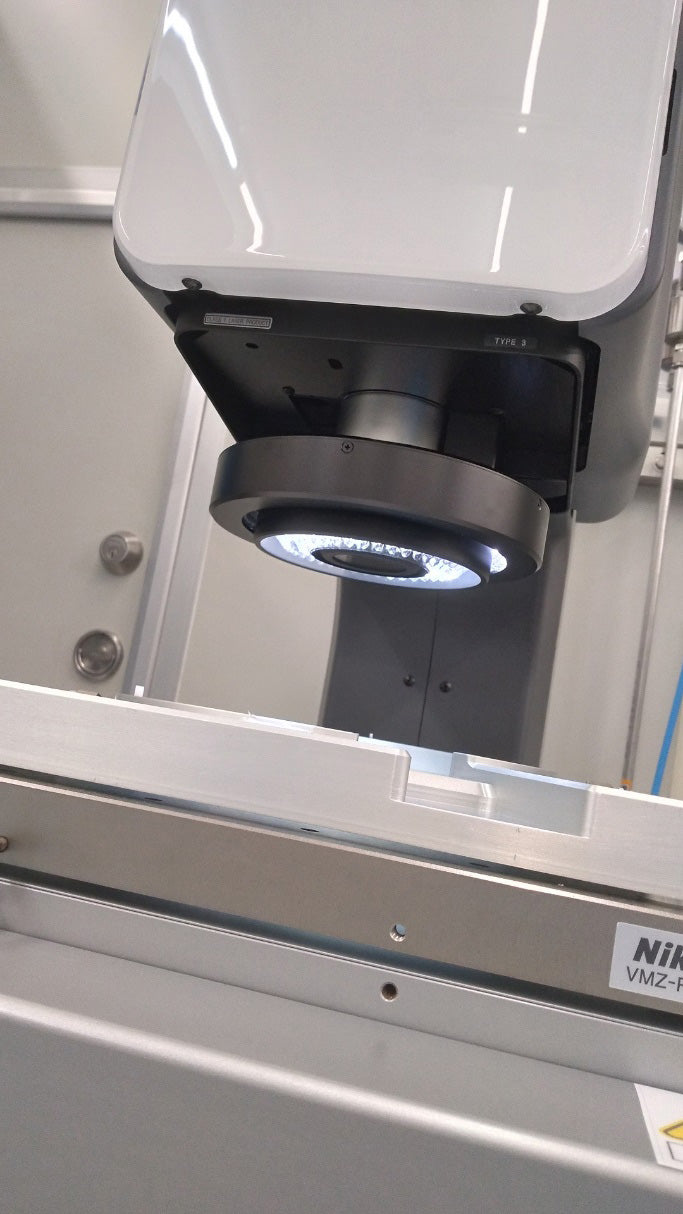

- Illumination: Diascopic, Episcopic, 8-segment LED ring illumination (3 incident angles)
- CCD Camera: B&W 1/3 CCD·Color 1/3 CCD (Color: type 1, 2 and A only)
- Magnification / Field of View:
- Type 1: 0.5 - 7.5x · 9.33 x 7 - 0.622 x 0.467 mm
- Type 2: 1 - 15x · 4.67 x 3.5 - 0.311 x 0.233 mm
- Type 3: 2 - 30x · 2.33 x 1.75 - 0.155 x 0.117 mm
- Type 4: 4 - 60x · 1.17 x 0.875 - 0.07 x 0.068 mm
- Type TZ: 1 - 120x · 4.67 x 3.5 - 0.039 x 0.029 mm
- Type A: 0.35 - 3.5x · 13.3 x 10 - 1.33 x 1 mm
- Guaranteed Loading Capacity (Weight): 20 kg
- Power Source: AC100 - 240V, 50 / 60Hz
- Power Consumption: 5-2.5A
2015 Vintage
