Asset #: 76725

Make: Axcelis

Model: NV 8200

Wafer Sizes: 8 inch

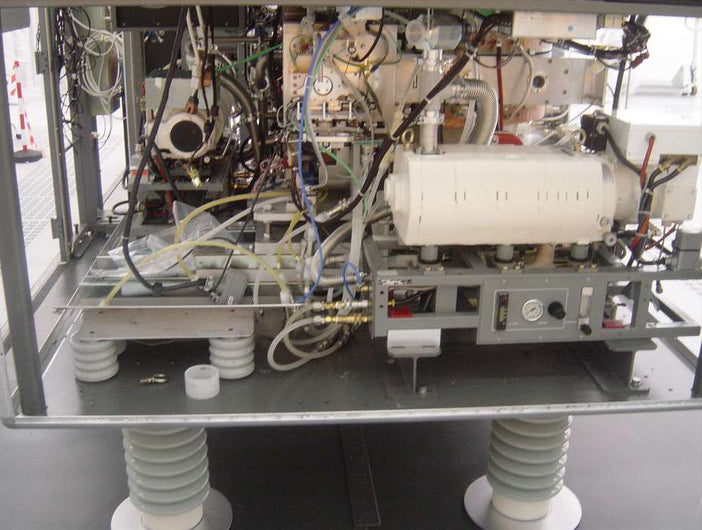

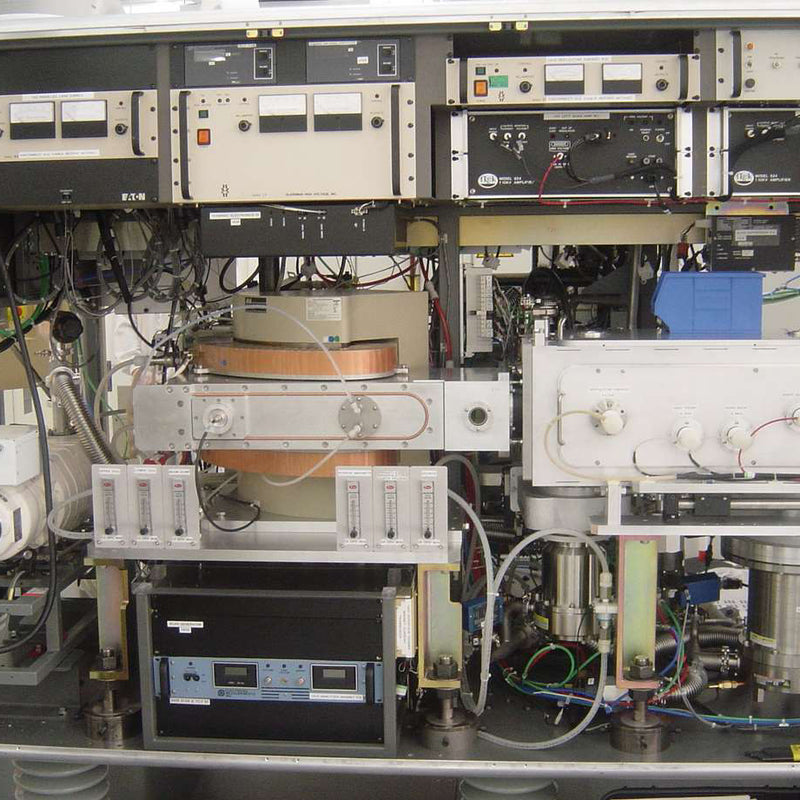

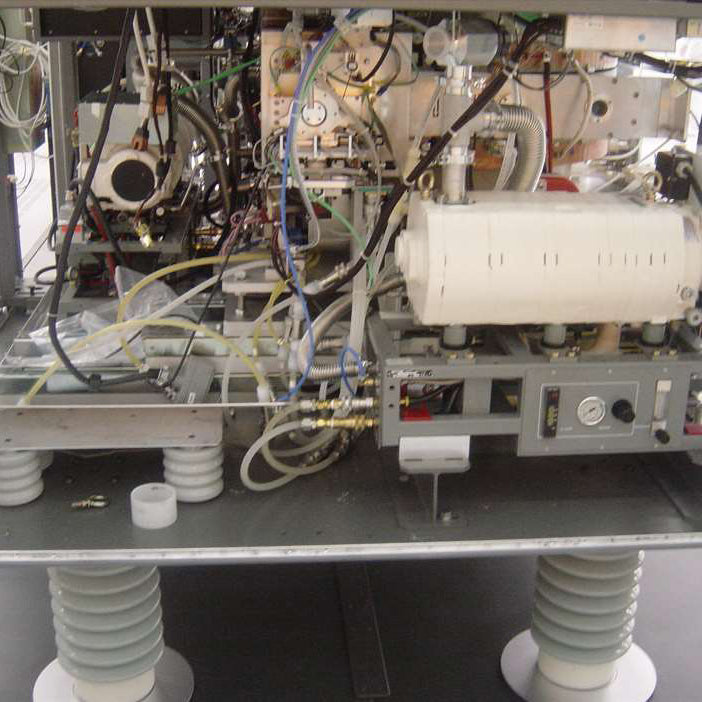

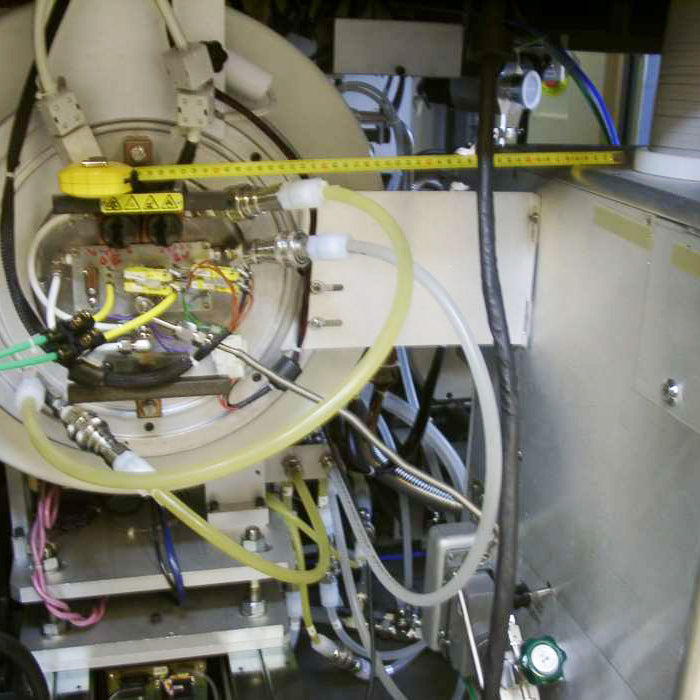

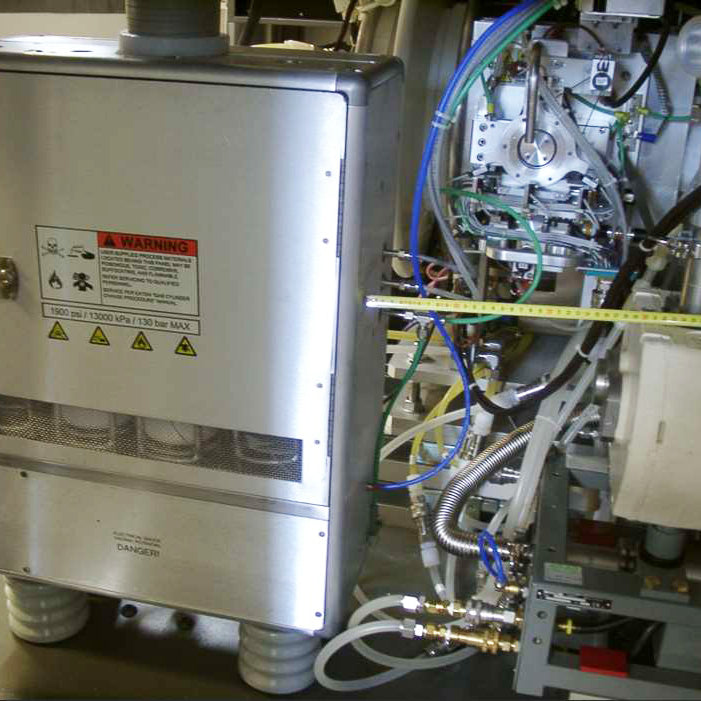

Axcelis NV 8200 Implanter, 8"
- Energy config.: from 3 to 250keV (single); up to 750 keV (triple)
- Wafer size 200mm with holders for different wafers sizes
- Dose: > 1E11at/cm²
- Beam current: I < 1mA
- Gas lines:
- 4 process gas lines (BF2/PH3/AsH3/Hydrogen)
- 1 gas line (Argon)
- Ion sources: 3 ion sources with dual vaporizer on each source
- Magnet: Dipole magnet 90° - Buckley Systems – de 0 a 75 AMU in full charge
- Target positioning/ scanning system:
- Parallel beam
- Electrostatic angle correction programmable
- Tilt 0°-60°

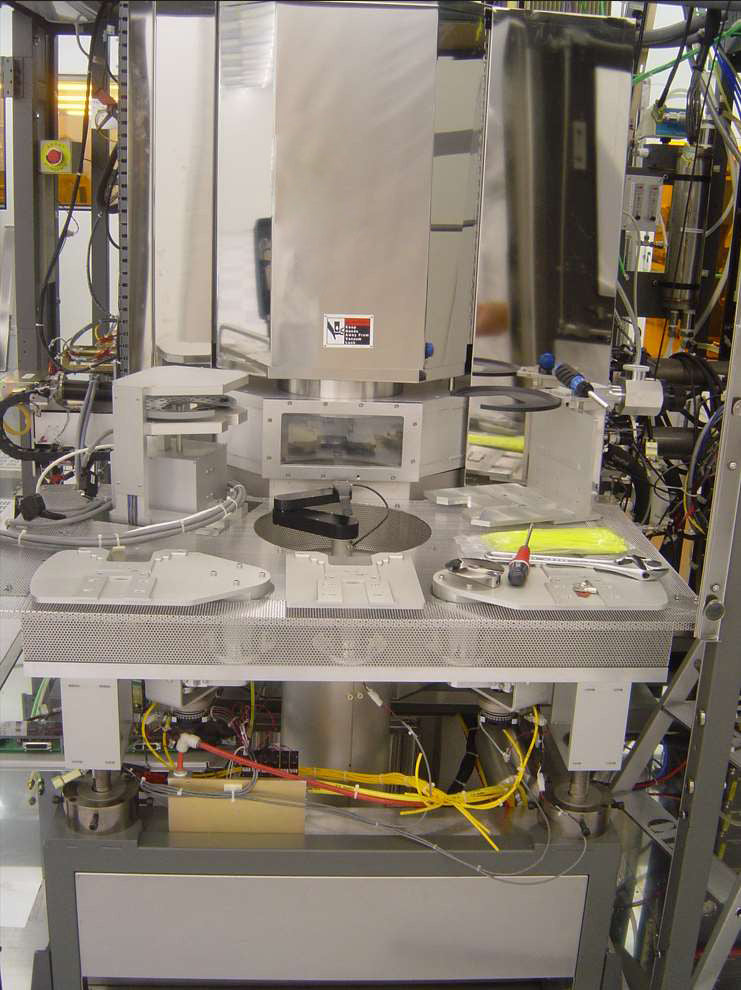

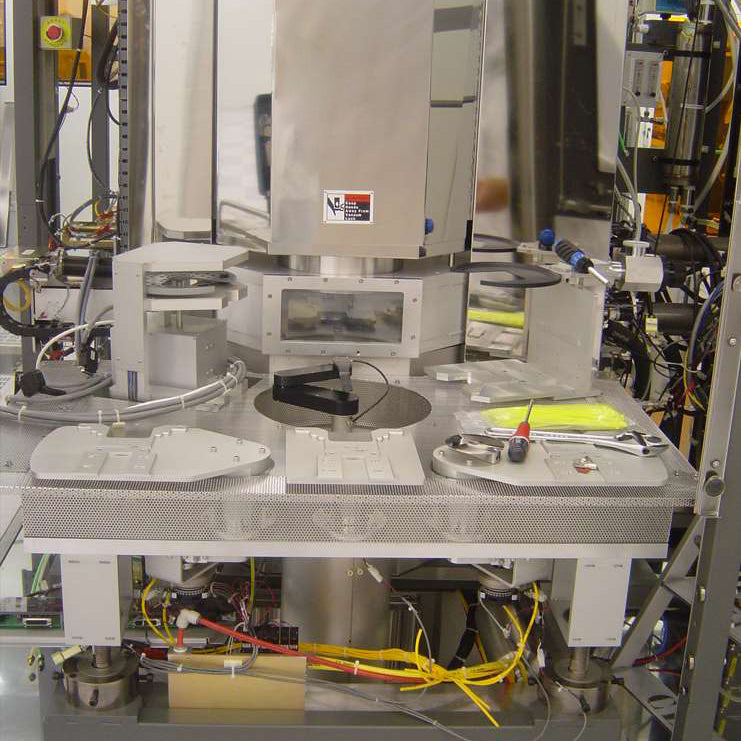

- End station:
- Flat/notch alignment with buffet cassette (3 cassette positions)
- 3 axis robotic
- Pick & Place system
- Cryo compressor: CTI Cryogenics 9600
- Turbo pumps:
- Edwards STP 1003C for Source
- Pfeiffer HiPace 300 + Pfeiffer TPH 1201 P for Beam Line
- Rough pumps:
- Adixen A 103 P for Source
- Adixen A 103 P for Beam Line
- Alcatel/Adixen ADS 602 P for End Station
- Clamp type: Electrostatic clamp
- Soft: SPARC V
- Non-functional modules: PC remote
1996 Vintage
