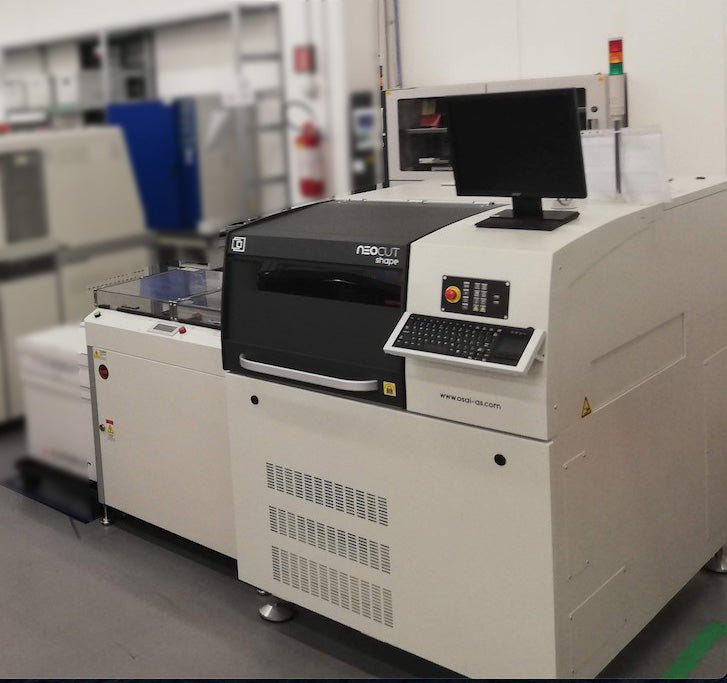

OSAI NeoCut Shape Laser Cutter
OSAI NeoCut Shape Laser Cutter

OSAI NeoCut Shape Laser Cutter

Asset #: 76650

Make: OSAI

Model: NeoCut Shape

Last Confirm Date: February 14, 2024

OSAI NeoCut Shape Laser Cutter
Laser:
- Source: ND: Yag laser 20W max
- Power modulation per area
- Integrated air cooling
- Galvo head with 2 axes dynamic motors
- Z axis
- Min. spot dimension 40 um
Input mode - Conveyor:
- automatic width adjustment from 50-480 mm.
- Mechanical system used stop the pallet into the cutting area.
- Sensorized busy machine
- SMEMA compliant
- Possible to use pallet up to 4 mm thickness.
Productivity:
- Product to work: Generic PCB
- Cycle time: According to
- Fiducial inspection: 1,5 sec
- Dm inspection: 0.8 sec / DM
- Marking Cycle time:
- Step 20 units/ marking : 6,2 sec
- Transfer time from one area to the next : 0.8 sec
- Total estimated time: 27,2 sec
- Cutting cycle time:
- Step of 20 units / cutting : 42 sec
- Transfer time from one area to the next: 0,8 sec
- Total estimated time: 170.4 sec
Total : marking time + cutting time + fiducial + axis transport + loading/unloading
- 210 sec ( DM inspection excluded)
- 270 sec ( All DM inspection included)

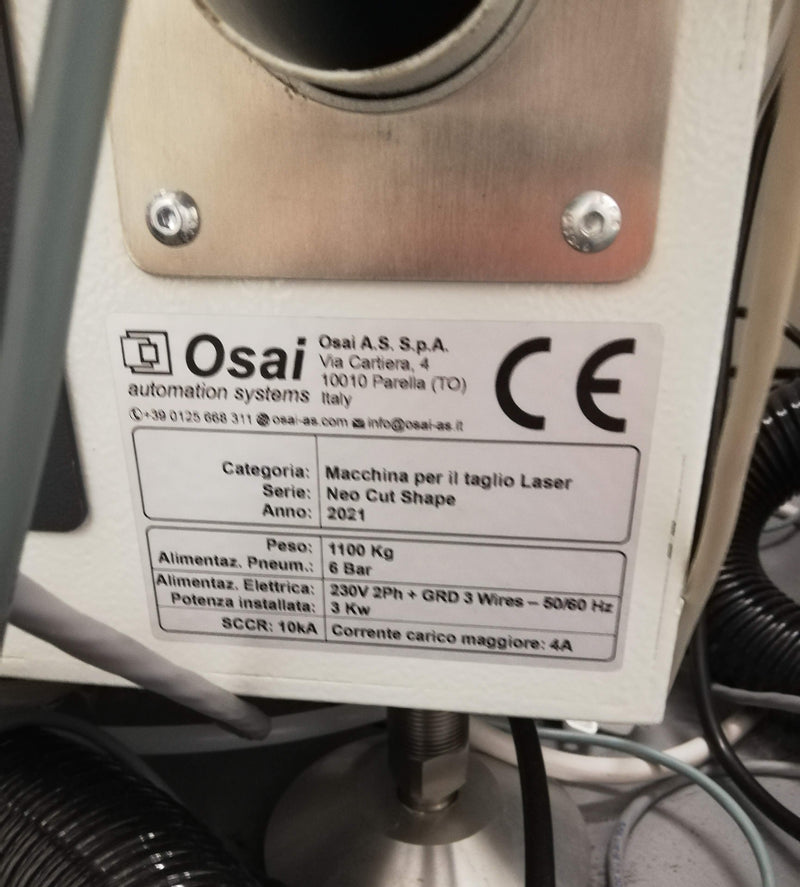

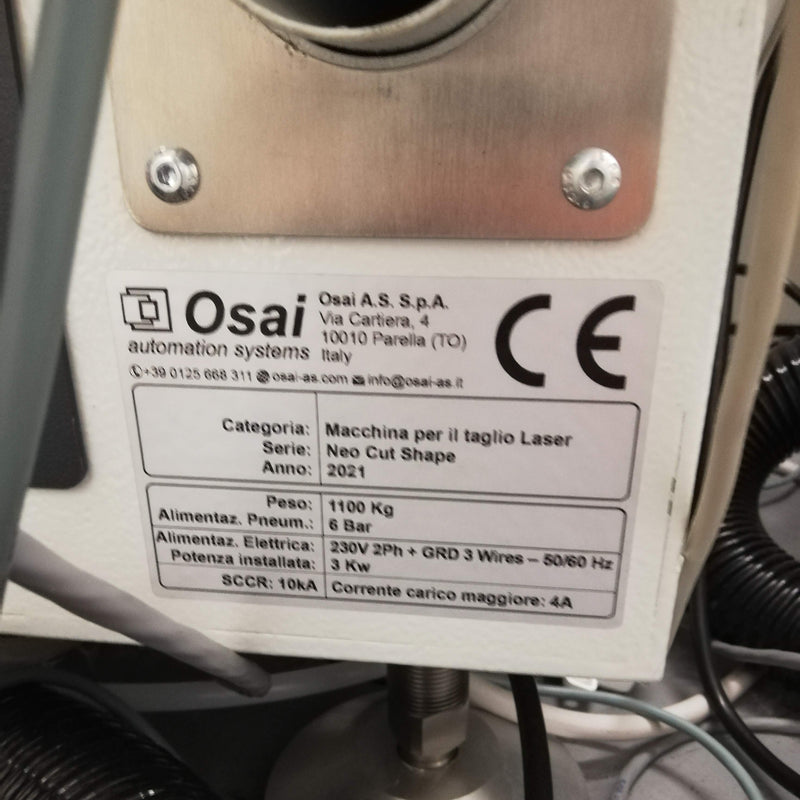

2021 Vintage
