Asset #: 74771

Make: Teradyne / Nextest

Model: Magnum V GV VP

Last Confirm Date: June 26, 2025

Inquire

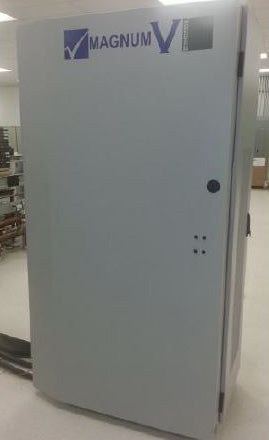

Teradyne / Nextest Magnum V GV VP Memory Test System

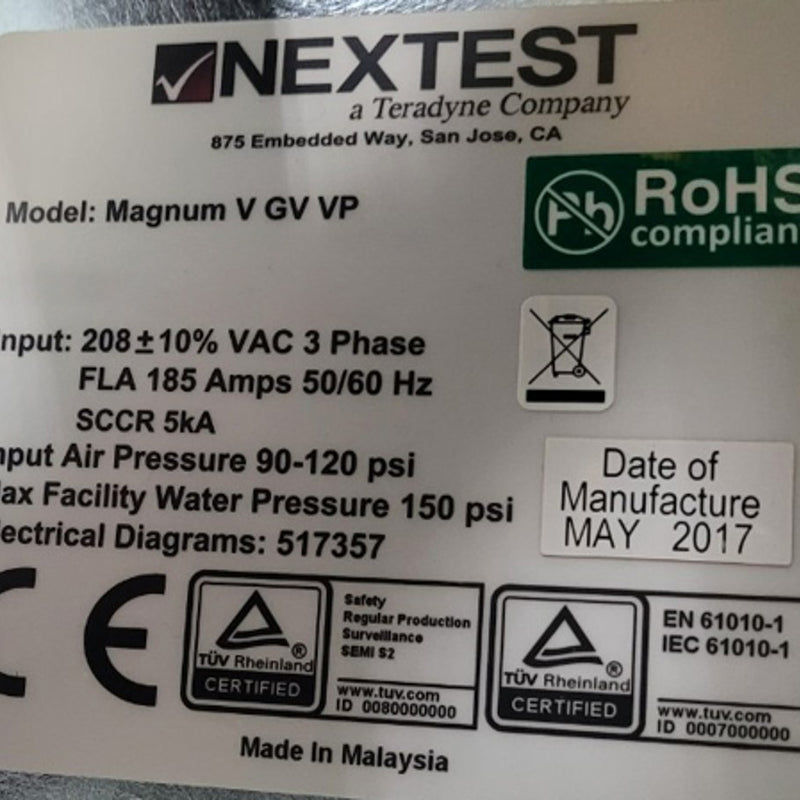

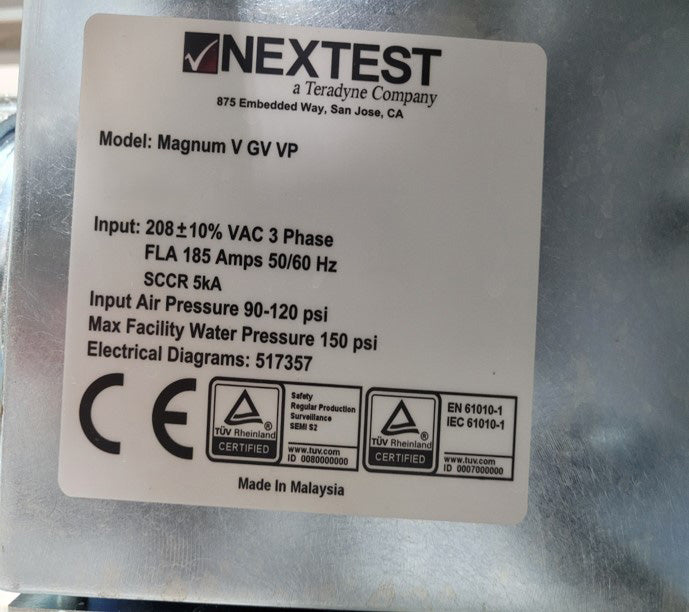

- 208 VAC, 3 Phase

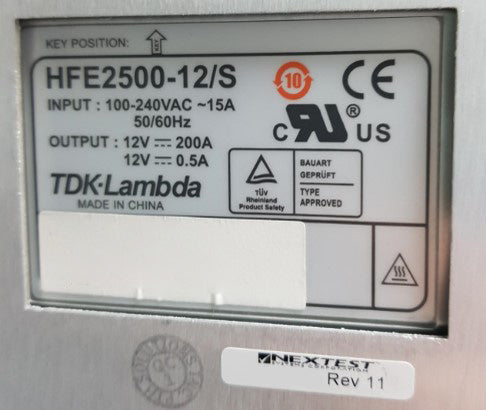

- 24 power supplies
- FLA 185 Amps, 50/60Hz
- SCCR skA
- Input Air Pressure 90-120 psi
Software:
- Common API, tools, and SW feature set with Magnum, Magnum 2, Magnum 2x, and Magnum V
- Magnum V SW release is a superset of Magnum 2x functionality
- Magnum 2x progrmas can be ported to Magnum V
New Development Environment:
- Windows 7 for off-line Development
- Windows Server 2012 for Host PC
- Windows 7 embedded for site controller
-Microsoft Developer Studio 2010 for program development
New API for New Magnum V Features

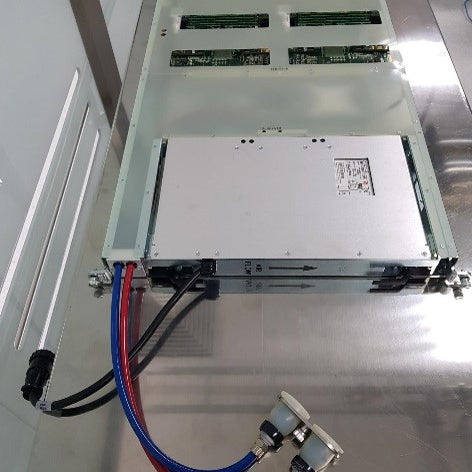

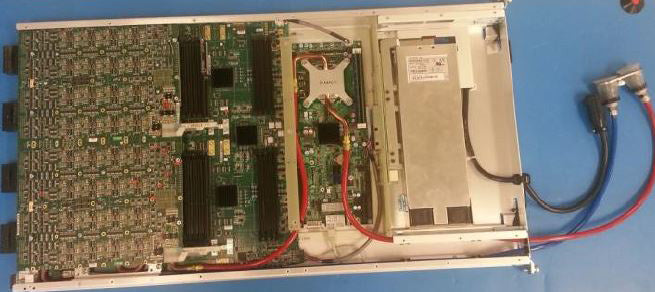

Each Site Assy Contains:
- 2x PE256
- 512 PE channels
- 512 TG
- ECR/DBM/LVM DIMMs
- 2x DP4
- 64 or 128 DPS
- 64 or 128 HV
- 32 PMU
- 1x HSB
- CPU interface
- ECR DIMM extension option
- CPU Quad Core
- Power
- Cooling

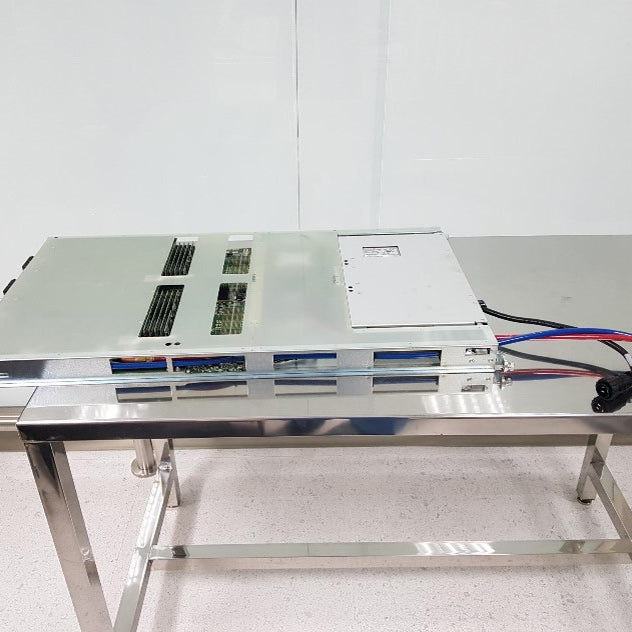

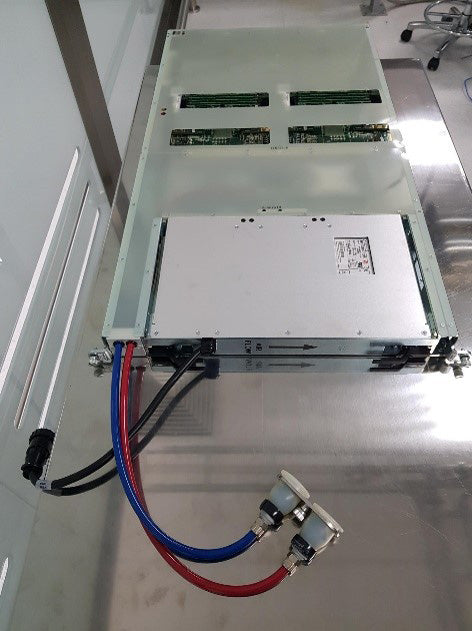

One Site Assy:
- 512 IO
- 64/128 DPS
- 64/128 HV
- 32 PMU
Magnum V Large Head:
- Double density site assembly: 512 I/O
- Up to 40 site assemblies
- Liquid cooled
- Modular slot architecture
- Site electronics
- CPU
- Power/cooling
- Memory DIMMs
- Direct TIU signals
- interchangeable DSA
Applications:
- eMMC
- Toggle NAND
- Legacy NAND
- ONFI FLASH
- MCP
- eMCP
- LPDDR2
- LPDDR3

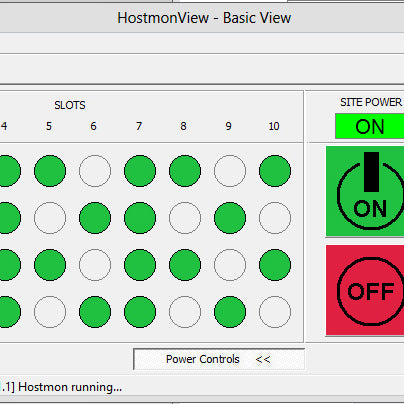

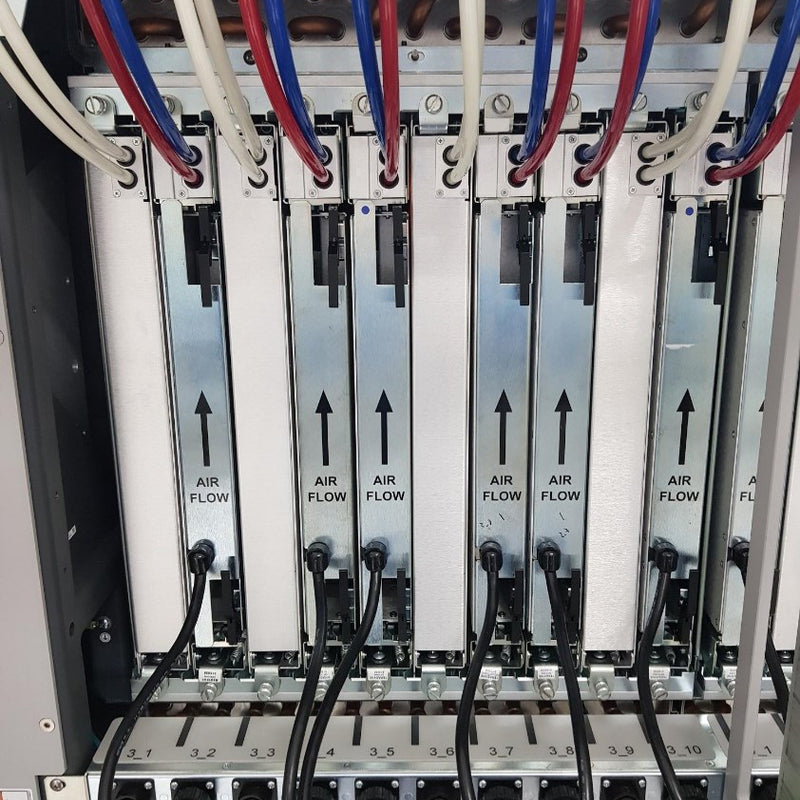

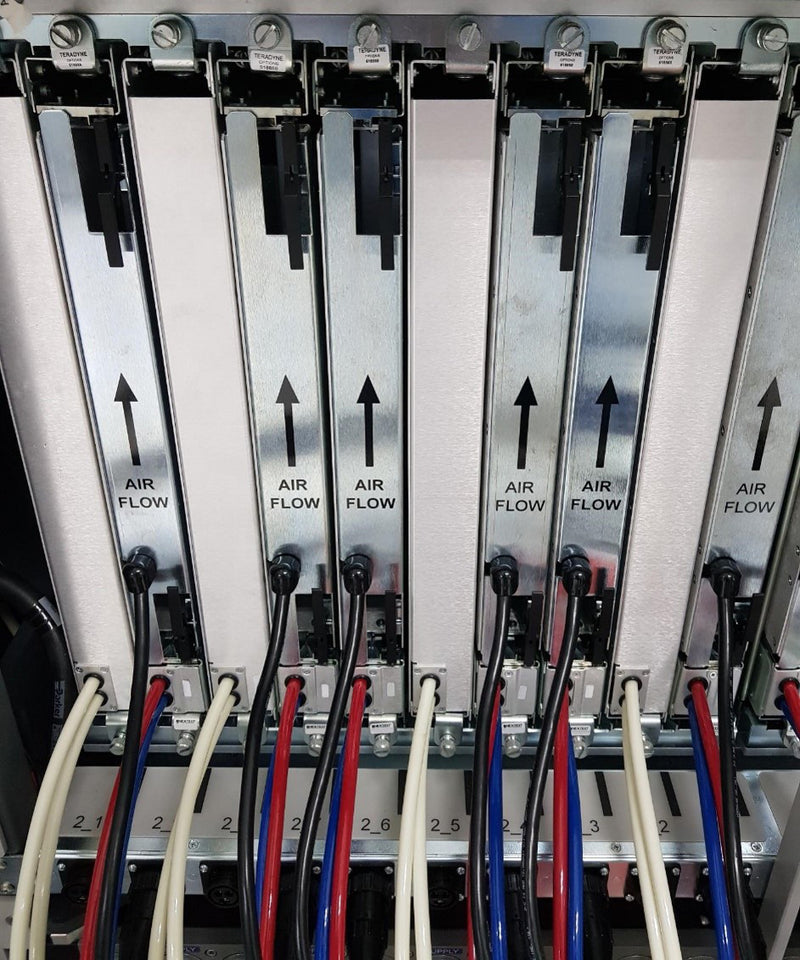

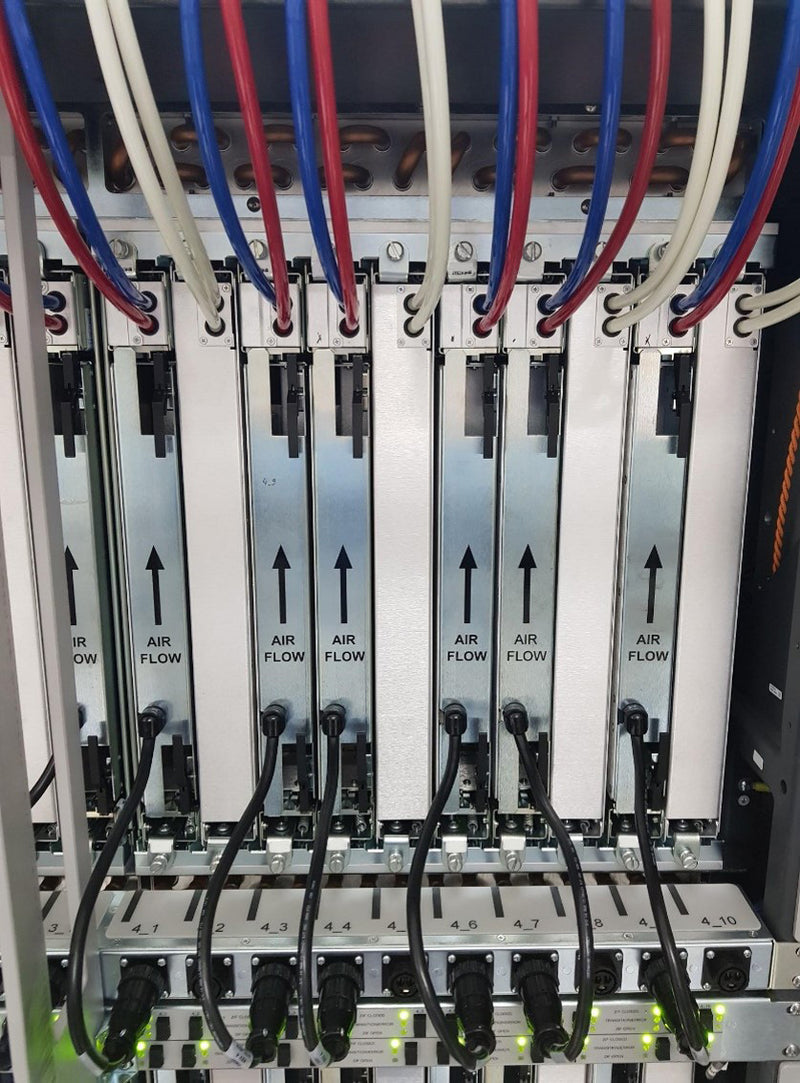

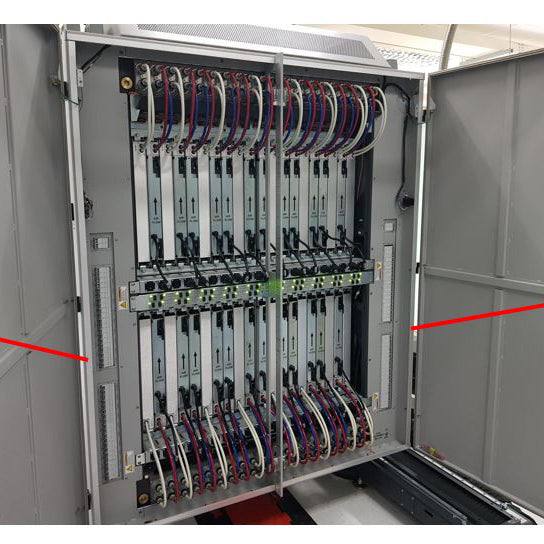

24 SA Boards / Sites:
- Site 1 Slots: 1.2, 1.4, 1.5, 1.7, 1.8, 1.10
- Site 2 Slots: 2.1, 2.3, 2.4, 2.6, 2.7, 2.9
- Site 3 Slots: 3.2, 3.4, 3.5, 3.7, 3.8, 3.10
- Site 4 Slots: 4.1, 4.3, 4.4, 4.6, 4.7, 4.9

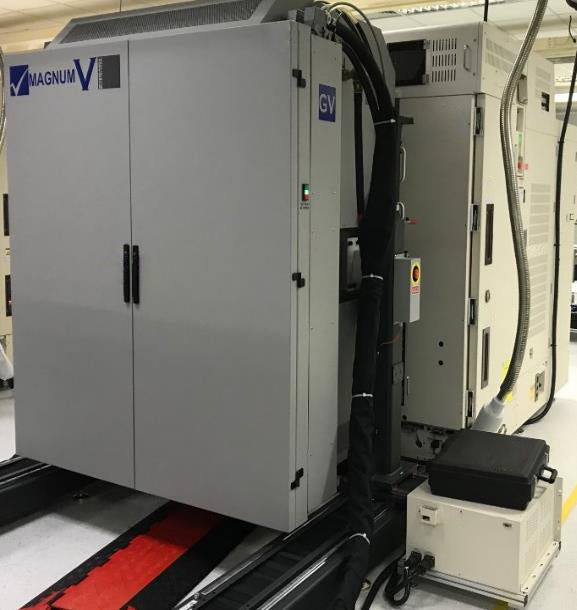

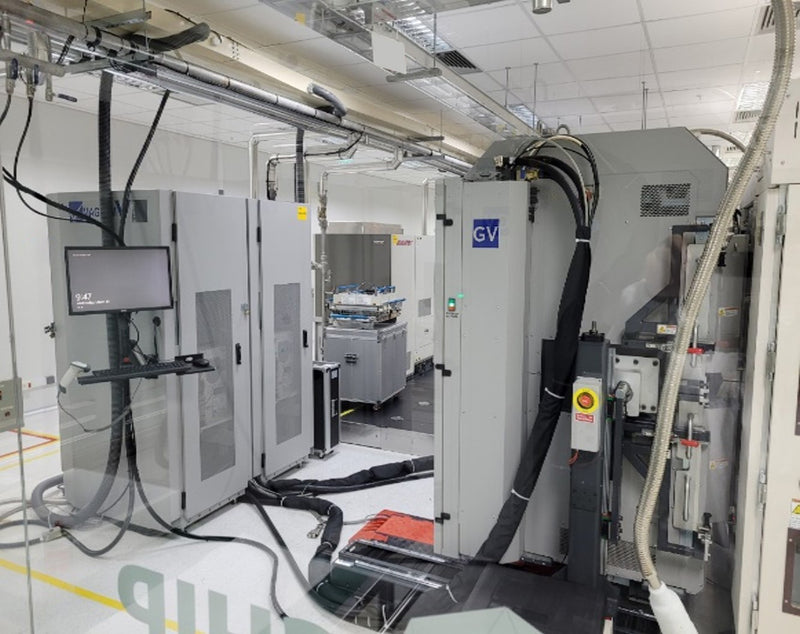

GV System:
- 20,480 I/O
- 5120 DPS
- 5120 HV/DC

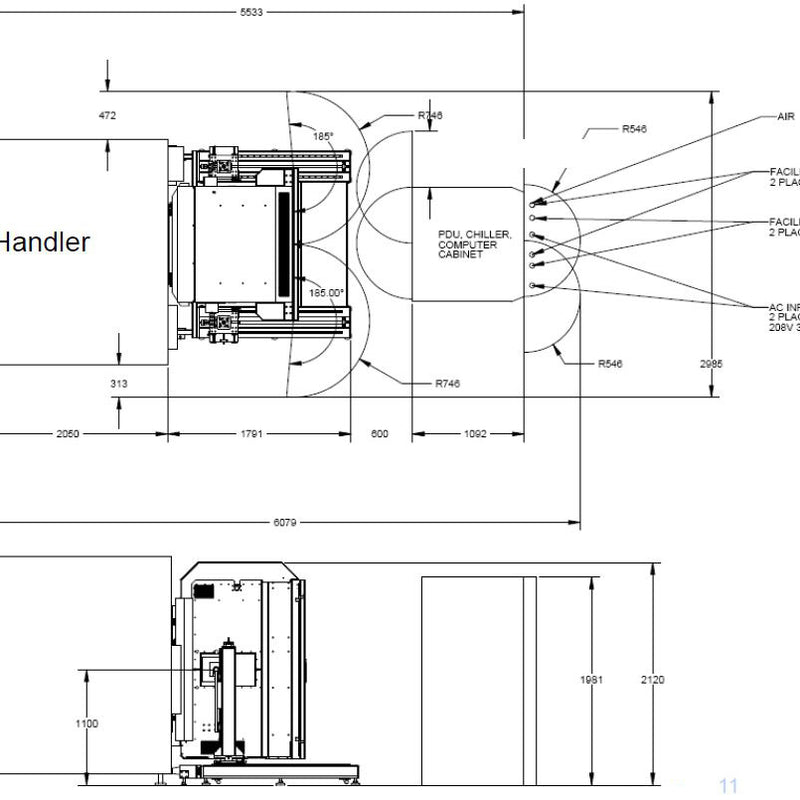

- Single Chassis, Dual support cabinet
- Multiple handlers / TIU / DSA solutions
Magnum V EV
- 1 or 2 slot
- 512 or 1024 IO pins
- 64/128 or 128/256 DC/HV pins

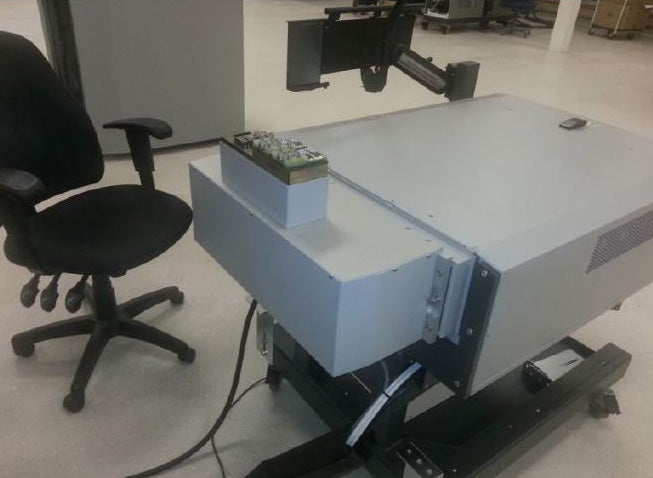

Magnum V EV: Engineering system and Support Cabinet
- Small footprint for engineering lab
- Uses same DSA as production systems
- Low height support ThermoSystem
- 1-4 EV Systems per support cabinet
TW 350 DSA
- up to 16
- 1 to 4 sites
- 512 to 2048 IO

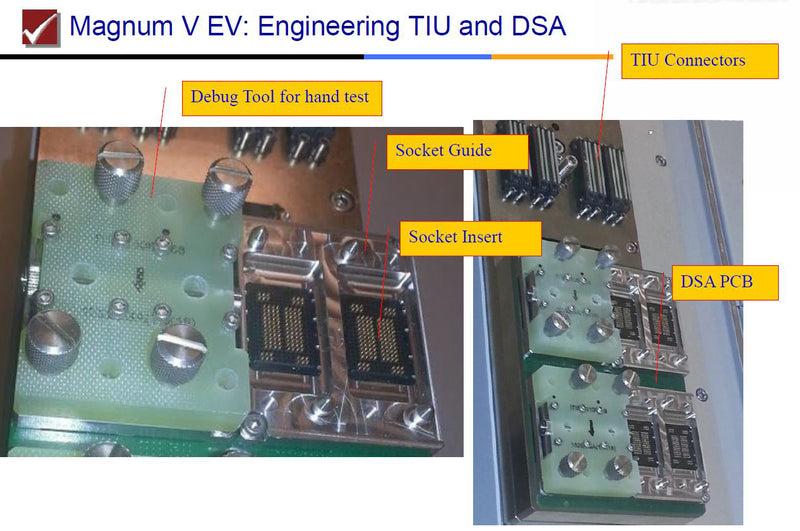

TW 350 TIU
- 2 per system
- Up to 512 per system
- 8 to 32 site assys (4096-20, 480 I/O)
- 16 DSA per TIU
- GV or SSV system models
Universal TIU and Interchangable DSA Socket Boards
2017 Vintage
