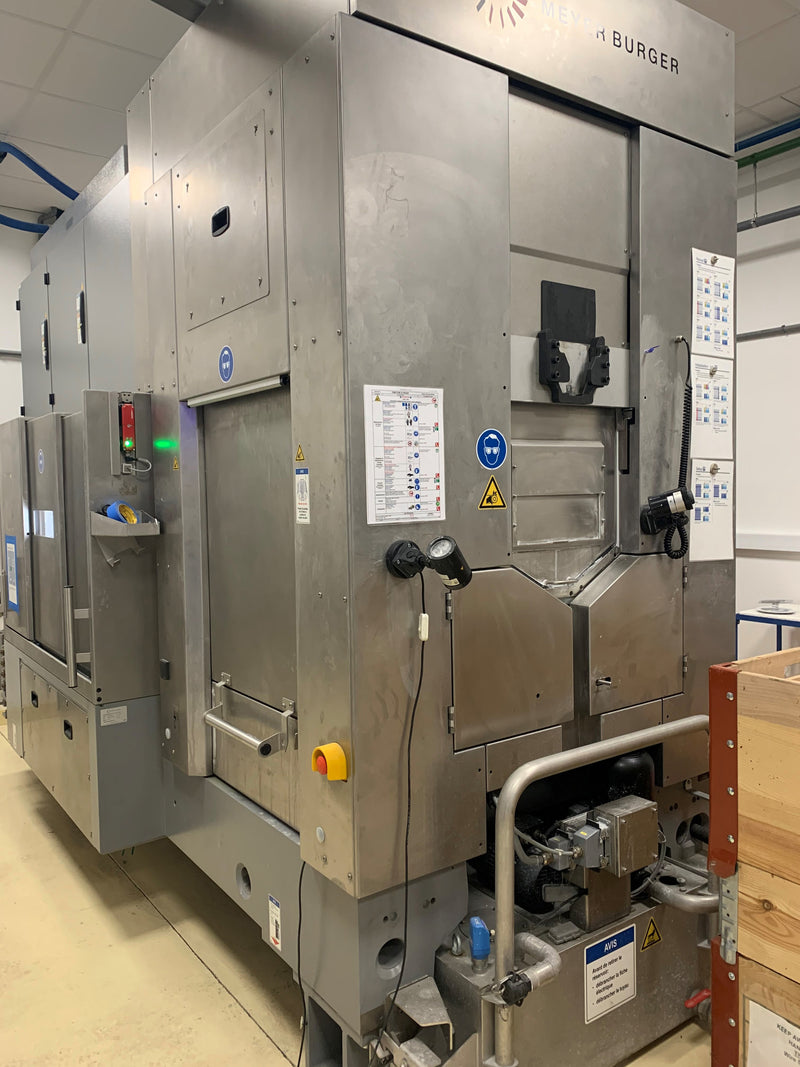

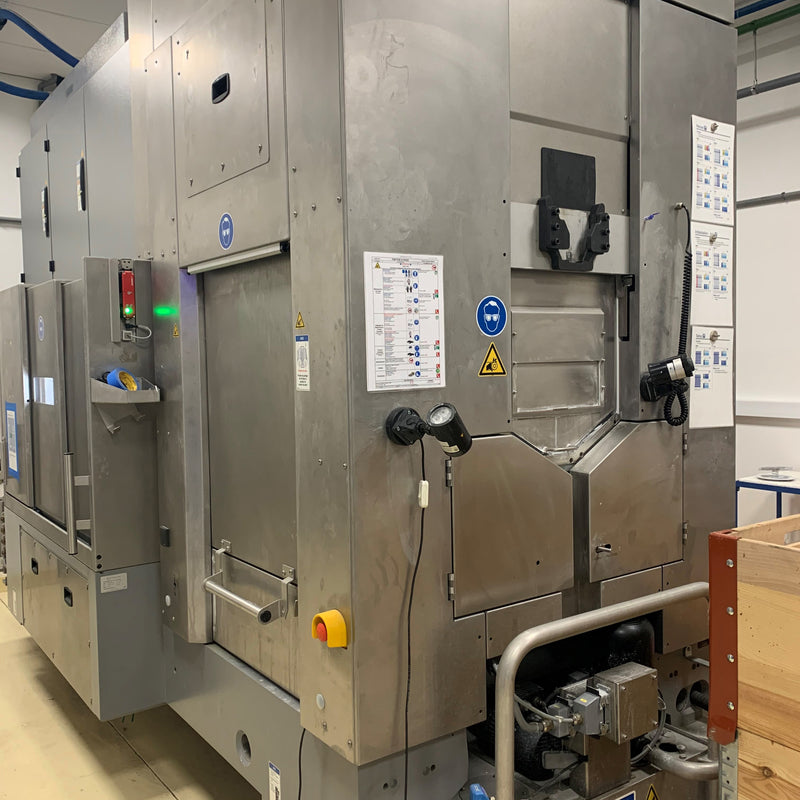

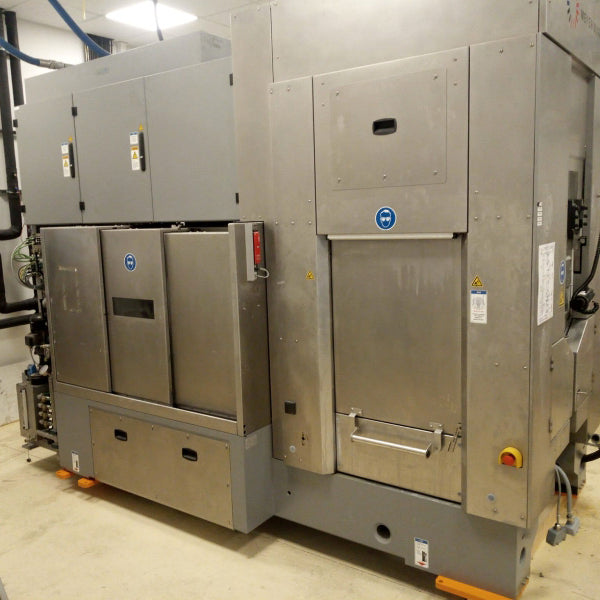

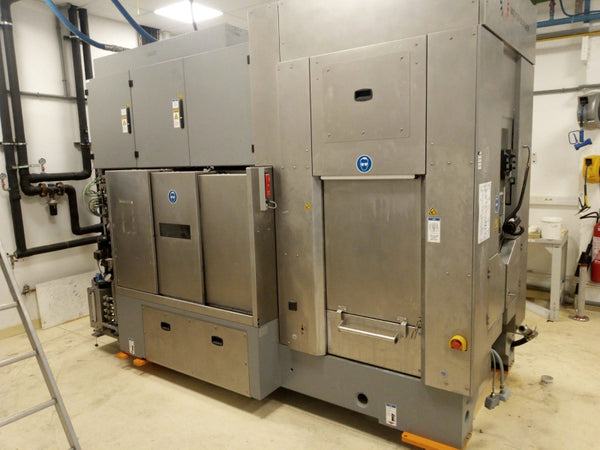

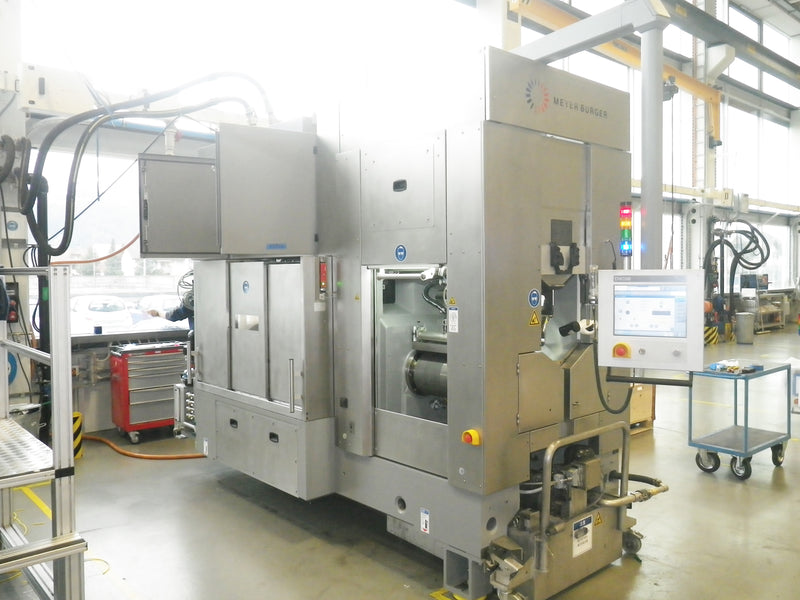

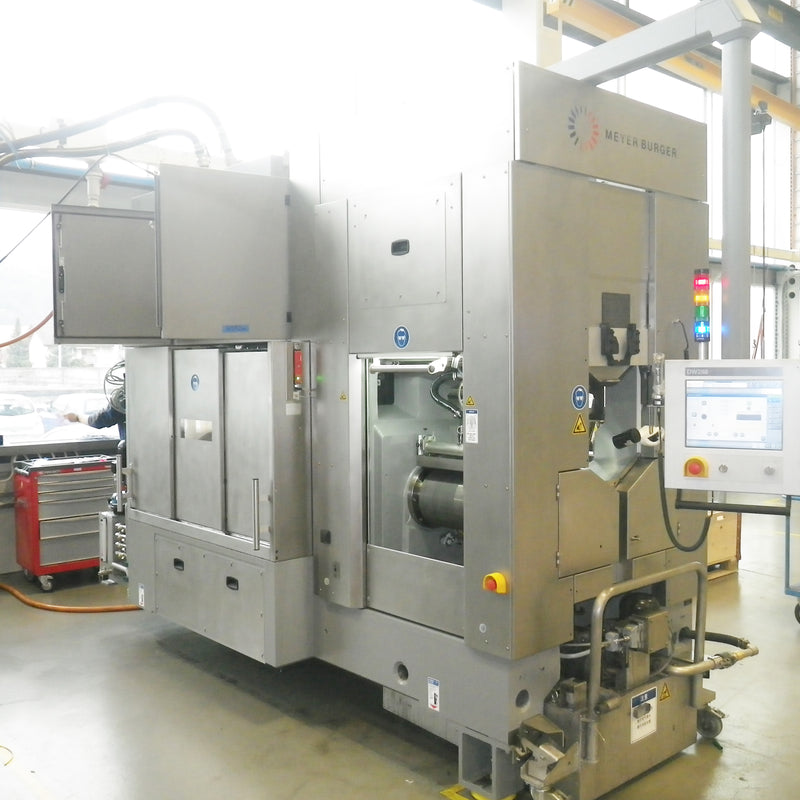

Meyer Burger DW 288 S 4 Diamond Wire Saw

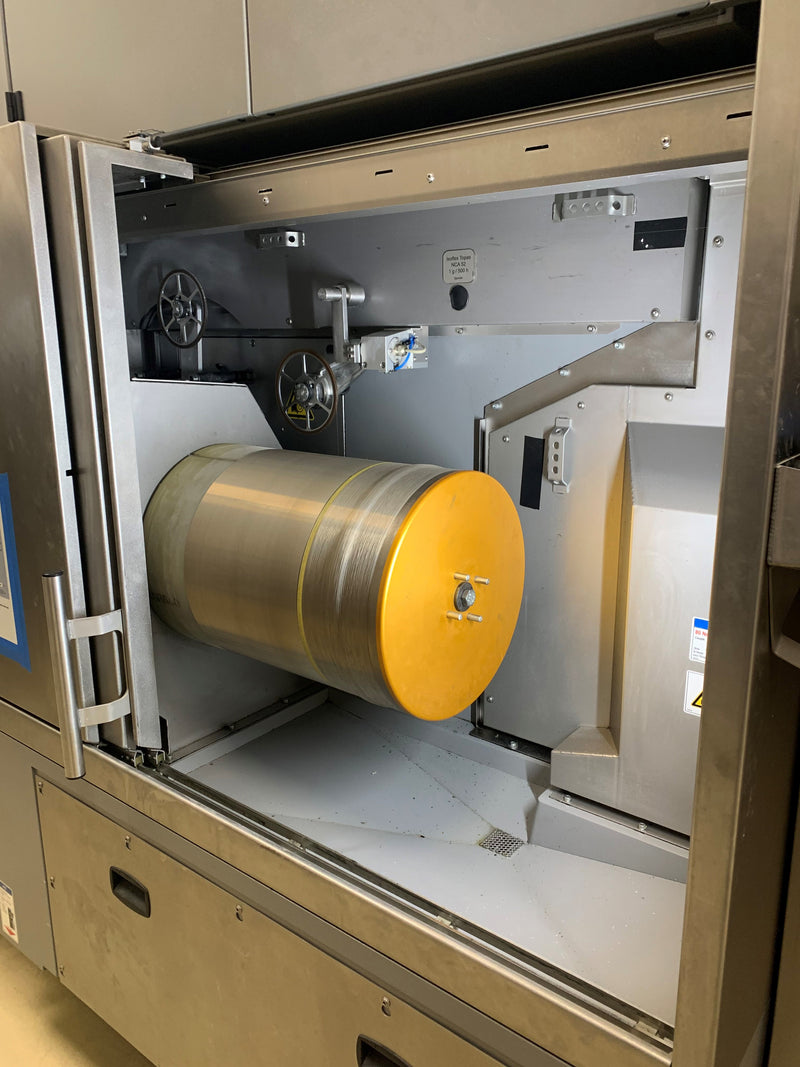

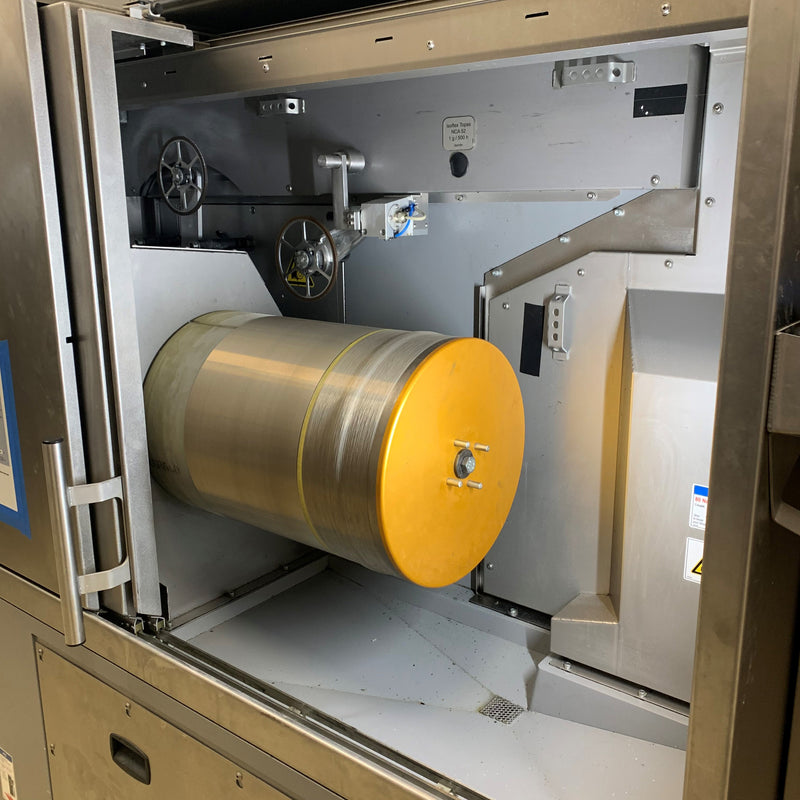

- Wire Management System WM2
- Rocking unit 90° clamping system and adaptive feed

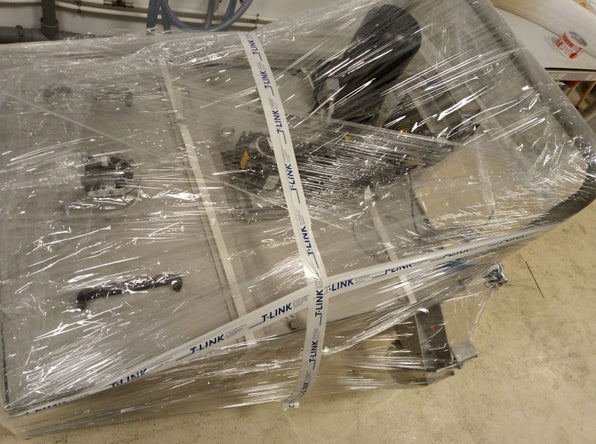

- Saphir cutting fluid media module with long filter
- Cutting fluid manifold without regulation valves, 1 mechanical flow meter (total cutting fluid flow controlled by pump rotation) and flow bars

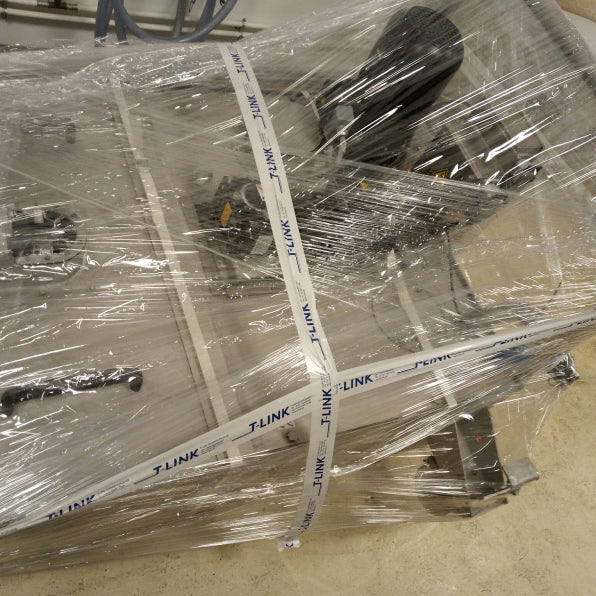

- Tank drain with hand valve

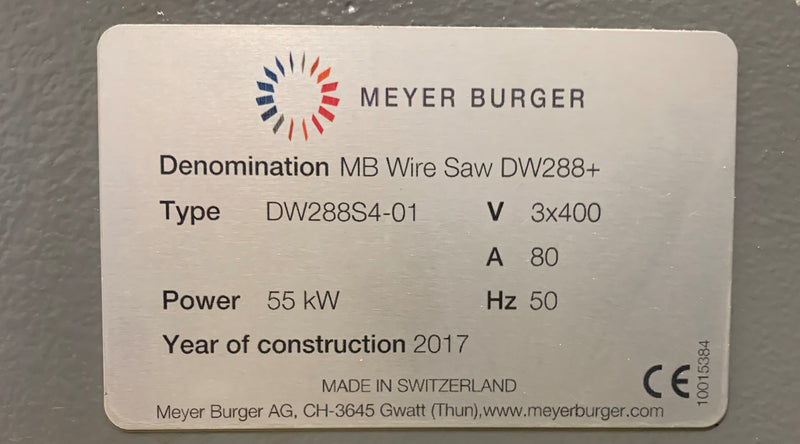

- Standard Europe power management (400V, 230V Schuko plugs)
Sign set in French:
Options would be necessary, to be able to run the machine in the US:
- UL conversion and voltage conversion (480V, 110V plugs)
Sign set in English

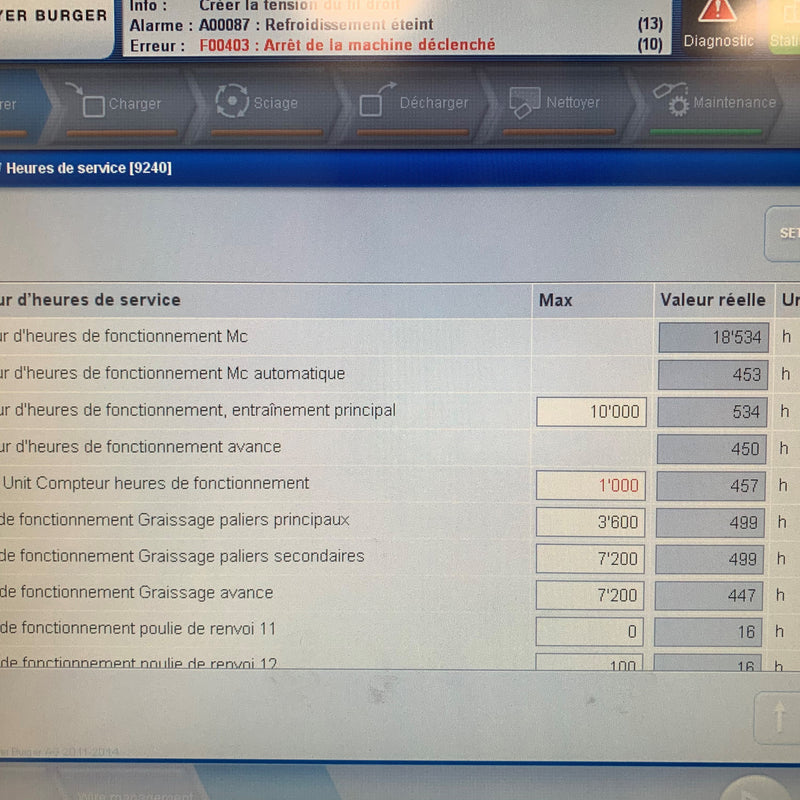

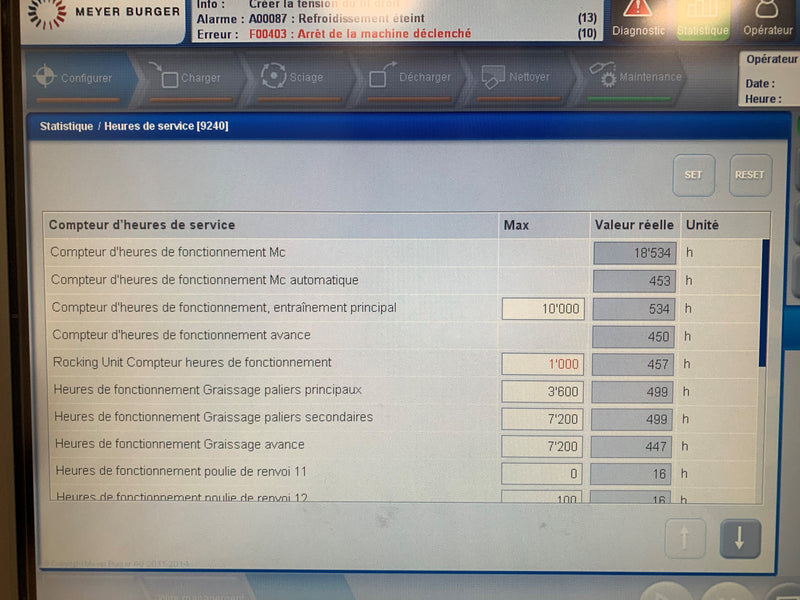

- Operating hours of Mc: 18,534 hours
- Operating hours of automatic Mc: 453 hours
- Operating hours of main drive: 534 hours

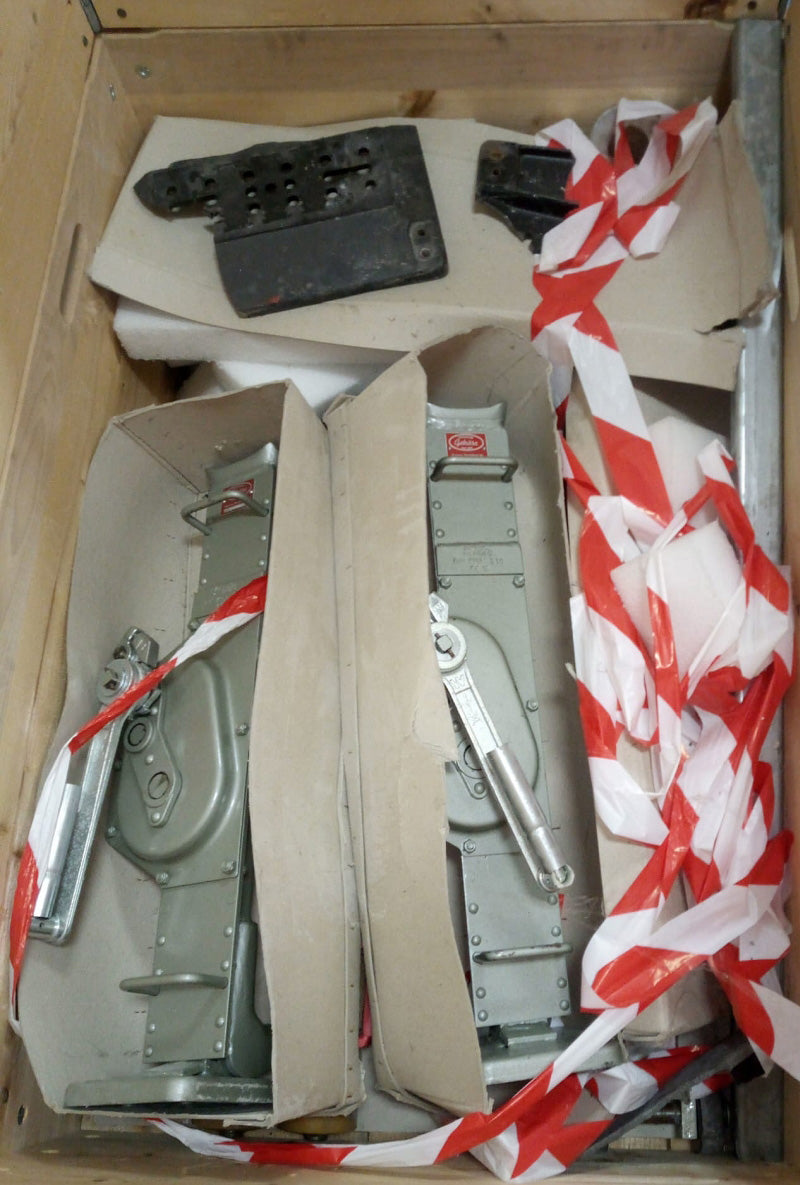

Parts:
- 13112403/2: Way Solenoid Valve DN4 reference 10040439 (1)
- 1310366: Cutting Fluid additive ADDITIVEA33 ref BLASER 29106020001 (1)
- 1310362: Beam DMT710 420x50x16mm 100mm radius ref 10266500 (95)
- 1310361: Beam DMT710 420x50x16mm 75mm radius ref 10266493 (175)
- 1310363: Beam DMT710 carre 156 420x156x16mm ref 10266501 (95)
- 1310364: Fil diamante 12 PLAU, 60KM, MB50 ref 12PLAU0F31560A (6)
- 1310135: Sock Filter P01 micron 25L ref 10040184 (50)
- 1310365: Cutting Fluid SYNERGY DWS300 ref Blaser 17300010025 (6)
- 1311236: Force transducer 100N Diam=36 reference 10240940 (1)
- 1311243: Insert sleeve E 15/12x reference 79260 (2)
- 1311237: Level sensor LFP0400-A4NMB L 360 reference 10116033 (1)
- 1311234: O ring NBR70 222x5 reference 10015299 (2)
- 1311232: O ring NBR75 240x3 reference 10037880 (2)
- 1310136: Pulley Diameter 156,6 reference 10101530 (42)
- 1311231: Precision ball reference 10075759 (4)
- 1316934: Resistance bac ultrason Ref 10167_88 (5)
- 1311238: Temperature sensor D4x57 reference 10075173 (2)
- 1311239: Thermometer G1/2" PT100 reference 10070896 (1)
- 1311235: V-Ring TWA00600-N6T50 reference 10107448 (2)
- XS-1074: Wire Guide Roll (installed) (1)
- XS-1084: Wire Guide Roll (installed) (1)

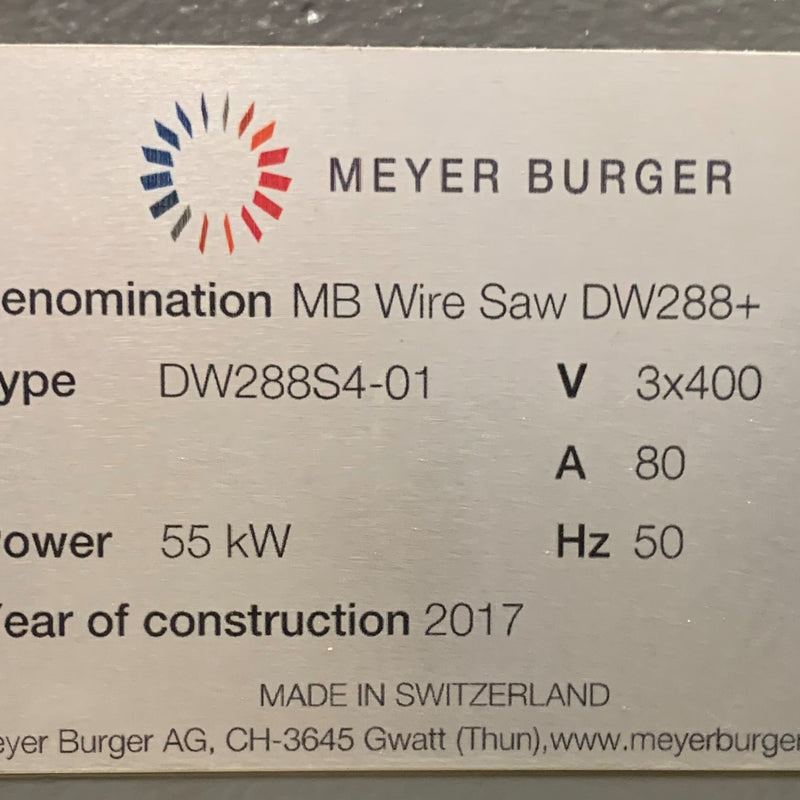

2017 Vintage
