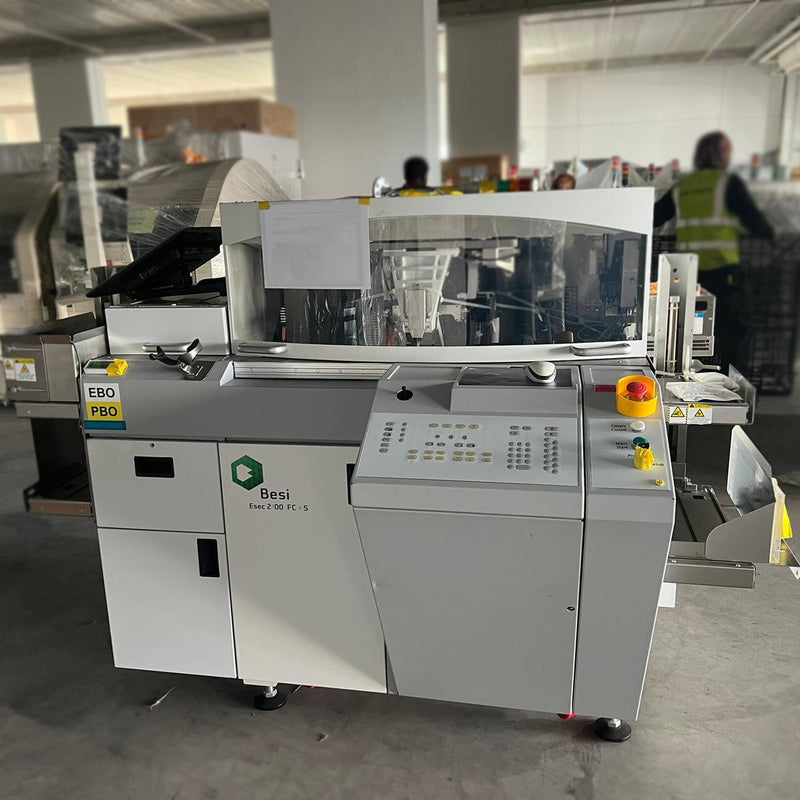

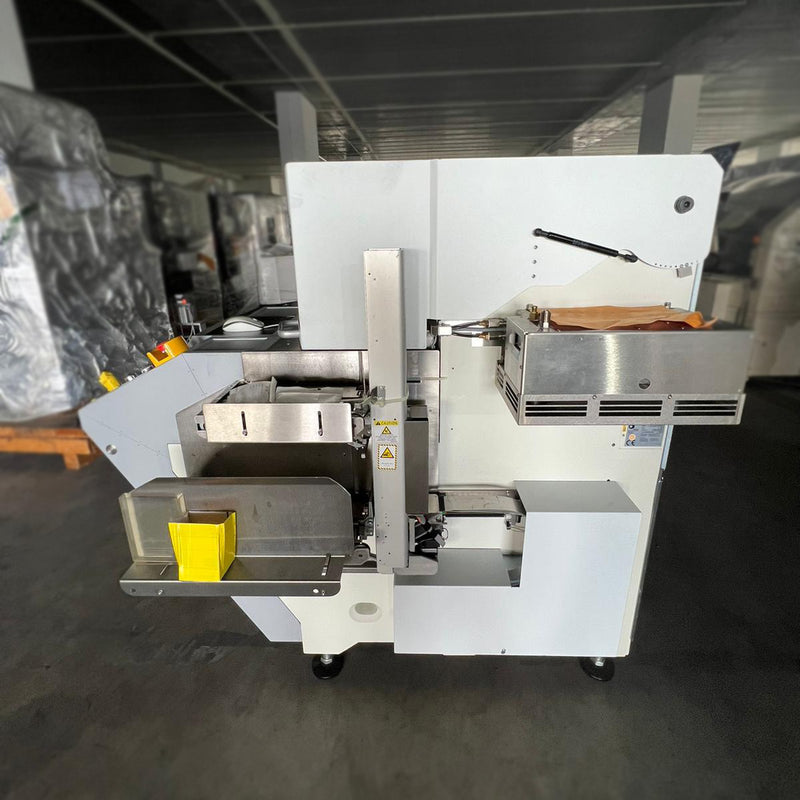

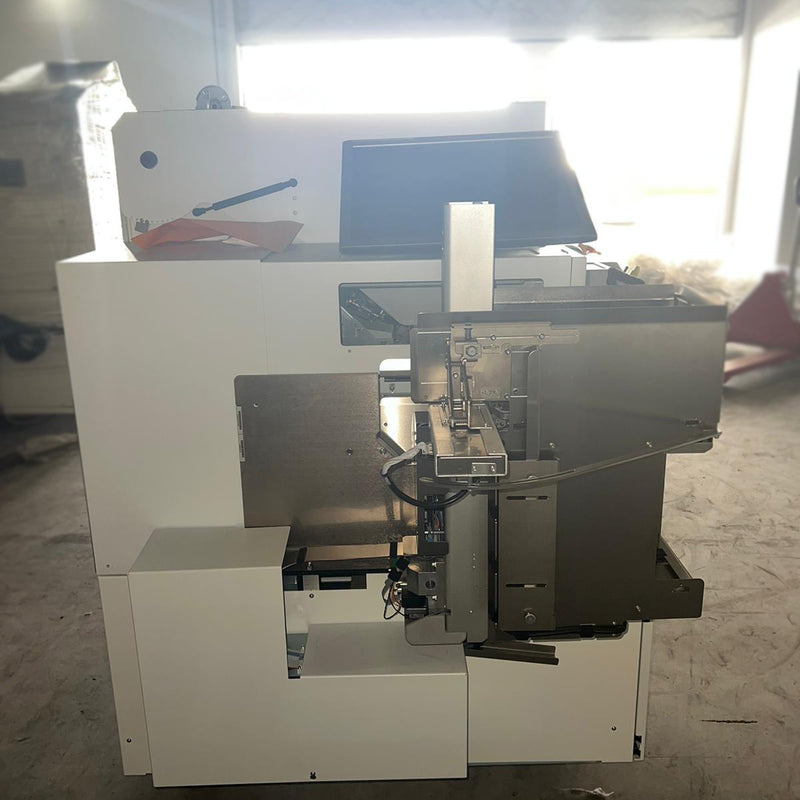

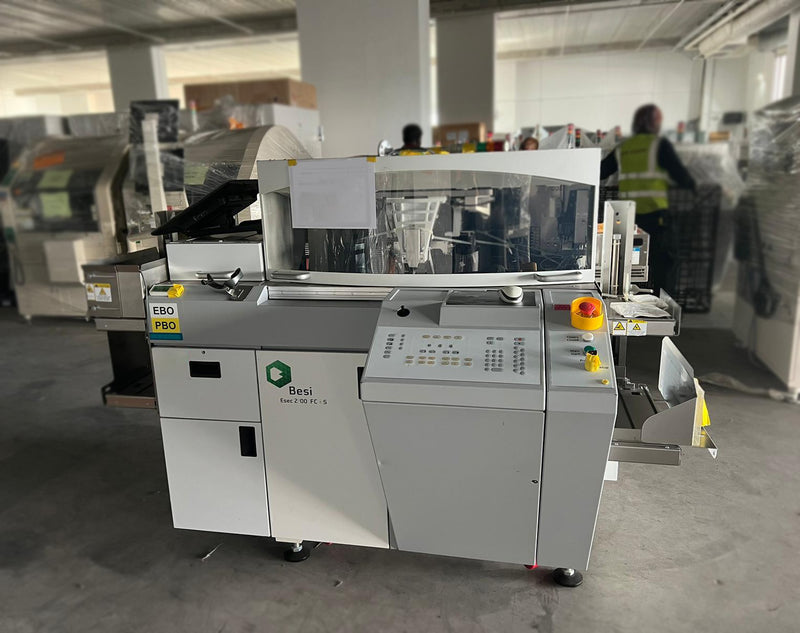

Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder
Esec DB 2100 HS Die Bonder

Esec DB 2100 HS Die Bonder

Asset #: 73299

Make: Esec

Model: DB 2100 HS

Esec DB 2100 HS Die Bonder

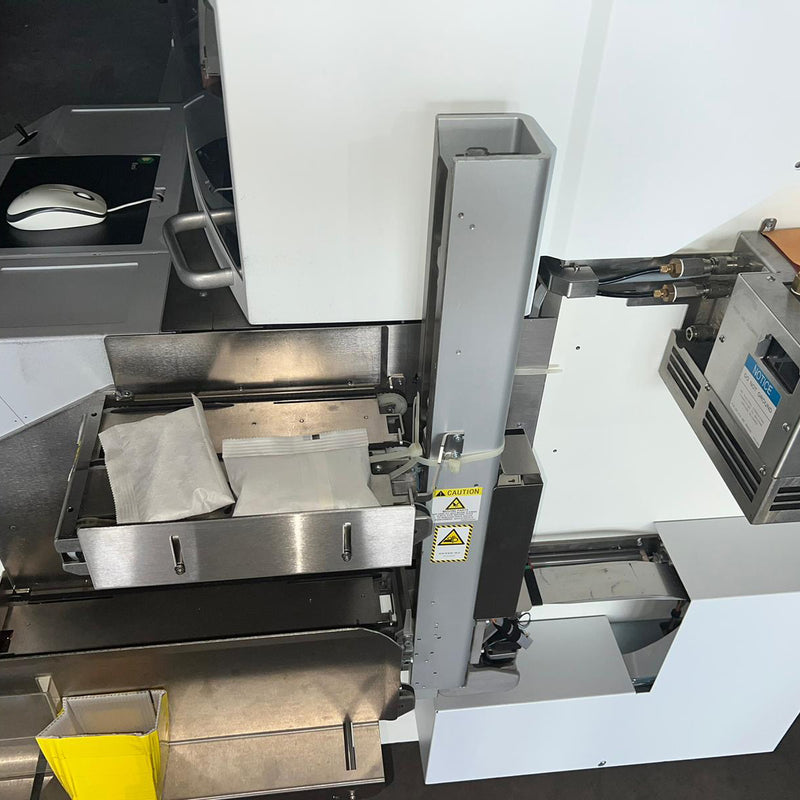

- Strip Handler SH2 cold rail
- Vision System:
- Pick/exchange position (PVI/EVI)
- Bond position (BVI)
- Vertical indirect illumination bond
Indirect illumination exchange
- Flip module
- Die ejector X/Y axis
- Patented Phi-Y pick & place
- Liquid cooling system
- Integrated safety package

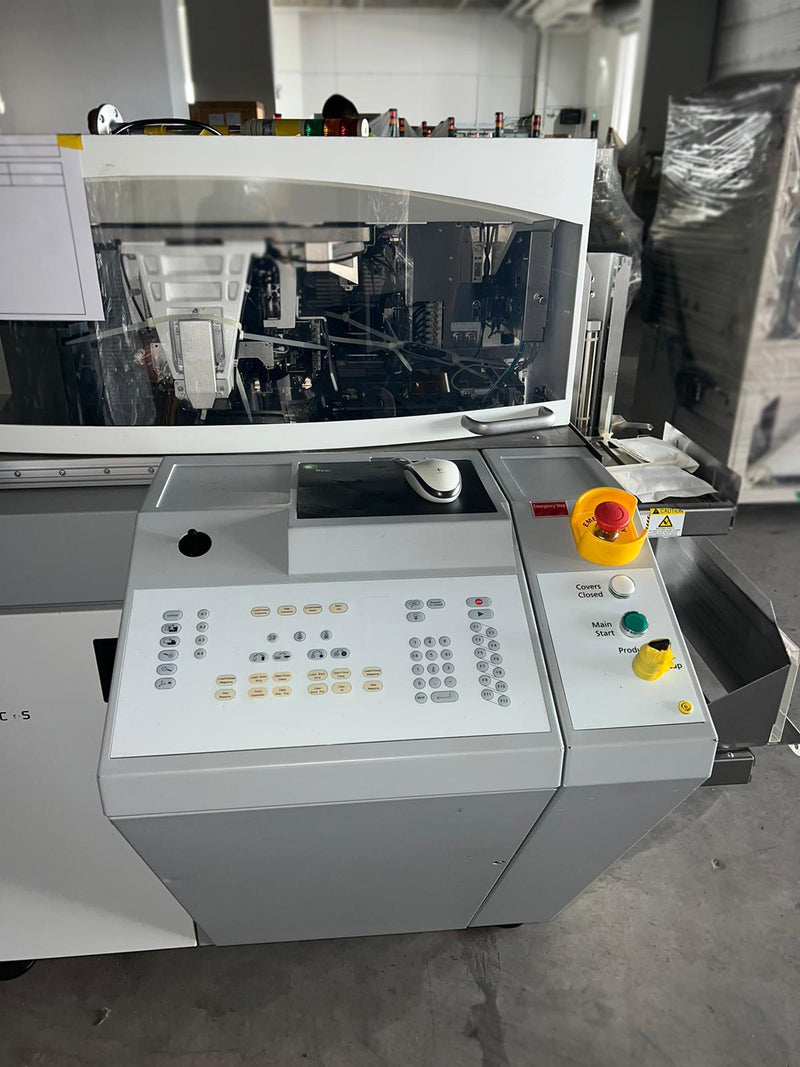

- User interface
- Basic user management
- Basic statistics
- Device reject mark check
Accessories:
- 102325189 Die ejector set A with chuck 90G
- 841.270 Needle set R0.1/0.7/8
- 102223273 Die ejector needle setting tool
- 1000-6877 Pick-up shank type B
Options:

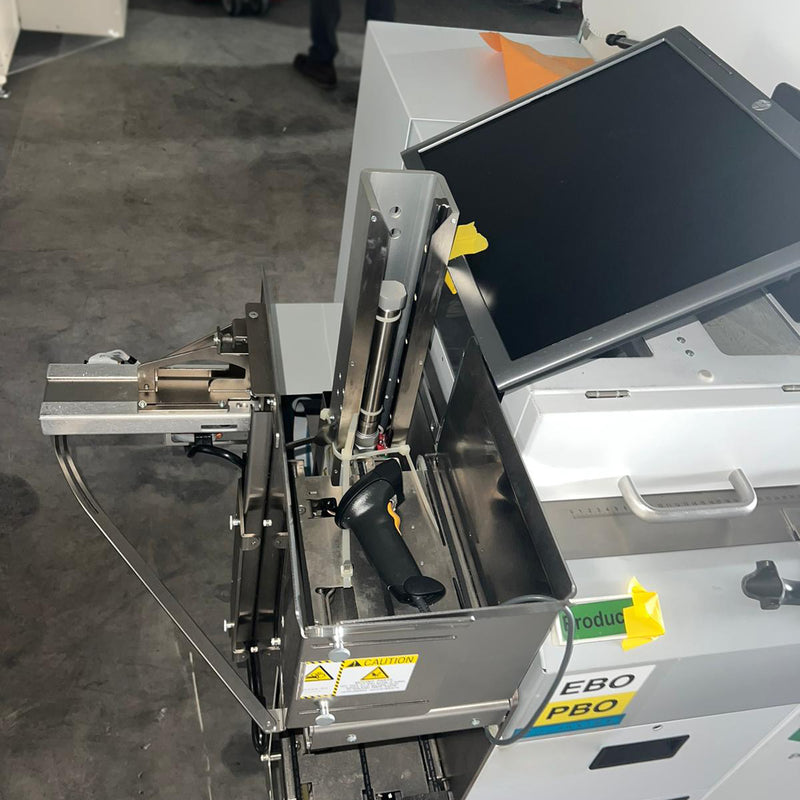

- MH_OUT: Magazine handler output 3.2 FC hS
- MHIN: Magazine handler input FC hS
- IILL: Indirect illumination 125, disperse or bond position FChS
- HOST: Host communication interface
- FU_G2: Flip-unit G2

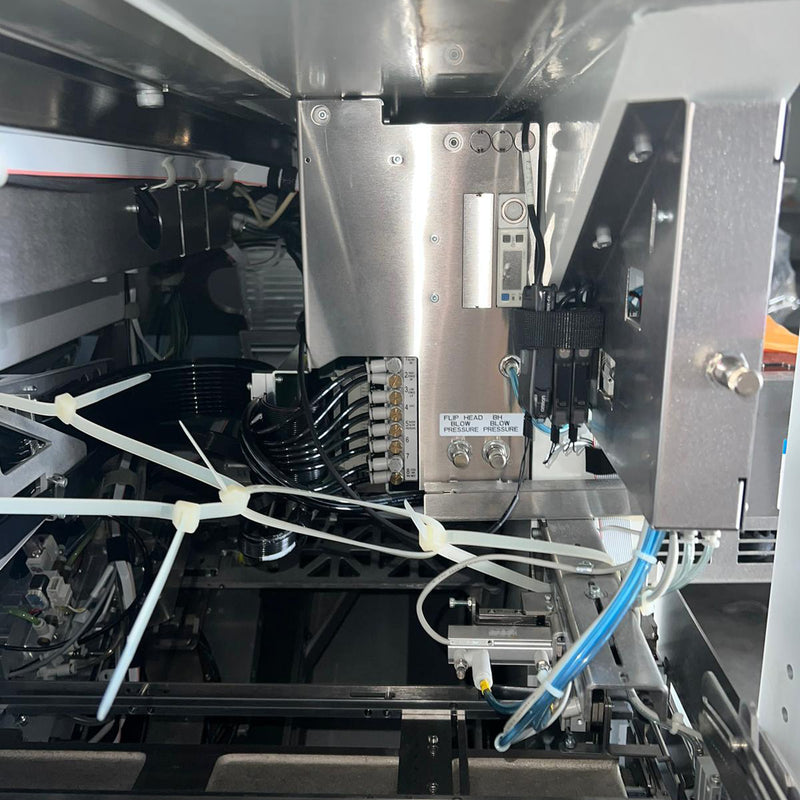

- FHDS: Flip head die sensor
- IONC_P: Ionizer-controlled pick FC
- BQC: Bond quality check
Accessories:
- 1000-4702: Ejector needle set R0.3/0.7/8
- 102419090: 8" expansion disco +10/-10
- 102420205: Lens D/BVI 9 x 9 B (x2)
Customized Features:
- CSR66374: Shorter pick up shank B
- CSR66375: Rubber tip 7.5 x 4.0mm
- CSR66500: Mass flow sensor
- CSR32475: Carrier boat handling kit
- CSR66596: WMP3 retrofit kit
- CSR66603: Anti wafer scratch unit
- CSR66611: To secure Y-push in
2017 Vintage
