Asset #: 72079

Make: ASM

Model: ADL 838 LG 2

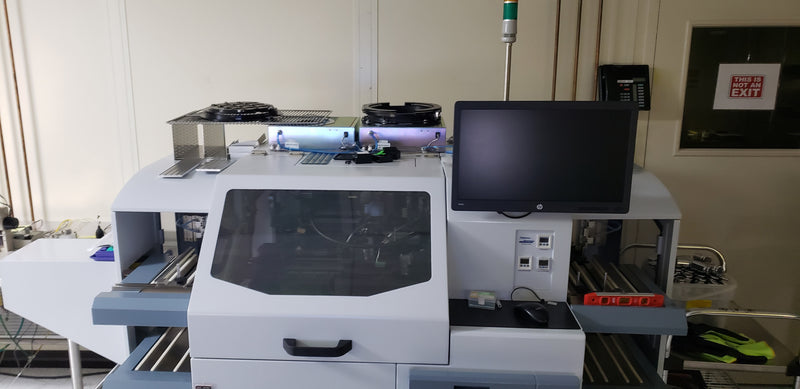

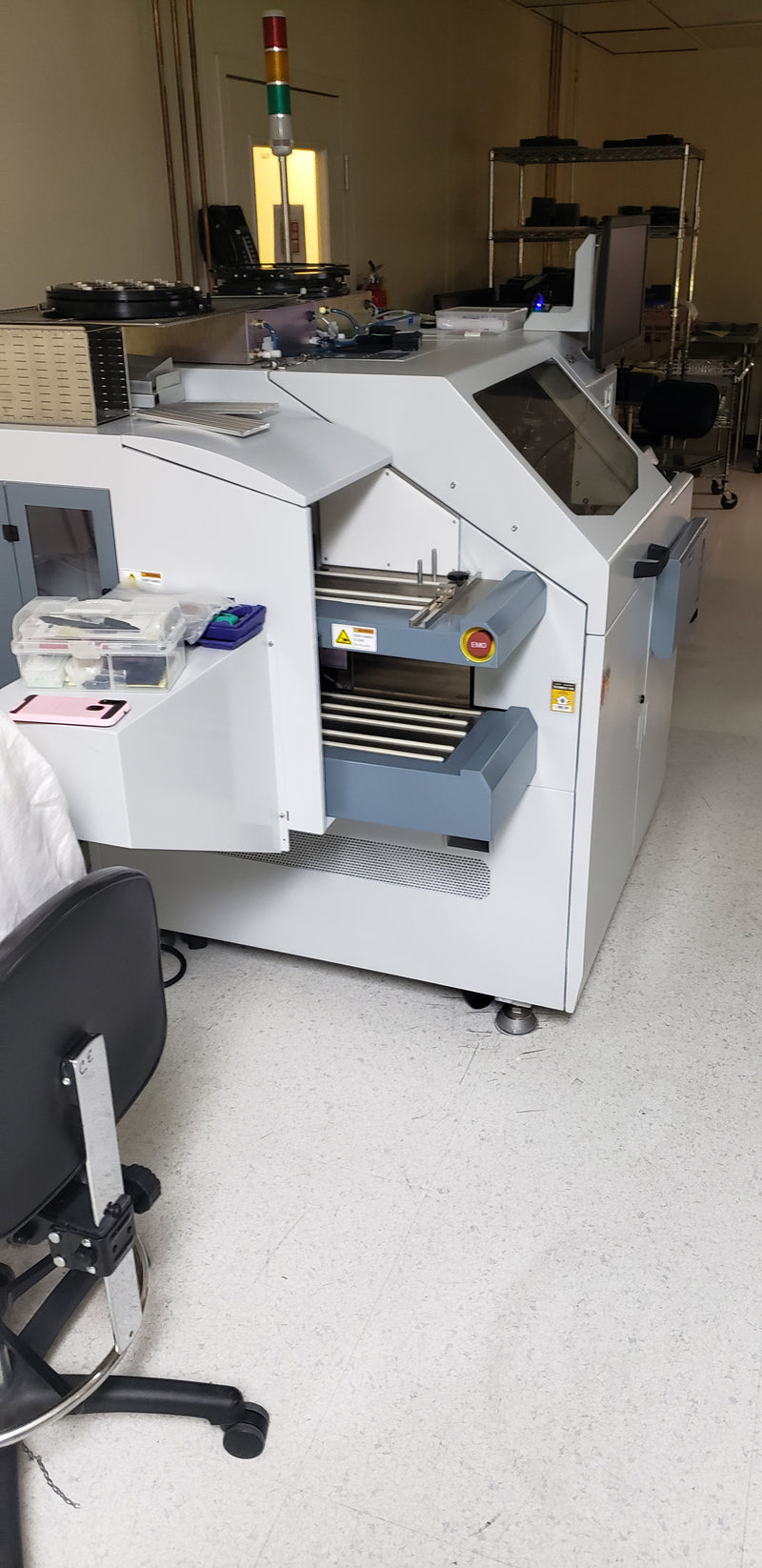

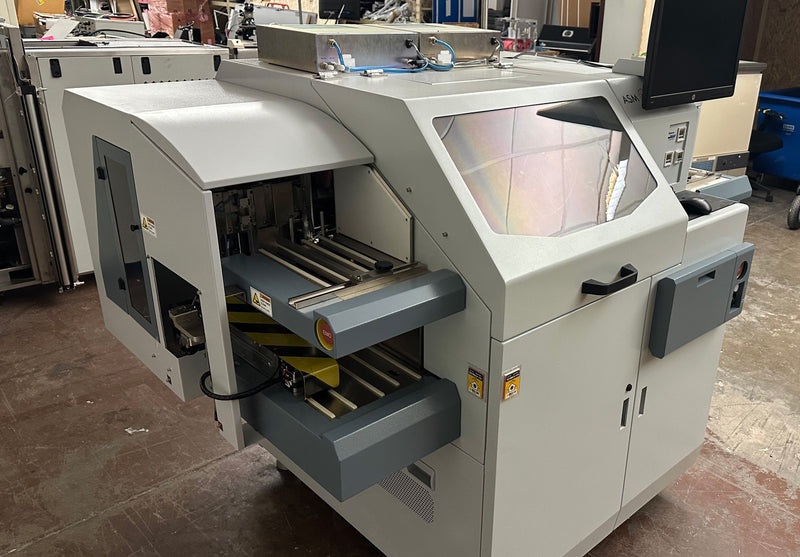

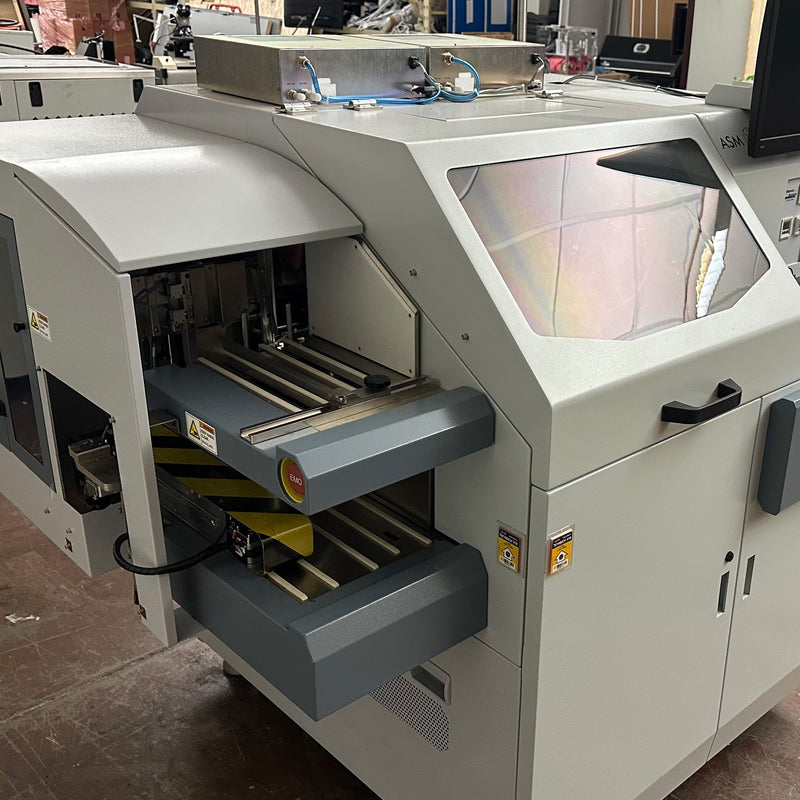

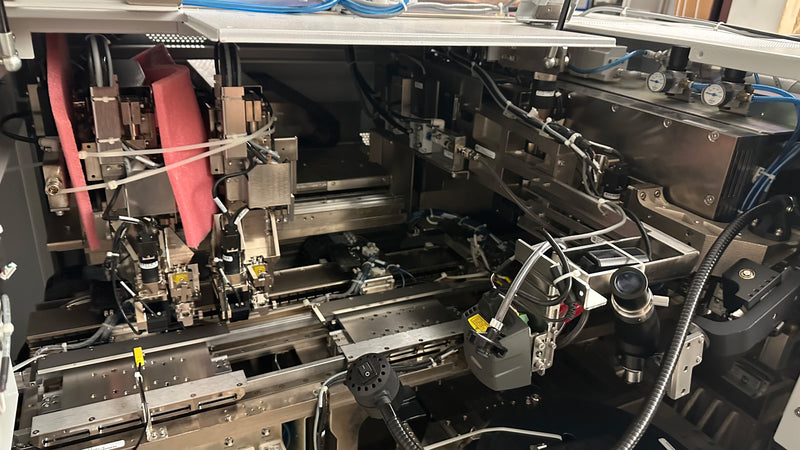

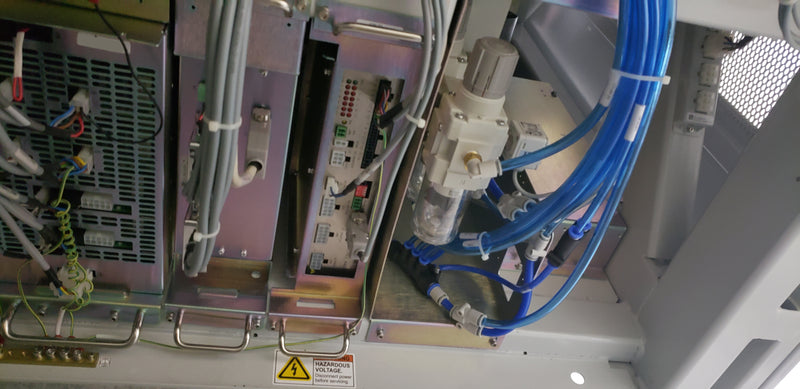

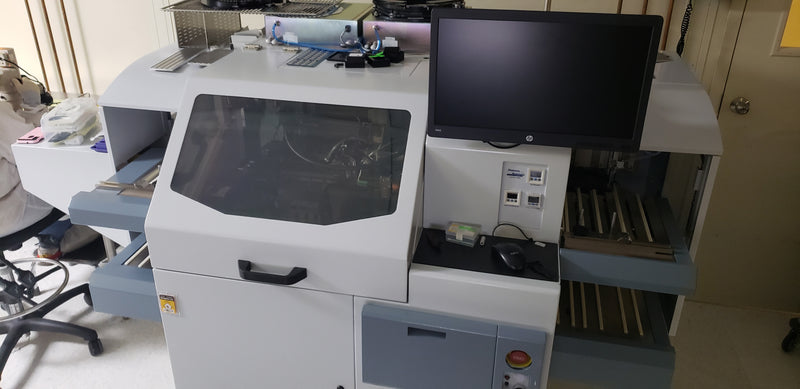

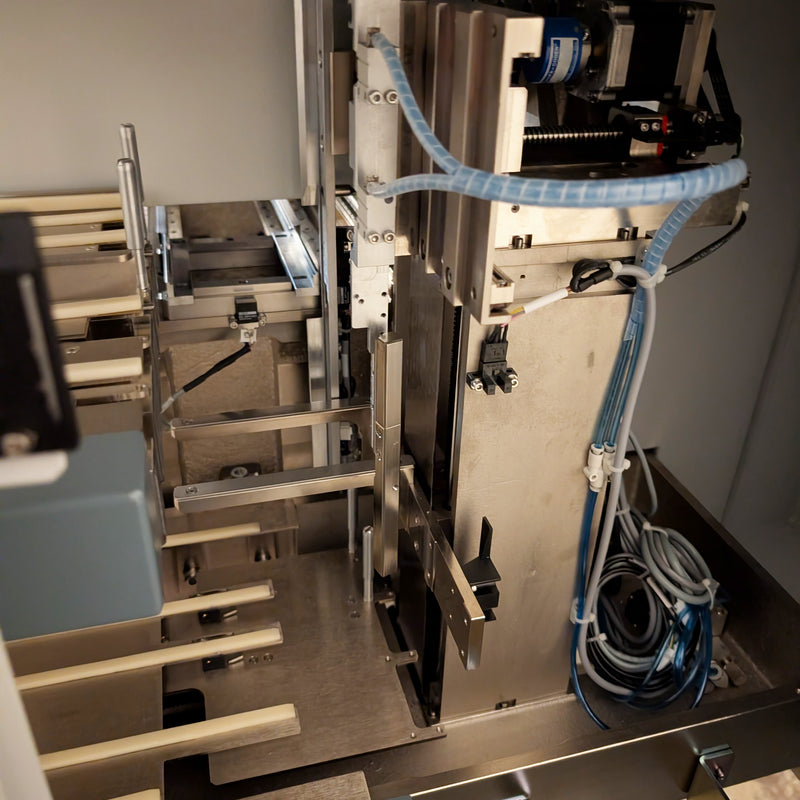

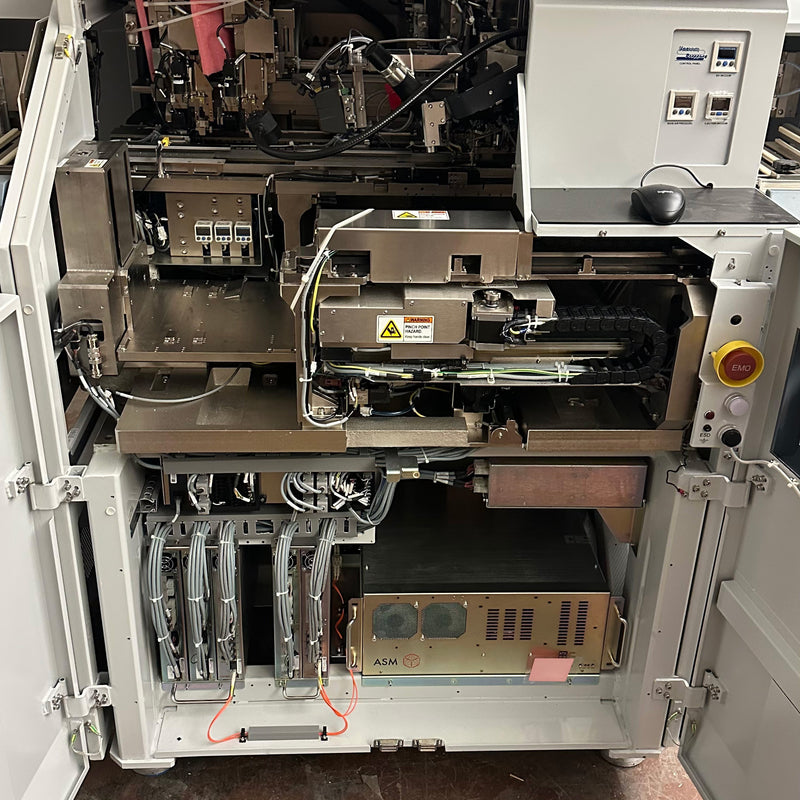

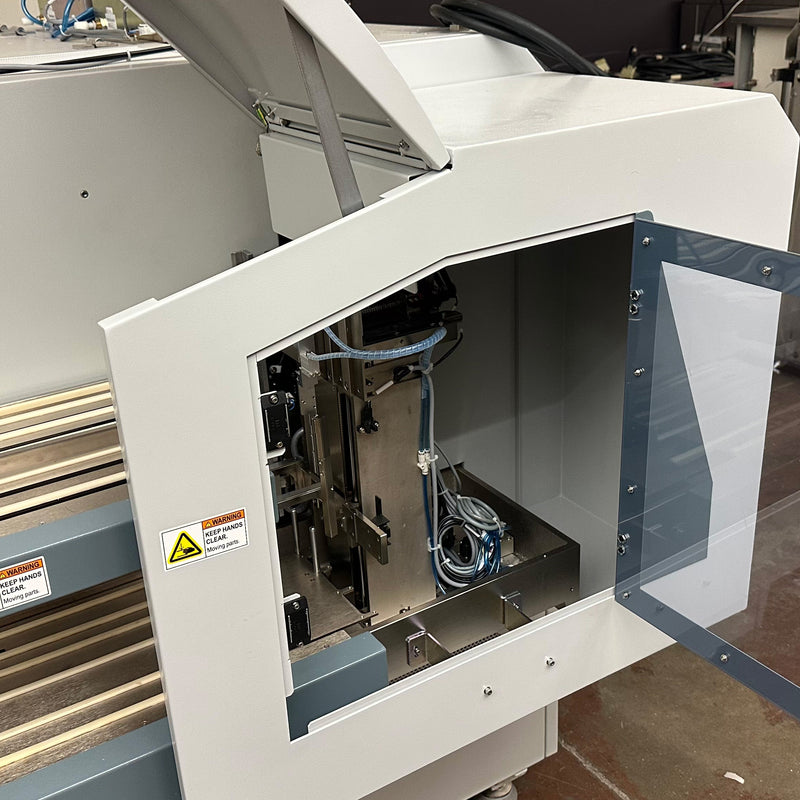

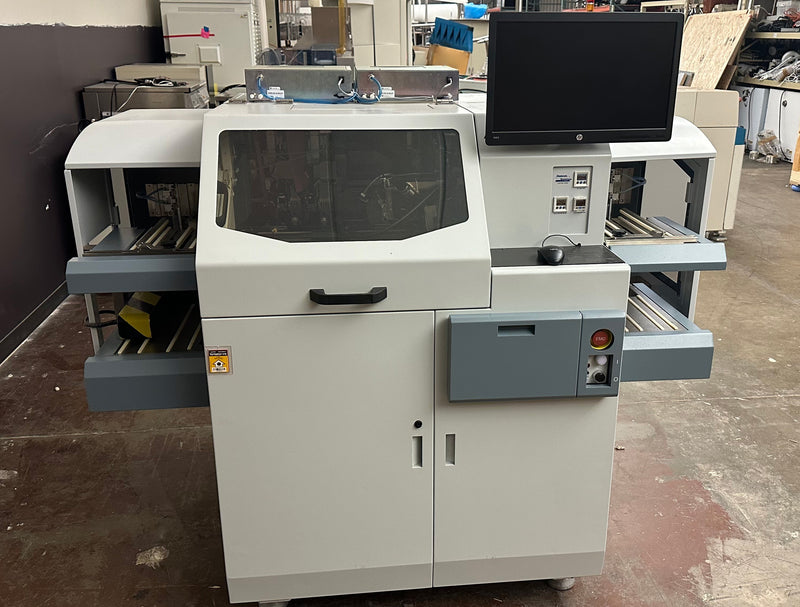

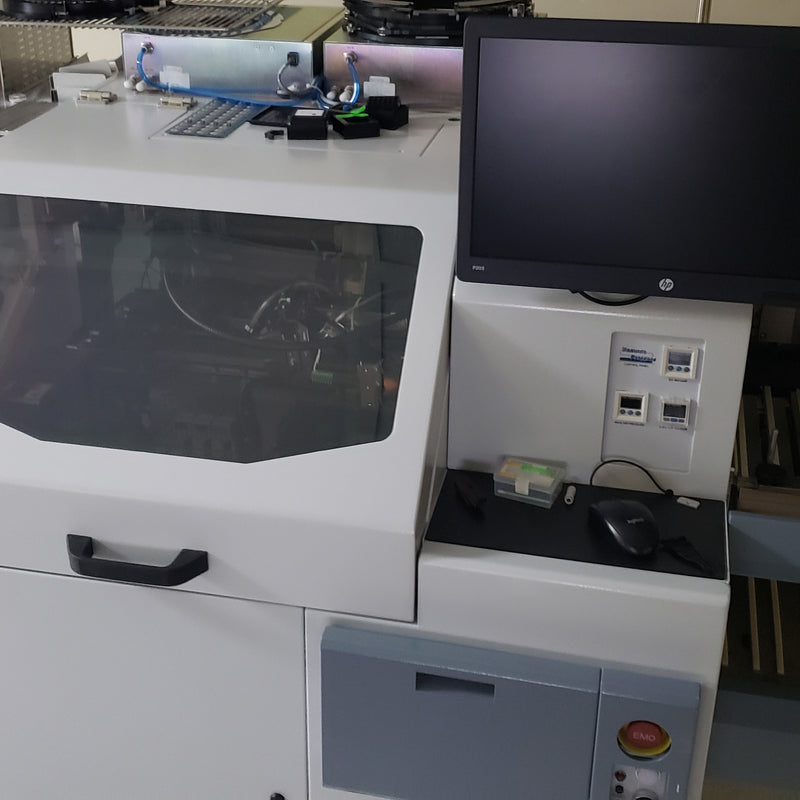

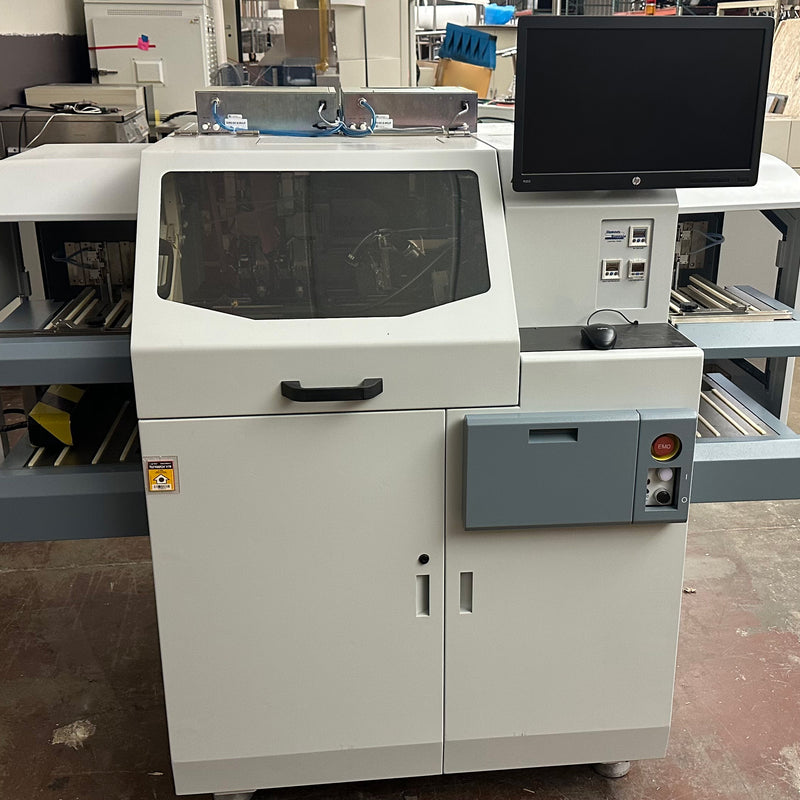

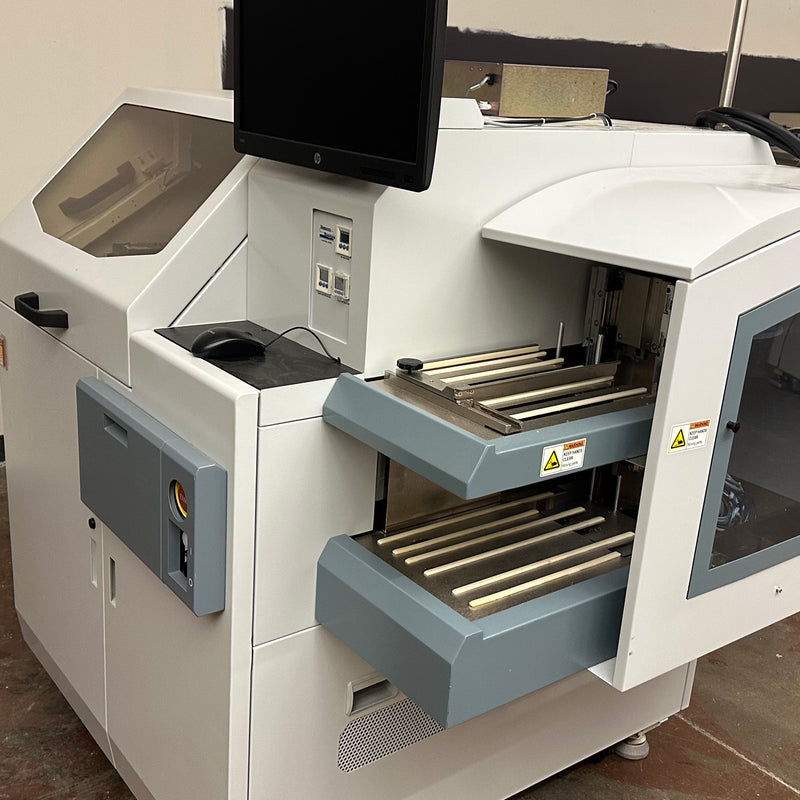

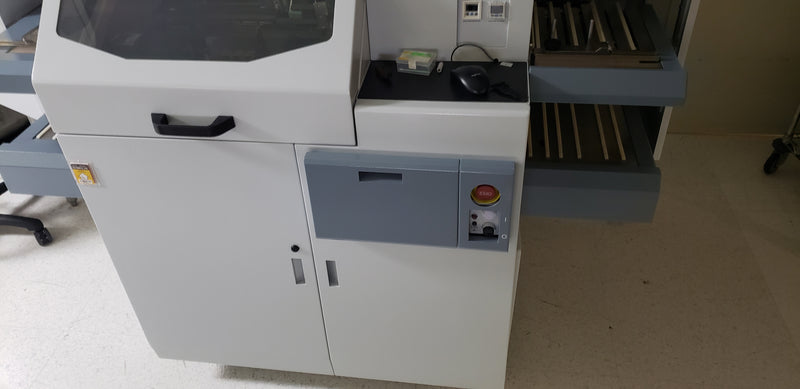

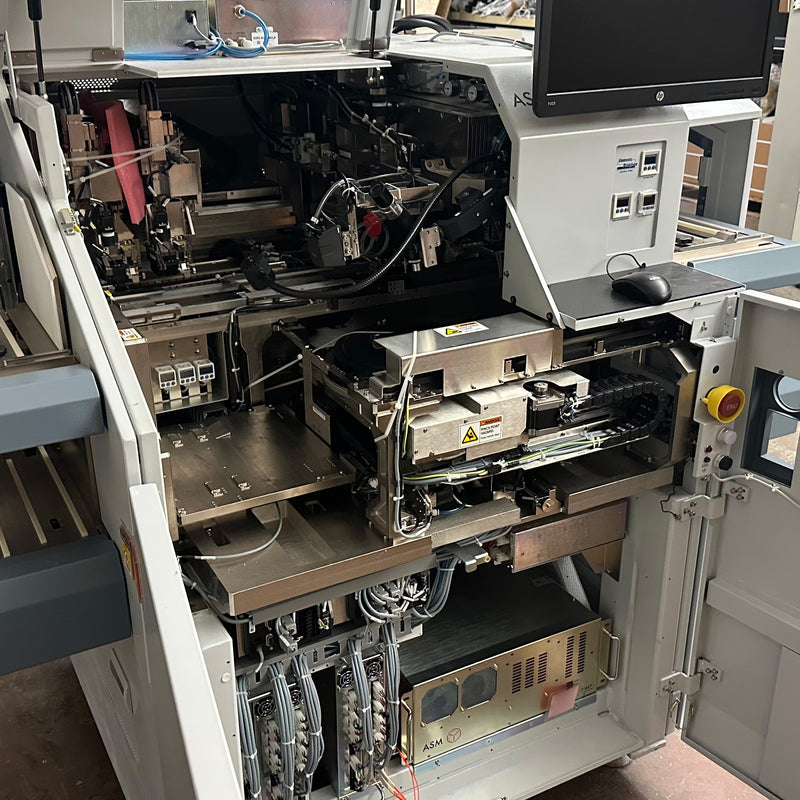

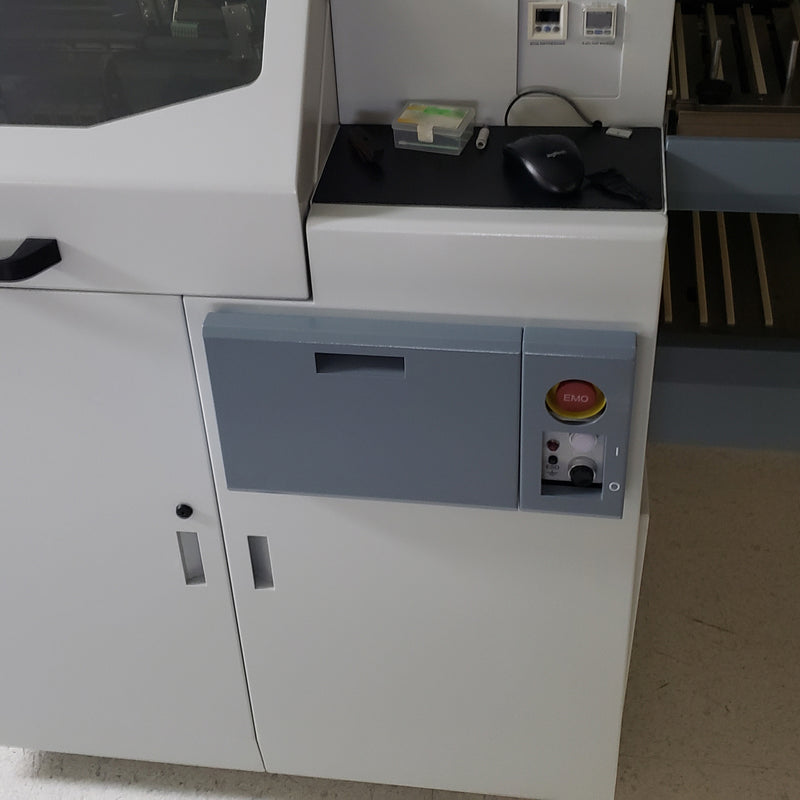

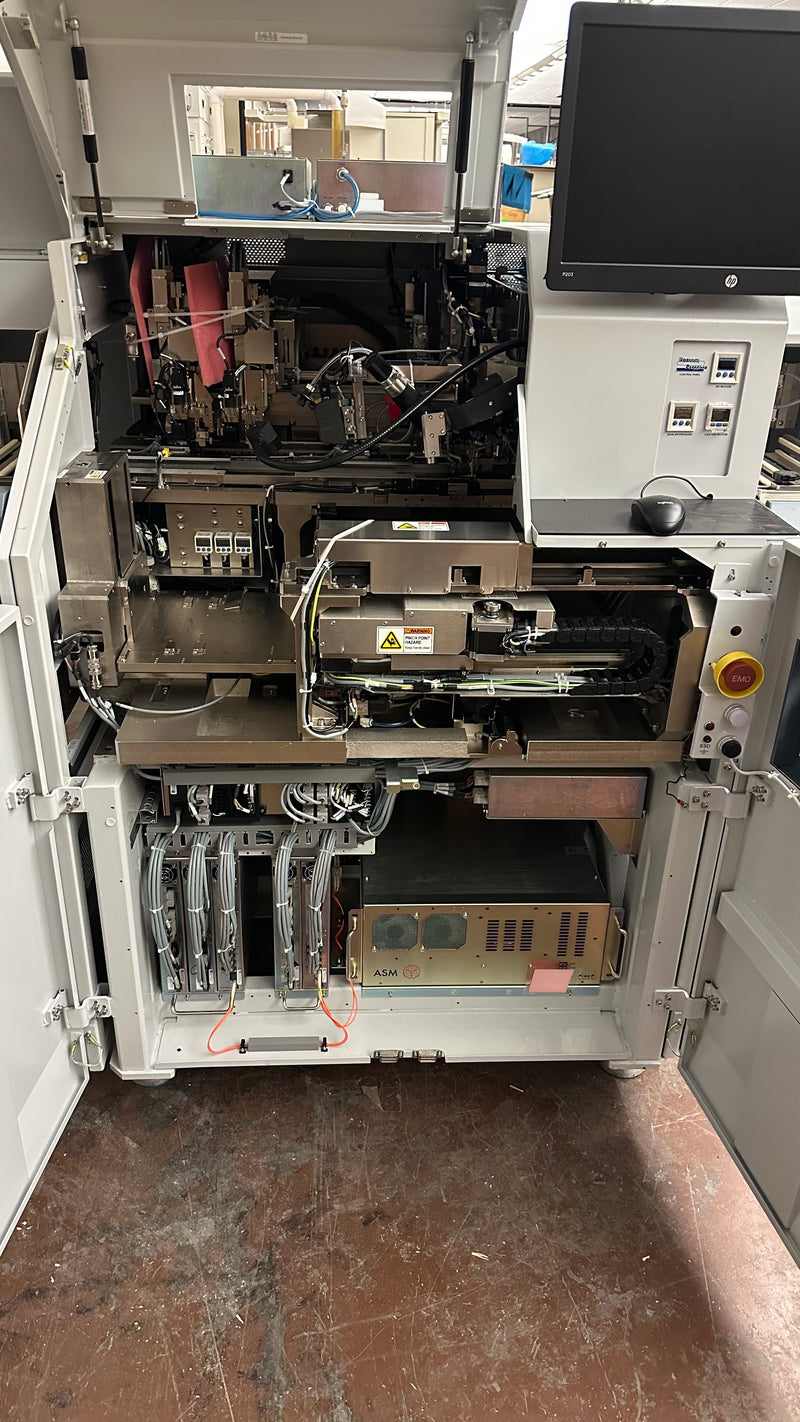

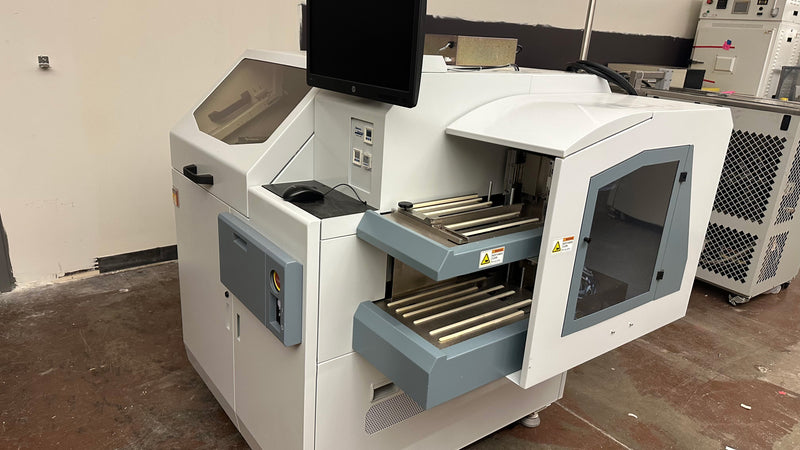

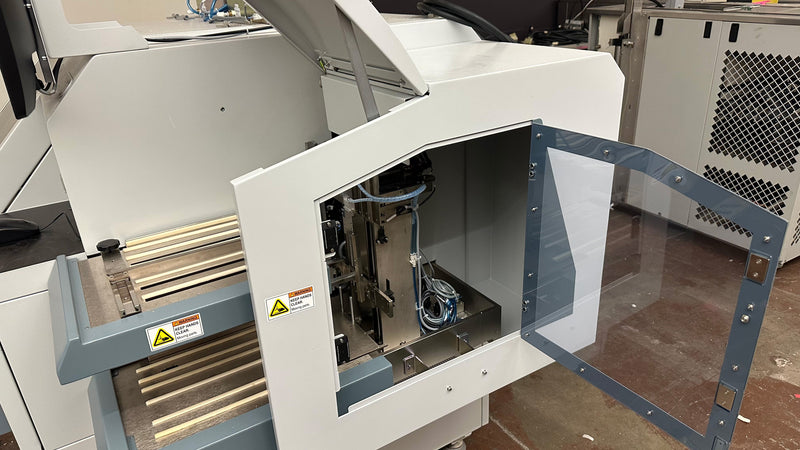

ASM ADL 838 LG 2 Die Bonder

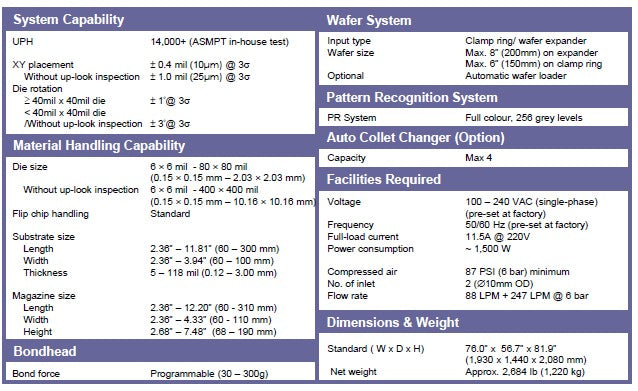

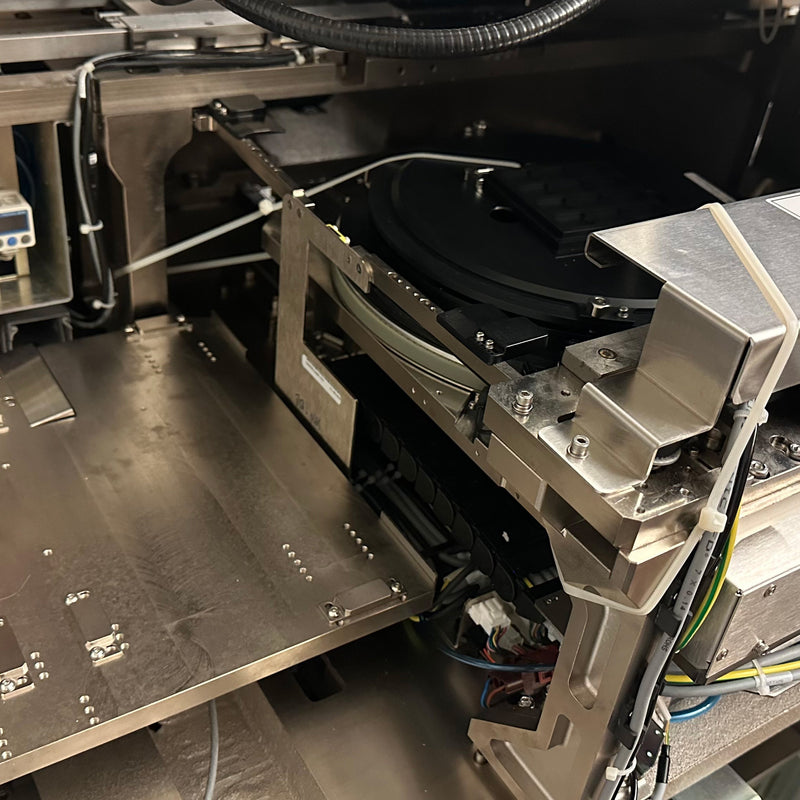

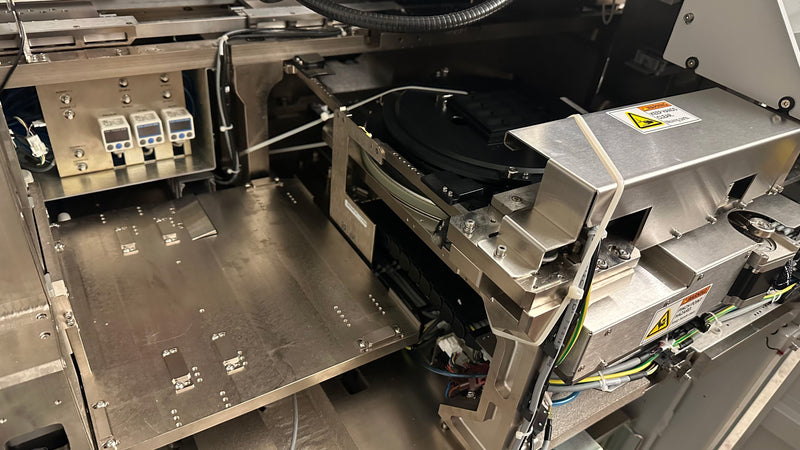

Wafer System:
- 0 hours ran
- Input type: clamp ring / wafer expander
- Wafer size: 6" on clamp ring / 8" on expander
Pattern Recognition System:
- PR system: full color, 256 grey levels

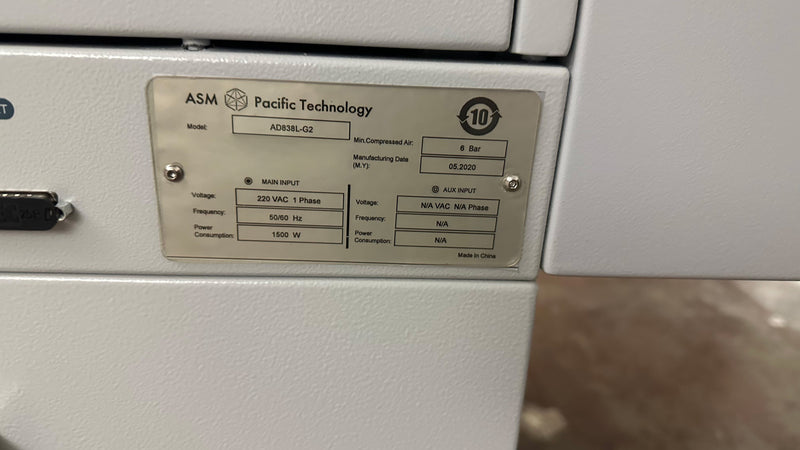

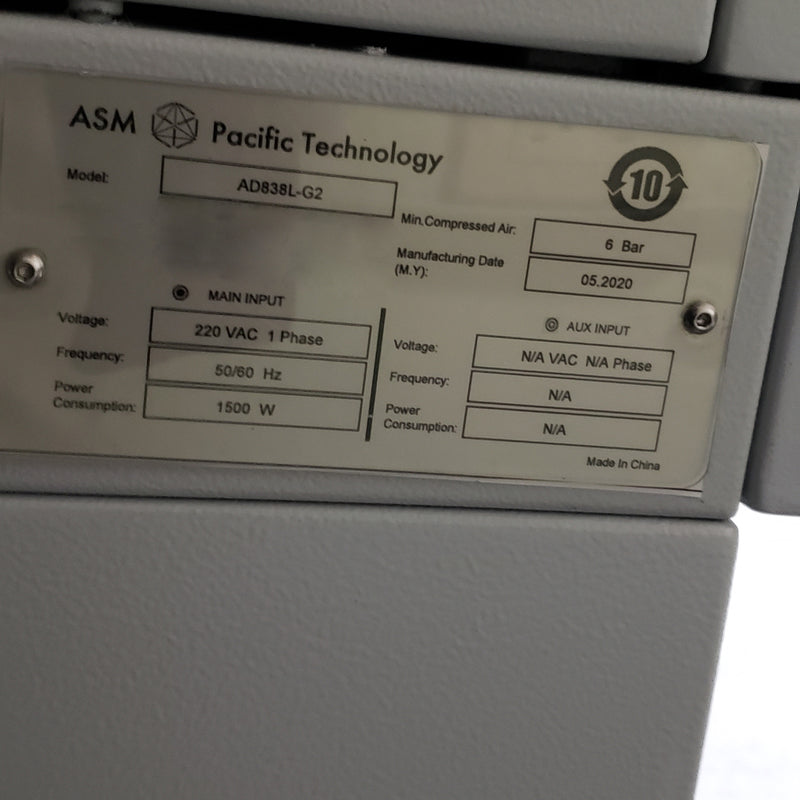

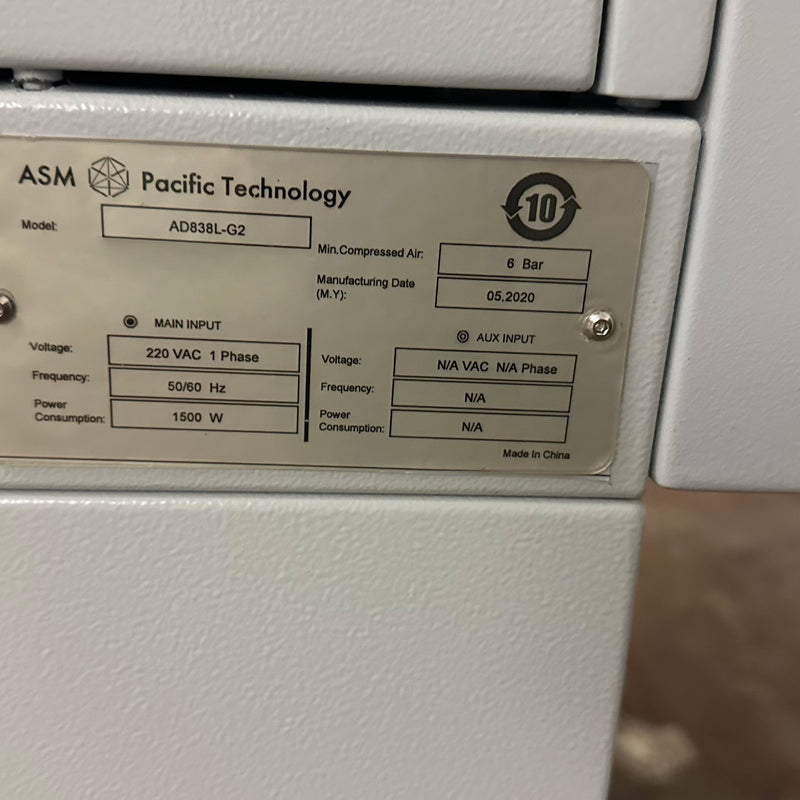

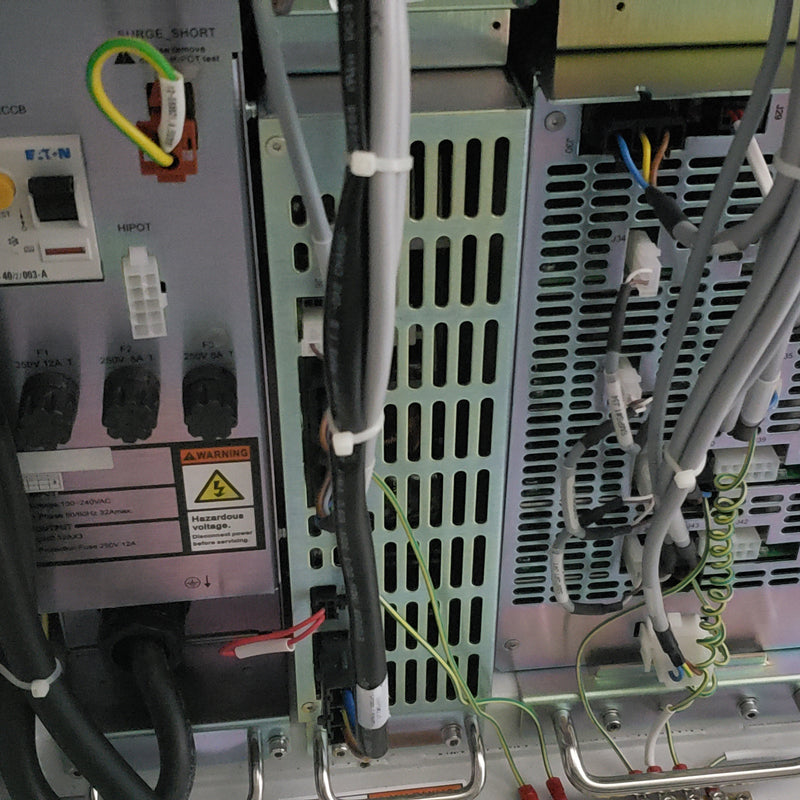

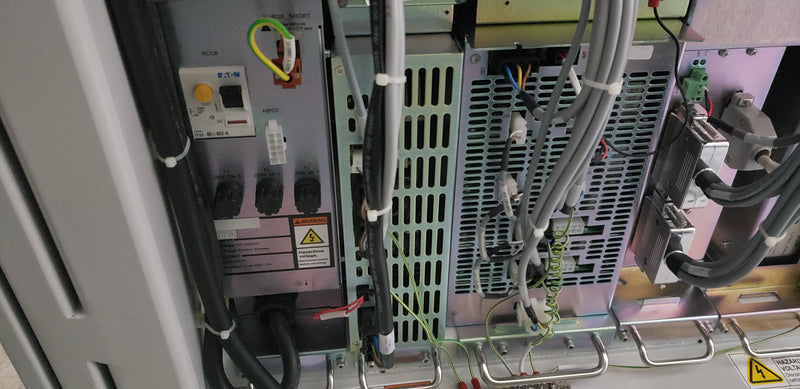

Facilities Required:
- Voltage: 100 - 240 VAC (single phase)
- Frequency: 50/60 Hz
- Full-load consumption: ~ 1,500 W
System Capability:
- UPH: 14,000+ (ASMPT in-house test)
Material Handling Capability:
- Die Size: 6 x 6 mil - 80 x 80 mil
- (0.15 x 0.15mm - 2.03 x 2.03mm)
- Without up-look inspection 6 x 6 mil - 400 x 400 mil
- (0.15 x 0.15 mm - 10.16 x 10.16 mm)
- Flip Chip Handling: standard
- Substrate Size:
- Length: 2.36" - 11.81"
- Width: 2.36" - 3.94"
- Thickness: 5 - 118 mil

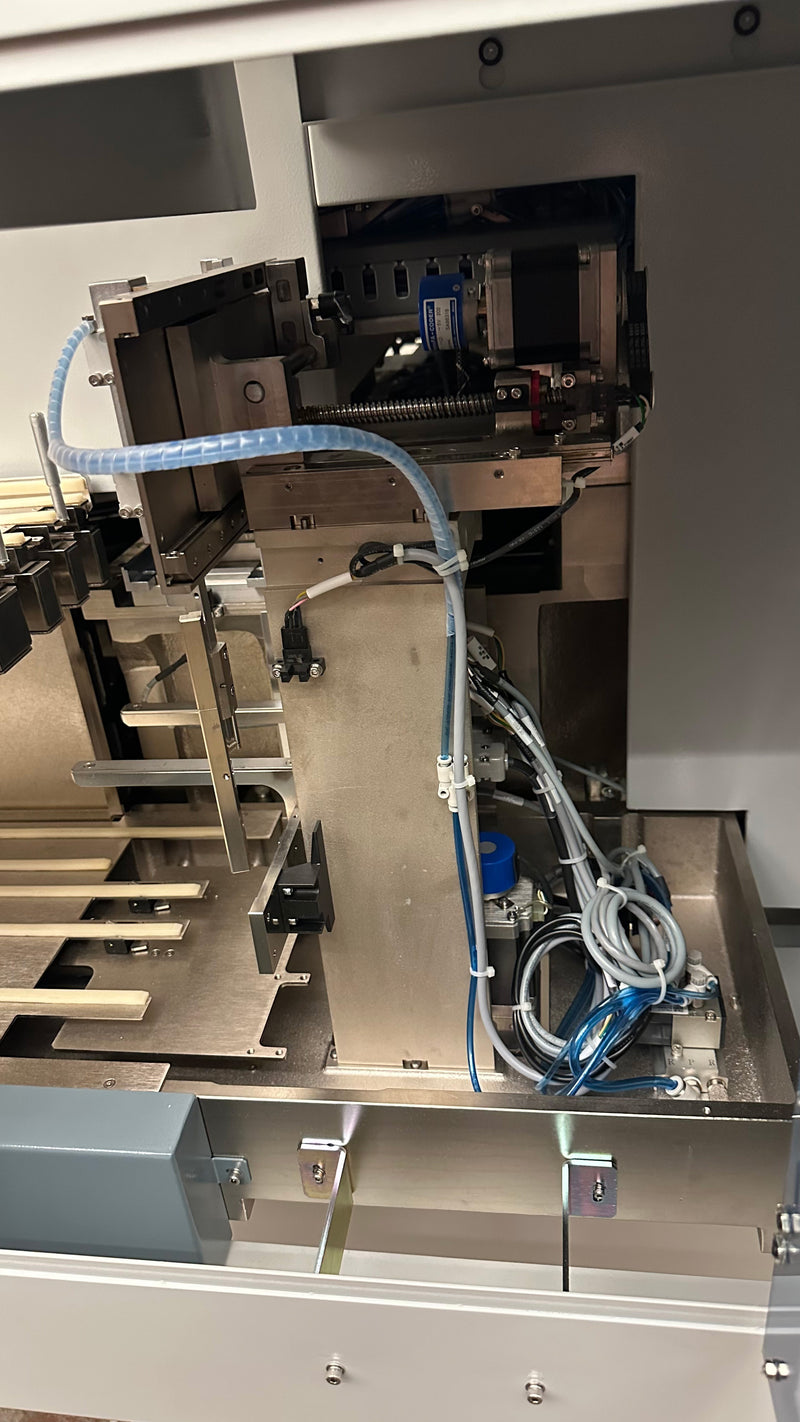

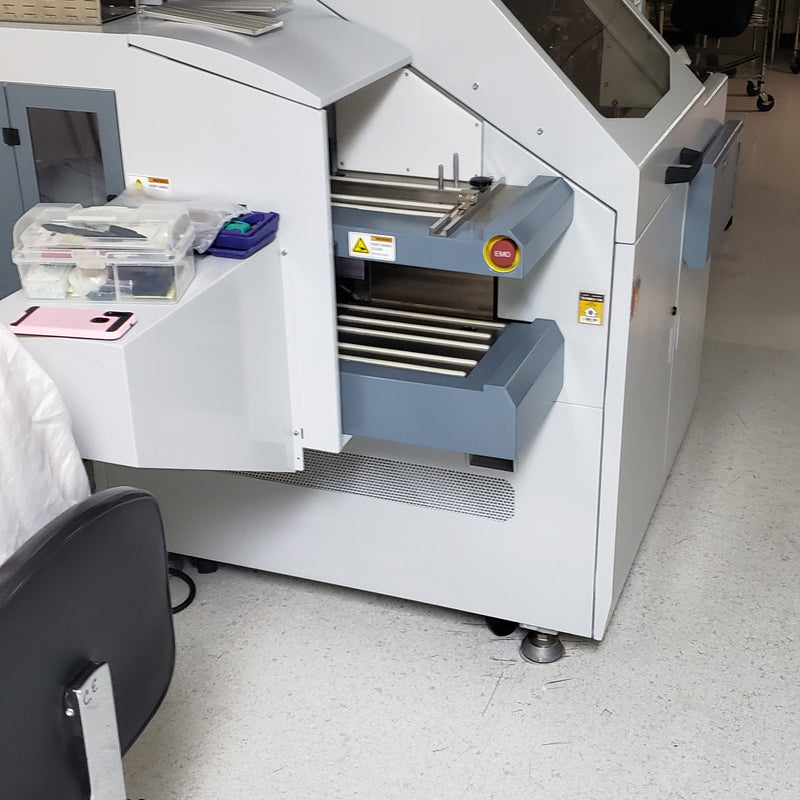

- Magazine Size:
- Length: 2.36" - 12.20"
- Width: 2.36" - 4.33"
- Height: 2.68" - 7.48"

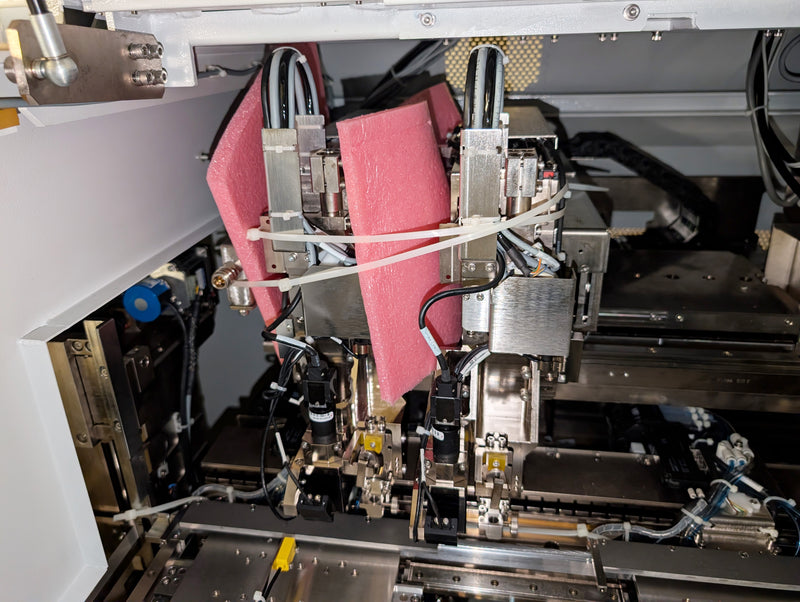

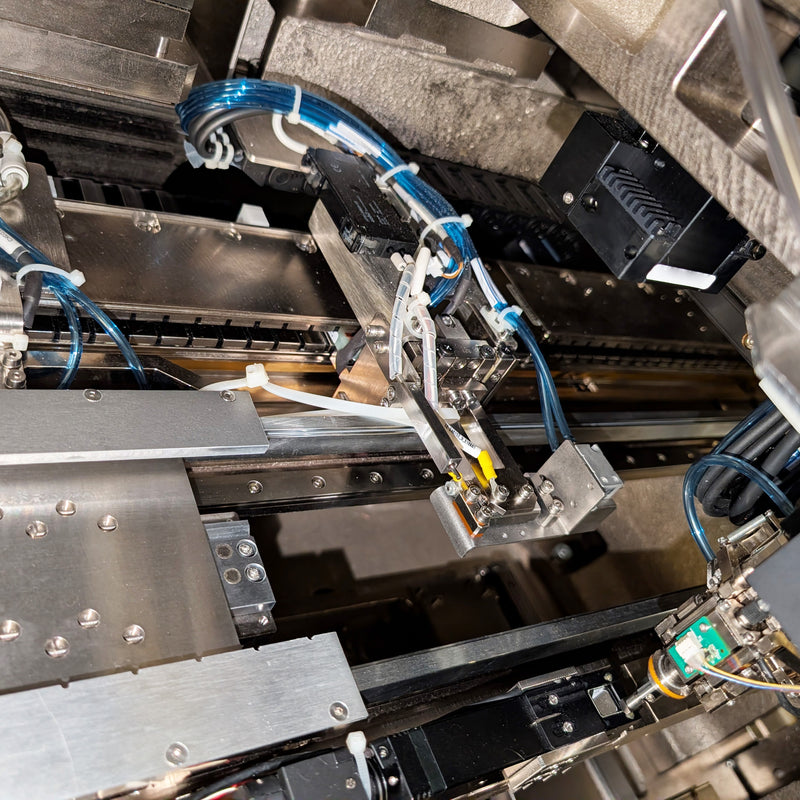

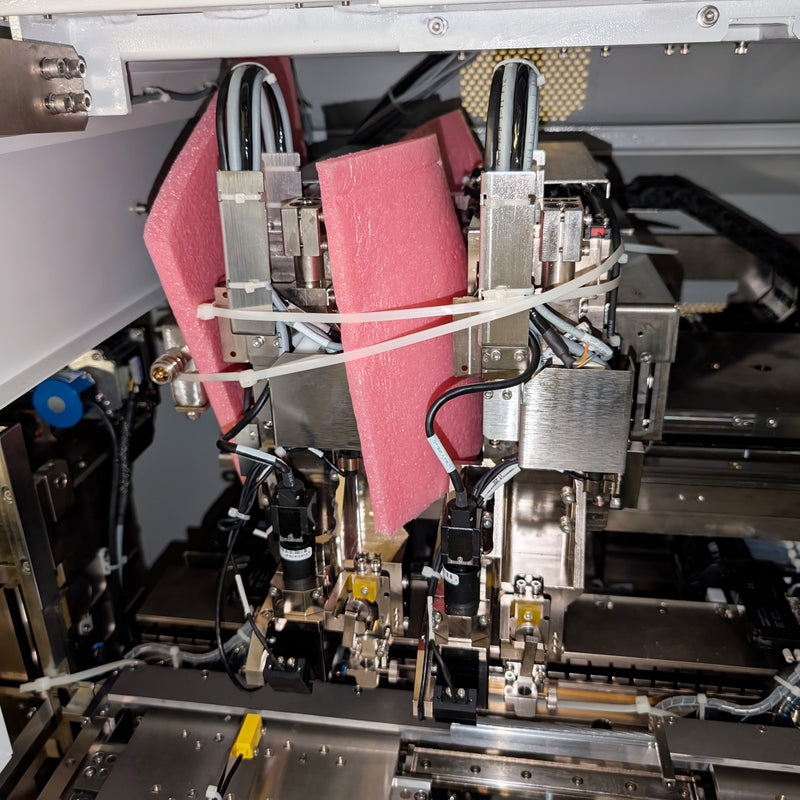

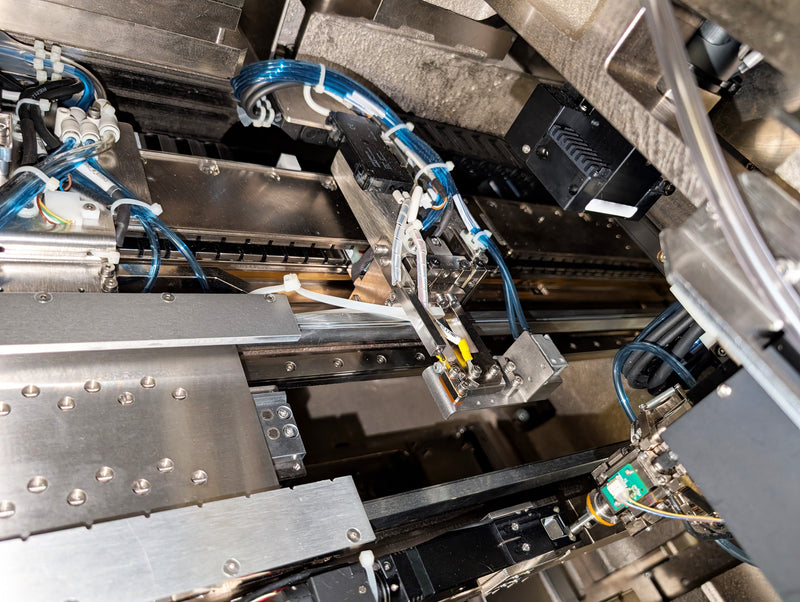

Bond Head:
- Bond force: Programmable (30 - 300g)
- High force bond head
- Spare parts kit from OEM
2020 Vintage
