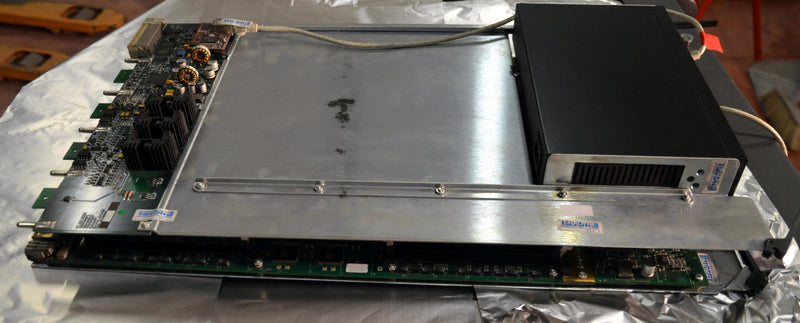

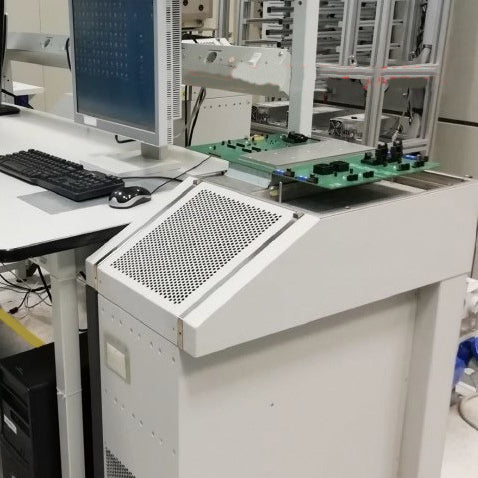

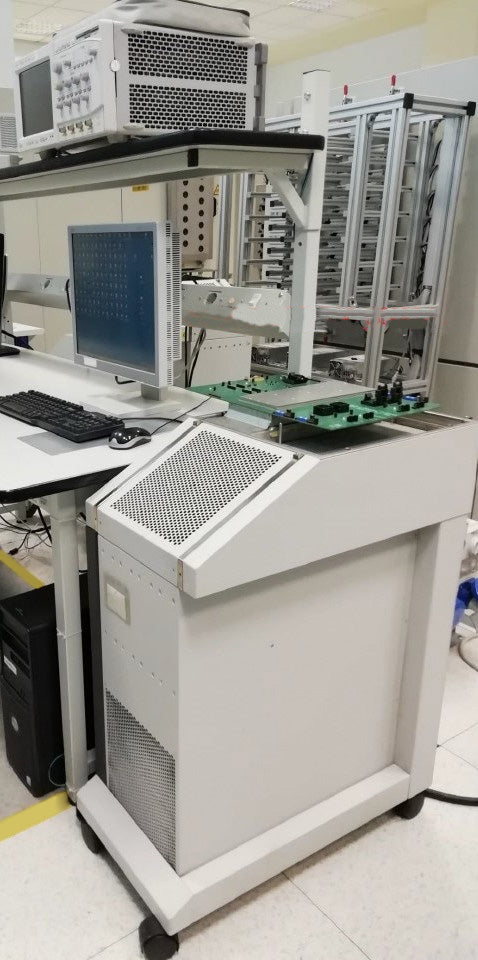

Teradyne / Nextest Magnum I EV ATE (Automatic Test Equipment)
Parts included:

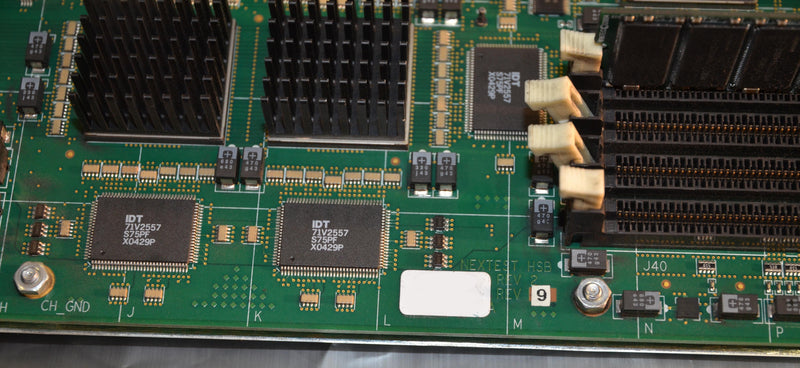

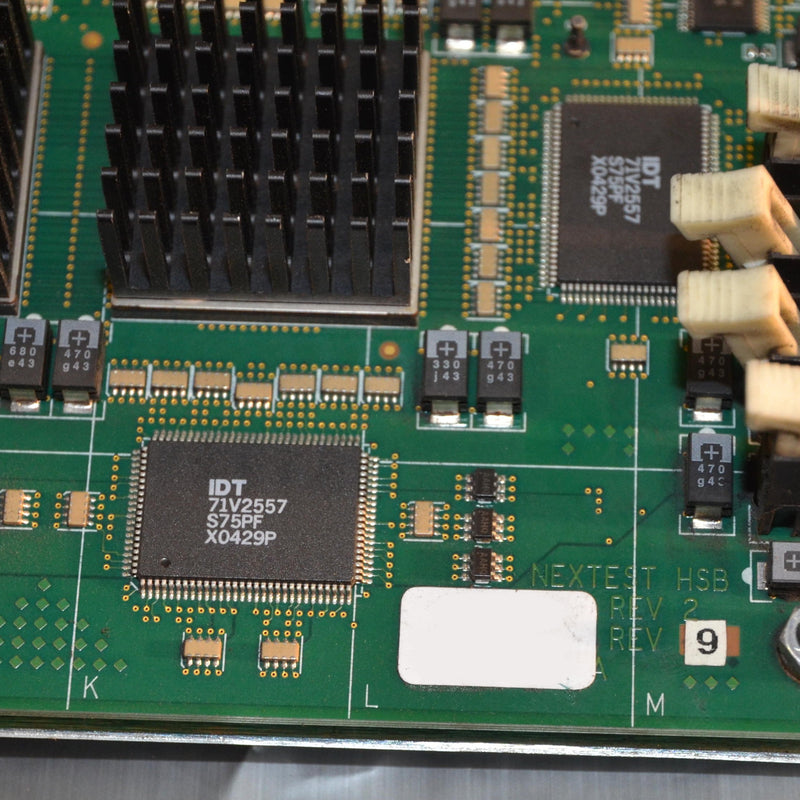

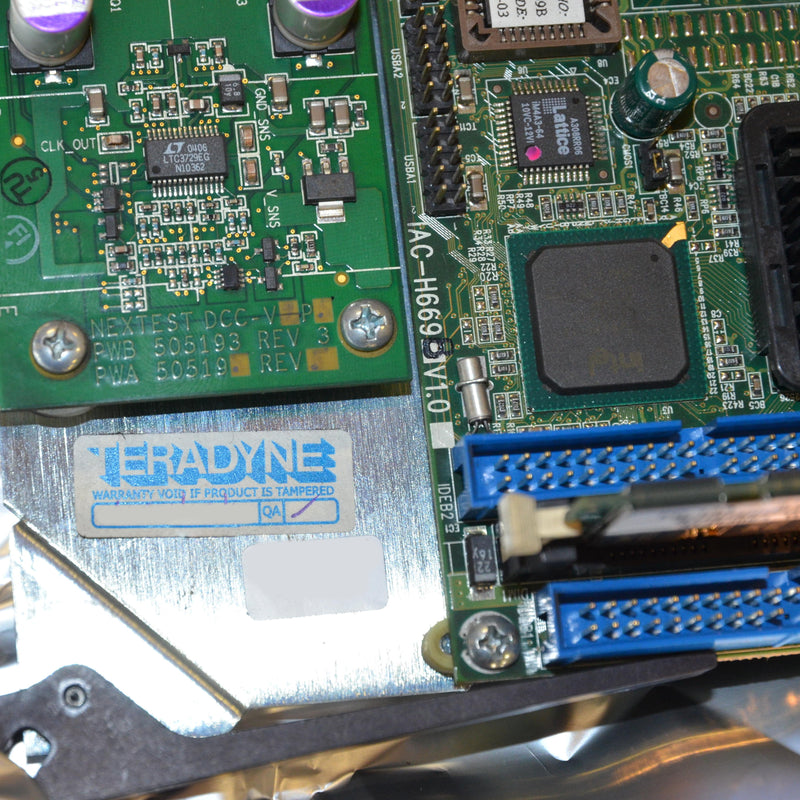

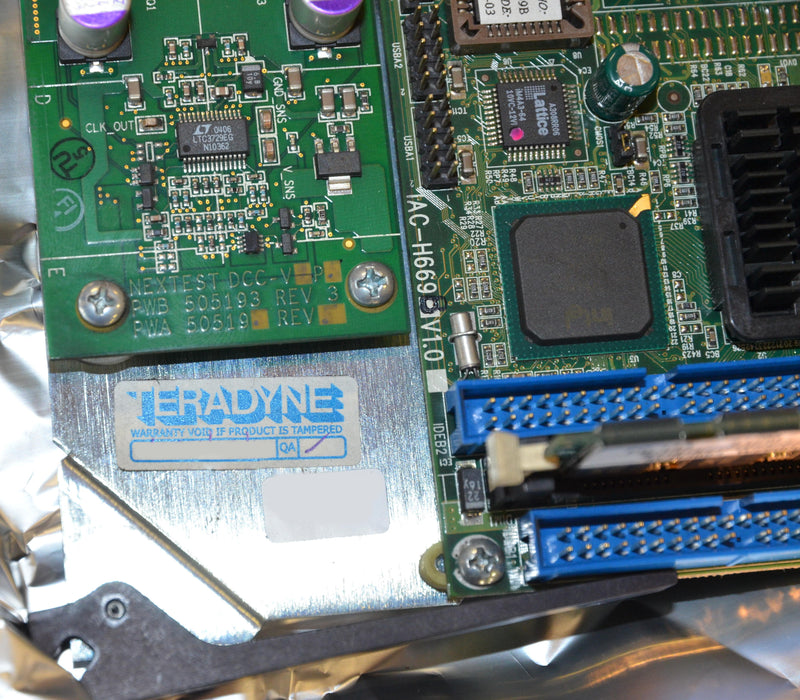

Nextest DCCVIP5 P.C.B.
- With: PWB p/n 505193 Rev 3
- PWA p/n 505194 Rev 5
Nextest DCC V2 P5 P.C.B.
- With: PWB p/n 505193 Rev 3
- PWB p/n 505195 Rev 5

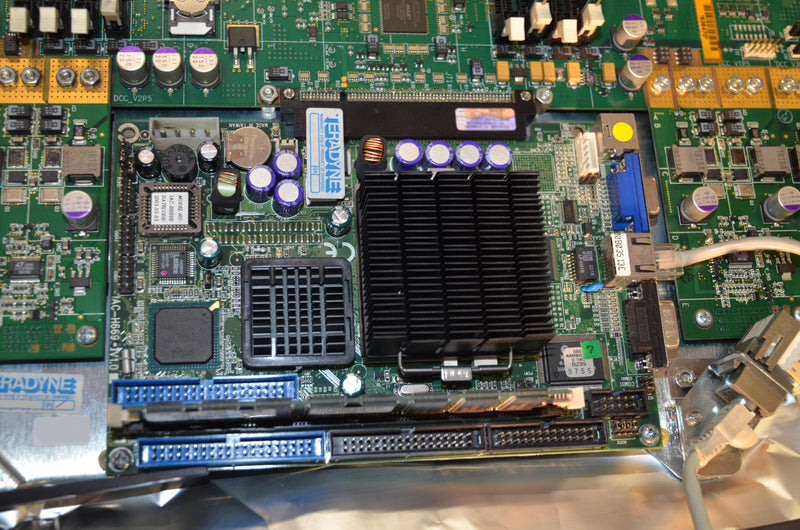

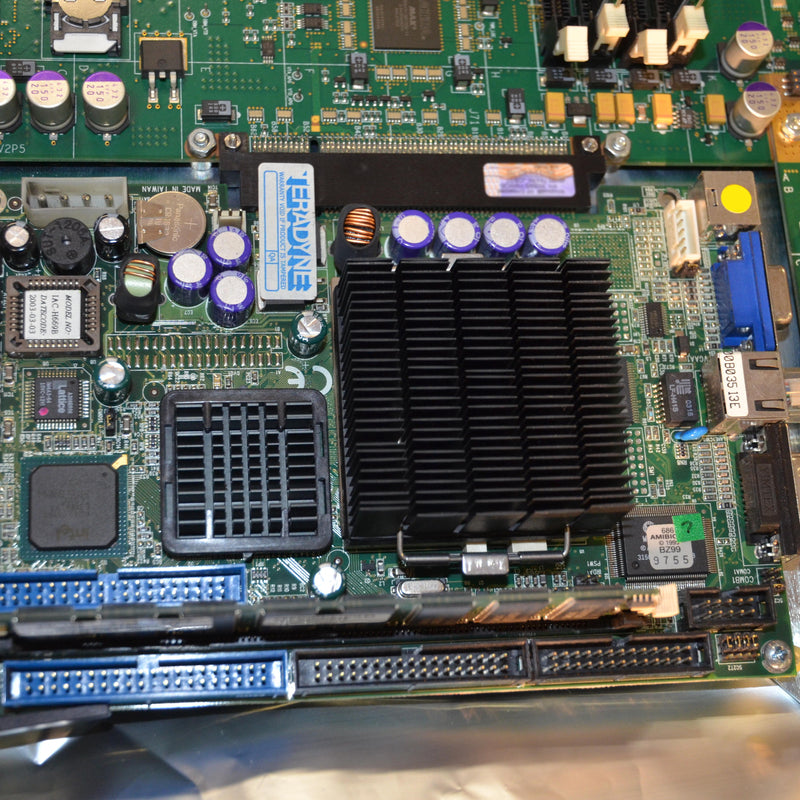

Single Board PC Model IAC-H6698V1.0
- With PC133 512mb/32X8 Memory
- Operating system: Windows XP
- Embedded Motherboard model: Nextest HSB p/n 507487 HSBx Rev 9
Site Assy X 507486 Date: 6/27/13
With:
- Nextest LVM2 p/n 505479 PWA:505498 qty 2
- Nextest ECR36 p/n 505479 PWA:505933 qty 4
- Nextest DMB36 p/n 505479 PWA:505939 qty 2
- Nextest DPSPMU with PWB: 504582 Rev 4
PWA: 504583 Rev 15 qty 1
- Nextest DPSPMU with PWB: 504582 Rev 5
PWA: 504583 Rev 15 qty 1
- Nextest DPSPMU with PWB: 504582 Rev 5
PWA: 504583 Rev 15 qty 1
- Nextest DPSPMU with PWB: 504582 Rev 6
PWA: 504583 Rev 15 qty 1
- Nextest p/n 508145 including:

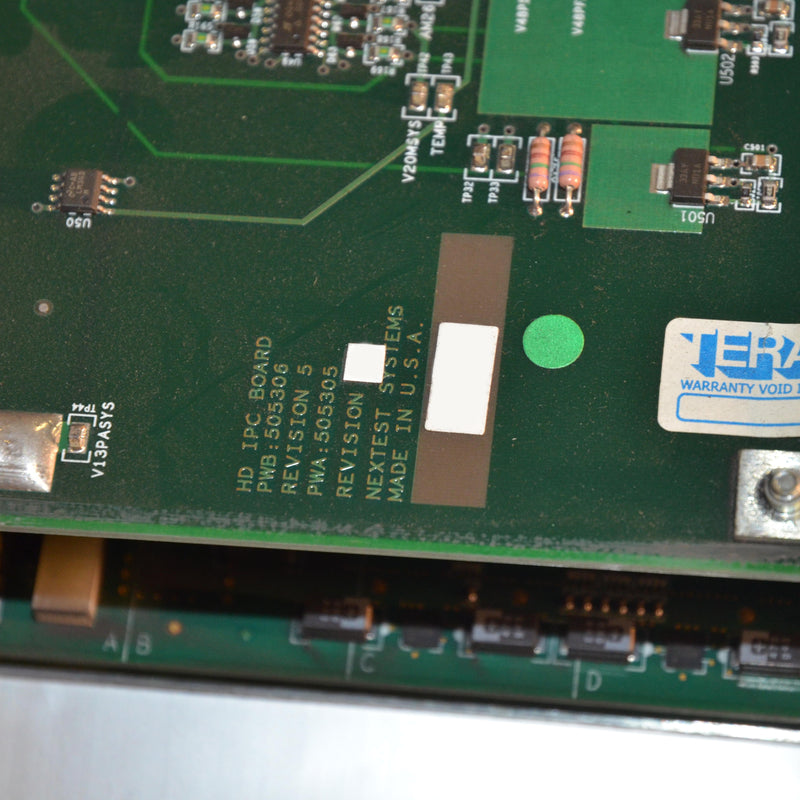

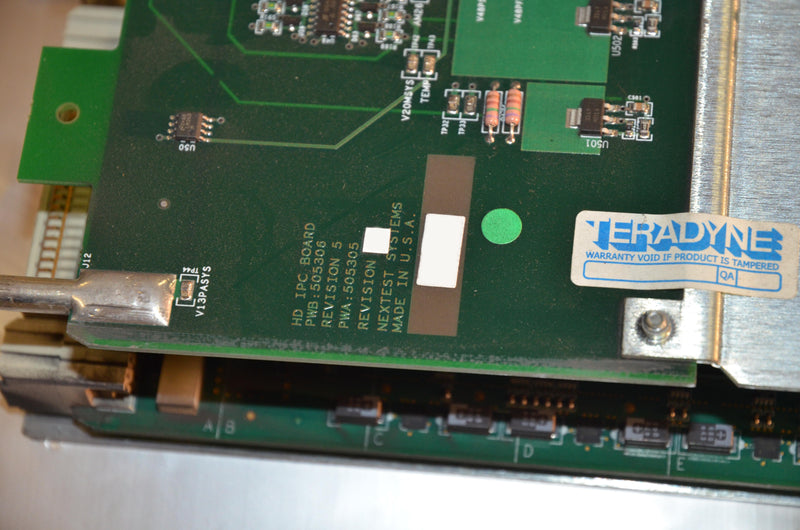

- HP IPC Board PWB505306 Rev 5
PWA505305 Rev 24
- Chassis p/n: 508374 Rev 4
DIAGNOSTICS REPORT:
-HSB1 SERIAL# xxxx
- Loading TCal data from file: Y:\nextest\caldata\tcal_data_xxxxxx.bin
- Loading VCAL Data on t_hsb1, t_pe32_1
- Loading VCAL Data on t_hsb1, t_pe32_2
- Loading VCAL Data on t_hsb1, t_pe32_3
- Loading VCAL Data on t_hsb1, t_pe32_4
- Loading VCAL Data on t_hsb1, t_dps_pmu_1
- Loading VCAL Data on t_hsb1, t_dps_pmu_2
- Loading VCAL Data on t_hsb1, t_dps_pmu_3
- Loading VCAL Data on t_hsb1, t_dps_pmu_4
active dut = 0
- The test program is loaded
2012 Vintage
