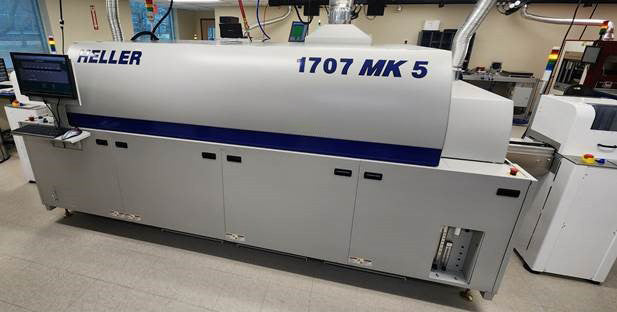

Heller 1707 MK 5 Ultra Low Power & Nitrogen Consumption Reflow Oven

Asset #: 71785

Make: Heller

Model: 1707 MK 5

Heller 1707 MK 5 Ultra Low Power & Nitrogen Consumption Reflow Oven
- With Semi-circular balanced flow heater modules
- 100% forced convection reflow oven
- 18” On Load Conveyor and 18” Off Load Conveyor
- 73" Heated Tunnel Length · 1 Internal Cooling Module with 15” of Cooling
- 14 Independent Temperature Controlled 350°C Semi-Circular Balanced Flow “Lead Free” Heating Zones
- Spike Zone Design for minimal liquidous time
- Complete Computer Control System including:
- Flat Panel Color Monitor, Keyboard & Mouse support
- Complete Software Package including:
- Windows based Computer, Windows Home Edition Software, Password Protection
- ECD CPK & SPC data and alarm logging with timed download or printout capability
- Complete KIC & ECD Profiling & Storage Software including the following features:
- 5 Thermocouple "Real Time" profiling
- Profile Storage/Overlay Software including the following features:
- Profile Graph Storage of up to 500 graphs
- Profile graph overlay of "benchmark" profile with current profile
- Profile graph phase shifting to align two graphs
- Moveable slope window providing average slope over given portion of graph
- 6 color graphics to distinguish between graphs
- PID temperature control to ensure zone temperature stability to +/- 1°C
- Signal Light Tower to indicate system status
- 4 moveable casters for easy relocation around shop floor
- Power controlled Clamshell Hood Lift
- Single exhaust port for easy facilitization
- 400V, 60 HZ, 3 phase, 100 AMPS per phase · Left to Right Conveyor Travel
- Floor space requirements:  142"L x 59"W x 63"H
- Enhanced Frame Design
- Breaker Over Current Protection
- 22” Wide 42-36-18 Heavy Weave 400⁰C High Temperature Mesh Belt
2021 Vintage
