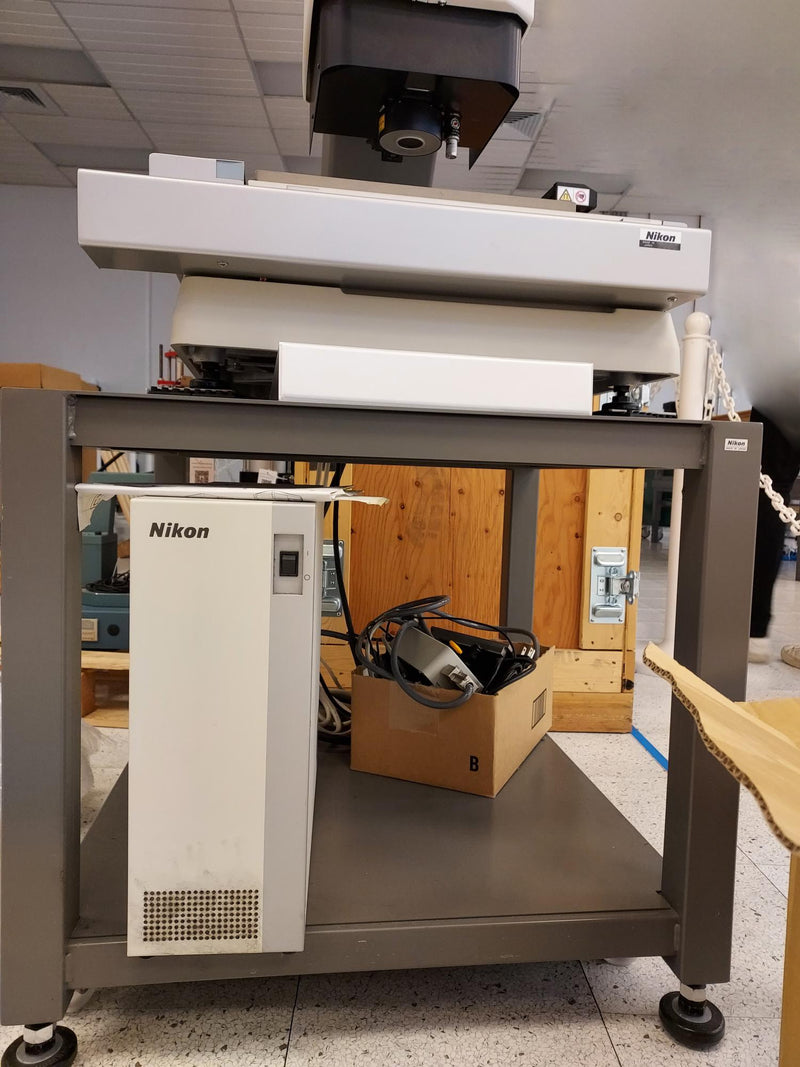

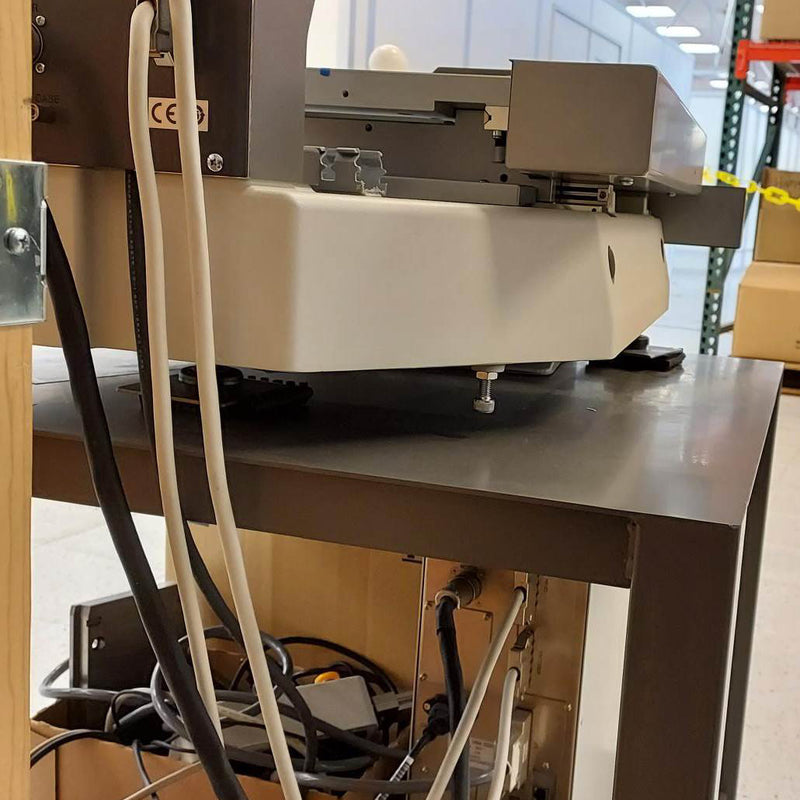

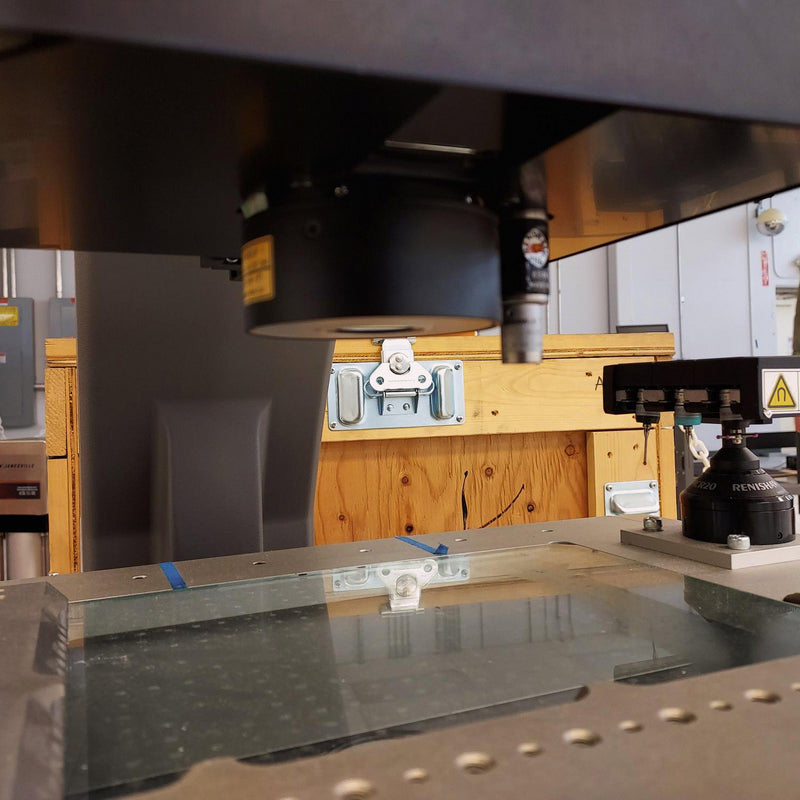

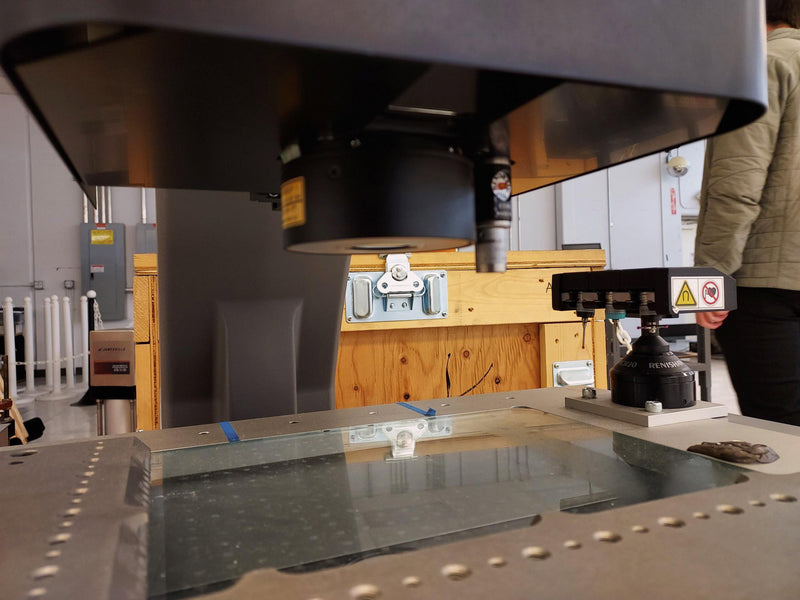

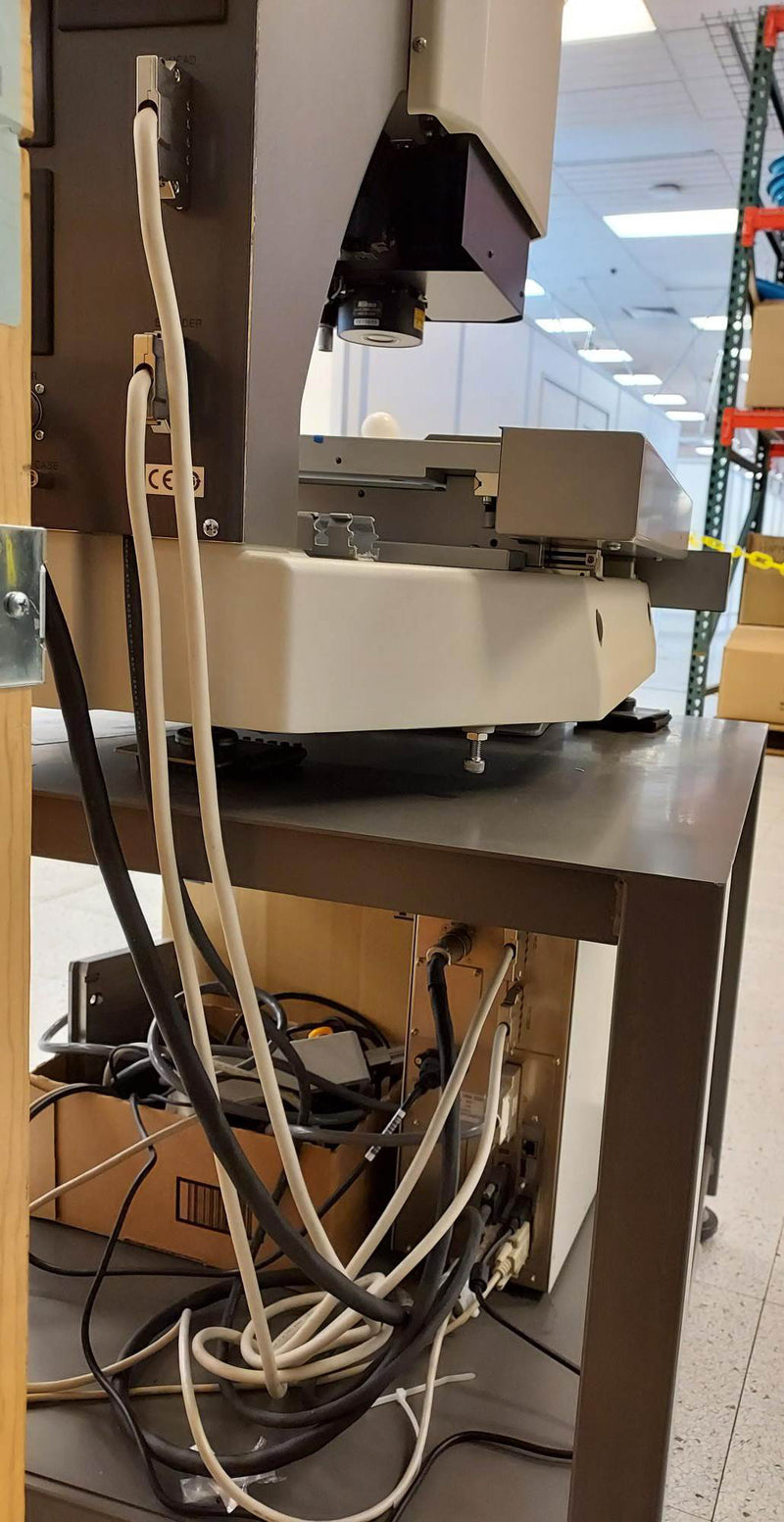

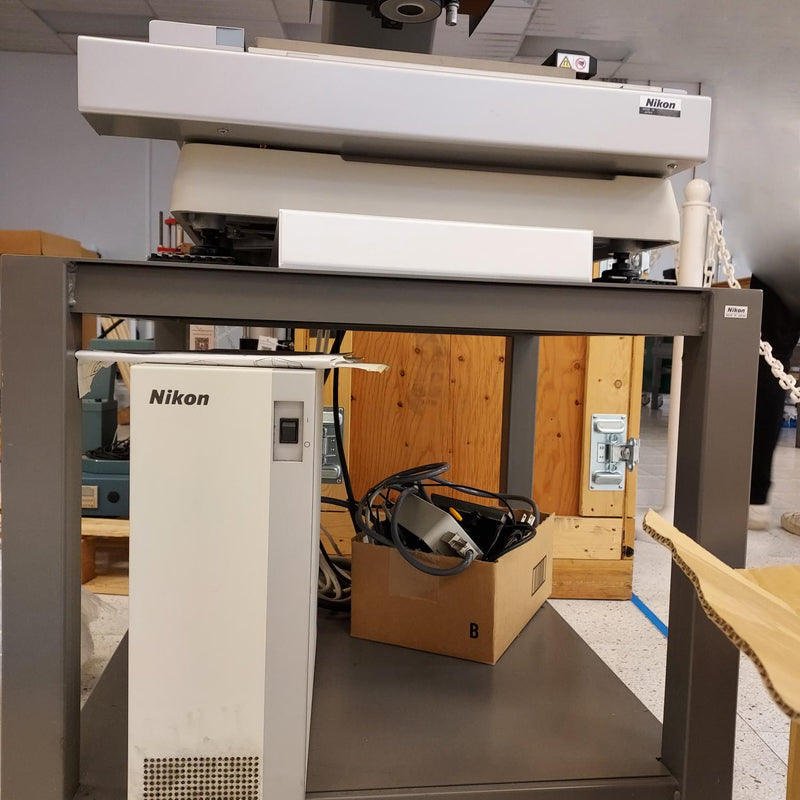

Nikon VMA 2520 3D Measuring Machine
- iNEXIV
- Stroke (X x Y x Z): 250 x 200 x 200 mm (10 x 8 x 8”)
- Minimum readout: 0.1 µm
- Maximum workpiece weight: 15 kg (up to 5 kg accuracy guaranteed)
- MPE:
XY MPEE1: 2+8L/1000 µm
XY MPEE2: 3+8L/1000 µm
Z MPEE1: 3+L/50 µm
- Camera:
1/3-in. 3CCD color
Progressive scan (B/W optional)
- Working distance: 73.5 mm (63 mm with LAF)
- Magnification:
Optical: 0.35 to 3.5x
On screen: 12 to 120x (with 17” monitor at SXGA resolution)
- FOV size: 13.3 x 10 to 1.33 x 1 mm
- Auto focus: Vision AF and optional Laser AF
- Contour Illumination: White LED illumination
- Surface Illumination: White LED illumination
- Oblique Illumination: 8-segment white LED ring
- Video resolution: 640 x 480 (pixels)

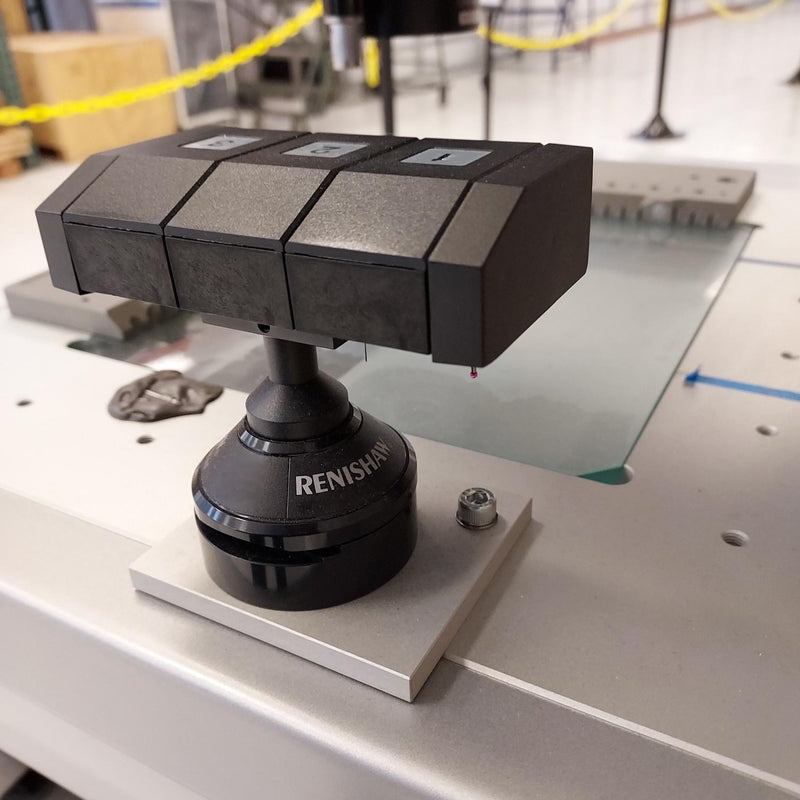

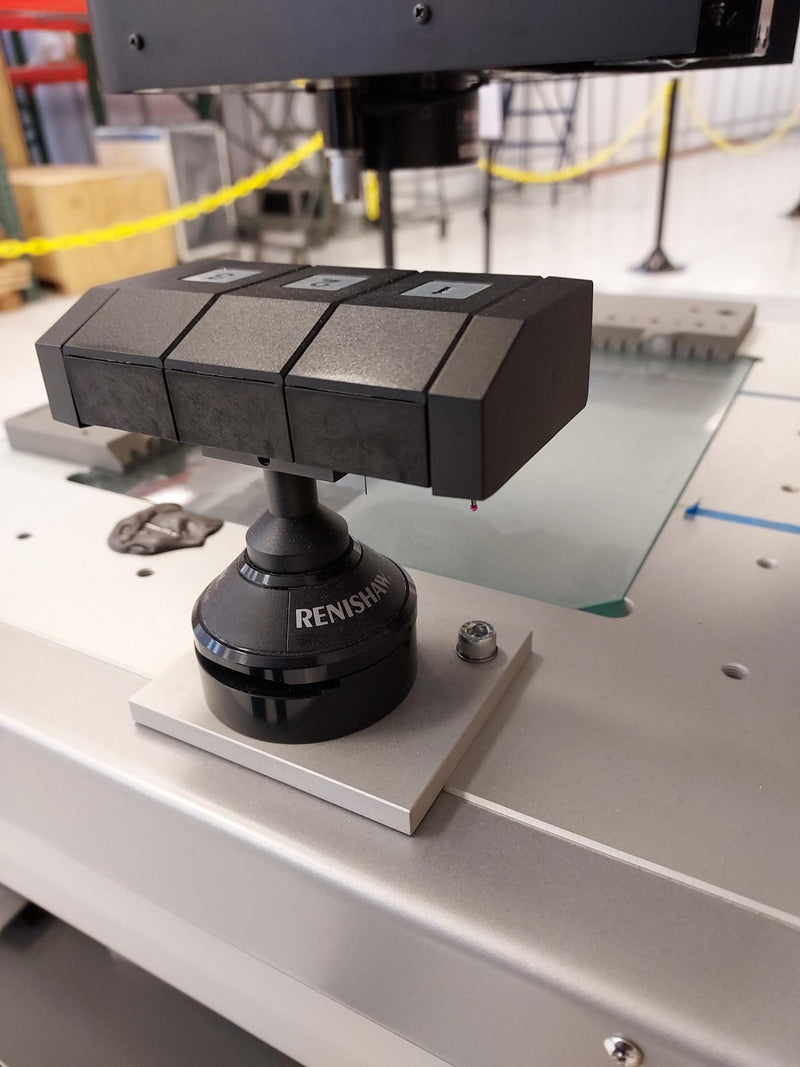

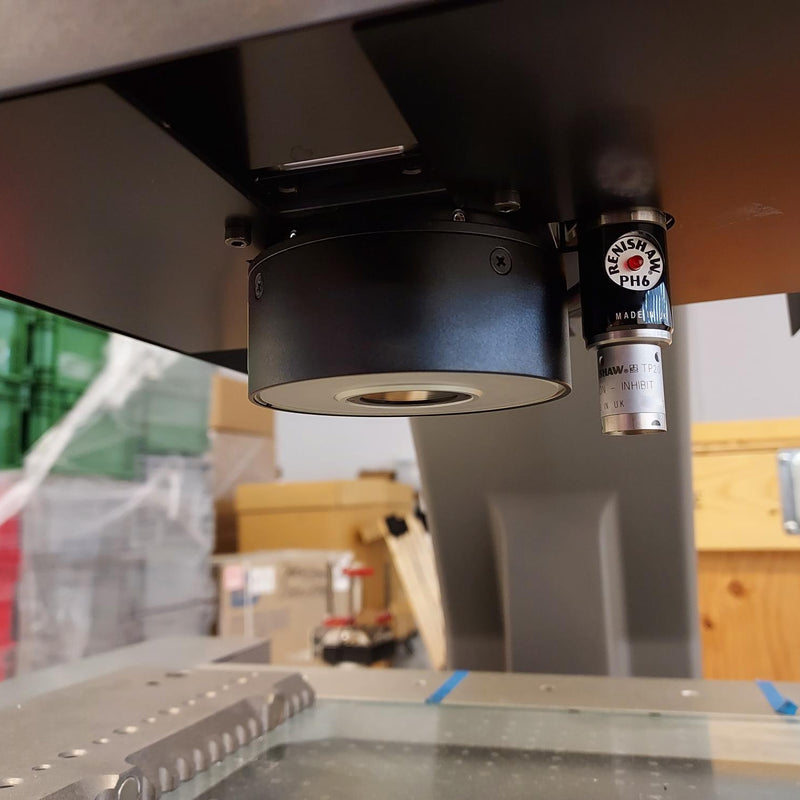

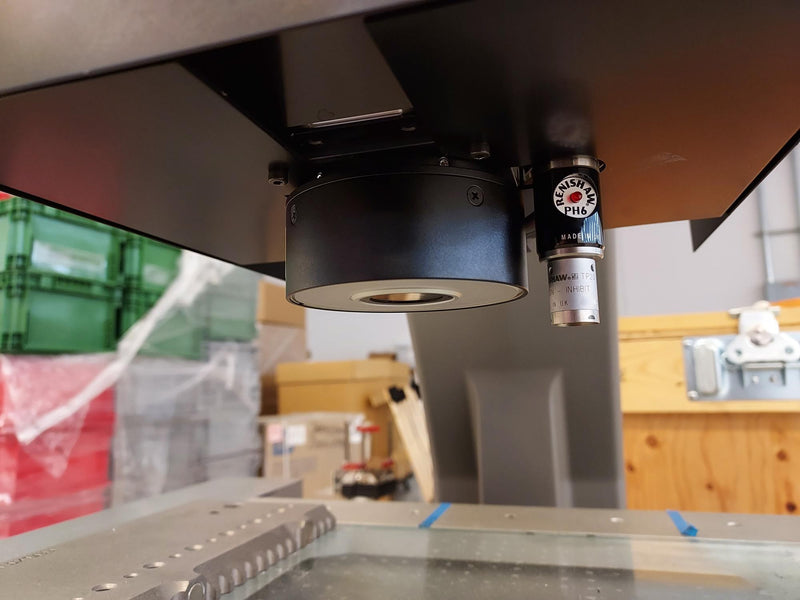

- Touch probe: Renishaw TP200/TP20 (option)
- Power source: 100-240 V, 50/60 Hz
- Power consumption: 5-2.5 A (excluding power consumption of host computer and its peripherals)
- Main body (W x D x H): 565 x 690 x 740 mm (minimum height), 72 kg
- Controller :145 x 400 x 390 mm, 13 kg
- Temperature: 10 to 35ºC
- Humidity: 70% or less
