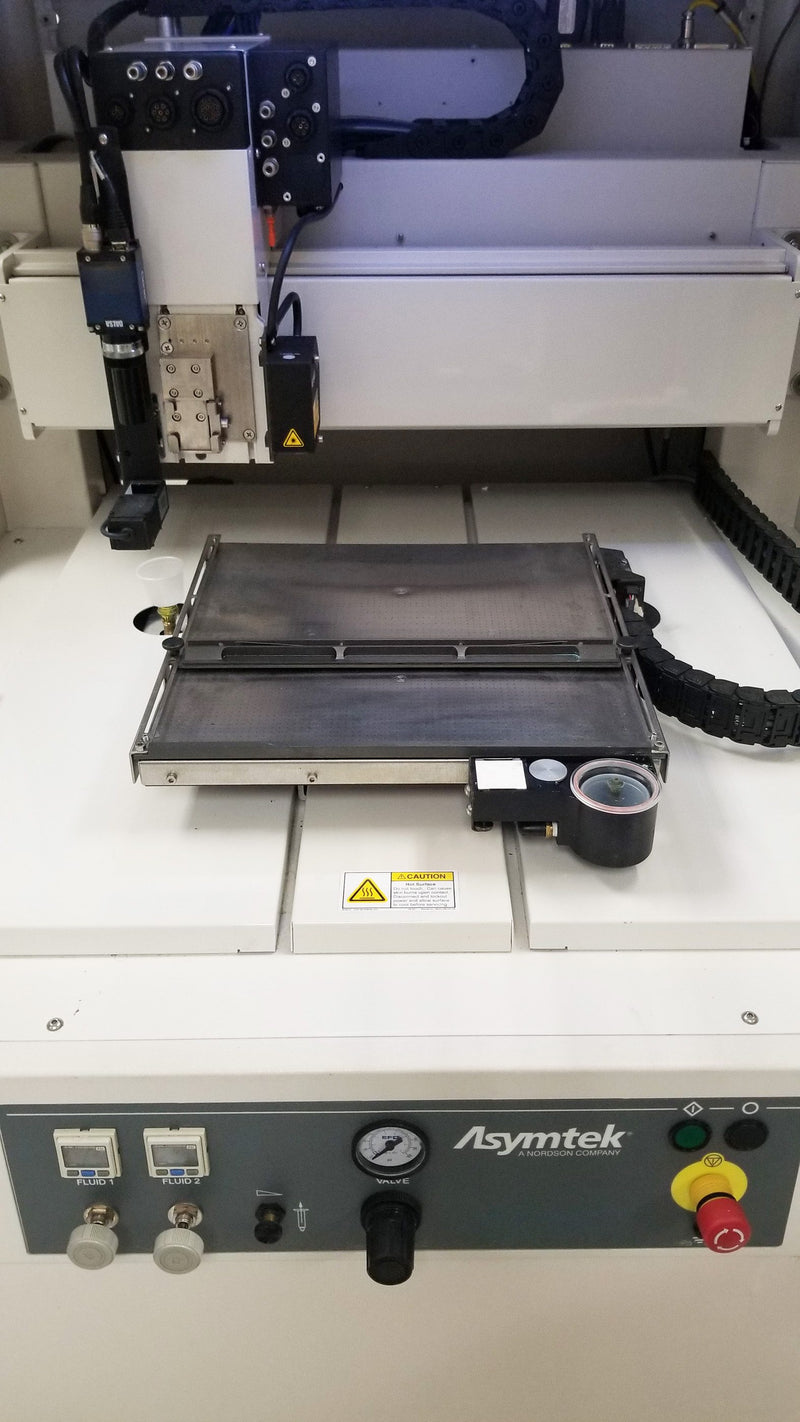

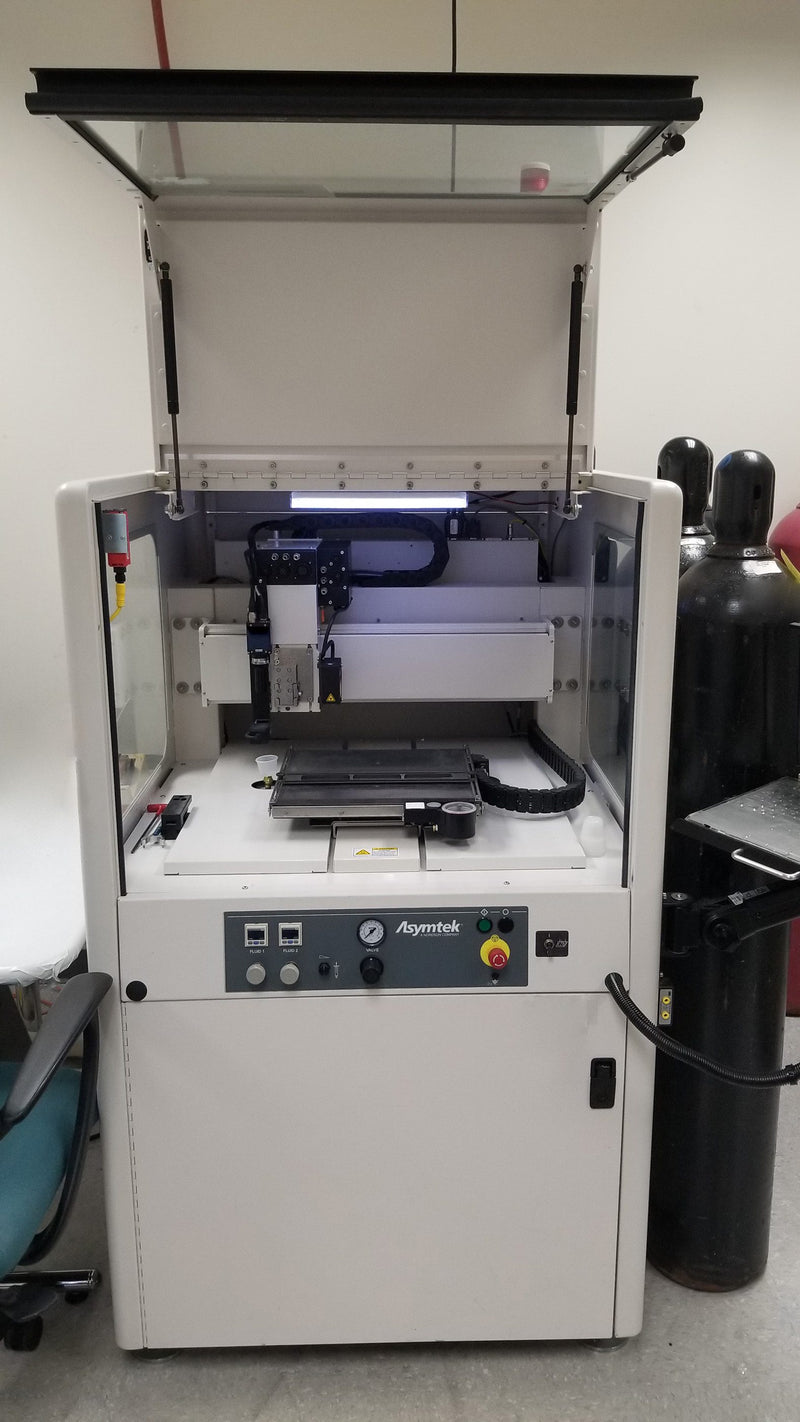

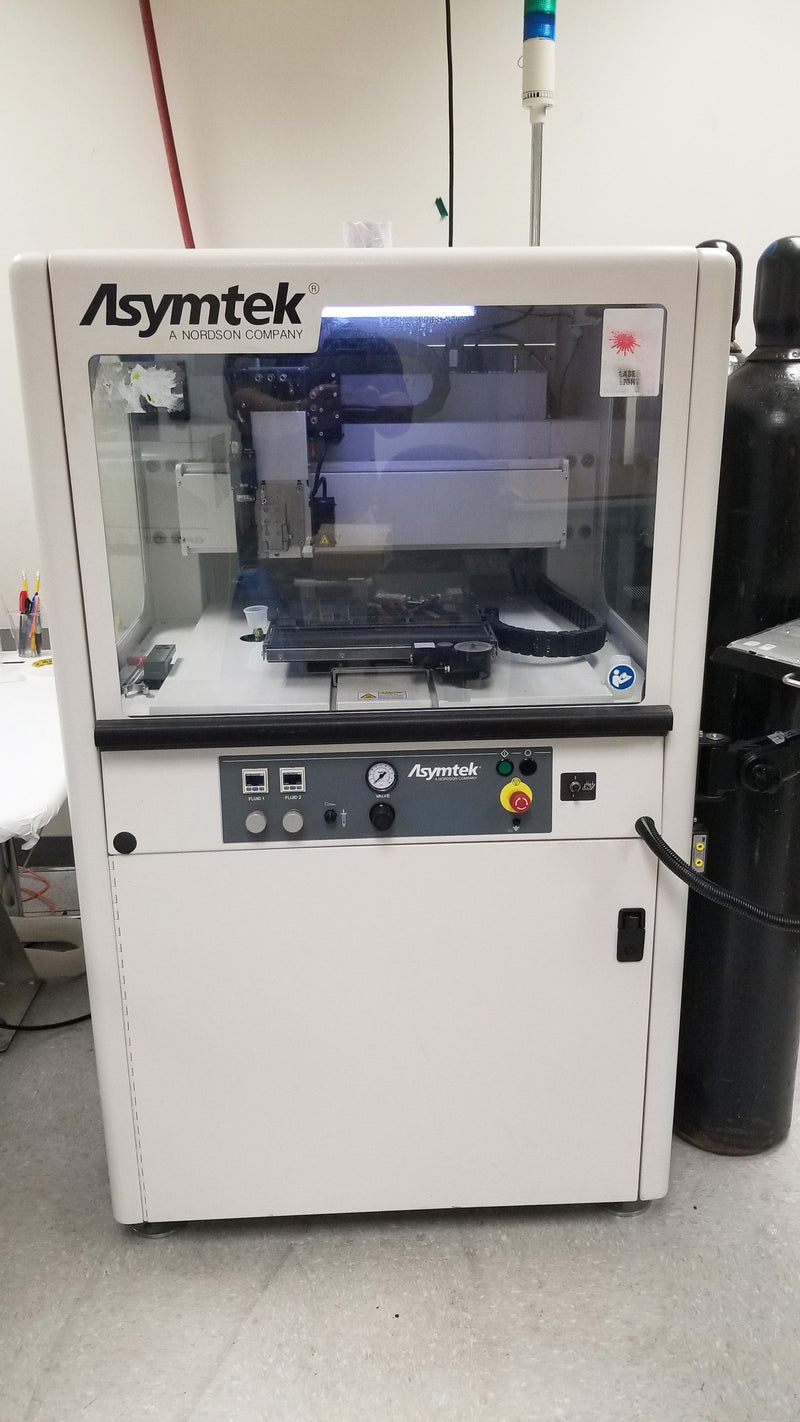

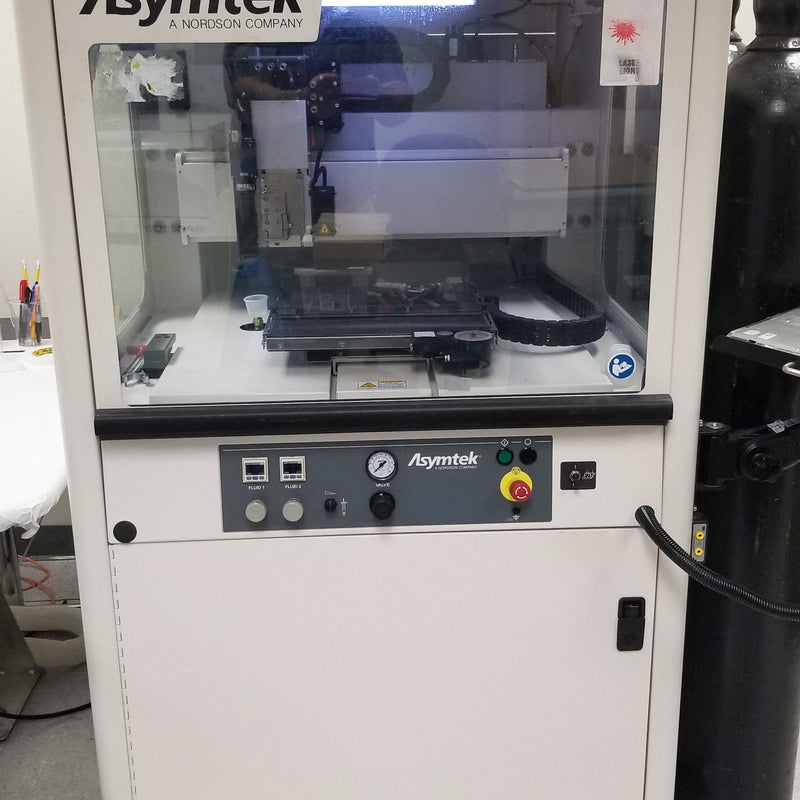

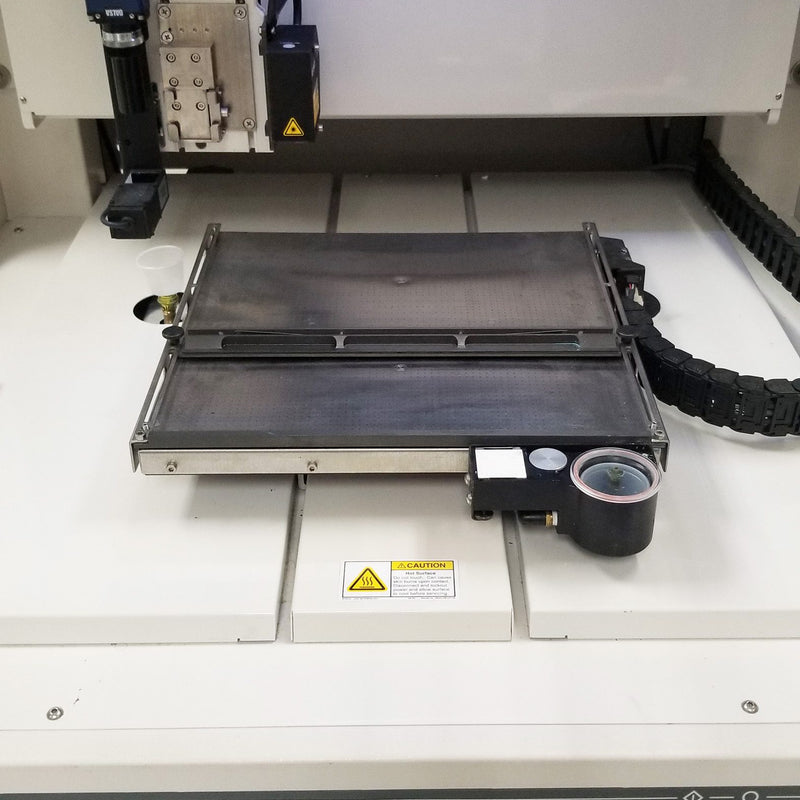

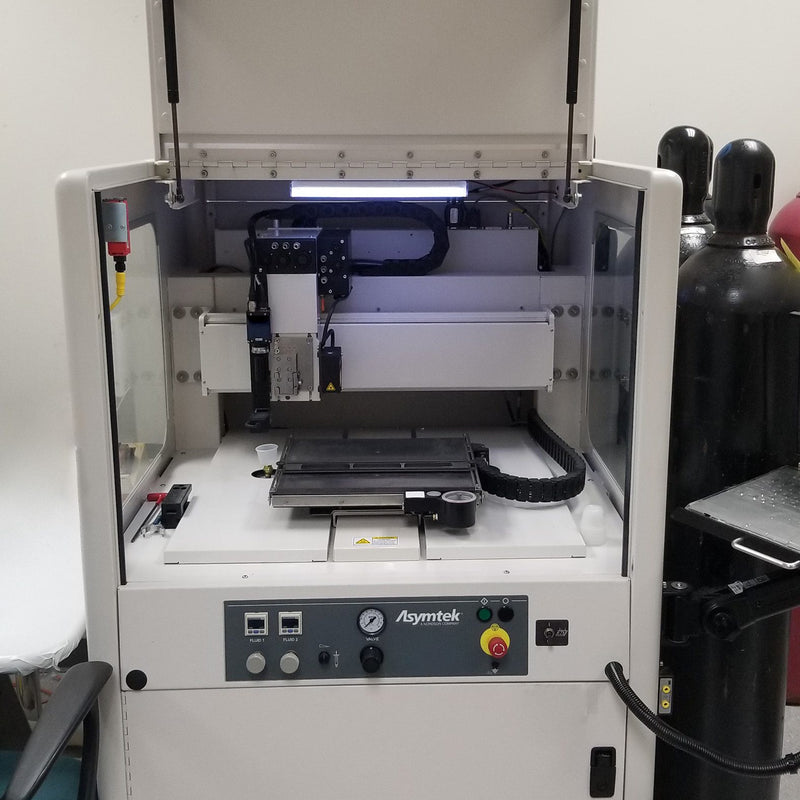

Nordson / Asymtek Spectrum 820 Dispenser
- Type: Brushless DC servo motors, closed-loop with encoder feedback Encoder
- Resolution: 10 micrometer
- Positional Accuracy: ±0.075 mm (0.003 in.), 3 sigma
- Placement Accuracy: ±0.100 mm (0.004 in.), 3 sigma
- X-Y Acceleration: 0.25 g peak with S-curve jerk control X-Y
- Velocity: 500 mm/s (20 in./s)
- Z-Axis Velocity: 500 mm/s (20 in./s)
- X-Y Repeatability: ±0.025 mm (0.001 in.)
- Z-Axis Repeatability: ±0.025 mm (0.001 in.)
- Work Envelope: 350 x 350 mm (14 x 14 in.)
- Z-Travel: 75 mm
- Tool Payload: 3 kg
- Workpiece Payload: 2 kg
Vision and Lighting:
- Vision: Vision system with Automatic Pattern Recognition
- Lighting: Programmable, on-axis, red/blue LED, 256 steps
Computer:
- Computer: Windows-based PC
- User interface: Color LCD flat-panel display; ASCII keyboard & pointing device; Ethernet network port
Software:
- User Environment: Fluidmove - Operating System: Windows
Facility Requirements:
- 866 mm wide X 1123 mm deep (34 x 44 in.)
- Display extends unit 610 mm (24 in.) - Height including light beacon: 2045 mm
- Air Supply: 621 kPa (6.1 atm, 90 psi) 3 CFM @ 90 psi (28 liters/hr = 1 SCFM) (May be higher depending upon application)
- Power (Mains): 200/240 VAC, 8.5 Amps (max), 50/60 Hz
- Single Phase
2006 Vintage
