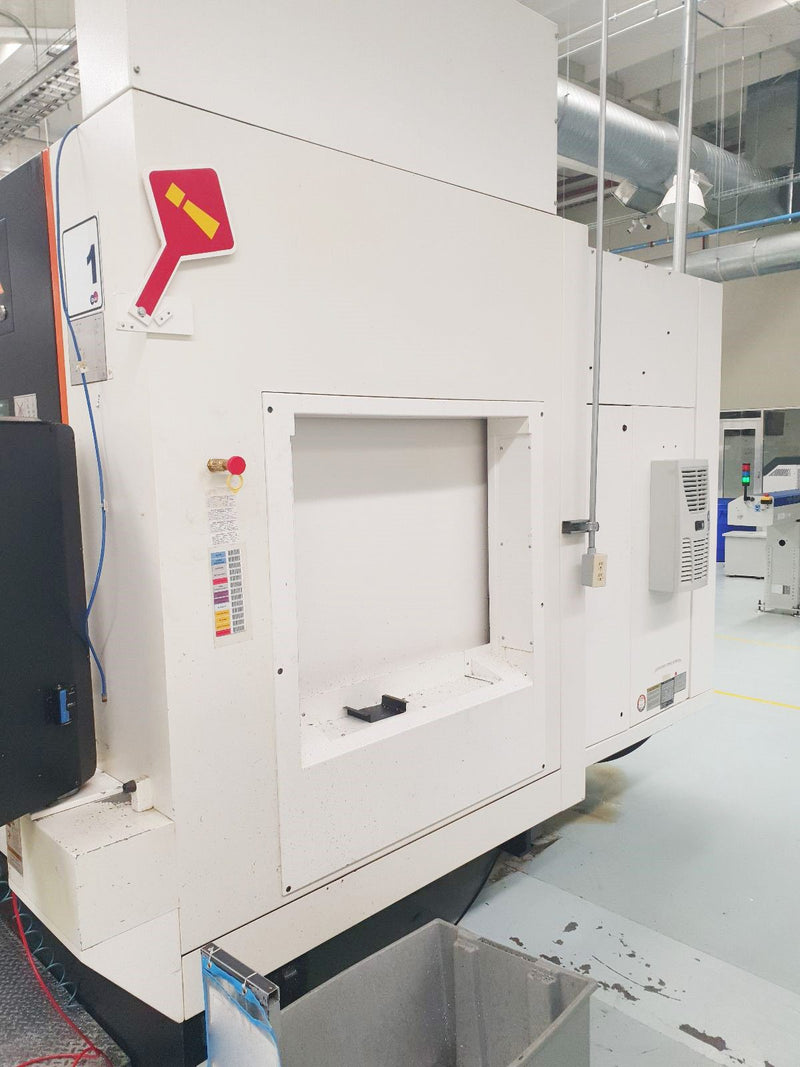

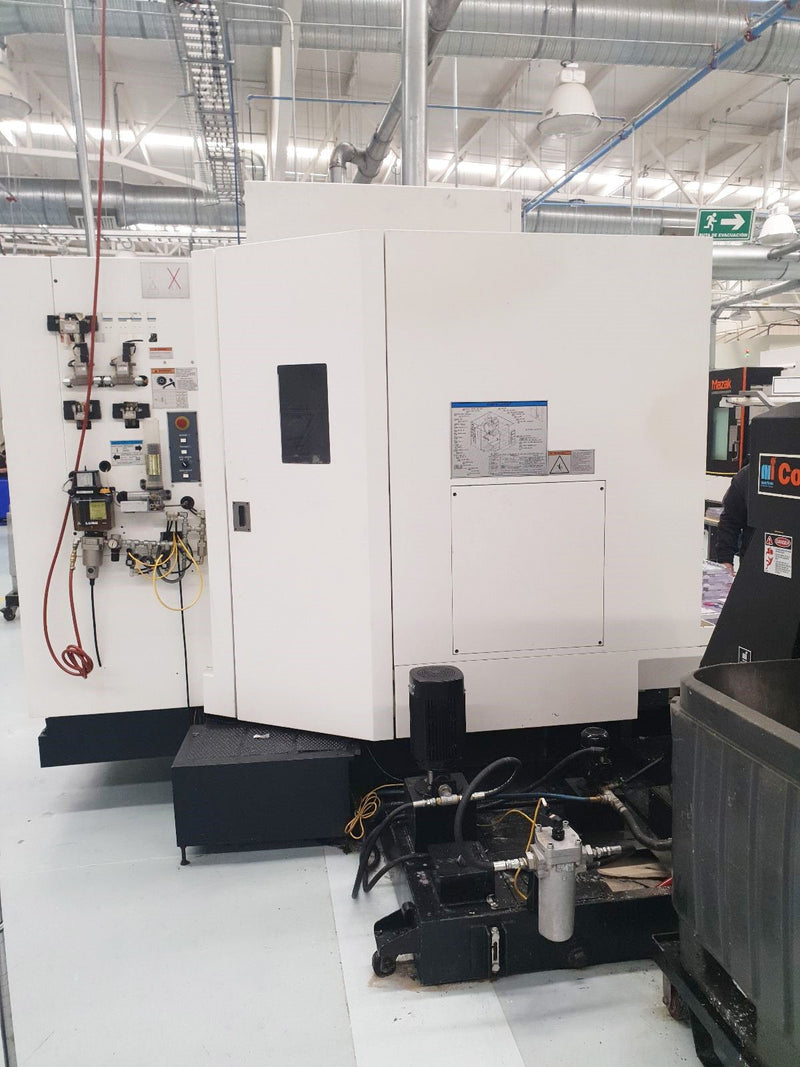

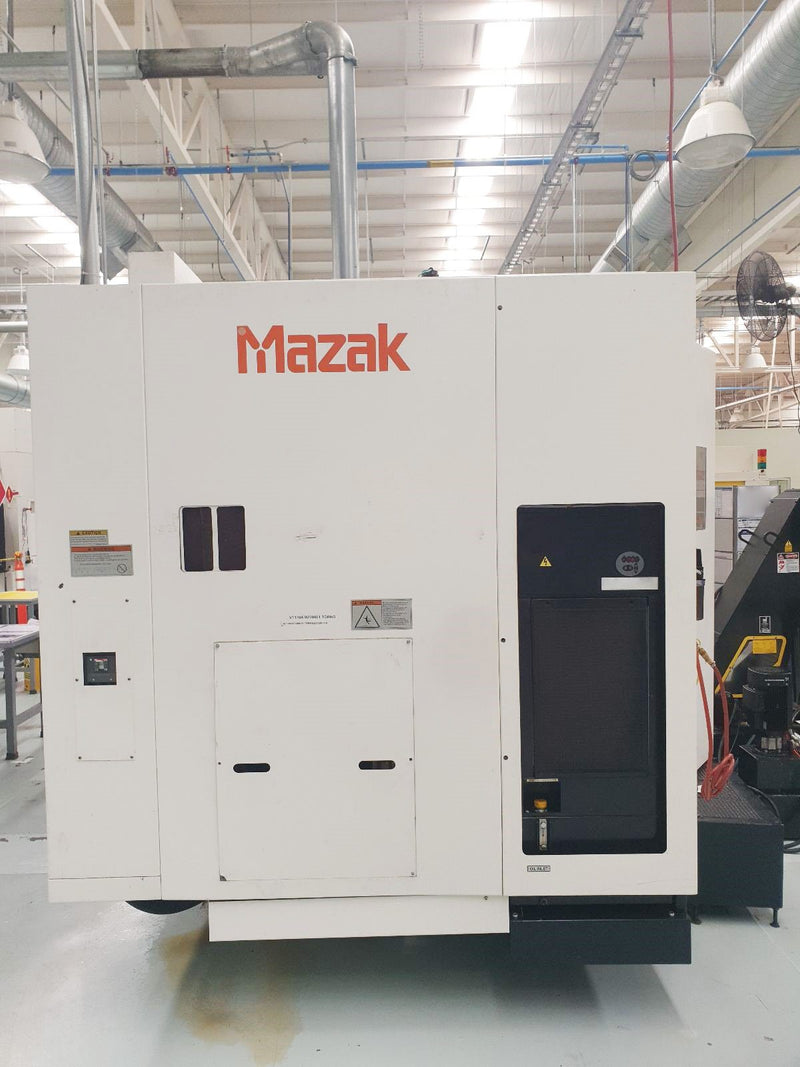

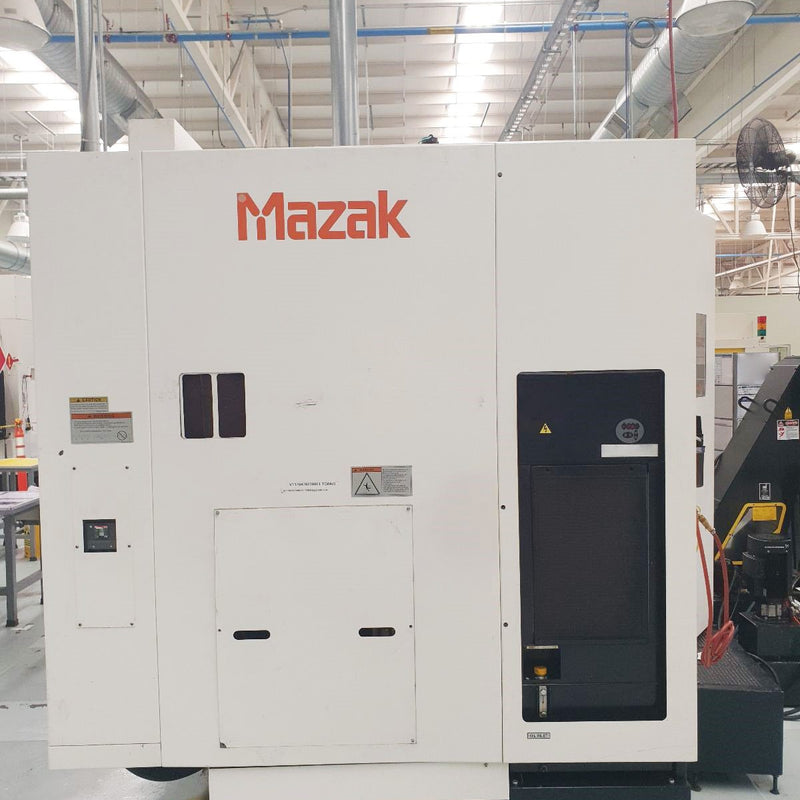

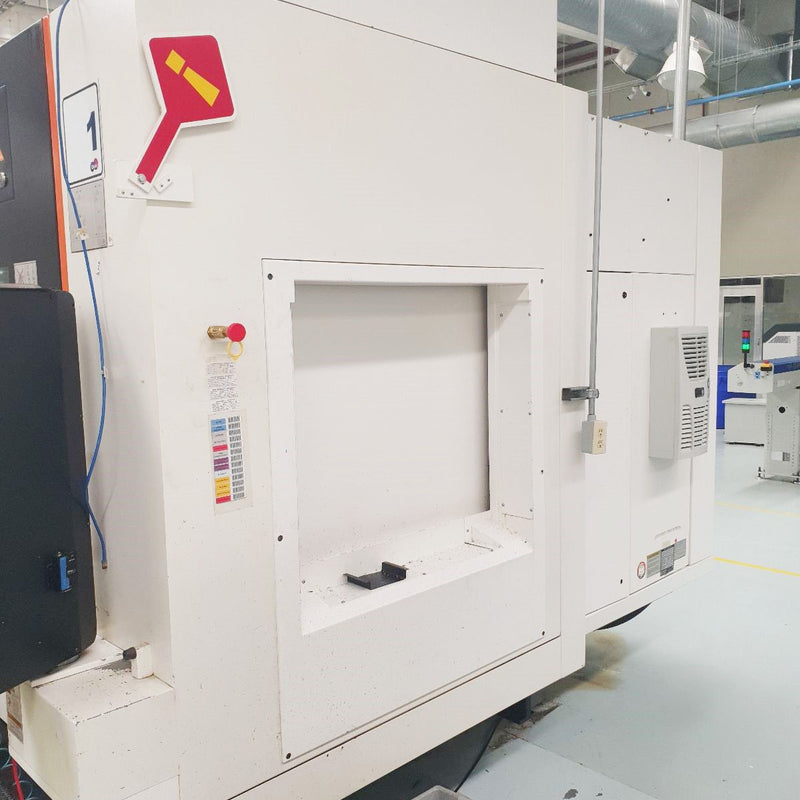

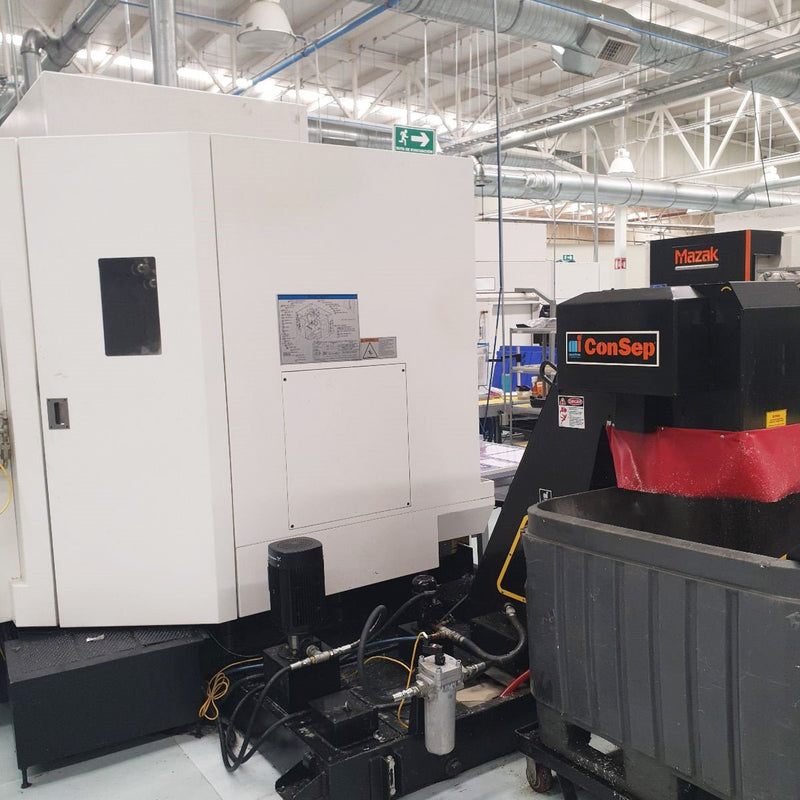

Mazak VCN 530 CH 11 CNC Vertical Machining Center
Mazak VCN 530 CH 11 CNC Vertical Machining Center
Mazak VCN 530 CH 11 CNC Vertical Machining Center
Mazak VCN 530 CH 11 CNC Vertical Machining Center
Mazak VCN 530 CH 11 CNC Vertical Machining Center
Mazak VCN 530 CH 11 CNC Vertical Machining Center
Mazak VCN 530 CH 11 CNC Vertical Machining Center

Mazak VCN 530 CH 11 CNC Vertical Machining Center

Asset #: 66389

Make: Mazak

Model: VCN 530 CH 11

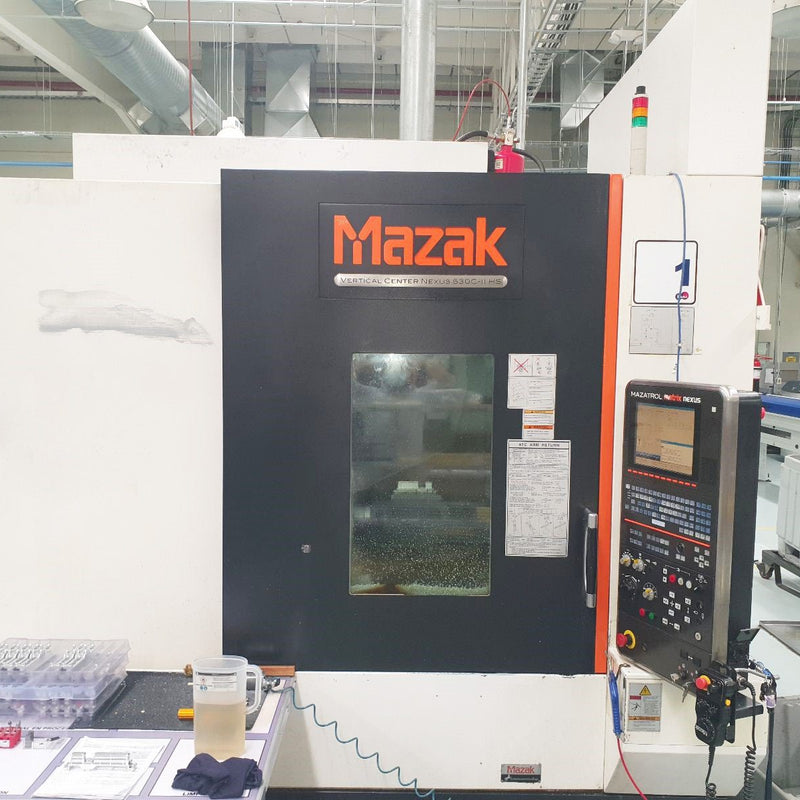

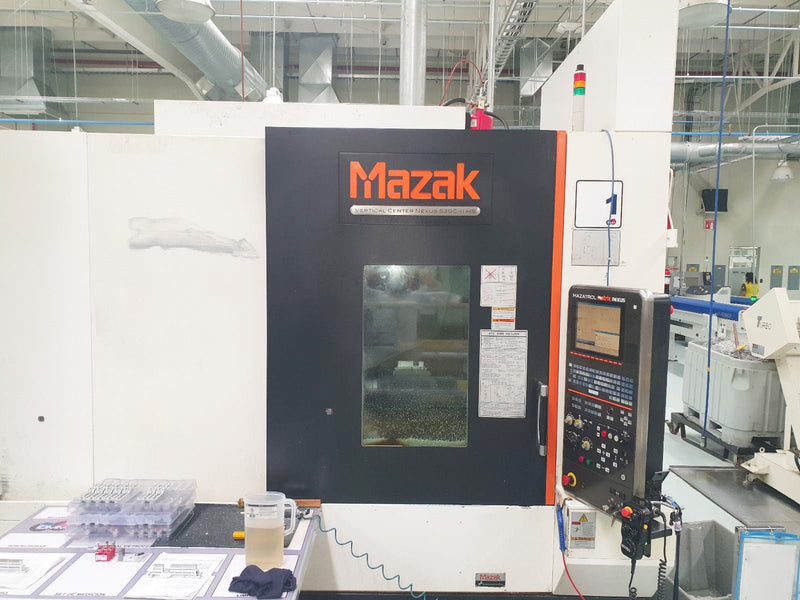

Mazak VCN 530 CH 11 CNC Vertical Machining Center
- Table Size: 1300 x  550 mm  (1 Table)
- X-Axis Stroke: 1050 mm
- Y-Axis Stroke: 530 mm
- Z-Axis Stroke: 510 mm
- Spindle Face to Table Surface (Min/Max): 150 mm / 660 mm
- Spindle Speed: 18,000 RPM
- Spindle Motor: 30 KW
- Spindle Taper: CAT40
- Feedrate Rapid Traverse: 2,047 IPM
- Number of Tools: 30
- Machine Height: 2686 mm
- Machine Width: 2880 mm
- Machine Depth: 3270 mm
- Weight: 7,450 Kg
Equipped With:
- Mazatrol Matrix Nexus Control
- 12.1” Color LCD
- EIA/ISO Code Input Function
- USB I/F (2-Port)
- Manual Pulse Generator 1 Dial (Detachable)
- Relocation Device
- Windows XP 2002 Operating System for Mazak Machine Control
- Workpiece Air Blast
- Max Program Size: 8MB
- GOO Slope Constant
- Mazacc-3D High Speed Software Package
- Shape Compensation for Rotary Axes
- High Smoothing Control
- Renishaw OTS-AA Optical Tool Setter Including Prep for MMSB
- Kitagawa MR-250RAM01 NC Rotary table package
- Kitagawa TSR180 pneumatic tail support spindle
- Signal tower (3 color lights)
- Hi-press, coolant thru SYS (15kgf, 213psi)
- Robot interface (Mazak Spec) - Electrical I/F only
- Side access auto door for Robot load/unload
- Additional M-Code function
2012 Vintage
