Asset #: 65521

Make: Dek

Model: ELA

Last Confirm Date: May 18, 2022

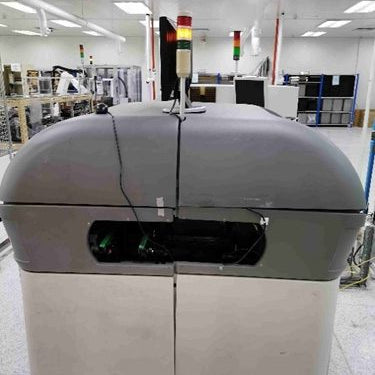

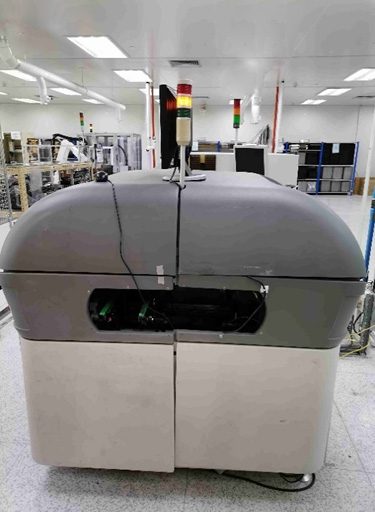

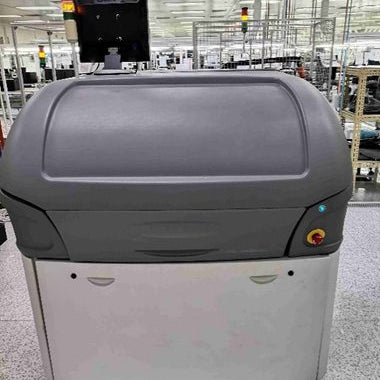

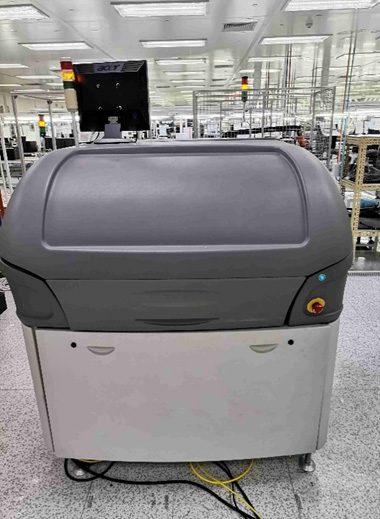

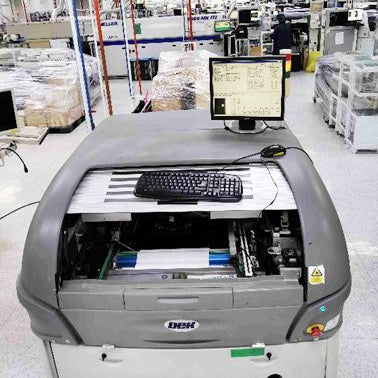

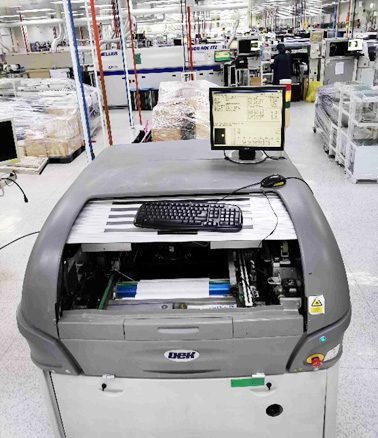

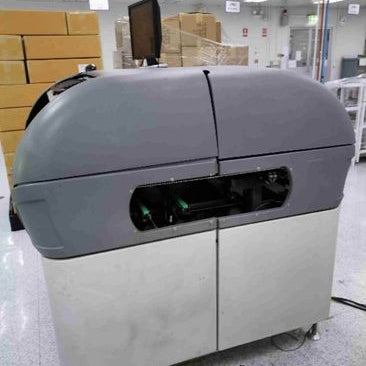

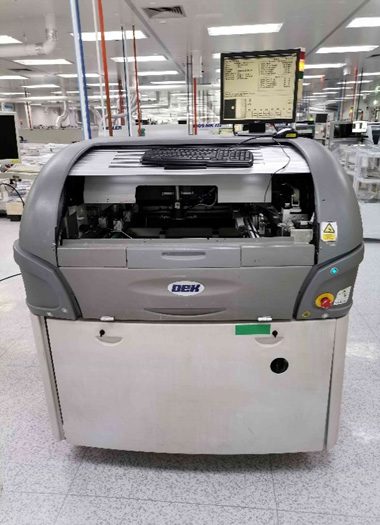

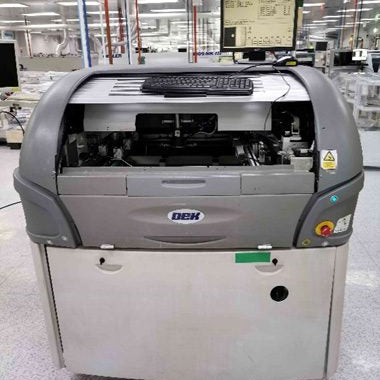

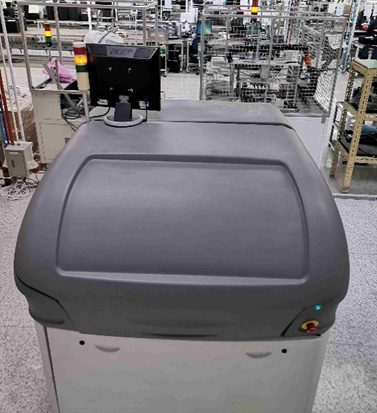

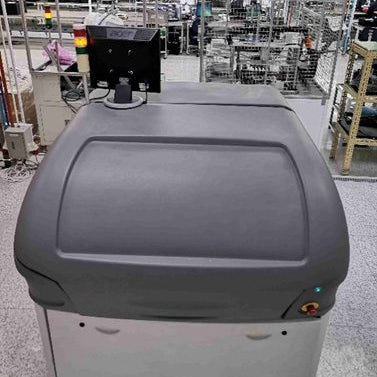

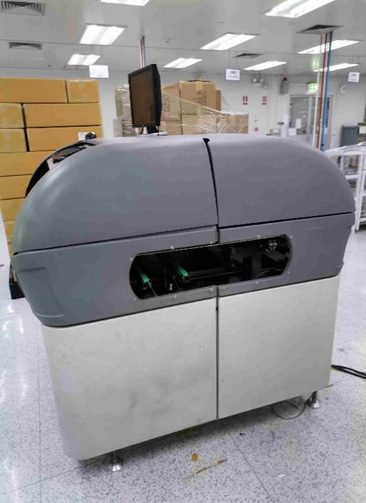

Dek ELA Screen Printer
- Board handling: 40 x 50 to 510 x 508mm
- Board thickness: 0.4 - 6.0mm
- Bottom board clearance : 4.2 mm
- Transport speed: 400 mm/sec
- Feed direction: R to L or L to R, programmable
- Recognition method: synthetic shape or video model recognition
- Bond power: programmable (0-1 watt)
- Bond area: max. 30mm radius at center of rotating
- Bond placement: ±10.2µm (± 0.4 mil)
- Fiducials: 2 Fiducial + non vision mode
- Fiducial size: 0.5mm - 3mm (0.02 in. – 0.14 in.)
- Mechanical structure: crossed-roller table with linear motor
- Resolution: 0.2µm(0.008 mil)
- Camera system: single telecentric XY camera Fiducial
- Fiducial teach: shape and dimension parameter entry
- Align calibration: fully automatic
- Print speed: 2 mm/sec –150 mm/sec
- Print pressure: 0 kg – 20 kg
- Print gap: 0 mm – 6 mm
- PCB stencil separation: 0.1 mm/sec – 20 mm/sec
- Print modes: print/print double squeegee; flood/print; print flood
- Resolution: 0.2µm(0.008 mil)

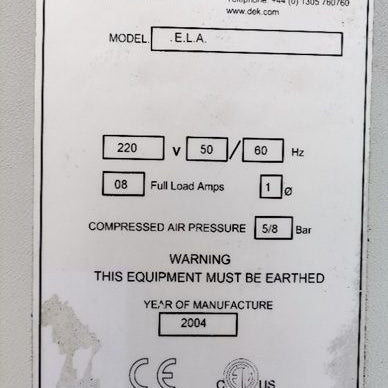

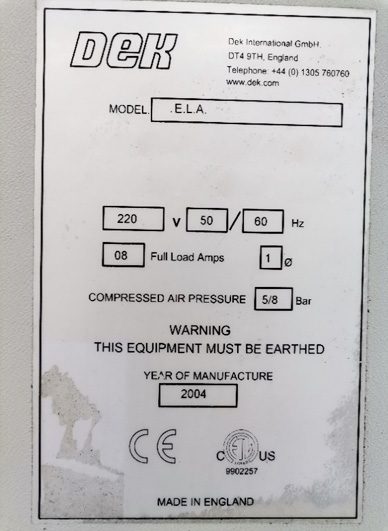

2004 Vintage
