Asset #: 65461

Make: Applied Materials

Model: SNNF Centura

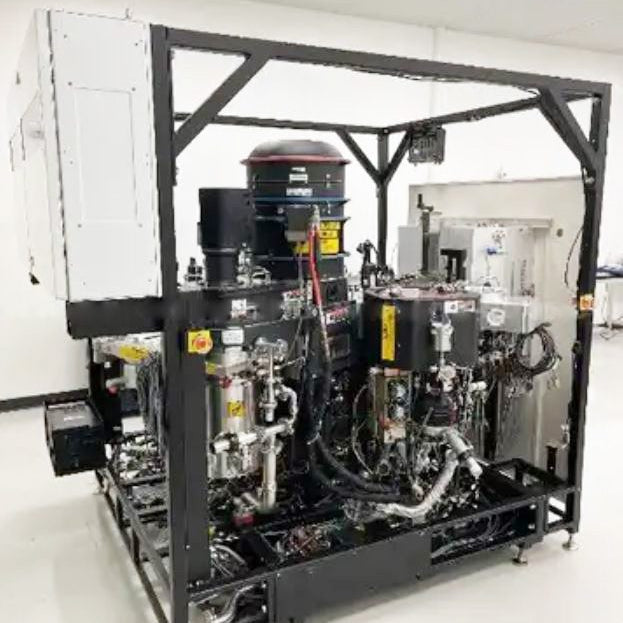

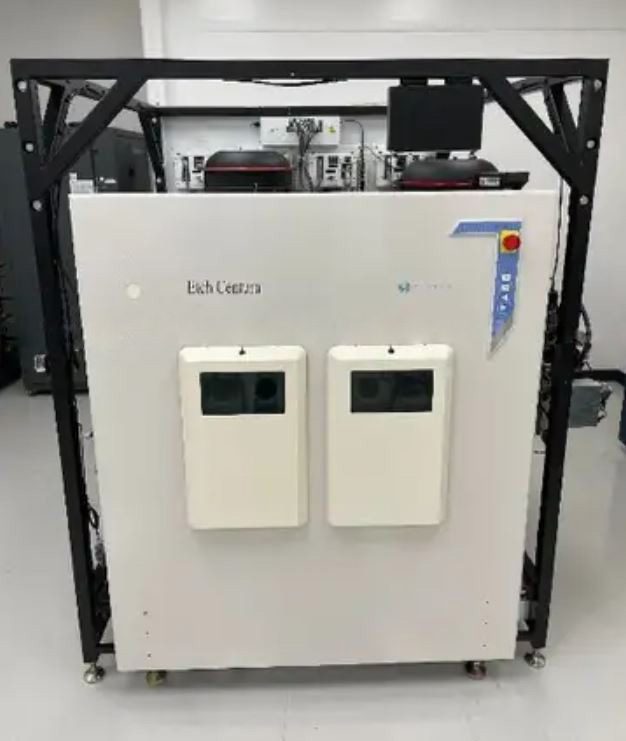

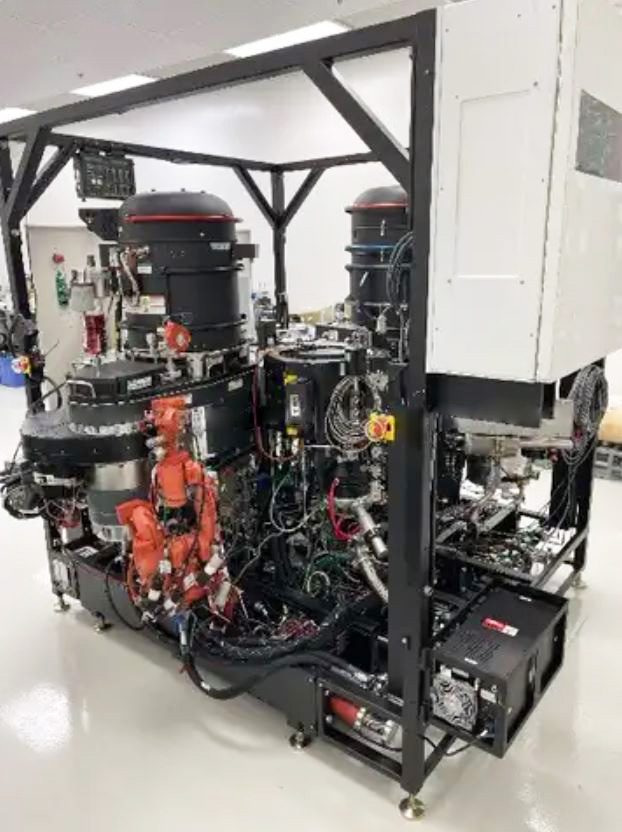

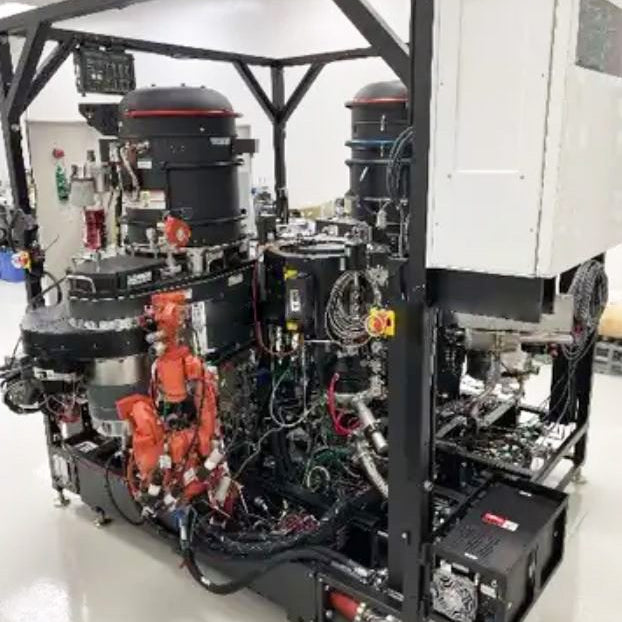

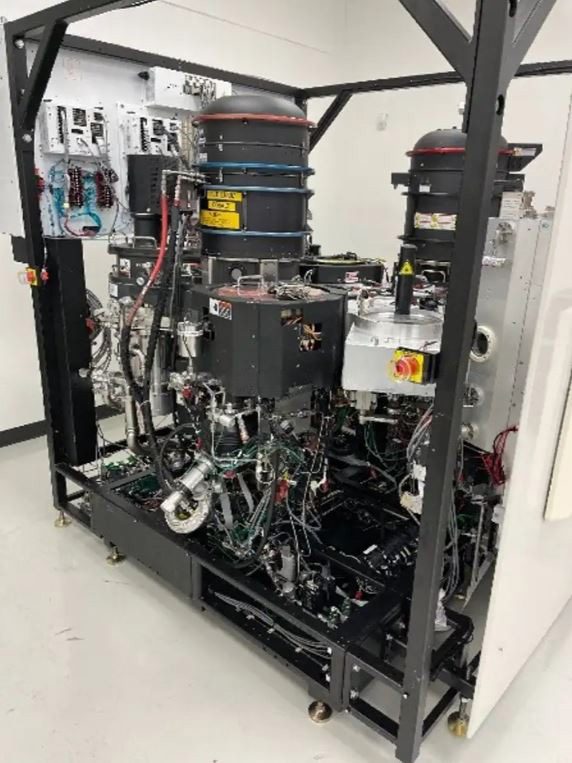

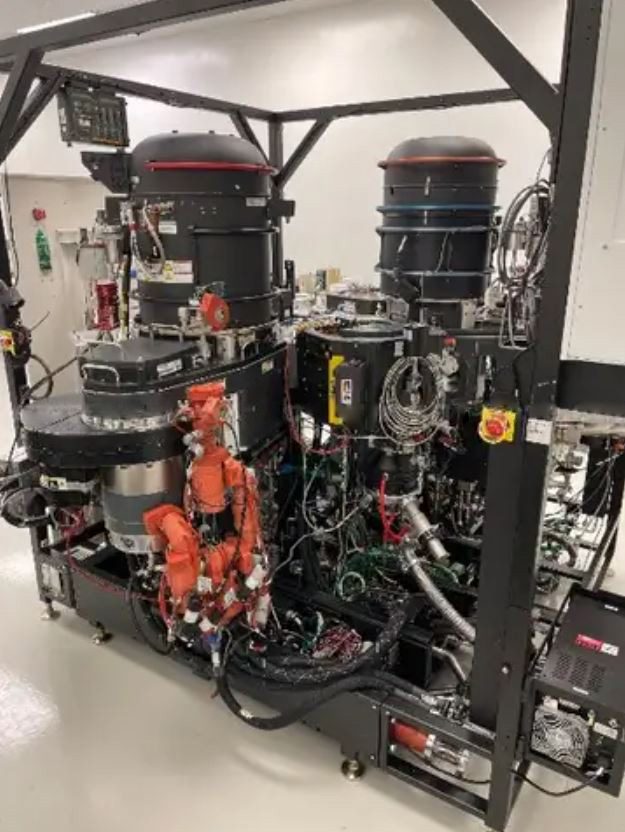

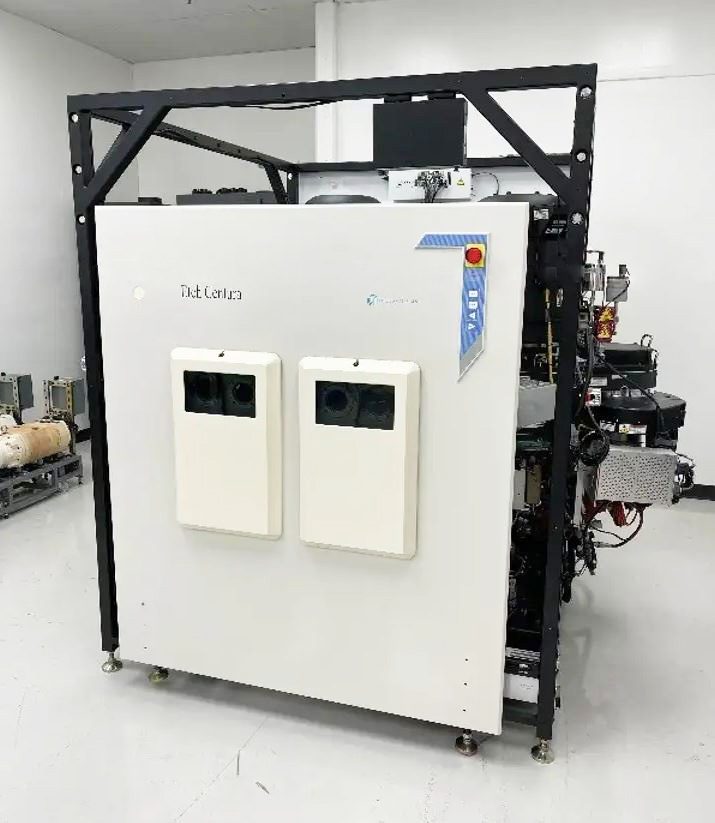

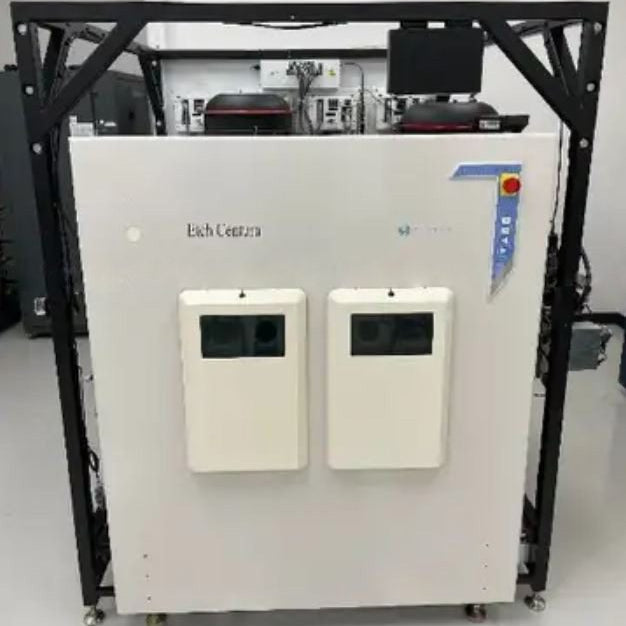

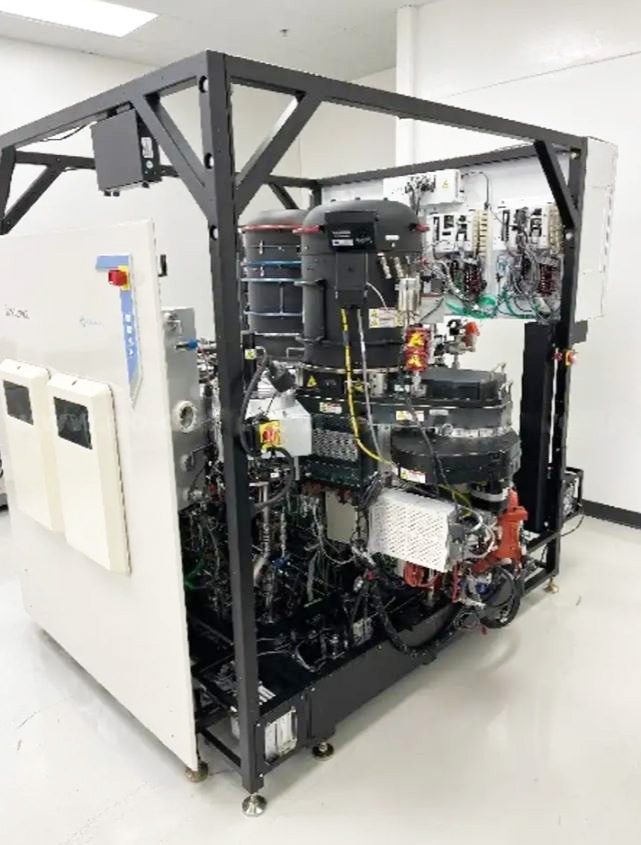

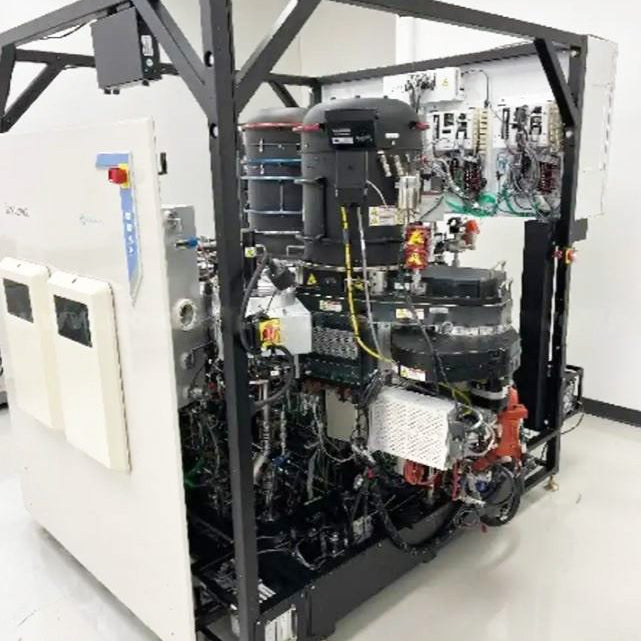

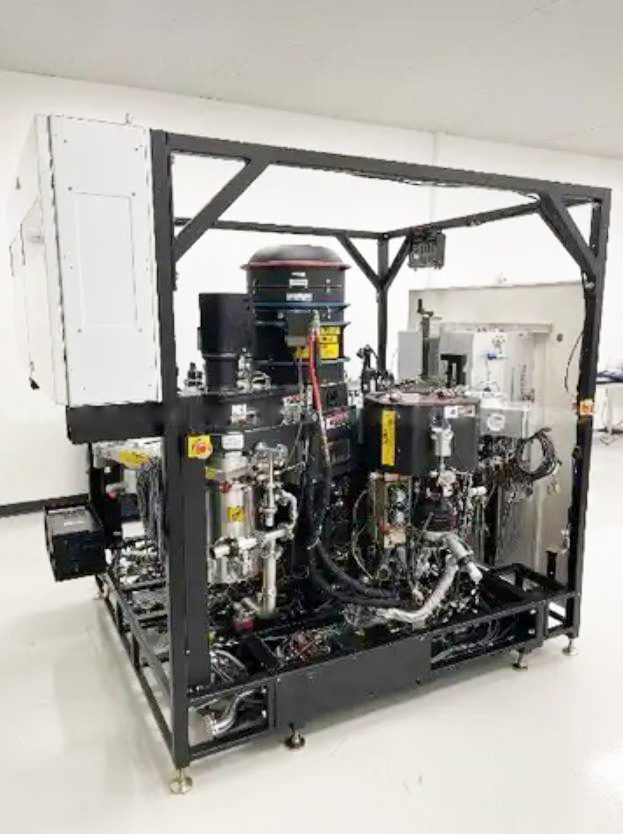

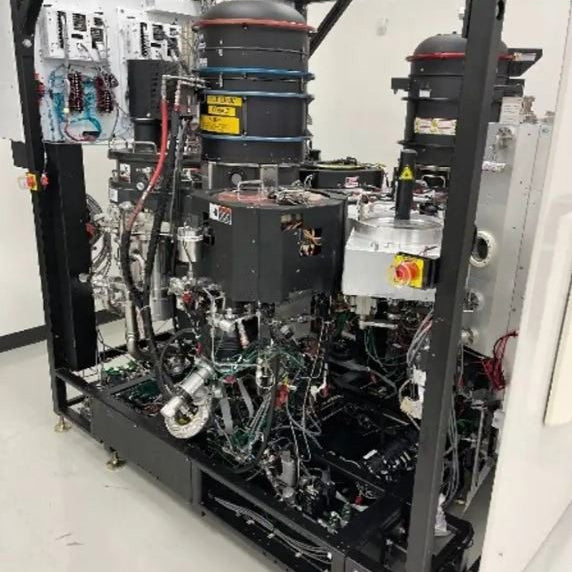

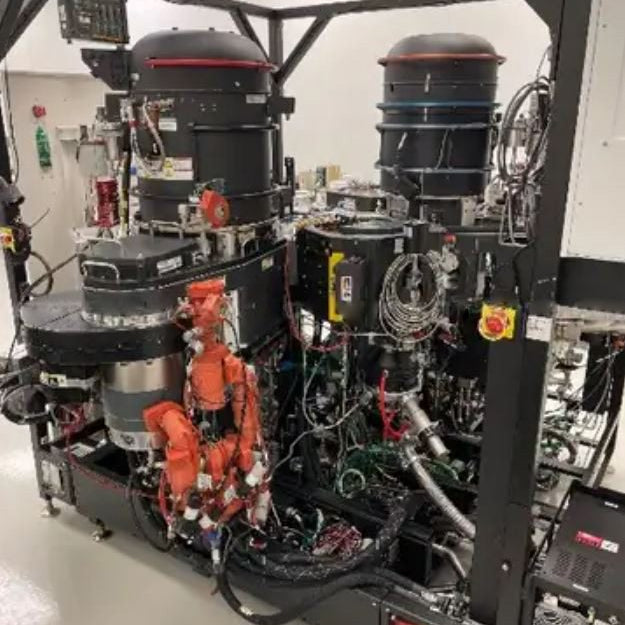

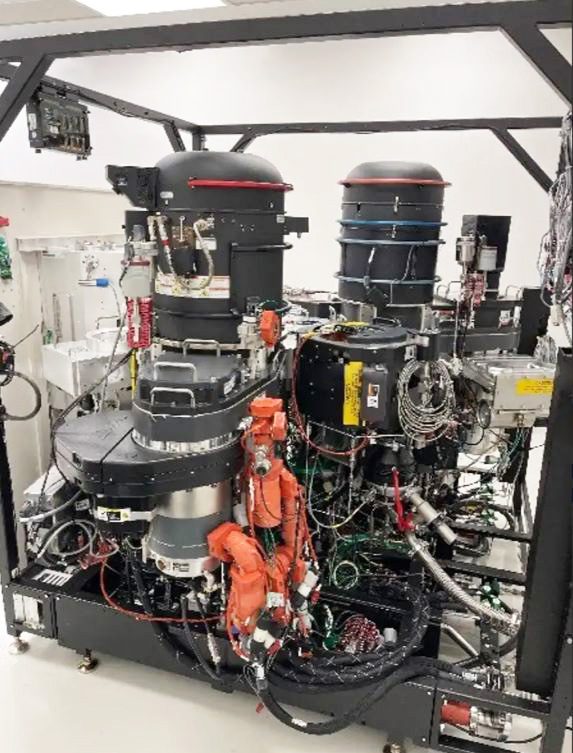

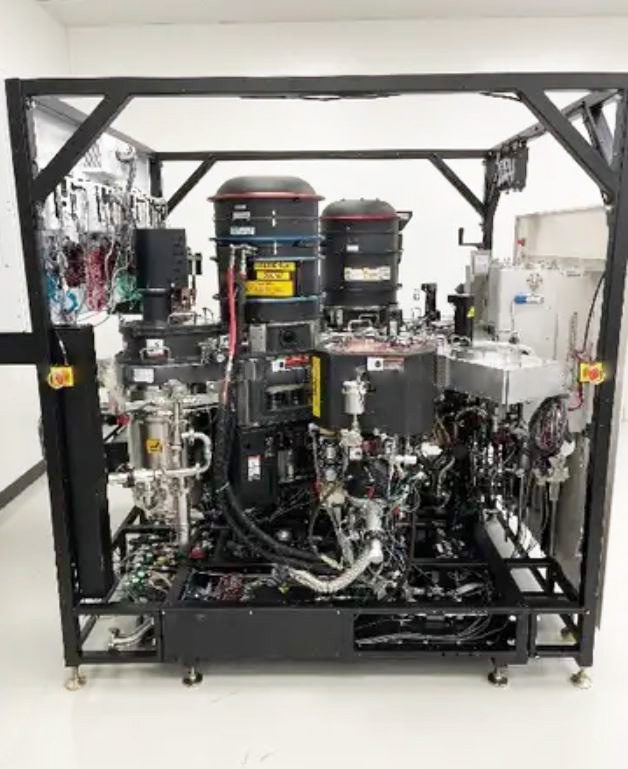

Applied Materials SNNF Centura Etcher

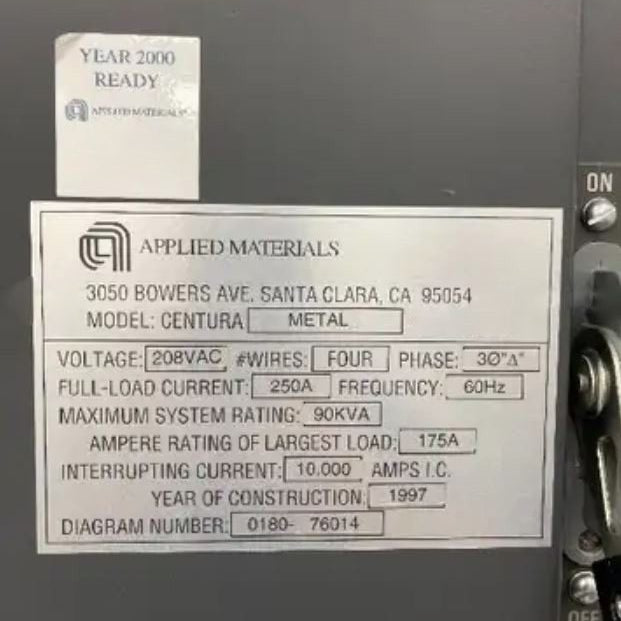

- 208 50/60hz Centura Controller

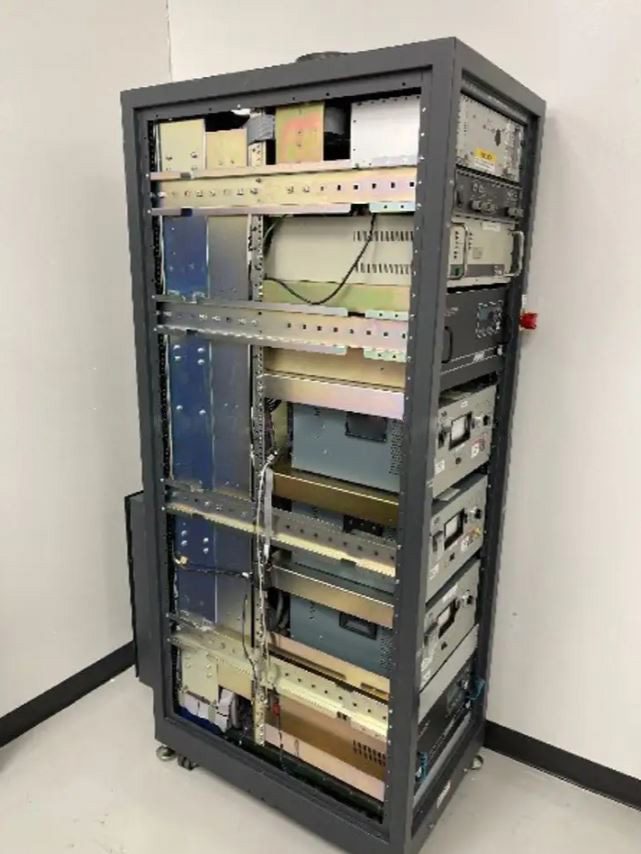

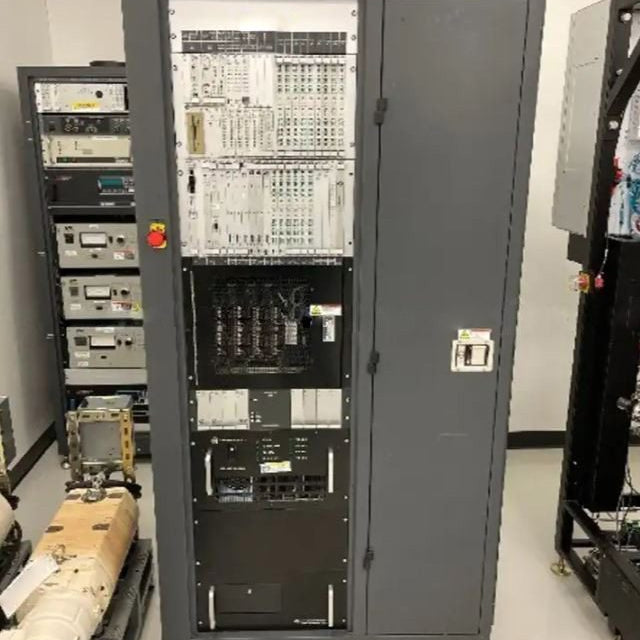

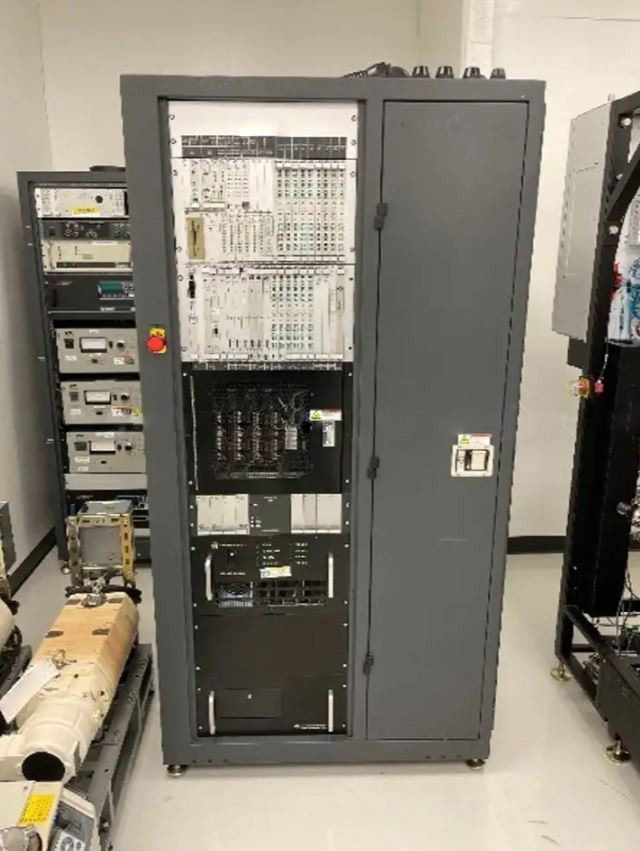

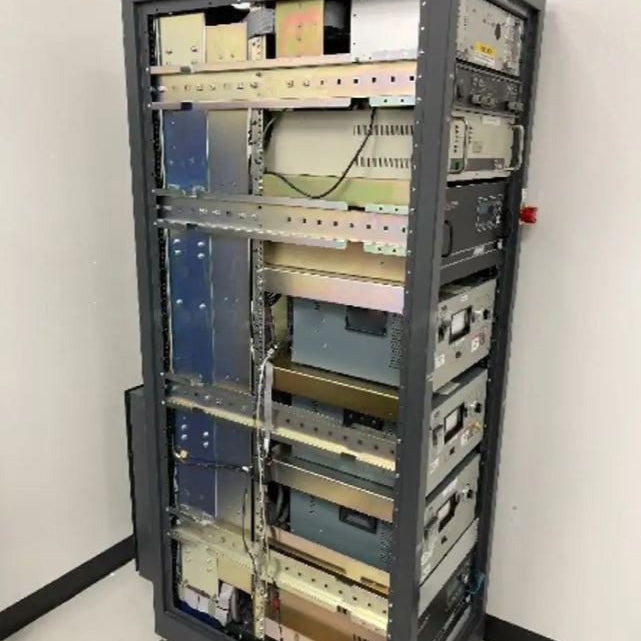

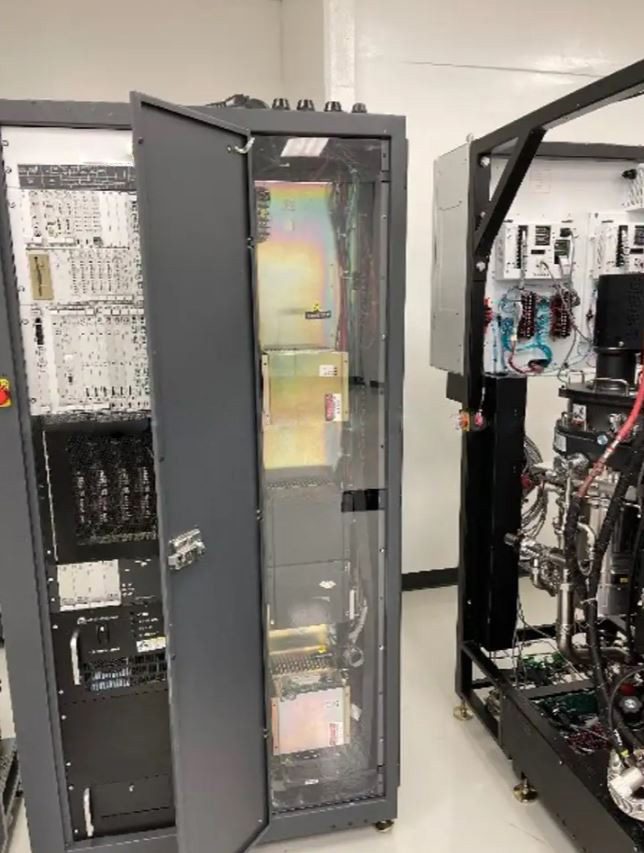

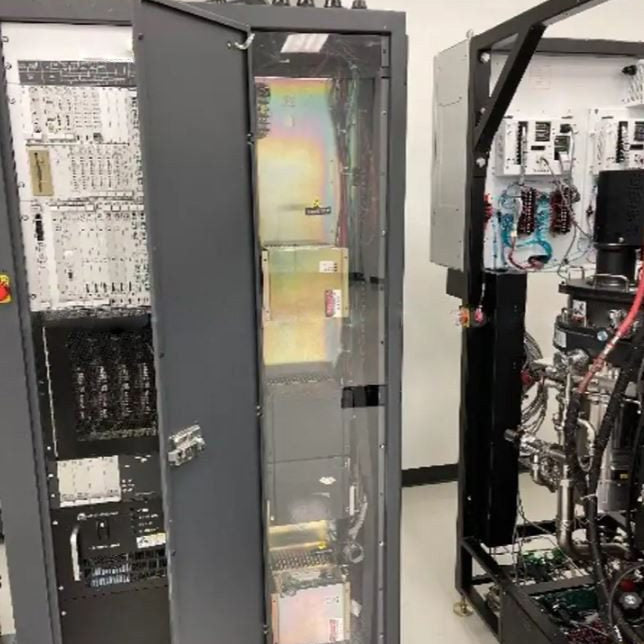

- System Controller

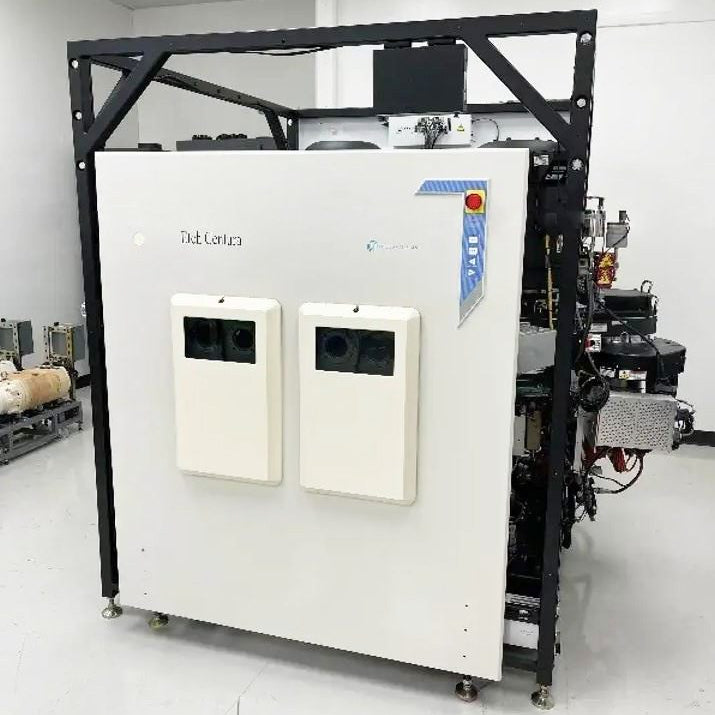

- Narrow body loadlocks 0010-75005
- HP robot with metal blade

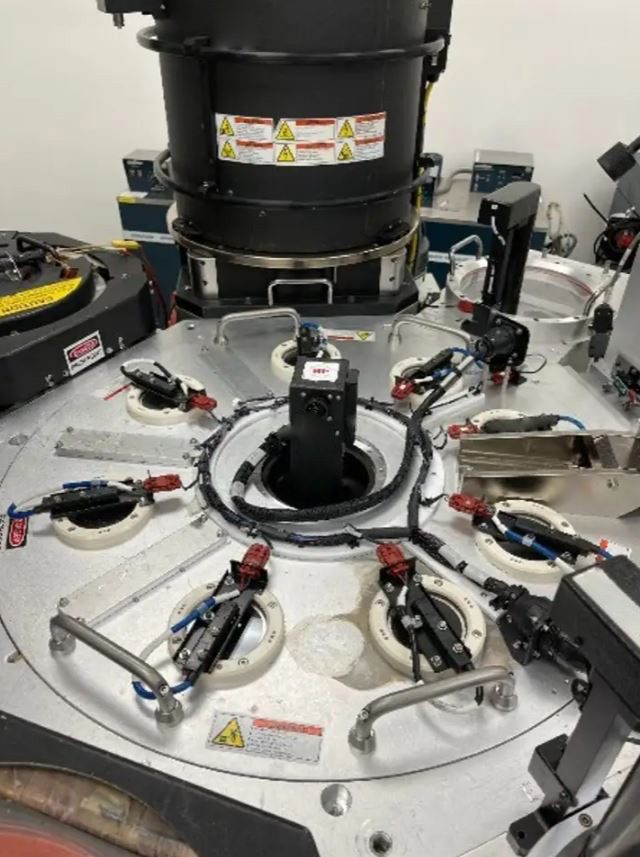

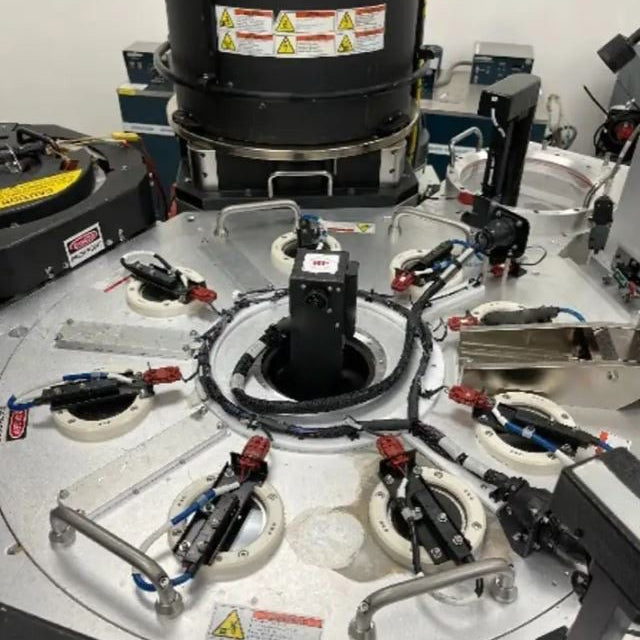

- Transfer chamber lift
- Endpoint with four monochromators (not mounted)
- Smoke and water leak detect
- Independent Helium cooling

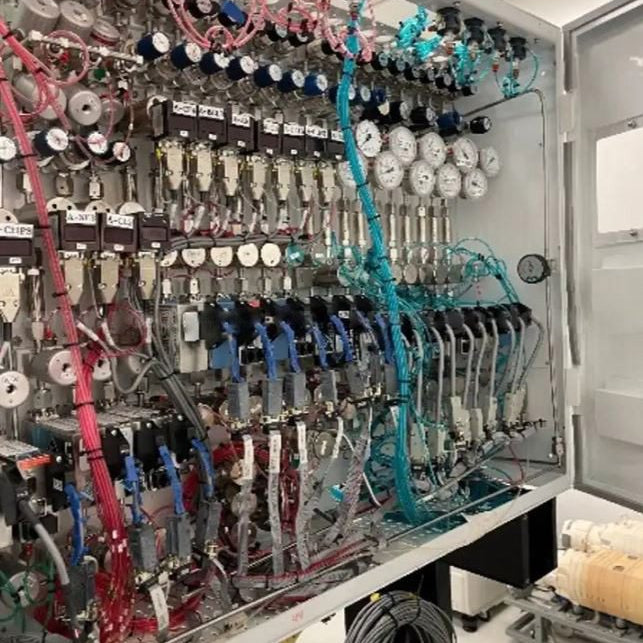

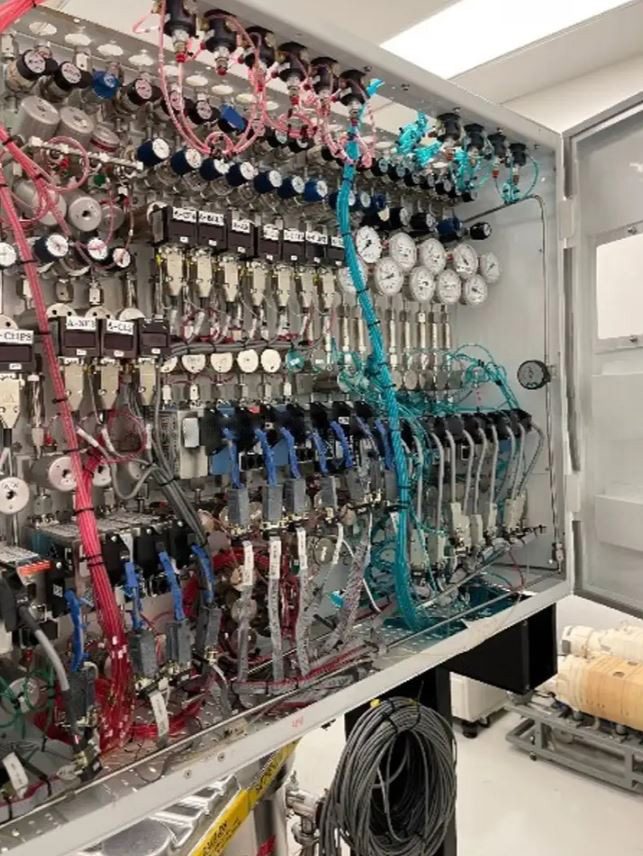

- Seriplex Gas Panel with top feed exhaust
- Seriplex match control
- Wafer mapping
- Wafer on blade sensors
- Umbilicals

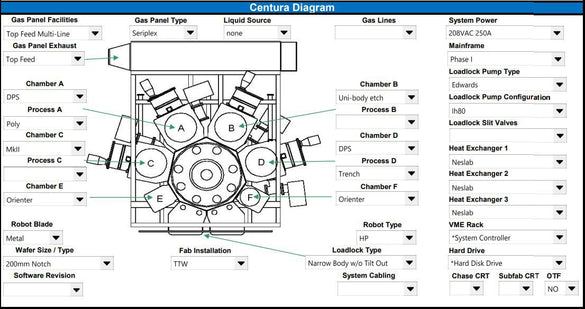

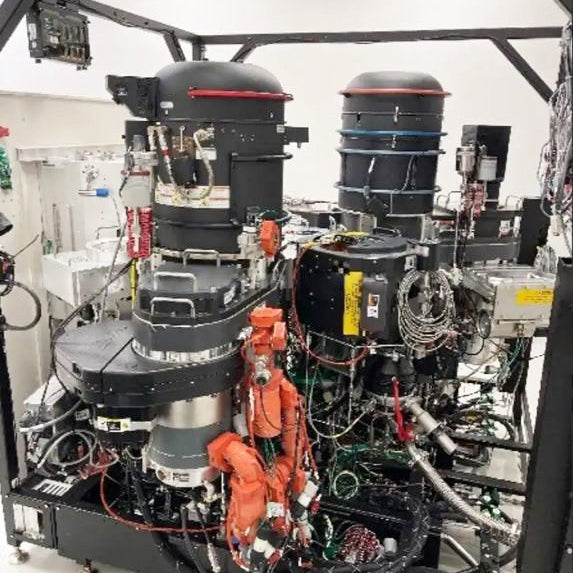

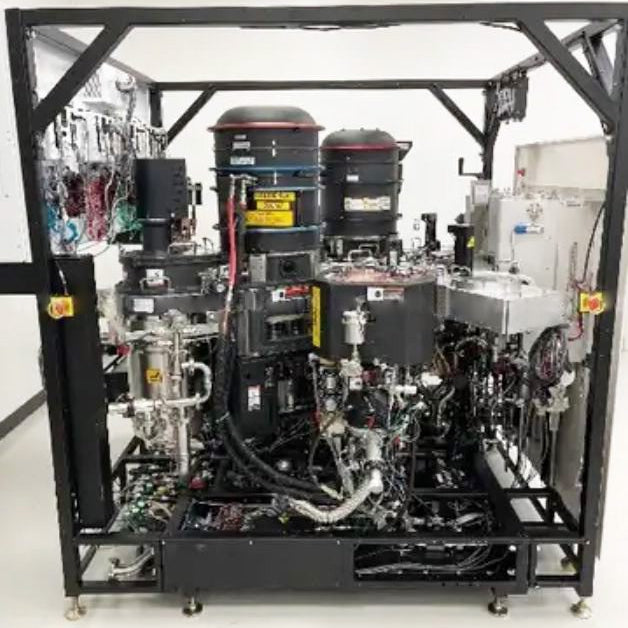

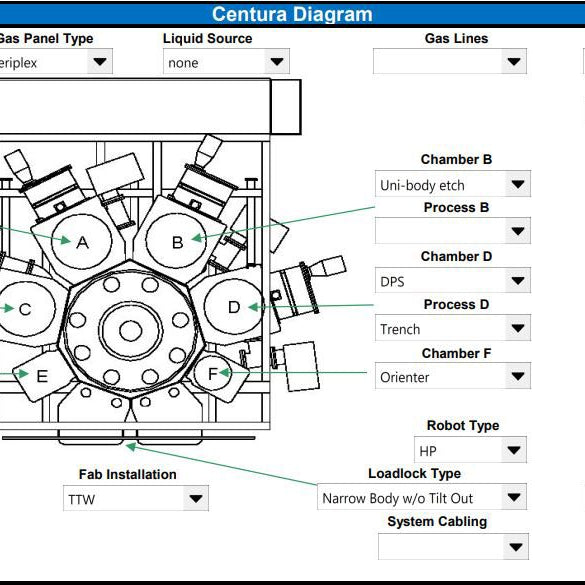

- 4 Chambers

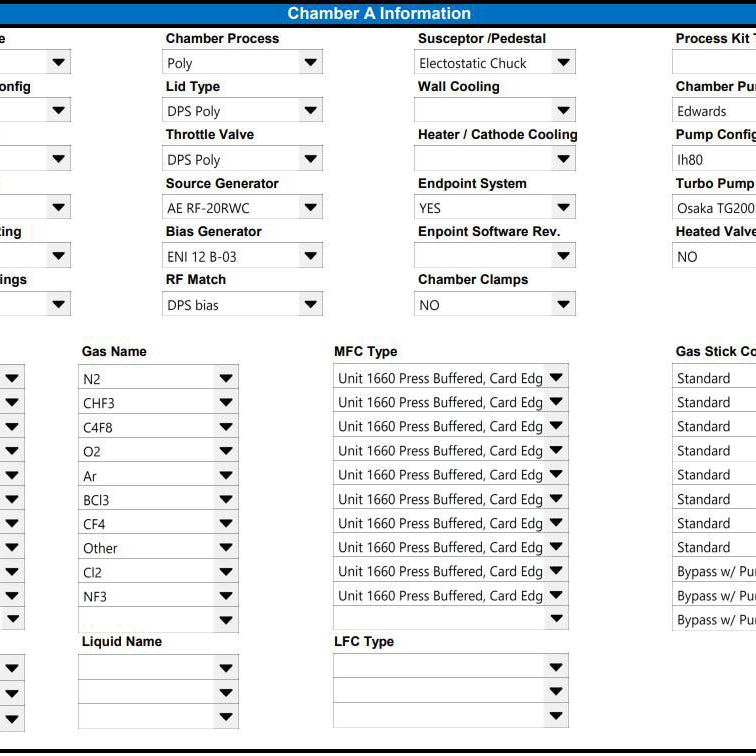

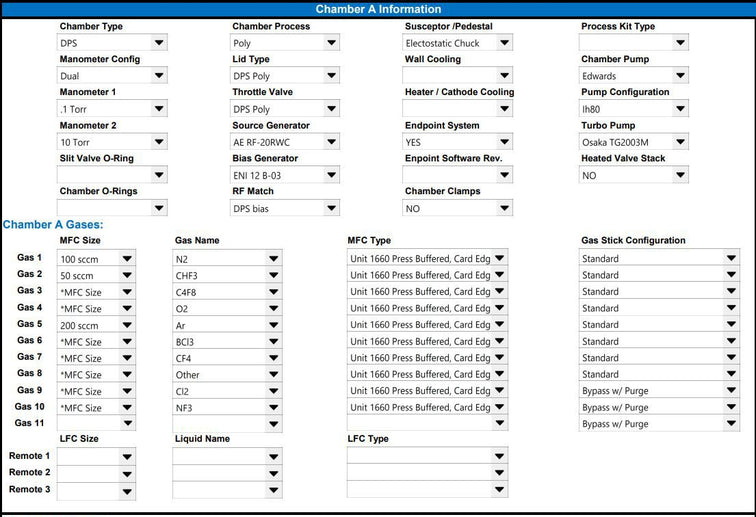

Chamber A:
- DPS R0 Poly, w/1110-01043 Source
- RF match AZX 90
- Dual manometers with .1Torr and 10Torr Heads
- Backside Helium Cooling
- 200mm Cathode
- Osaka TG2003M Turbo

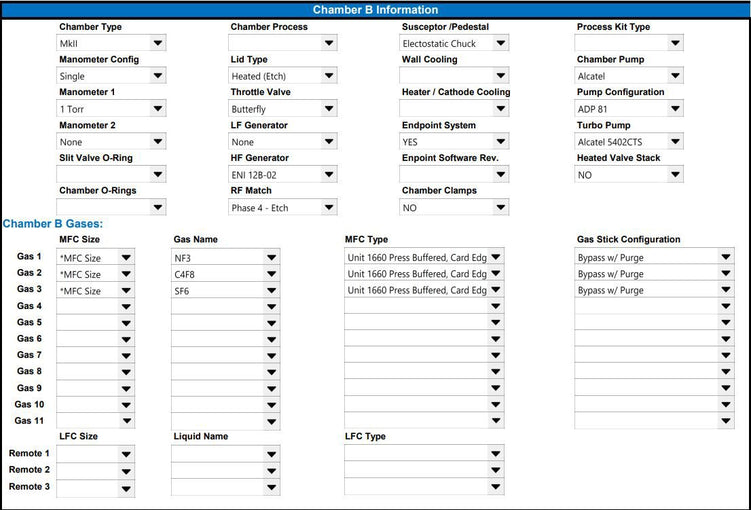

Chamber B:
- Poly Etch: Mark II 3 Piece Chamber
- Mark II Shields
- MxP Magnets
- ESC Cathode
- Phase IV RF Match
- Alcatel 5402 CTS Turbo

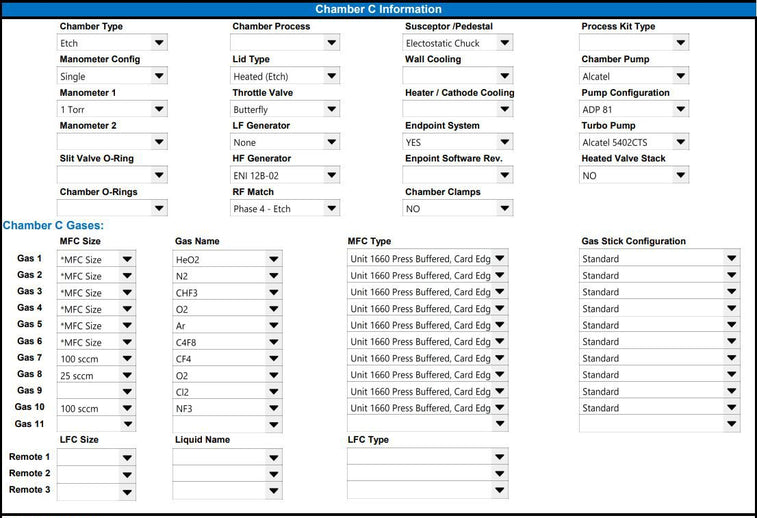

Chamber C:
- Poly Etch: Uni-Body Chamber
- MxP Shields
- MxP Magnets
- ESC Cathode
- Phase IV RF Match
- Alcatel 5402 CTS Turbo

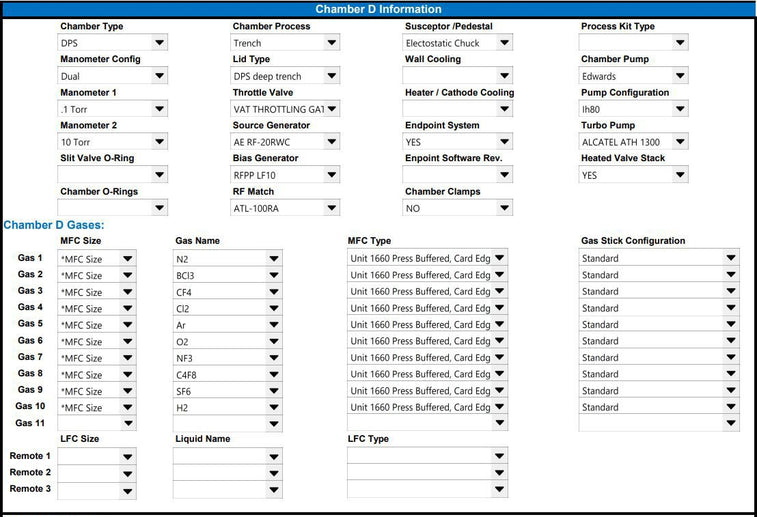

Chamber D:
- DPS R1 Metal/Deep Trench Etch
- Source RF Match w/AZX-90 Upgrade
- Dual Manometers with .1Torr and 10Torr Heads
- VAT Throttling Gate Valve
- Heated Pump Stack
- 200mm Cathode SNNF ESC
- Alcatel ATH 1300M Turbo

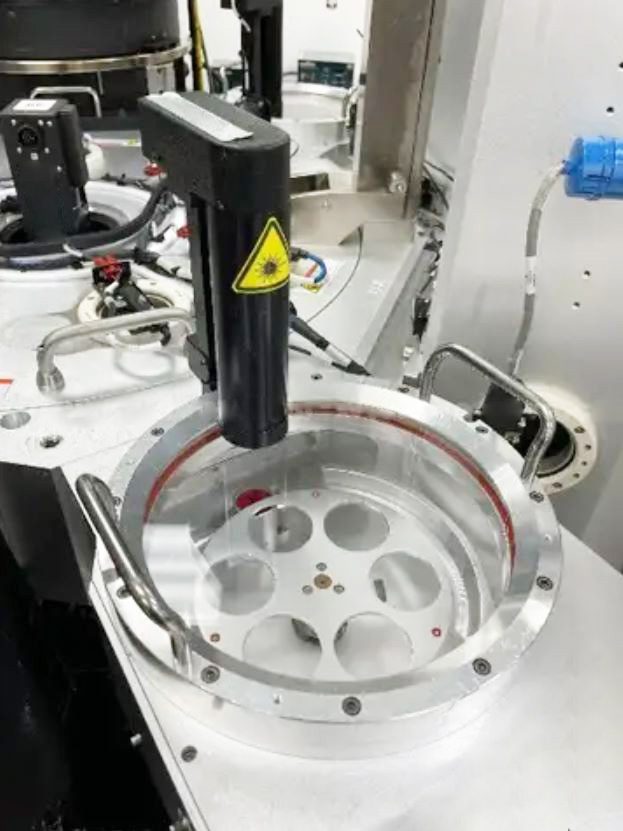

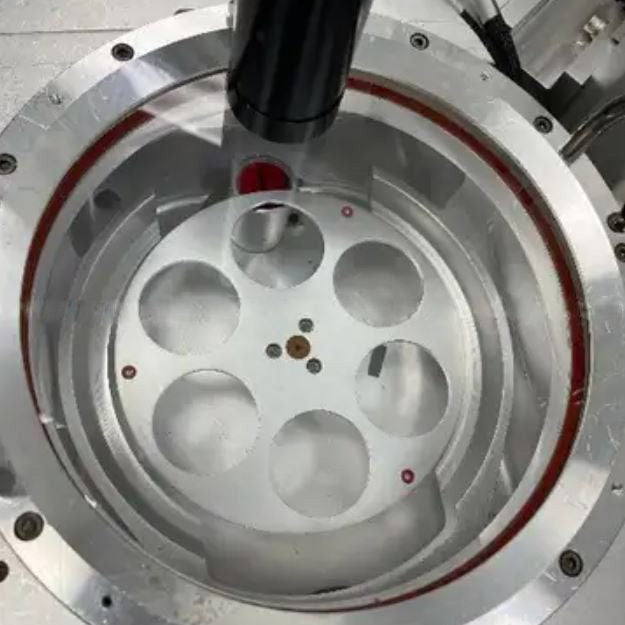

Chamber E:

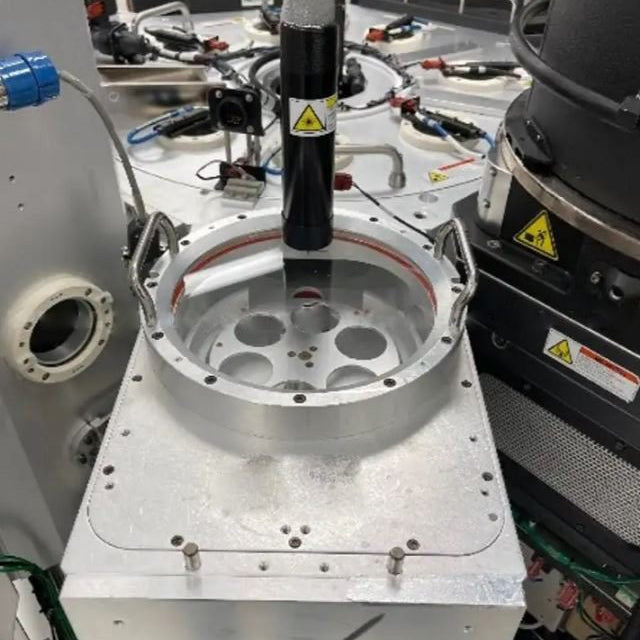

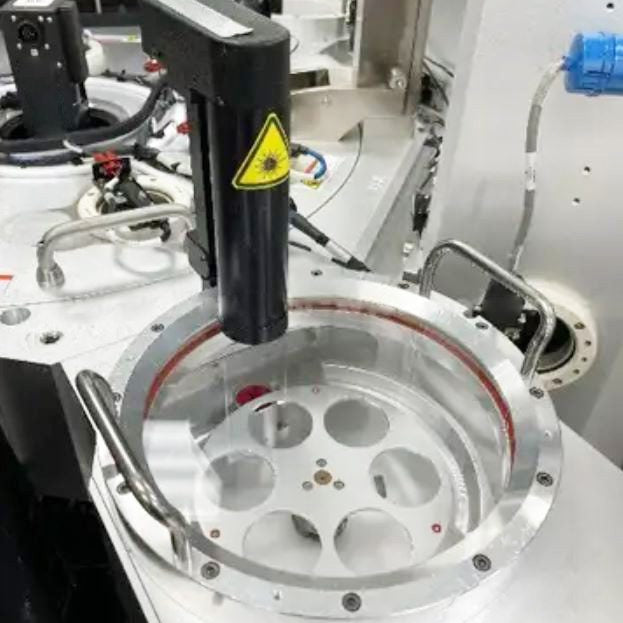

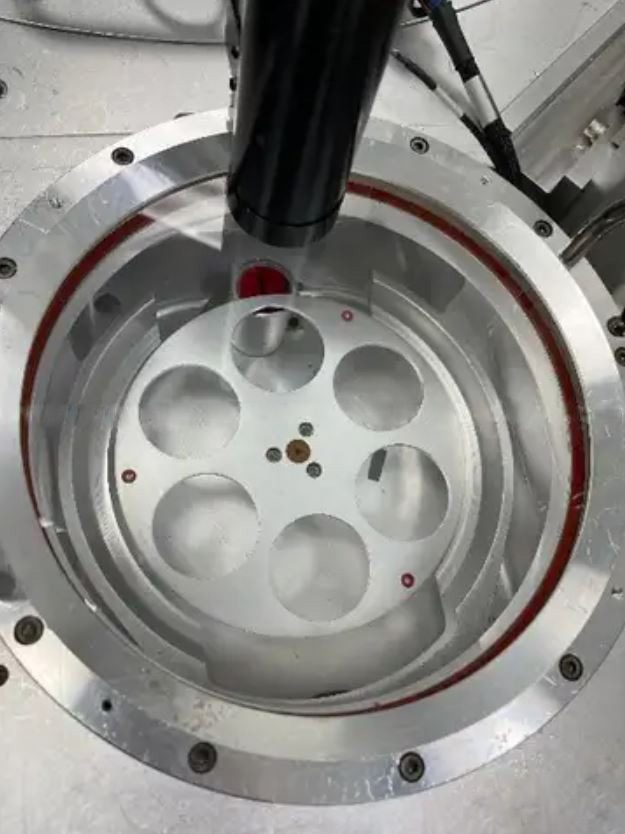

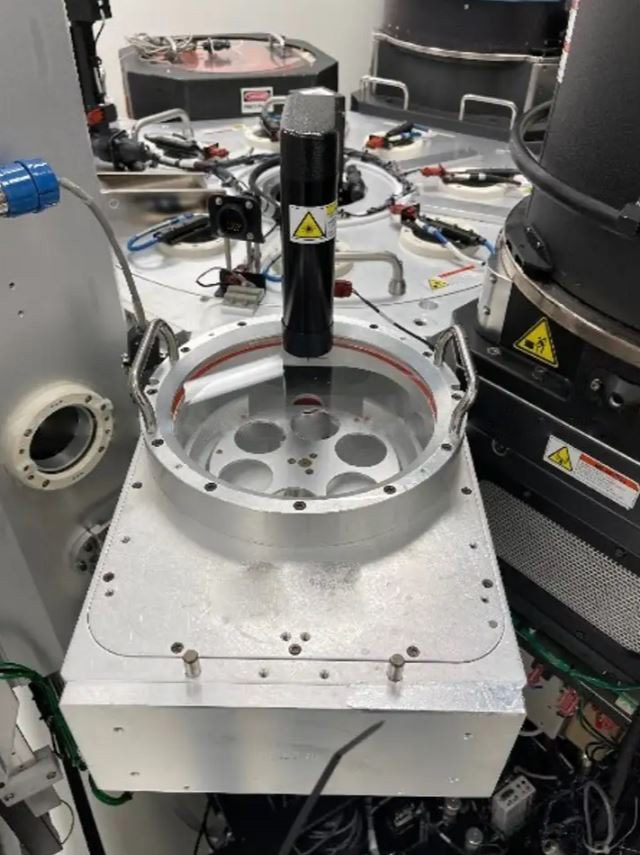

- Wafer Orienter
- 200mm Lift Hoop
- 200mm Pedestal
- Laser, & CCD Array
Chamber F
- Wafer Orienter
- 200mm Lift Hoop
- 200mm Pedestal
- Laser
- CCD Array
1997 Vintage
