Norbert Schlafli Labratester II High Resolution Laboratory Gravure Printing system
Norbert Schlafli Labratester II High Resolution Laboratory Gravure Printing system
Norbert Schlafli Labratester II High Resolution Laboratory Gravure Printing system

Norbert Schlafli Labratester II High Resolution Laboratory Gravure Printing system

Asset #: 64789

Make: Norbert Schlafli

Model: Labratester II

Last Confirm Date: March 31, 2022

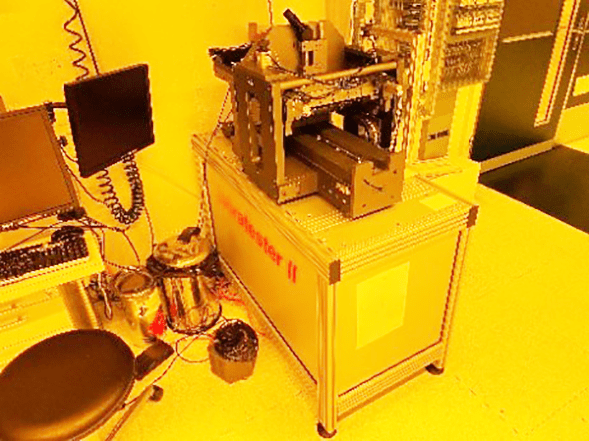

Norbert Schlafli Labratester II High Resolution Laboratory Gravure Printing system
- Printing and coating on flexible and rigid substrates, e.g. PET, PI, glass
- Granite base plate

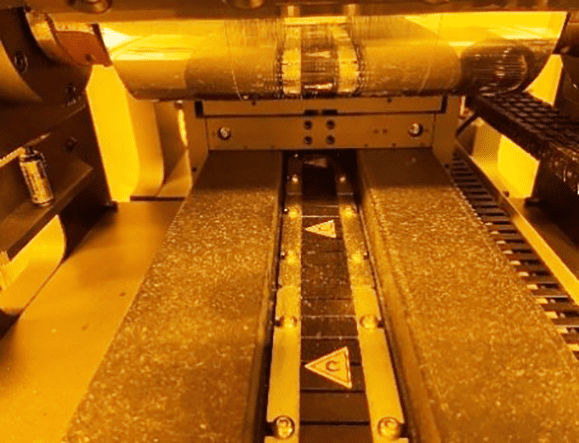

- Integrated air bearing guide allows vibration-free movement of the substrate carriage
- Integrated length measuring system
- Vacuum table for holding substrates with a maximum size of 7x7 inch

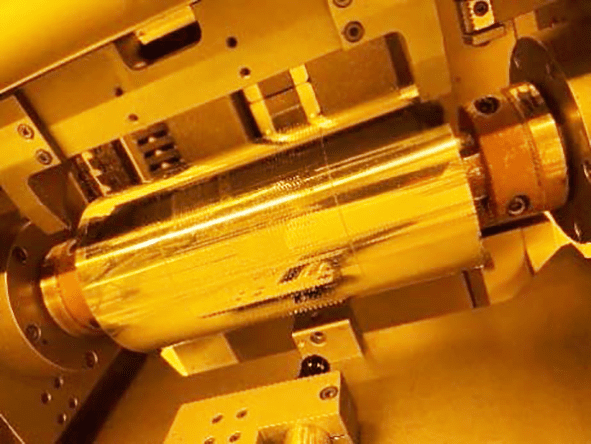

- Gravure printing unit with open, pneumatic feedable doctor blade for printing of smallest ink volume
- Camera system for aligning the gravure cylinder
- Camera system for aligning the substrate to be printed
- Measuring software
- PLC control
- Used cylinders attached for sanding/recylcing
Technical data:
- Traverse path: approx 900mm
- Guide way: 1150mm
- Max speed: 90m/min
- Horizontal straightness: 2,5um
- Vertical straightness: 2,5um
- Parallelity levelness of the vacuum table: 2,0um
- Accuracy and reproducibility: <10um
2014 Vintage
