Asset #: 63151

Make: Neway

Model: NL 201 HA

Last Confirm Date: January 31, 2022

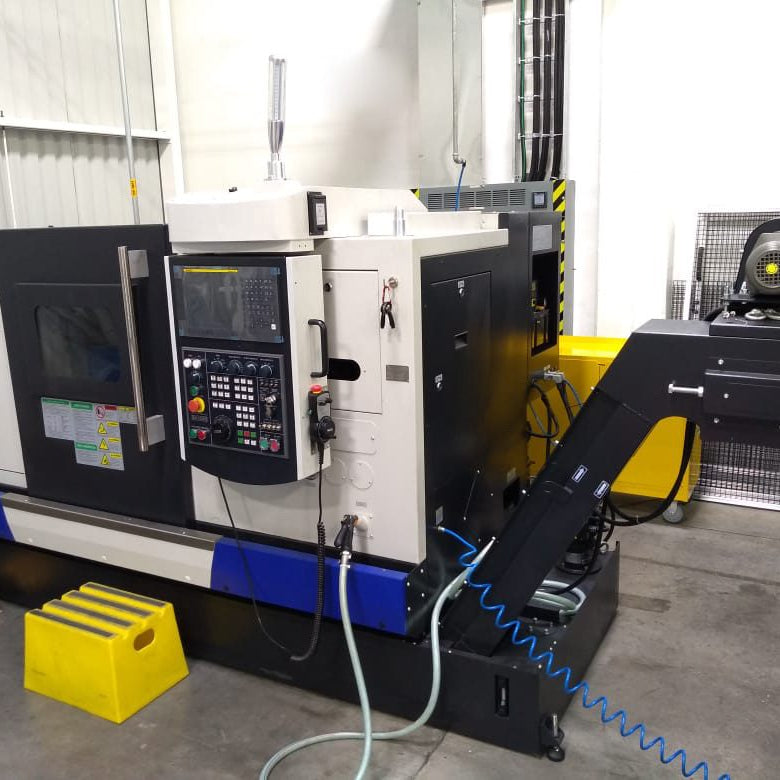

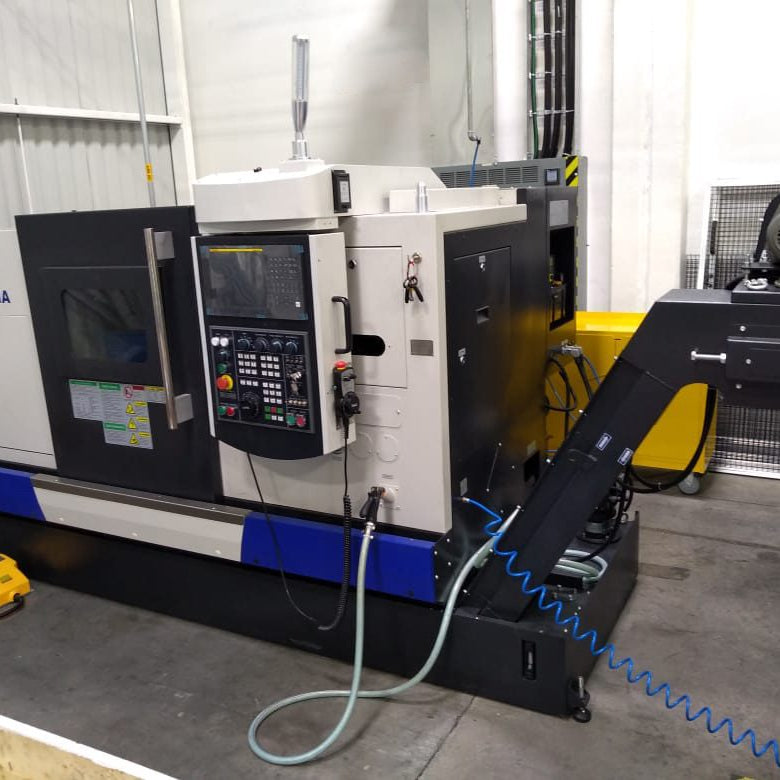

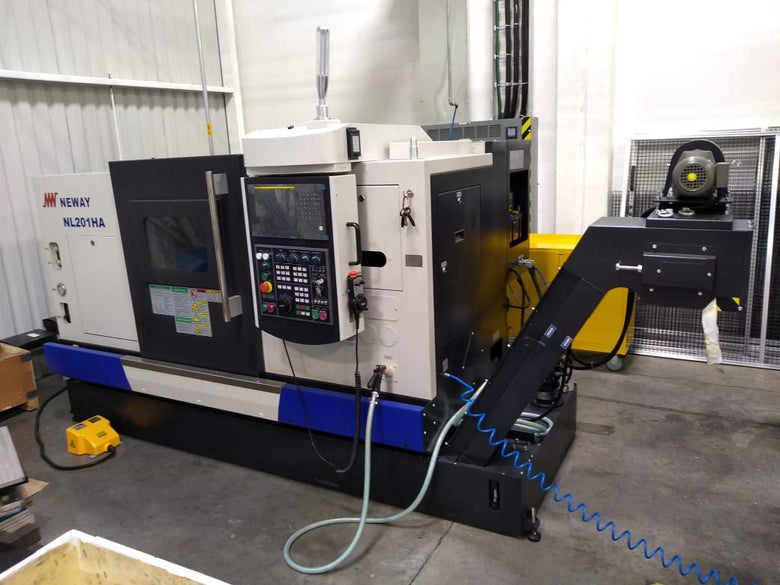

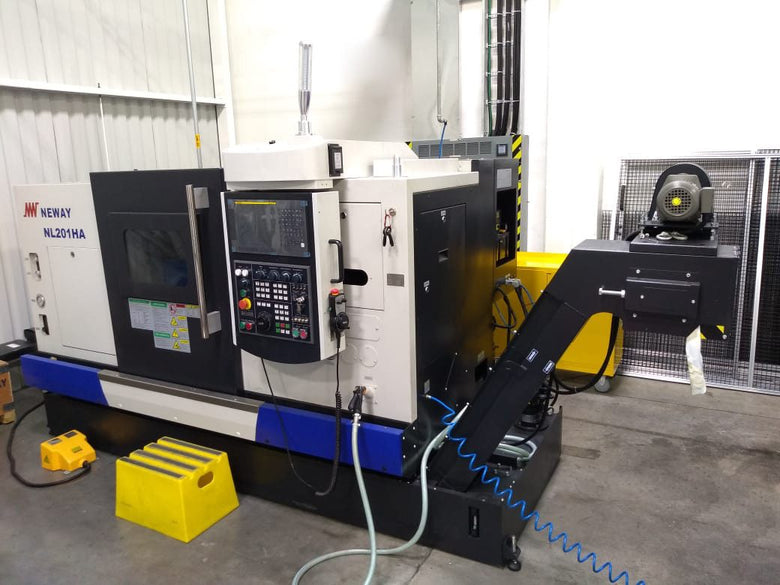

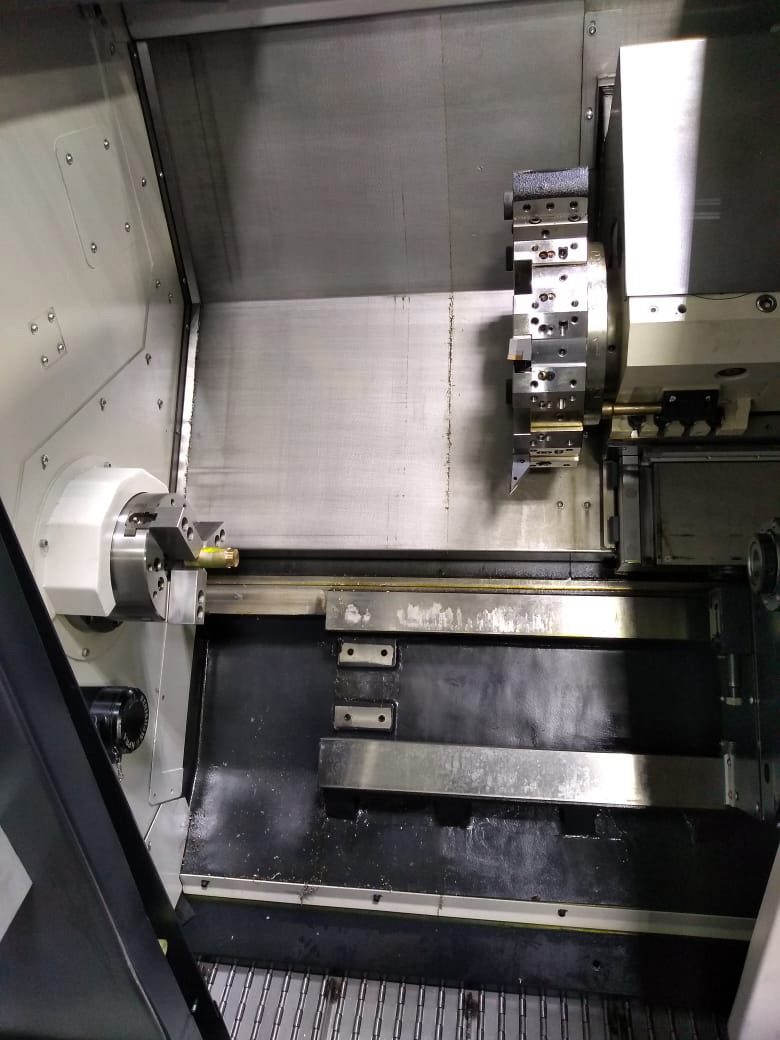

Neway NL 201 HA Horizontal CNC Lathe
- Upgrade to 2” bar capacity

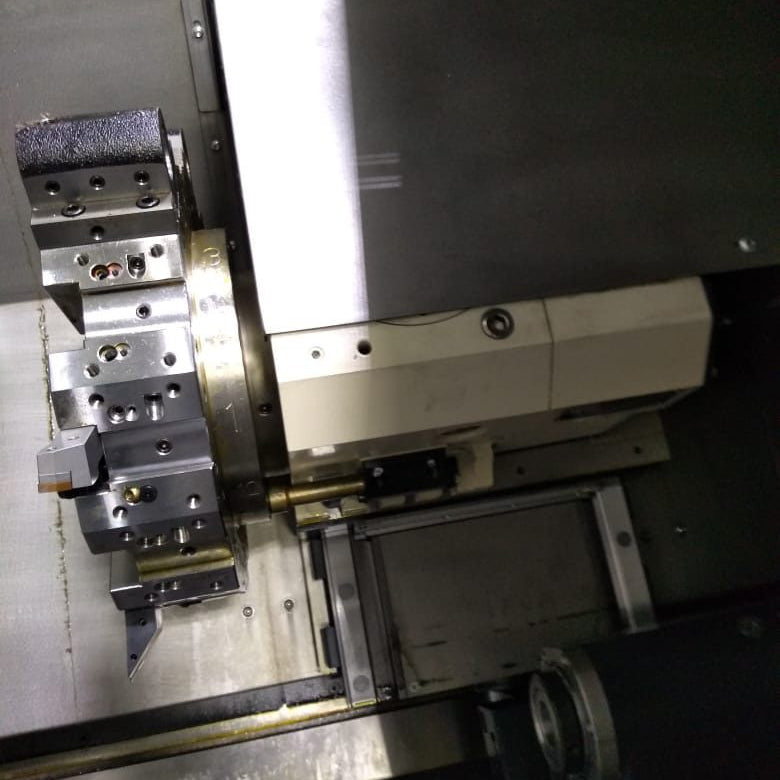

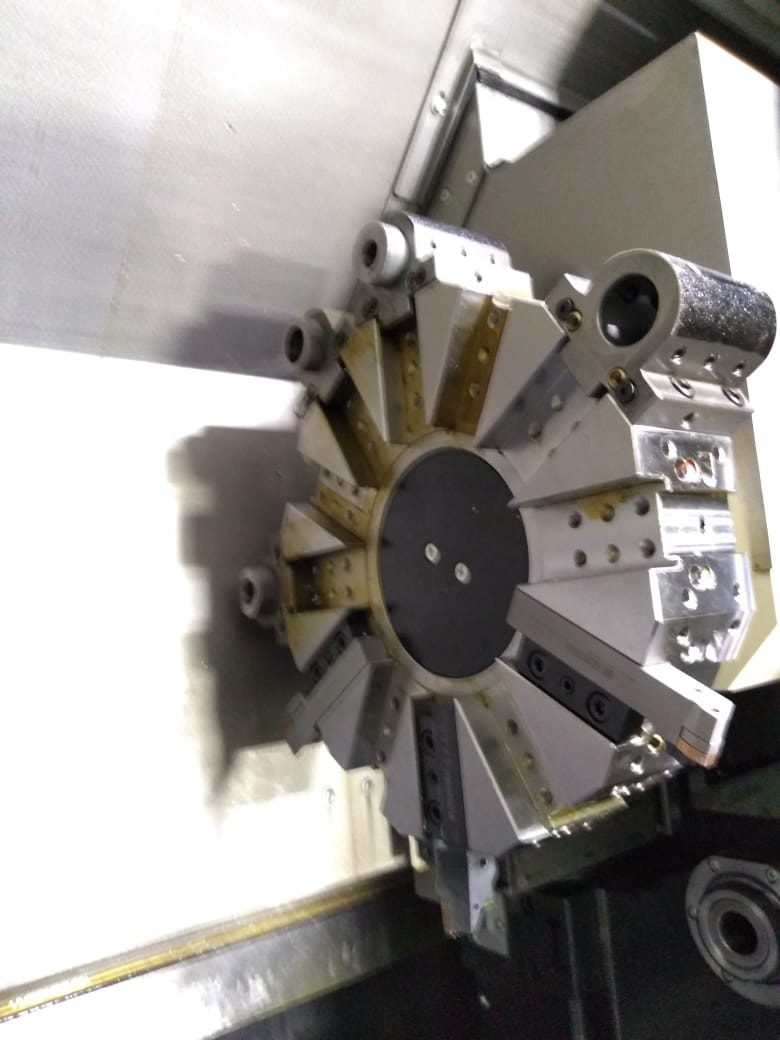

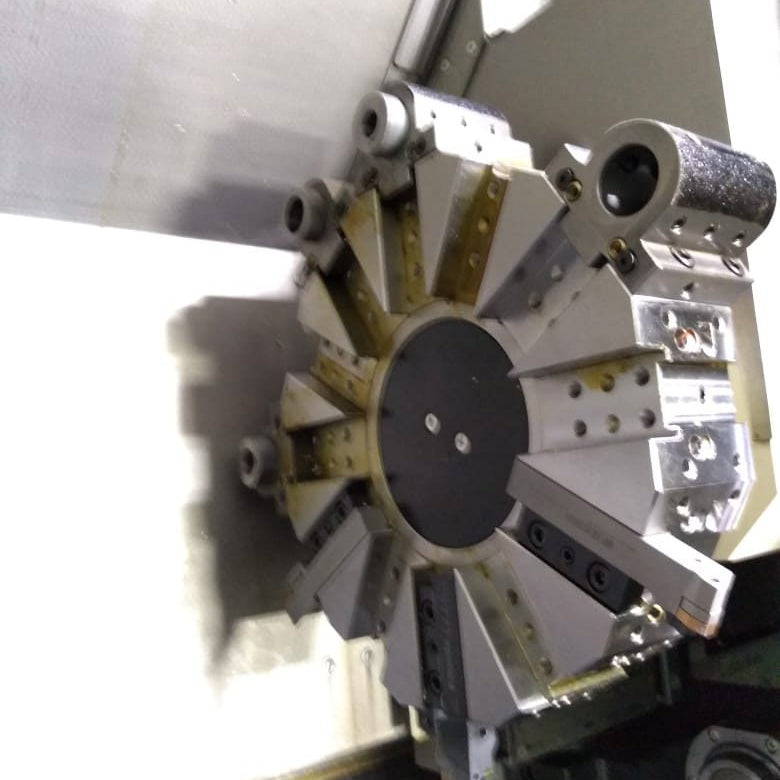

- 10-Station turret w/ 3/4" OD shank

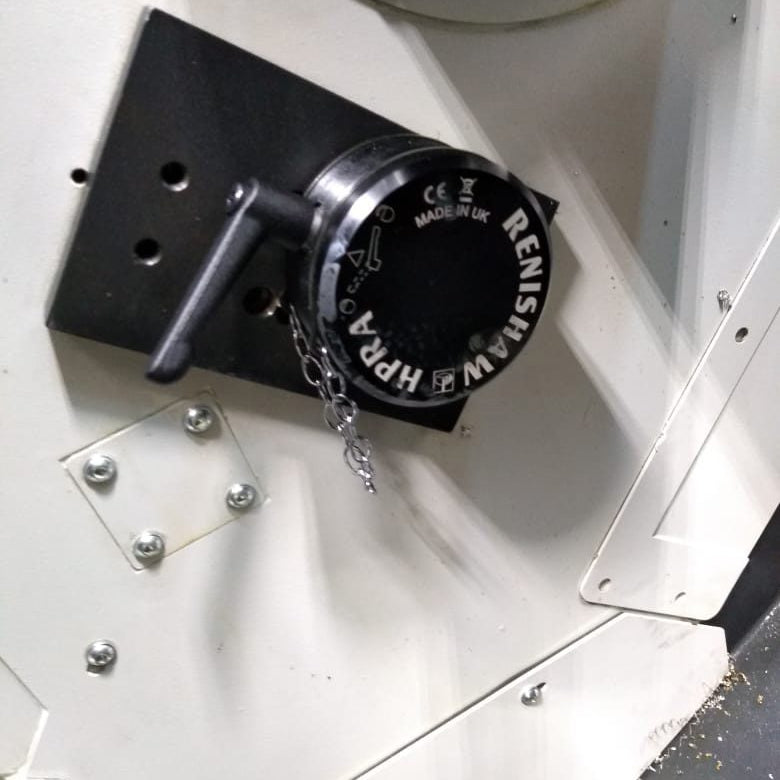

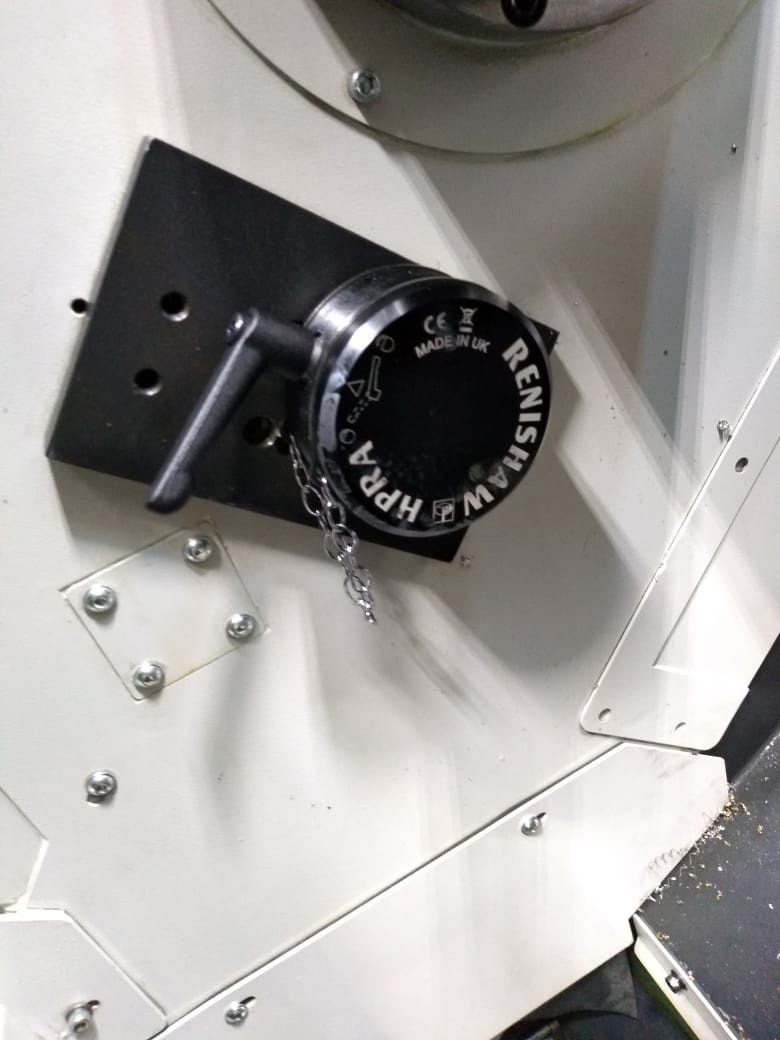

- Renishaw tool pre-setter
- Basket type part catcher

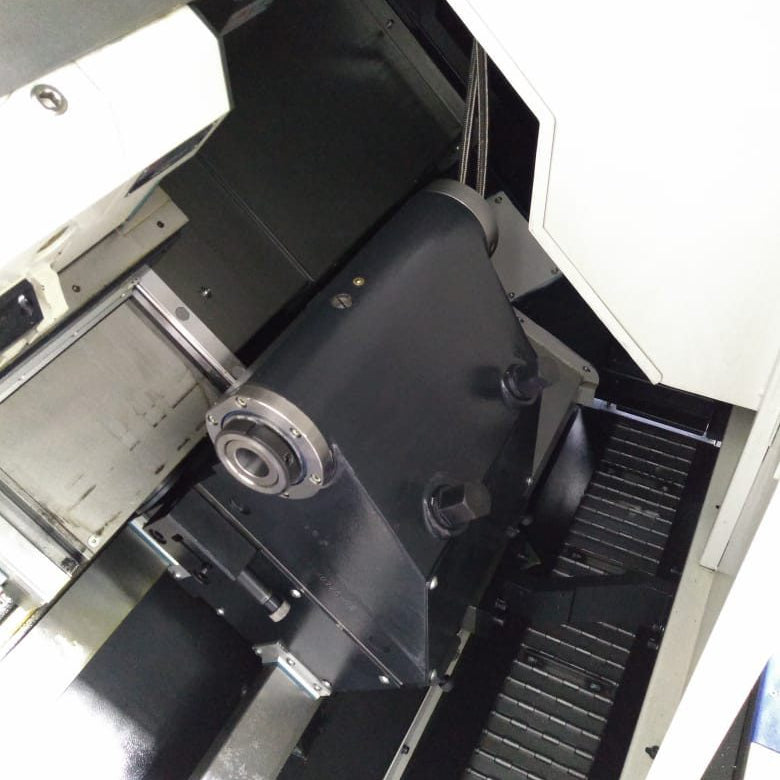

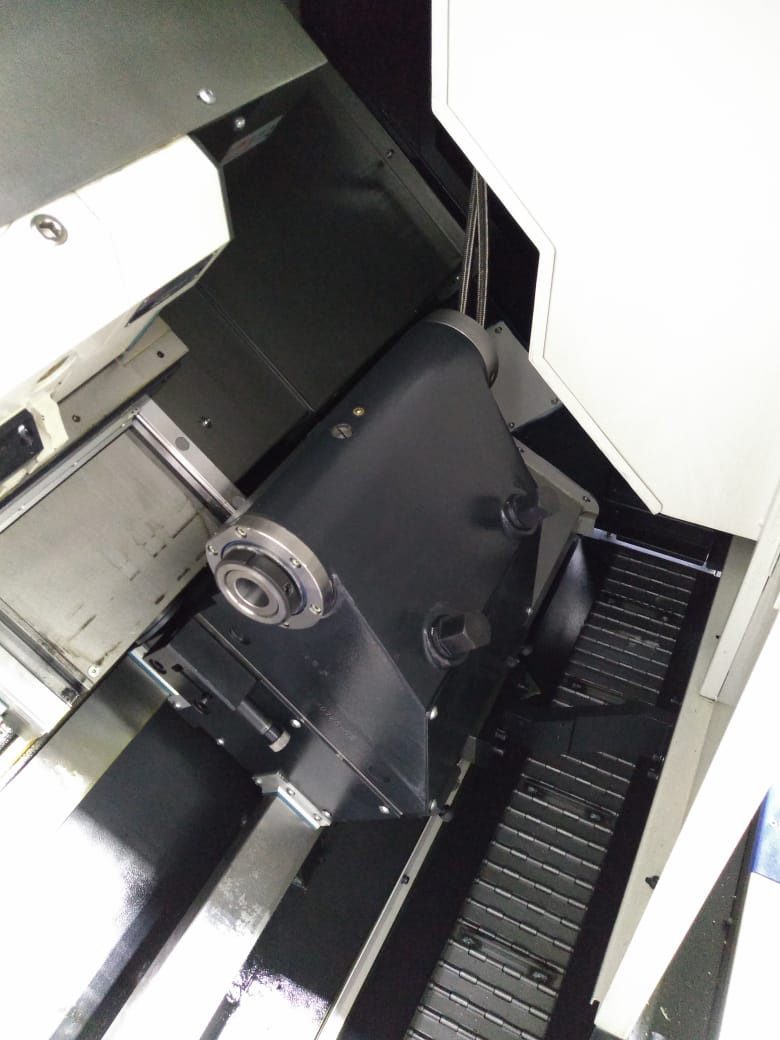

- Programmable tailstock
- Air conditioner electrical cabinet - - Water gun

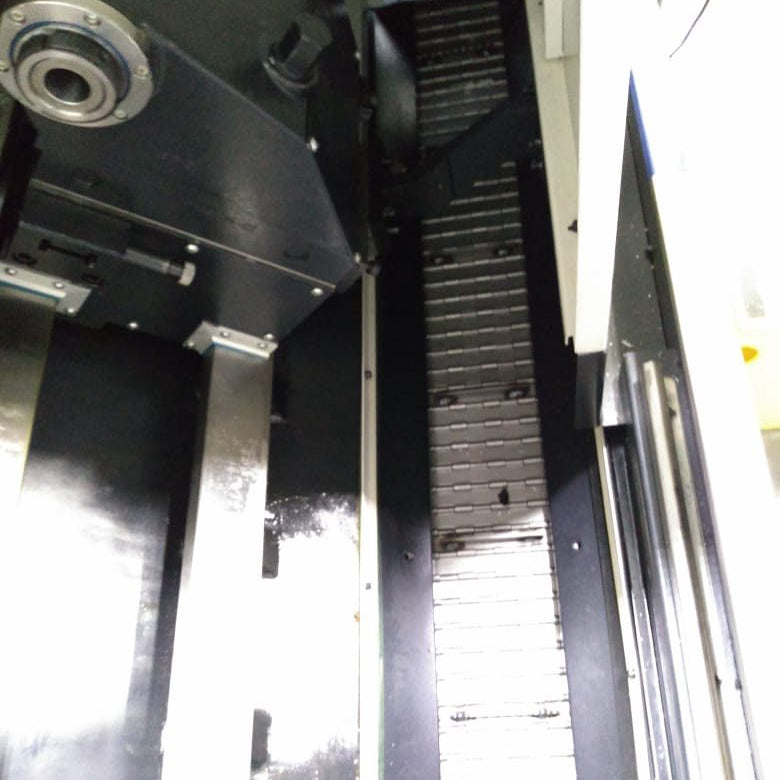

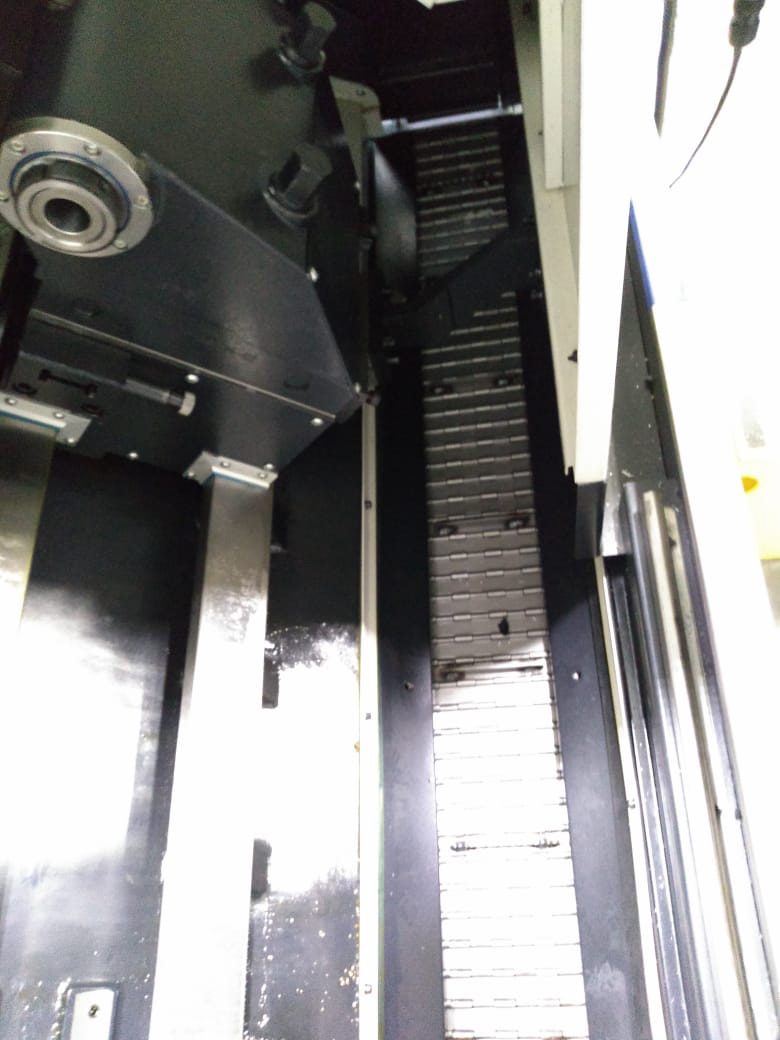

- Chip conveyor w/ scrap cart
Capacity
- Max. Work Swing: 17.72’’ (450 mm)
- Swing over Cross Slide: 11.81’’ (300 mm)
- Max. Turning Diameter: 7.87’’ (200 mm)
- Max. Turning length: 13.8” (350mm)
- Bar Capacity: 2’’ (51 mm)
TRAVELS
- X Axis: 5.31’’ (135 mm)
- Z Axis: 16.9’’ (430 mm)
SPINDLE
- Spindle Nose: A2-6
- Chuck diameter: 8” hollow
- Spindle Motor Power: 10 /15 HP
- Spindle Speed: 4,000 RPM

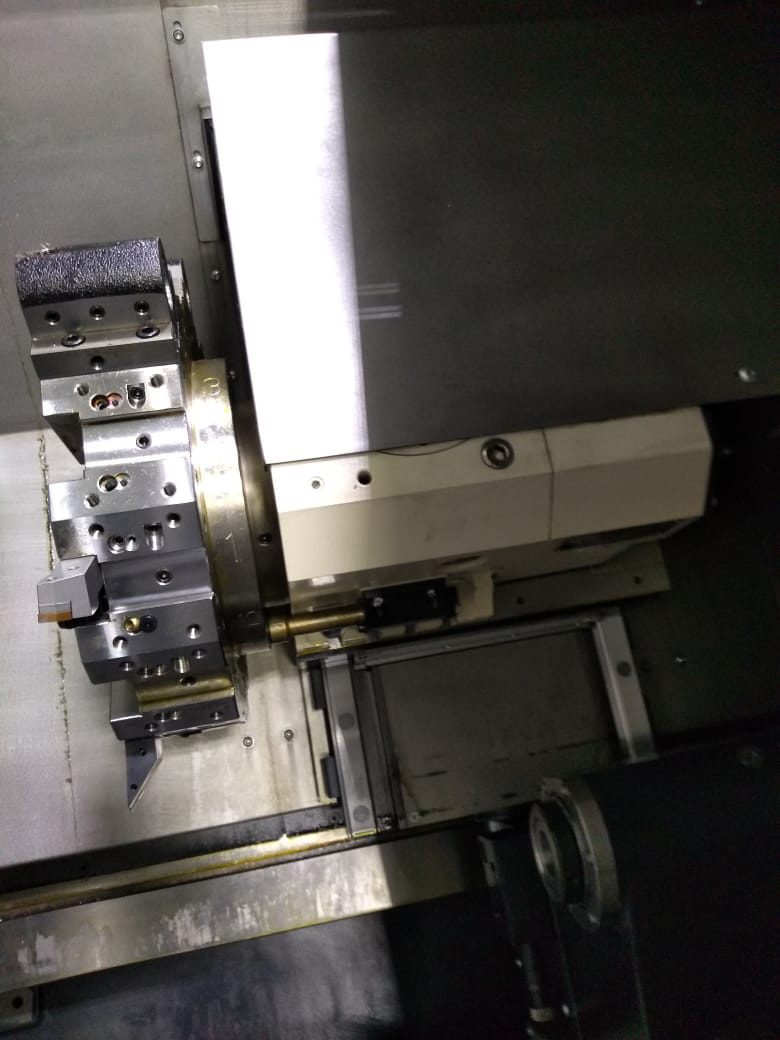

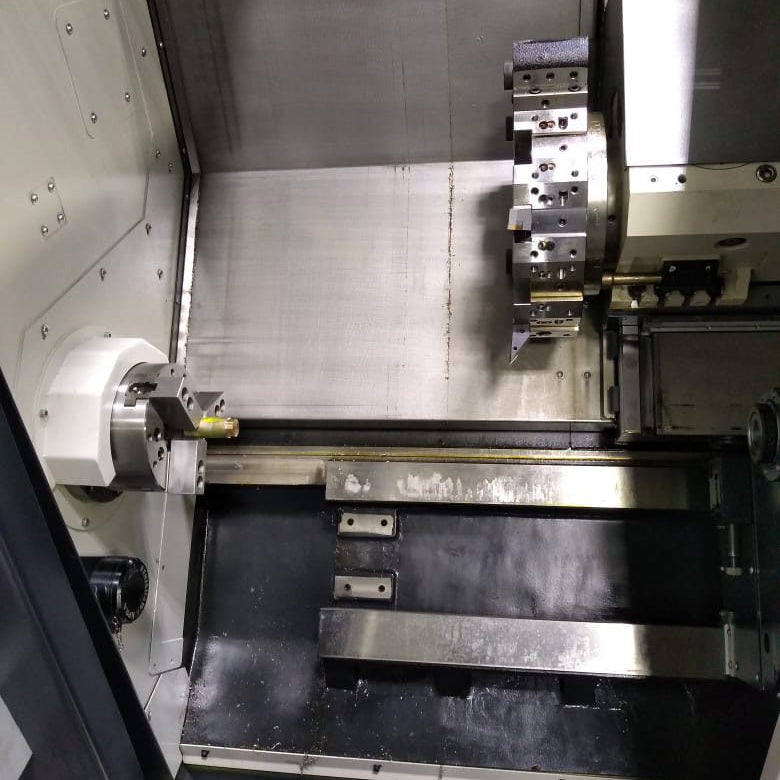

TURRET
- Tool Stations – 10 tools
- Tool Size (turning tool): ¾”
- Tool Size (boring tool): ΓΆ1-1/4"
- Indexing Time Tool-to-Tool: 0.5 s
TAILSTOCK
- Dia./travel of the sleeve: 2.95/3.15’’ (75/80 mm)
- Mandrel taper hole: Morse #4
- Programmable position and quill
FEEDRATE
- X/Z Axis Rapid: 946/1182 IPM (24/30 m/min)
- Cutting Feed Rates: 315 IPM (8 m/min)
BALL SCREWS
- X axis Ball Screw: 32 Γ— P8 mm
- Z axis Ball Screw: 32 Γ— P10 mm
DRIVE MOTORS
- X Axis Motor: 1.6 Hp.
- Z Axis Motor: 1.6 Hp.
POWER & AIR REQUIREMENTS
- 220 Volts/ 3 Phase/ 60 Cycle
- 25 KVA

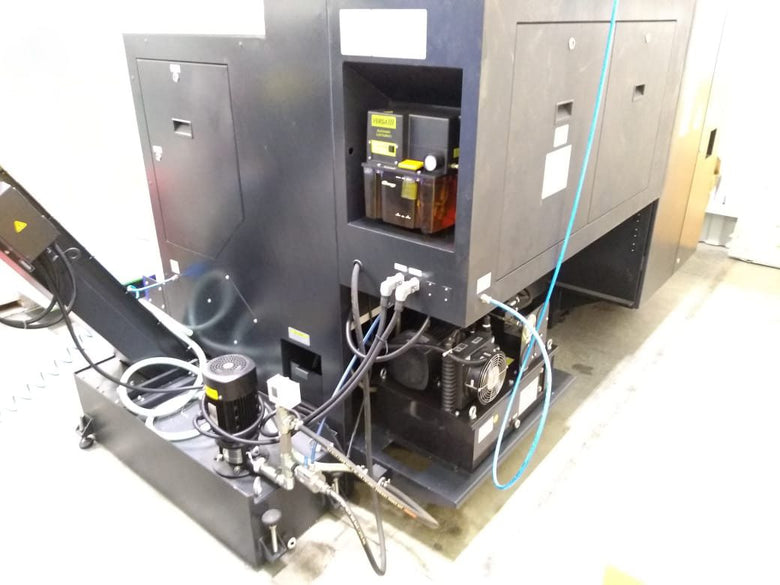

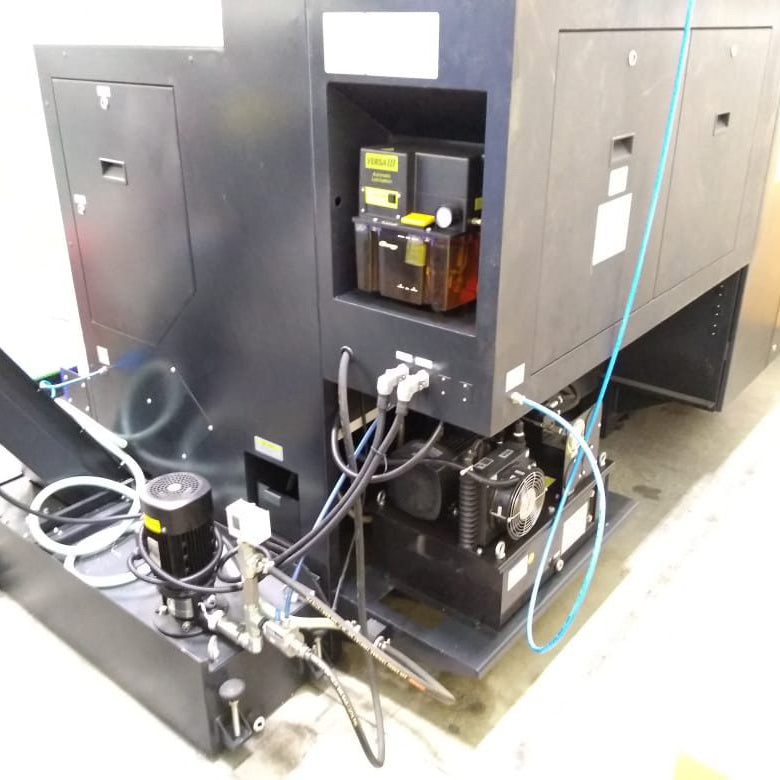

COOLANT SYSTEM
- Pump Motor Output: 0.493 HP (0.4 Kw)
- Pump Flow Rate: 7.3 gpm (2 m 3 / h)
- Pump Pressure: 21.78 psi (1.5bar)
- Tank Capacity: 42.7gal (160 L)
Accessories

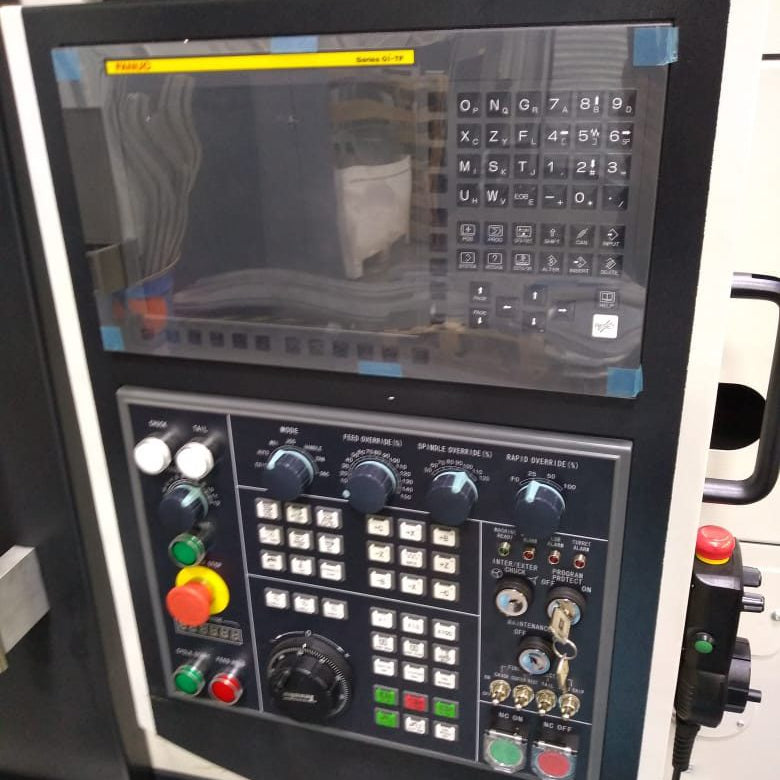

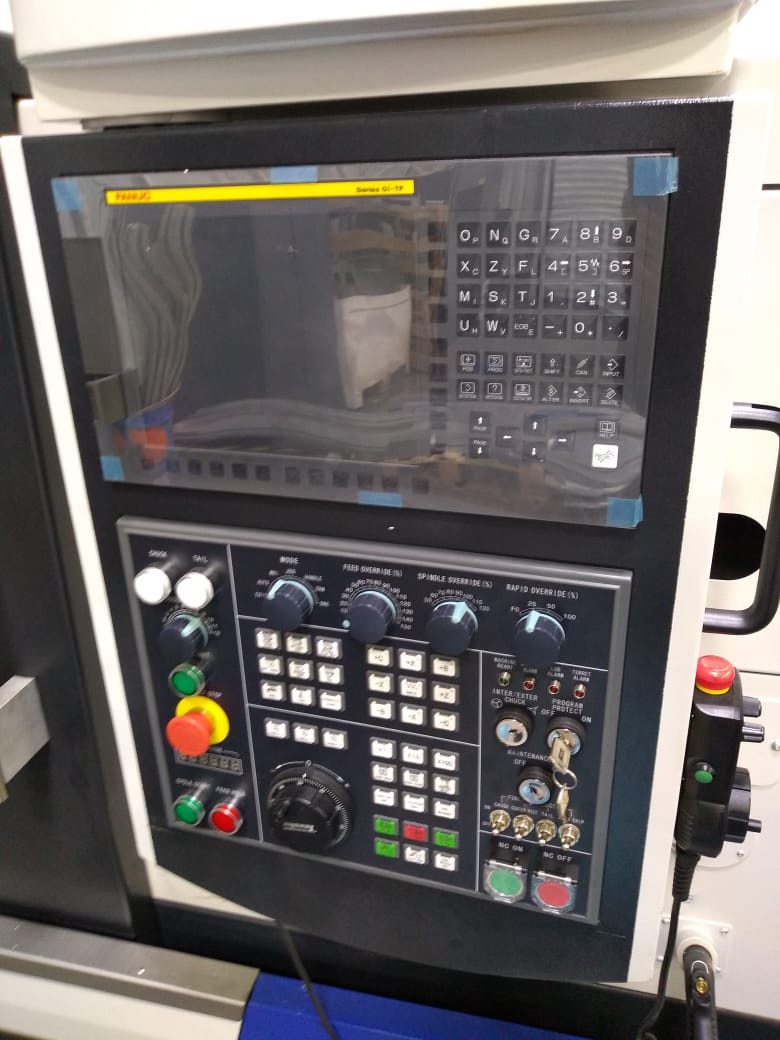

- FANUC 0i-T control system
- 10-station Hydraulic turret
- Air Conditioner Electric Cabinet
- Automatic Lift-up chip conveyor with scrap cart
- Automatic Lubricating System
- Hydraulic system
- Coolant System & Air Gun
- Tri-color cycle light
- Operation manual
- Foundation kit with leveling bolts and pads
