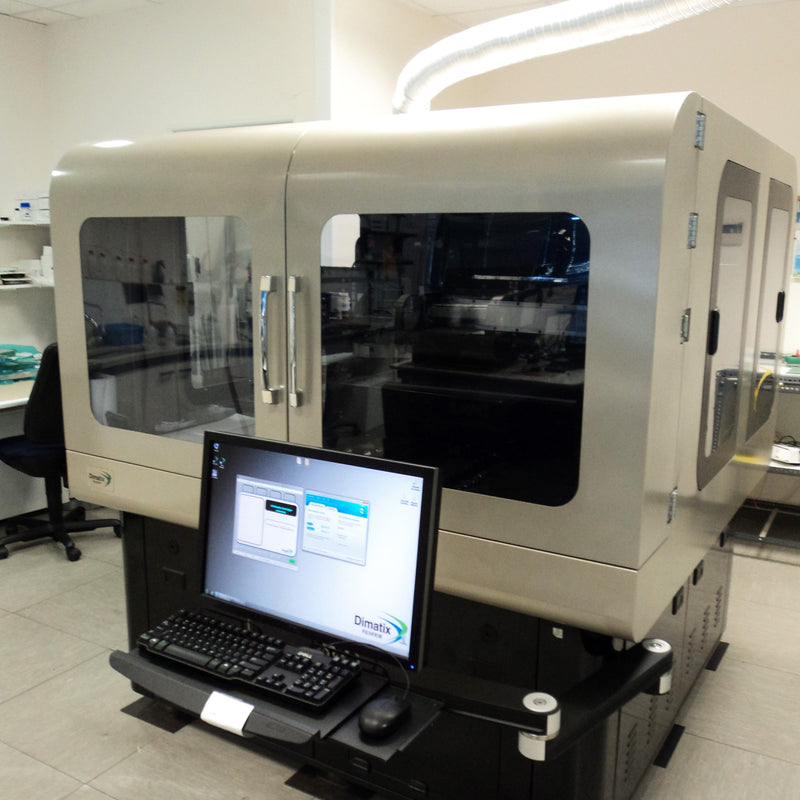

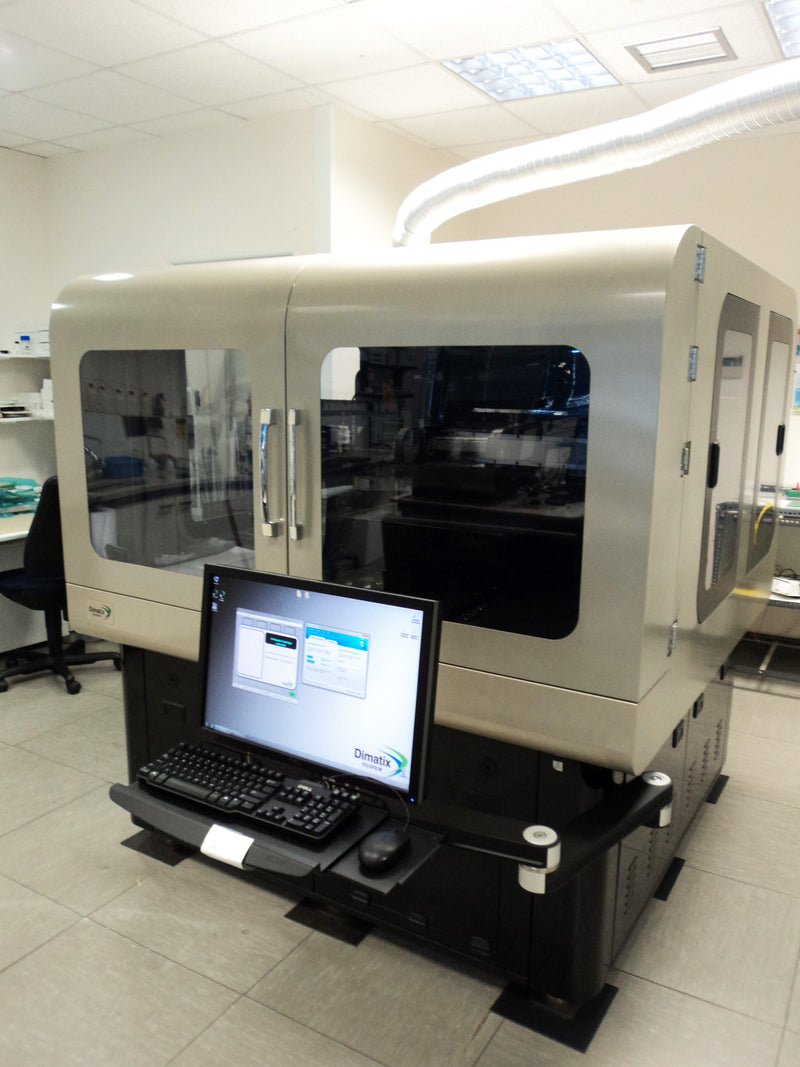

Fujifilm Dimatix DMP 5000 Ink Jet Deposition System
- Flat substrate, xyz stage
- User-fillable, piezo-based 16 nozzle ink jet print cartridges
- Syringe fed or ink delivery system for the 128 nozzle print heads
- Built-in drop jetting observation system
- Upward looking camera for nozzle inspection and head angle calibration
- Substrate inspection system.
- Variable jetting resolution and pattern creation PC-controlled with Graphical User Interface (GUI) application software
- Capable of jetting a wide range of fluids
- Heated vacuum platen
- Print head cleaning station
- Includes PC, monitor, and software
Mechanical System:
- Printable area
- Substrate size 0.5 - 25 mm thickness: 300 mm x 300 mm
- Repeatability: ± 1mm
- System positional accuracy: ± 5 mm
- Substrate holder
- Vacuum platen
- Temperature adjustable; ambient to 60° C
- System footprint: 1400 mm x 1400 mm
- Power: 200-240 VAC 50/60 Hz 375W maximum
- Fuse @ 250 V 2A SLO-BLO 5 x 20 mm
- Operating range 15-40° C at 5-80% RH non-condensing
- Altitude up to 2000 m
16 Nozzle Printhead:
- Type: Piezo-driven jetting device with integrated reservoir and heater
- Usable Ink Capacity: Up to 1.5 ml (user-fillable)
- Materials Compatibility: many water-based, solvent, acidic or basic fluids
- Number of Nozzles:16 nozzles, 254 µm spacing, single row
128 Nozzle Printhead:
- Type: Piezo-driven jetting device
- Ink Capacity: syringe or ink delivery system
- Materials Compatibility: many water-based, solvent, acidic or basic fluids
- Number of Nozzles: 128 nozzles, 508 µm spacing, single row
Control PC and Software:
- Pre-loaded patterned templates
- Pattern preview
- Editors: Pattern, piezo-driven waveform, cleaning cycle, substrate setting
- Bitmap (1 bit) files accepted
- DXF, DWG, Gerber, GDSII and OASIS file conversion to Bitmap
