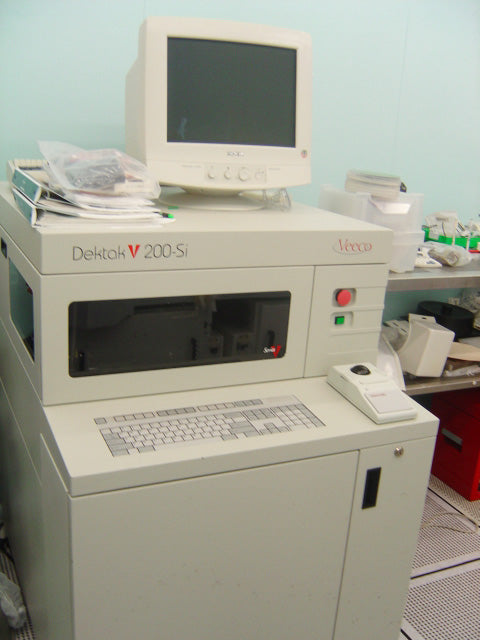

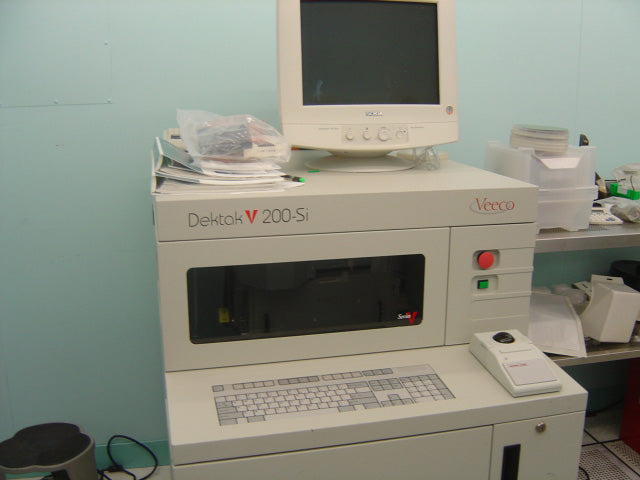

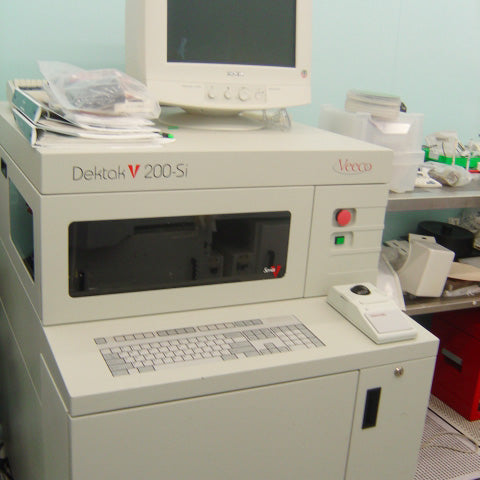

Bruker / Veeco Dektak 200 Si Surface Profilometer
Bruker / Veeco Dektak 200 Si Surface Profilometer
Bruker / Veeco Dektak 200 Si Surface Profilometer

Bruker / Veeco Dektak 200 Si Surface Profilometer

Asset #: 61805

Make: Bruker / Veeco

Model: Dektak 200 Si

Last Confirm Date: October 21, 2024

Bruker / Veeco Dektak 200 Si Surface Profilometer
- Scan Length Range: 50 microns to 200mm (2 mils to 8 inches)
- Scan Speed Ranges: 3 seconds to 218 seconds
- Software Leveling: Two-point programmable or cursor leveling
- Stage Leveling: Automatic and power leveling
Stylus (standard): Diamond, 12.5 micron radius
- Stylus Tracking Force: Programmable, submilligrarn-30mg
- Maximum Sample Thickness: 45mm (1.75 inches)
- Sample Stage Diameter: 200mm (8 inches)
- Sample Stage Translation:
- X Axis, 200mm (8 inches)
- Y Axis, 200mm (8 inches)
- Sample Stage Rotation: Theta, 3600
- Maximum Sample Weight: 2.5Kg (5 lbs.)
- Power Requirements: 100/115V or 220V, 50/60 Hz
- Current: lOA@ 100/115V or 20A@ 220V (±10%)
- Phase: Single phase
- Warm-up Time: 15 min. recommended for maximum stability
- Operating Temperature: 21° C ±3oC (70° F ±5°F)
- Environmental Humidity: 40%, ±20%
- Zoom Magnification: 60X to 420X
- Color Camera: Solid state produces color video image
Sample illumination: Variable intensity white light; IR/UV blocked
- Vacuum Chuck: Requires external vacuum 24" (600mm) Hg.
- Vibration Isolators: Requires 100 PSI (488 kg/m2) compressed air
1998 Vintage
