Asset #: 61727

Make: Bruker

Model: Icon FastScan

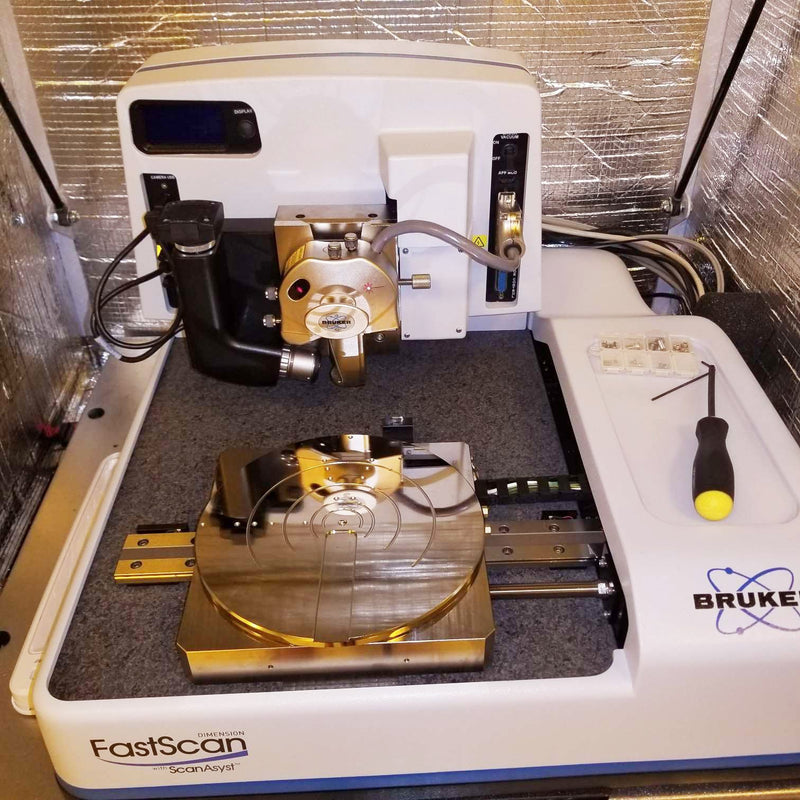

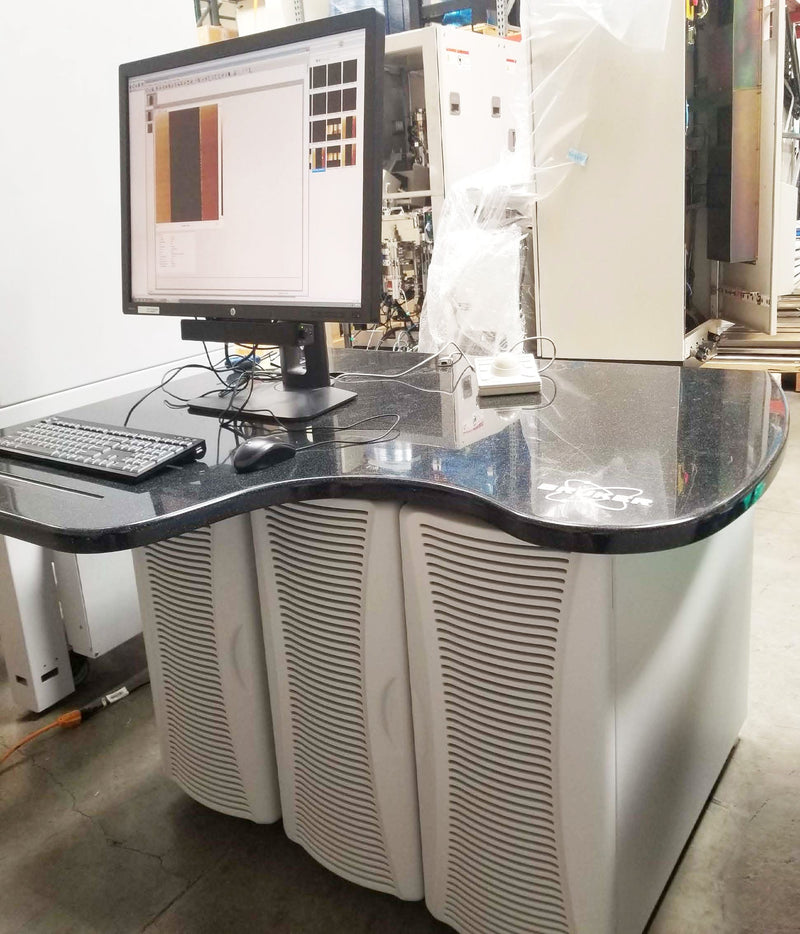

Bruker Icon FastScan
- 210mm diameter vacuum sample chuck on X-Y motorized stage

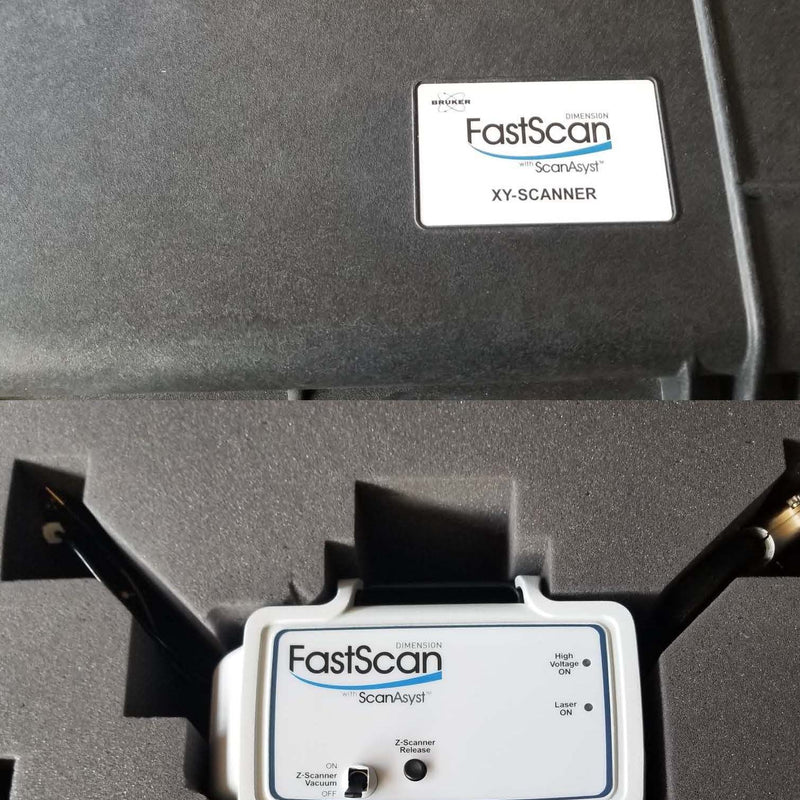

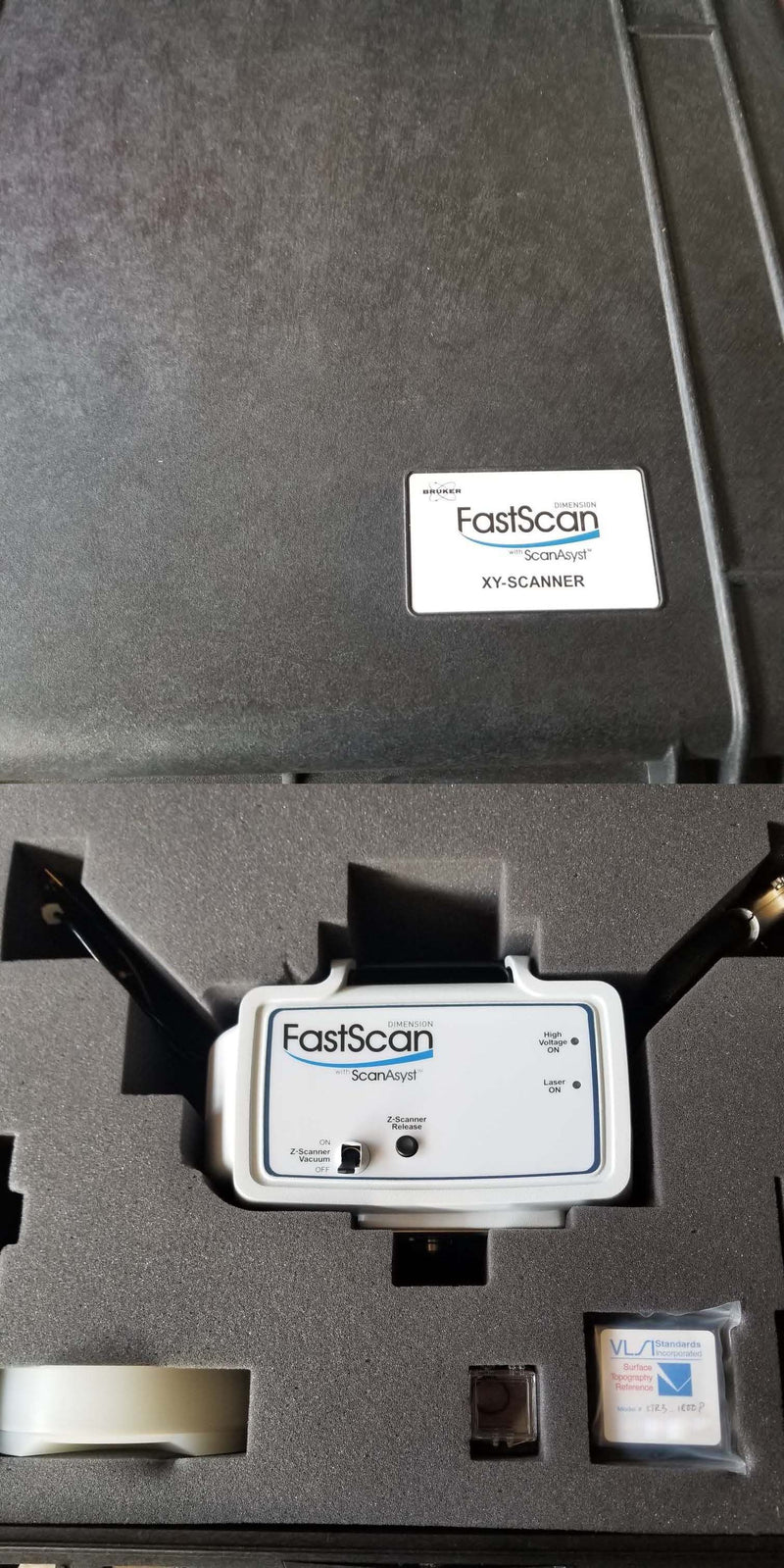

- Removable dovetail-mounted, closed-loop operation FastScan flexure scanner
- 35μm x 35μm X-Y range and 3μm Z range

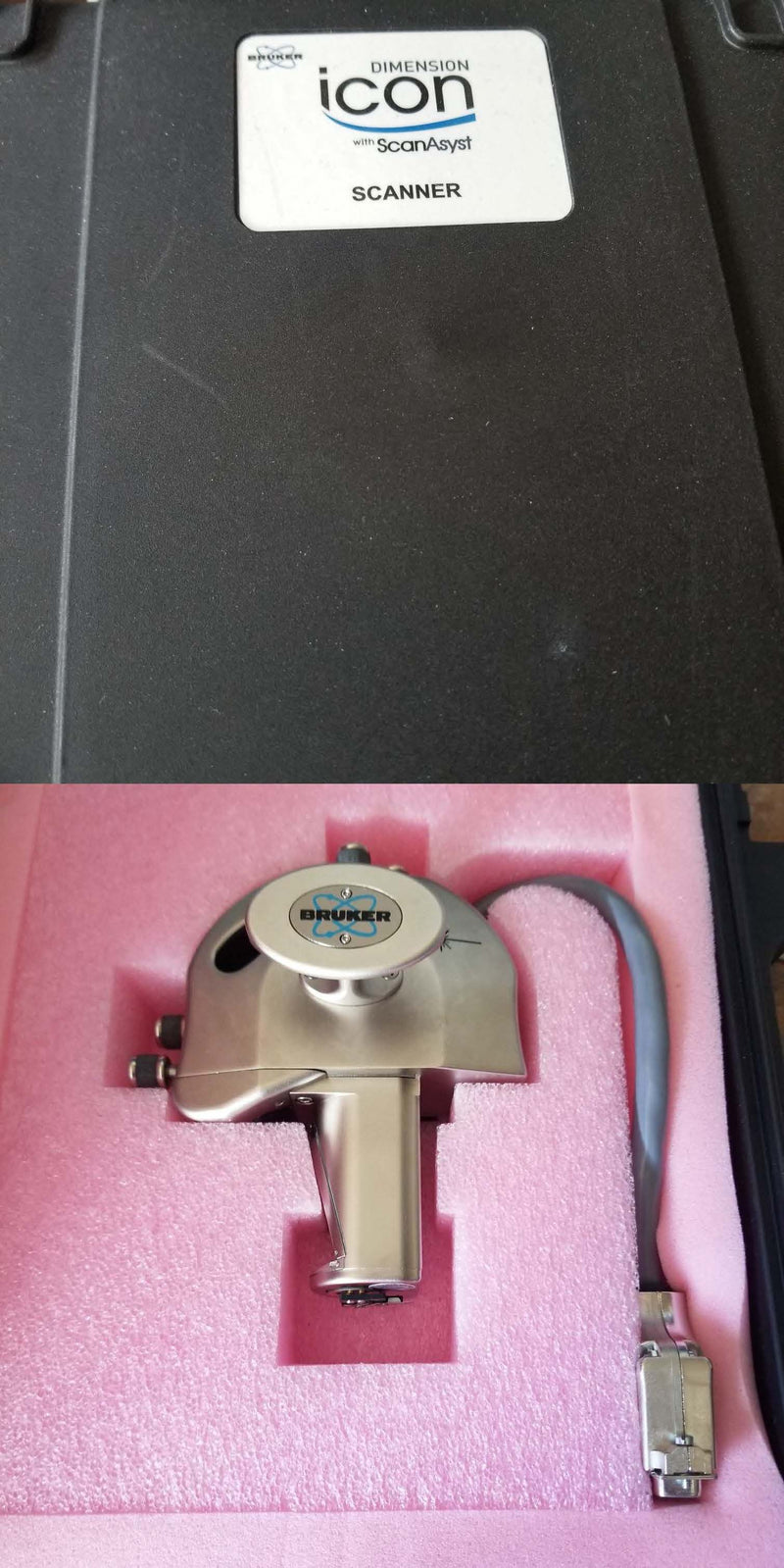

- Standard dovetail-mounted, closed-loop operation Icon X-Y-Z scanner with
- 90μm x 90μm X-Y range and 10μm Z range
- Scans up to 15mm thickness

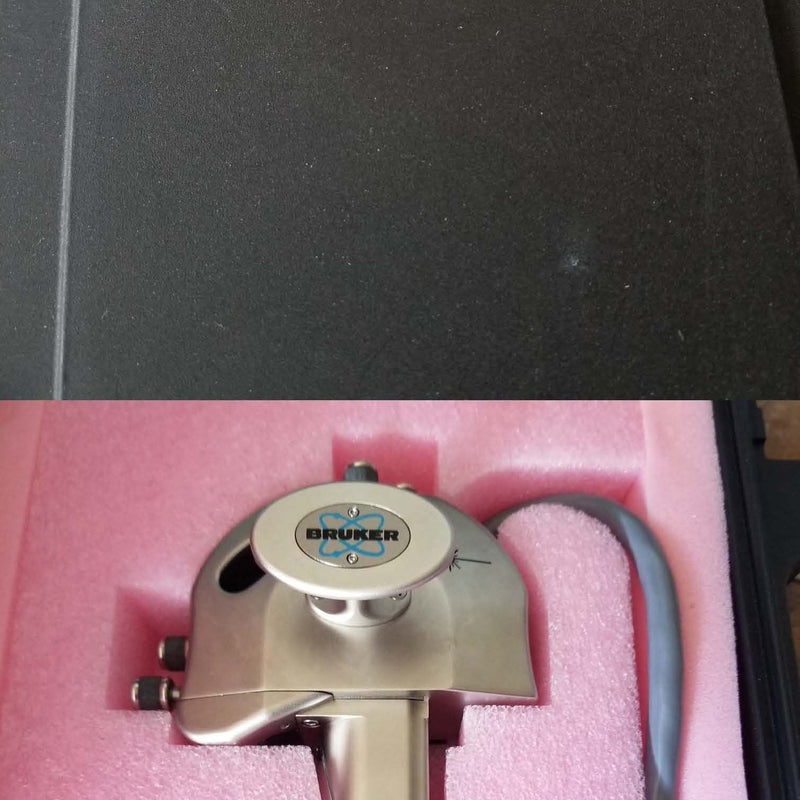

Icon XYZ Closed-Loop Application Module-ready Scan Head:
- Range of 90µm x 90µm and vertical range of 10µm closed-loop operation
- Enabled w ith thermally compensating sensors in its X, Y, and Z-axis for high accuracy/precision for imaging, positioning, zooming, nanomanipulation and nanolithography
Includes:
- ScanAsyst
- TappingMode (air)
- Contact
- Lateral Force
- Phase Imaging
- Nanomechanical Mapping
- PeakForce QNM
- Torsional Resonance
- Lift / Dark-lift
- Force Volume
- Force Spectroscopy
- Surface Potential
- Piezo Response
- EFM and MFM Optional modes/techniques include TappingMode (fluid), PeakForce TUNA, HarmoniX, Force Modulation (air and fluid), Nanoindentation, Nanomanipulation, Nanolithography, STM, SCM, CAFM, SSRM, TUNA, TR-TUNA, EC, thermal analysis and SThM
Probe List:
Scanasyst-Air (qty 80)
SCM-PIT (qty 20)
SCM-PTSI SAMPLE (qty 10)

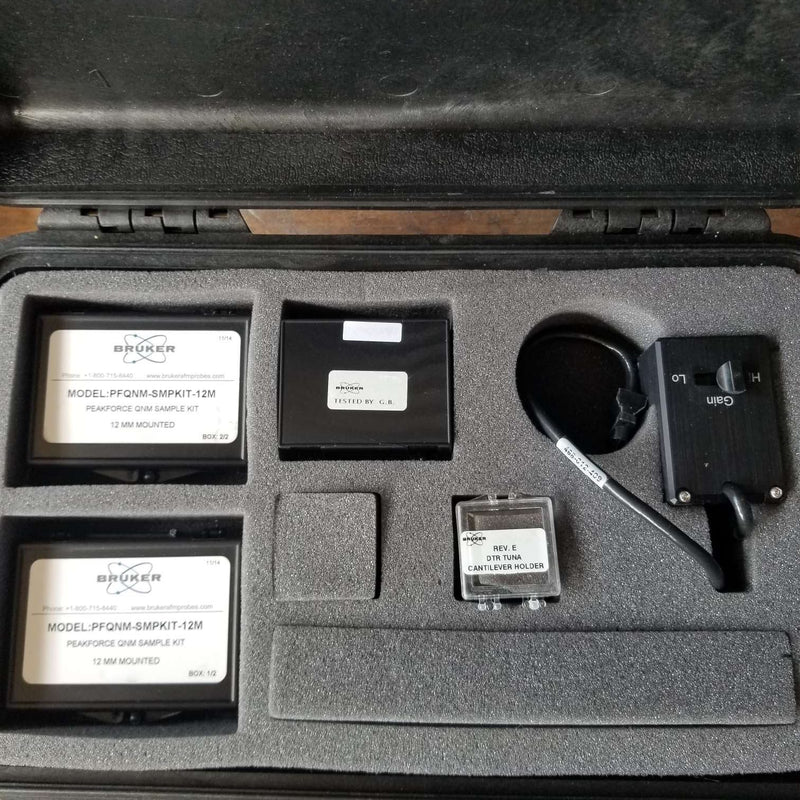

PFQNM-SMPKIT-12M
PEAK FORCE QNM SAMPLE KIT - 12MM (qty 1 Kit)
TESP-SS (qty 10)
FIB1100A (qty 10)

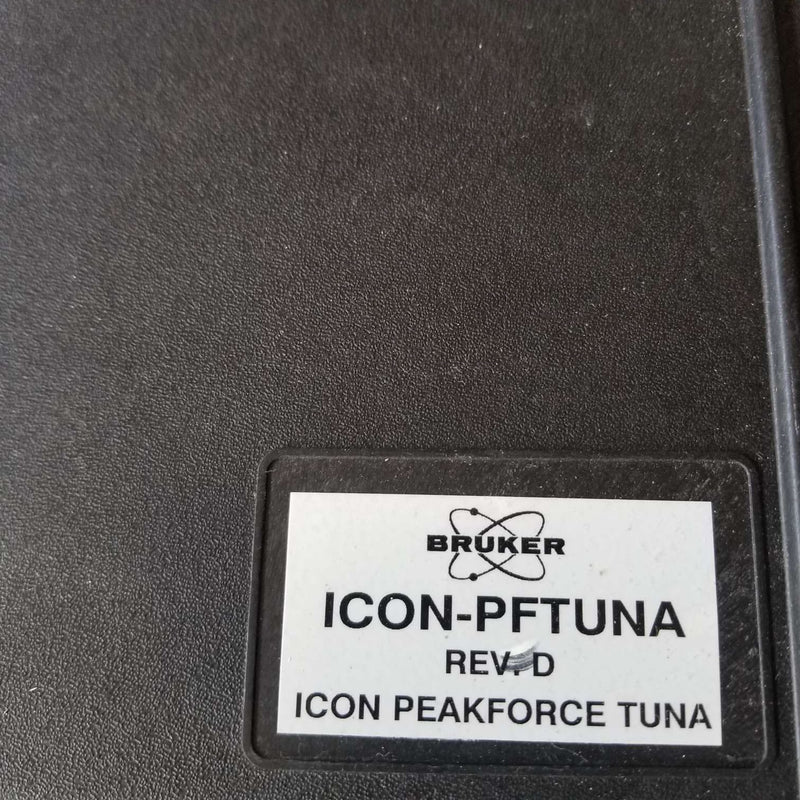

PFTUNA (qty 30)
RTESP (qty 10)
TAP150A (qty 10)
SNL-10 (qty 20)
FASTSCAN-A (qty 30)
SCM-PIC (qty 20)
FASTSCAN-B (qty 10)
RFESP (qty 10)
NCHV (qty 10)
SCANASYST-FLUID (qty 20)
