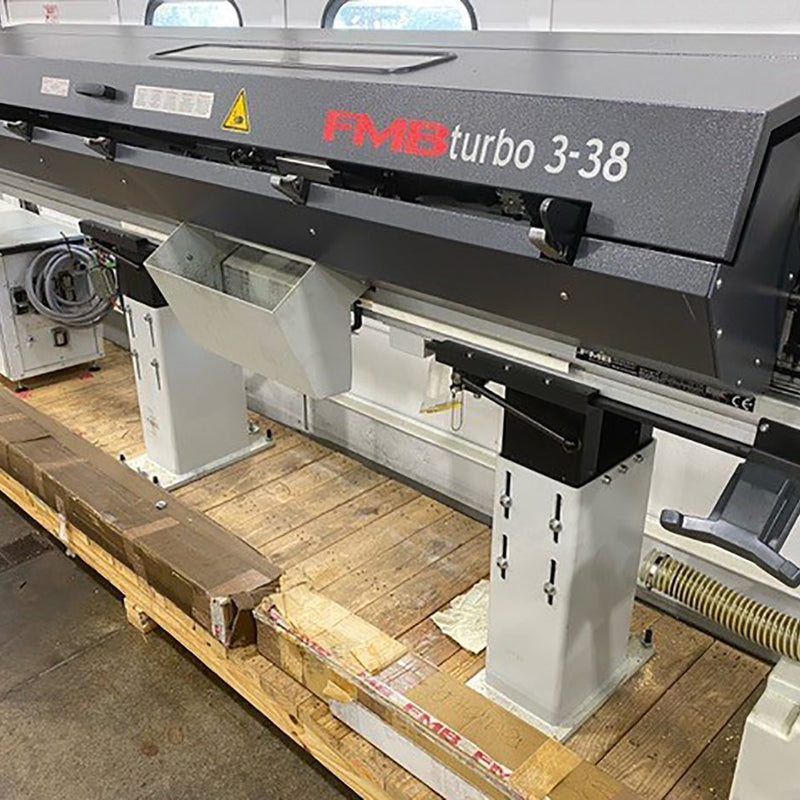

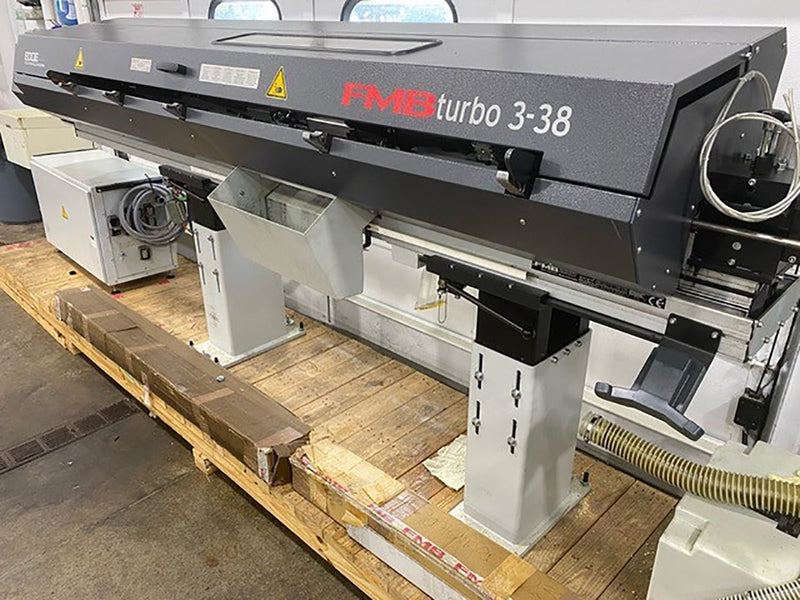

Edge Technologies Turbo 3-380 Bar Feeder

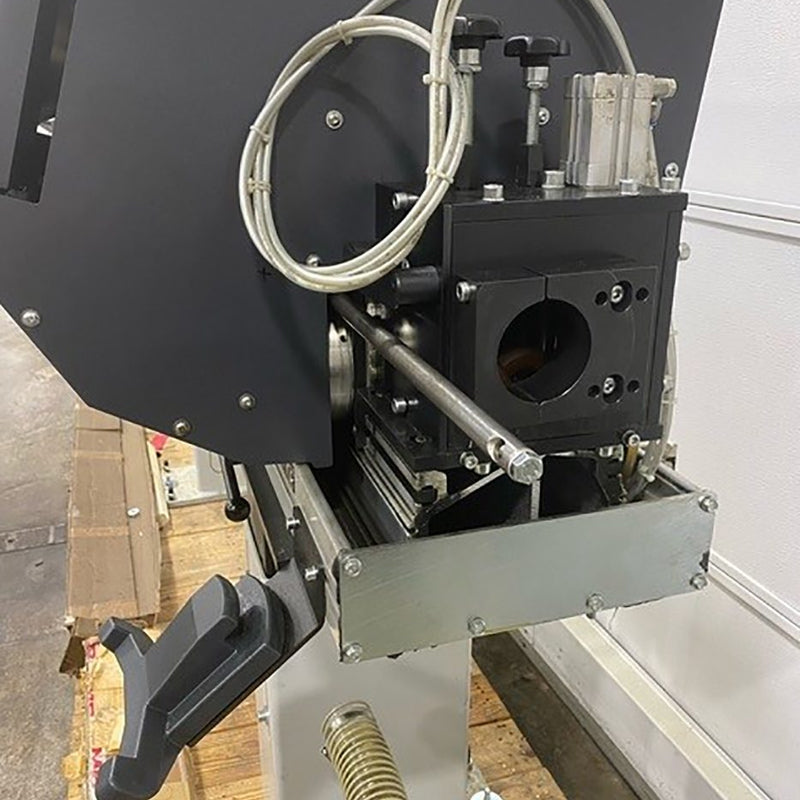

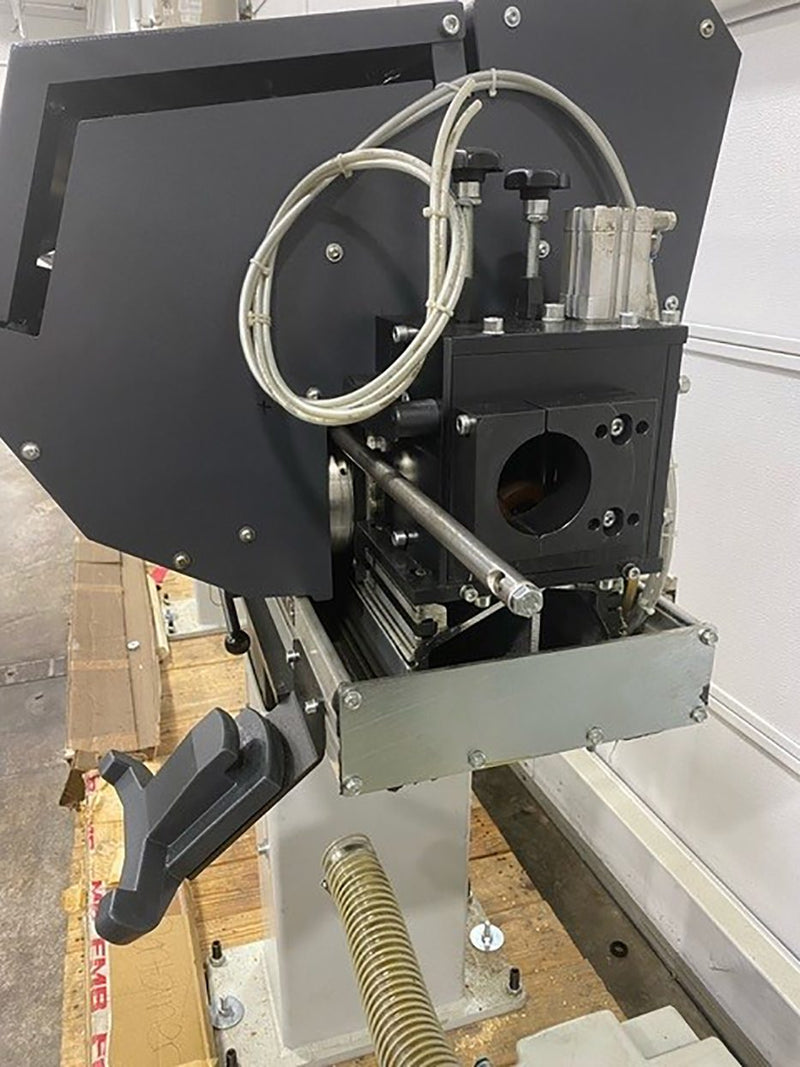

with Front Steady Rest
- Bar diameter capacity-no bar preparation: 3 mm to 35 mm (.118” to 1.378”)
- Bar diameter capacity-with bar preparation: 3 mm to 38 mm (.118” to 1.500”)
- Maximum bar length: 3800 mm (12 feet 5 inches)
- Minimum bar length: 1000 mm (39.400”)
- Maximum remnant length: 450 mm (17.700”)
- Magazine rack capacity: 11”
- Bar loading cycle time: 24 seconds for 12-foot bar
- Material straightness specification: .007” TIR/foot of material (V blocks, 3 points equidistant)
- Feed force (pusher torque): max 450 N, adjustable
- Forward feed rate: 1000 mm/sec max, adjustable
- Return feed rate: 2000 mm/sec
- Power consumption: 2.0 kW – (2 kVA)
- Operating voltage: 200-460V/60Hz 3-phase
- Control voltage: 24V DC
- Oil capacity: 80 liters (22 gallons)
- Oil viscosity: ISO 150 cST
- Compressed air supply: 6 bar (90 psi)
- Compressed air consumption: approx. 10 liters per loading cycle

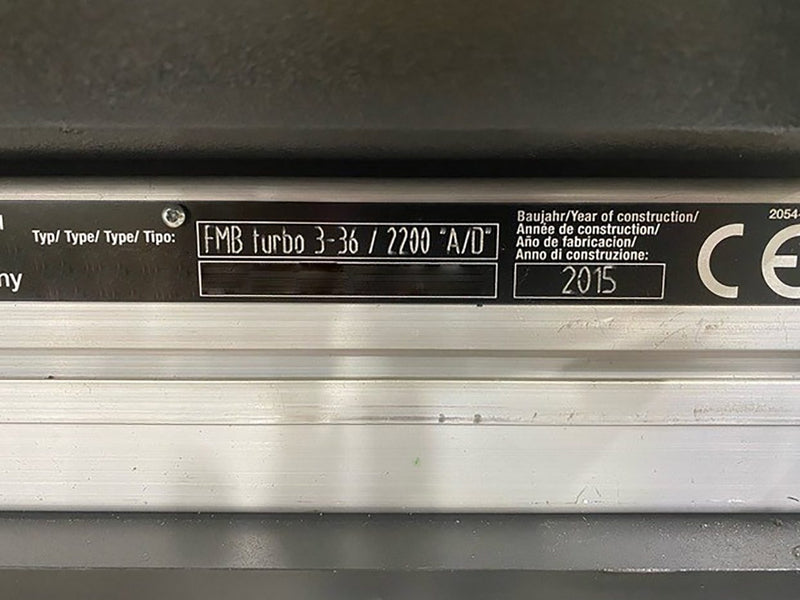

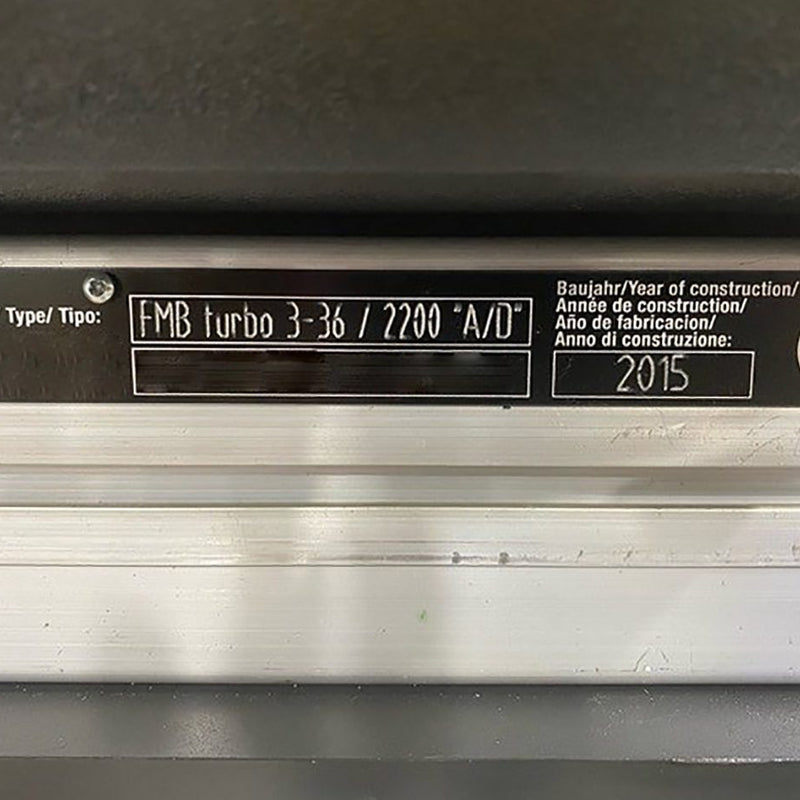

2015 Vintage
