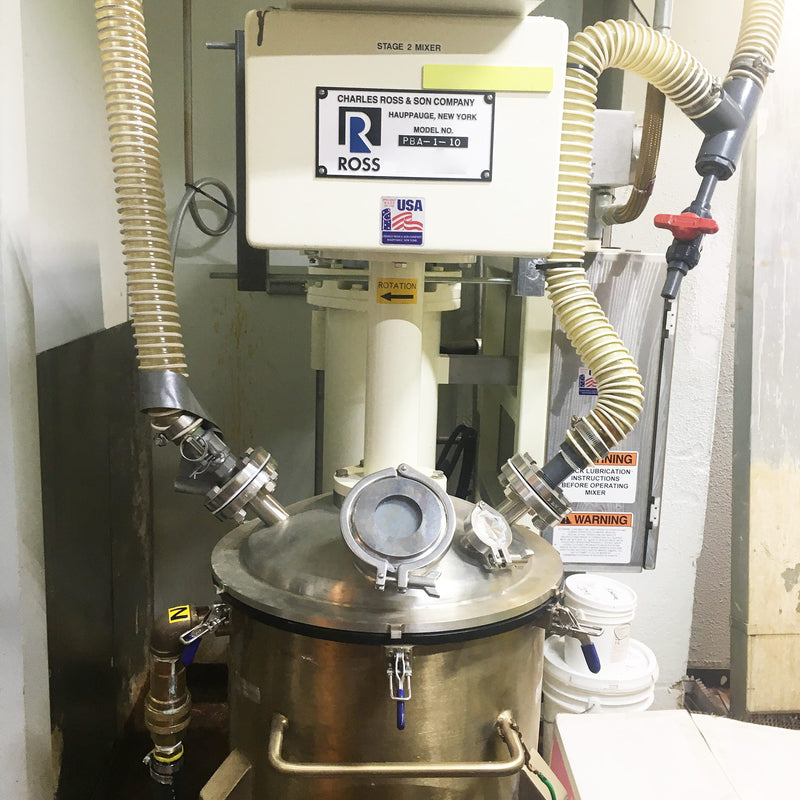

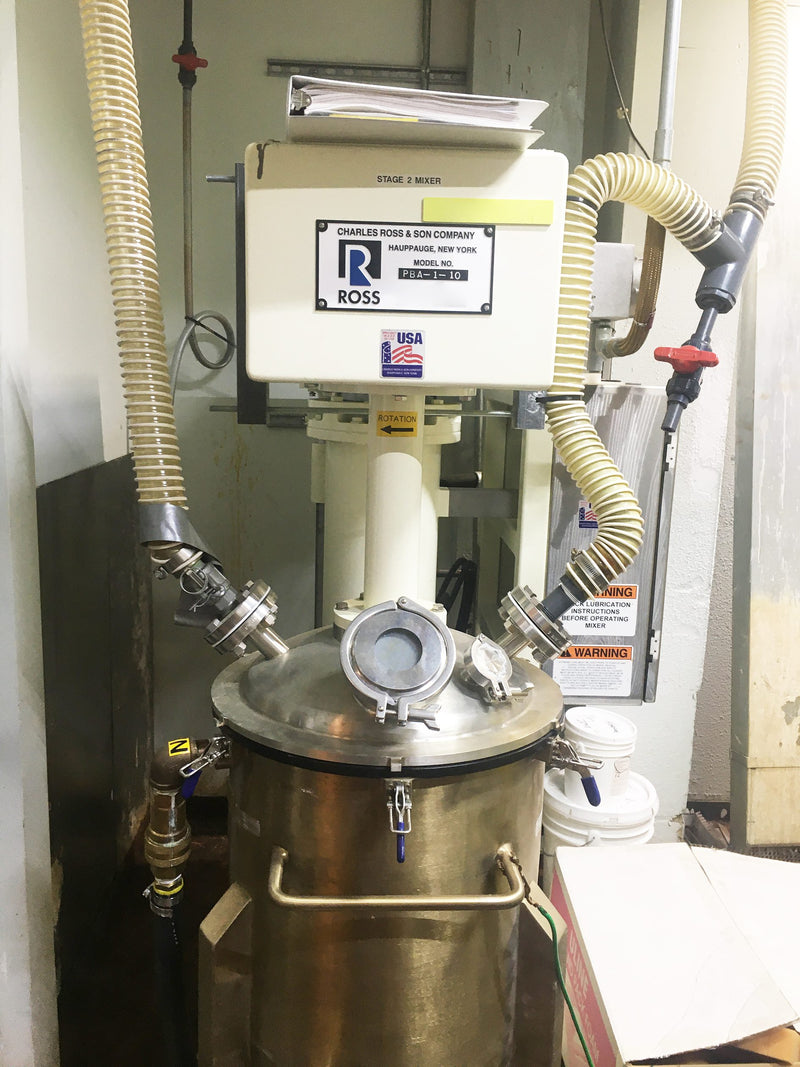

Ross PBA 1-10 Bow Tie Blade Mixer
- Vapor-tight, suitable for up to +2 psi internal pressure.
- Elastomers suitable for HCL and Ethanol.
- Air/oil hydraulic lift with anti-rotation hydraulic cylinder, requiring 80-100 psig air supply. Flow control valve, air operated two-hand operator safety pushbuttons and selector switch.
- Stainless steel type 316L wetted parts with Black (PFA) Teflon coating.
- Stainless steel type 316L mixing shaft with Black (PFA) Teflon coating operating between 35 & 350 rpm @ 6 – 60 Hz.
- Mixing Shaft is sealed via a Double Flexi-Lip Dry Running FDA MF Teflon Lip Seal with Viton O-rings. This seal design operates without using lubrication to prevent contamination with the product. Seal is installed in UHMW housing for easy removal/assembly.
- Mixing Shaft has one (1) - 13" diameter, 3-Wing, Bow-Tie Blade with Risers, contoured to match mix vessel’s dished bottom. The blade is attached to the bottom of the mixing shaft with an internal thread and sealed via a Viton O-ring between the blade hub and shaft. Blade will tighten as it spins with the shaft.
- Driven by a 1 HP, Explosion Proof (Class 1, Div. 1, Group D; Class 2, Groups F&G), VFD-rated, 10:1 speed range motor suitable for operation on 230/460 volt, 3 phase, 60 Hz power supply. Electrical operator controls are offered as an option.
- Explosion Proof Safety Limit Switch to prevent operation of agitator while in the raised (non-mixing) position, or without a mix can in place.
- Cover, Vapor-tight and rated for +2 psig internal pressure when combined with matching mix vessel. T-316, 80-grit exterior finish with black PFA (Teflon) coating on underside.
- One (1) - 1" Tri-Clover port (pressure), two (2) - 1" 150# RF flange ports and one (1) - 4" Sight & Charge port with Metaglass sight glass. ID of ports are Teflon coated. Viton Cover O-ring.
- Mix Vessel, 10 gallon working, 12 gallon full holding, rated for +2 psig internal pressure, 15" ID x 15" Straight Side with a Dished Bottom with a 1" Flush Bottom Ball Valve with a Tri-Clover outlet (bottom-center) located 20" off the floor. Clamps between mix vessel and cover.
- A heating/cooling jacket made from Stainless T-304, 80-grit finish and rated for 50 psig at 350F is installed on the sides and bottom.
- Three Stainless Steel legs with casters. Can lock receiver for aligning and locking mix vessel to mixer. Interior coated with Black (PFA) Teflon. NEMA 7/9 Low Profile Thermocouple in bottom dish of Mix Vessel.
- All non-stainless steel exterior surfaces are painted Ross Off-White, a two-component epoxy coating.
