Servo Drill Head Parts

Asset #: 57929

Make: Servo

Model: -

Last Confirm Date: December 01, 2020

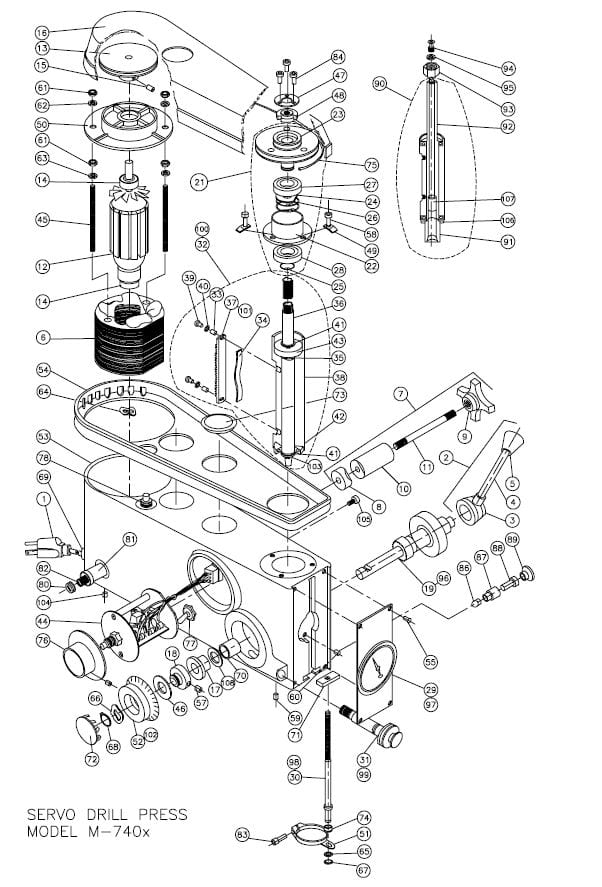

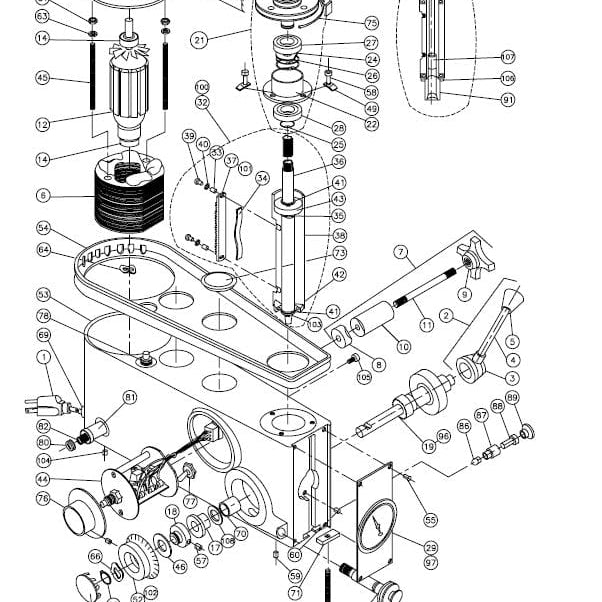

Servo Drill Head Parts
Part # / Description:
- 2770 Assembly - Power Cord
- 3886 Assembly - Hand Lever
- 1077 Assembly - Hand Lever Clamp Ring
- 1075 Shaft Hand Lever
- 822 Knob
- 349 Assembly - Field
- 1054 Assembly - Column Clamp
- 1057 Nut Column Clamp
- 5294 Knob, 4 Prong Black Phen.
- 1056 Sleeve Column Clamp
- 5295 1/4-20 x 3" Threaded Steel Stud
- 1155 Assembly - Armature
- 2794 Pulley
- 553 Bearing (2)
- 1745 6-32 x 3/16" Socket Set Screw (2)
- 2798 Assembly - Cover
- 2808 Assembly - Worm Gear
- 2809 Assembly - Dial Bushing
- 1069-1 Assembly - Cross Shaft (inch)
- 1856 Assembly - Spindle Pulley
- 1849 Pulley Support Housing
- 2793 Spindle Pulley
- 3331 Washer Wave (2)
- 1207 Retaining Ring
- 1938 Retaining Ring (2)
- 5244 Bearing
- 5244 Bearing
- 2184-1 Assembly - Dial Indicator
- 2185-1 Assembly - Dial Indicator Rack
- 1061-1 Assembly - Down Stop
- 1874-1 Assembly - Quill Inch
- 1279 Bushing Rack (2)
- 1280 Spring Rack
- 3331 Washer Wave (2)
- 1879 Spindle
- 1067-2 Rack Quill
- 1847 Quill
- 5001 4-40 x 1/4 Phillips Pan Head Screw (2)
- 4926 SS Flat Washer (2)
- 1207 Retaining Ring (2)
- 5244 Bearing
- 5244 Bearing
- 3414-1 Assembly - Circuit Board
- 5603 Stud - Field (2)
- 1081 Gasket - Friction
- 1841 Clamp - Disc
- 1843 Drive - Ring
- 2977 Clip - Cover (2)
- 3805 Motor - End Bell
- 57925 Clamp - Dial Indicator
- 1080-2 Dial - Cross Shaft
- 1858-1,-2 Housing - Drill Press
- 3762-1 Cover - Bottom
- 811 2-56 x 3/16 Phillips Pan Head Screw (4)
- 5060 8-32 x 5/16 Long Socket Set Screw w/ Nylon Patch
- 796 6-32 x 3/8 Socket Head Cap Screw (6)
- 5063 6-32 x 3/16 Half Dog Pt. Socket Set Screw
- 507 10-32 x 3/16 Half Dog Pt. Socket Set Screw
- 1117 8-32 Hex Nut (4)
- 520 #8 Split Lockwasher (2)
- 1118 #8 Lockwasher (2)
- 555 Washer - Wave (2)
- 751 Washer - Fiber
- 790 Washer - Wave
- 739 Retaining Ring
- 821 Retaining Ring
- 1864 Heyco Clip
- 1291 Bushing
- 1310 Seal Felt
- 899 Cap Plug
- 952 Cap Plug
- 1292 O-Ring
- 2800 Drive Belt (2)
- 1409 Knob Speed Control
- 987 Power Switch
- 1149 Circuit Breaker 1.8A
- 573 Brush Cap (2)
- 5744 Brush Holder (2)
- 1283 Brush (2)
- 1859 4/40 x 1/2 Socket Head Cap Screw
- 2481 4-40 x 3/8 Socket Head Cap Screw (3)
- 944 Chuck Albrecht
- 3254 Shoe
- 2792 Quill Lock Bushing
- 1777 1/4-28 x 1/2 Socket Head Cap Screw
- 1481 Shear Lock Thumb Screw
- 1836-1 Assembly - Quill (Inch)
- 4829 Assembly - Spindle Collet with Groove Pin
- 57659 Draw Bar
- 57272 Knob - Draw Bar
- 57861 Screw - Draw Bar
- 5667 Washer - Conical
- 1069-2 Assembly - Cross Shaft
- 2184-2 Assembly - Dial Indicator
- 2185-2 Assembly - Dial Indicator Rack
- 1061-2 Assembly - Down Stop
- 1874-2 Assembly - Quill
- 1067-3 Rack Quill
- 1080-3 Dial Cross Shaft
- 57997 Seal, Slinger, Chuck
- 1745 6-32 x 3/16 Lg Socket Set Screw (2)
- 5586 6-32 x 3/8 Nylon Filister Head Screw
- 57629 Seal, Slinger, Collet
- 1844 Spindle, Collet
- 803 Washer, shim (3)
