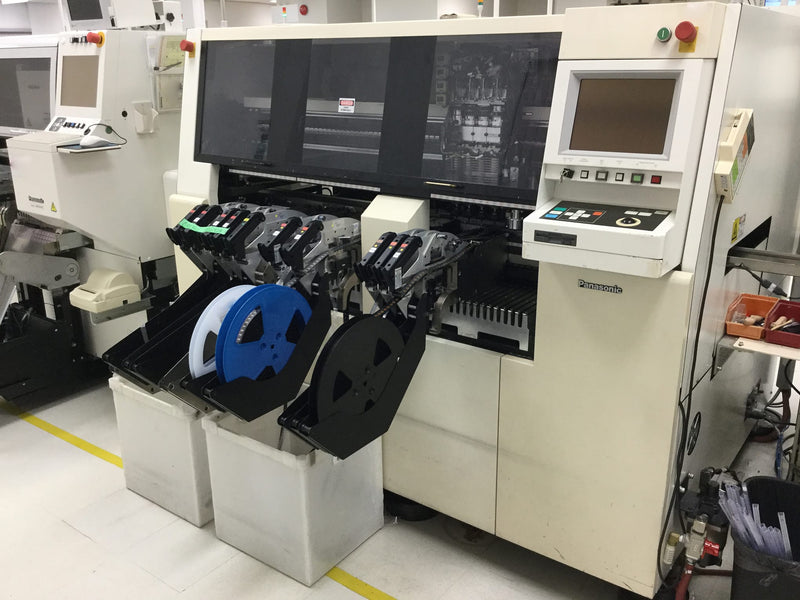

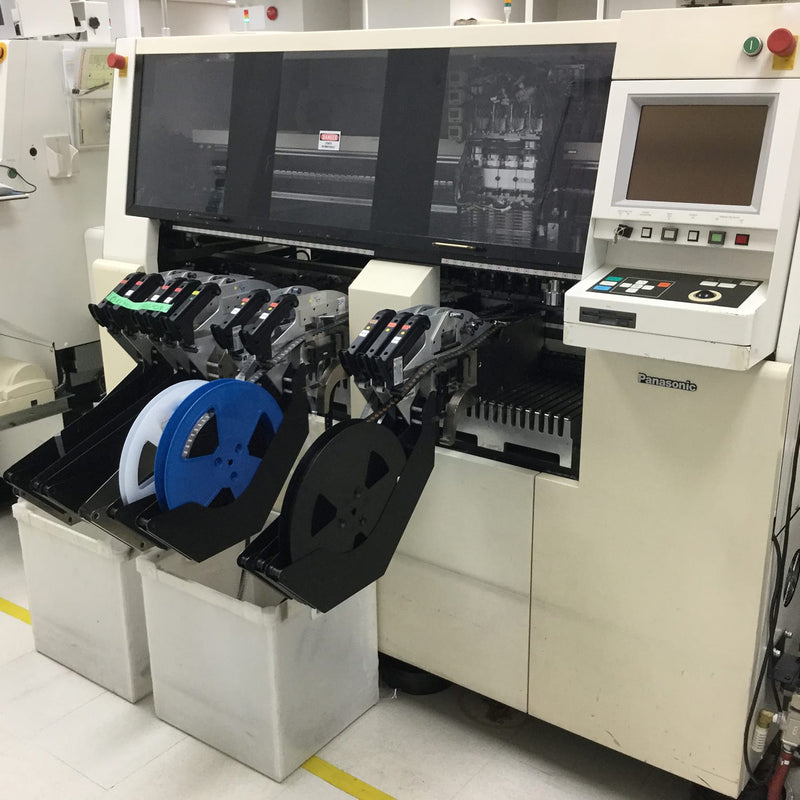

Panasonic MA 05 A Multifunctional Placement Machine
- Voltage: 3 Phase 200 VAC, Frequency: 50/60 Hz
- Air: 0.49 Mpa, 150 L/min
- 4-Nozzle Head
- Components ranging from 1005 (0402) to QFP, BGA and Connectors
- Components height up to 25mm and length up to 150mm
- Transmissive and Reflective Recognition
Applicable PCB:
Dimensions:
- Max 510mm x 460 mm
- Min 50mm x 50 mm
Placement Area
- Max 510 mm x 452 mm
- Min 50mm x 42 mm
-Thickness
- 0.5 to 4.0mm
-PCB Warp Tolerance
- 0.5mm for both directions (Up and Down)
Placement Accuracy
- Chip Components 1005 to 3216 (0402 to 1206)
0.07mm for X and Y directions (Min Clearance: 0.40mm)
- Cylindrical, SOT, Tantalum Cap (A,B)
0.07mm for X and Y directions (Min Clearance: 0.40mm)
- Tantalum Cap (C.D) and Aluminum Elec Cap (S,L)
0.10mm for X and Y directions (Min Clearance: 0.50mm)
- SOP (8 to 28P) and PLCC (Max 30mm x 30mm)
X: 0.05mm and Y: 0.10mm (Min Clearance: 0.50mm to 0.70mm)
- QFP and BGA
0.025mm for X and Y directions (Min Clearance: 0.50mm)
Applicable Component and Packaging
- 8mm to 56 mm wide embossed taped Components
Cylindrical Components, Tantalum Cap (A,B,C,D), Alum Elec Cap
SOT, SOD, TO, PLCC, Connector, SO, SOP, Odd Shaped
- 8mm to 32 mm wide paper taped Components
Chip Components 1005 to 3216 (0402 to 1206)
- Matrix Tray Components
QFP, SOP, TSOP, TSSOP, BGA, LCC, PLCC, QFN, MLF, LGA
