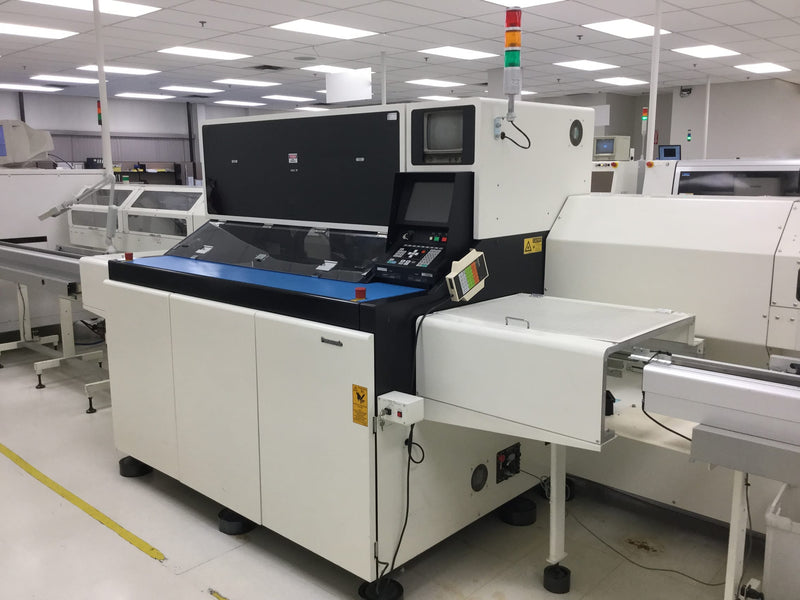

Panasonic 2559 MB High Speed Chip Component Mounting Machine

Asset #: 56958

Make: Panasonic

Model: 2559 MB

Panasonic 2559 MB High Speed Chip Component Mounting Machine
- 3 Phase
- 200 Vac, 50/60 Hz, 7kVA
- Air: 0.5 MPa, 100 L/min
- 12 Heads on a Torret System (5 Different Nozzle Types per Head)
- Components ranging from 1005 (0402) to 32x32 mm QFP
- Q-Type Feeders with 150+150 Max Inputs of 8mm Double Feeders
- Transmissive and Reflective Recognition System
- Applicable PCB
Dimensions:
- Max 510mm x 460 mm
- Min 50mm x 50 mm
Placement Area
- Max 510 mm x 452 mm
- Min 50mm x 42 mm
Thickness
- 0.5 to 4.0mm
PCB Warp Tolerance
- 0.5mm for Downward and 1.2mm for Upward Directions
Placement Accuracy: 0.10mm
Applicable Component and Packaging
- Embossed Taped Components
- Chip and Cylindrical Components, Tantalum Cap (A,B,C,D)
- Alum Elec Cap, SOT, SOD, SO, SOP, QFP
- Paper Taped Components
- Chip Components 1005 to 3216 (0402 to 1206)
Component Dimension Limitation
- Min 1005 and Max 32mm x 32mm
- Component Height: Max 6mm
- Lead Pitch: Min 0.65mm
2000 Vintage
