Asset #: 35683

Make: Thermco

Model: 6204

Wafer Sizes: 4, 6 inch

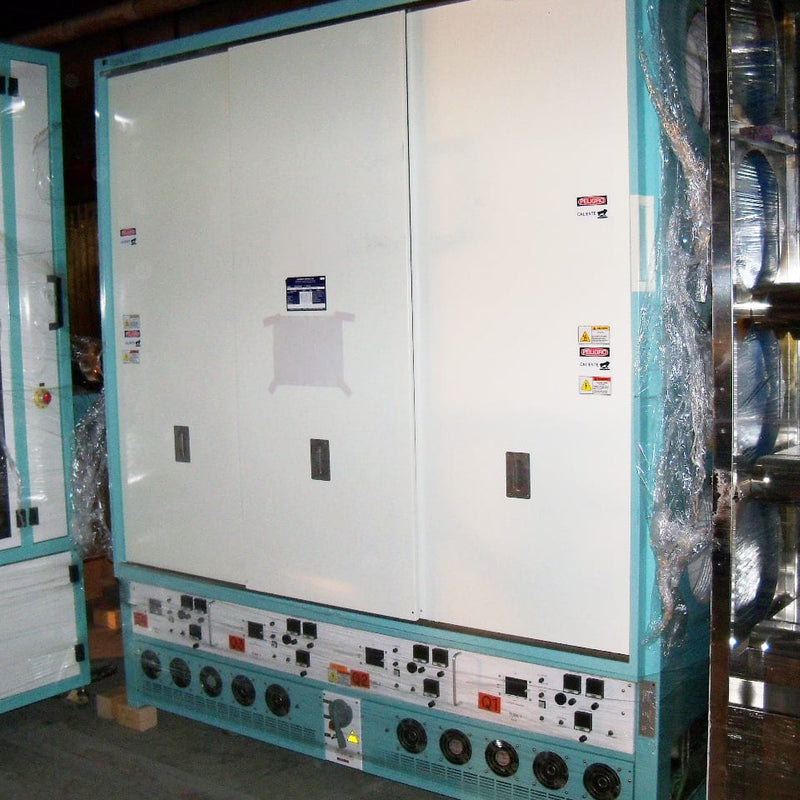

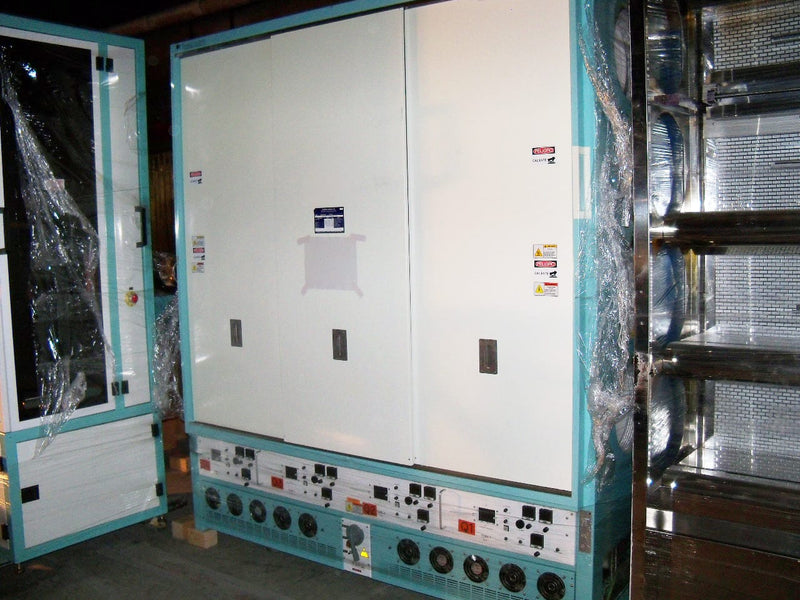

Thermco 6204 Horizontal Diffusion Furnace, 4", 6"

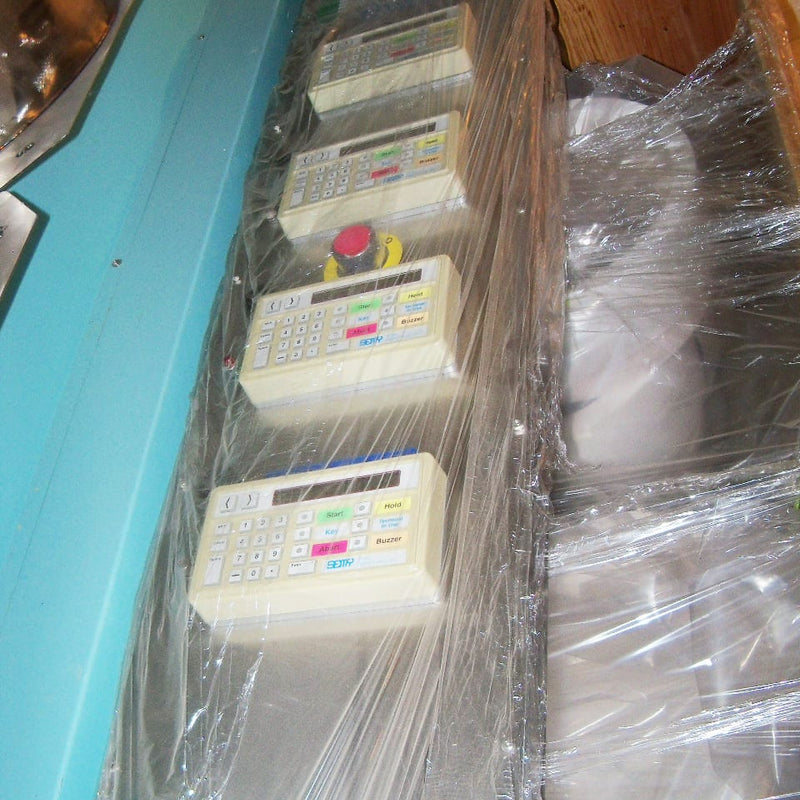

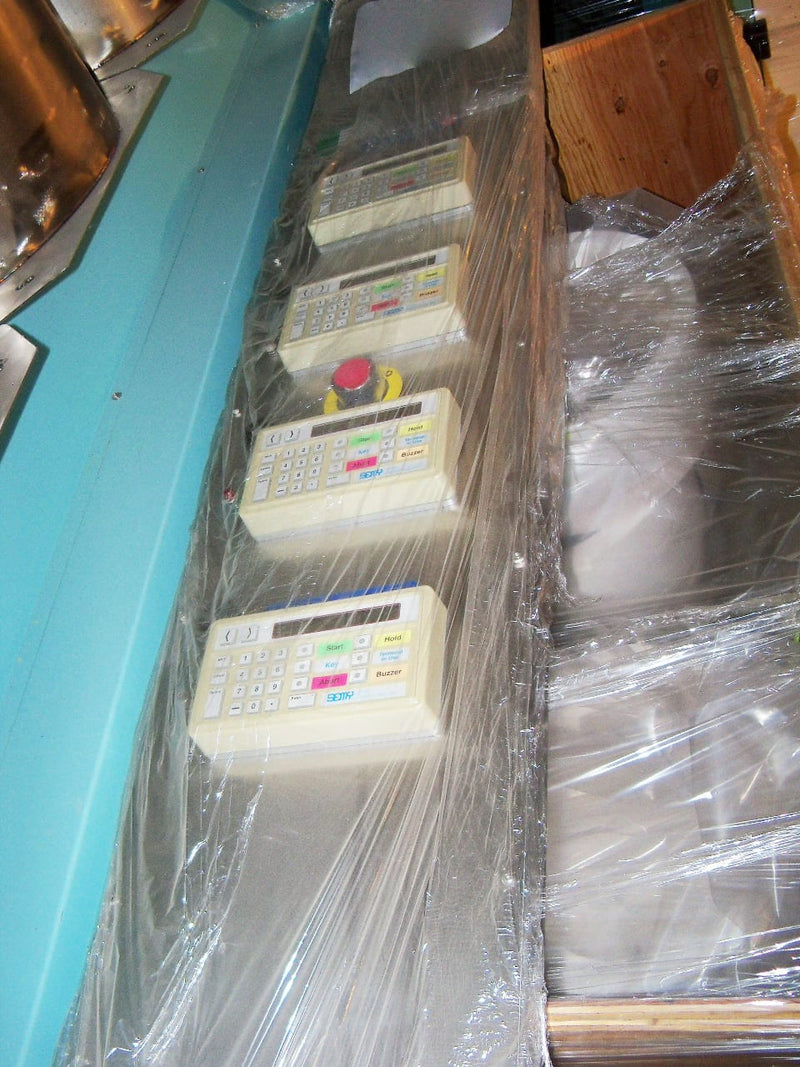

- Semy Controller
- Max Temp: 1250C
- 3 Control Zones
- Overtemperature Protection

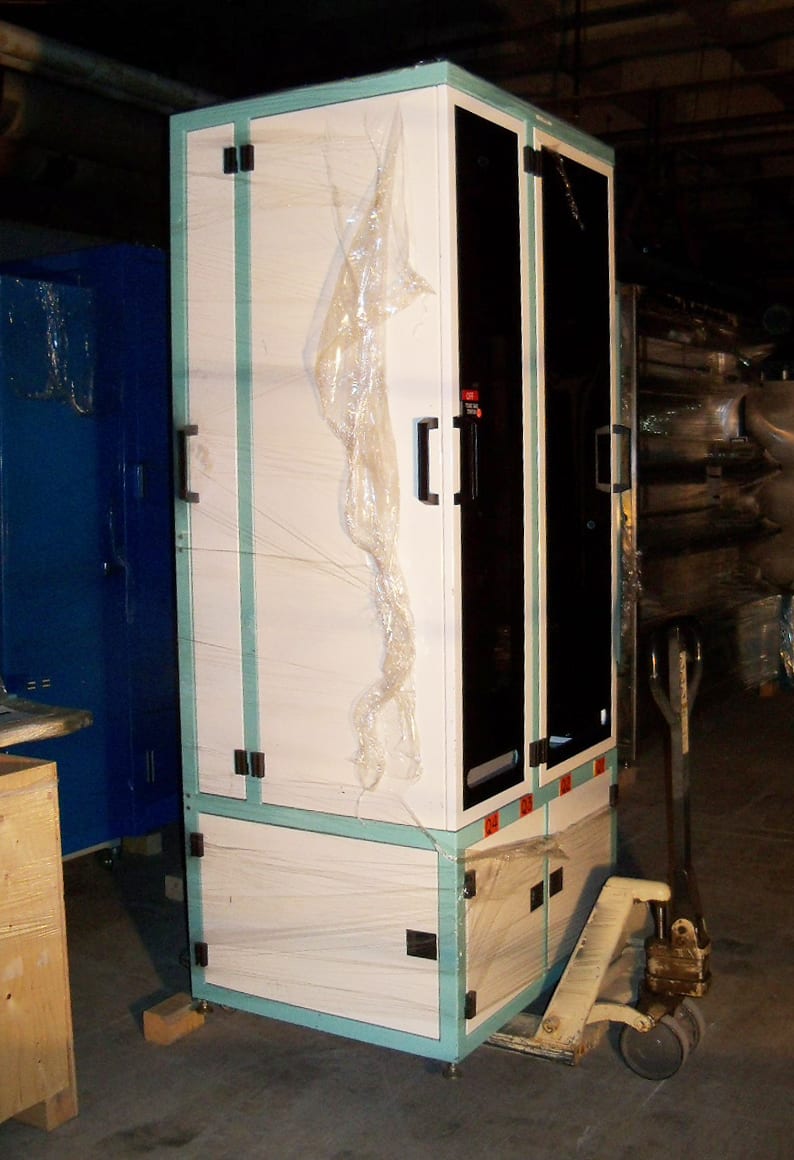

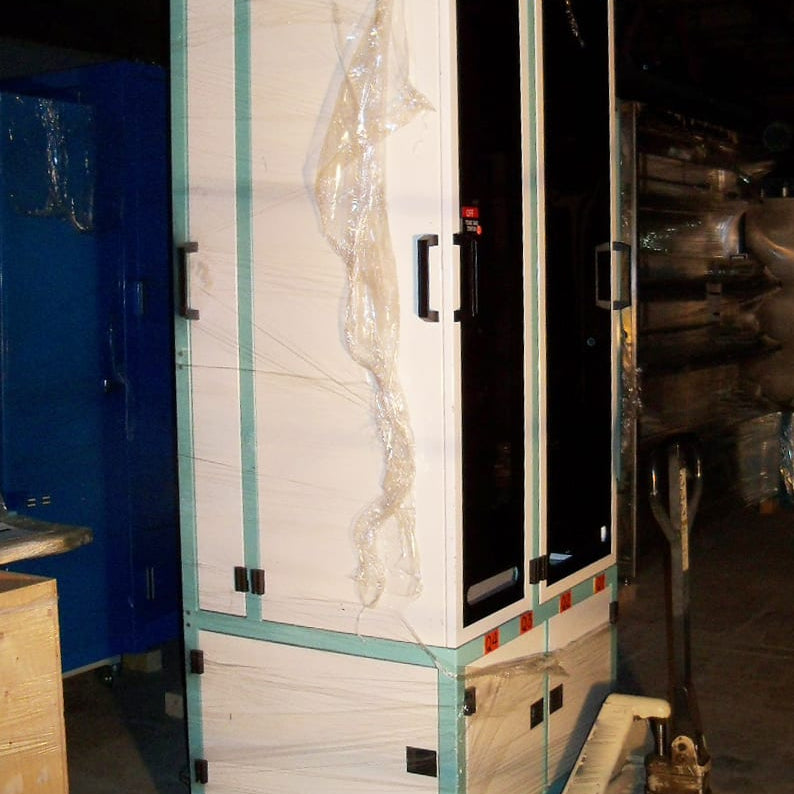

- Left-hand Load Station

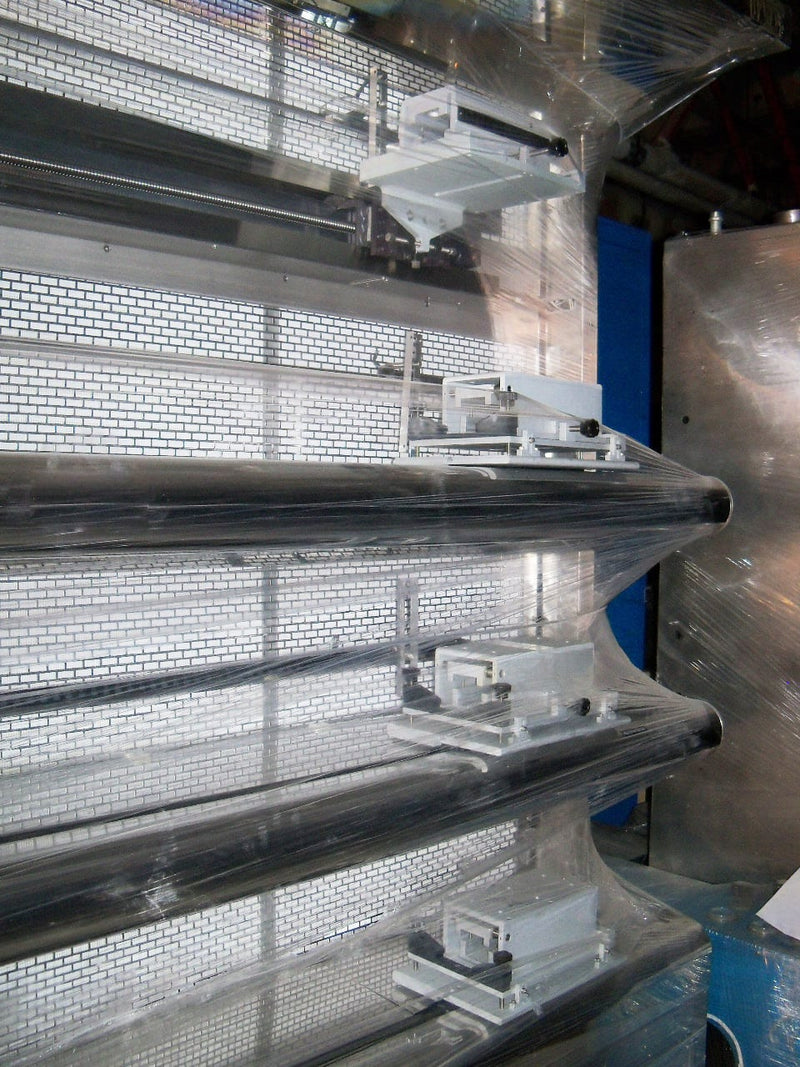

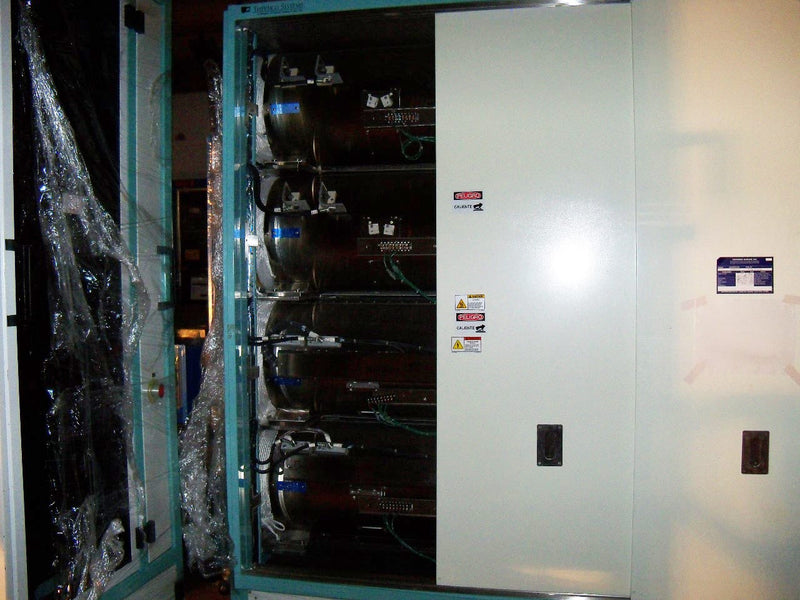

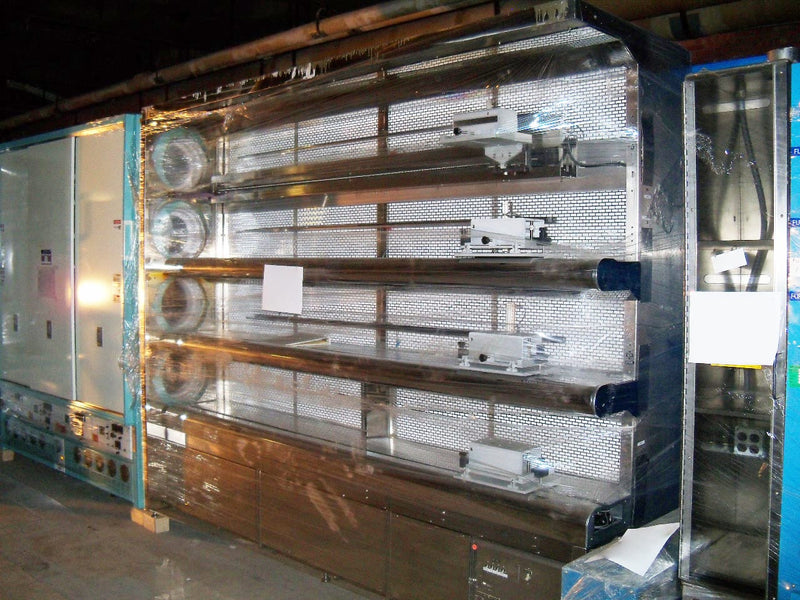

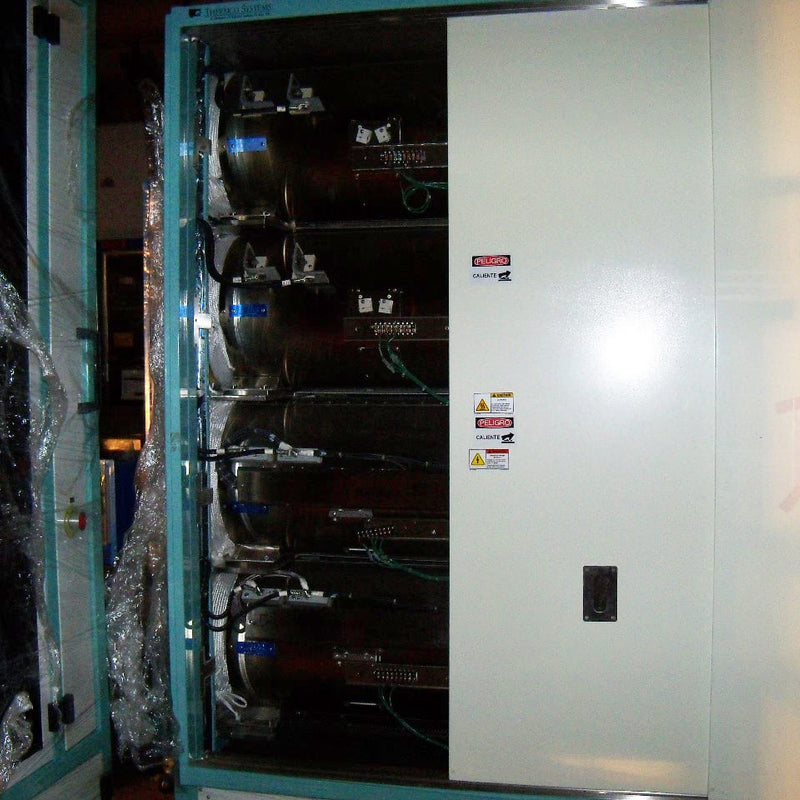

- (Qty 4) Furnace Tubes:
Furnace Tube #1: Platinum Diffusion Process

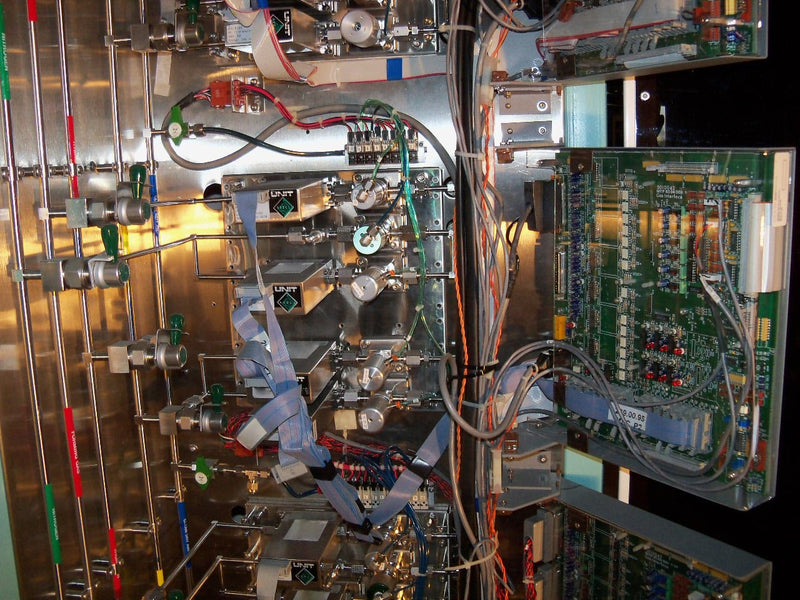

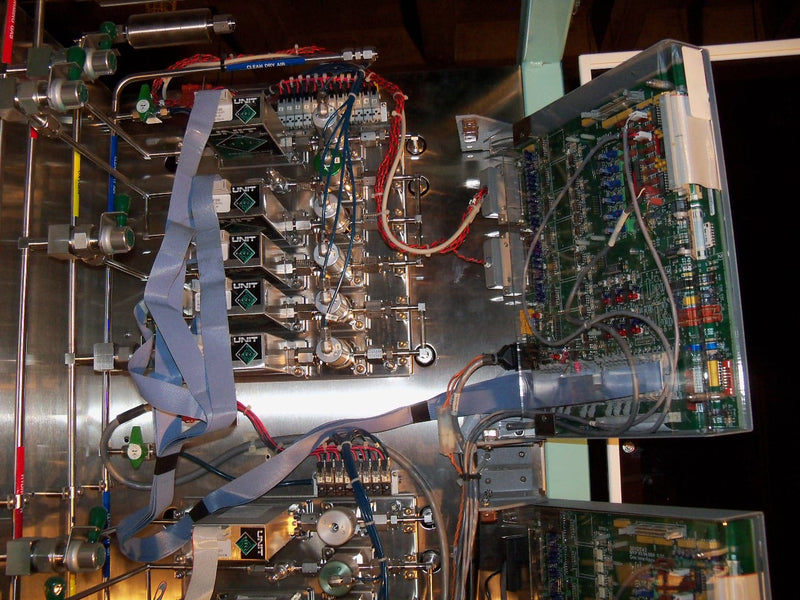

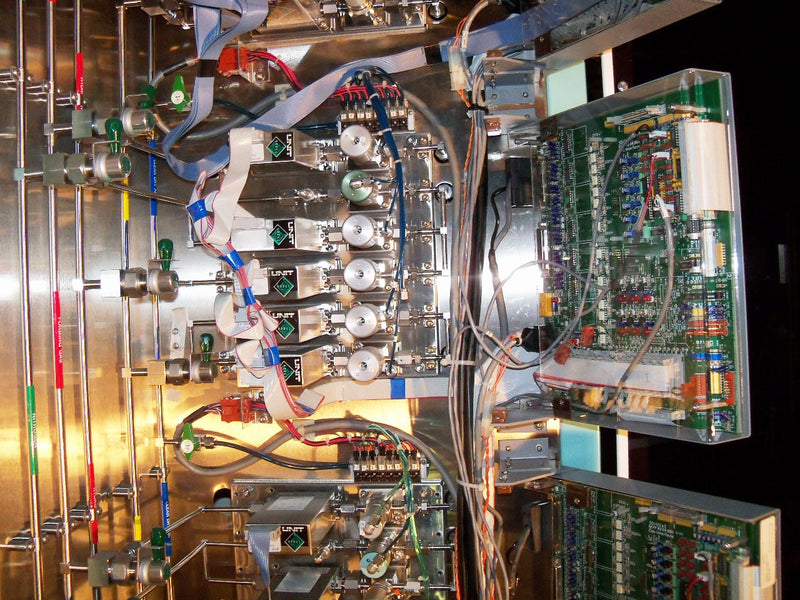

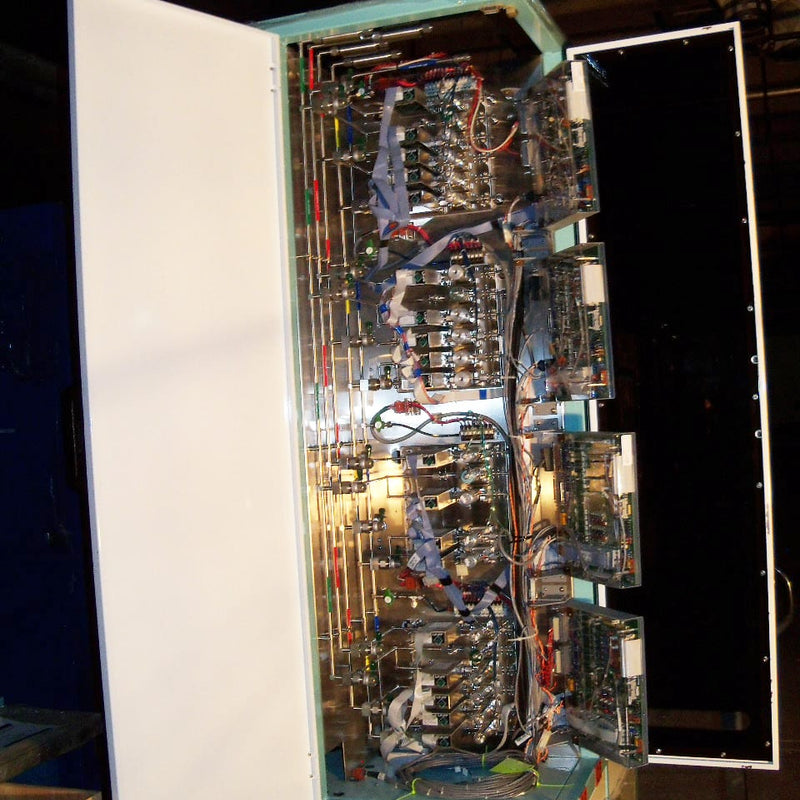

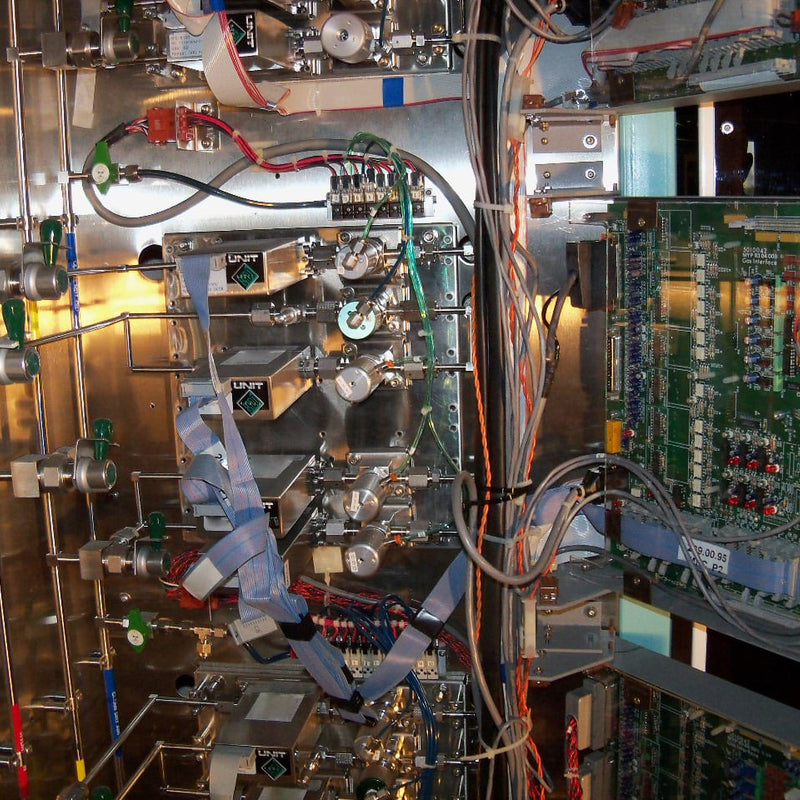

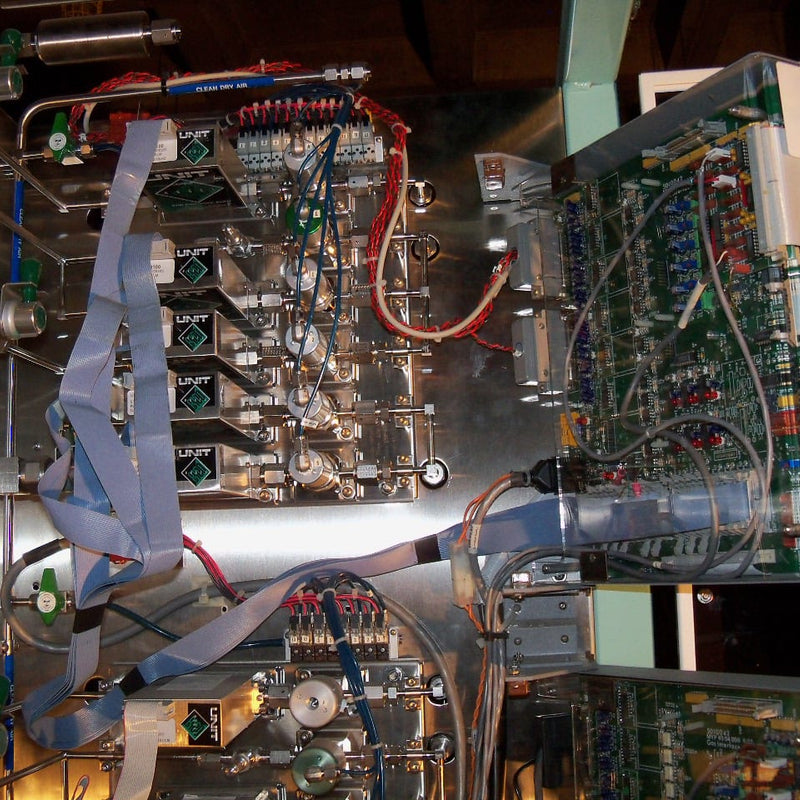

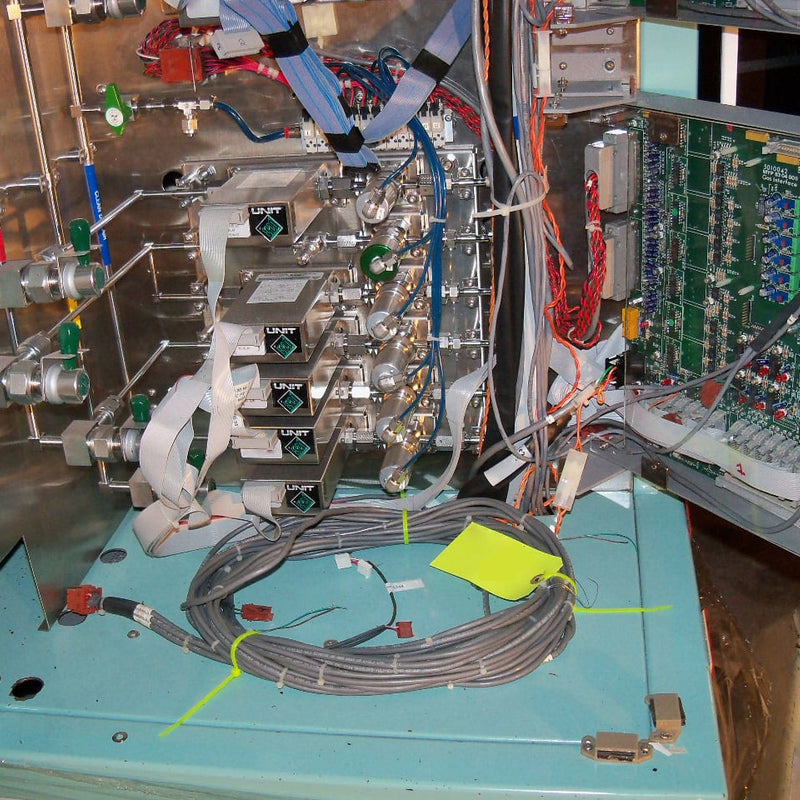

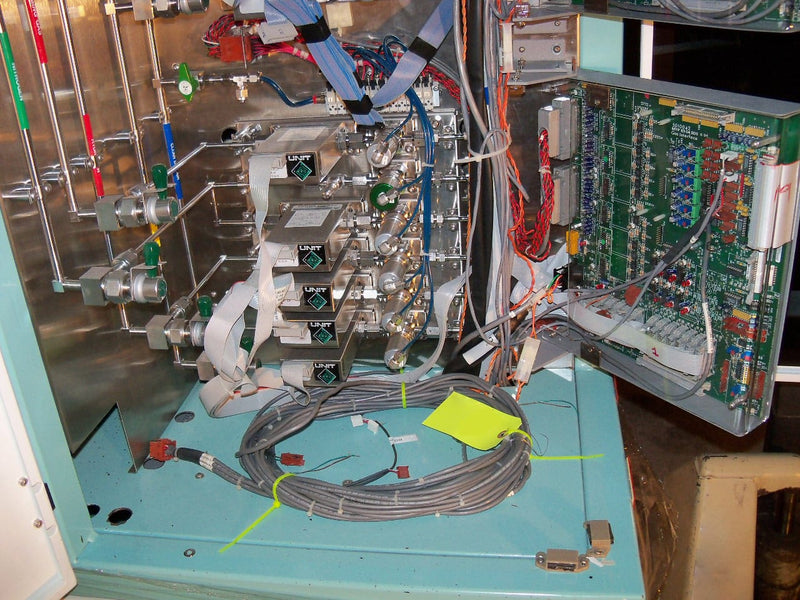

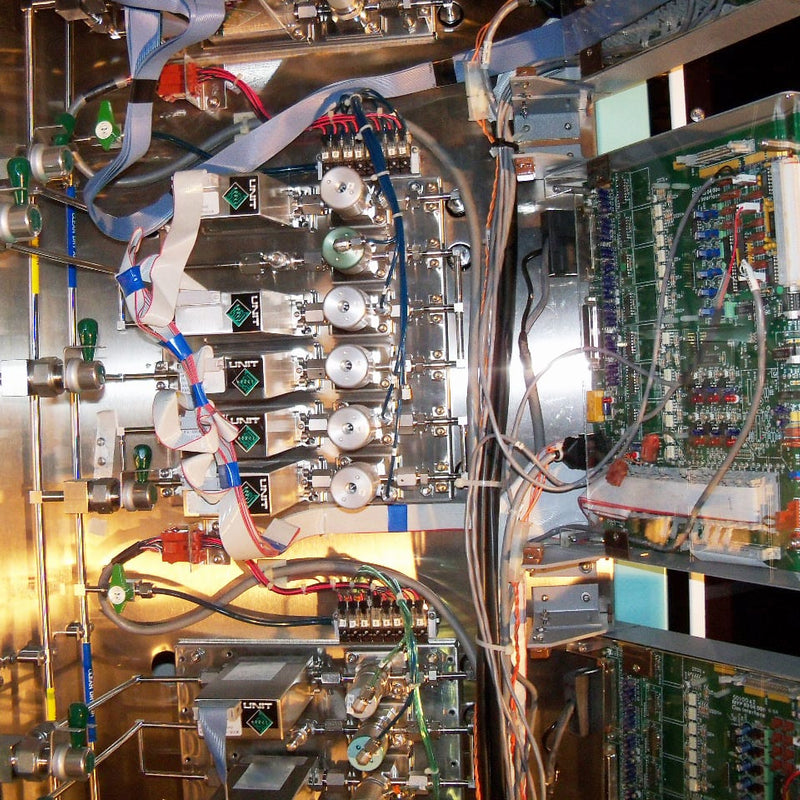

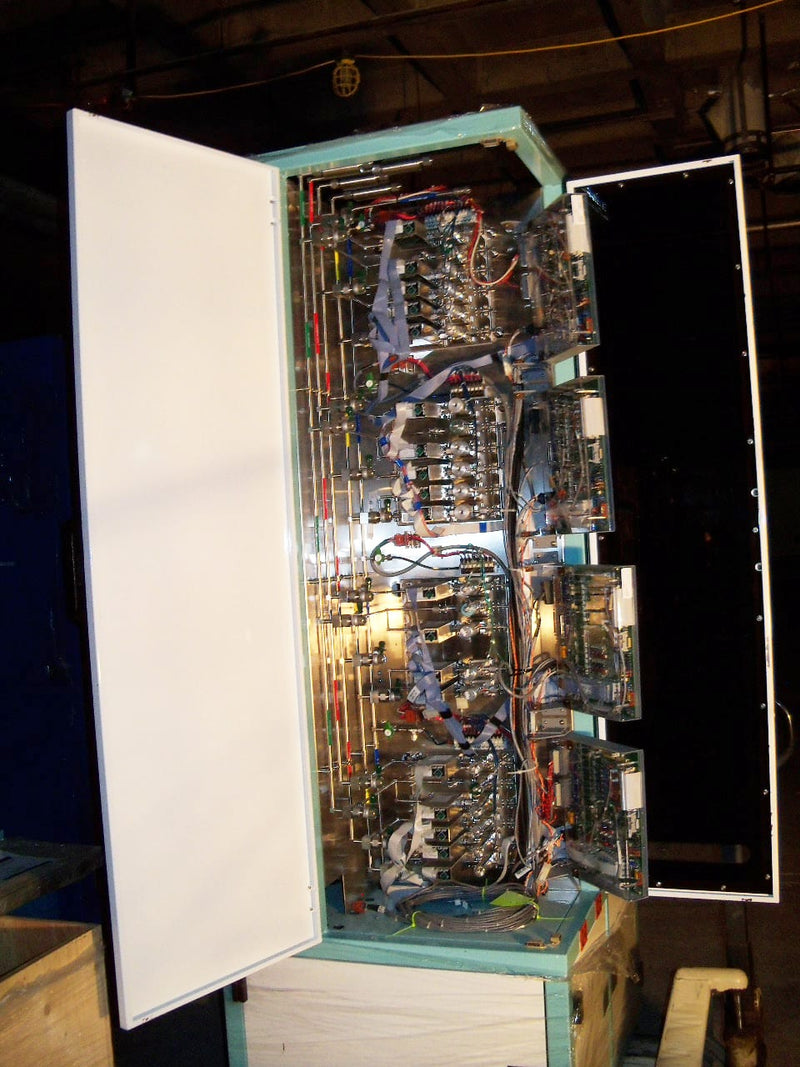

- Gas System Process Gases:
- 95%N2/5%H2 30 SLM UNIT 8100
- N2 20 SLM - UNIT 8100
- H2 30 SLM - UNIT 8100
- O2 20 SLM - UNIT 8100
- O2 500 SCCM - UNIT 8100

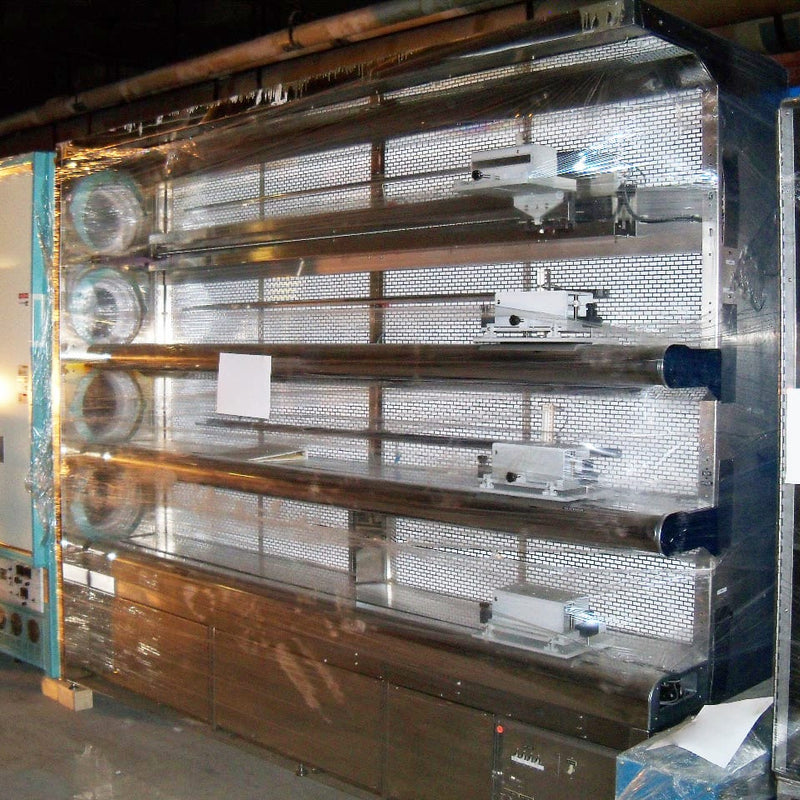

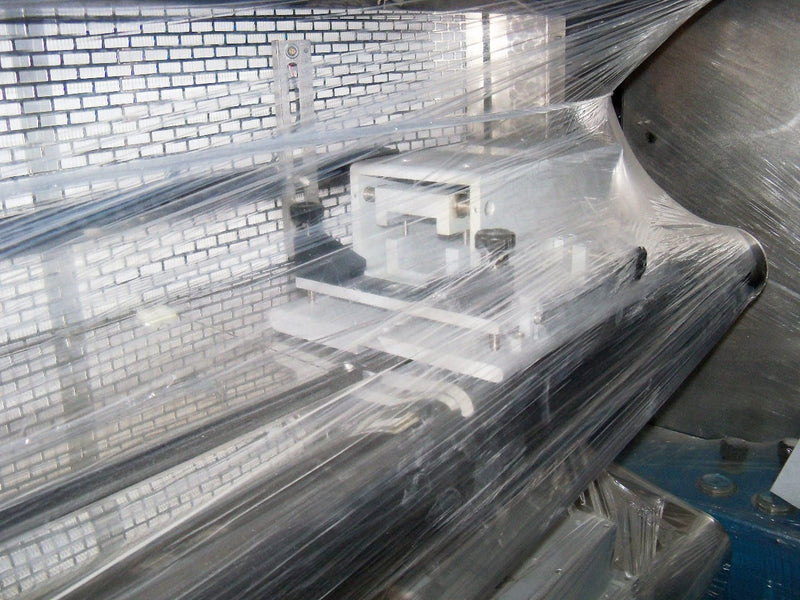

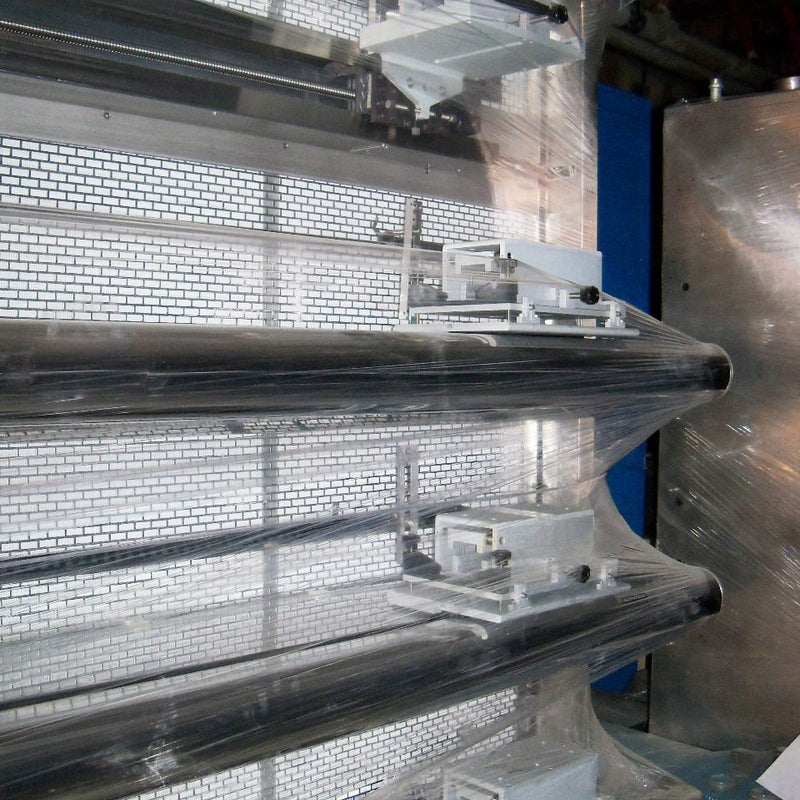

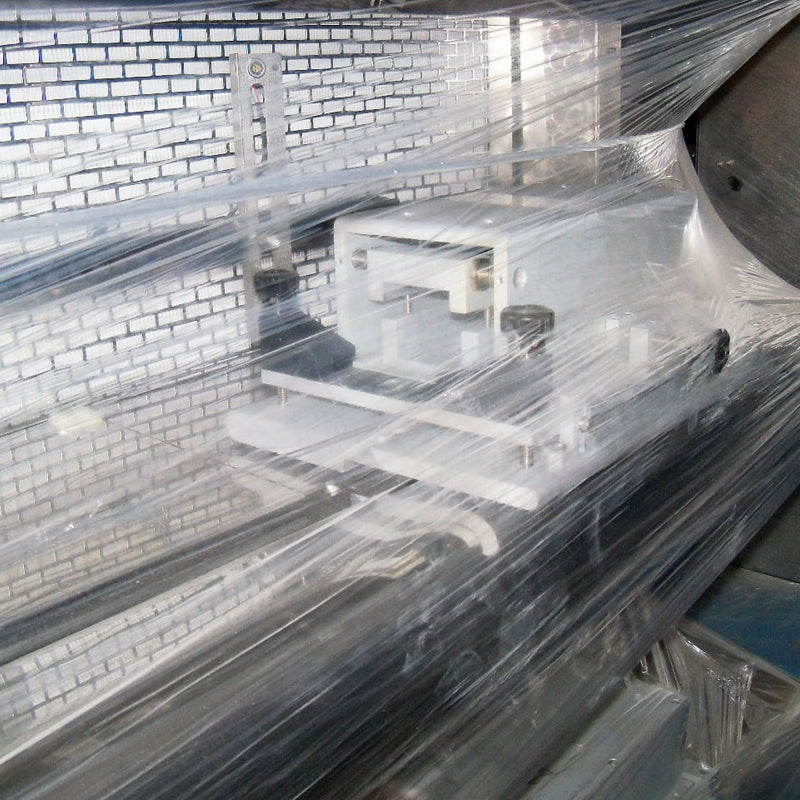

- Cantilever Loader:
- Cryco 2" SHANK SiC D LOADER
- Element: Helix II HC-58 DR
Furnace Tube #2: Process - CVD
- Gas System Process Gases:
- 95%N2/5%H2 30 SLM - UNIT 8100
- N2 20 SLM – UNIT 8100
- H2 30 SLM - UNIT 8100
- O2 20 SLM - UNIT 8100
- O2 500 SCCM - UNIT 8100
- Cantilever Loader:
- Cryco for 2" SiC Motion Loader
- Helix II HC-58 DR
Furnace Tube #3: Process - Sinter
- Gas System Process Gases:
- 95%N2/5%H2 30 SLM - UNIT 8100
- N2 20 SLM – UNIT 8100
- H2 30 SLM - UNIT 8100
- O2 20 SLM - UNIT 8100
- O2 500 SCCM - UNIT 8100
- Cantilever Loader:
- Cryco for 2" SiC Motion Loader
- Helix II HC-58 DR
Furnace Tube #4: Process - Aluminum
- Gas System Process Gases:
- 95%N2/5%H2 30 SLM - UNIT 8100
- N2 20 SLM – UNIT 8100
- H2 30 SLM - UNIT 8100
- O2 20 SLM - UNIT 8100
- O2 500 SCCM - UNIT 8100
- Cantilever Loader:
- Cryco for 2" shank paddle Motion Loader
- Helix II HC-58 DR

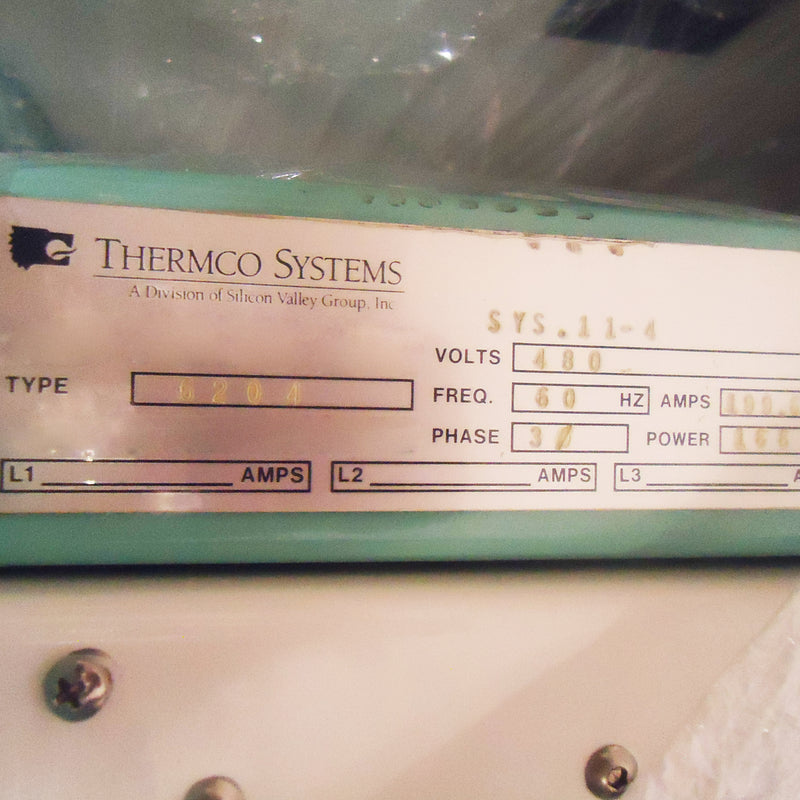

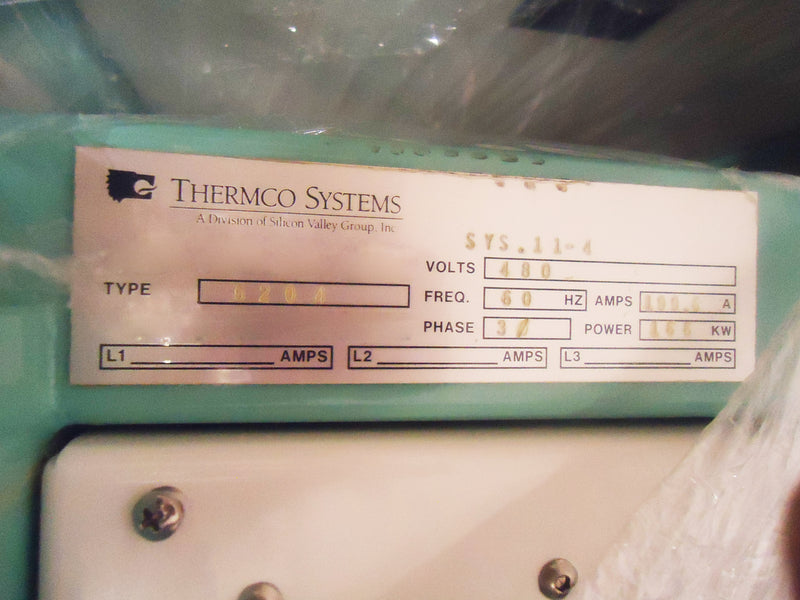

- 480Vac, 3 Phase, 60Hz, 250 amps
