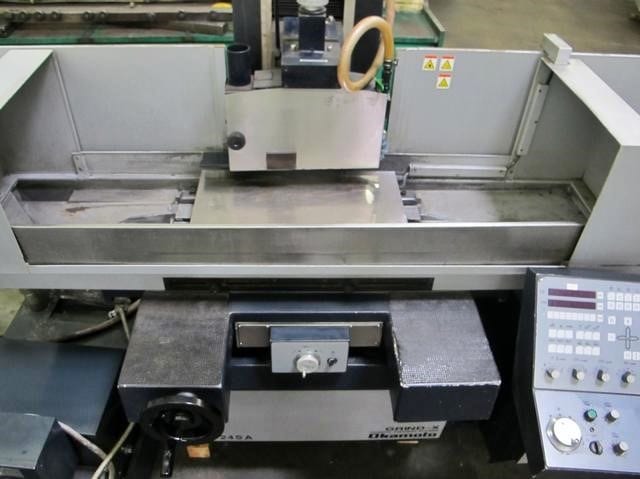

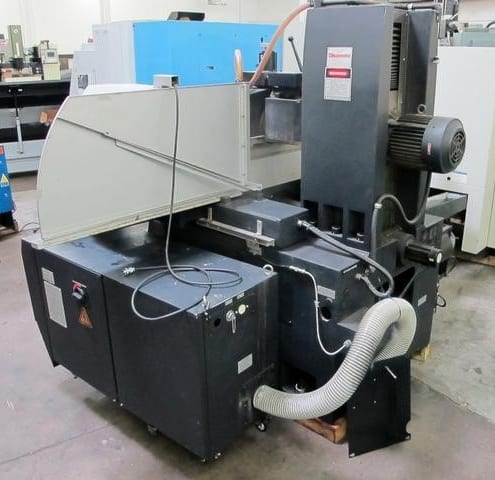

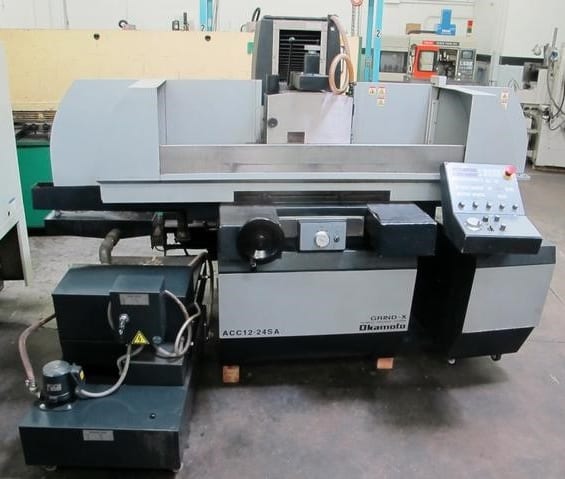

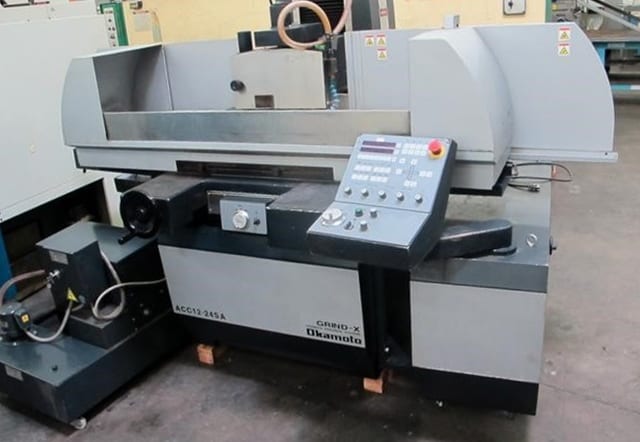

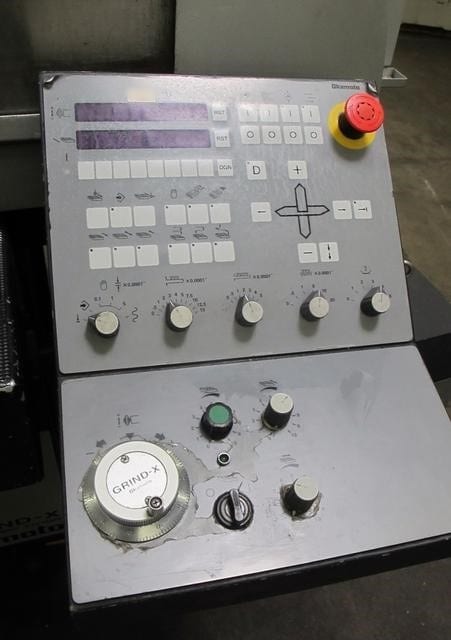

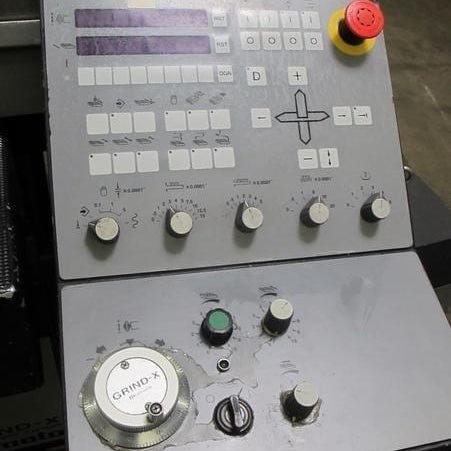

Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder
Okamoto ACC 12.24 SA Surface Grinder

Okamoto ACC 12.24 SA Surface Grinder

Asset #: 33005

Make: Okamoto

Model: ACC 12.24 SA

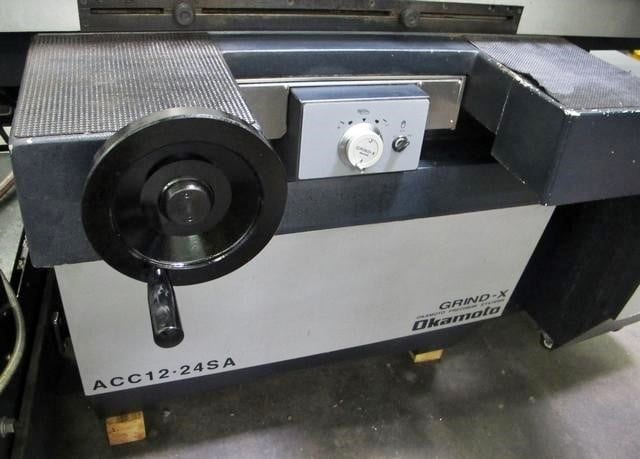

Okamoto ACC 12.24 SA Surface Grinder

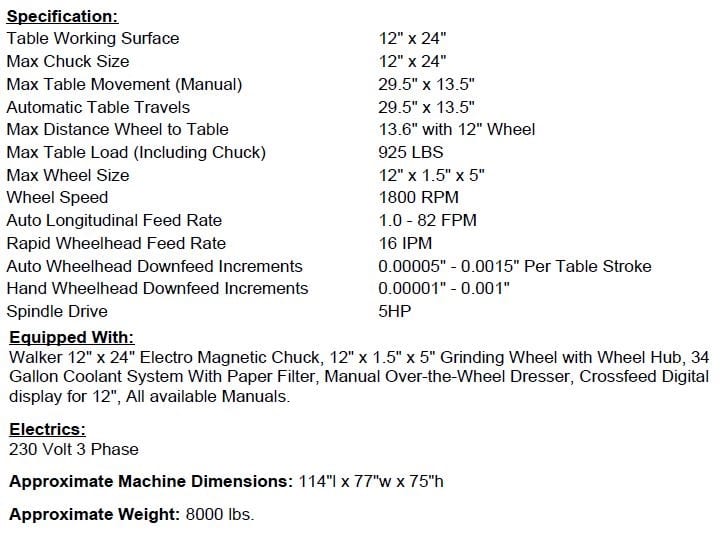

Specification:
- Automatic
- 3 Axis
Table Working Surface 12" x 24"
Max Chuck Size 12" x 24"
Max Table Movement (Manual) 29.5" x 13.5"
Automatic Table Travels 29.5" x 13.5"
Max Distance Wheel to Table 13.6" with 12" Wheel
Max Table Load (Including Chuck) 925 LBS
Max Wheel Size 12" x 1.5" x 5"
Wheel Speed 1800 RPM
Auto Longitudinal Feed Rate 1.0 - 82 FPM
Rapid Wheelhead Feed Rate 16 IPM
Auto Wheelhead Downfeed Increments 0.00005" - 0.0015" Per Table Stroke
Hand Wheelhead Downfeed Increments 0.00001" - 0.001"
Spindle Drive 5HP
Equipped With:

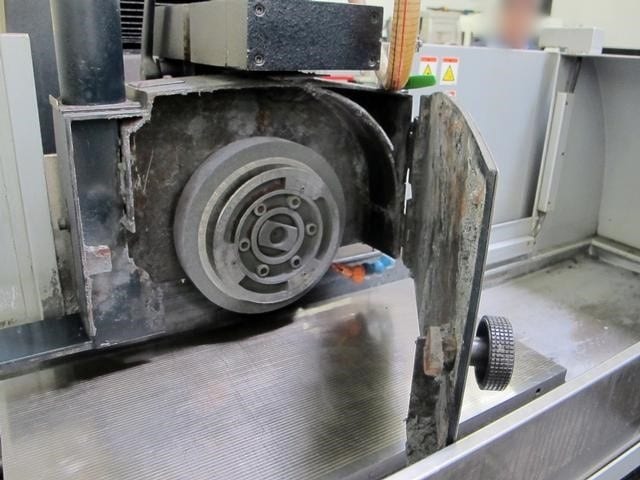

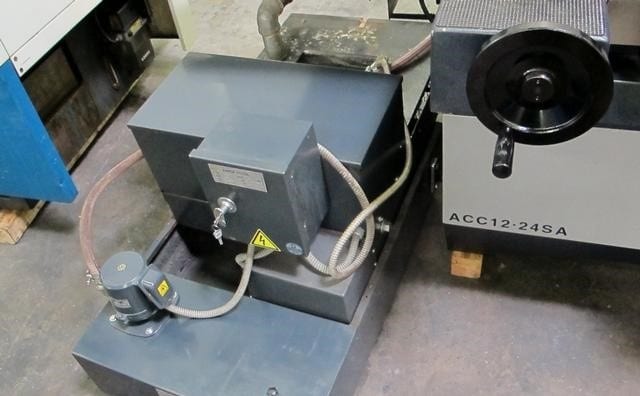

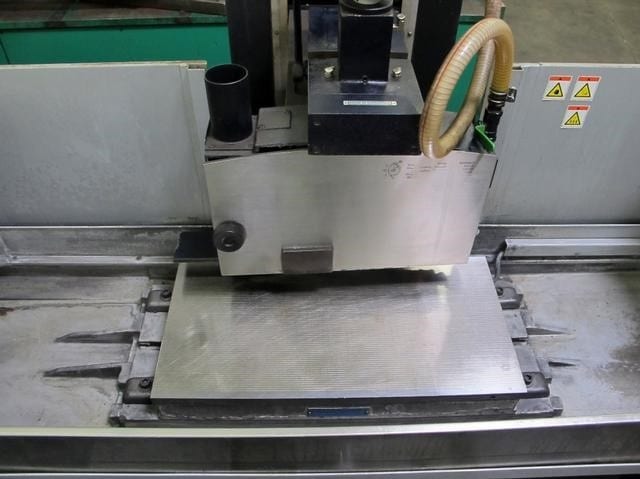

Walker 12" x 24" Electro Magnetic Chuck, 12" x 1.5" x 5" Grinding Wheel with Wheel Hub, 34
Gallon Coolant System With Paper Filter, Manual Over-the-Wheel Dresser, Crossfeed Digital
display for 12", All available Manuals.
Electrics:
230 Volt 3 Phase
Approximate Machine Dimensions: 114"l x 77"w x 75"h
Approximate Weight: 8000 lbs.
2012 Vintage
