Cameca SX 100 Electron Microprobe
Cameca SX 100 Electron Microprobe
Cameca SX 100 Electron Microprobe
Cameca SX 100 Electron Microprobe
Cameca SX 100 Electron Microprobe
Cameca SX 100 Electron Microprobe
Cameca SX 100 Electron Microprobe

Cameca SX 100 Electron Microprobe

Asset #: 28945

Make: Cameca

Model: SX 100

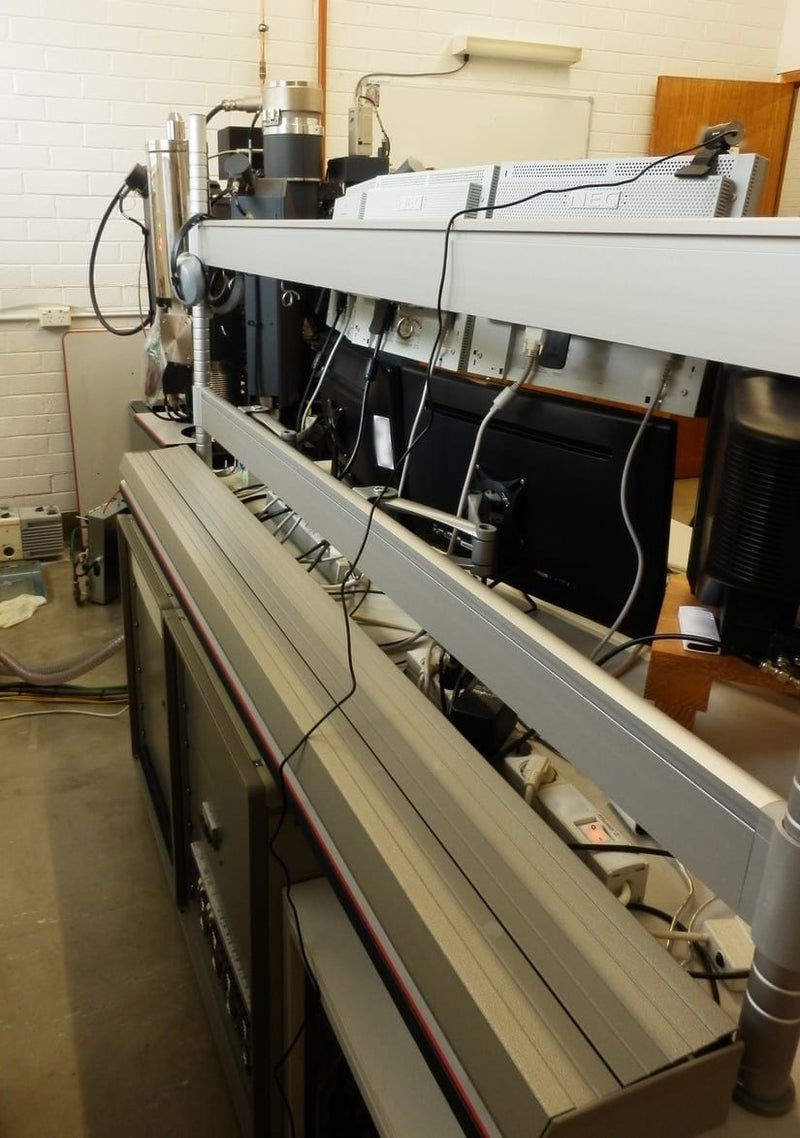

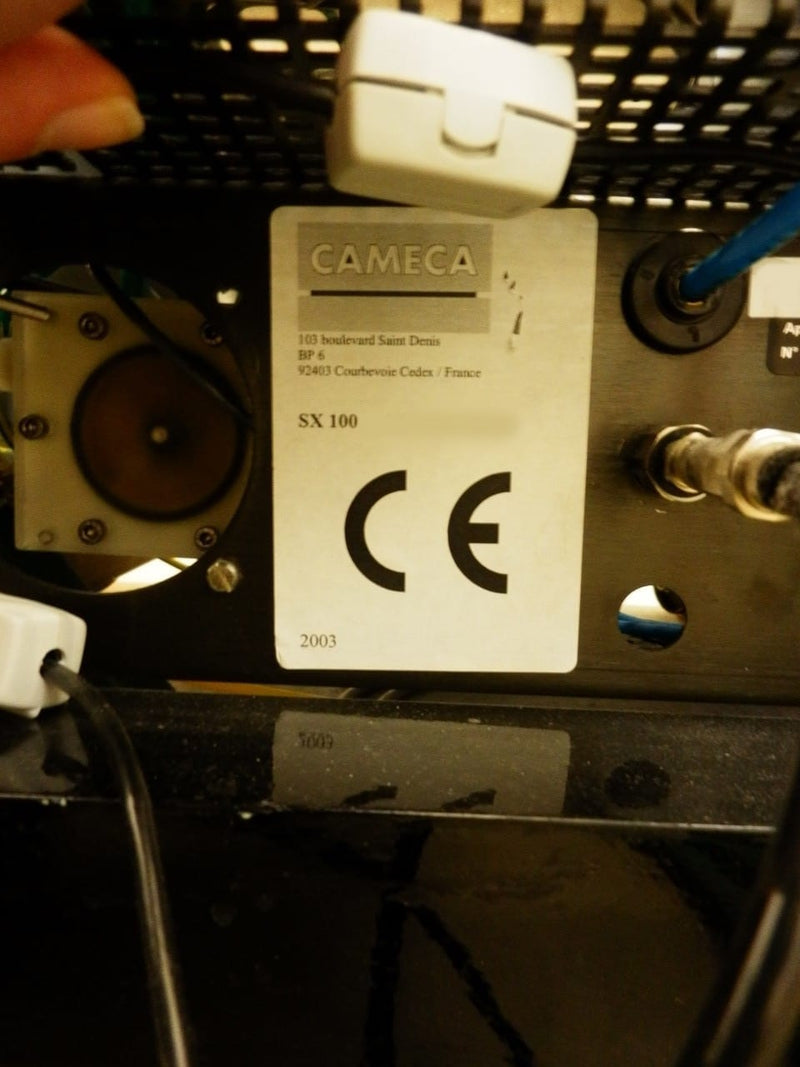

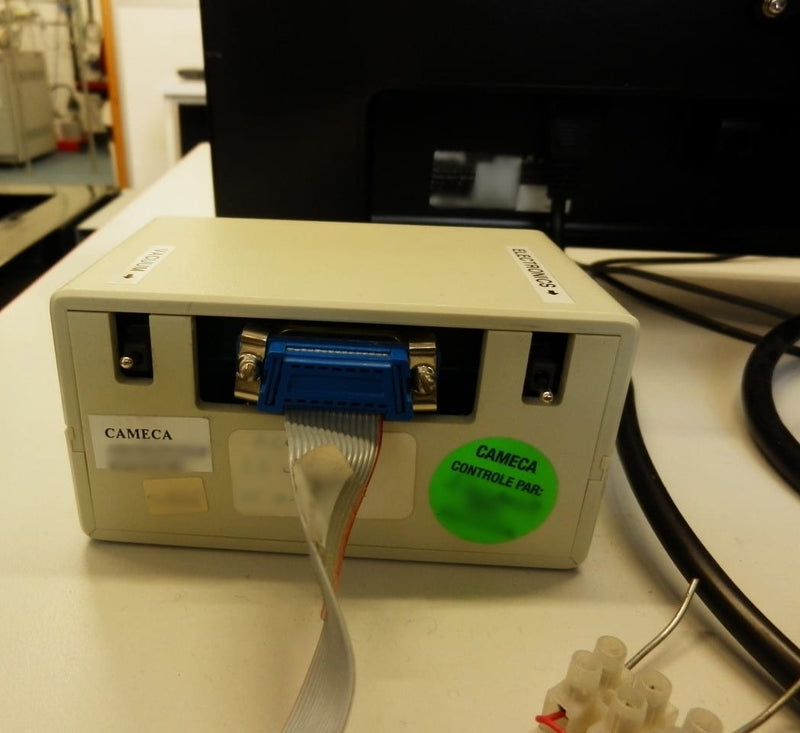

Cameca SX 100 Electron Microprobe
- Original gun was replaced with new one in 2008
- Optical microscope (reflected/transmitted light, zoom, polariser)
- Side-mounted ion pump was installed 2007, replacing original design with ion pump elements around gun that caused arcing at accelerating voltages above 27kV.
- Computer control system by Cameca Peak Sight 4.2 and Probe Software "Probe For EPMA" and "Probe Image" software packages
- System has two PCs, 1 PC for Cameca software (3 screens top row), and second PC for Probe Software. Second PC, Probe Software and monitor rack system were added in 2010.
- Cameca PC was replaced with newer PC incl new frame grabber for light optical microscope in 2011
- Ion getter, oil diffusion and rotary vane pumps
- Liquid nitrogen anticontamination system
- 5 WDS with LLiF, PET, LPET, TAP, and PC0 to PC2 analysing crystals to analyse elements boron to uranium
- Integrated Rontec X-Flash 1204 Be-window SDD EDS with Bruker Quantax 200 Esprit software (elements Na-U)
- 3-axis motorised stage, XYZ range 80x55x2mm, 1um repeatability
- Tungsten Source, LaB6 optional, currently not in use
- Cameca SE, BSE and CL detectors
2003 Vintage
