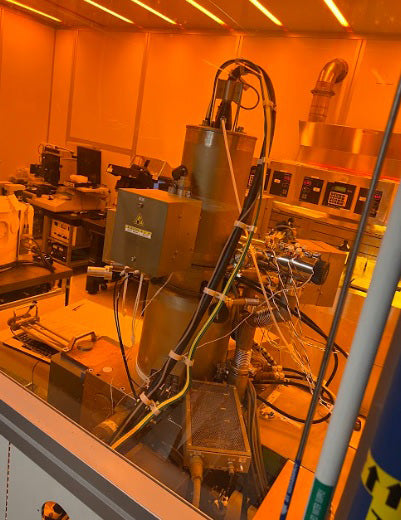

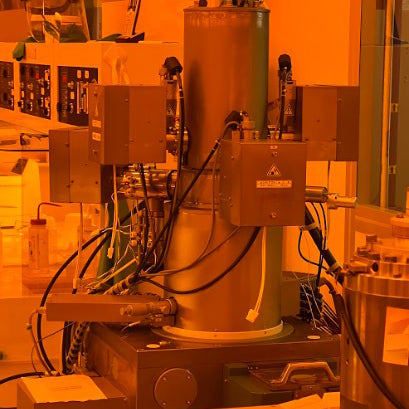

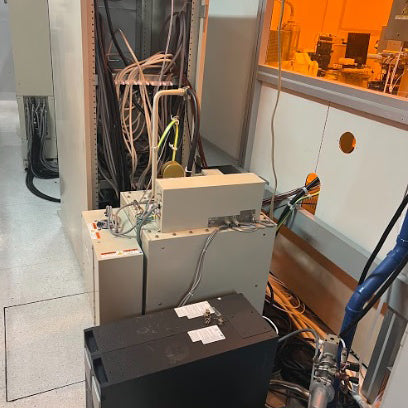

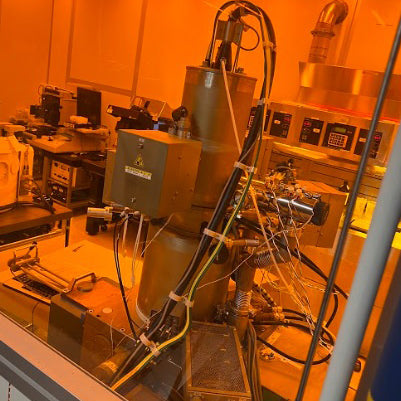

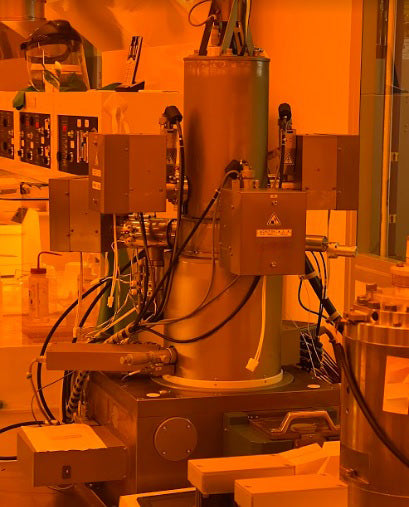

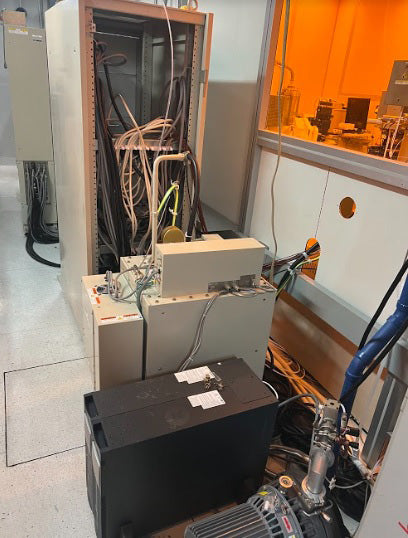

Jeol JBX 5500 FS E-Beam Direct Write Lithography, 4"
Electron-beam lithography system that employs spot-beam vector scanning for sub-micron and nano-lithography
Two selectable writing modes:
High-resolution writing mode (5th Lens mode) for nano-lithography
High-speed writing mode (4th Lens mode) for sub-micron lithography
Accelerating voltage is also selectable either 25kV or 50kV
Beam scanning speed: 12MHz
Stage position is controlled by high-precision laser interferometer
Control system: Microsoft® Windows® PC

Minimum feature size:
High-resolution writing mode 50Kv: = 10 nm (at the field center)

Overlay accuracy:
High-resolution writing mode 50kV:= 40 nm (3 sigma)
High-speed writing mode 25kV (1200 um Field): = 70 nm (3 sigma)

Field stitching accuracy:
High-resolution writing mode 50kV: = 40 nm (3 sigma)
High-speed writing mode 25kV (1200 um Field): = 70 nm (3 sigma)

Performance:
Electron beam:
Beam shape: Spot (Gaussian) beam
Accelerating voltage: 50 kV, 25 kV
Beam current: 30 pA to 20 nA
Beam deflection method: Vector scan (Random access)
Writing field:
High-resolution writing mode:
50kV: Up to 100 um X 100 um
25kV: Up to 200 um 200 um
High-speed writing mode:
50kV: Up to 1000 um
25kV: Up to 2000 um
Beam positioning DAC: (18) bits
Beam-positioning unit:
High-resolution writing mode:
50kV: 0.5 nm
25kV: 1 nm
High-speed writing mode:
50kV: 5 nm
25kV: 10 nm
Beam scanning DAC: (12) bits
High-resolution writing mode:
50kV: 0.5 nm x N
25kV: 1 nm x N
High-speed writing mode:
50kV: 5 nm x N
25kV: 10 nm x N
Beam scanning speed: 83.3 ns to 4 ms/scanning step size (12 MHz to 250 Hz, respectively)
Field correction function:
Deflection correction: Amplitude, Rotation
Deflection aberration correction: Deflection distortion

Stage movement:
Method: Step and Repeat
Stage position measurement: Laser interferometer
Positional step size: lambda/1024 (approx. 0.6 nm)
Stage movement range: 104 x 75 mm
Writing area: 75 x 75 mm
Moving speed: Up to 10 mm/s

Material Transfer:
Loader
Manual loader: Single cassette loading mechanism
Cassette (Substrate Holder)
Wafer size: 2 to 4 inch
Wafer loading/unloading: Manual
Input pattern data:
Data format: JEOL52(V3.0)

Writing field:
High-resolution writing mode:
50kV: Up to 100 um x 100 um
25kV: Up to 200 um x 200 um
High-speed writing mode:
50kV: Up to 1000 um x 1000 um
25kV: Up to 2000 um x 2000 um

Specified resolution:
High-resolution writing mode:
50kV: 0.5 nm
25kV: 1 nm
High-speed writing mode:
50kV: 5 nm
25kV: 10 nm

Writing functions:
Cyclic correction: Dose correction, Beam position correction, Beam deflection system correction
Shot time modulation: Up to 256 ranks
Field shift overlapping writing

Design Functions:
Data format: JEOL01
Data conversion output: JEOL52(V3.0)
Draw-able figure: Rectangle, Circle, Polygon, Line, Ring
Editing: Flip, Rotation, Copy & Paste, Duplicate, Grouping
Utility: Reticular, Radial, Fresnel ring generator
Figure map display: Display whole and partial drawing
Others: JEOL52(V3.0) display

Configration:
Component Systems
Electron beam column
Electron source: ZrO/W emitter (Thermal field emission source)
Electron beam optics:
Beam alignment coil
Beam blanker
Lens (de-magnifying, illumination)
Objective lens (4th Lens, 5th Lens)
Beam deflector (1st Deflector, 2nd Deflector)
Stigmator: Objective aperture (4 holes)

Electron beam detection: Back-scattered electron detector, Secondary electron detector, Absorbed current
detector
Material-driving system: XY stage, Laser interferometer system
Material transfer: Manual loader (one cassette can be loaded)
Control CPU system
Personal computer: HP series
Workstation: SUN series
Board CPU
Evacuation system: Vacuum pumps, Valves
Frame
Anti-vibration: Mount

Software
Operating system
Personal computer: Windows XP
Workstation: Solaris 10
Writing preparation: Pattern design GUI
System control: Main GUI, System calibration GUI, Writing GUI

Installation requirements:
Power Supply
Voltage and Capacity:
Single-phase, 100 V, 4 kVA: (2) Lines
Single-phase, 200 V, 8 kVA: (1) Line
Three-phase, 200 V, 4.8 kVA: (1) Line
Power supply frequency tolerance
50 Hz regions: 47 Hz to 53 Hz
60 Hz regions: 57 Hz to 63 Hz
Voltage variation tolerance
For 1 cycle or more: -5% to +10 %
For less than 1 cycle
Sag (voltage sink): = 10 %
Surge (voltage rise): = 10 %
Notch: = 200 V
Spike: = 200 V
Grounding (forbidden to be used with other instruments)
Ground wire (for exclusive use): 100 0hm or less (D class)
For 0.15 MHz to 0.5 MHz: = 79 dBuV (quasi peak value); = 66 dBuV
For 0.5 MHz to 30 MHz: = 73 dBuV (quasi peak value); = 60 dBuV
For less than 0.15 MHz, compatible with the level at 0.15 MHz

Primary Cooling Water
Flow rate: 6 L/min (at 25 C) or 13 L/min (at 32 C)
Supply pressure: 0.15 to 0.5 MPa gauge pressure at maximum
Temperature: 15 to 32C
Connection form: Braided hose (inside diameter 15 mm, outside diameter 22 mm)
Overflow drain: No backing pressure
pH (at 25 C): 6.0 to 8.0
Electrical conductivity (mS/m) (at 25 C): = 30
Chloride ion (mg Cl–/L): = 50
Sulfate ion (mg SO42–/L): = 50
Total hardness (mg CaCO3/L): = 70
Calcium hardness (mg CaCO3/L): = 50
Ionic silica (mg SiO2/L): =30
Iron (mg Fe/L): = 0.3
Sulfide ion: Not detected
Ammonium ion (mg NH4+/L): = 0.1

High-pressure gas
Material: Nitrogen gas or Clean Dry Air
Supply pressure: 0.5 MPa
Maximum flow rate: 50 L/min
Connection form: 6 mm in diameter
Low-pressure Gas
Material: Nitrogen gas
Supply pressure: 0.1 MPa
Maximum flow rate: 50 L/min
Temperature: 21 to 25 C
Cleanliness: ISO Class 3
Purity: 99.999% or more
Connection form: 1/4 inch in diameter
Evacuate: For roughing vacuum pump
Evacuating capacity: 500 L/min at 50 Hz, 600 L/min at 60 Hz

Pressure: No backing pressure
Connection form: NW25
Installation Space: 5.5 (W)x 3.5 (D)x 2.7 (H) m or more
Entrance: 2.0 (W) x 2.1 (H) m or more
Room Temperature: 21 to 25C
Stability: Within +/- 0.2C/h (Main console area); Within 1C/h Other units area
Humidity: 60% or less (non condensing)
Airflow: about 0.3 m/s
Stray magnetic field
Commercial frequency: (BX2+BY2+BZ2)1/2 = 0.1 uT
Drift component: (BX2+BY2+BZ2)1/2 - 0.1 uT
Floor Flatness: +/-1 mm within 600 x 600 mm area
Sound Noise Level
20 Hz-12500 Hz: = 65 dB
20 Hz and under: = 90 dB


2010 Vintage
