Asset #: 157195

Make: Burkle

Model: LAMV 100

Last Confirm Date: August 06, 2026

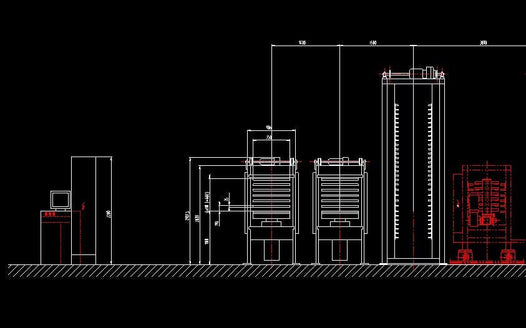

Burkle LAMV 100 Multilayer Vacuum Laminator
- Thermal Oil Heated & Water Cooled

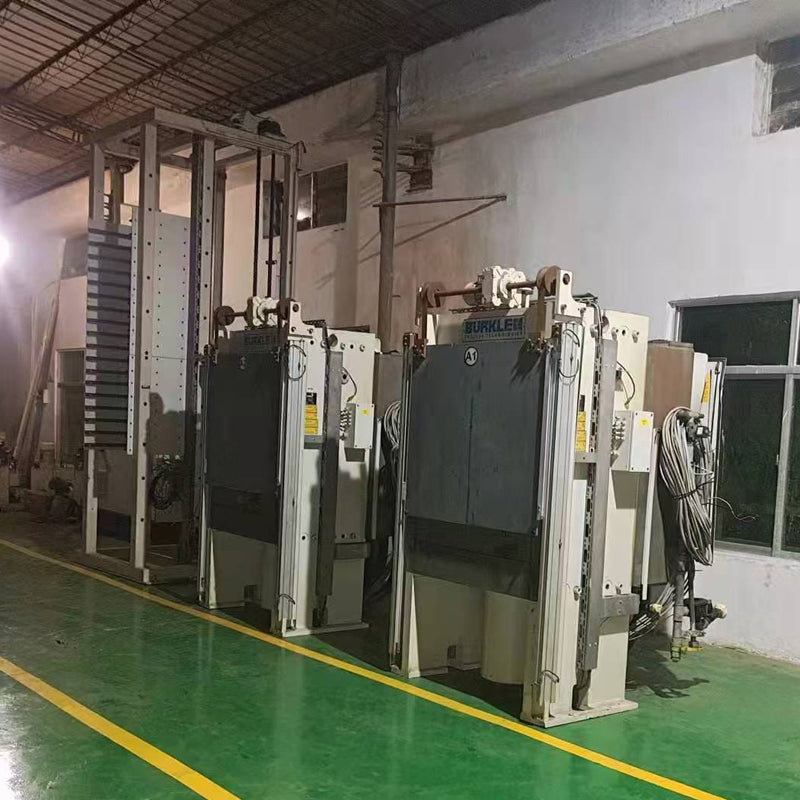

- Dual Hydraulic Multilayer Vacuum Presses (2)
- Press Surface: 750 × 600 mm
- Pressure Range: 40–1000 kN
- Pressure Accuracy: ±4 kN
- Specific Pressure: 358 N/cm² (520 psi)
- Six Daylight Openings
- Seven Heating/Cooling Platens
- Daylight Spacing: 75 mm
- Stroke: 450 mm
- Maximum Operating Temperature: 260°C
- Temperature Accuracy: ±1.5°C @ 180°C
- IR Heated Platens
- Heating Power: 120 kW
- Cooling Power: 129 kW
- Heating Rate: 8°C/min (40–180°C)
- Cooling Rate: 8°C/min (180–40°C)
- Vacuum Final Pressure: <10 mbar
- Evacuation Time to 30 mbar: Approx. 3 minutes

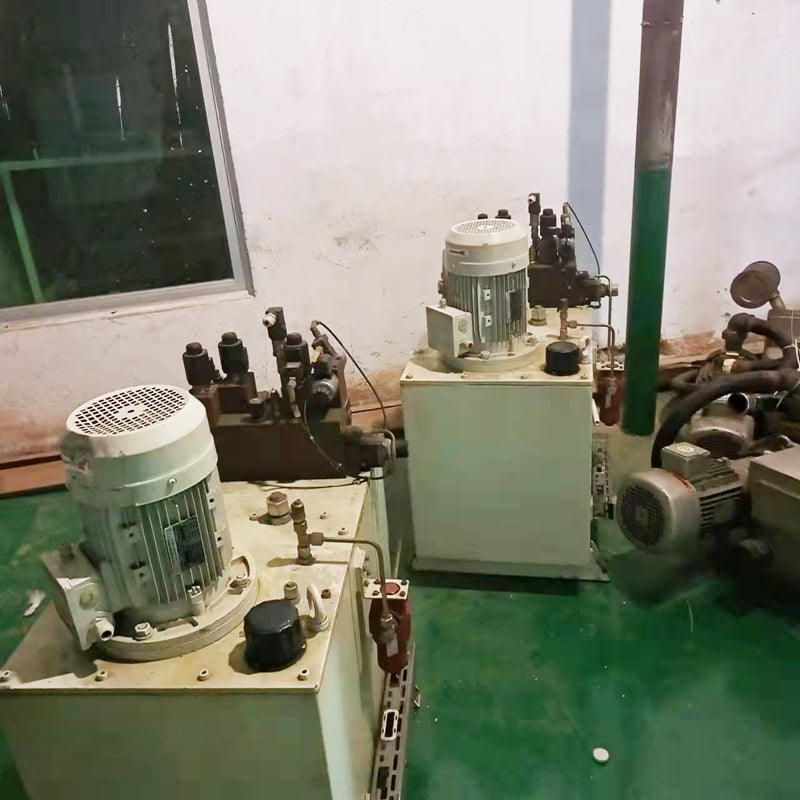

- Hydraulic Power: 3.0 kW
- Vacuum Pump Power: 2.0 kW

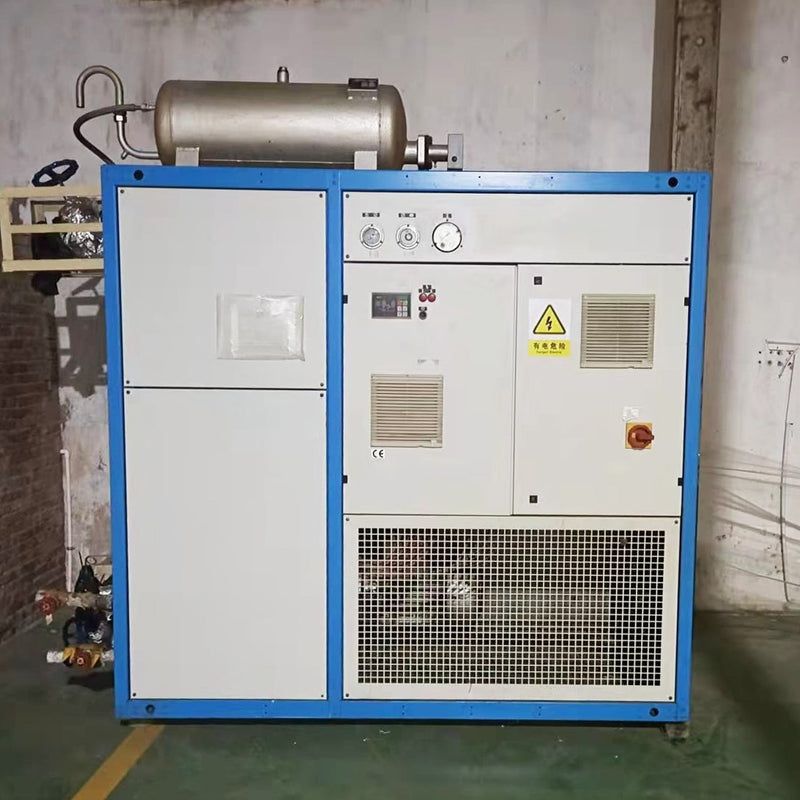

- Heating/Cooling Units (2)

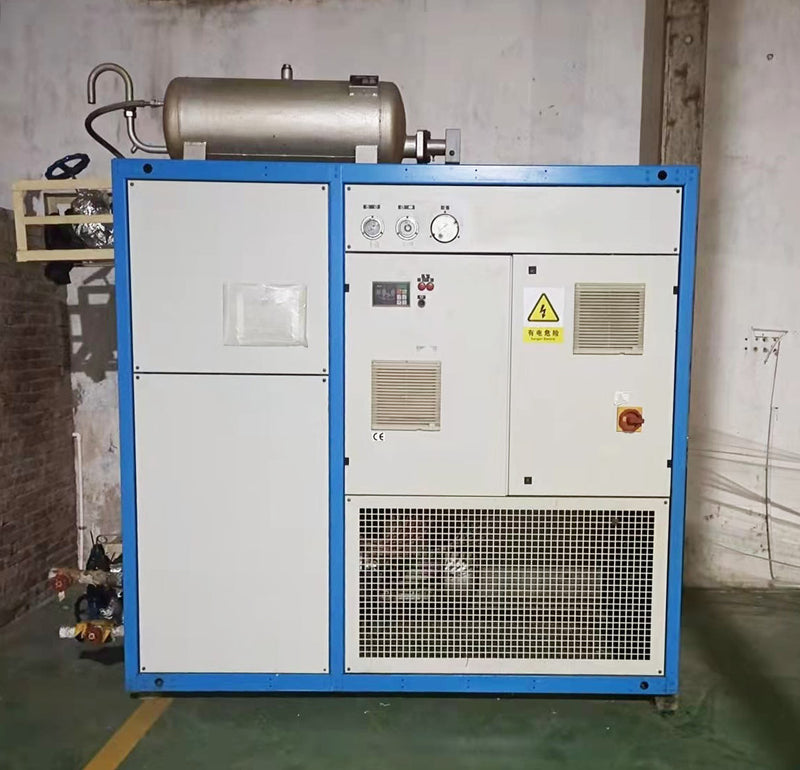

- Thermal Oil Heating & Cooling System
- Oil Circulation: Approx. 20 m³/hr
- Cooling Water Requirement: 13.9 m³/hr
- Cooling Water Pressure: 3–4 bar (42–56 psi)

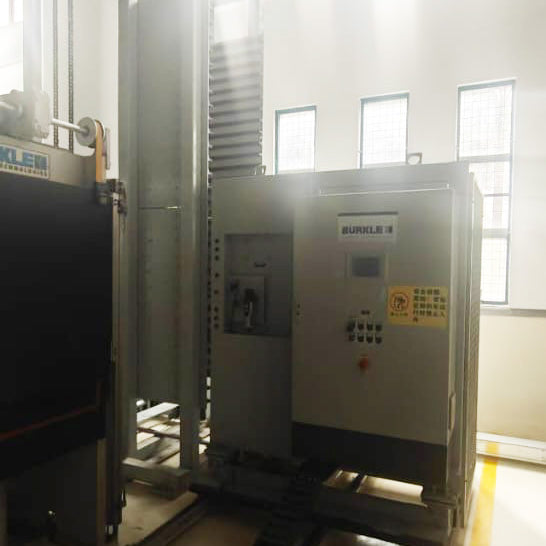

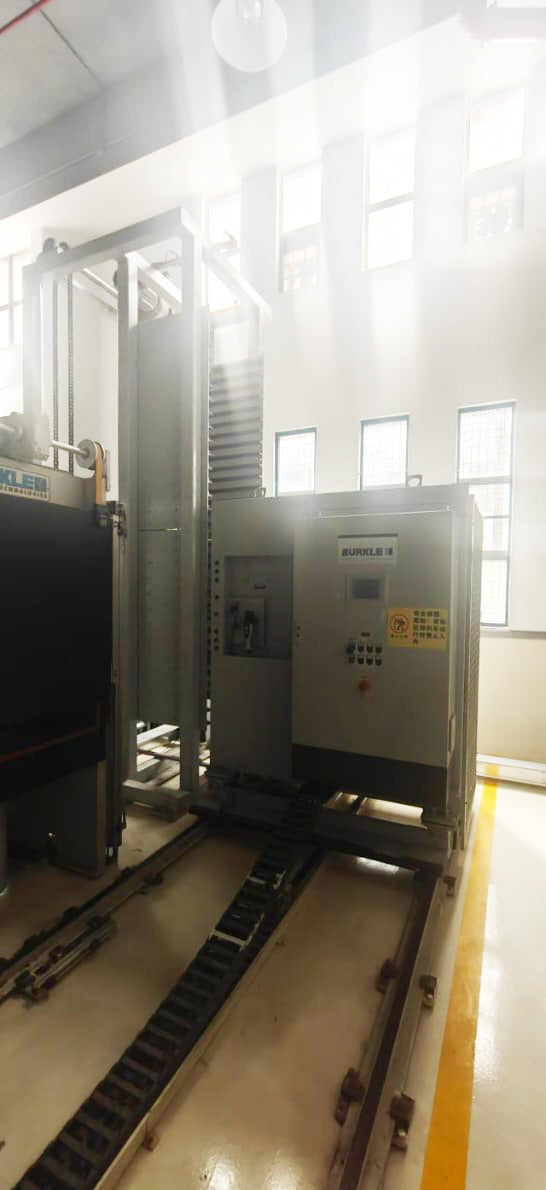

- Loading/Unloading Carriage with Rails & Energy Supply

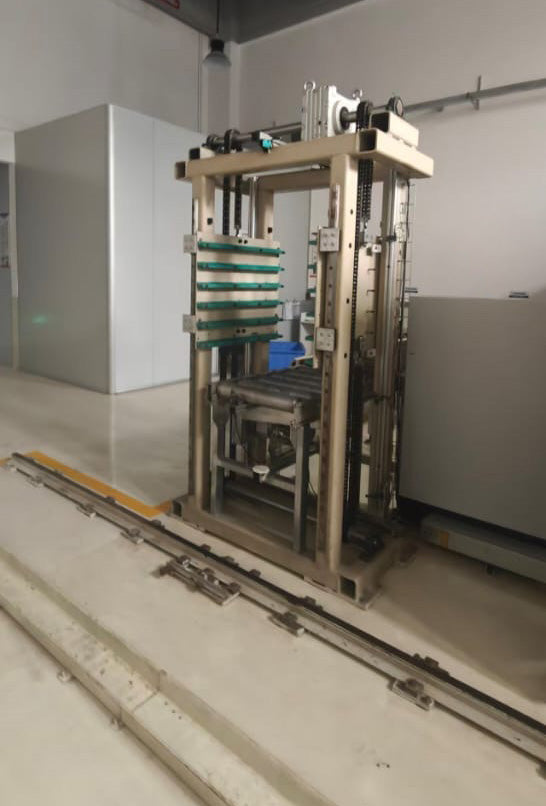

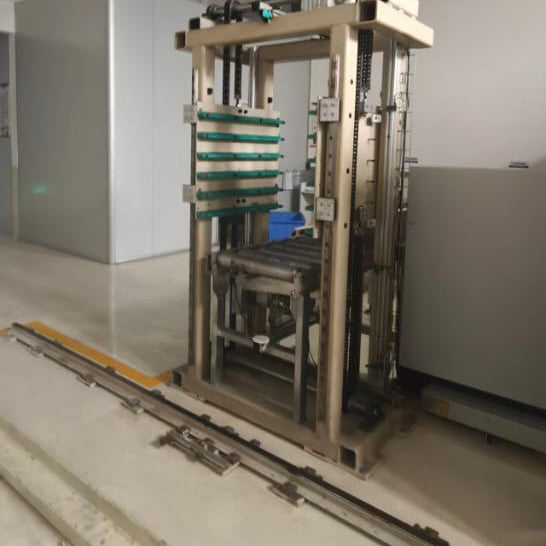

- Automatic Loading Rack
- Loading Lift Table
- 24 Storage Positions
- 6 Transfer Positions
- Automatic Book Transfer System
- Lift Table Working Height: 900 mm
- Lift Speed: 200 mm /sec
- Roller Track Speed: 130 mm/sec
Accessories / Included Equipment
- (2) Hydraulic Multilayer Vacuum Presses
- (2) Heating/Cooling Devices
- Loading/Unloading Carriage
- Loading Rack
- Loading Lift Table
- Rails
- Energy Supply System
