Zygo Nexview NX 2 Optical Surface Profilometer

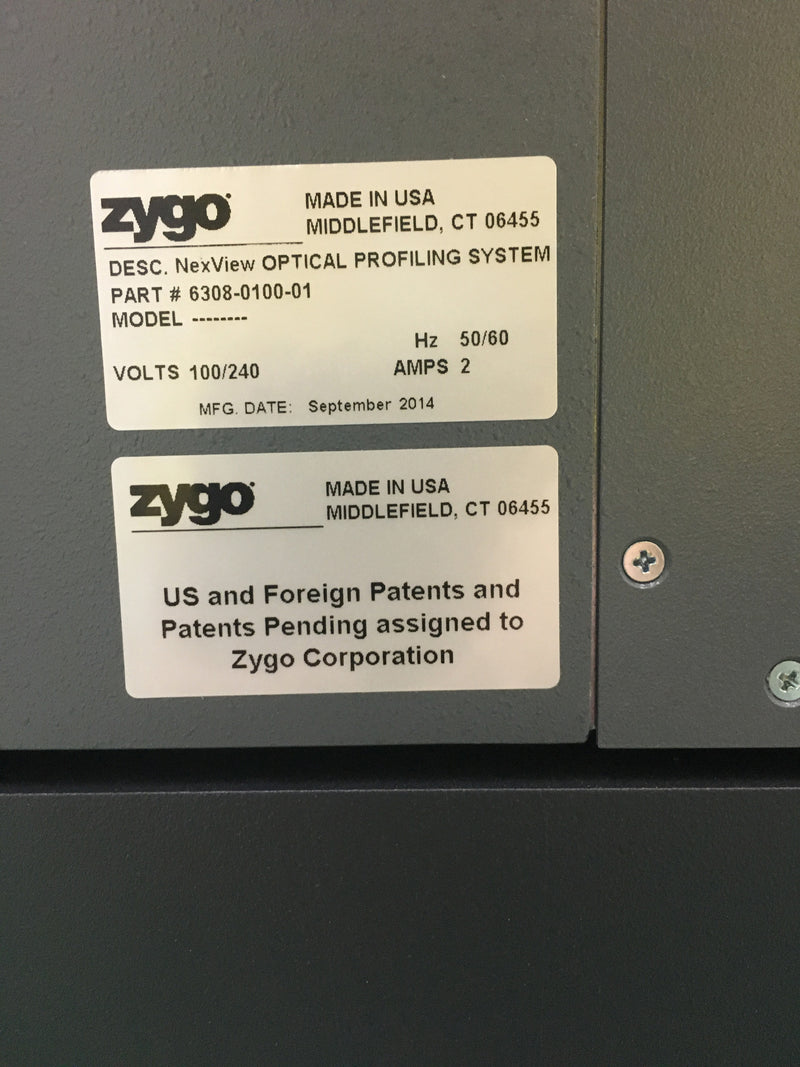

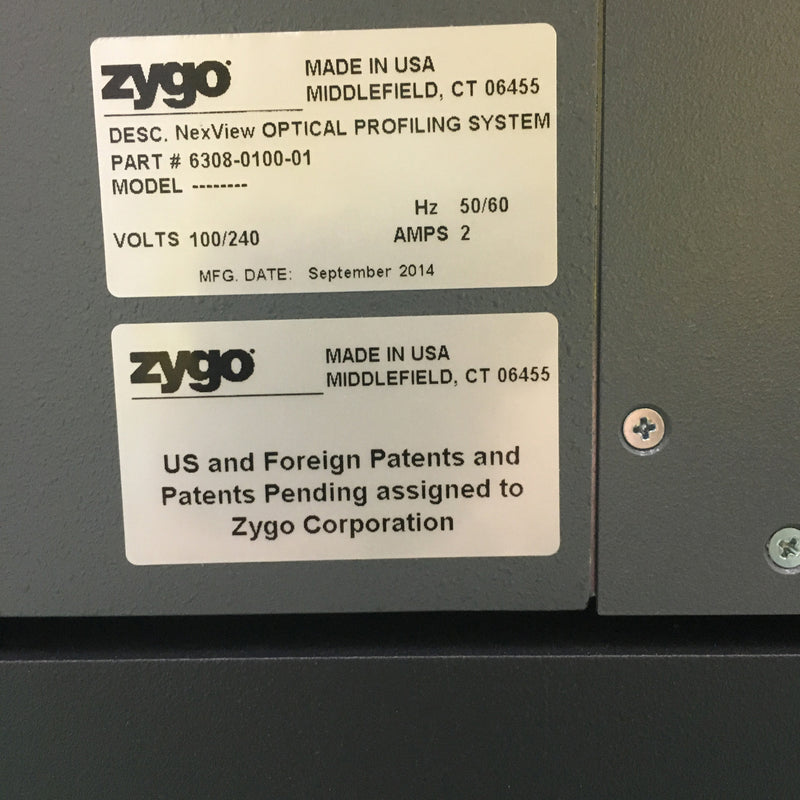

- 50/60 Hz
- 100/240 Volts

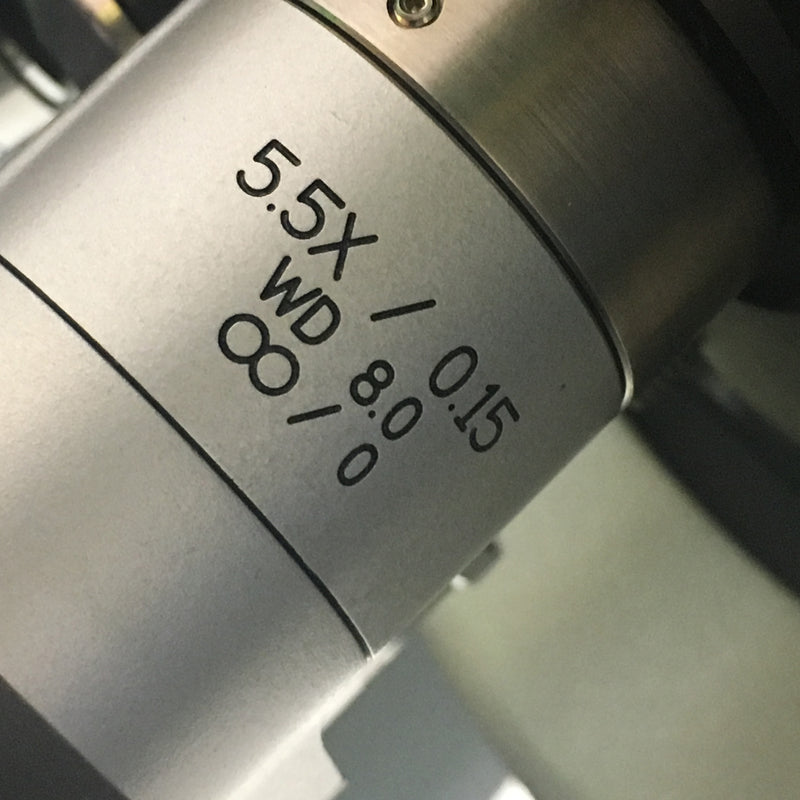

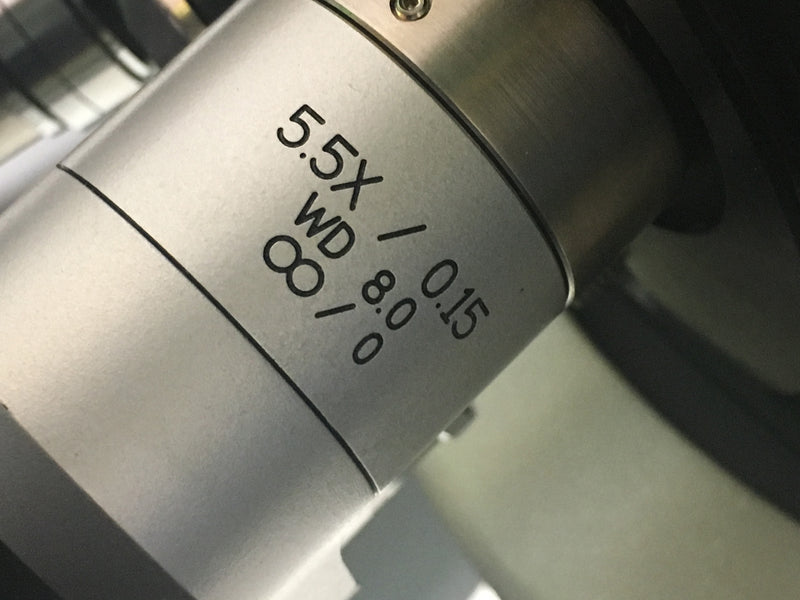

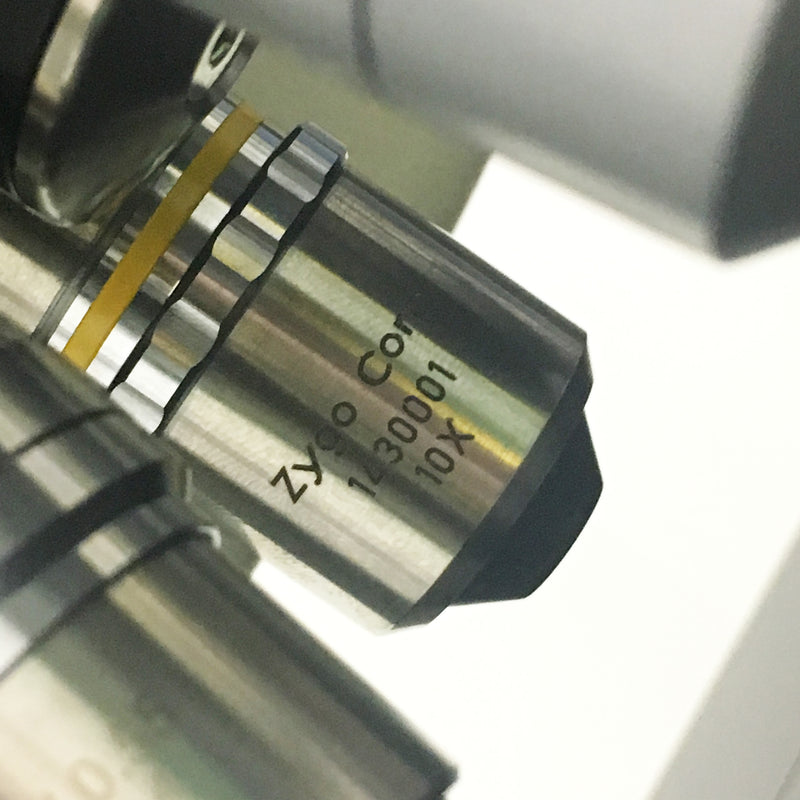

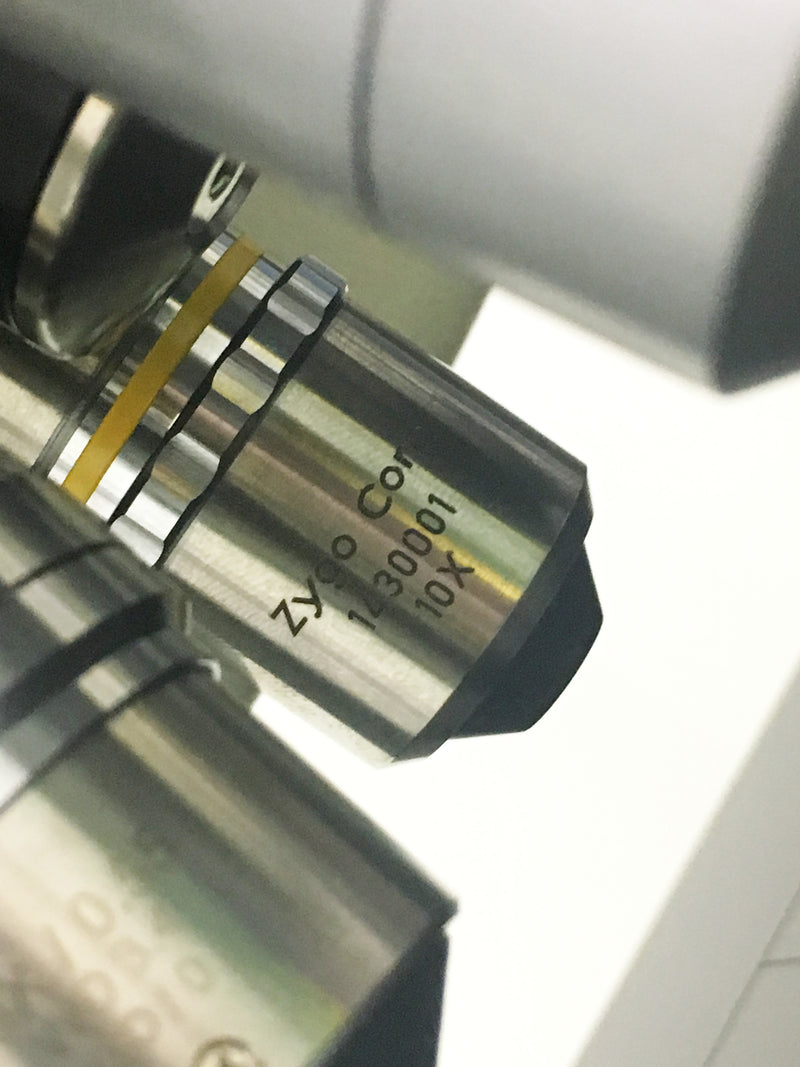

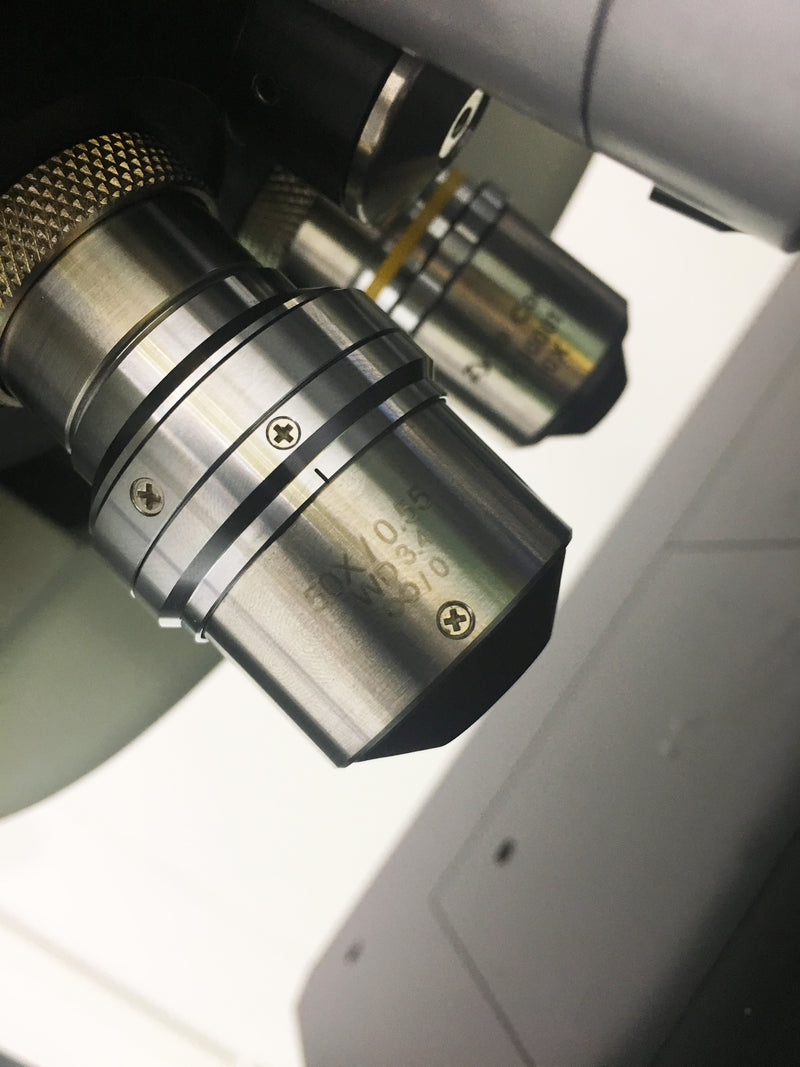

- Objectives: 1.0X – 100X magnification; Standard and long working distance
Objective Mounting Options:
- Single objective dovetail

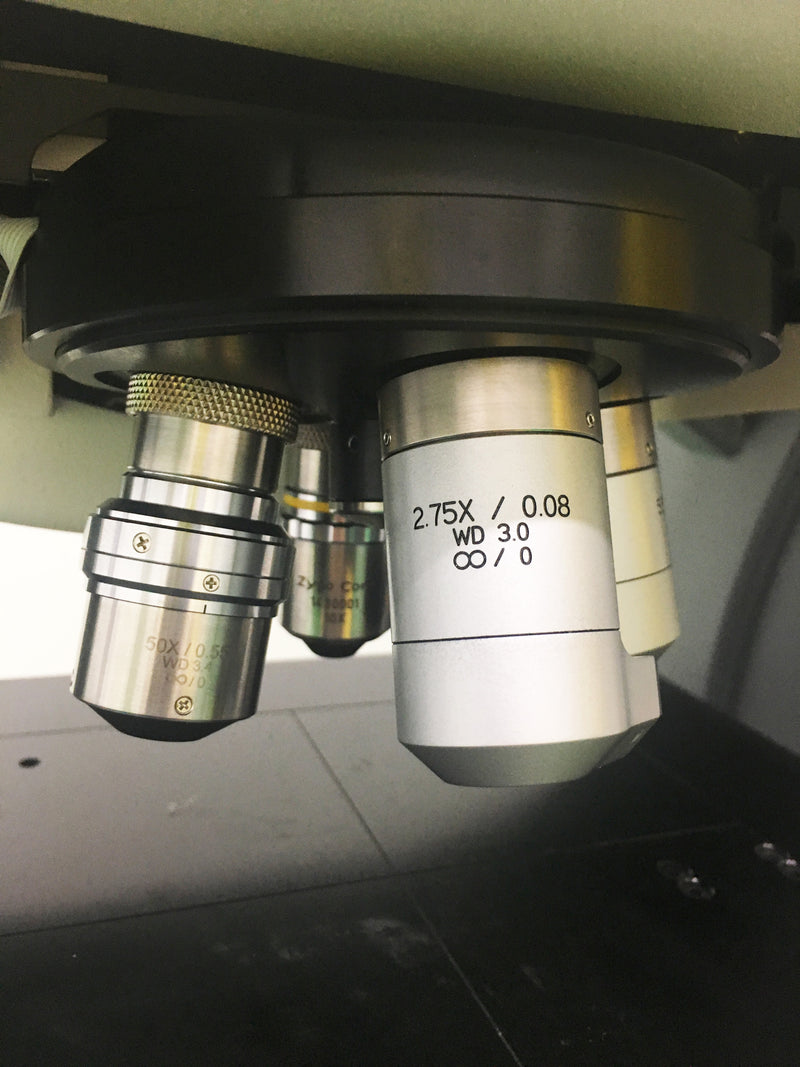

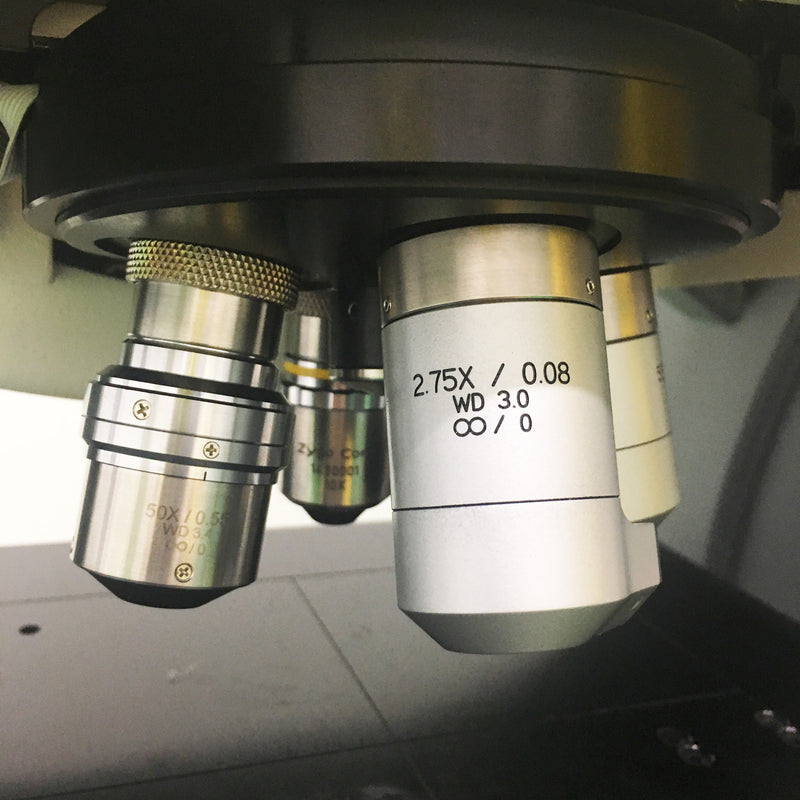

- Manual Encoded 4-position turret
- Motorized 4-position turret
Optical Zoom Motorized 3-position encoded zoom
- 0.5X, 1.0X, 2.0X included
- 0.75X, 1.5X optional
- Field of View Objective and zoom selectable from 0.04 x 0.04mm to 17.49 x 17.49mm,
- Integrated field stitching for larger areas
- Illuminator Proprietary solid-state white light source with software-selectable field stop, aperture stop and spectral filters
- Measurement Array: Selectable 1600 x 1200, 1000 x 1000,1000 x 600, 1000 x 200
- Part Viewing: Selectable Monochrome and Color imaging with available fringe-free viewing mode
- Focus Motorized manual or auto focus with through-the-lens focus aid
- Z-Drive (Focus) Stage: 100 mm range with 0.1 μm resolution
Part Stage: Motorized stage travel range:
- XY: 200 mm or 200x325mm
- Tilt: ±4
- Encoded 200x200x100 (XYZ) optional
- System Controller: i7 class PC with 27 in. 1080P display
- Software: ZYGO Mx software running under Microsoft Windows 10 (64-bit)
- Input Voltage: 100 to 240 VAC, 50/60 Hz
Compressed Air for Table:
- 4.1 to 5.5 bar (60 to 80 psi)
- dry and filtered
- 6 mm OD hose input, ¼ in.
- Vacuum: Optional connection for 6 mm hose
Vertical Scan Range:
- 150 μm with precision Piezo drive
- 20 mm with extended scan
- Surface Topography: Repeatability(1) 0.06 nm
- Repeatability of RMS(2): 0.005 nm
- Optical Lateral Resolution(3): 0.34 μm (100X objective)
- Spatial Sampling: 0.04 μm (100X objective 2X zoom)
2014 Vintage
