Asset #: 150952

Make: Yes

Model: 1224 P

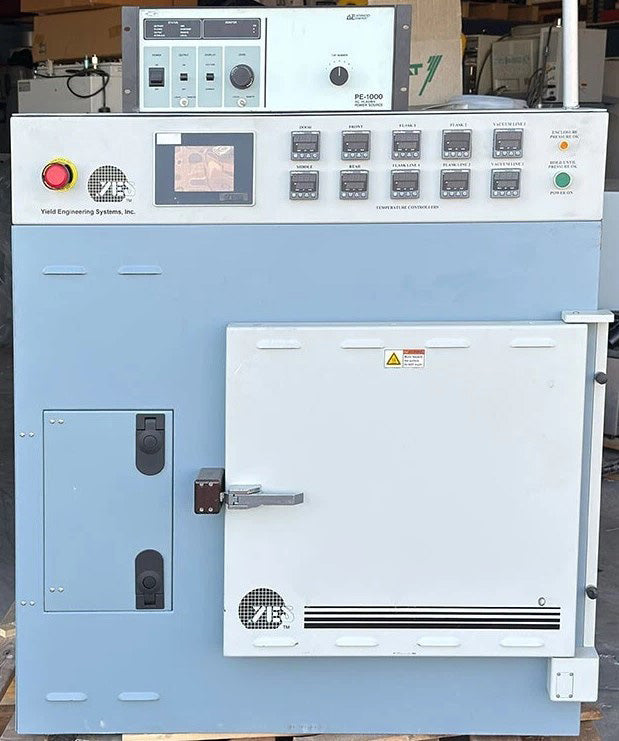

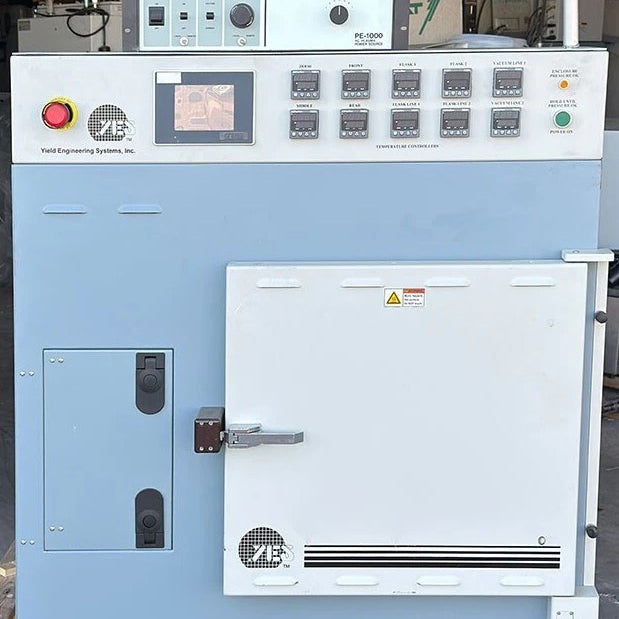

Yes 1224 P CVD (Chemical Vapor Deposition)

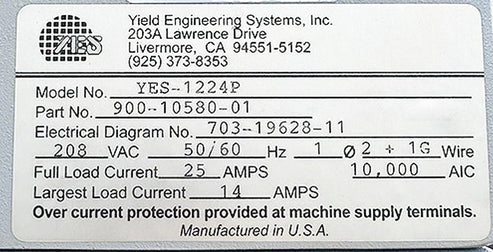

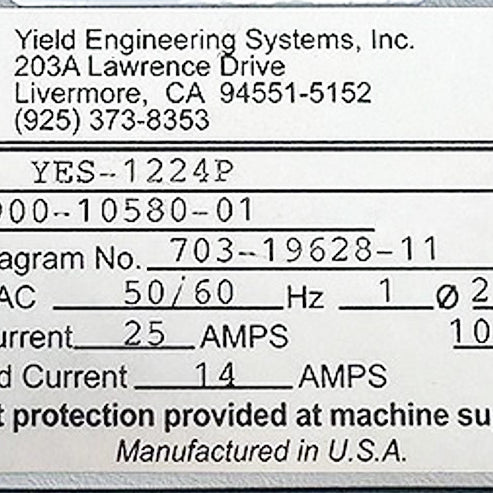

- Part Number: 900-10580-01
- Power Requirements: 208 VAC, 50/60 Hz, Single Phase, 25 FL Amps
- Clean Room Compatibility: Class 10

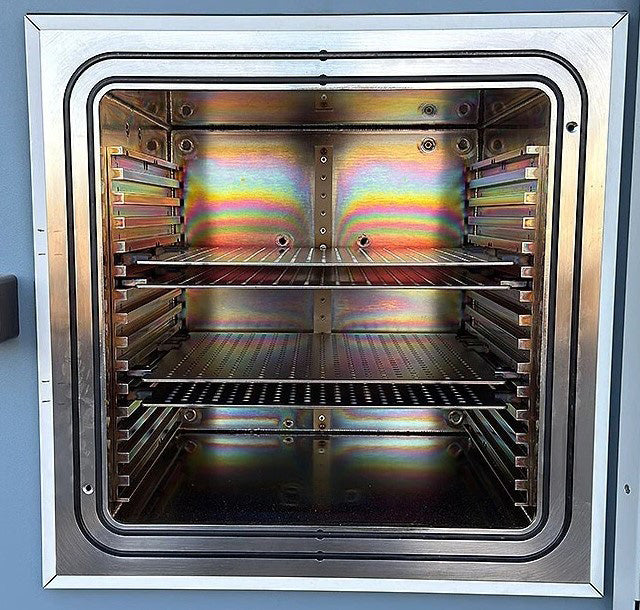

- Chamber Material: 316L Stainless Steel
- Chamber Size: 40.6 cm W x 46 cm D x 40.6 cm H (16" x 18" x 16")
- Loading: 4 removable internal stainless steel shelves; up to 16 available configurations
- Filter: 0.5 Micron filter
- Mass Flow Controls: Software Specifications:
- Number of Recipes: 6 CVD, 4 Plasma
- Range of Exposure Time: 0-999999
- Resolution of Timer Setting: 1 second
Performance Specifications:
- RF Plasma Frequency: 40 kHz
- RF Plasma Power: 10-1000 Watts
- Operation Temperature: Ambient to 205°C
- Uniformity: ±5°C during dwell after stabilization period

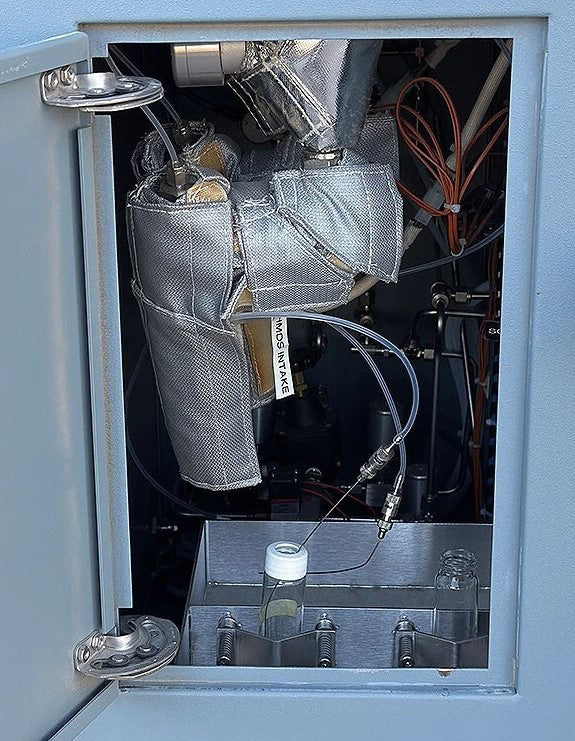

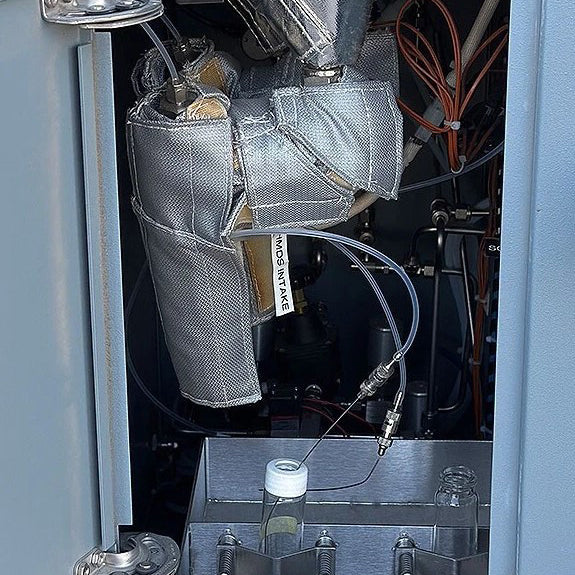

- Chemical Usage: Typical process 3-5 ml
- Chemical Volume Control: Control down to 0.1 ml
- Process Gas Inputs: 1
- Plasma Gas Inputs: 3
- Vent Gas Consumption: 10 SCF run average
- Reactant Gas Consumption: 4.2 x 10-3 SCF (based on standard process: 170°C @ 1000 W w/20 SCFM pump)
- Wafer Throughput: Typically 1-2 loads/hr; varies by process
- Slide Throughput: 600 slides/hr for CVD
Additional Specifications:
- Safety: Audible and visual alarms; redundant over-temp monitoring
- Power Requirements: 208 VAC, 30 A, 60 Hz, - Single Phase, 4835 Watts
- Power Supply: Automatic Frequency Tuning
