Asset #: 150555

Make: Axcelis

Model: GSD 100

Wafer Sizes: 6 inch

Last Confirm Date: April 13, 2026

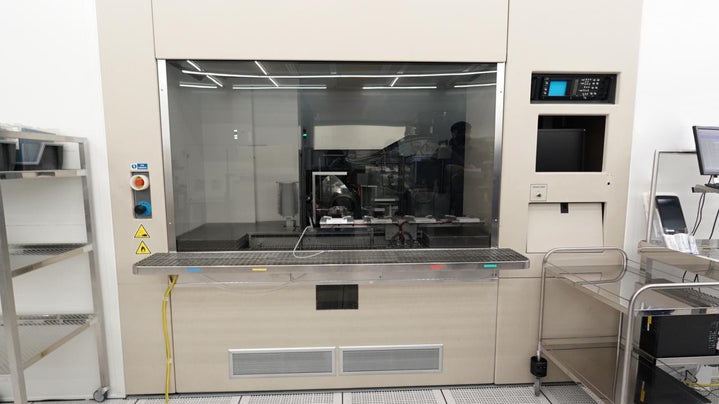

Axcelis GSD 100 Implanter, 6"
- High Current: GSD 200 E
- Date of Audit:August 25, 2025

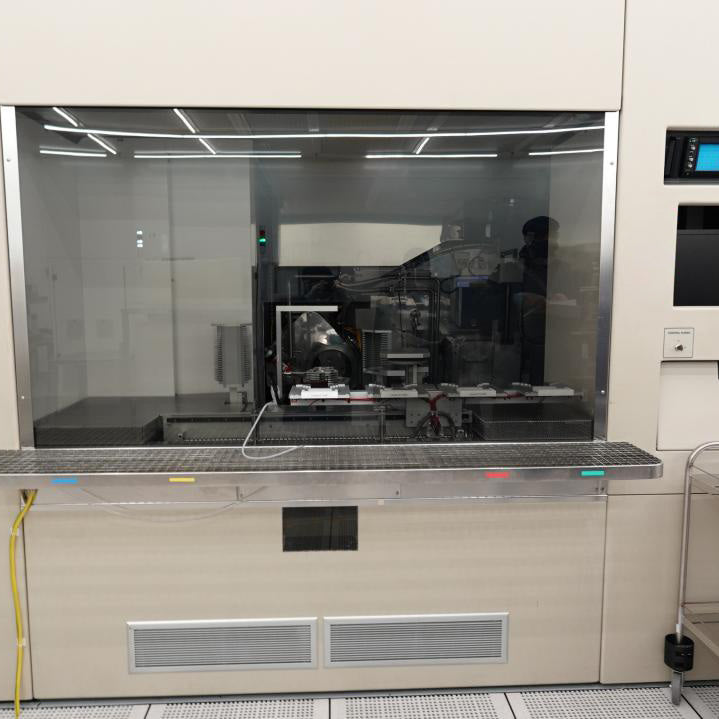

- Loading Configuration: Open Cassette
- Software Version: 6.12.4
- Automated Beam tuning & setup w/Eaton Autotune
- All cables present
- GEM / SECS Interface
- Beamline version: Standard
- Energy Range: 160 KeV
- Standard manuals included

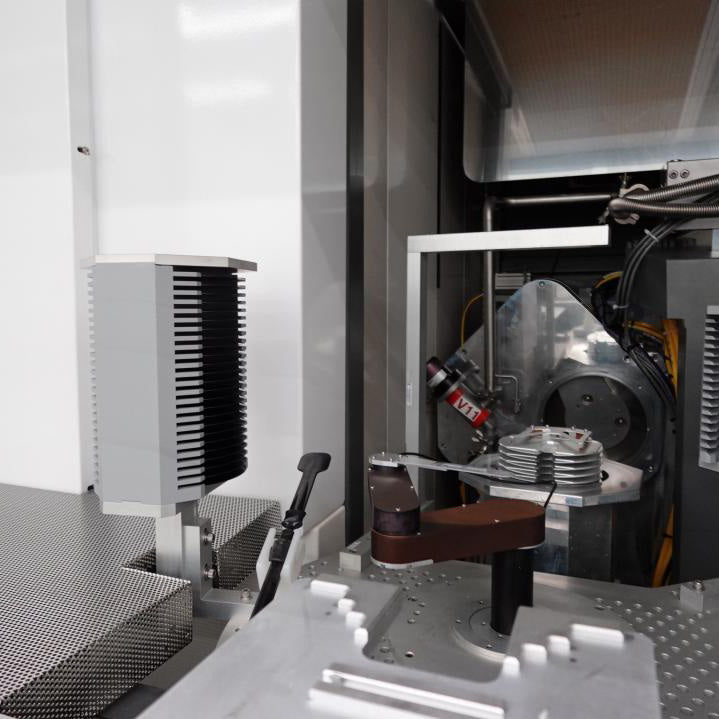

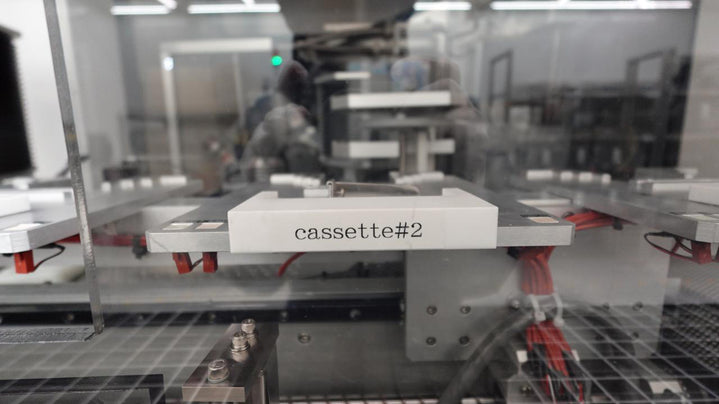

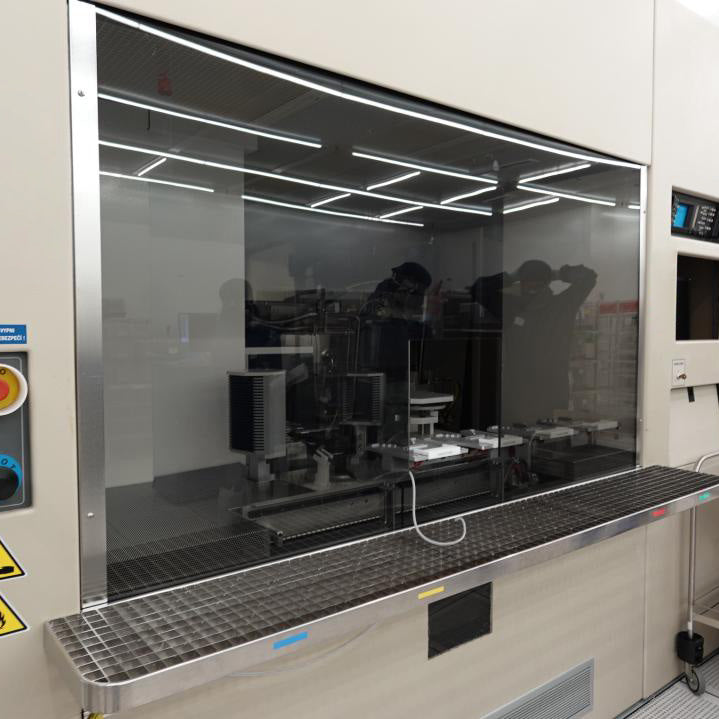

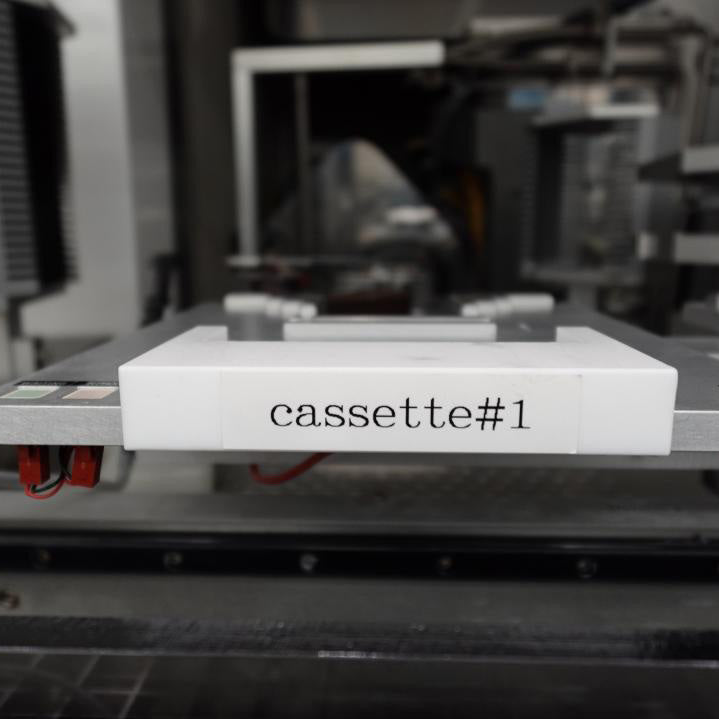

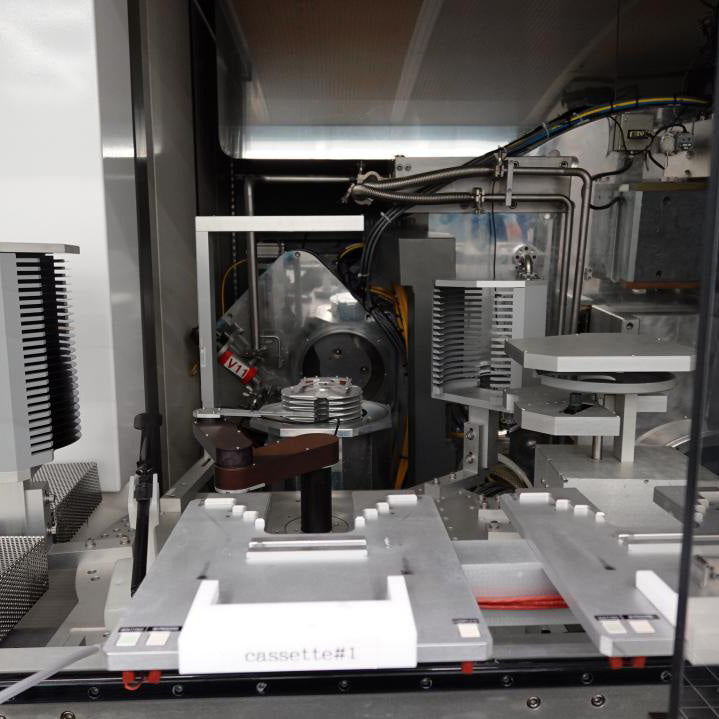

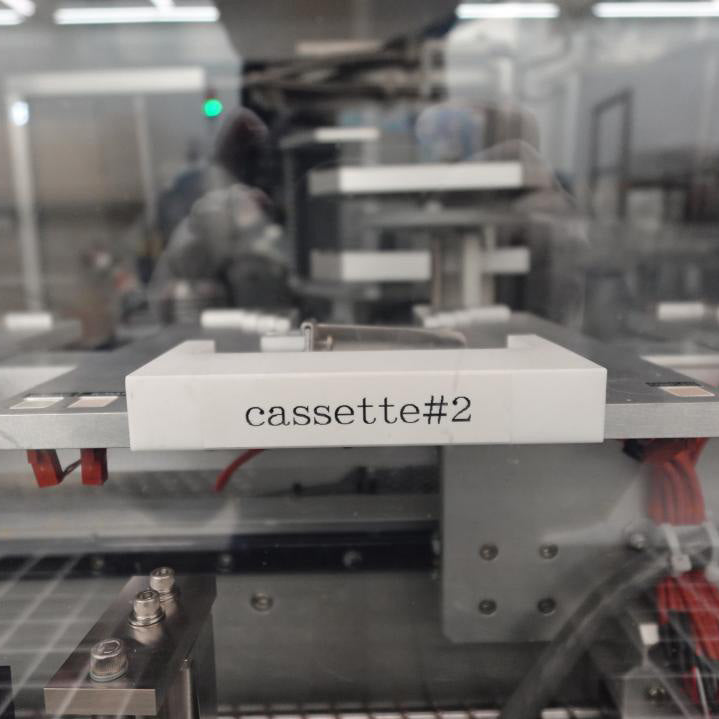

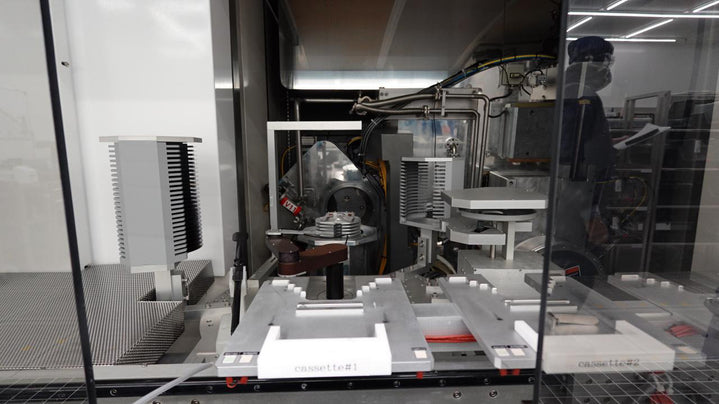

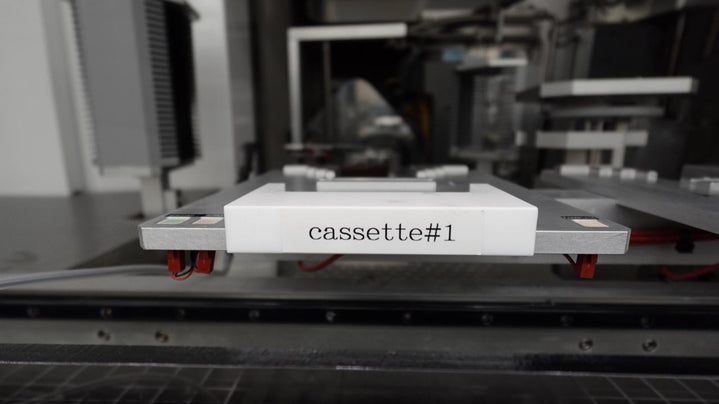

- 4 cassette compatibility

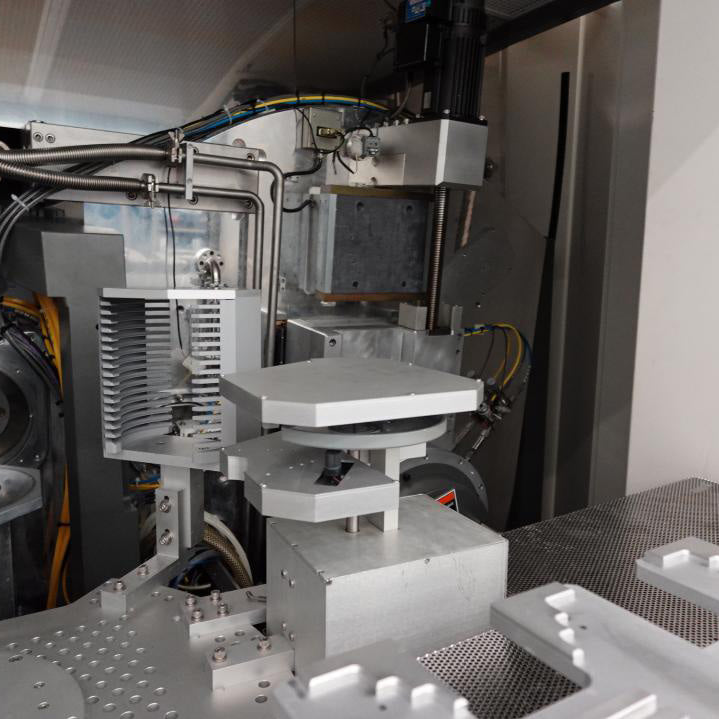

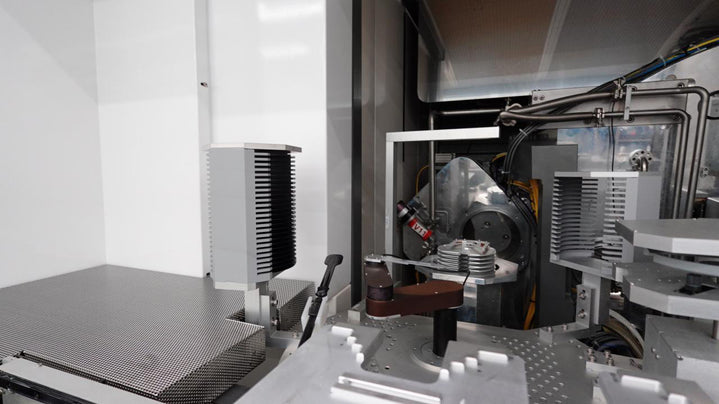

- Automatic flat or notch alignment capability with buffer cassette
- NV-GSD 200 Series Process Disk with active cooling & chiller
- Single Stage Extraction: 80 keV
- Post Accel electrode assembly: 80 -160 keV
- Ion Source Type: ELS
- Source Material: Moly
- Flag Farady Injector
- Signal tower

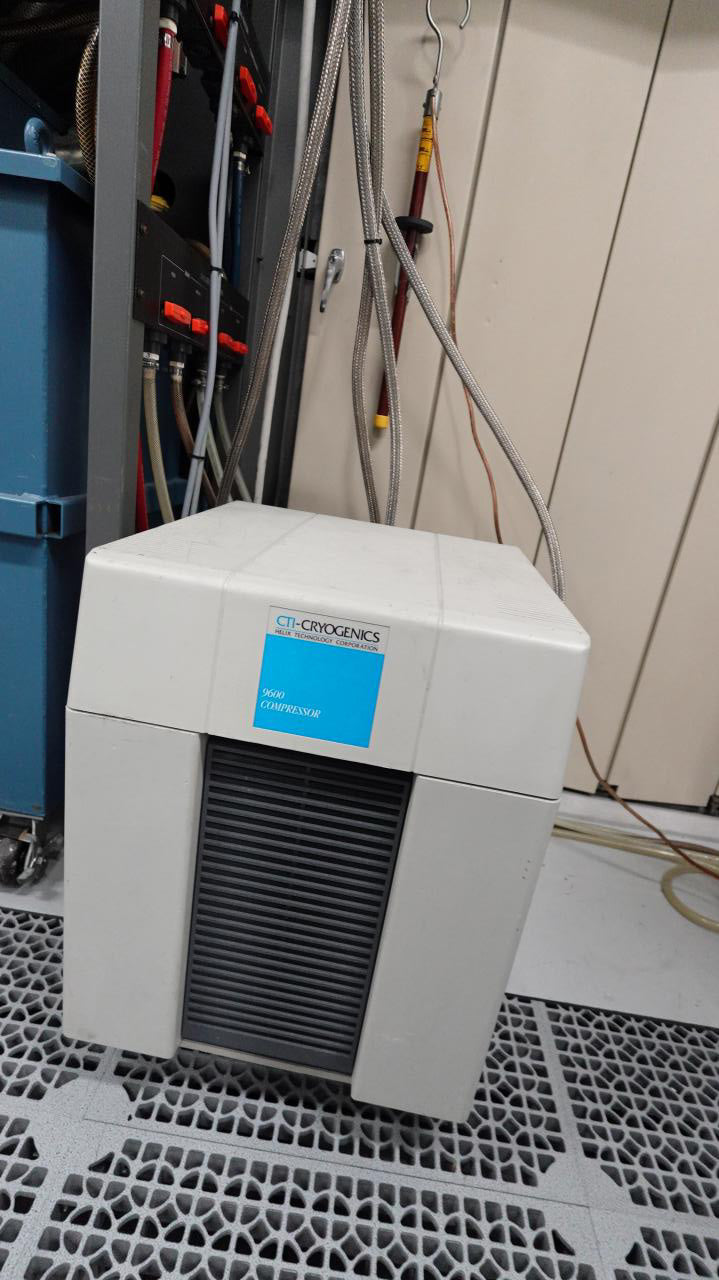

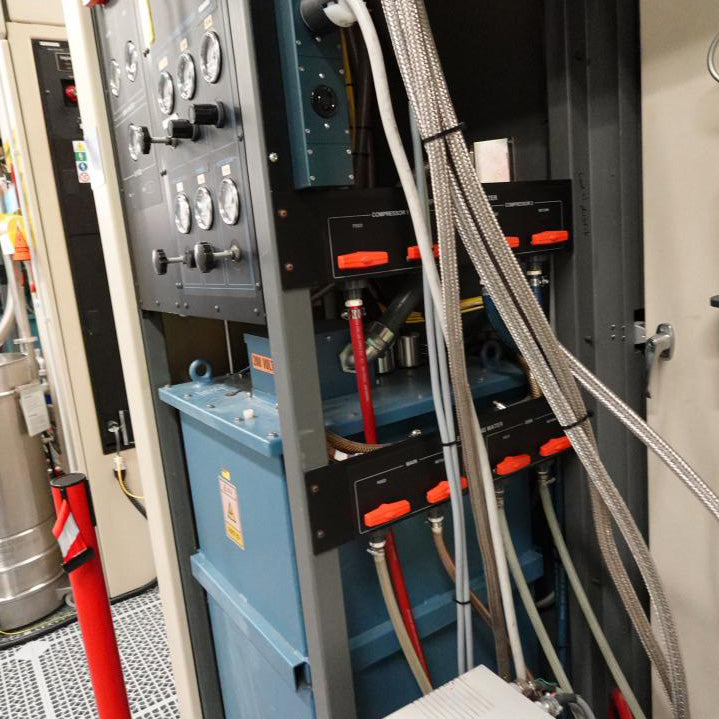

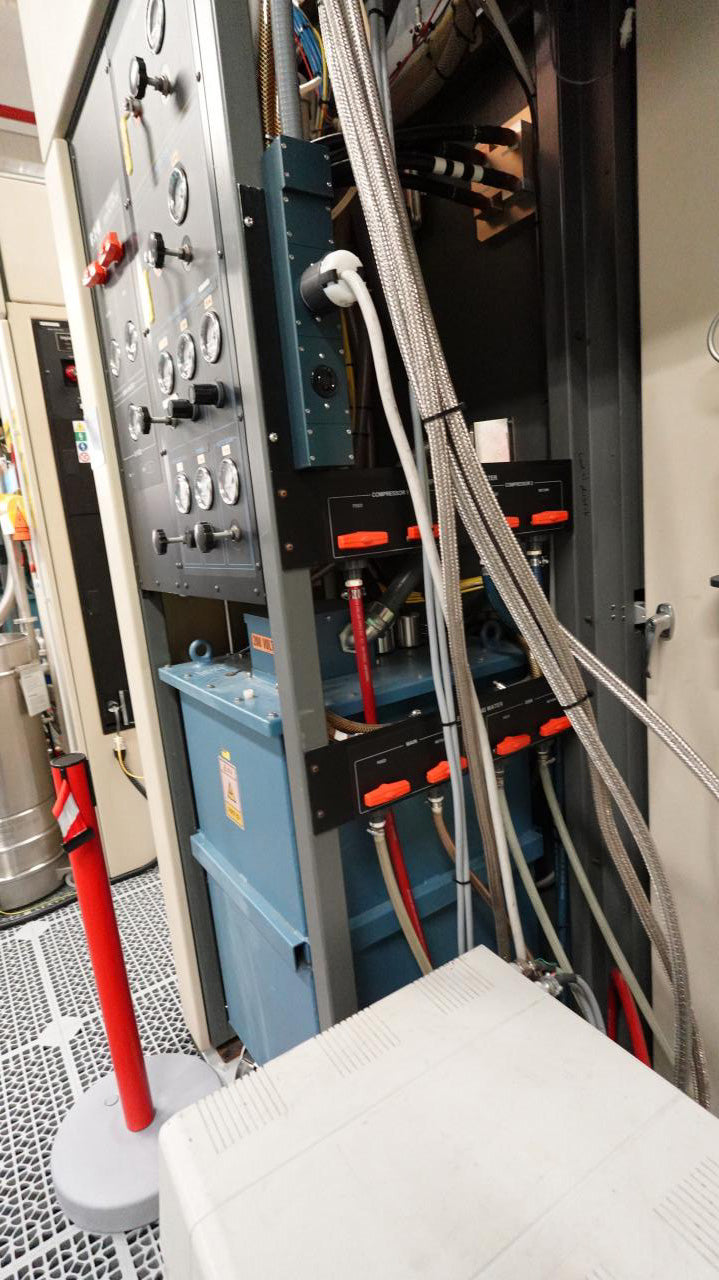

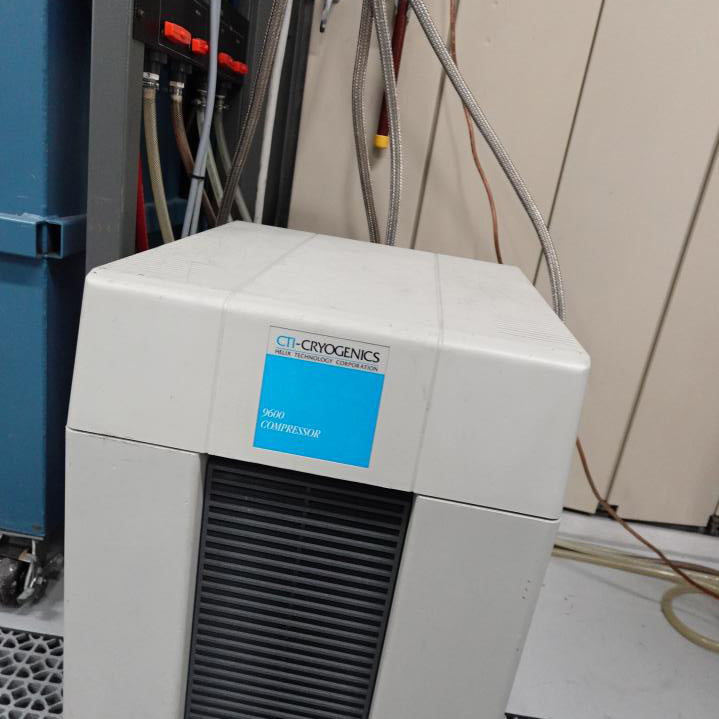

- Cryo compressors: CTI 9600

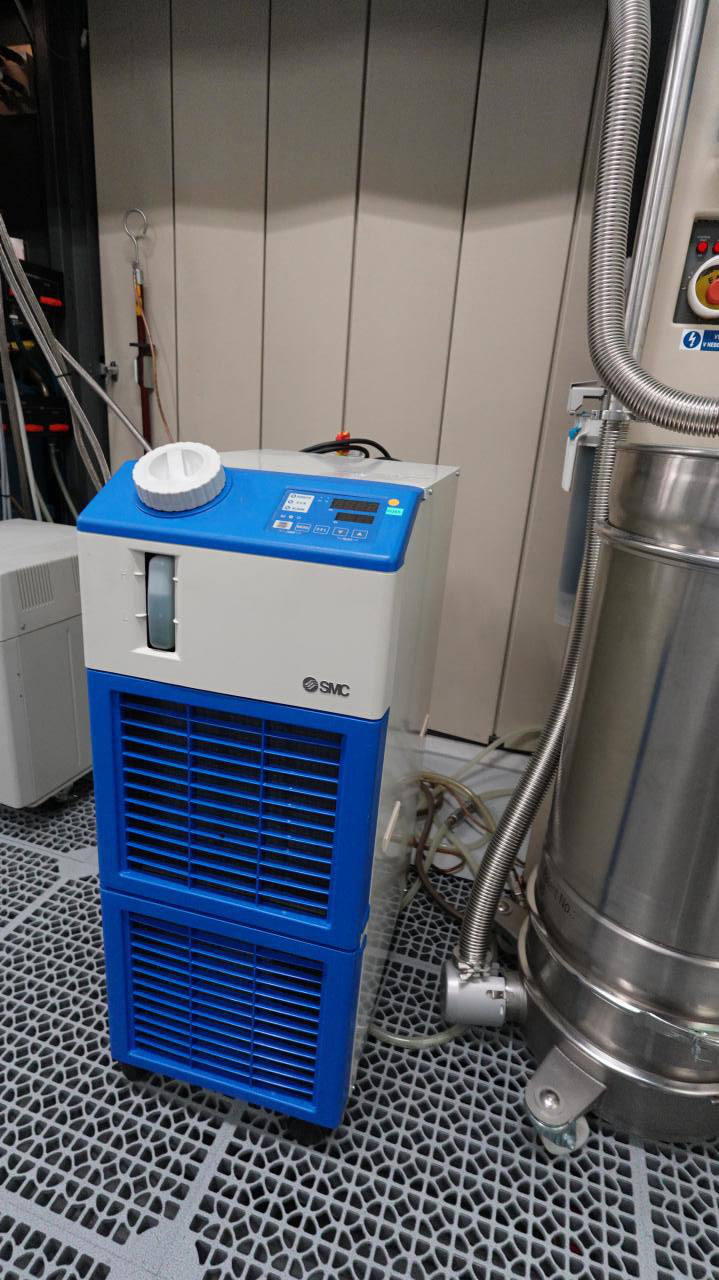

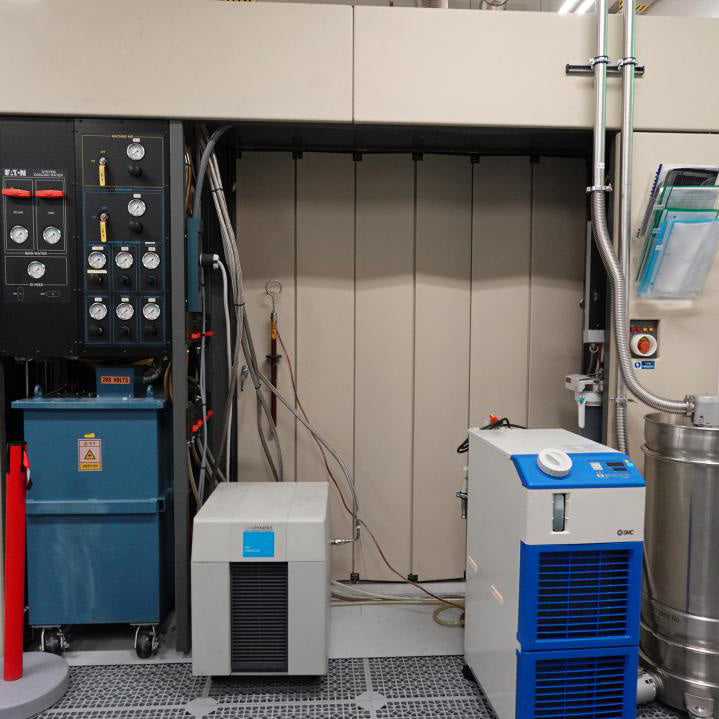

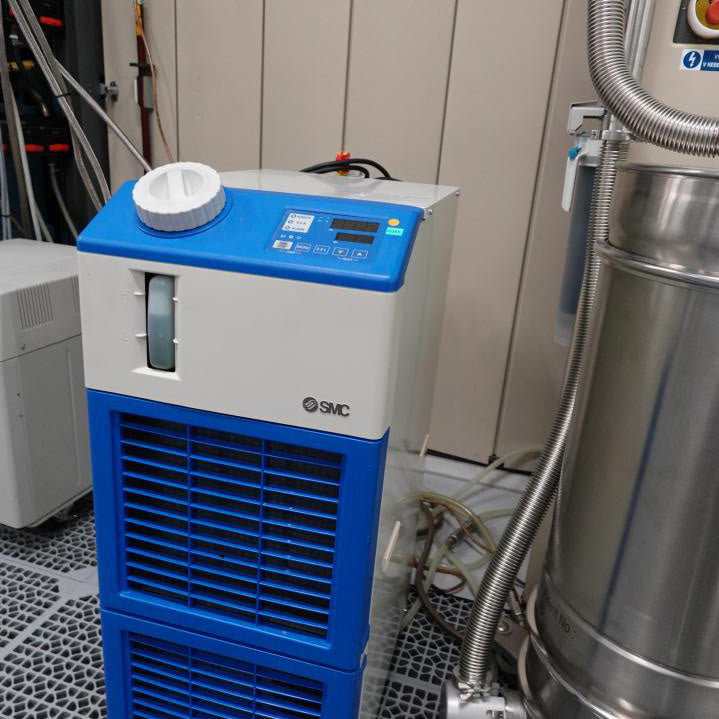

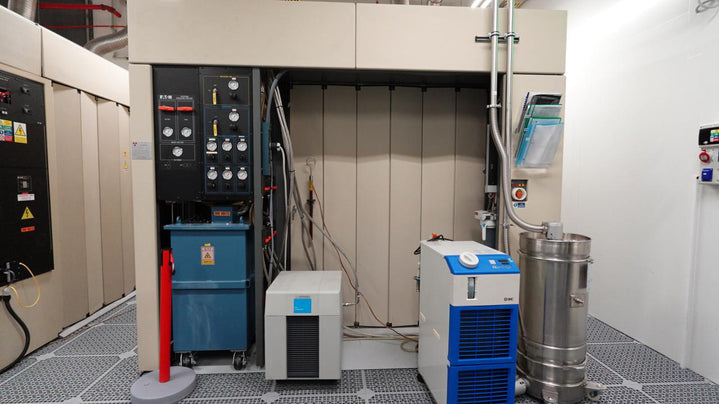

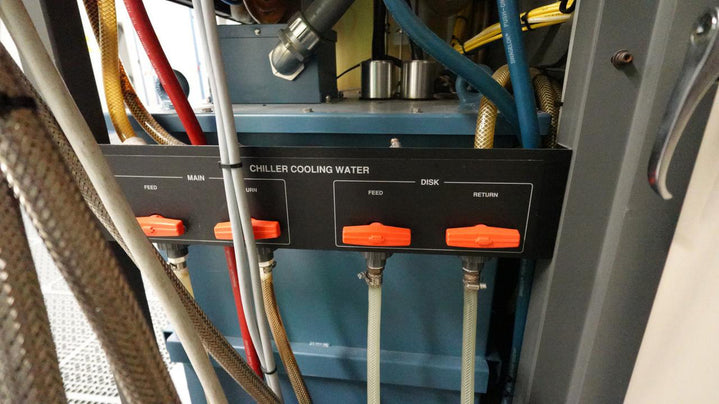

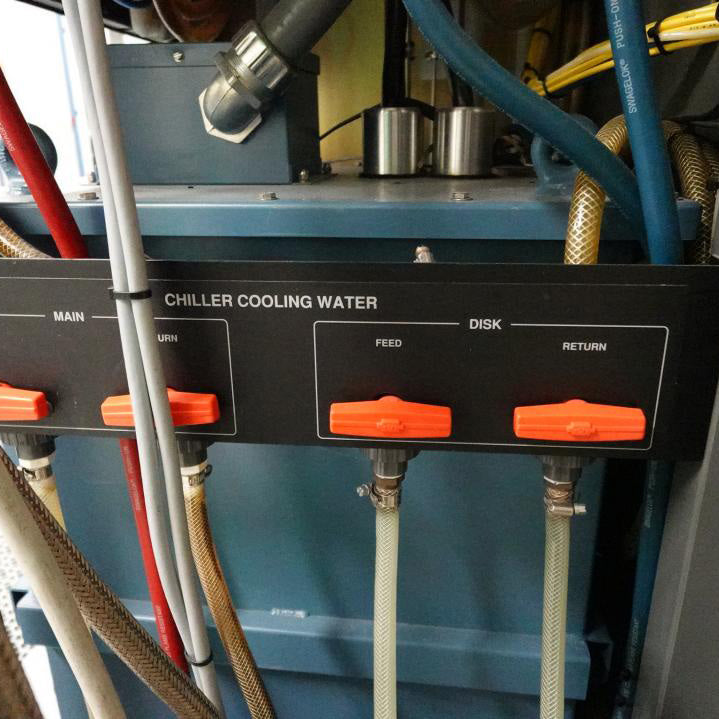

- Remote Disk Chiller: SMC HRS 050-WF-20

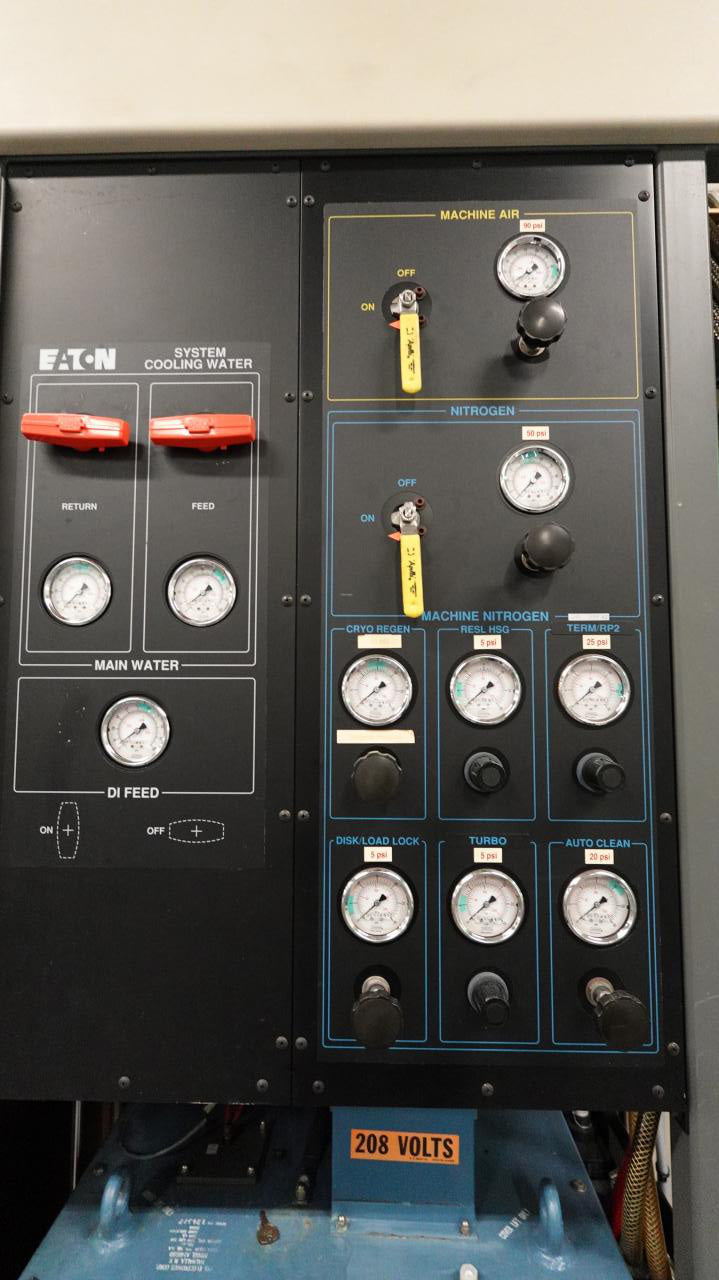

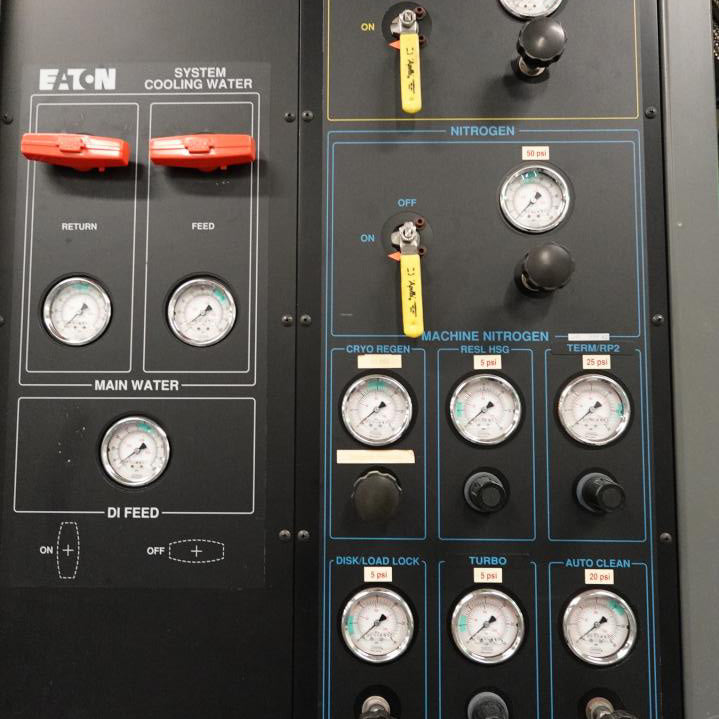

- External Facilities connections: Ar, N2
- Can't produce wafers as is
- No Modifications
- No SECS II Interface
- No fab starter kit
- No fast maintenance kit
- No wafer top-side bar reading
- No real time dose control
- No real time beam profiler
- No electron shower with gas bleed and closed loop control
- No Slot-to-Slot Wafer Integrity (200 mm only)
- Direct Rotory Drive
- No Two Axis Variable Implant Angle (+/- 11 Degrees in two axis) (Quad Implant Capability)
- No Clean room manuals
- No CE Mark
- No OEM Audit available
- No UPS
- No enhanced low energy beamline
- No triple index mass analysis magnet & power supply
- No vaporizer
- No variable aperture extraction electrode
- No three position resolving aperture (90 keV only)
- No In-Situ wafer charge monitor
- No In-Situ particle detector HYT
- No lead floor
- No vacuum pumps
Beamline & Source Pumps:
- Source Turbo Pump (P1): STP A 2203 C 2
- Beam Line Cryo Pump (P3): CTI Onboard 10
- End Station Cryo Pump (P2): CTI Onboard 8
Gas:
- Ar: Tylan FC-2900 MEP, 5 SCCM
- BF3: Unit 1660 (SDS),5 SCCM
- AsH3: Unit 1660 (SDS),5 SCCM
- PH3: Unit 1660 (SDS),5 SCCM
