Asset #: 150200

Make: Rigaku

Model: VT Lab HX 130

Last Confirm Date: February 17, 2026

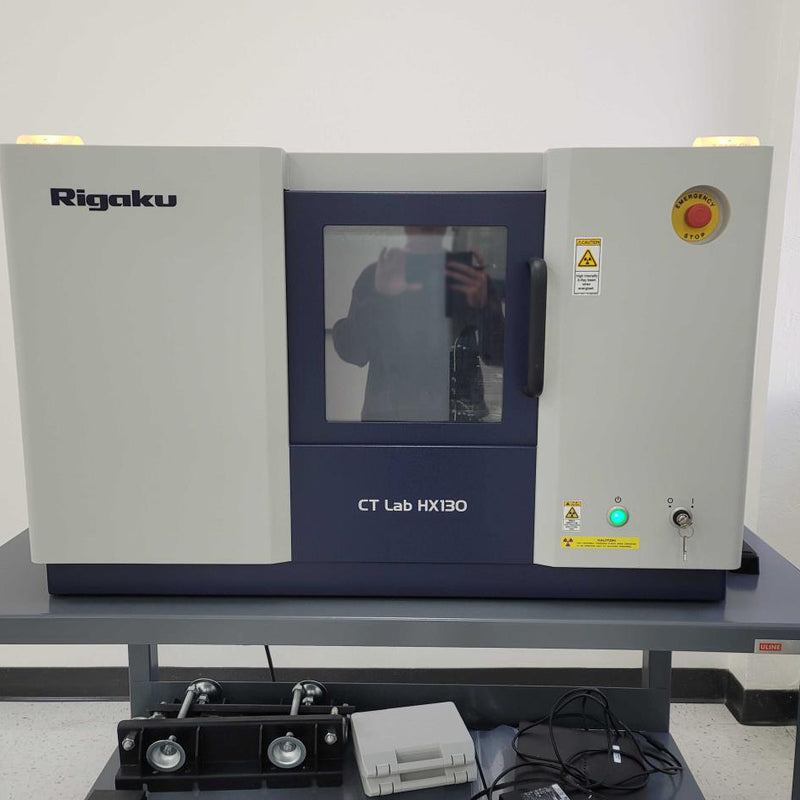

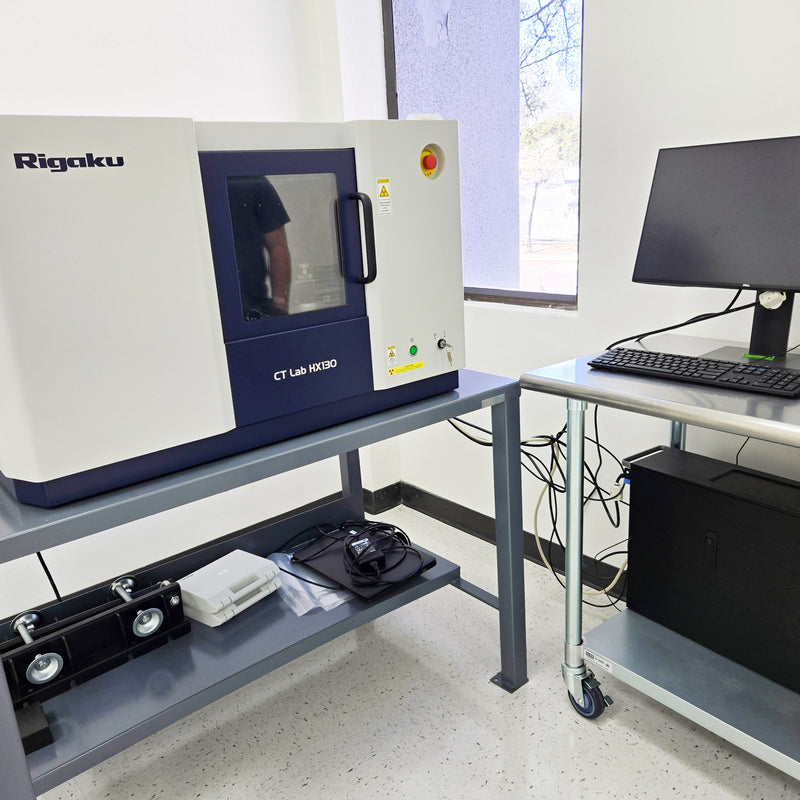

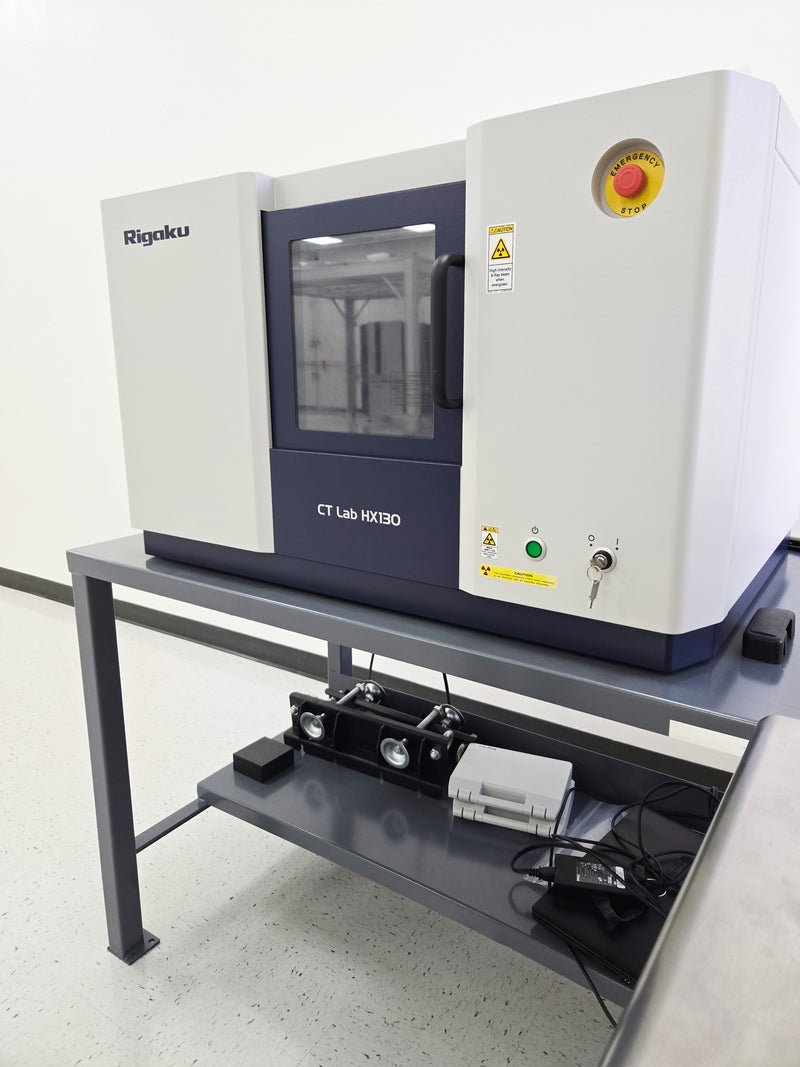

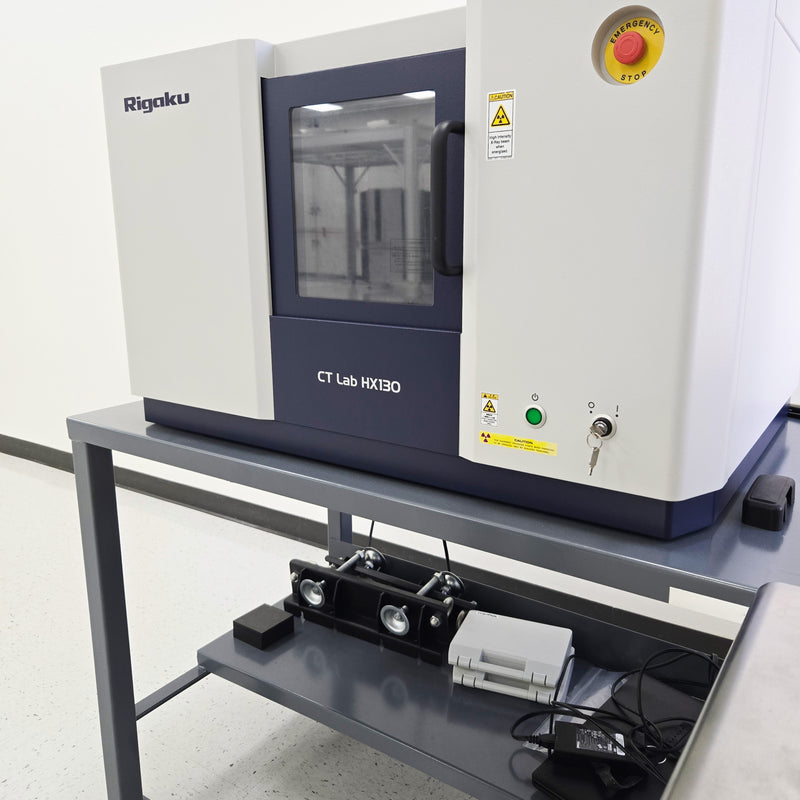

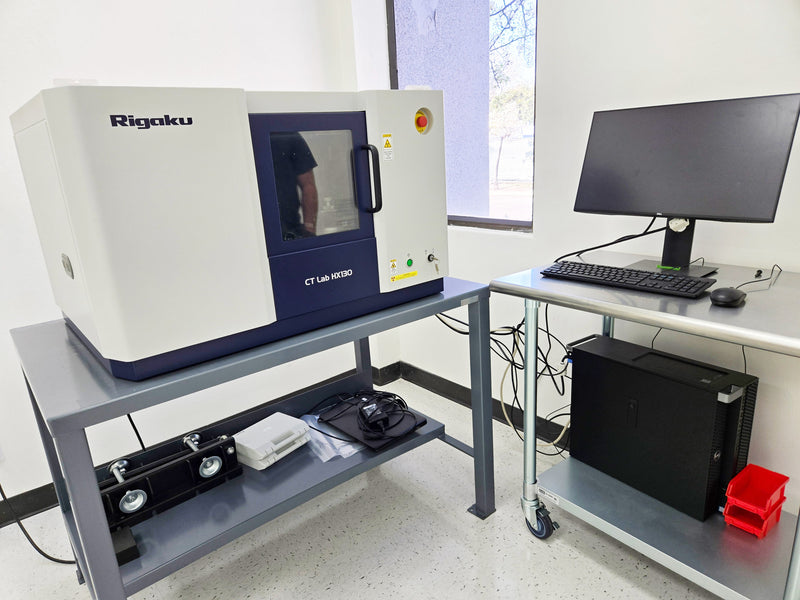

Rigaku VT Lab HX 130
X-ray Generating Unit:
- XY Motorized Stage
- X-ray Generating Method: Fixed Anode
- Tube Sealed
- Air Cooling
- X-ray Focal Size: Mini 5 μm

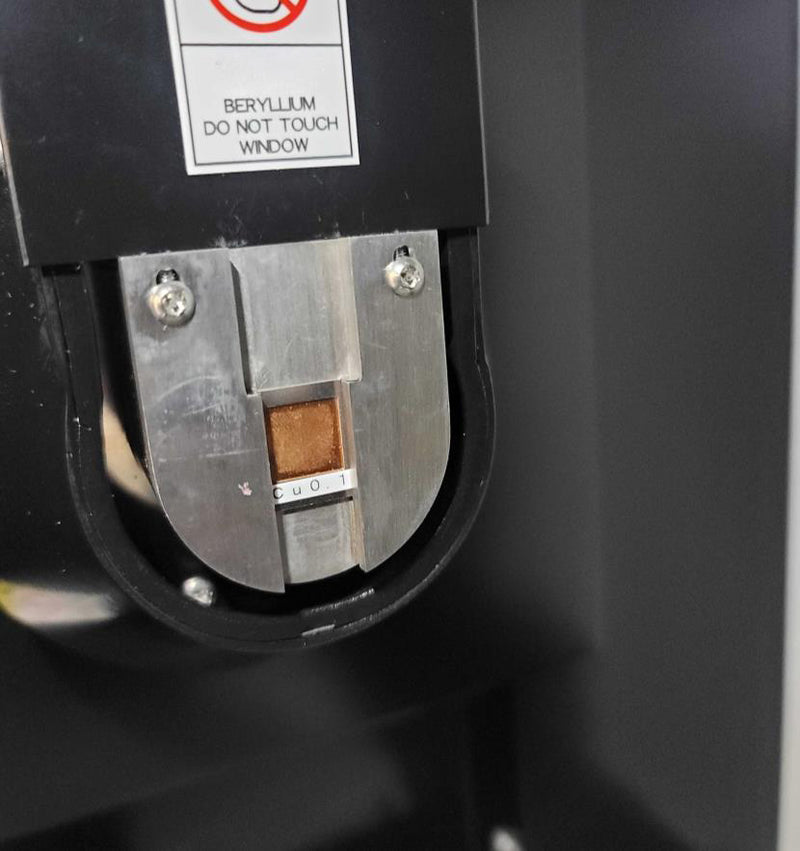

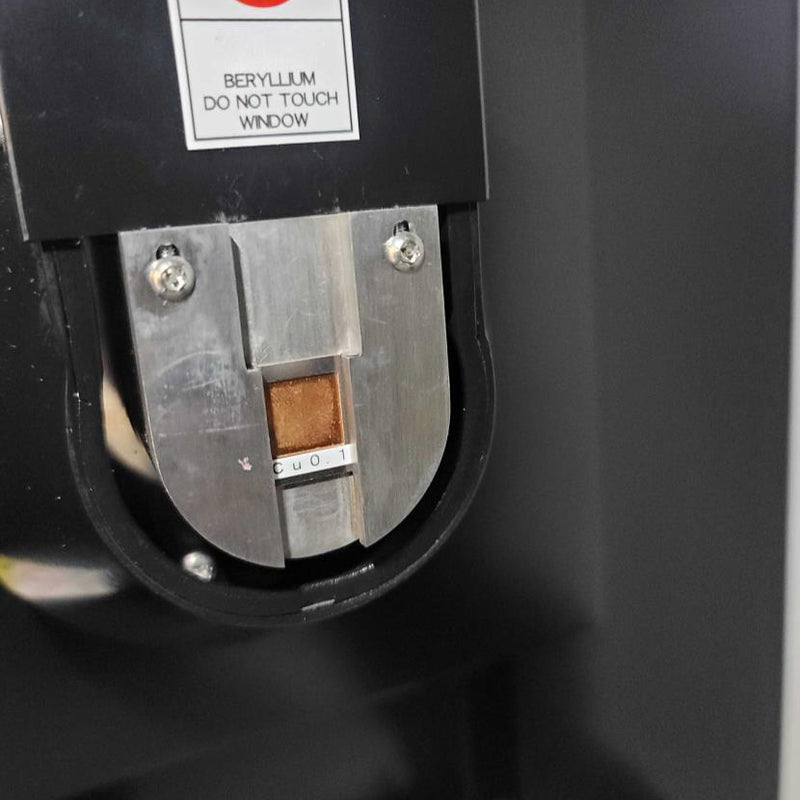

- Fixed Filter: Al 1.0 mm, Cu 0.1 mm, & Cu 0.2 mm
X-ray Detecting Unit:
- Detector Type: Semiconductor Flat Panel Detector
- Detector Area: 11.4 mm x 145.7 mm
- Pixel Size: 49.5 μm x 49.5 μm
- Pixel Volume: 2352 pixel x 2944 pixel
- Output Image Bit: 14 bit

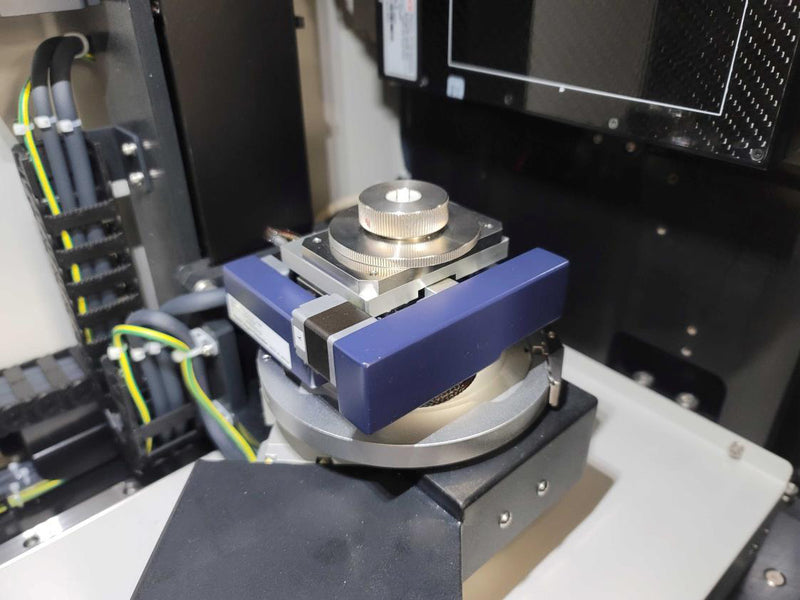

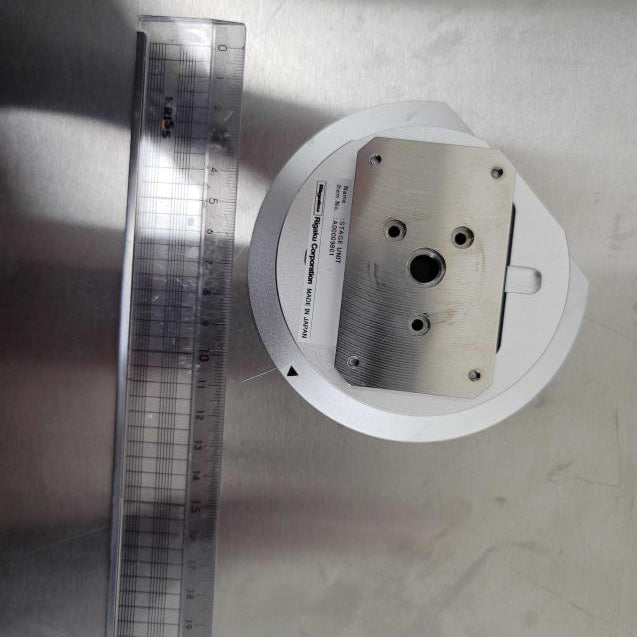

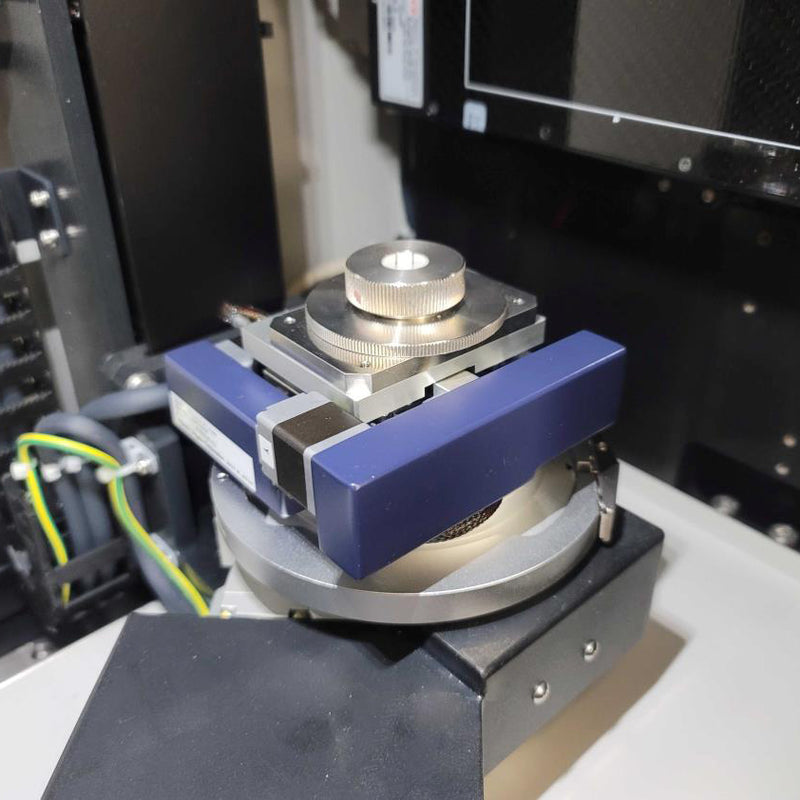

Sample Stage:

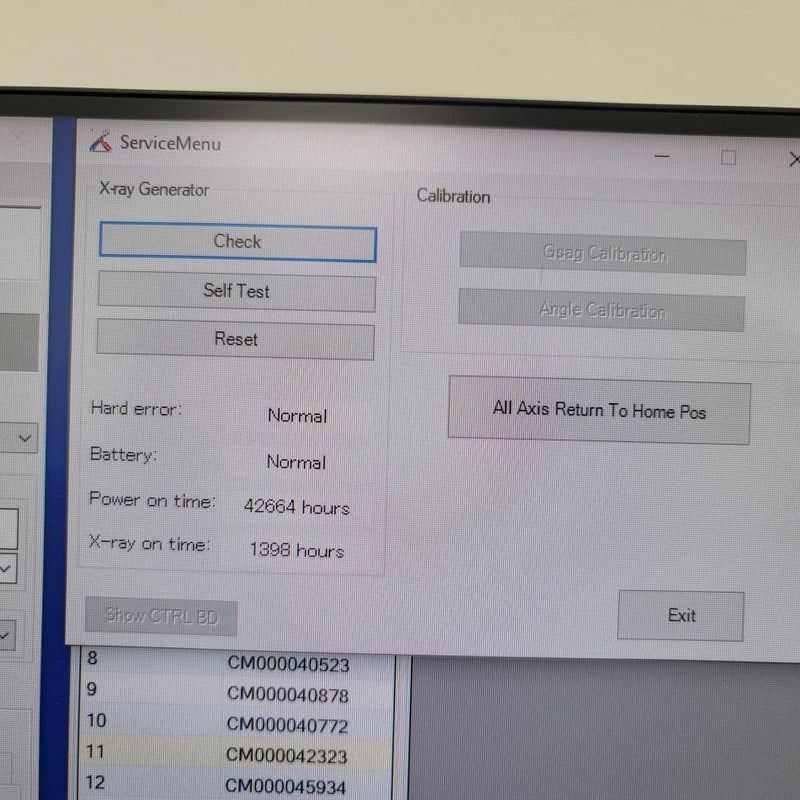

- Operation by controller software in control panel screen (Electronic Control)
- Z Axis: Up / Down direction
- Movable Range: 140 mm
- XY Axes (Optional)
- Moveable Range: X axis and Y axis: ± 3 mm
- Sample Mountable Field of View: Max.φ200 mm x 270 mm

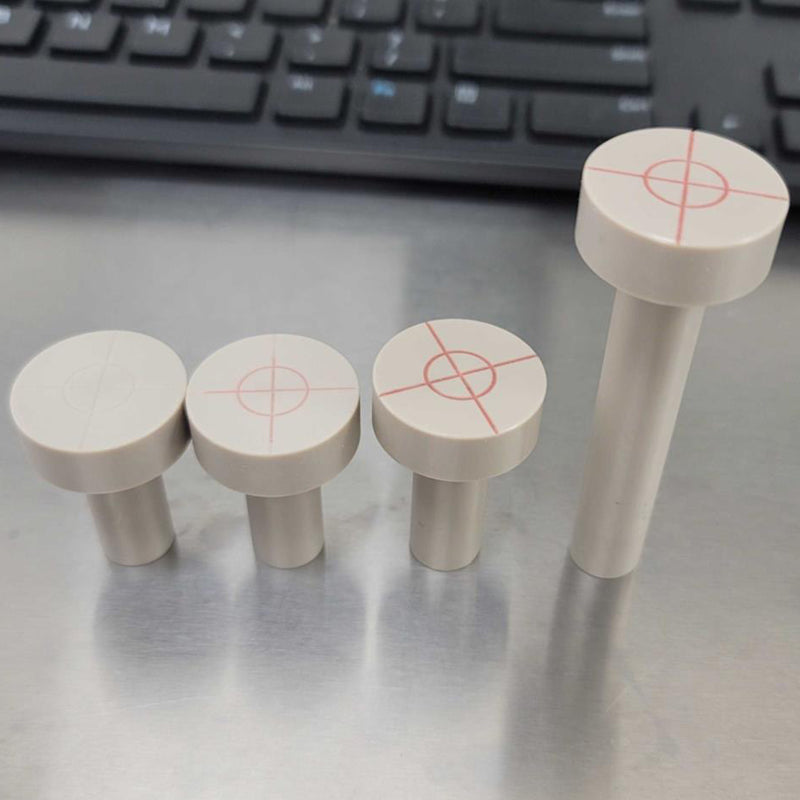

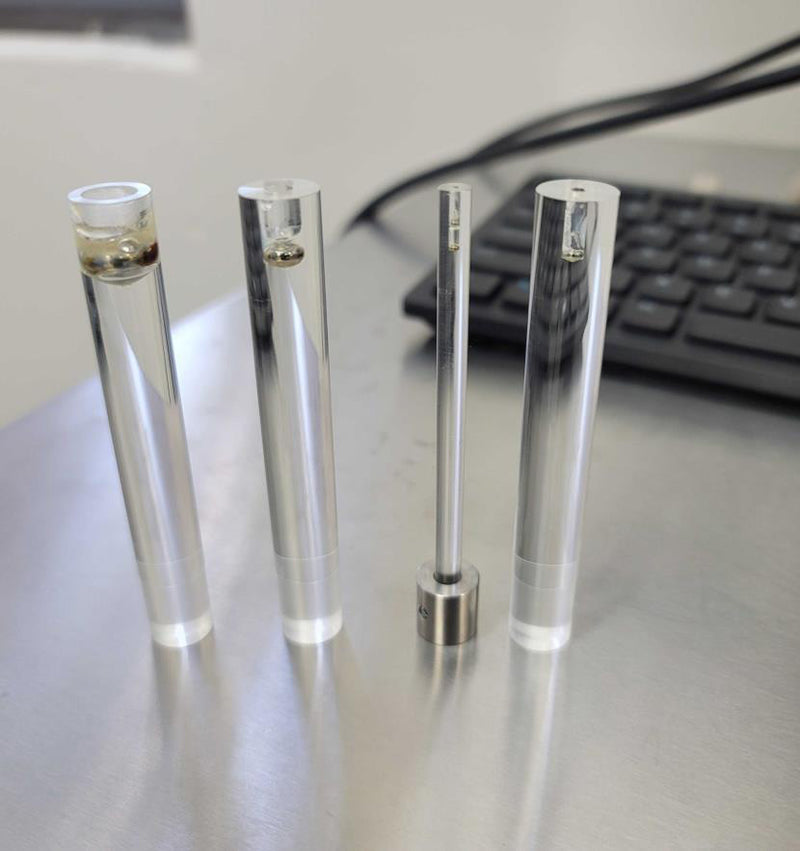

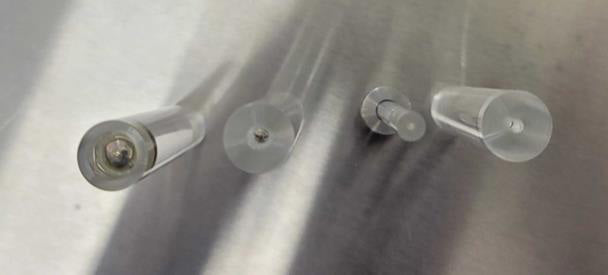

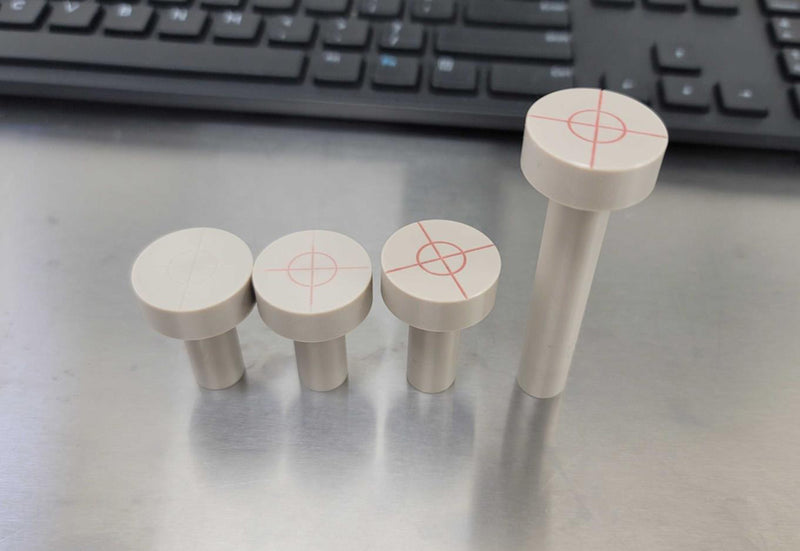

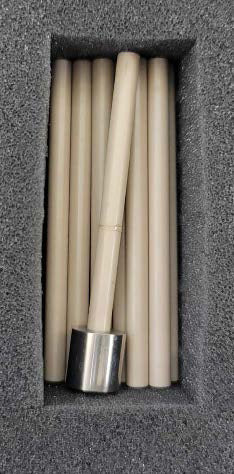

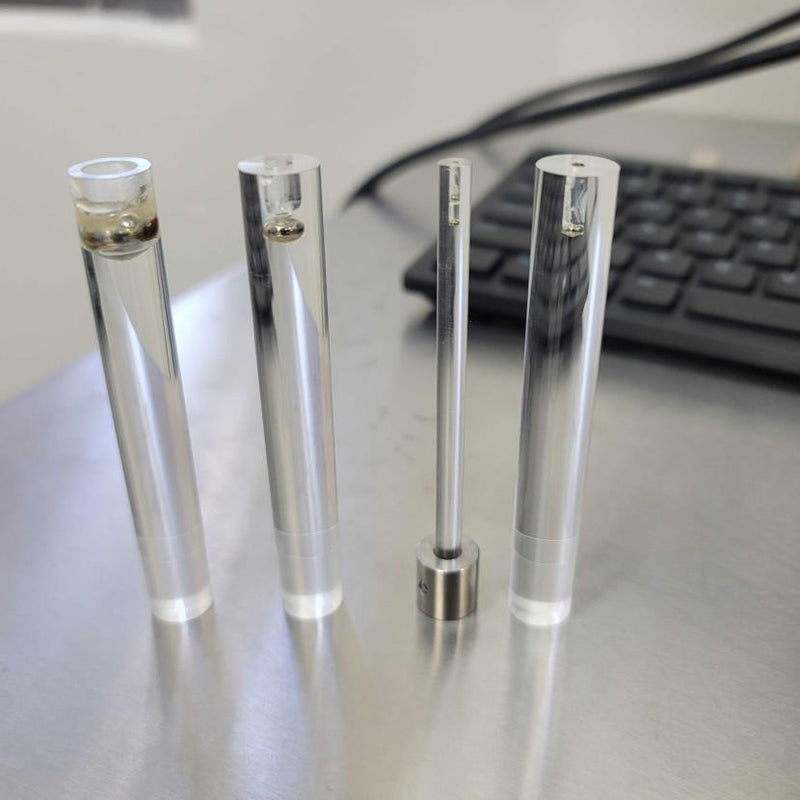

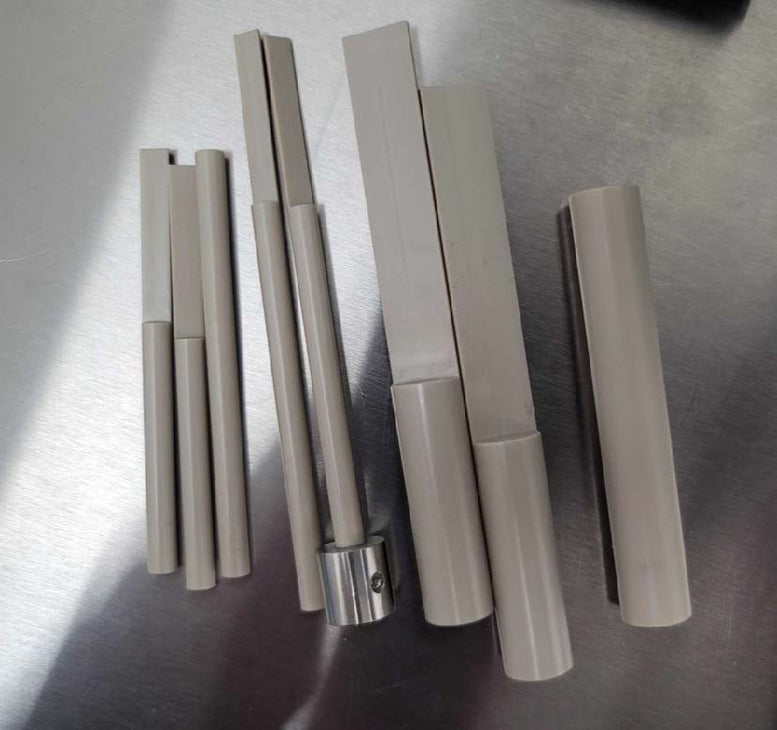

- Sample Stick Size: φ5 mm

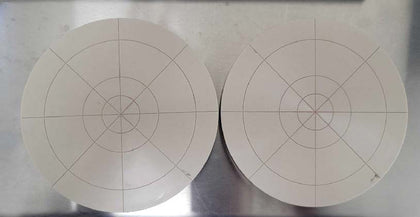

- Sample Board Size: φ130 mm or φ200 mm (Sample load: 5 kg)
