Asset #: 138743

Make: Mill Lane

Model: -

Last Confirm Date: August 19, 2025

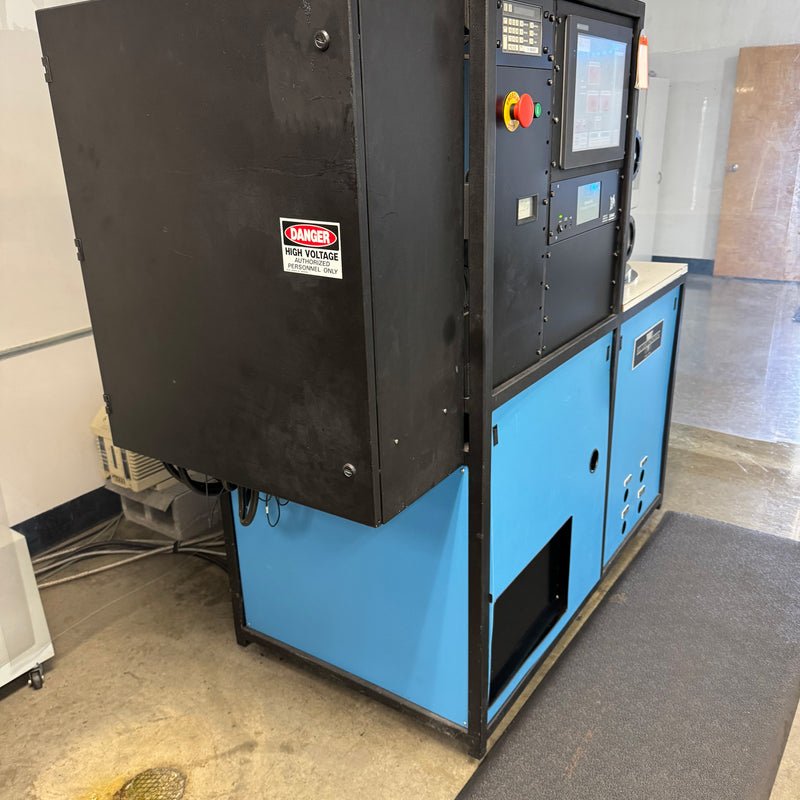

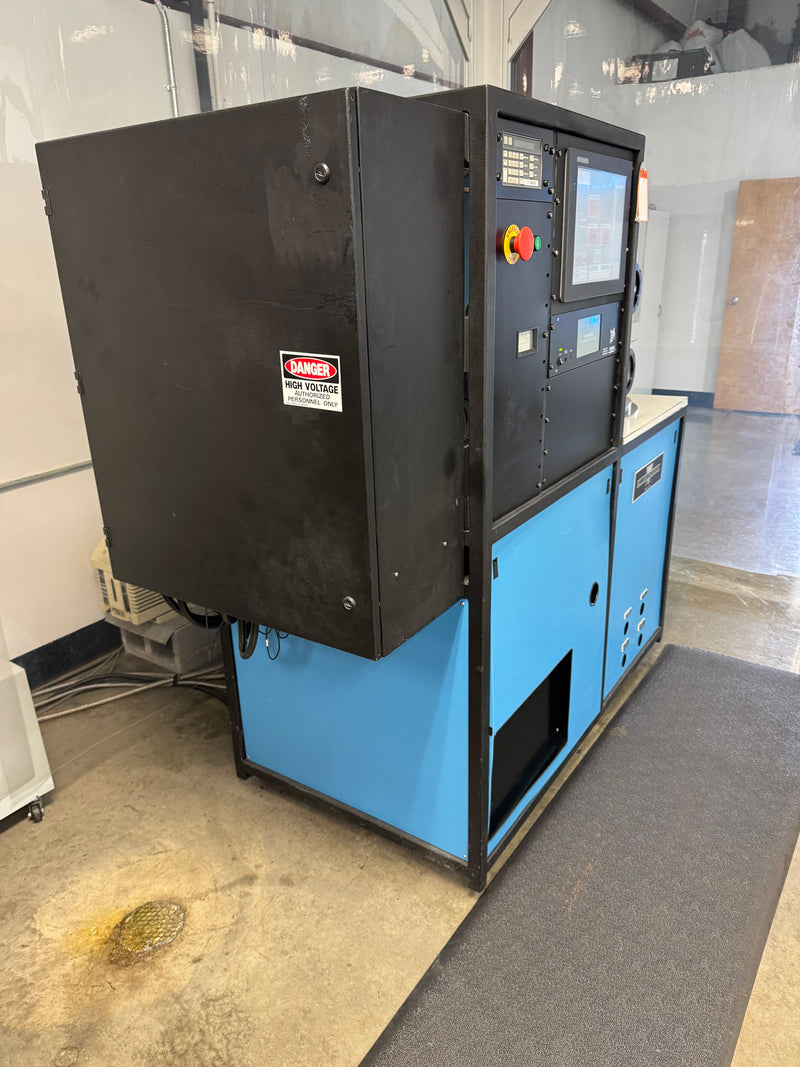

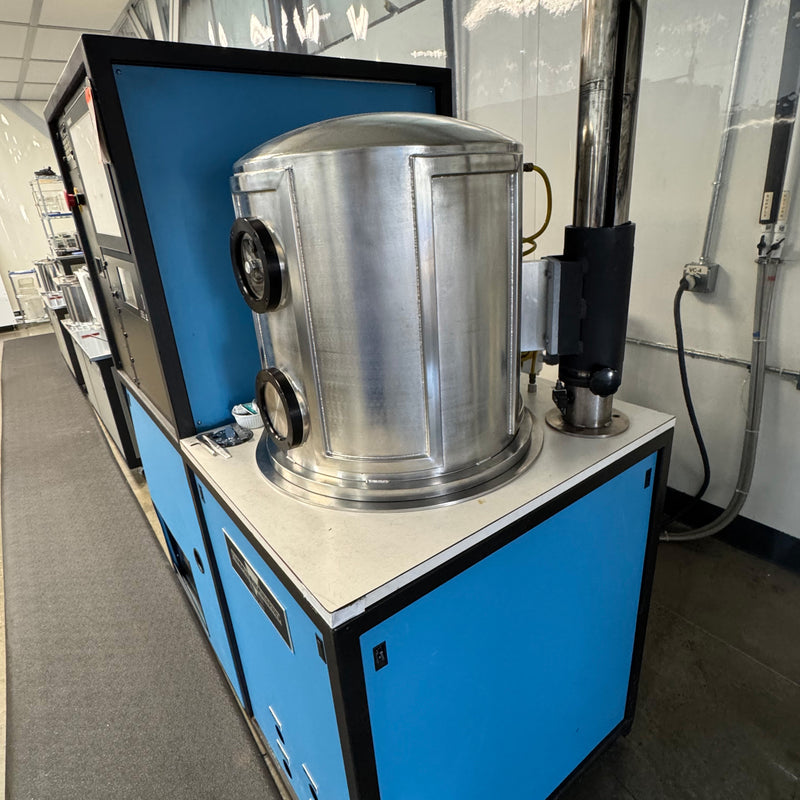

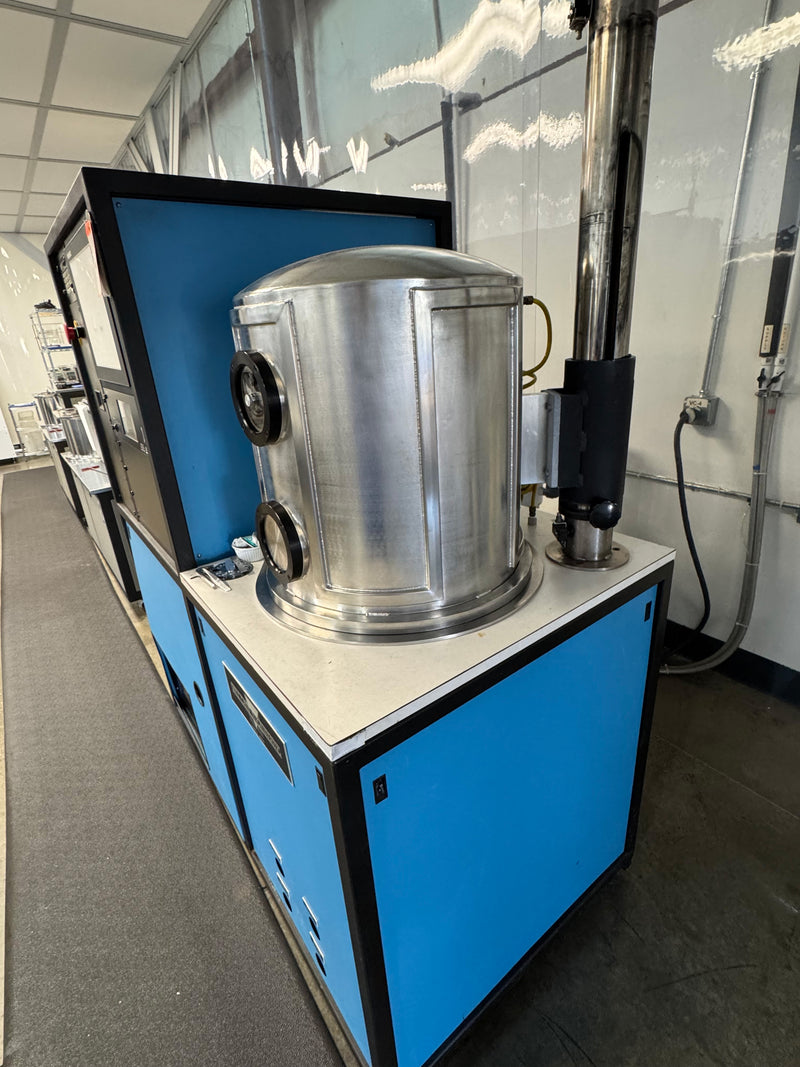

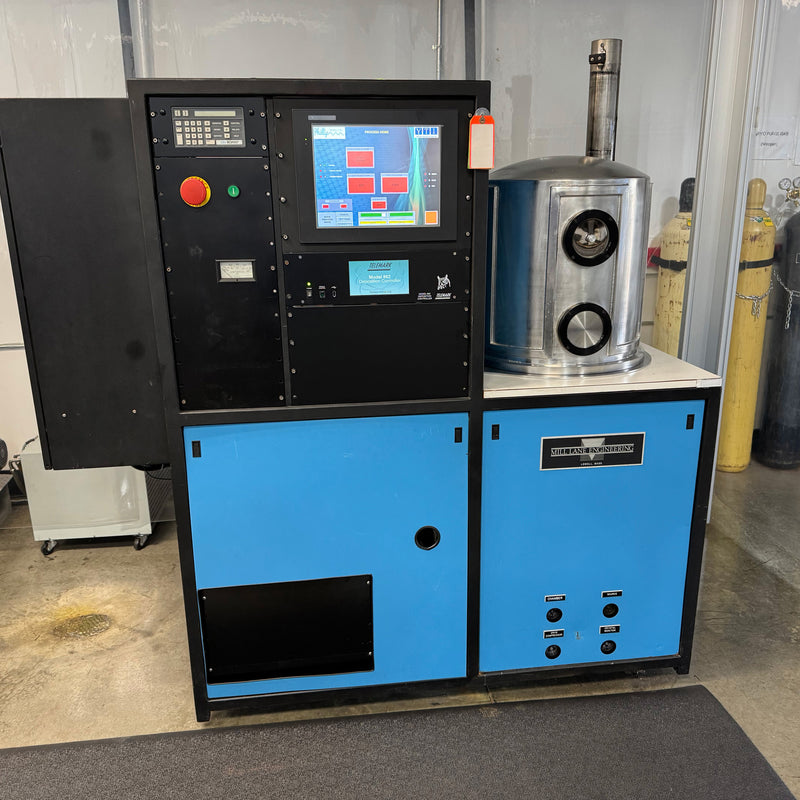

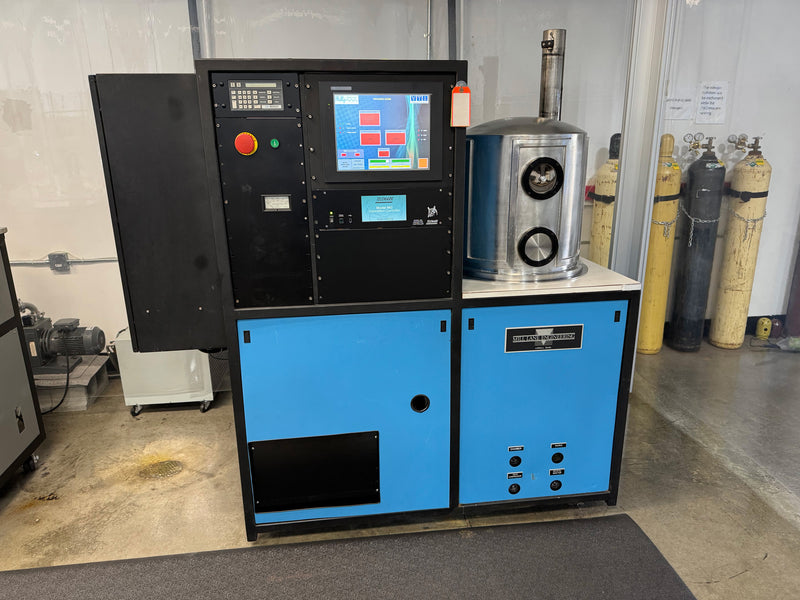

Mill Lane PVD (Physical Vapor Deposition)
Configured for:
- High-end thermal evaporation
- Straightforward upgrade path to e-beam deposition

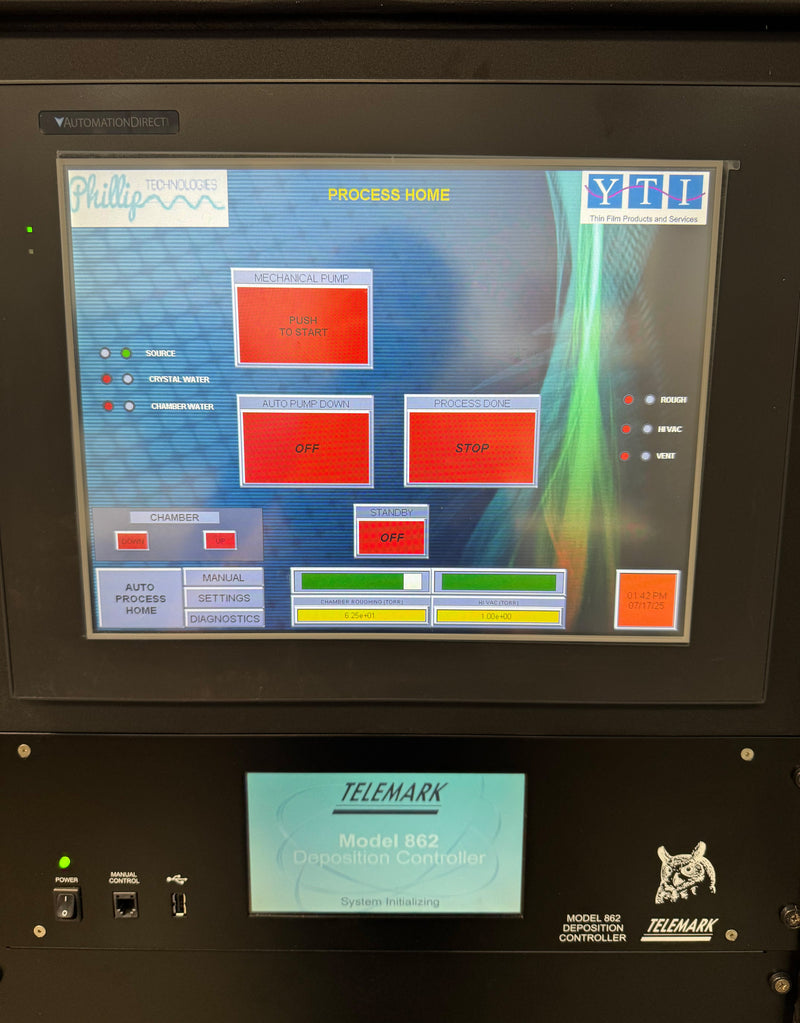

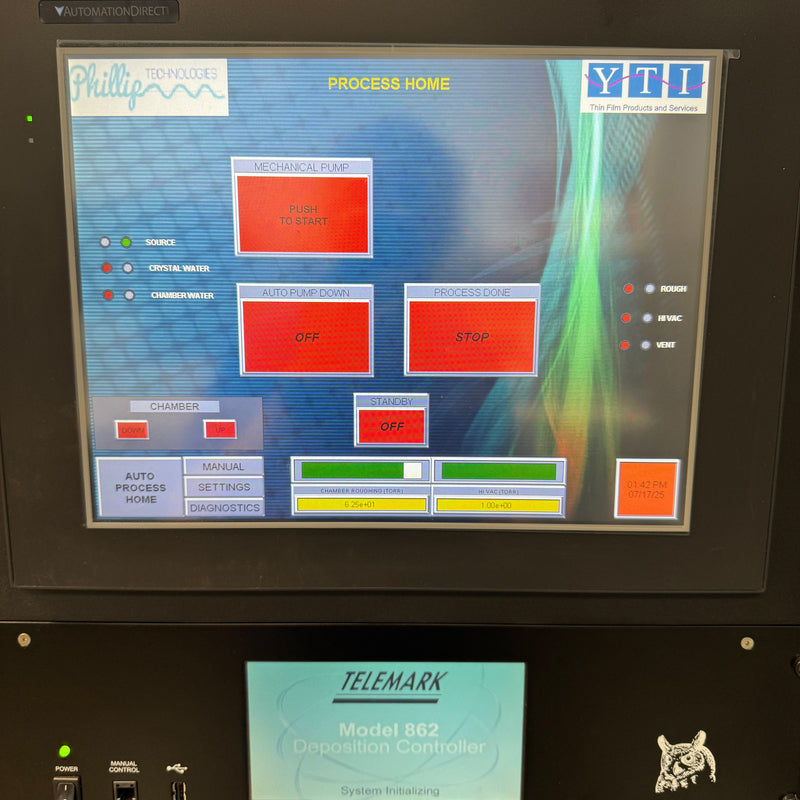

Telemark 862 Deposition Controller fully integrated into the PLC/HMI for:
- Automatic process sequencing
- Source shutter actuation
- vacuum based start/stop
- Planetary rotation
- Dual-crystal switching

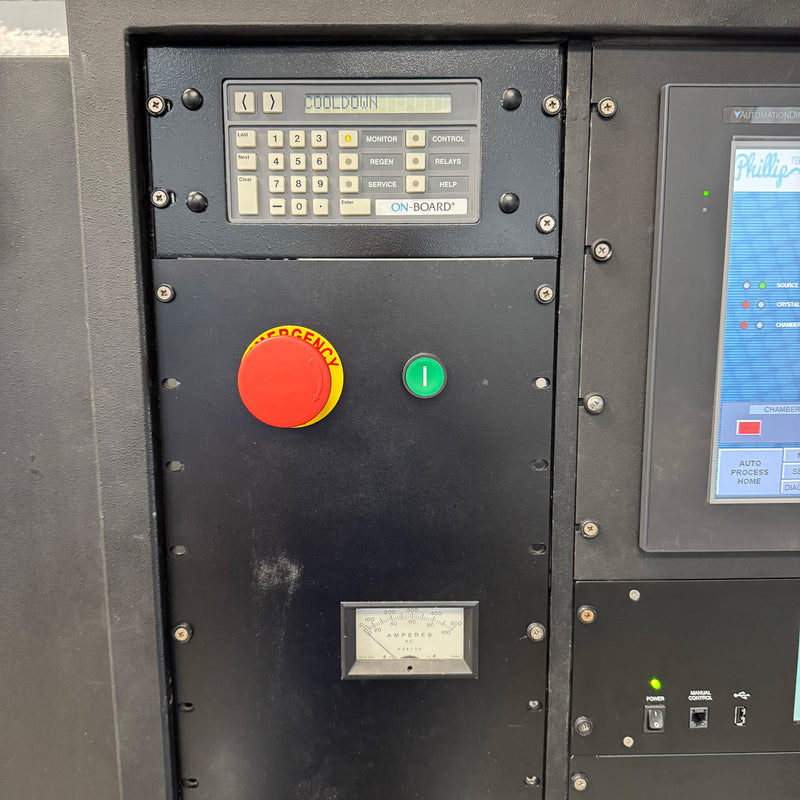

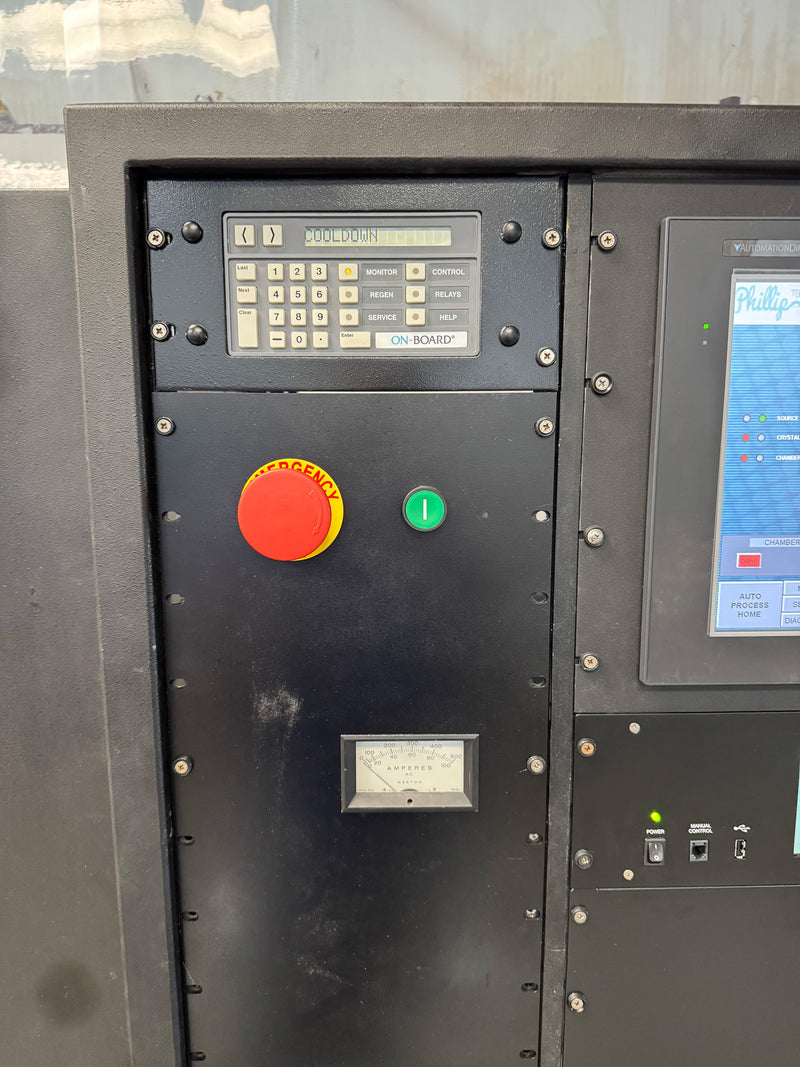

AutomaticDirect DL 205 PLC:
- With touchscreen HMI
- All interlocks are for vacuum, water flow, and process safety are built in
- Includes ladder logic & source files for future customization
Vacuum Hardware:

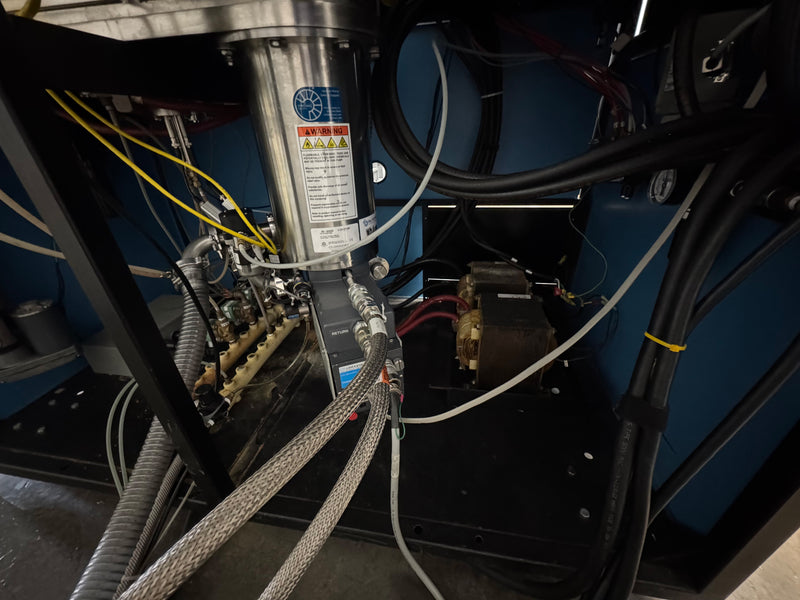

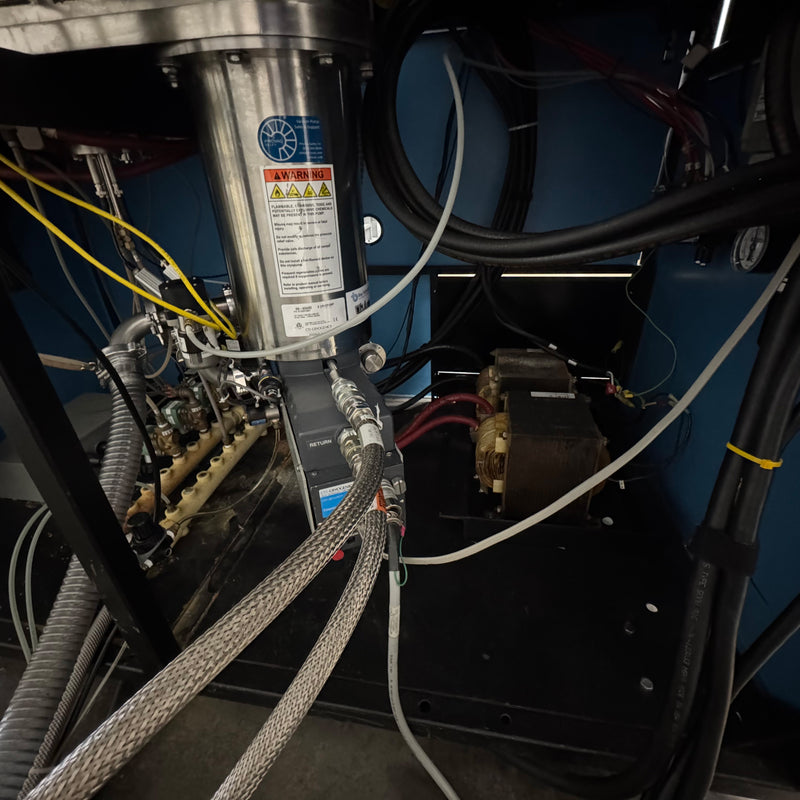

- CTI Onboard 8 cryo pump

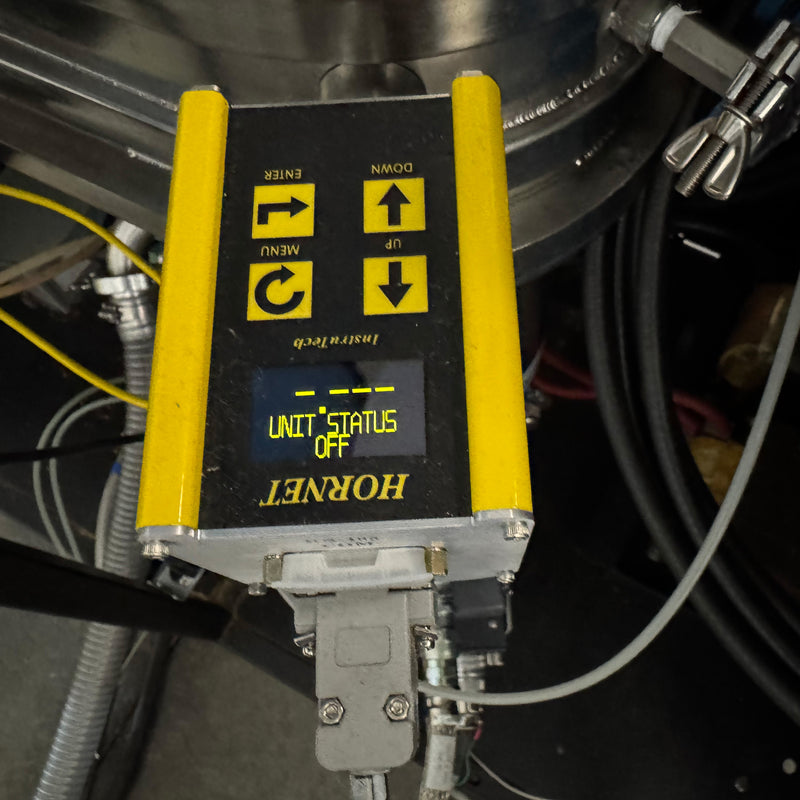

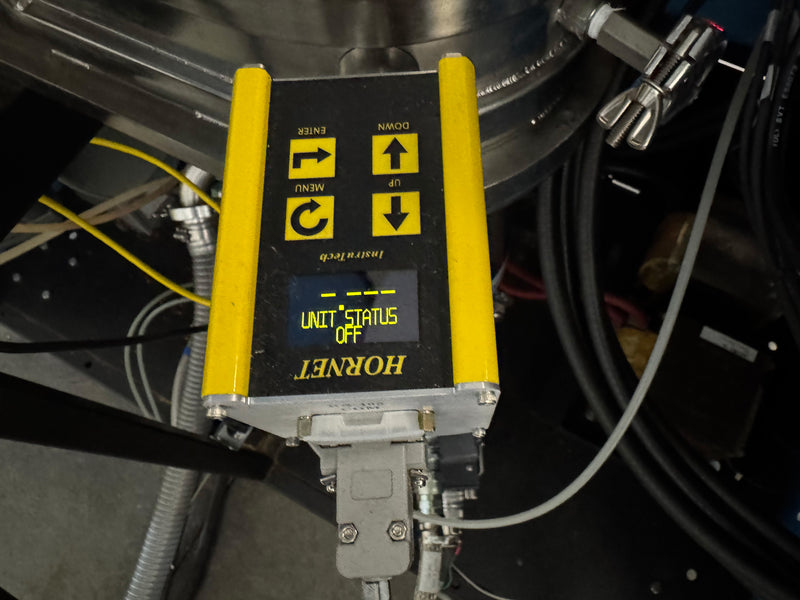

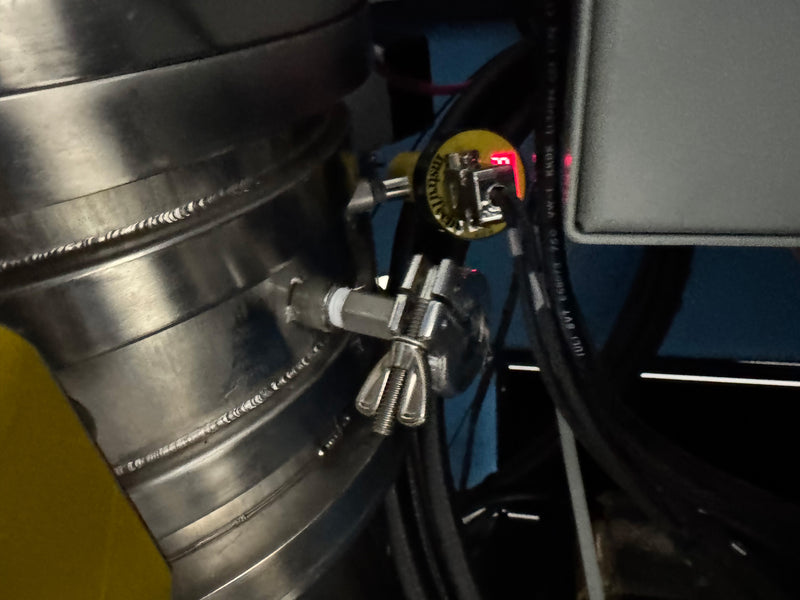

- InstruTech Hornet (high vacuum gauge)
- InstruTech Stinger (convection gauge)

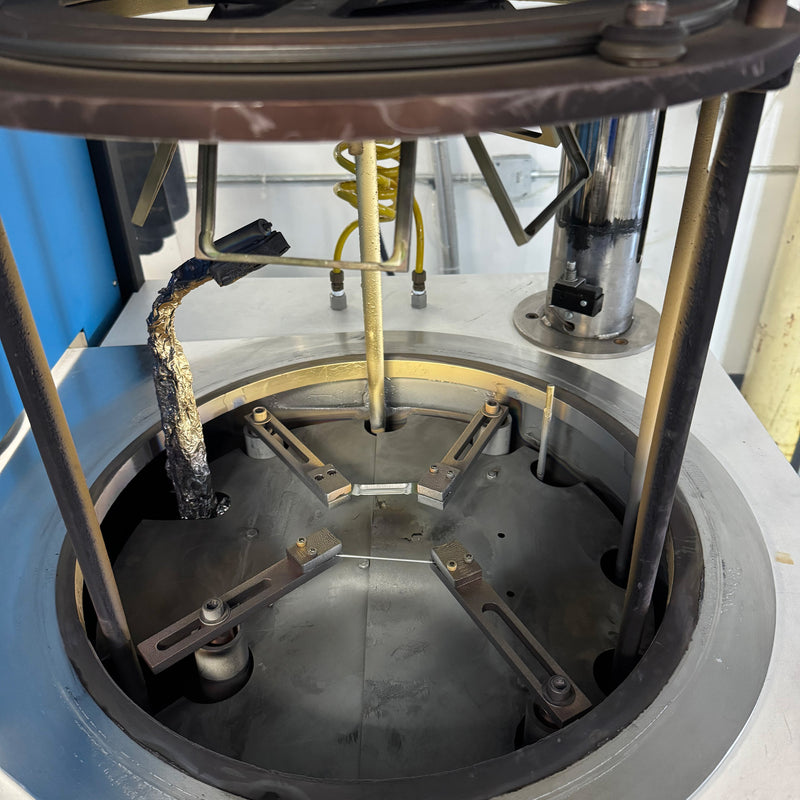

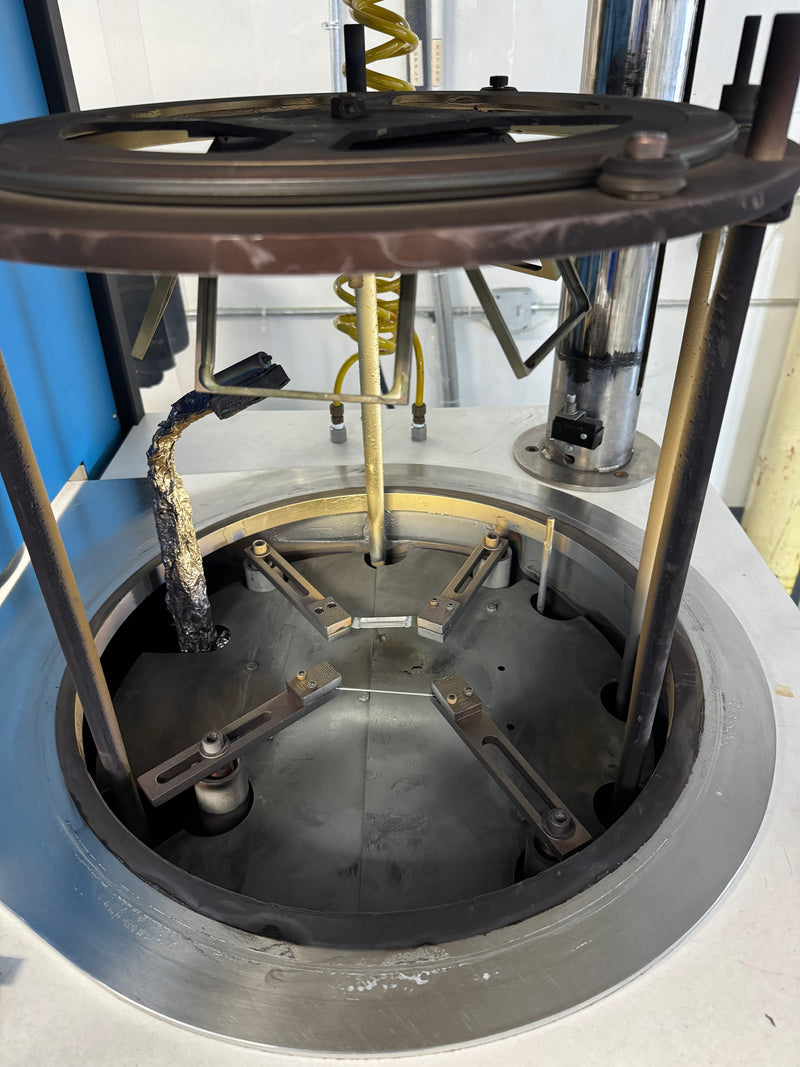

Substrate Handling:

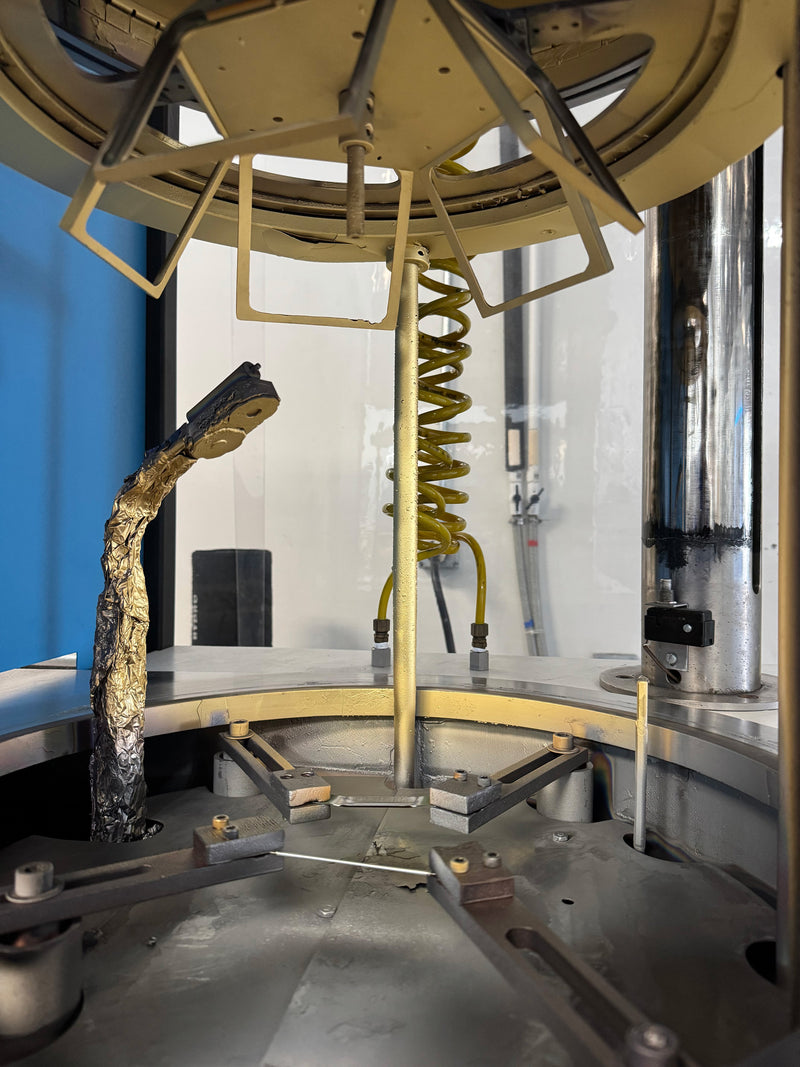

- Planetary rotation system integrated into automation
- Dual crystal sensor head with motorized shutter for crystal changeover

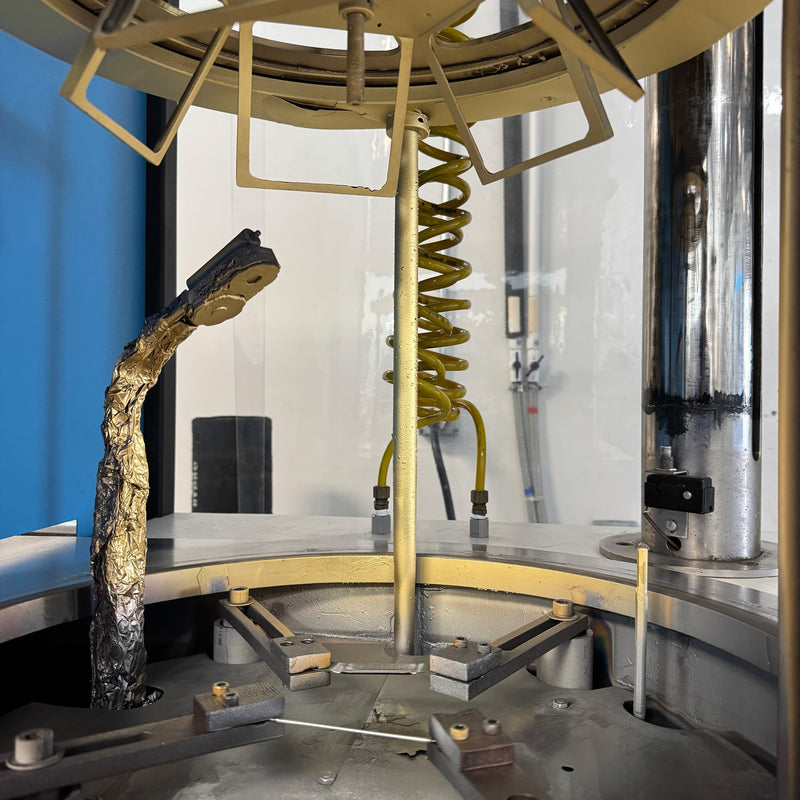

Thermal Evaporation:
- Multi-filament water cooled assembly
- Full shielding set for chamber & base

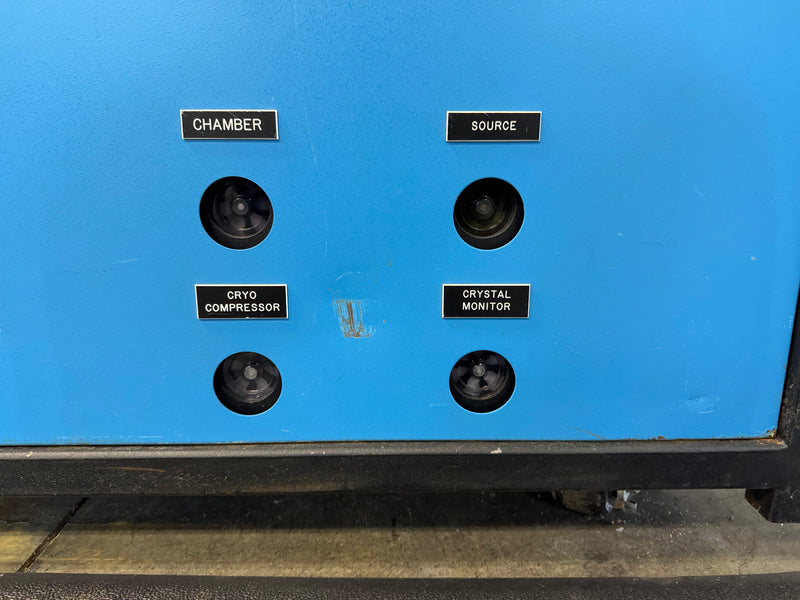

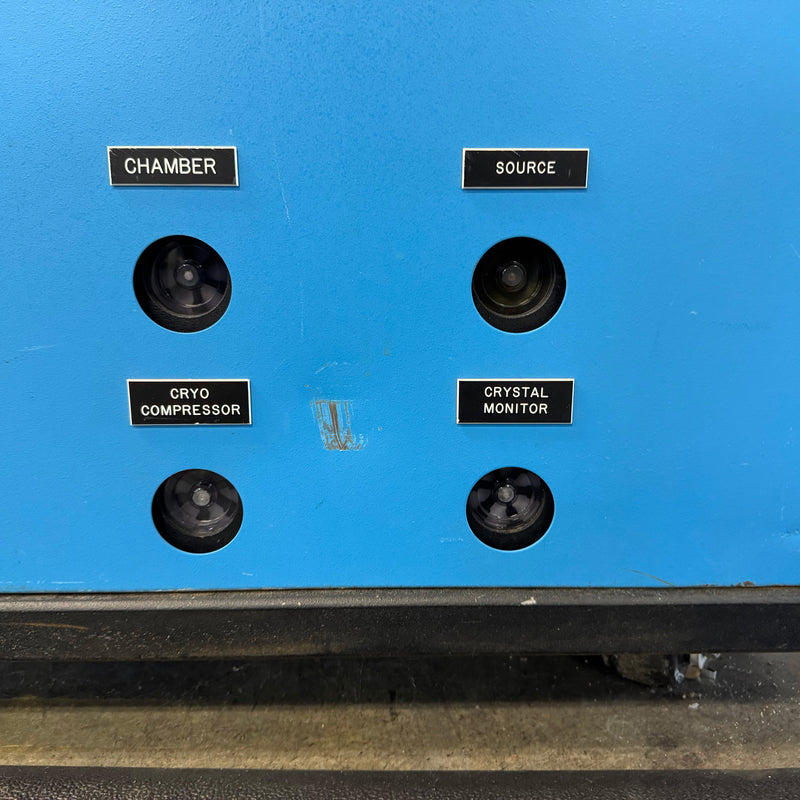

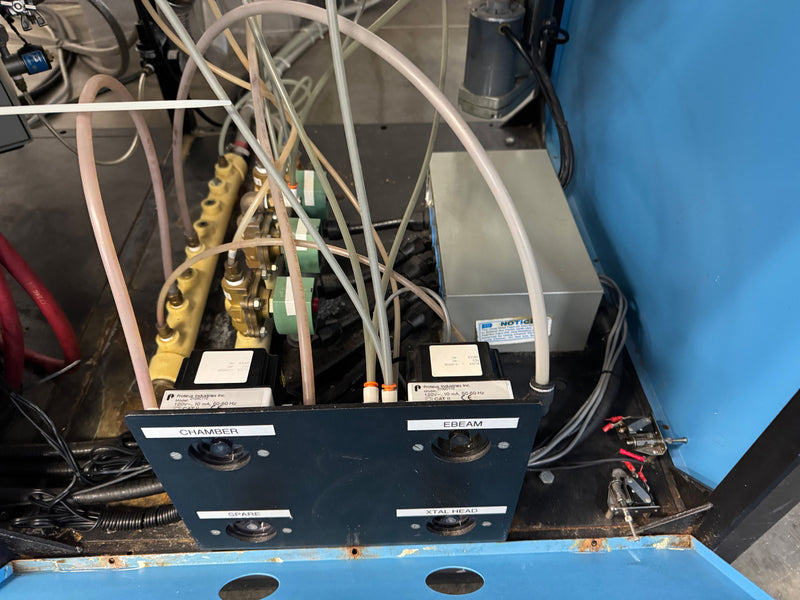

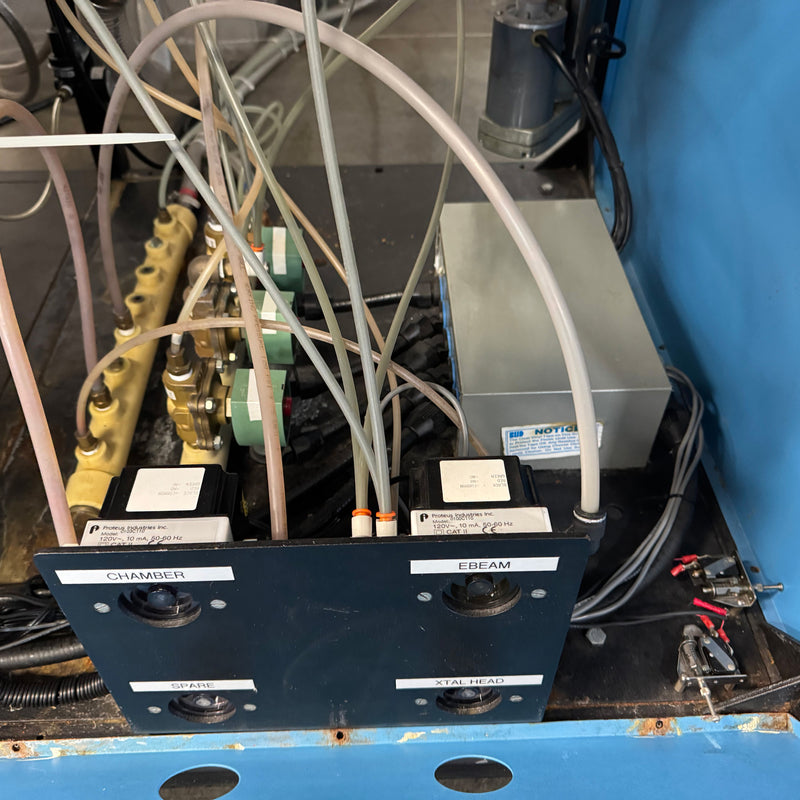

Cooling:
- Water cooled chamber walls, baseplate, filament blocks, and crystal head

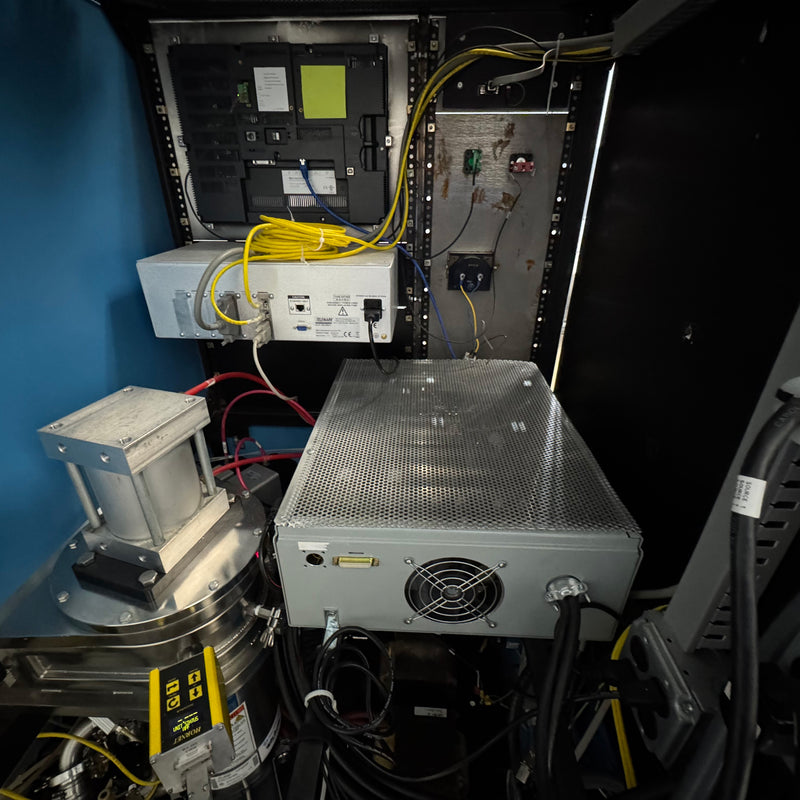

E-Beam Ready:
- PLC configured with IO & interlocks for e-beam power supply & crucible indexer
- Ample rack space for additional hardware integration

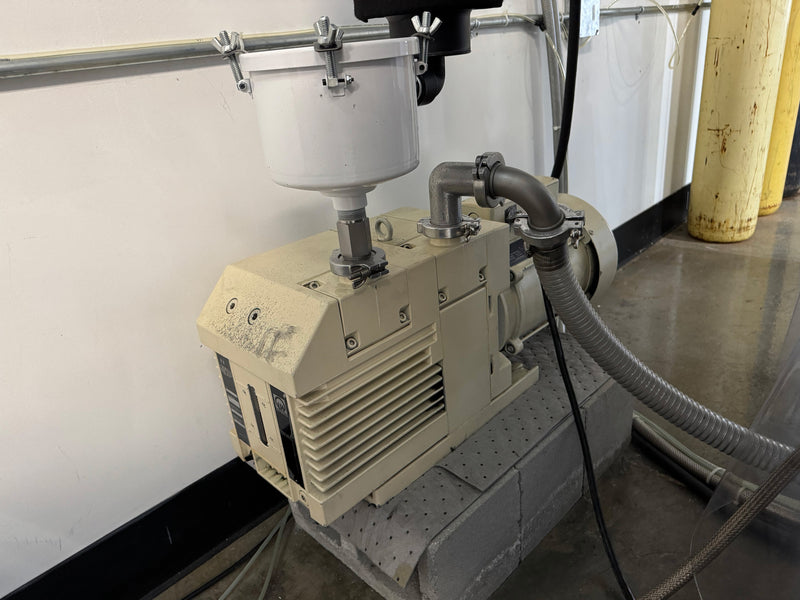

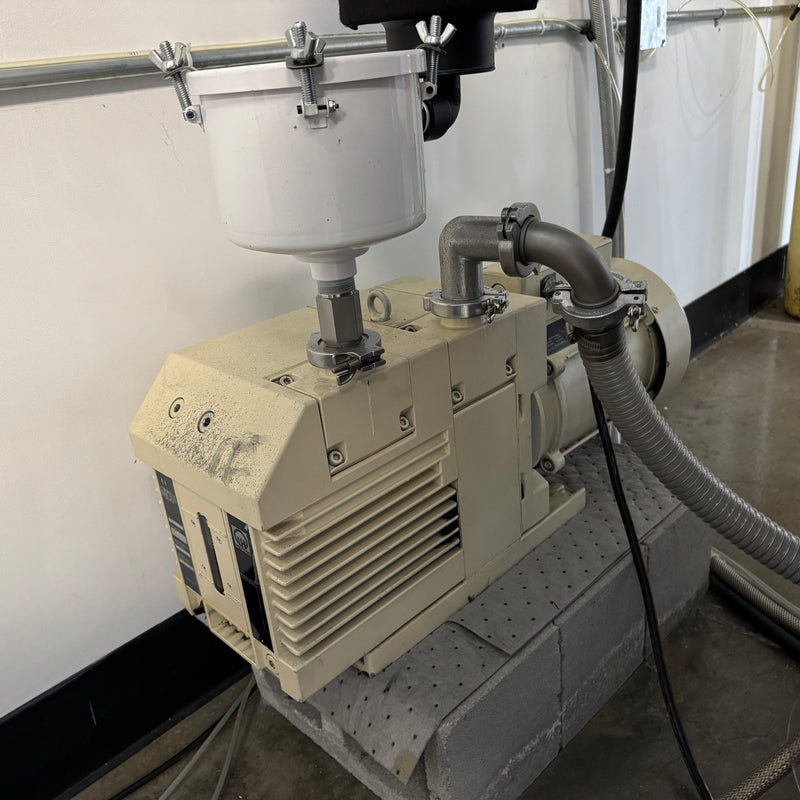

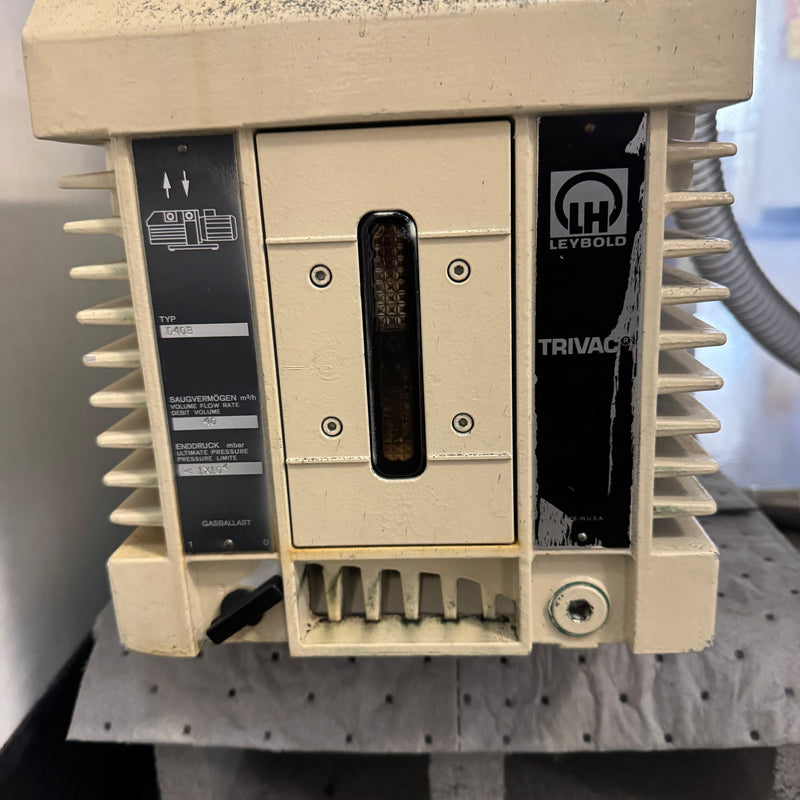

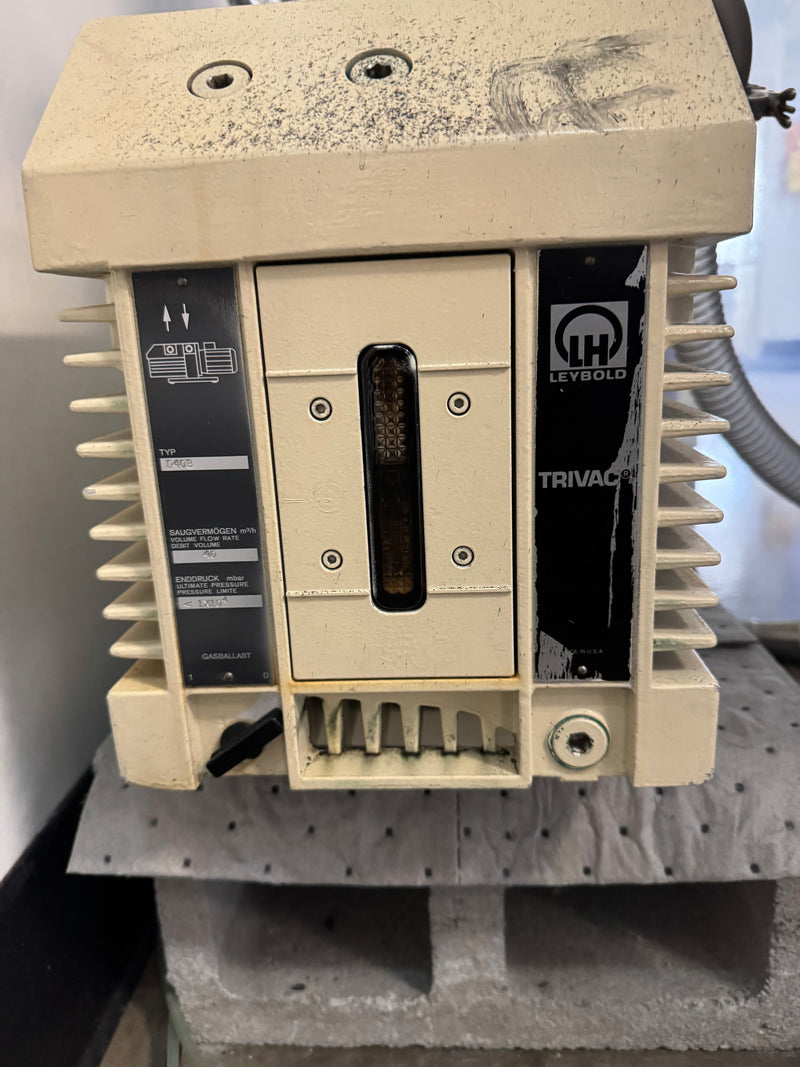

- Optional Leybold TriVac D8B Roughing Pump
