Asset #: 137407

Make: SUSS

Model: MA 6

Wafer Sizes: 4 inch

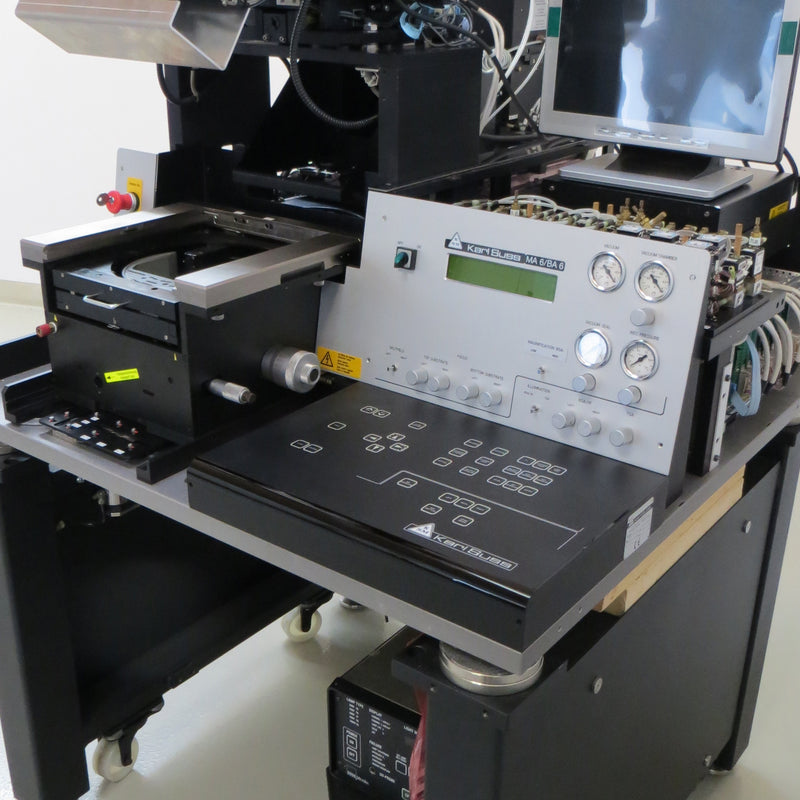

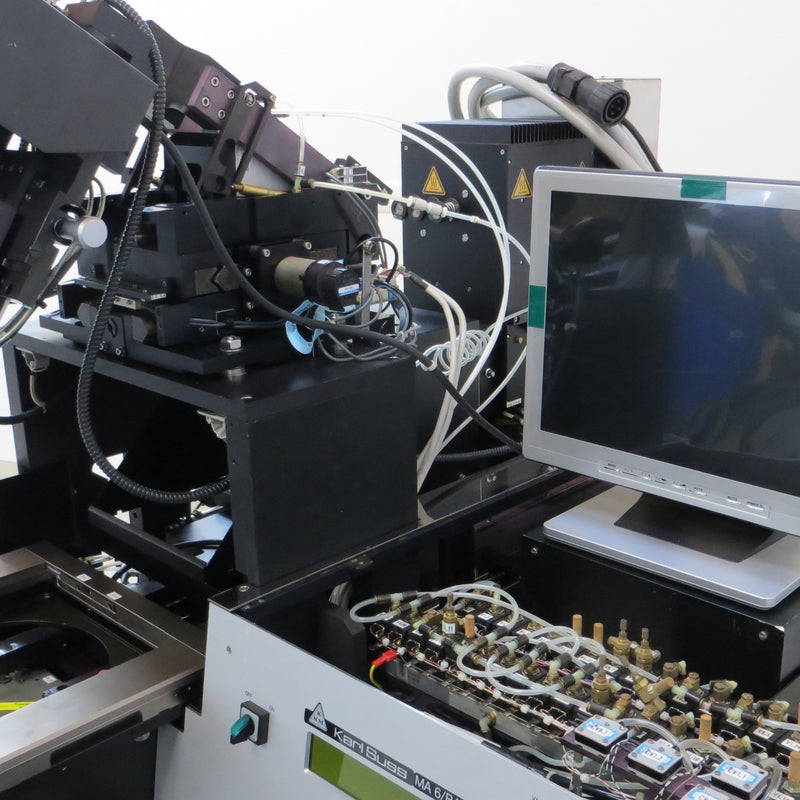

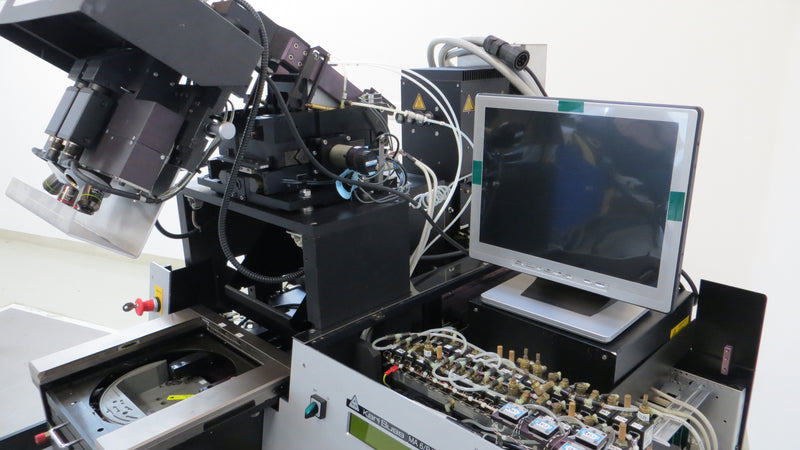

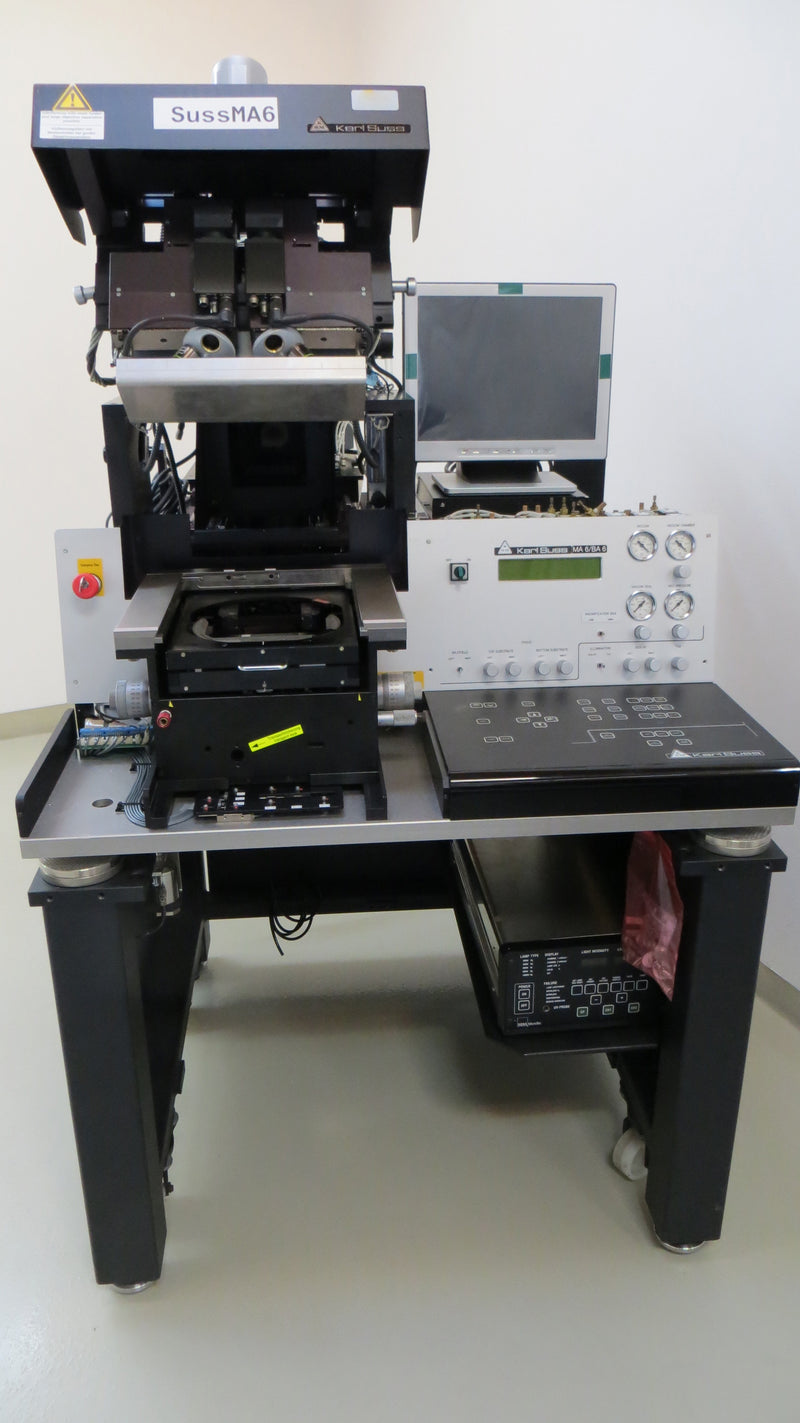

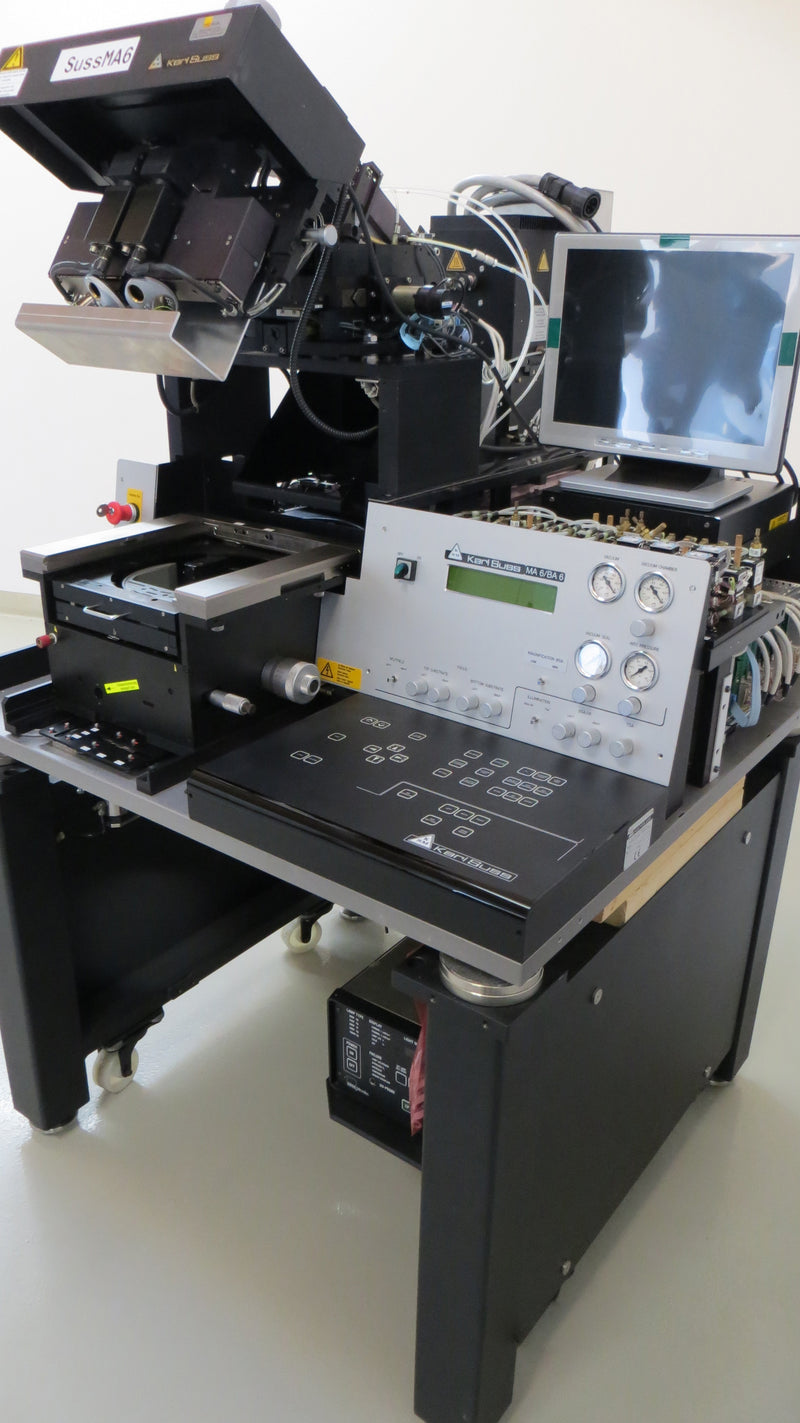

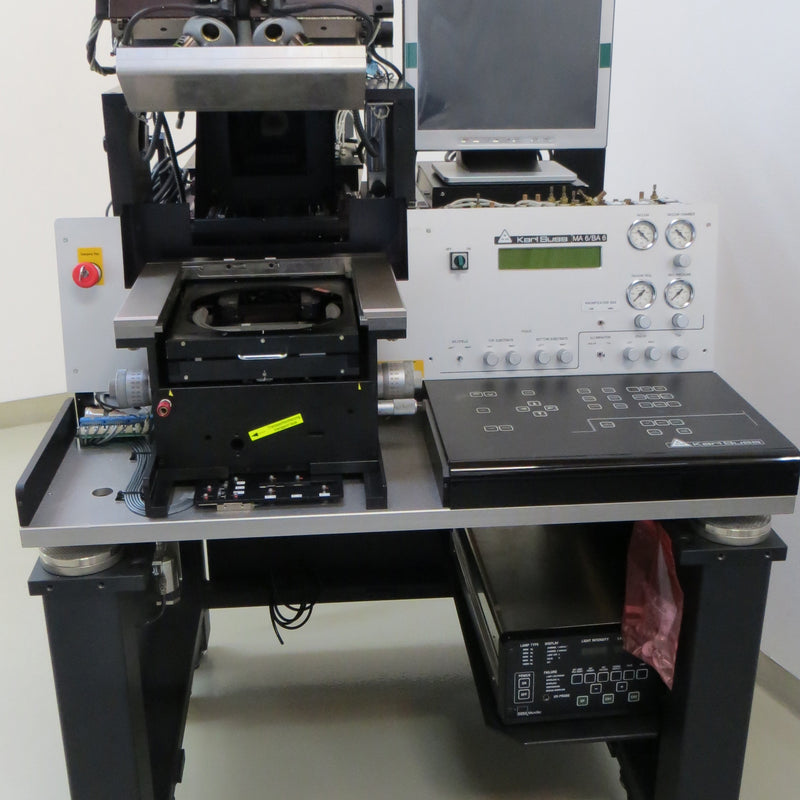

SUSS MA 6 Aligner, 4"
System Configuration:
- Alignment Type: Manual alignment stage
- Wedge Compensation: Automatic wedge compensation system
- Operable in contact or non-contact mode (with reference balls)
- Programmable alignment gap: 1 to 1000 µm (resolution: 1 µm) Movement Range:
- X-axis: ±10.0 mm
- Y-axis: ±5.0 mm
- Theta (rotation): ±5°
Base Equipment:
- Machine base with mechanical, pneumatic, and electrical equipment

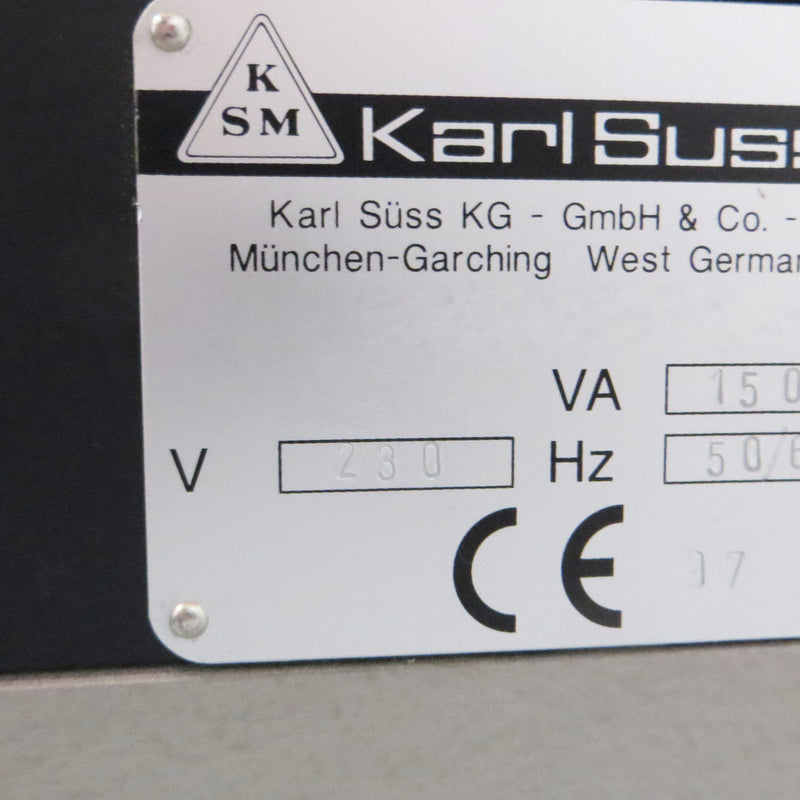

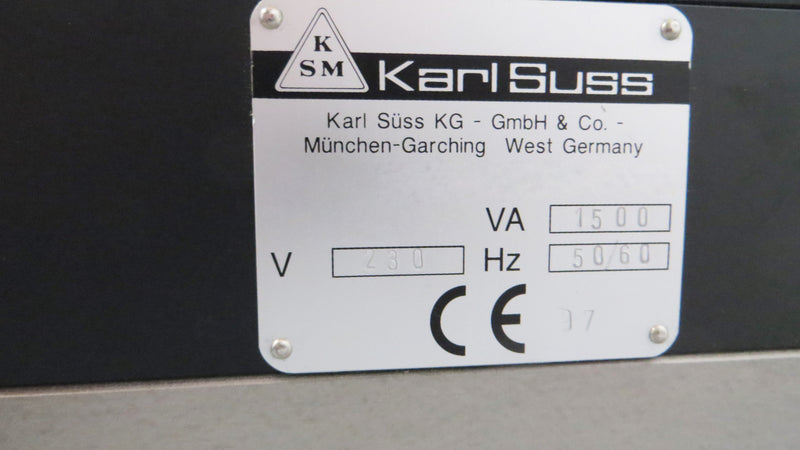

- Compatible with 230V/50Hz and 115V/60Hz power sources

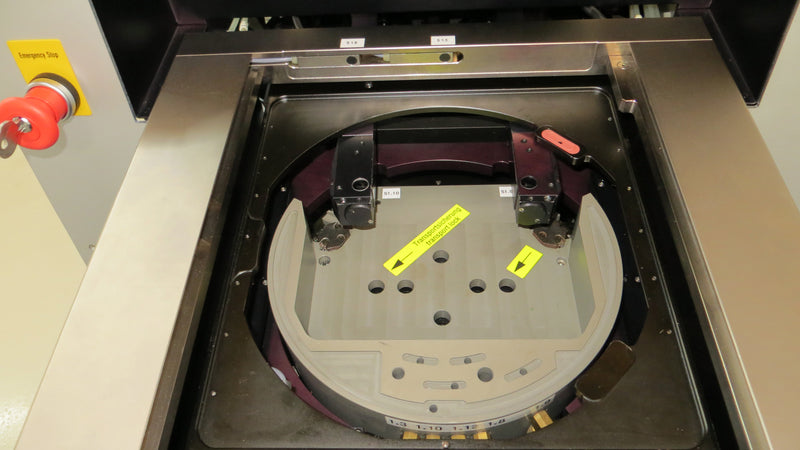

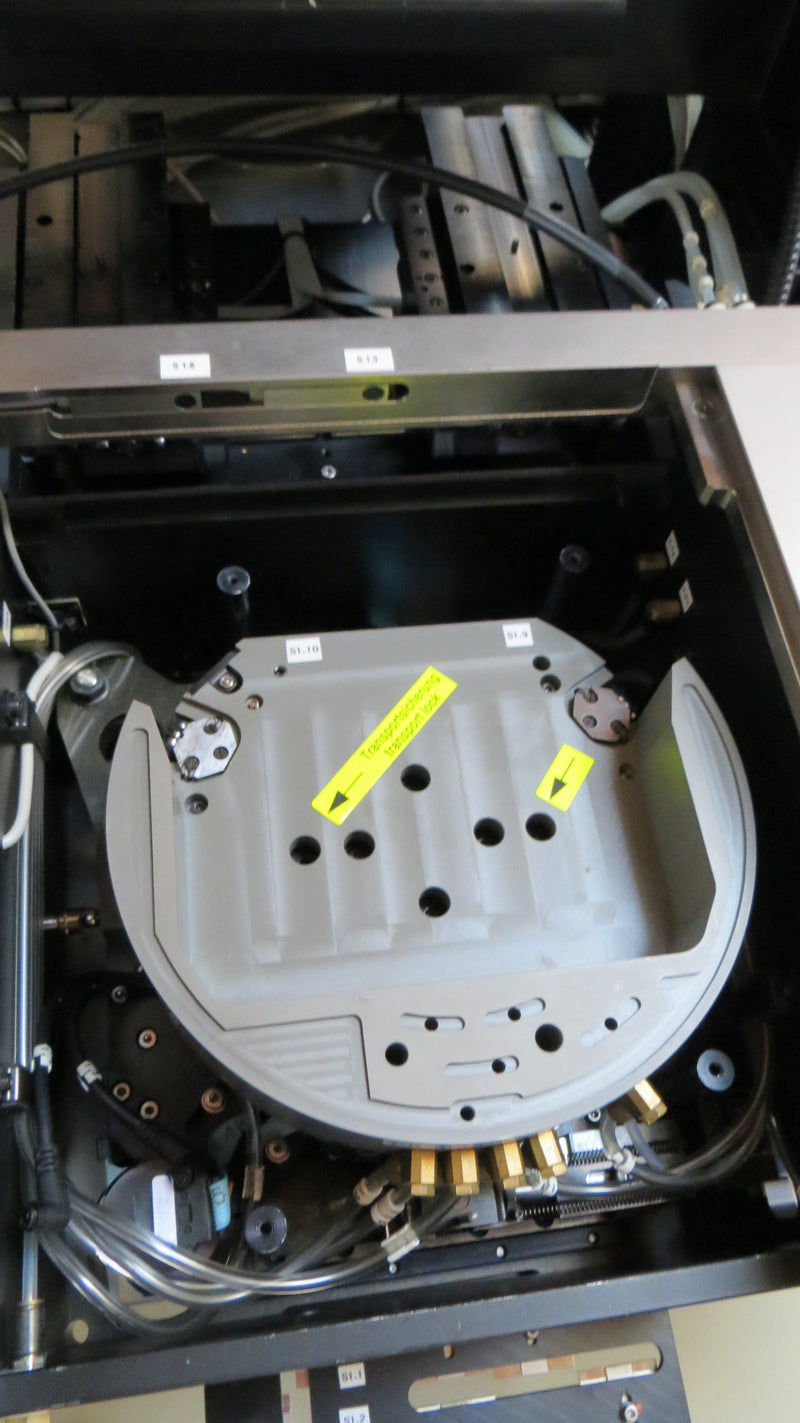

Mask Handling:

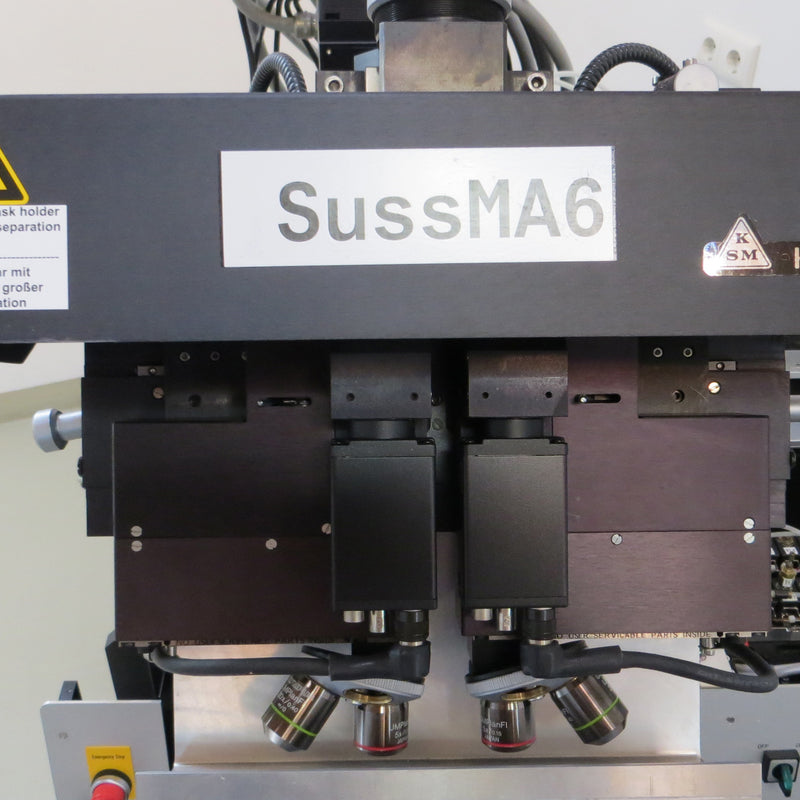

- Adapter system for use with mask holders up to 7" x 7" Microscope Stage (TSA):
- Motorized X-Y manipulator
- Manual rotation for microscope
- Integrated microscope tilt for: Exposure position, Access for mask loading
Exposure System:
- Prepared for fixed exposure unit
- Manual wafer/substrate loading & unloading

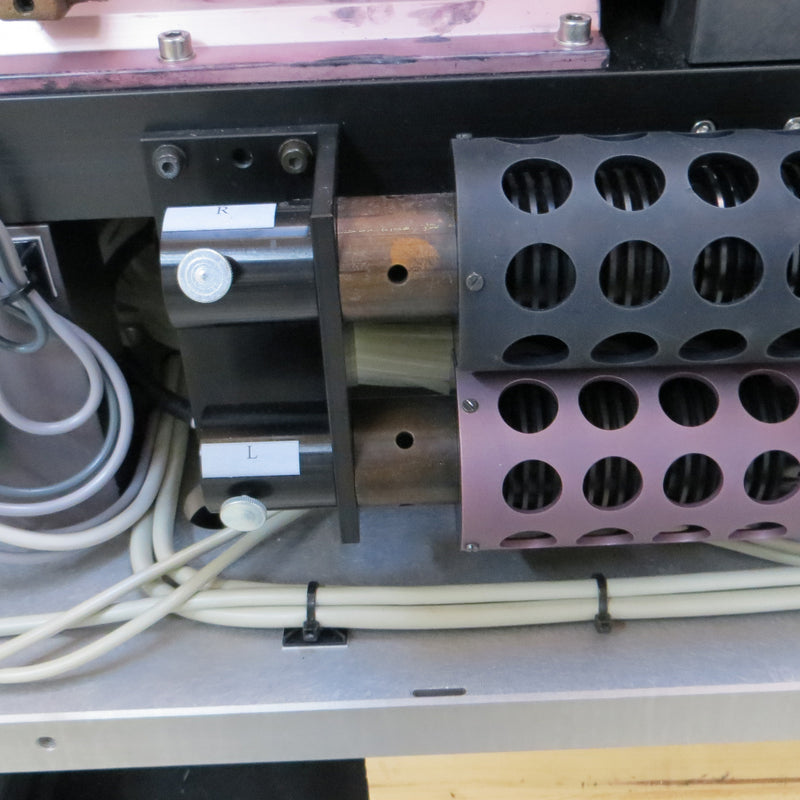

- Exposure Lamp : 350 W
Control System:
- Microprocessor control with LCD display
Wafer/Substrate Compatibility:
- Substrates: 2" x 2" to 6" x 6"
- Mask holder: 5" x 5"
- Wavelength: 250 nm to 435 nm
Documentation:
- Operator manual in English

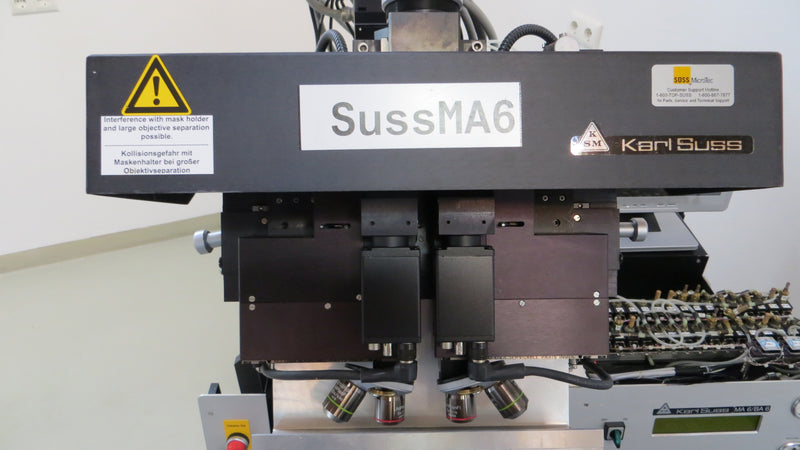

BSA Compatibility:
- Prepared for Top Side and Back Side Alignment) microscopes
- Working distance: 26 mm
Fully Refurbished
