SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System
SSM 495 HG CV Measurement System

SSM 495 HG CV Measurement System

Asset #: 136703

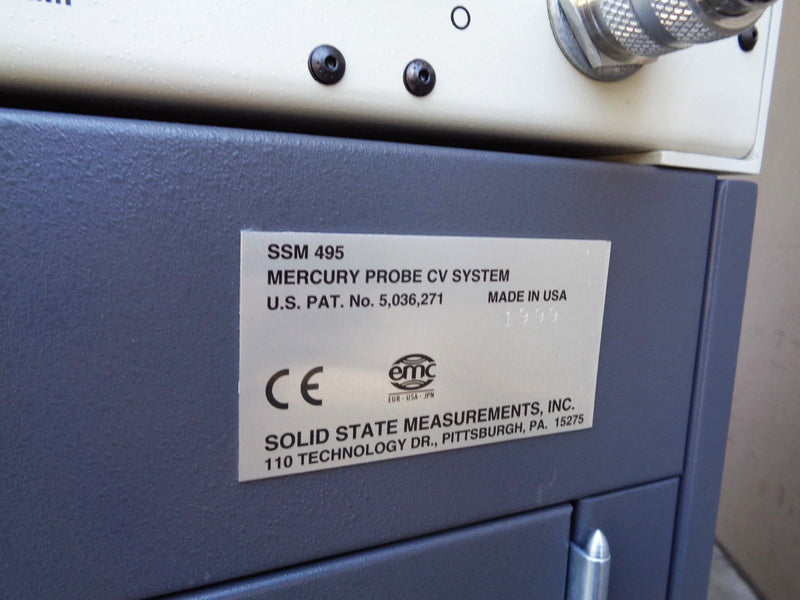

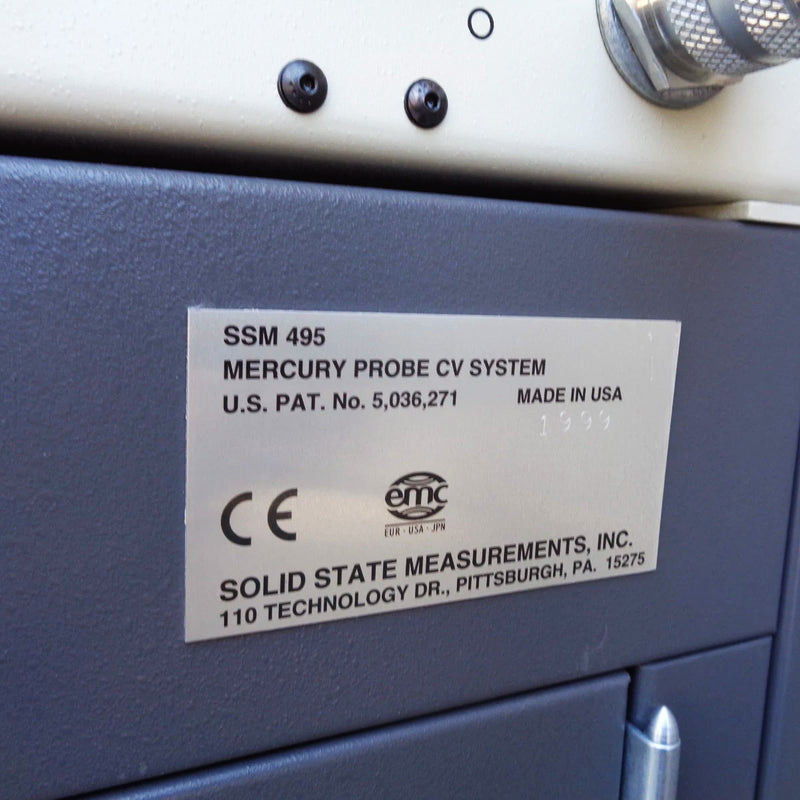

Make: SSM

Model: 495 HG

Wafer Sizes: 4, 5, 6, 8 inch

Last Confirm Date: July 17, 2025

Inquire

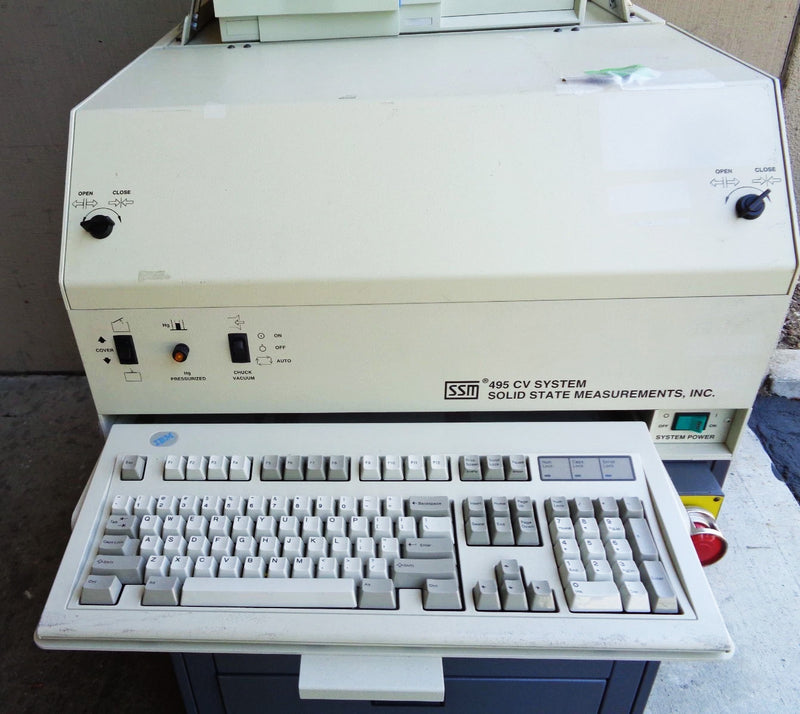

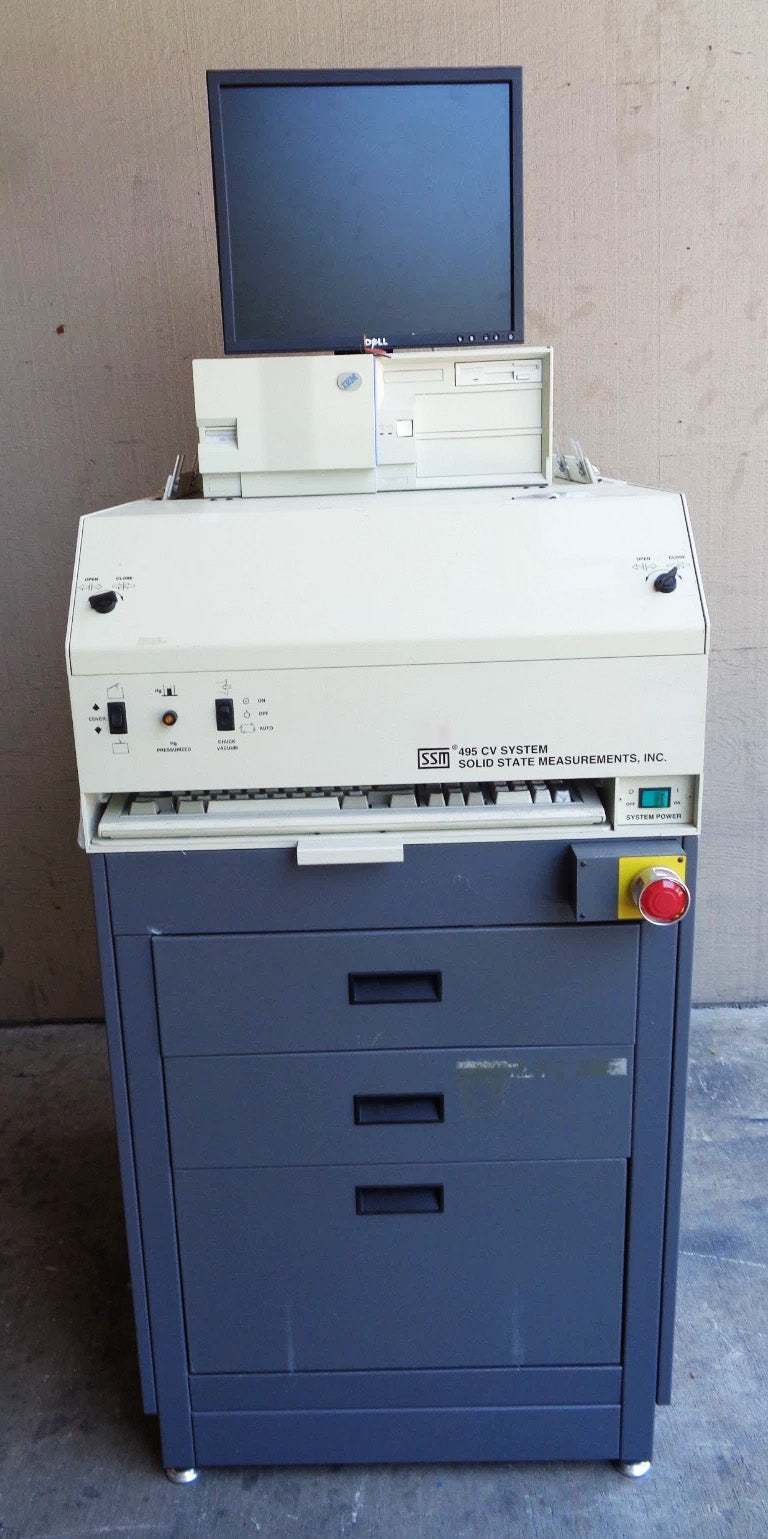

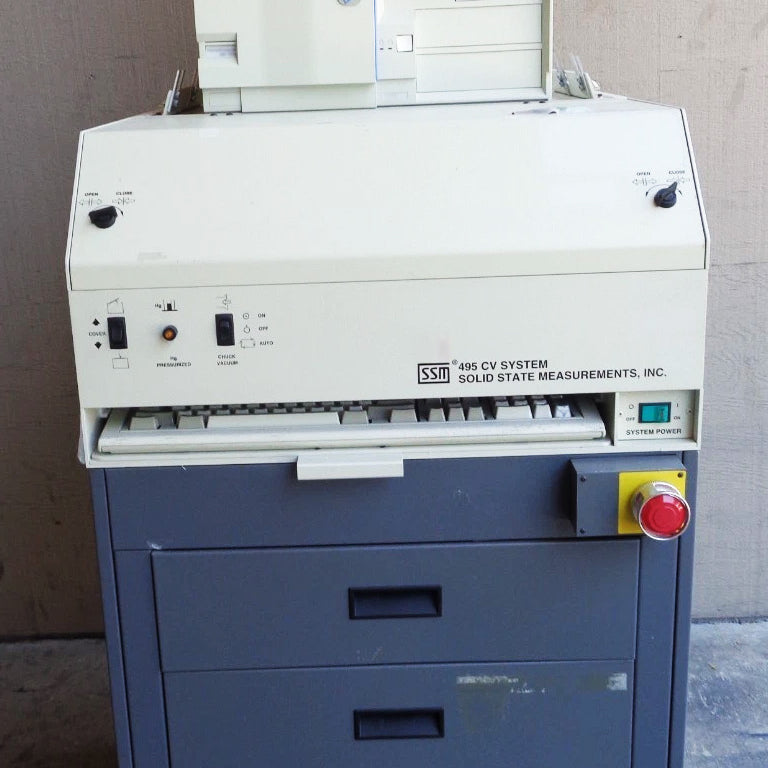

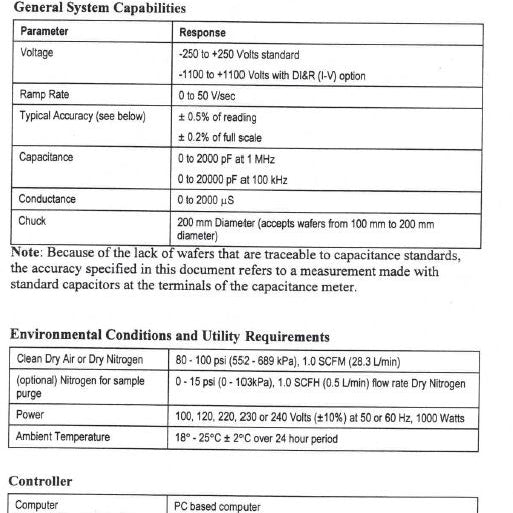

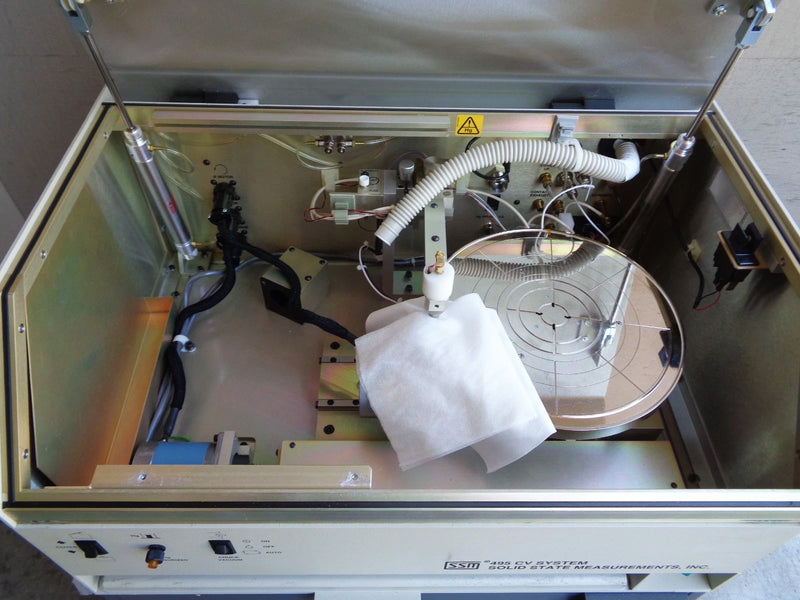

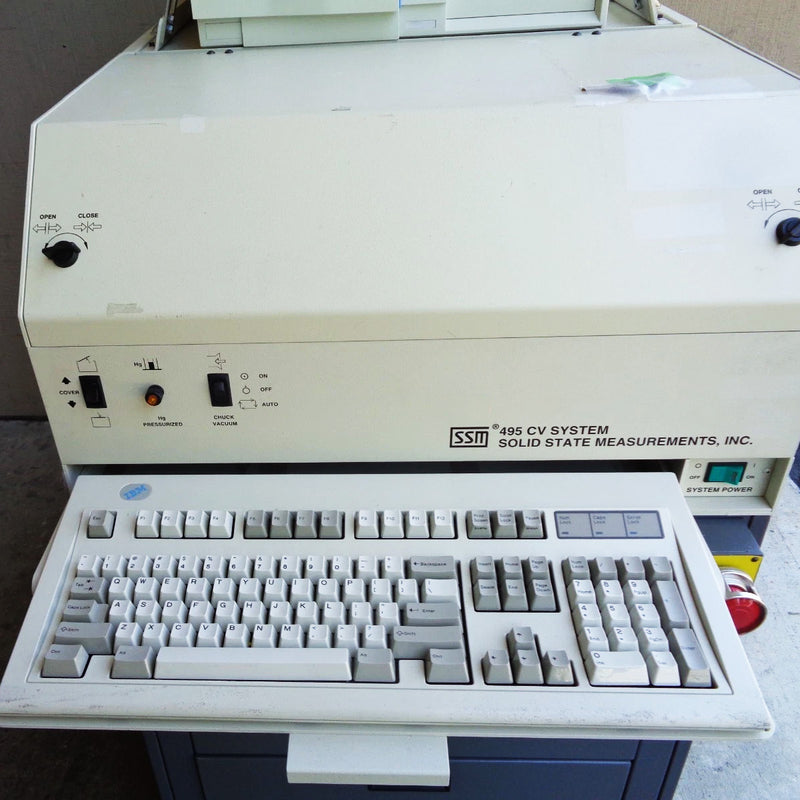

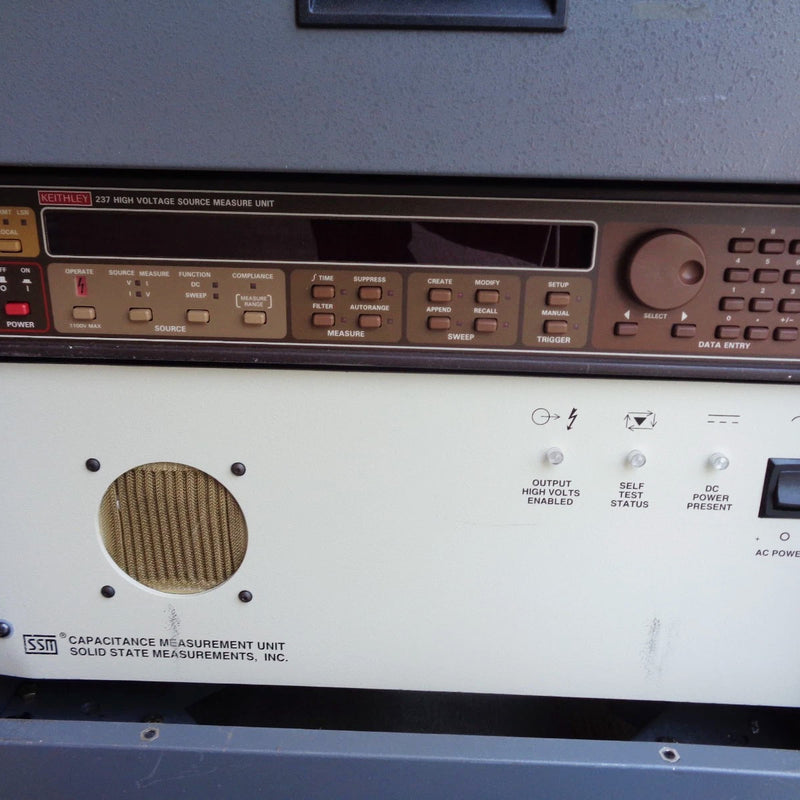

SSM 495 HG CV Measurement System, 4" to 8"

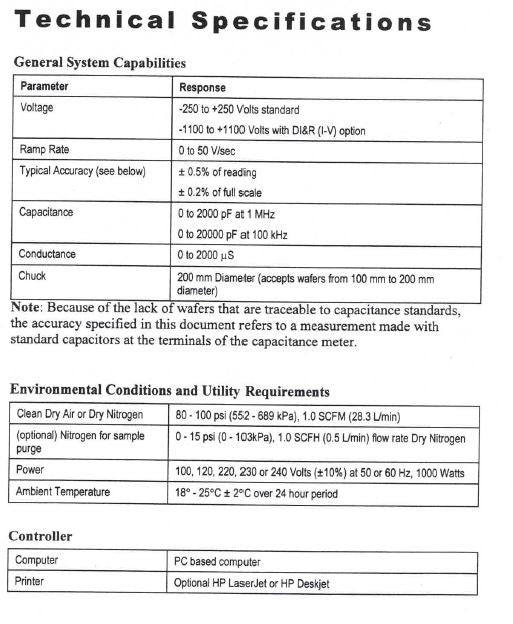

- CV/QV/DI & R Measurement Option
- Voltage: -250 to 250 V standard, -1100 to 1100V with DI&R (I-V) Option
- Ramp Rate: 0 to 50 V/sec
- Typical Accuracy: +/- 0.5% of reading, +/-0.2% of full

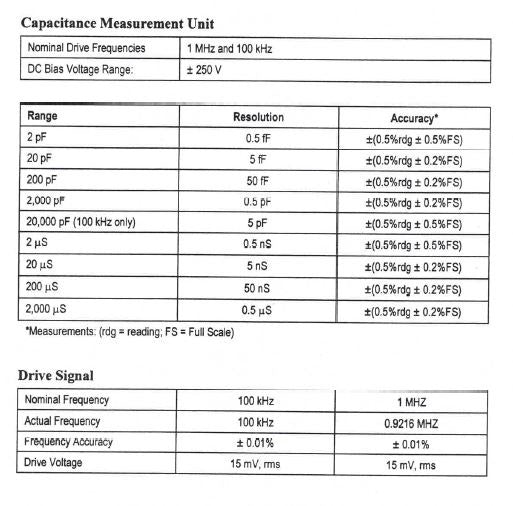

- Capacitance: 0 to 2000 pF at 1 MHz, 0 to 20000 pF at 100 kHz
- Conductance: 0 to 2000 μS

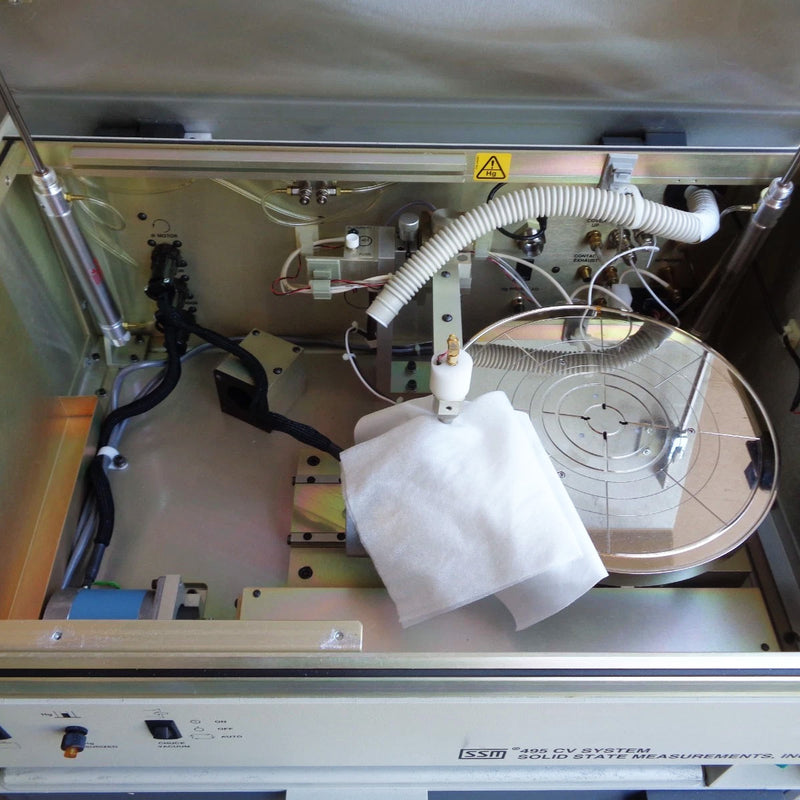

- Chuck: 200 mm Diameter (accepts wafers from 100 mm to 200 mm diameter)
Environmental Conditions & Utility Requirements:

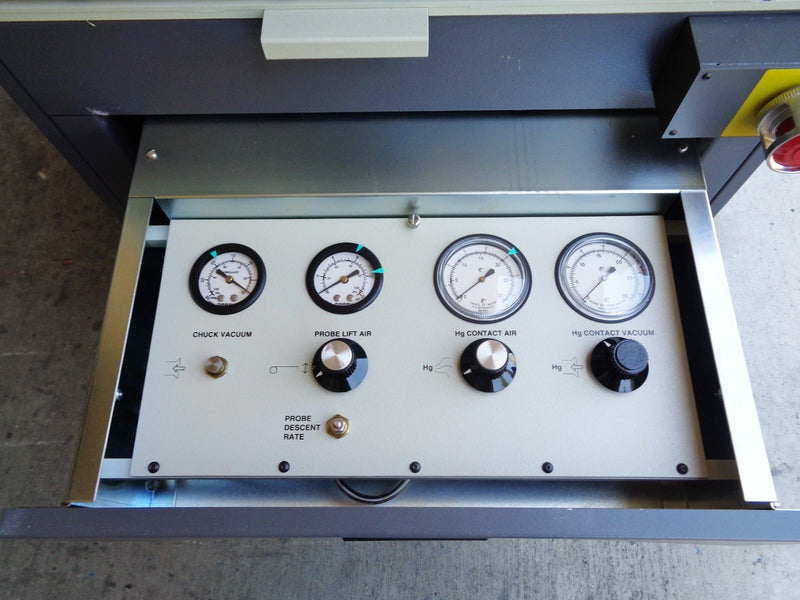

- Clean Dry Air or Dry Nitrogen: 80 - 100 psi (552 - 689 kPa), 1.0 SCFM (28.3 L/min)
- Nitrogen for Sample Purge (Optional): 0-15 psi (0-103 kPa), 1.0 SCFH (0.5 L/min) flow rate Dry Nitrogen
- Power: 100, 120, 220, 230 or 240 Volts (+/-10%) at 50 or 60 Hz, 1000 Watts
- Ambient Temperature: 18° - 25°C +/- 2°C over 24 hour period

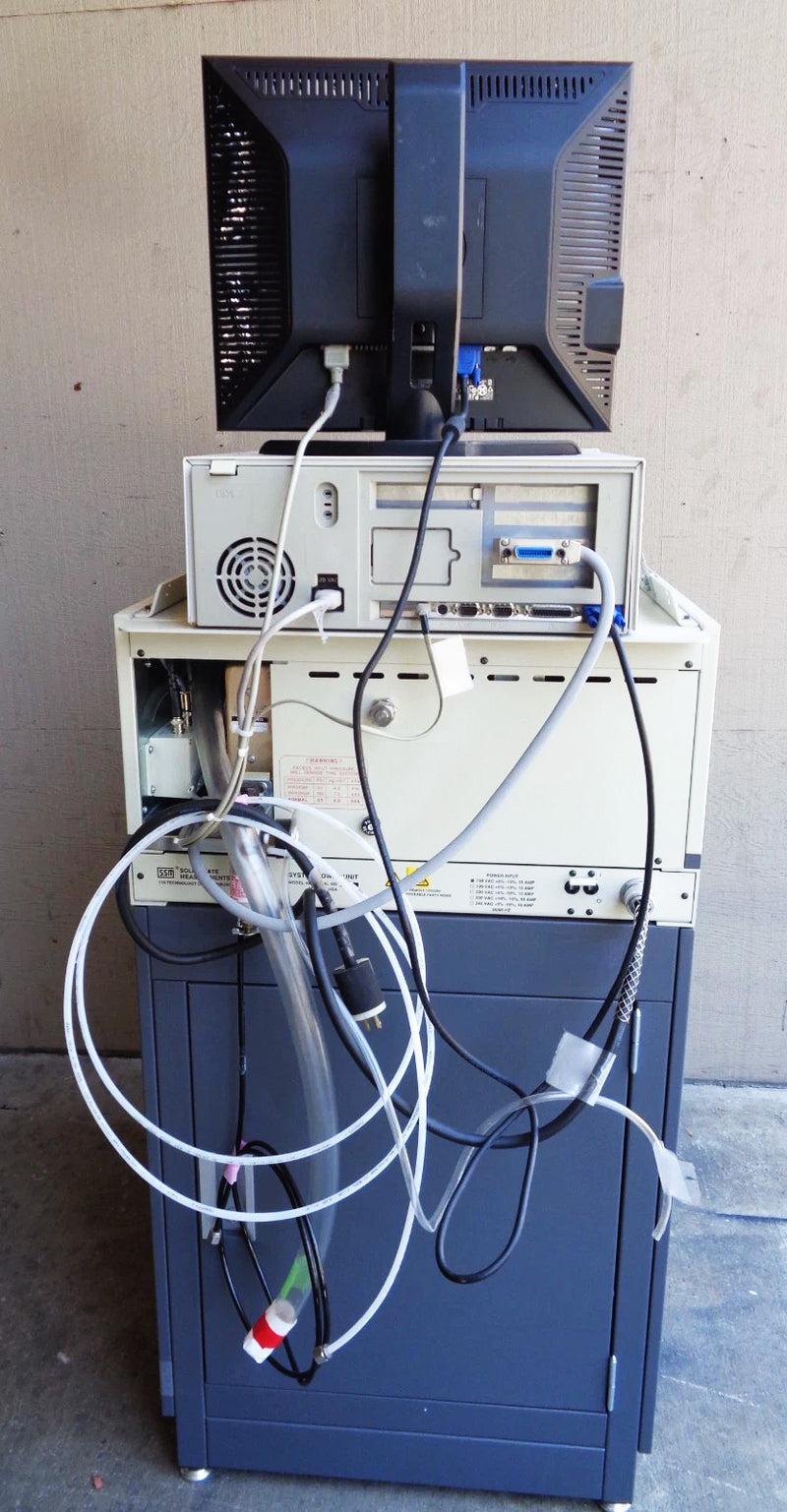

Controller:
- Computer: PC based computer
- Printer: Optional HP LaserJet orHP Deskjet

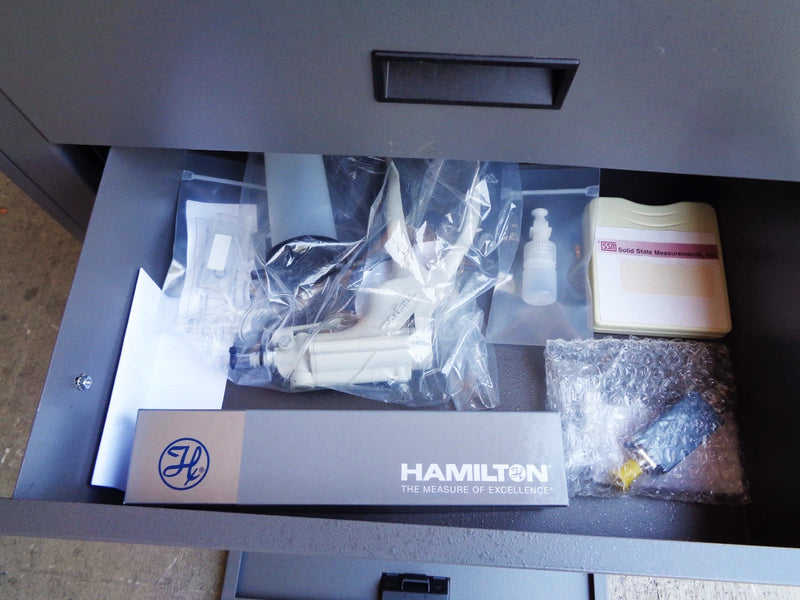

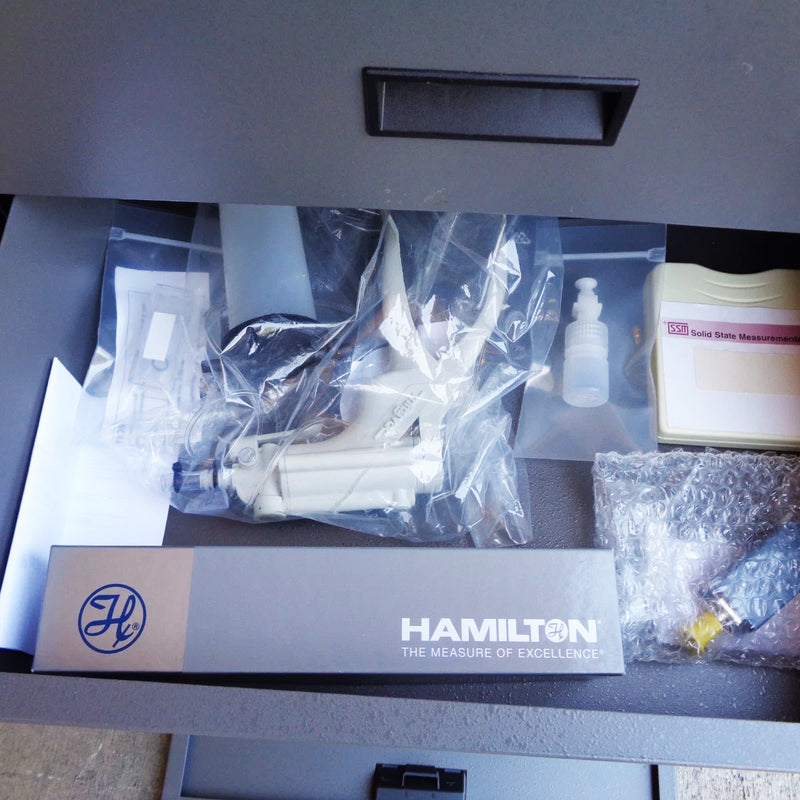

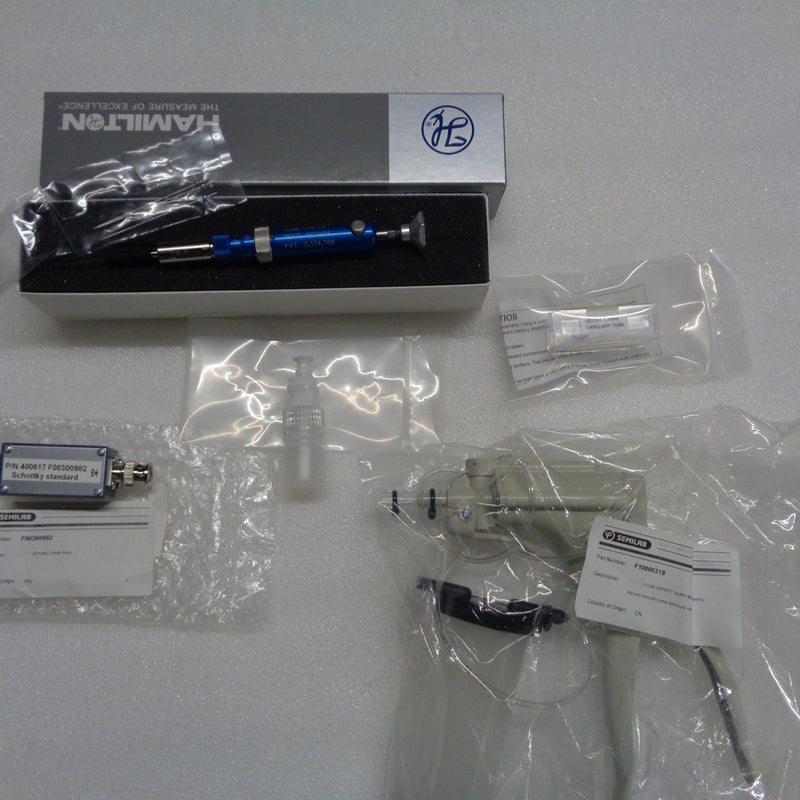

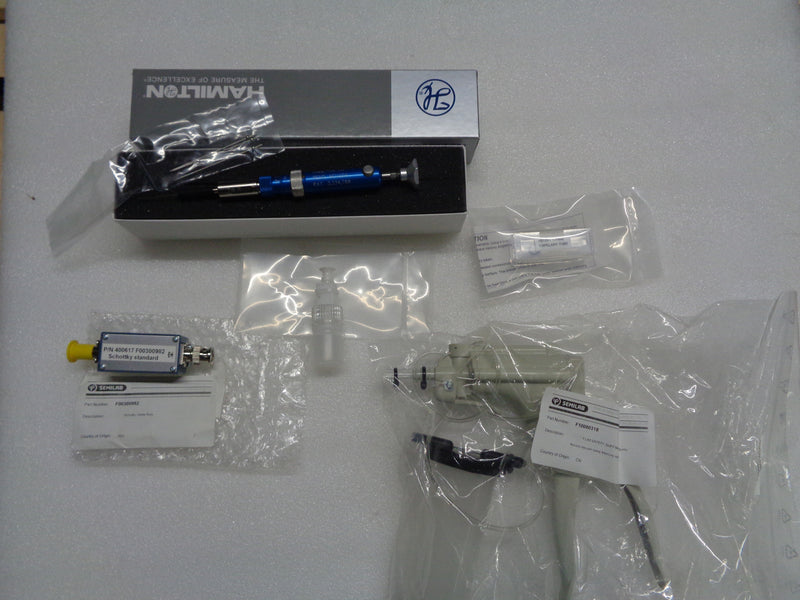

Parts List:
- New Waste Bottle
- New Mercury Syringe
- New Scotty Standard (P/N: F00300982)
- 1.7 Capilary Tube (P/N: 501281)
- New Mercury Vacuum Pump (P/N: F10000318)
1999 Vintage
