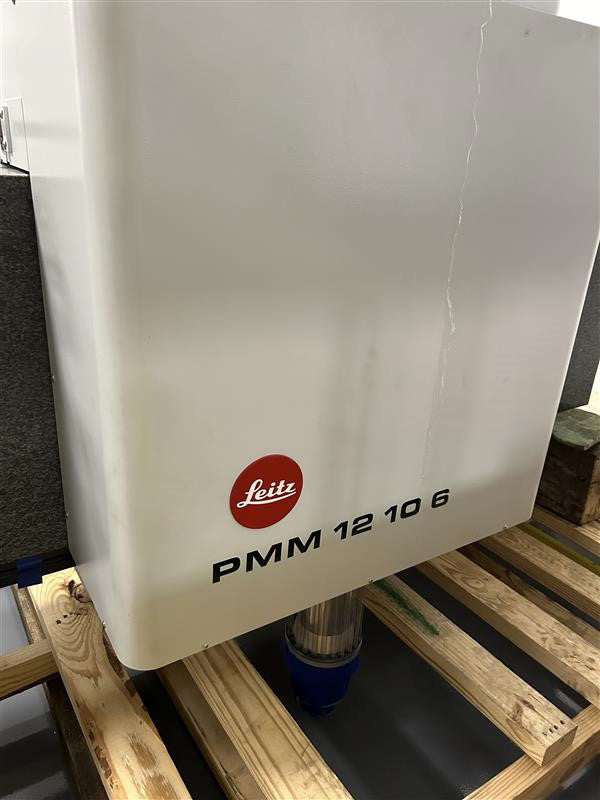

Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine
Leitz PMM 12106 Precision Coordinate Measuring Machine

Leitz PMM 12106 Precision Coordinate Measuring Machine

Asset #: 134131

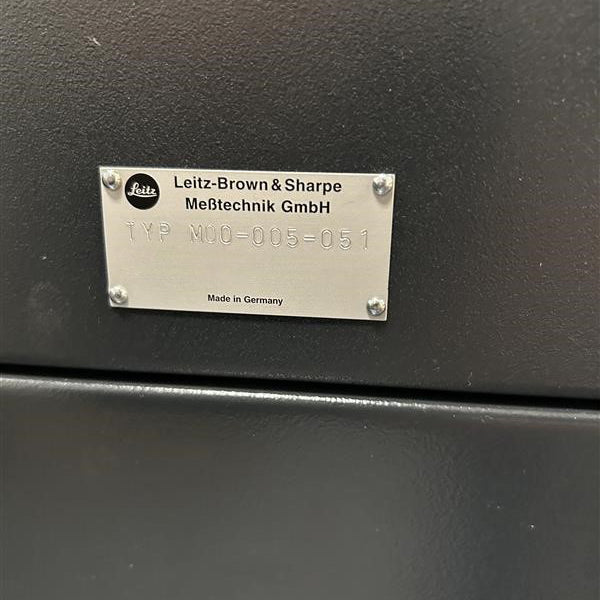

Make: Leitz

Model: PMM 12106

Last Confirm Date: June 03, 2025

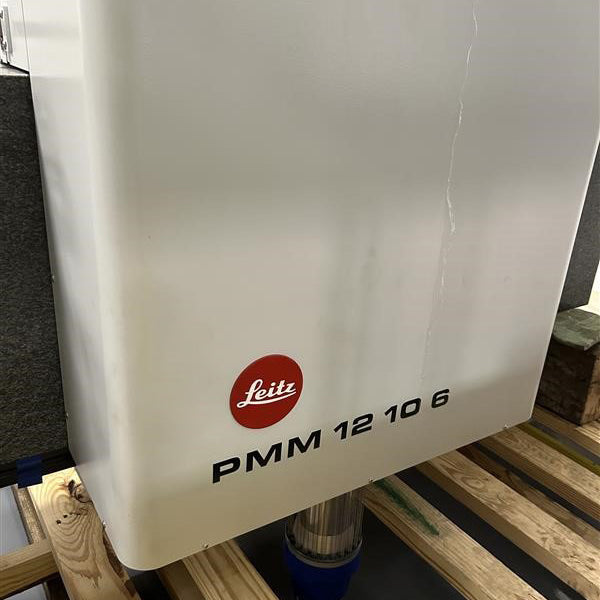

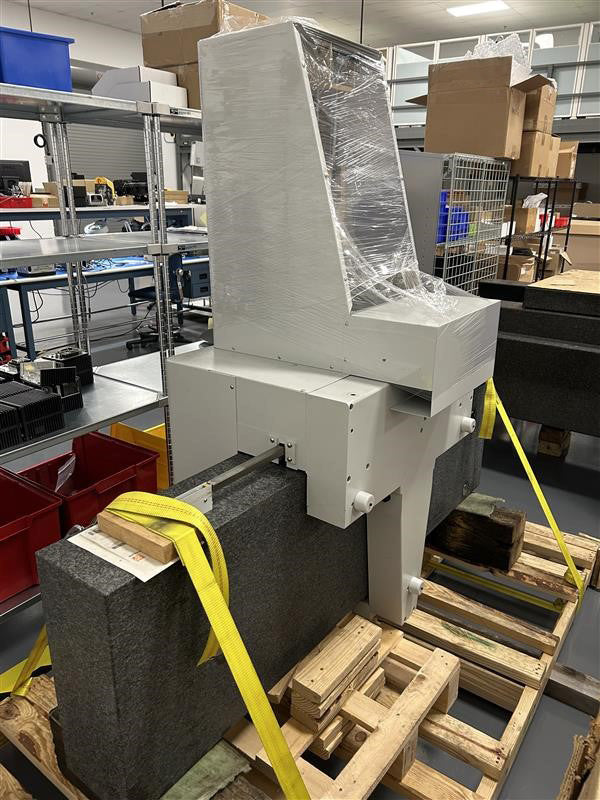

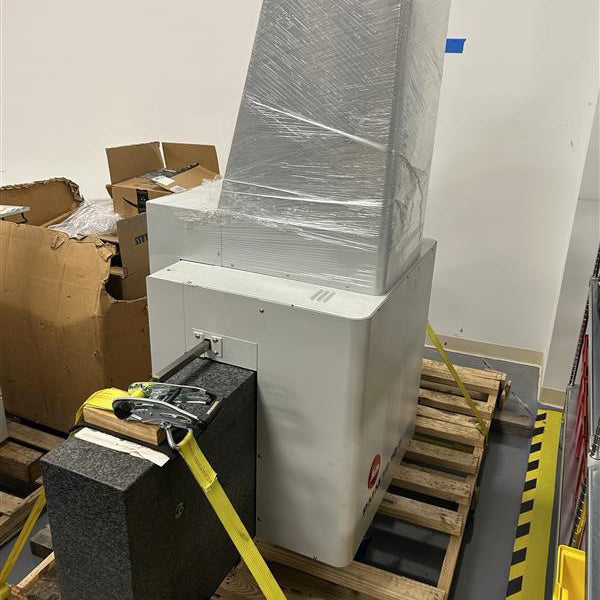

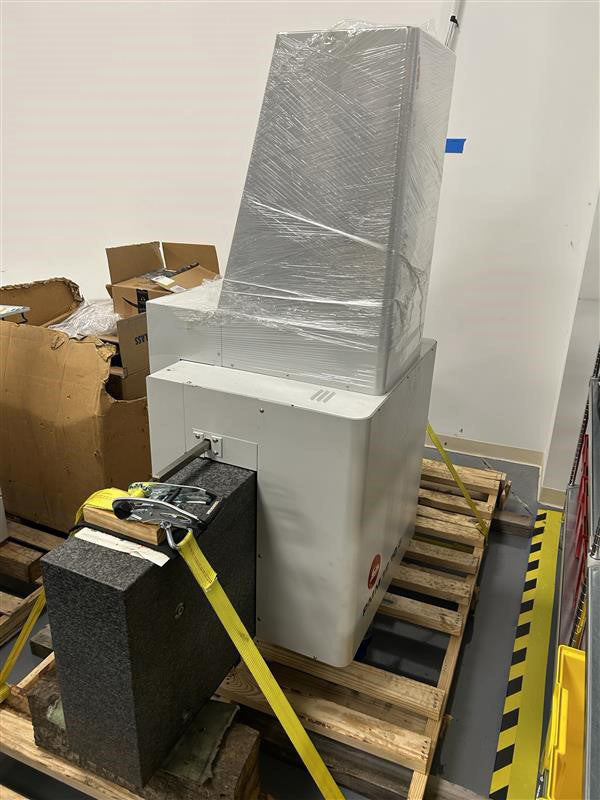

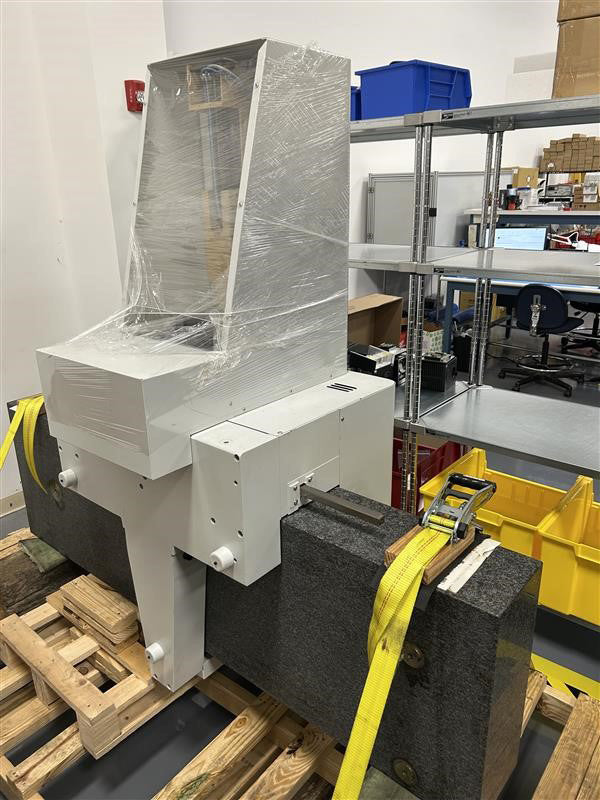

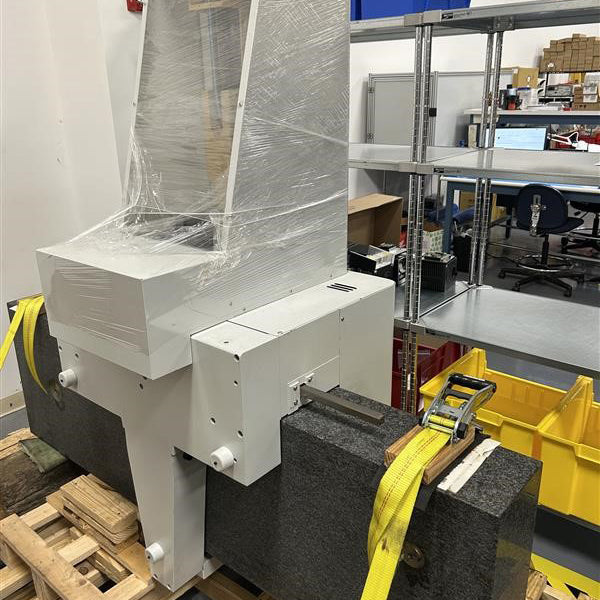

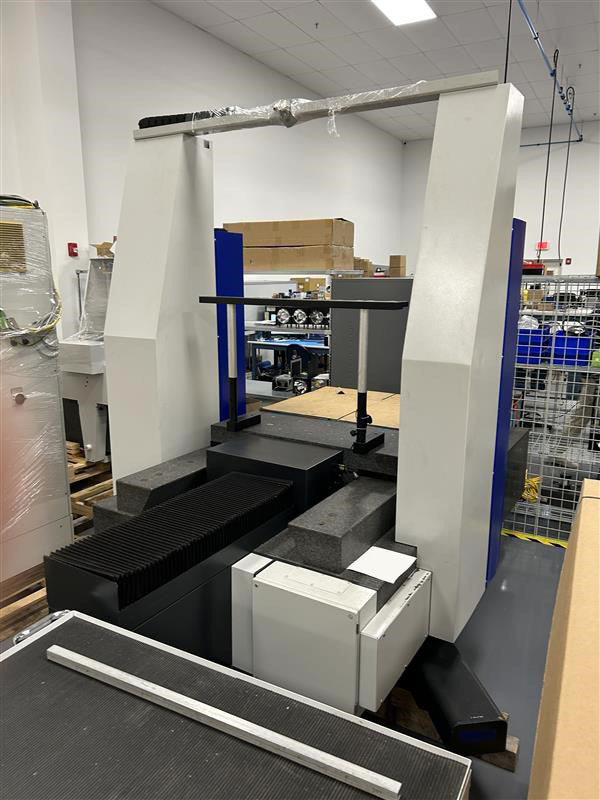

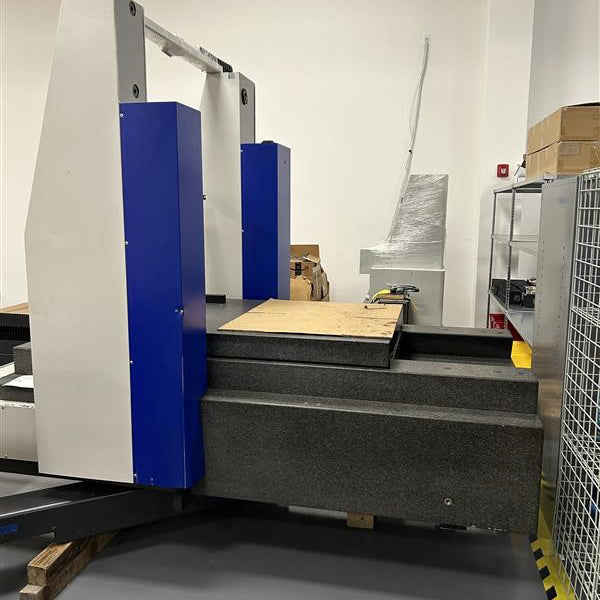

Leitz PMM 12106 Precision Coordinate Measuring Machine
- Operating System: QUINDOS
- Latest version of software seems CAD compatible

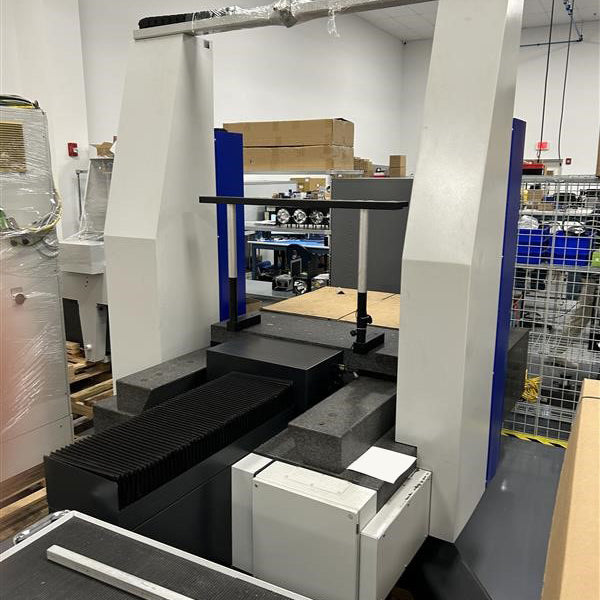

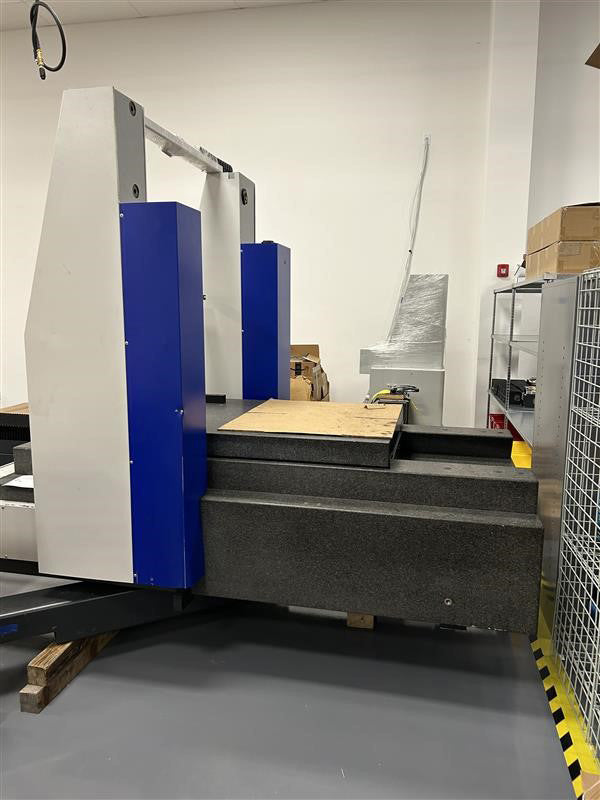

- Fixed Bridge Portal
- 3-Axis
- Omnidirectional Proportional Probe Head
Measuring Volume:
- X-Axis: 1200 mm (47.2")
- Y-Axis: 1000 mm (39.4")
- Z-Axis: 600 mm (23.6")
- Additional Space Bellow the Probe Head: 250 mm (9.8")
Speed & Acceleration:
- Positioning Speed: 0-50 mm/s (0-2"/sec) in each axis
- Probing Speed: 0-3 mm/s (0=0.12"/sec)
- Scanning Speed: 0-5 mm/s (0-0.2"/s)
- Acceleration: 150 mm/s/s (0-6"/s/s)
Probing Methods
- Individual Point Probing
- Self-Centered Probing
- Continuous Scanning
Probing Repeatability
- Two sigma value, based on individual point probings on the side of a precision glass cube
- Single Sided Probing: <0.0005 mm (0.000020") bandwidth
- Double Sided Probing: <0.0007 mm (0.000028") Bandwidth
Resolution
- Scales: 0.0001 min (0.000004")
- Probe Head: <0.0001 mm (0.000004")

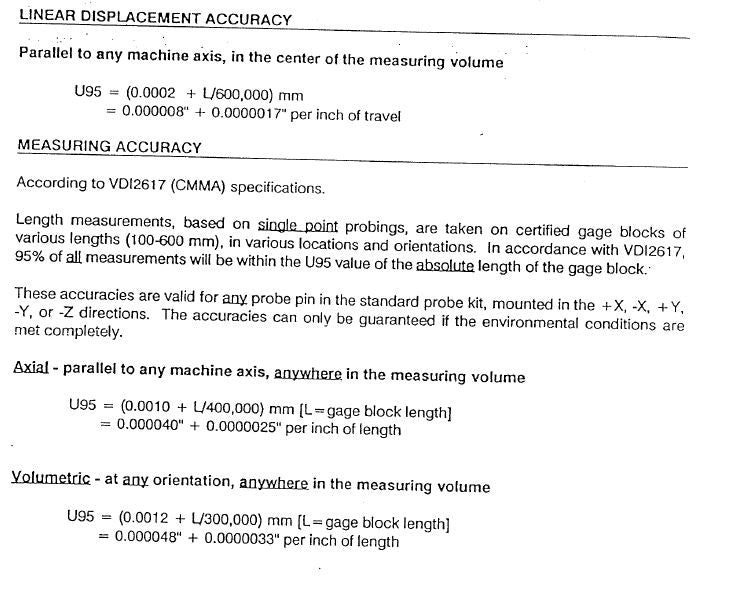

Linear Displacement Accuracy
- Parallel to any machine axis, in the center of the measuring volume
776 Vintage
