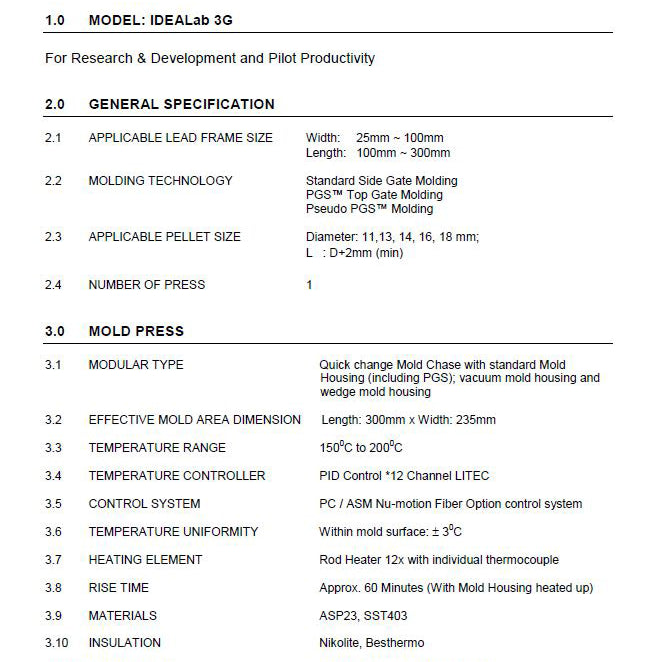

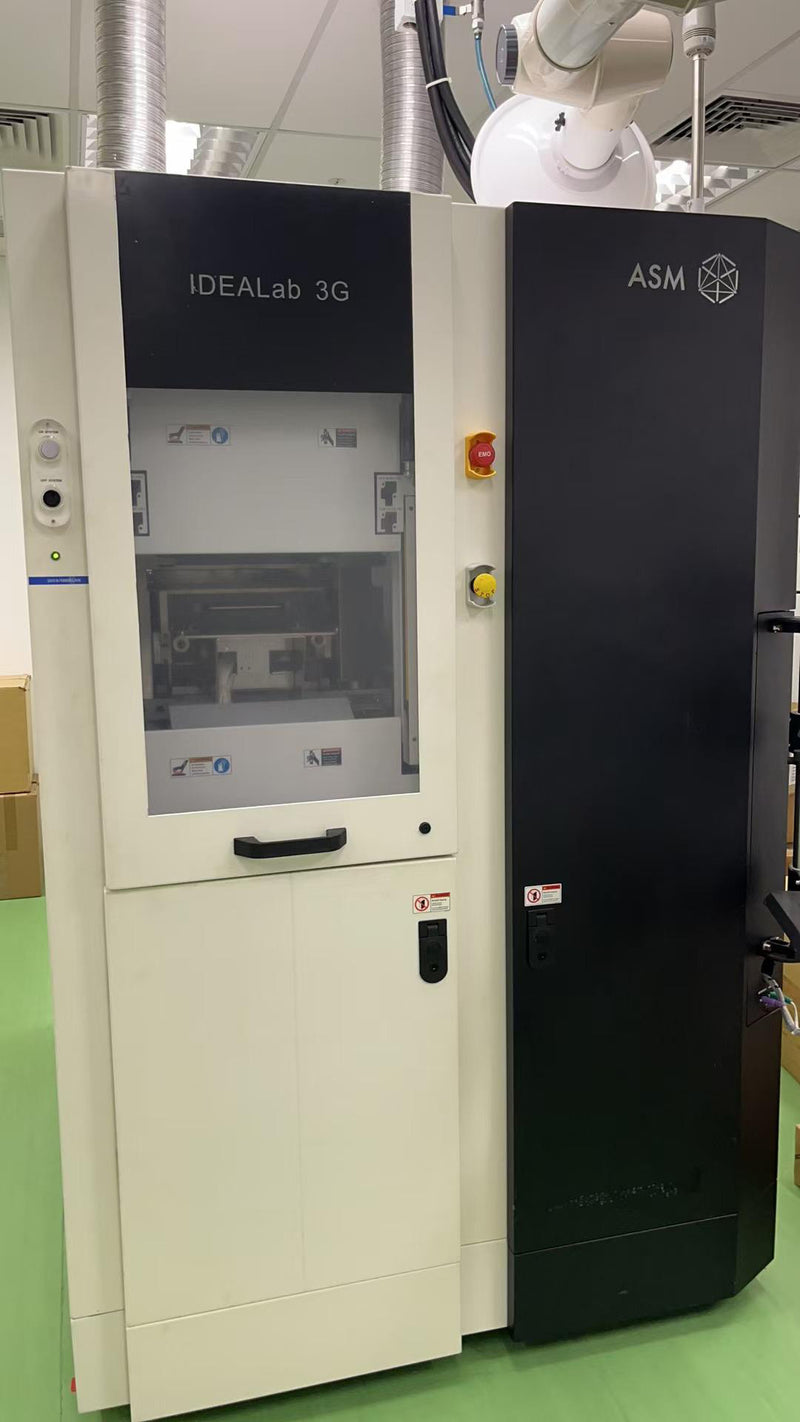

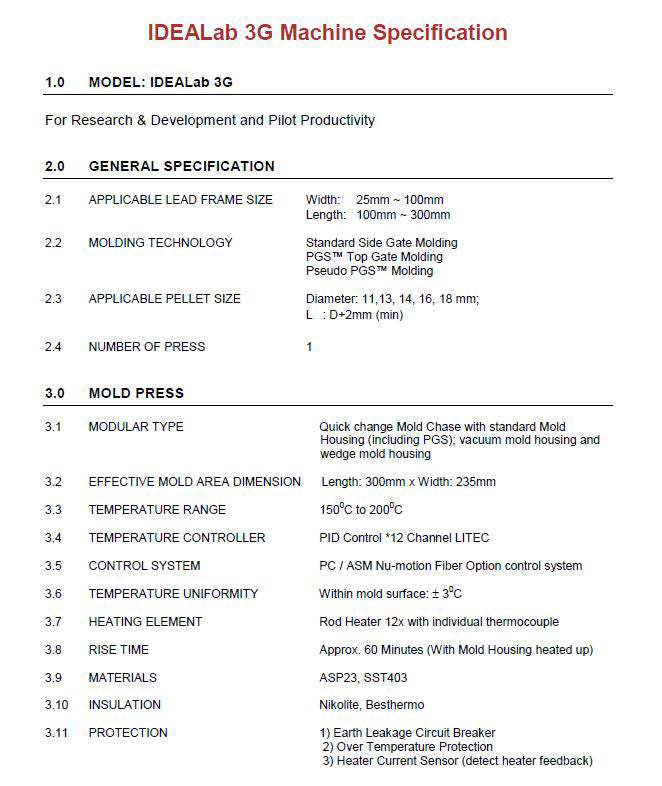

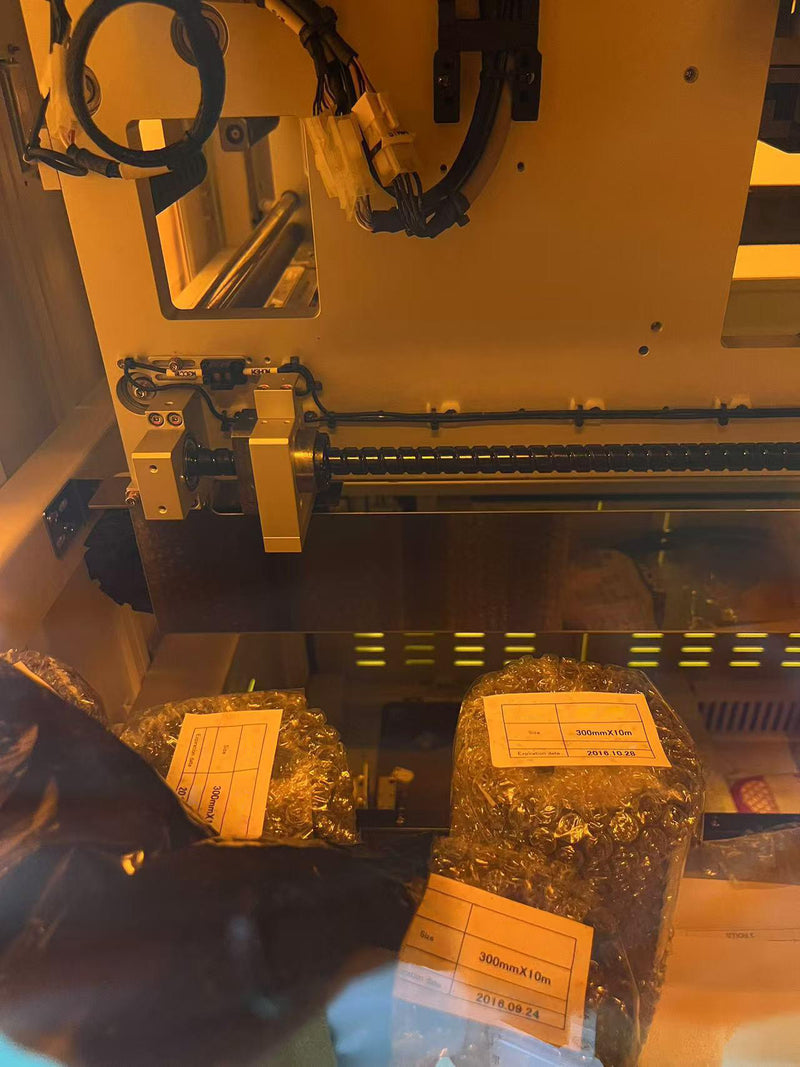

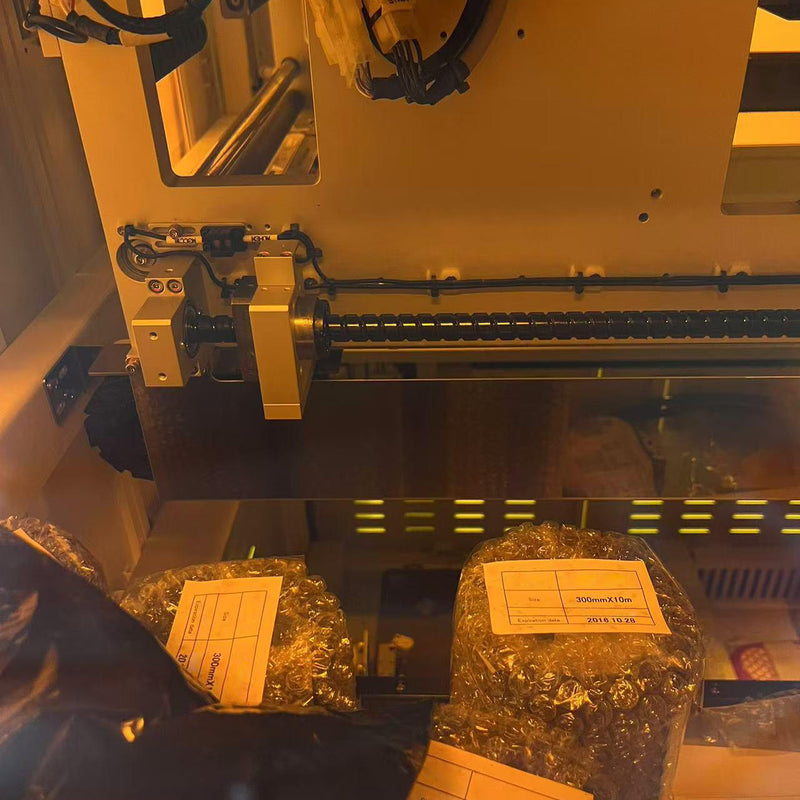

ASM IDEALab 3 G Mold Machine

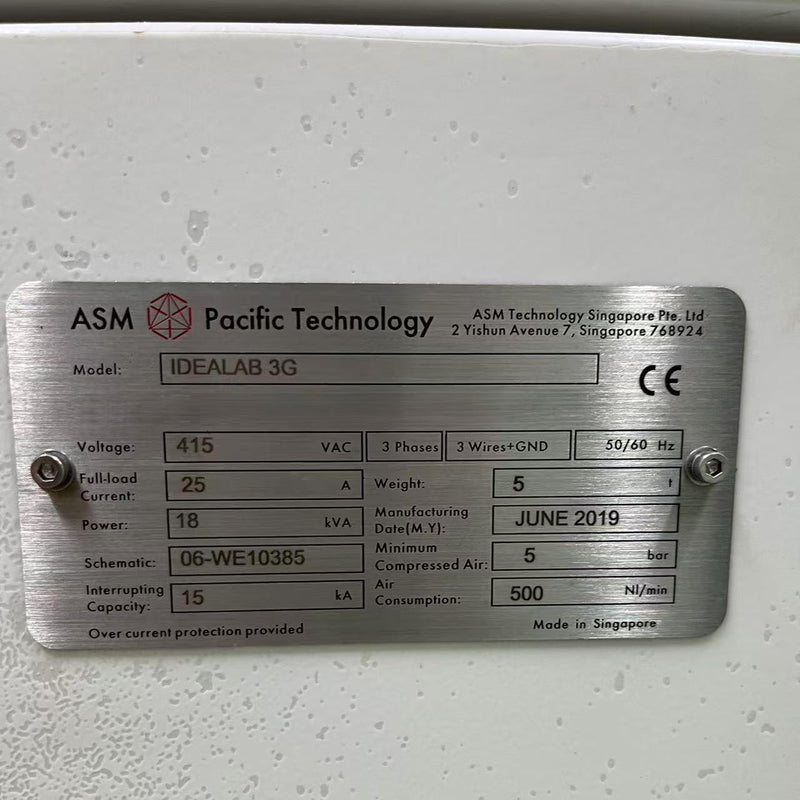

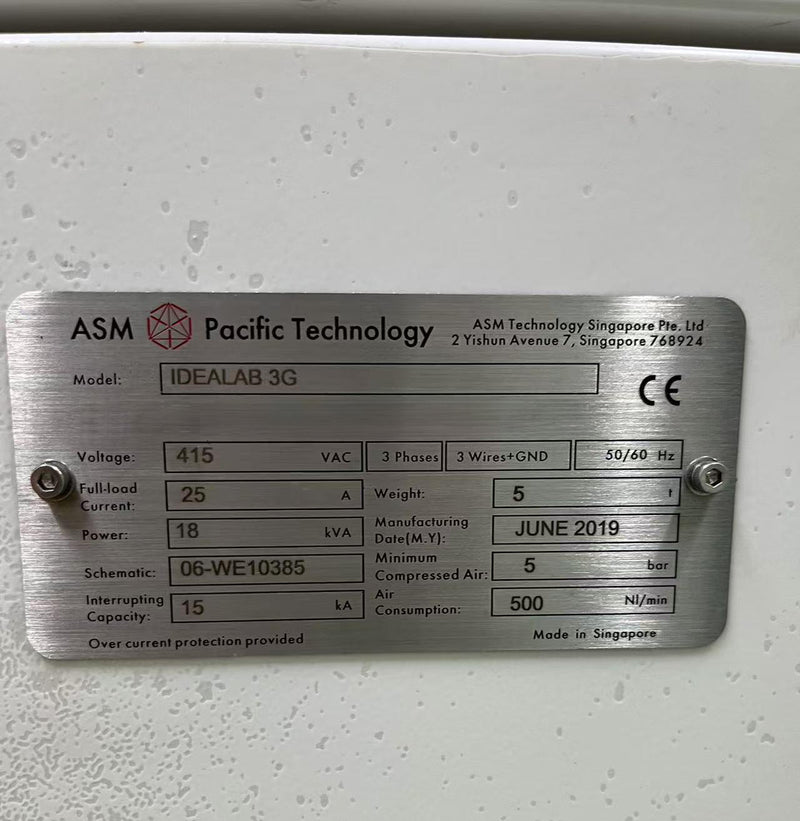

- Voltage: 415 VAC
- Power: 18 kVA
Full Load Current: 25 A
Application Lead Frame Size:
- Width: 25mm - 100mm
- Length: 100mm - 300mm
Molding Technology:
- Standard side Gate Molding
- PGS Top Gate Molding
- Pseudo PGS Molding
Applicable Pellet Size:
- Diameter: 11., 13, 14, 16, 18 mm, L: D+2mm (min)
Number of Press: 1
Modular Type:
- Quick change Mold Chase with standard Mold Housing (including PGS)
- Vacuum mold housing and wedge mold housing
Effective Mold Area Dimension:
- Length: 300mm X Width: 235mm
Temperature Range: 150°C to 200°C
Temperature Controller: PID Control *12 Channel LITEC
Control System: PC / ASM Nu-motion Fiber Option control system
Temperature Uniformity: Within mold surface: ±3°C
Heating Element:
- Rod Heater 12x
- With Individual Thermocouple
Rise Time:Approx. 60 Minutes (With Mold Housing heated up)
Materials:
- ASP 23
- SST 403
Insulation:
- Nikolite
- Besthermo
Protection:
- Earth Leakage Circuit Breaker
- Over Temperature Protection
- Heater Current Sensor (detect heater feedback)

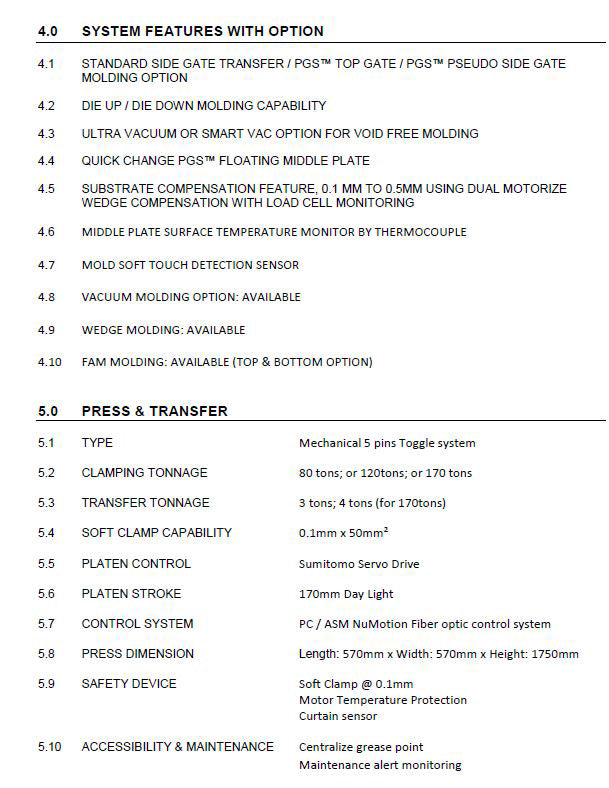

System Features with Option:
- Standard Side Gate Transfer / PGS Top Gate Pseudo Side Gate Molding Option
- DIE Up / DIE Down Molding Capability
- Ultra Vacuum or Smart VAC Option for Void Free Molding
- Quick Changes PGS Floating Middle Plate
- Substrate Compensation Feature, 0.1mm to 0.5mm using Dual Motorize Wedge Compensation with Load Cell Monitoring
- Middle Plate Surace Temperature Monitor by Thermocouple
- Mold Soft Touch Detection Sensor
- Vacuum Molding Option: Available
- Wedge molding: Available
- FAM Molding: Available (Top & Bottom Option)

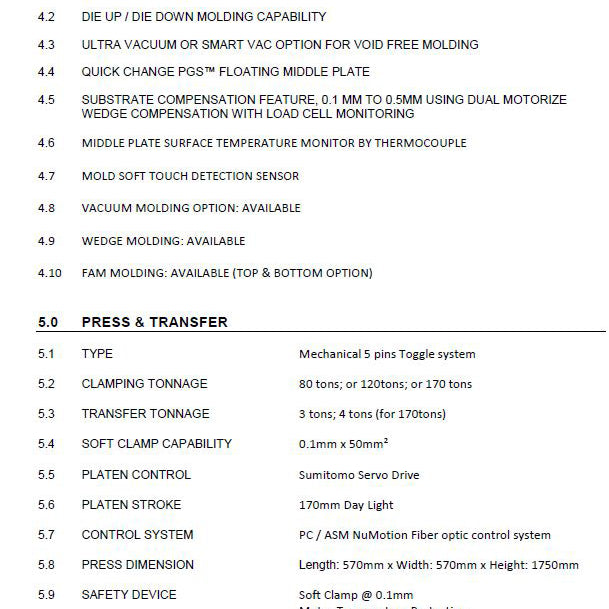

Press and Transfer:
- Type: Mechanical 5 pin Toggle System
- Clamping Tonnage: 80 tons: or 120 tons: or 170 tons
- Transfer Tonage: 3 tons: 4 tons (for 170 tons)
- Soft Clamp Capability: 0.1mm X 50 mm
- Platen Control: Sumitomo Servo Drive
- Platen Stroke: 170mm Day Light
- Control System: PC / ASM NuMotion Fiber optic control system
- Press Dimension: Length:570mm x Width:570mm x Height: 1750mm
Safety Device:
- Soft Clamp at 0.1mm
- Motor Temperature Protection
- Curtain sensor
Accessibility & Maintenance:
- Centralize Grease Point
- Maintenance Alert Monitoring

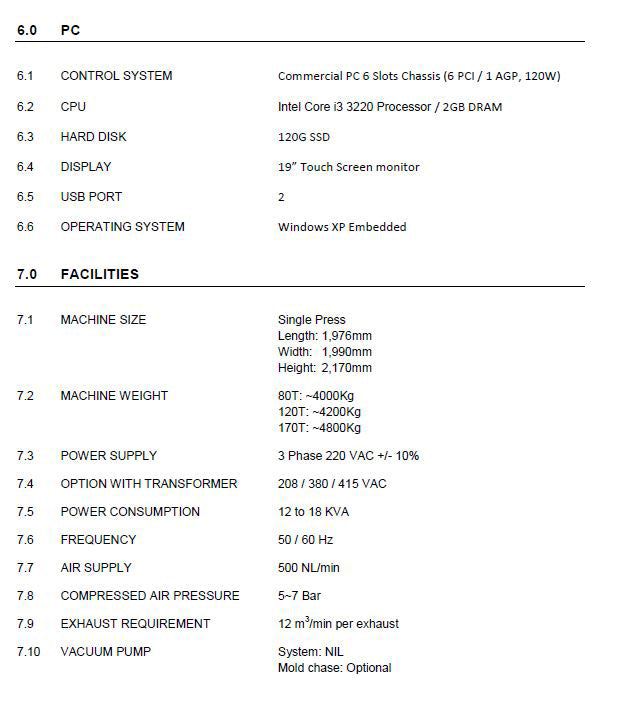

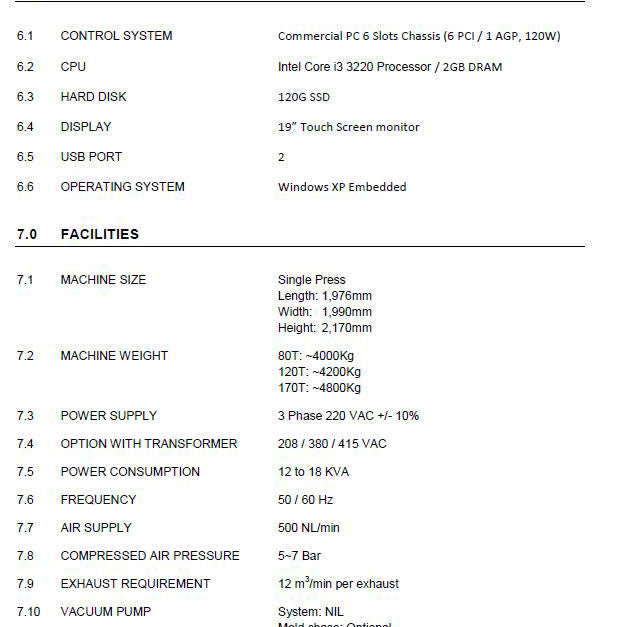

PC:
- Control System: Commercial PC 6 Slots Chassis (6 PCI / 1 AGP, 120W)
- CPU: Intel Core i3 3220 Processor / 2GB DRAM
- Hard Disk: 120G SSD
- Display: 19” Touch Screen monitor
- USB Port: 2
- Operating System: Windows XP Embedded
Facilities:
Machine Size:
- Single Press
- Length: 1,976mm
- Width: 1,990mm
- Height: 2,170mm
Machine Weight:
- 80T: ~4000 Kg
- 120T: ~4200 Kg
- 170T: ~4,800 Kg
Power Supply:
- 3 phase
- 220 VAC +/- 10%
Option With Transformer: 208 / 380 / 415 VAC
Power Consumption: 12 to 18 KVA
Frequency: 50/60 Hz
Air Supply: 500 NL/Min
Compressed Air Pressure: 5~7 Bar
Exhhaust Requirement: 12 m3/min per exhaust
Vacuum Pump:
- System: NIL
- Mold chase: Optional
2019 Vintage
