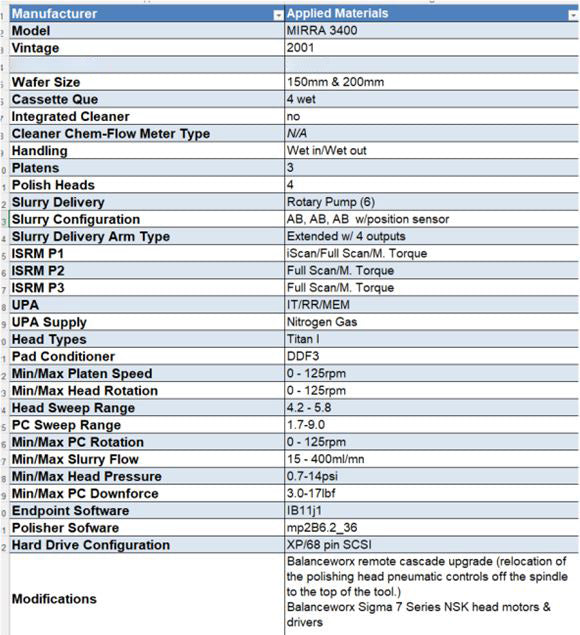

Asset #: 129553

Make: Applied Materials

Model: Mirra 3400

Wafer Sizes: 6, 8 inch

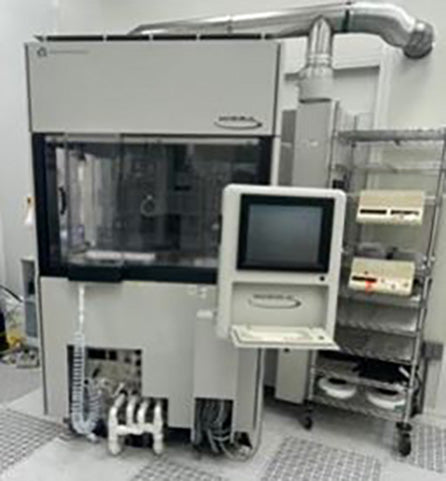

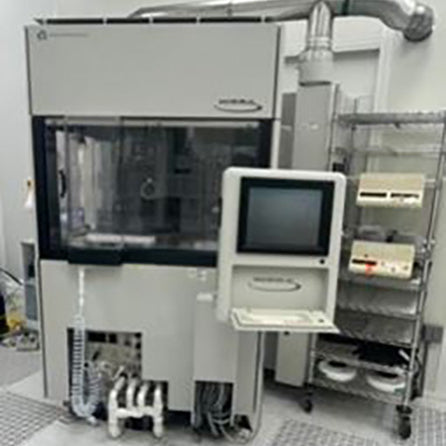

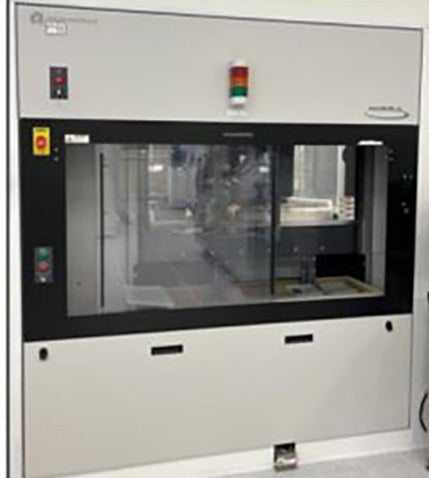

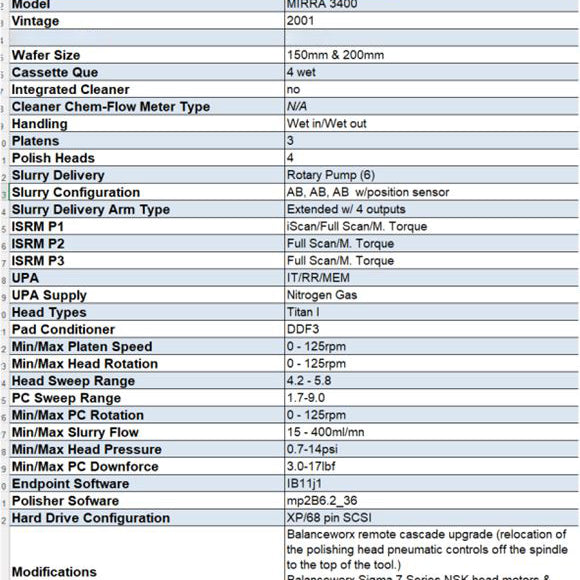

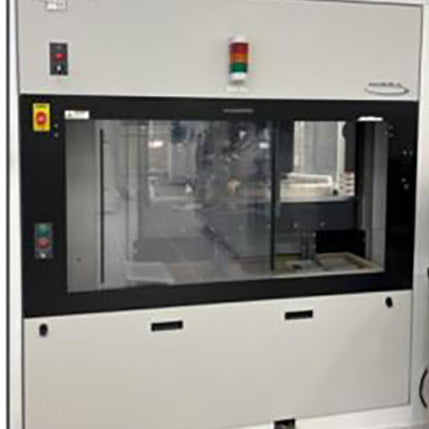

Applied Materials Mirra 3400 , 6", 8"
- Cassette Que: 4 Wet
- Handling: Wet In / Wet Out
- Platens: 3

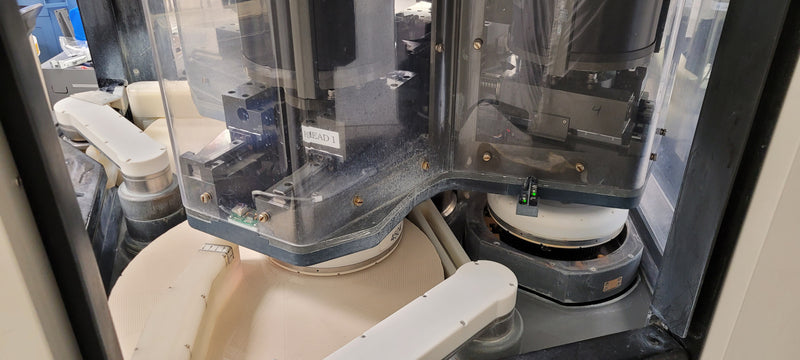

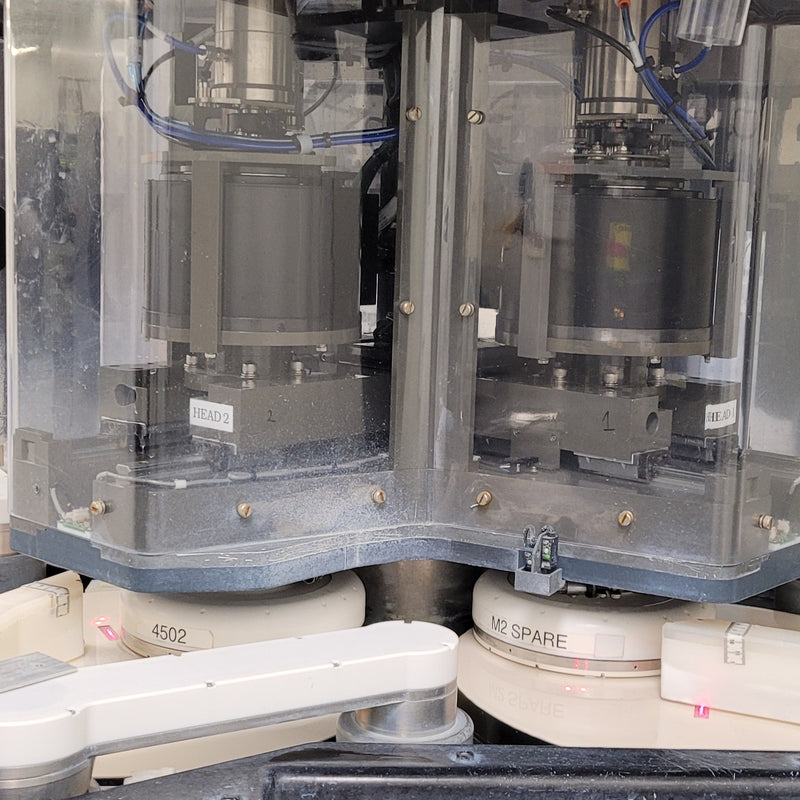

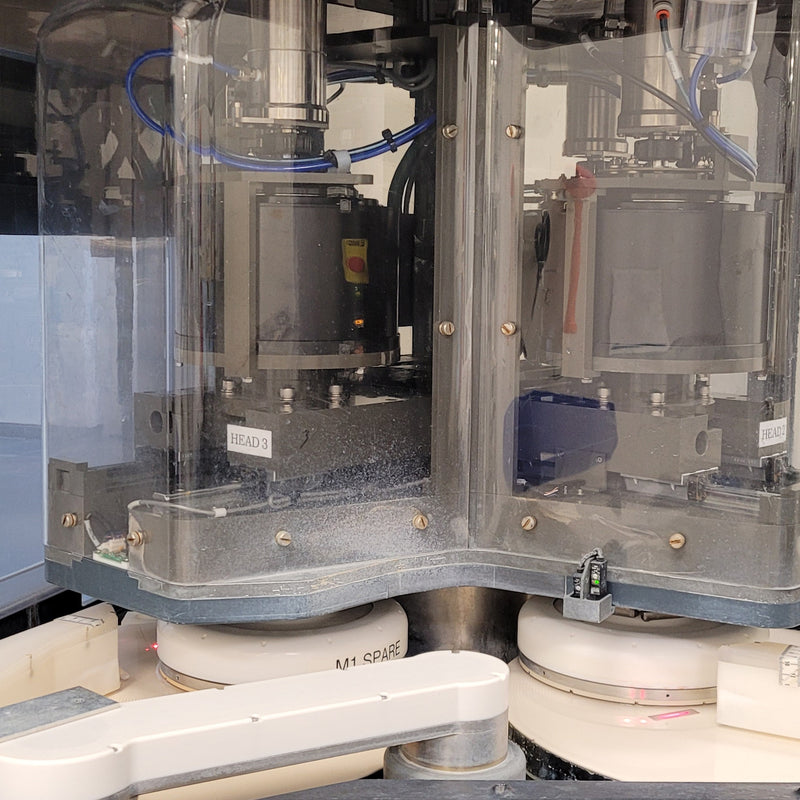

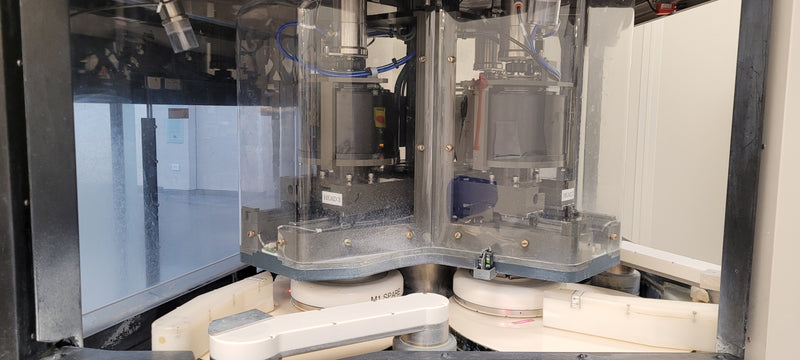

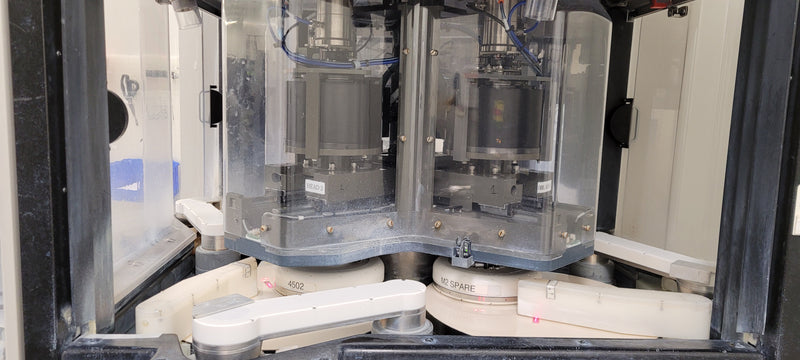

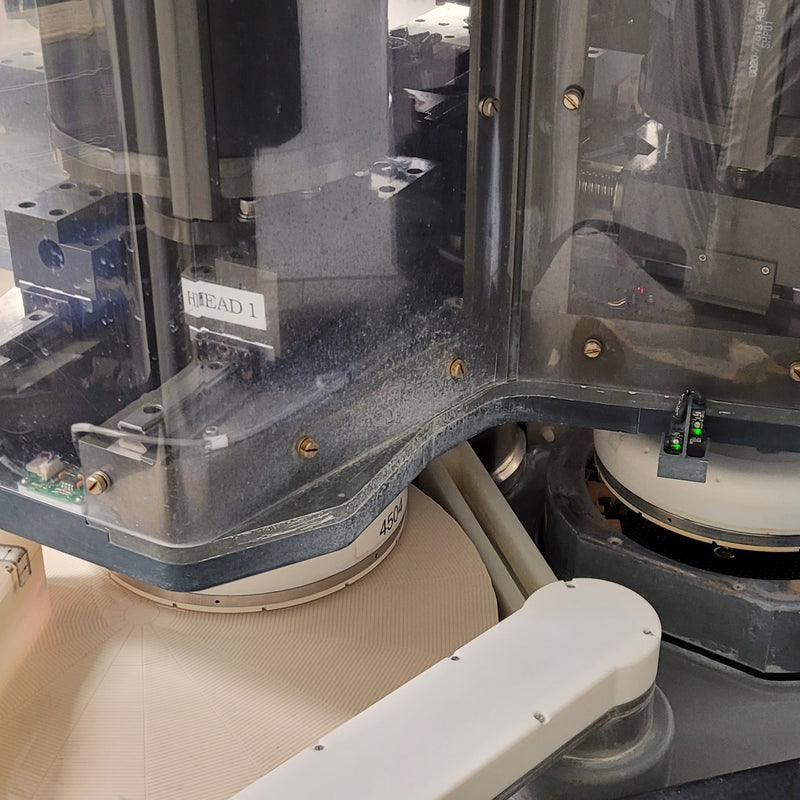

- Polish Heads: 4

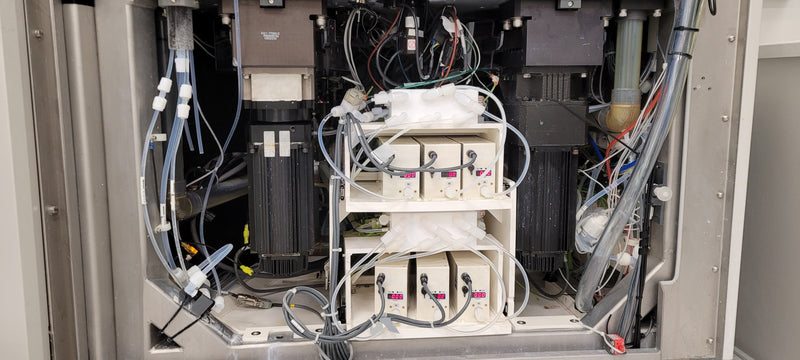

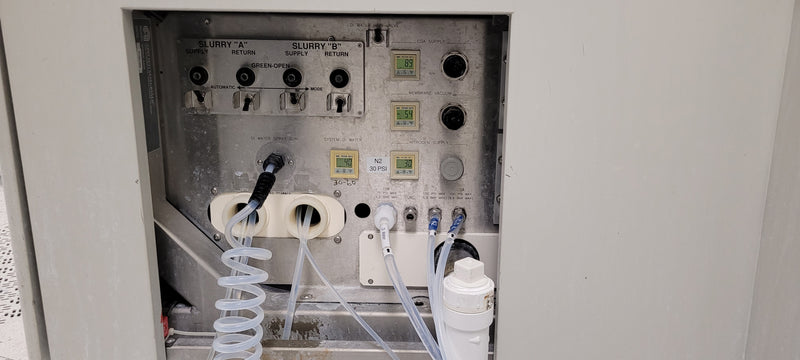

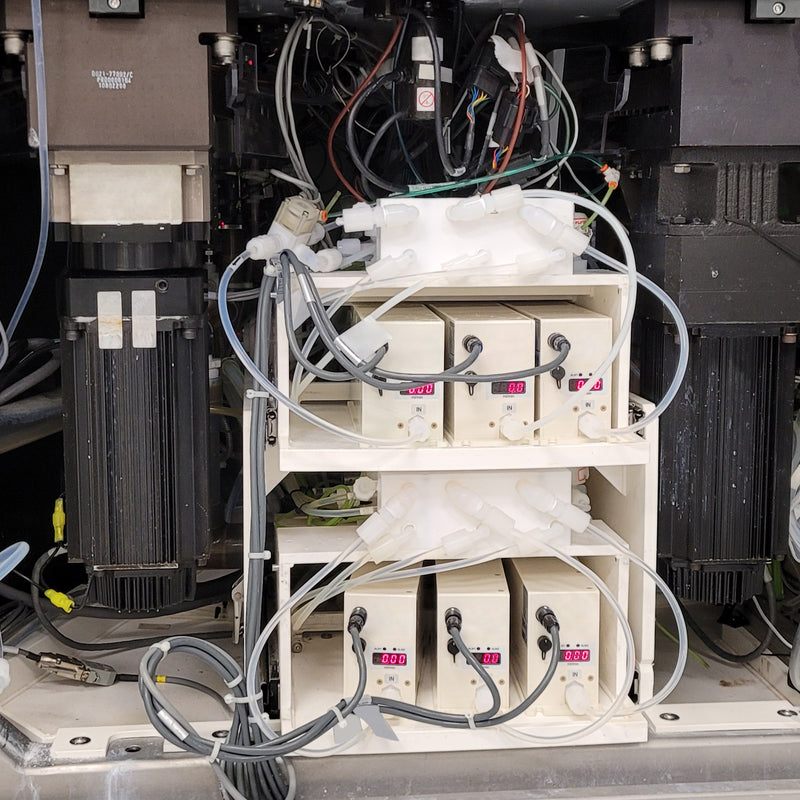

- Slurry Delivery: Rotary pump (6)
- Slurry Configuration: AB, AB w/ Position Sensor
- Slurry Delivery Arm Type: Extended w/ 4 Outputs
- ISRM P 1: iScan / Full Scan/M. Torque
- ISRM P 2: Full Scan/M. Torque
- ISRM P 3: Full Scan/M. Torque
- UPA: IT / RR / MEM

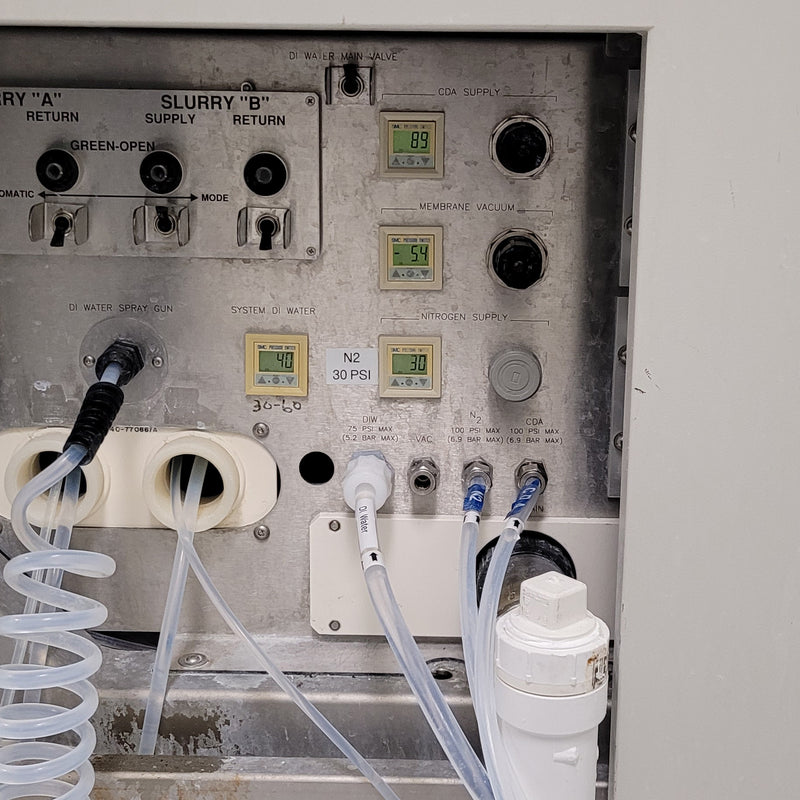

- UPA Supply: Nitrogen Gas
- Head Types: Titan I
- Pad Conditioner: DDF 3
- Min / Max Platen Speed: 0 -125 rpm
- Min / Max Slurry Flow: 15 - 400 ml/mn
- Min / Max Head pressure: 0.7 - 14 psi
- Min / Max PC Downforce: 3.0 - 17 lbf
- Endpoint Software: IB 11 J 1
- Polisher Software: mp 2 B 6.2_36
- Hard Drive Configuration: XP / 68 Pin SCSI
With:
- Heads: 150 mm (4), 200 mm (4)
- HCLU: 150 mm Conversion Kit, 200 mm Conversion Kit

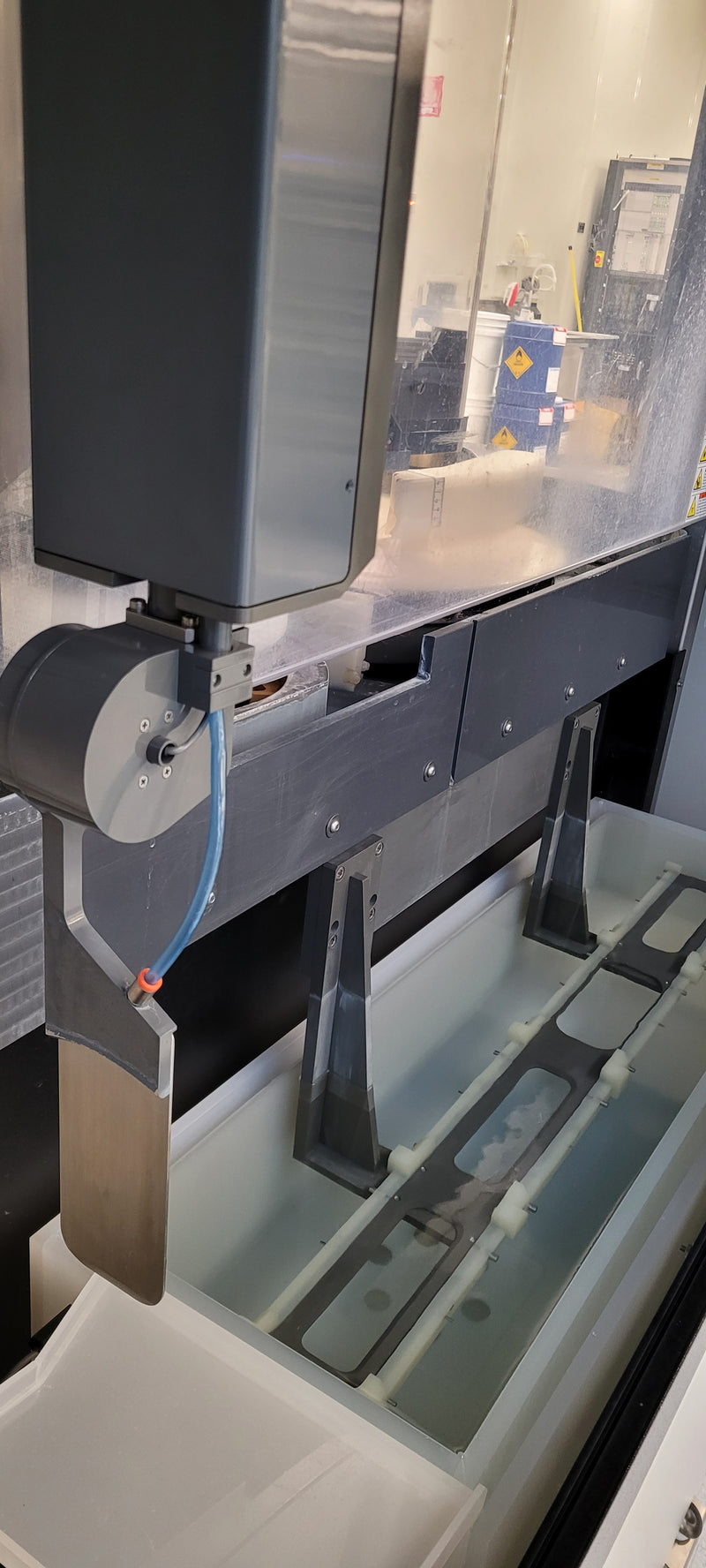

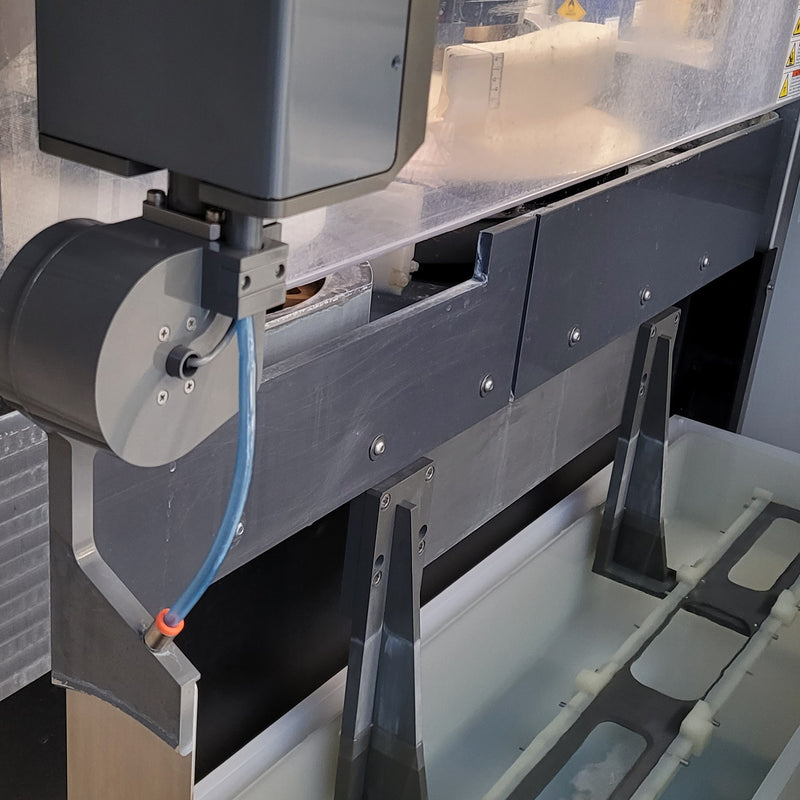

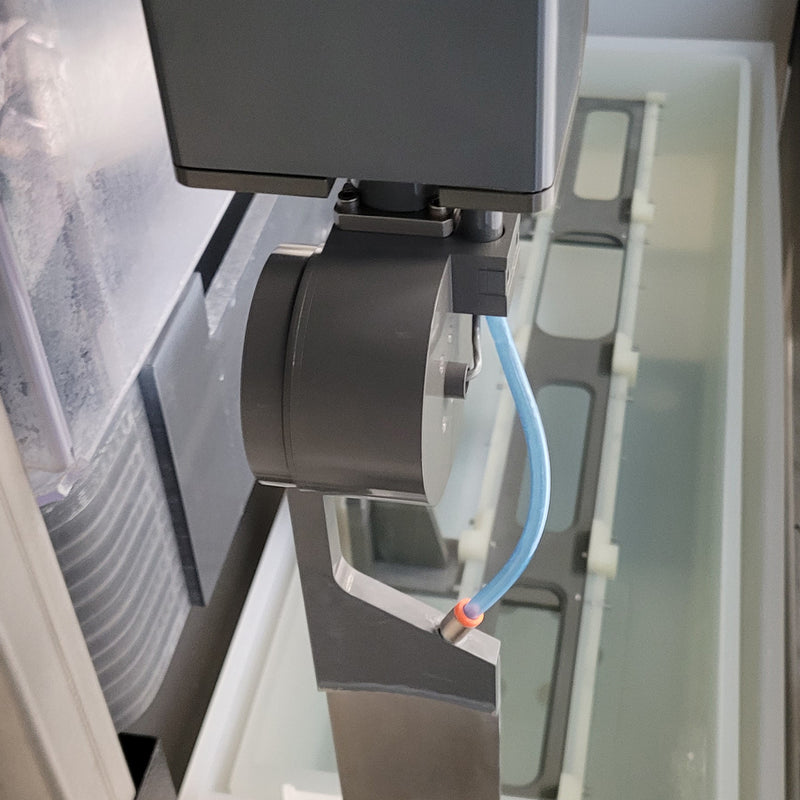

- Loading Tank Track: 150 & 200 mm 4 Position Cassette Holders
-Teflon Cassettes: 150 mm Teflon Cassettes (2), 200 mm Teflon Cassettes (2)
Modifications:

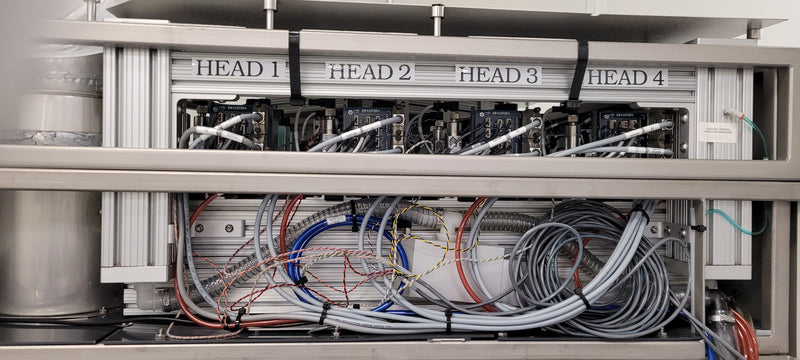

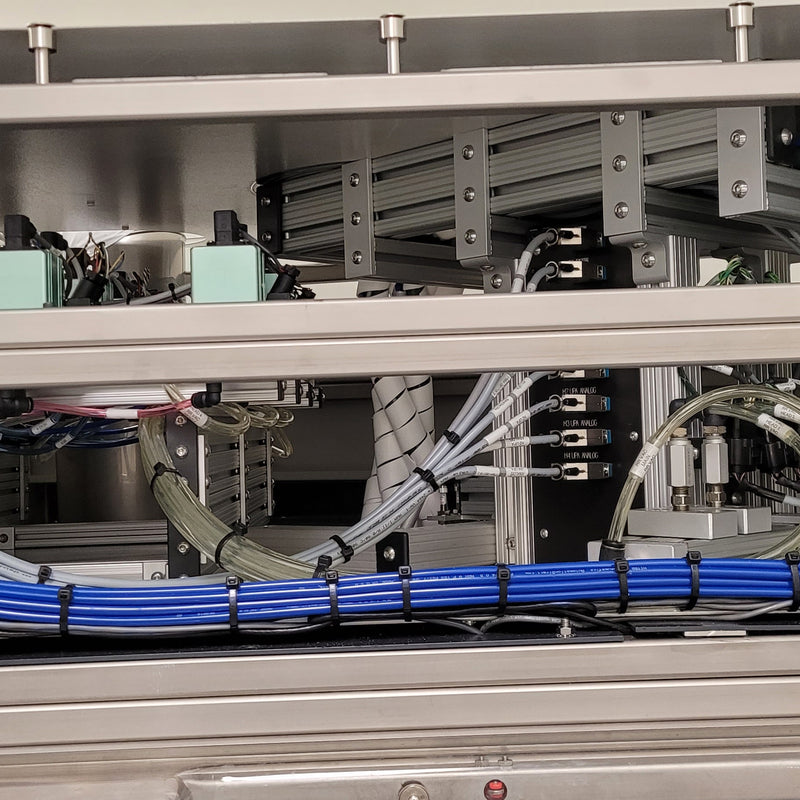

- Balanceworx Remote Cascade Upgrade (relocation of the polishing head pneumatic controls oof the spindle to top of tool)

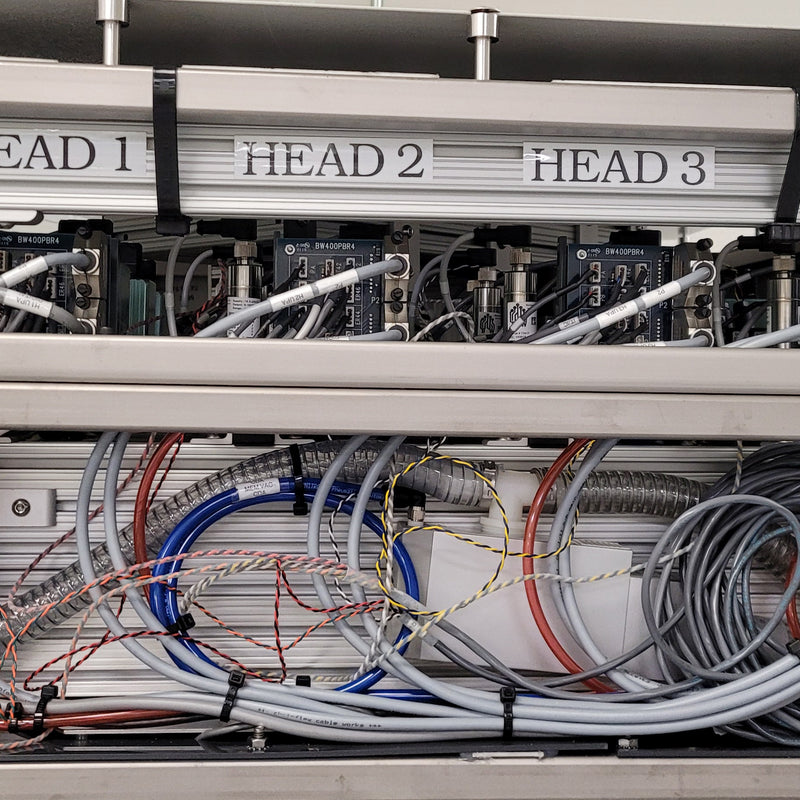

- Balanceworx Sigma 7 Series NSK Head Motor & Drivers
2001 Vintage
