Asset #: 128167

Make: Varian

Model: E 500 EHPI

Wafer Sizes: 6 inch

Last Confirm Date: January 30, 2025

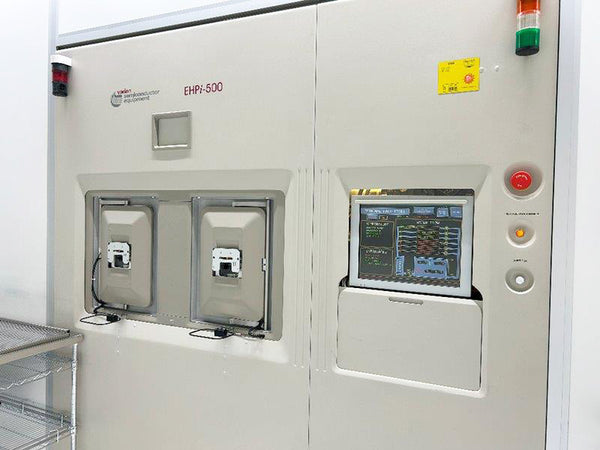

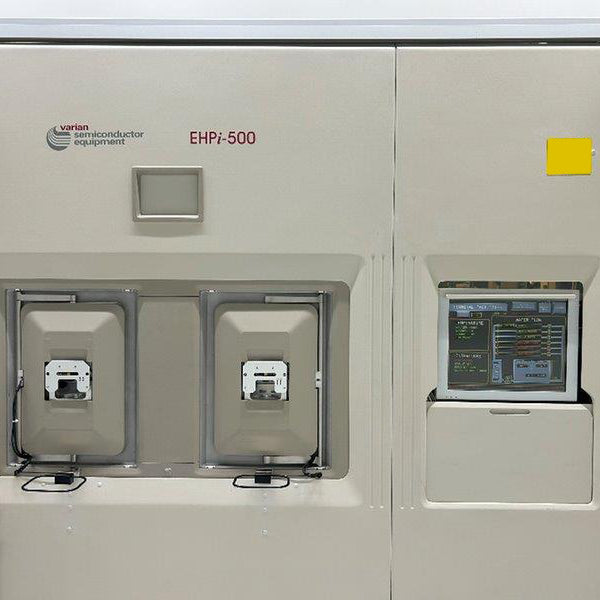

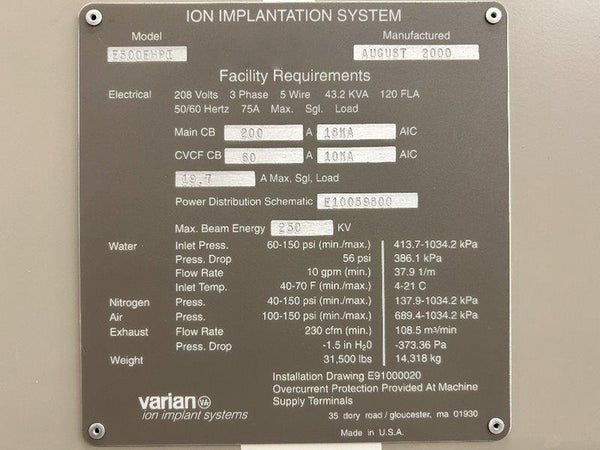

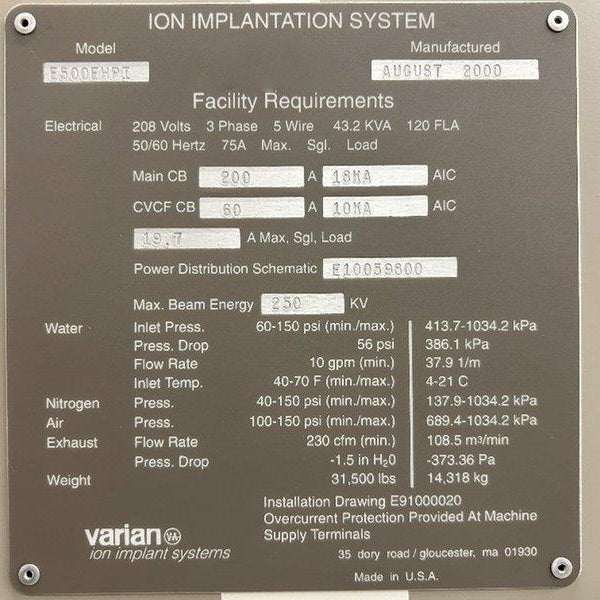

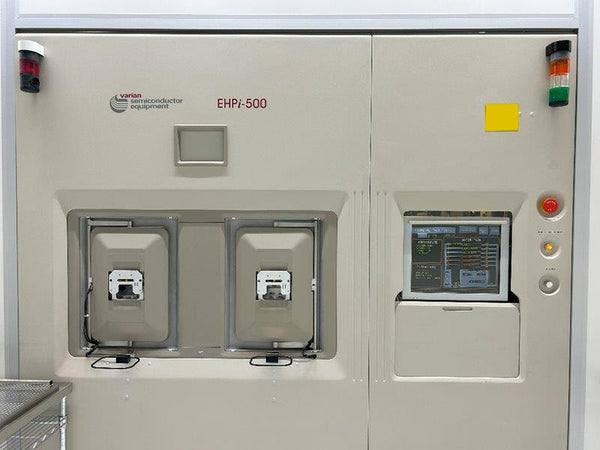

Varian E 500 EHPI Ion Implant System, 6"

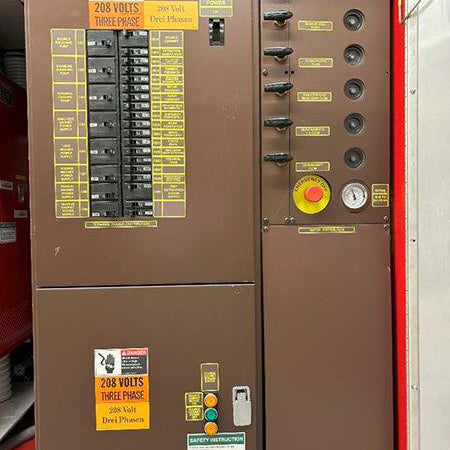

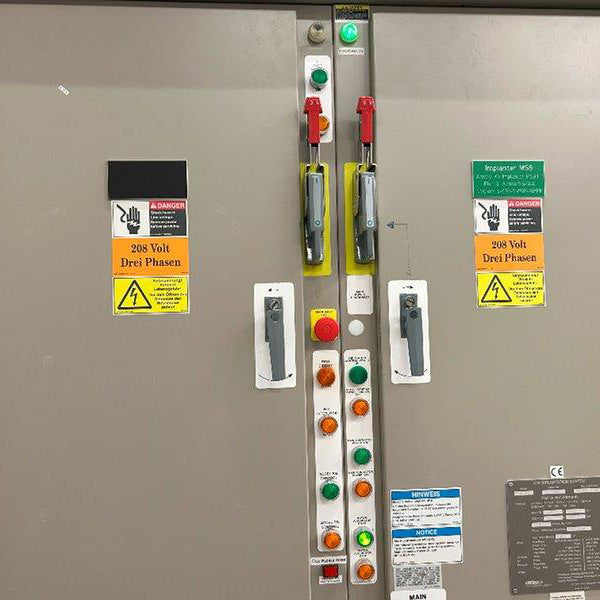

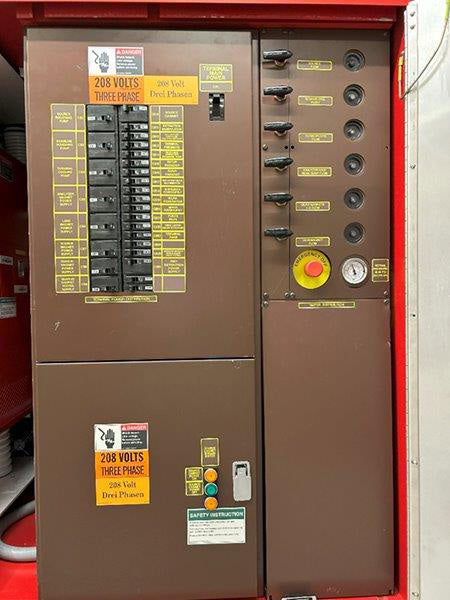

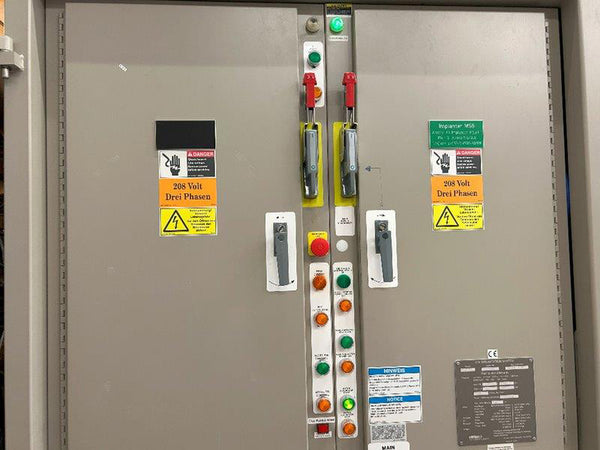

- Power: 208 V,50/60 Hz, 3 Phase
- CE Mark
- Connection: Top

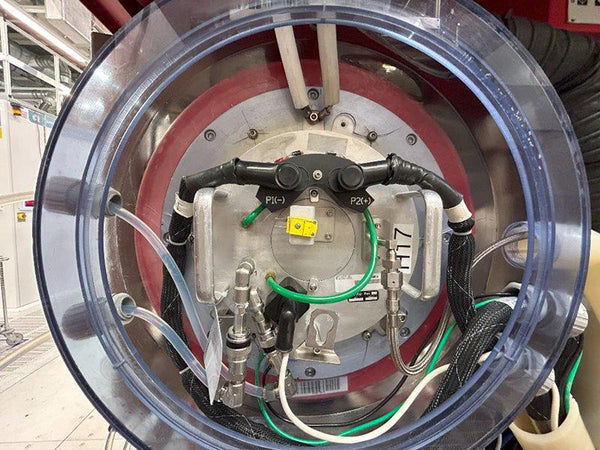

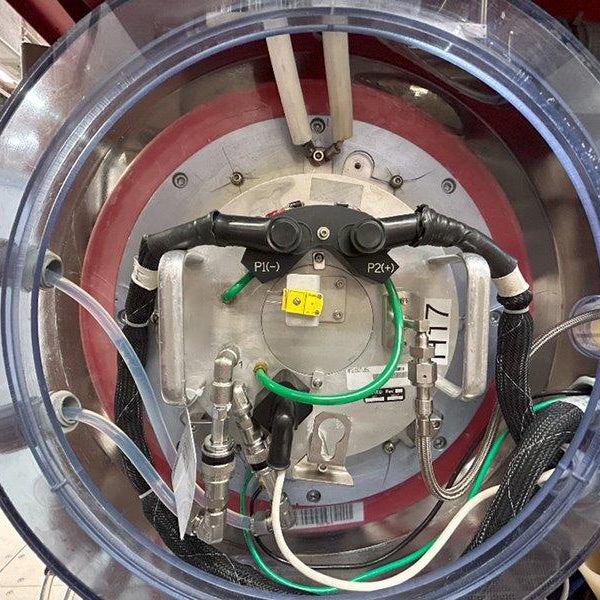

- Source 1: IHC
- IHC Arc PS
- IHC Filament PS
- IHC Bias PS
- Extraction Electrode: EHP
- Bushing: EHP
- Extraction PS
- Source Magnet Polarity Switch

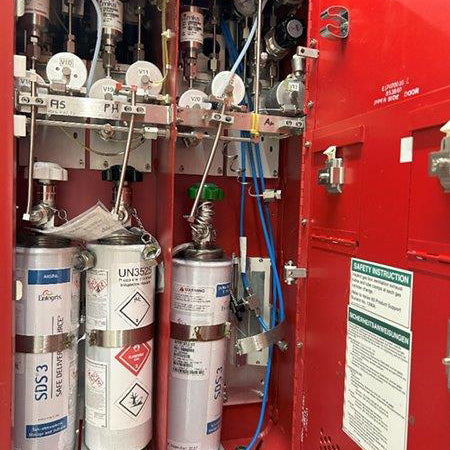

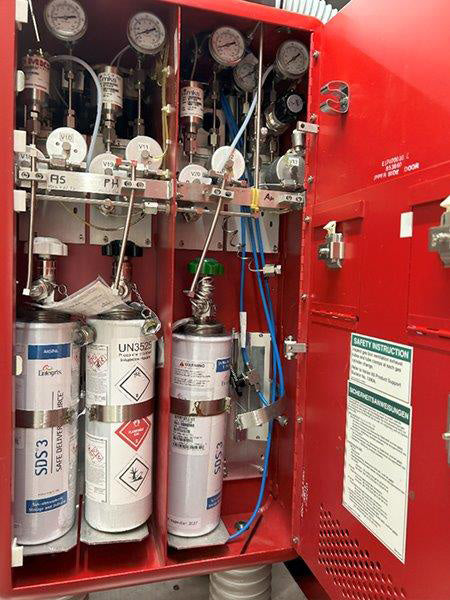

Gas Box:
- String #1 SDS
- String #2 SDS
- String #3 SDS
- String #4 HP
Beamline:
- Two Step Reducer
- Gauss Meter

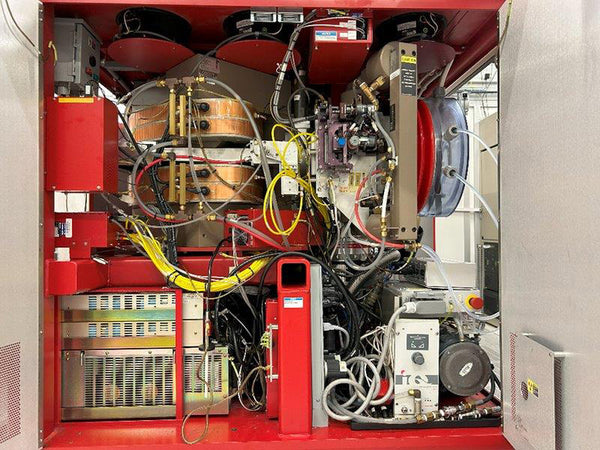

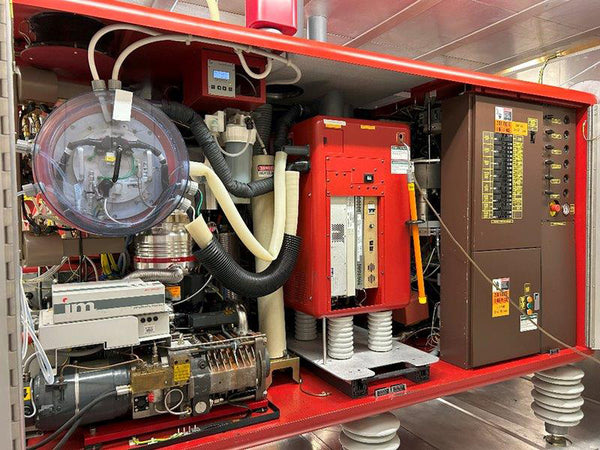

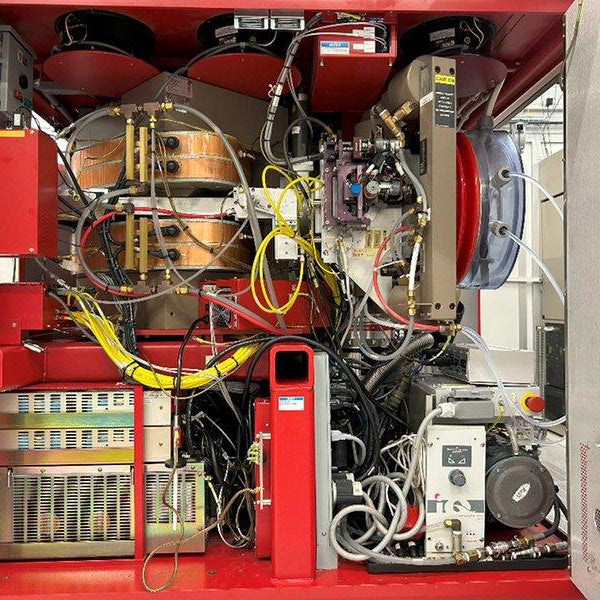

- Terminal Pneumatics

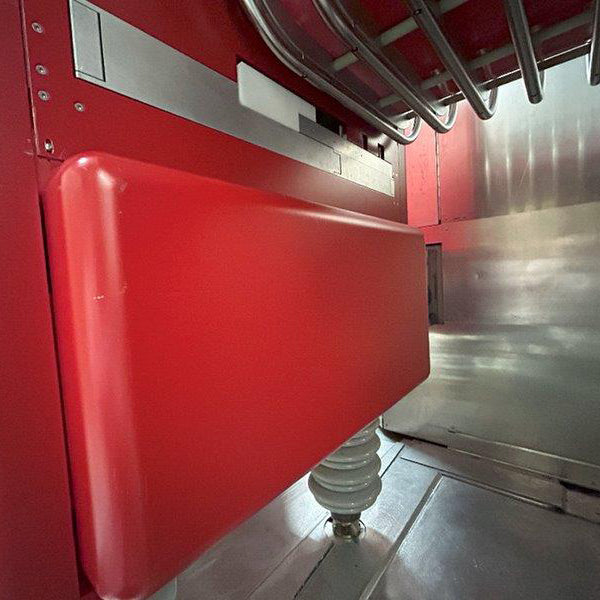

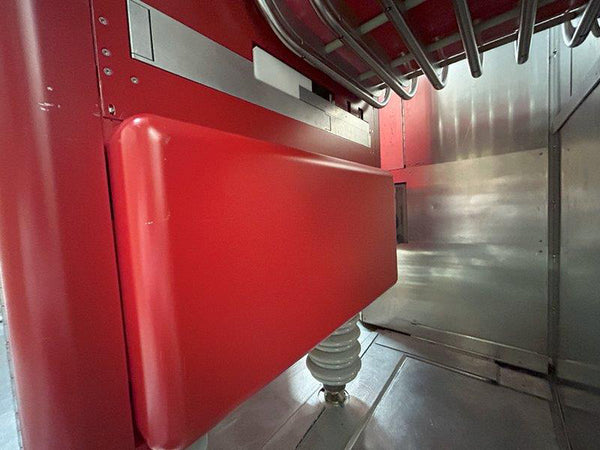

- Auto Decel
- Total Beamenergy Probe
- Mirror PS
- Scan Amplifier
- Setup Cup Amplifier

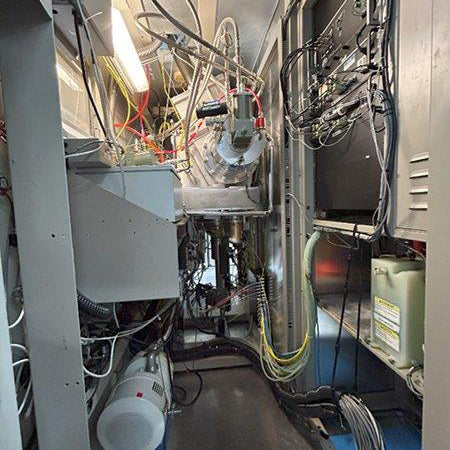

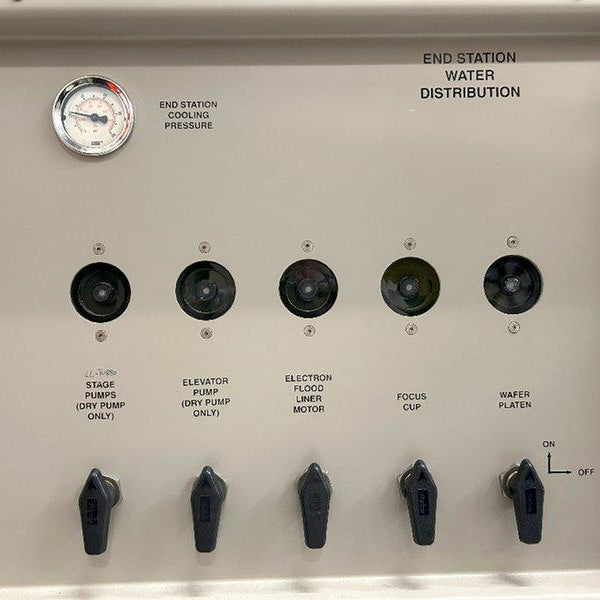

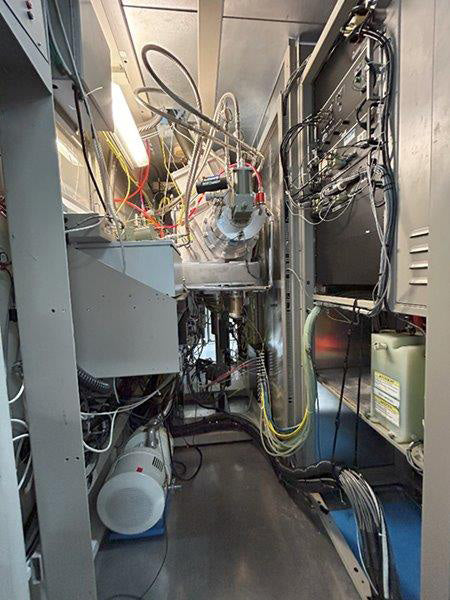

End Station:
- Chuck system: ESC

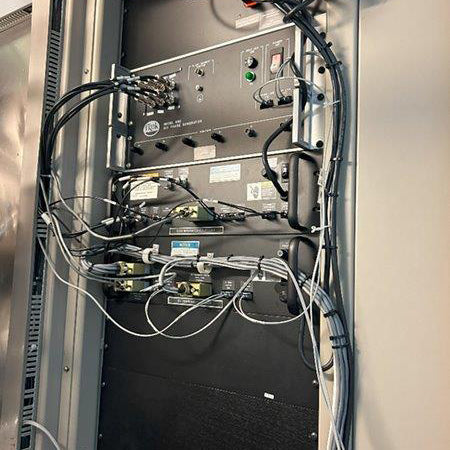

- Dose Integrator

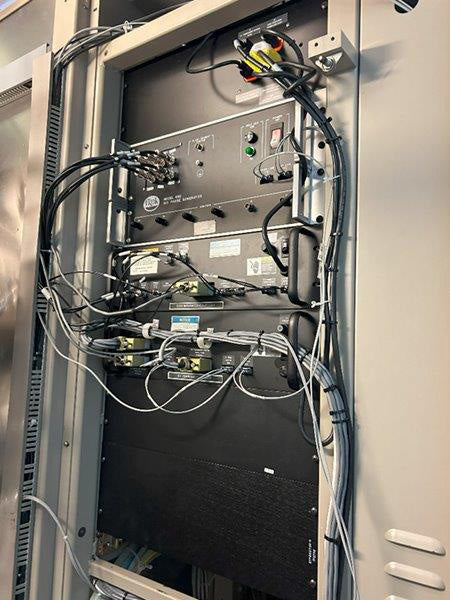

- DI Temp Monitor Controller
- Uniformity Controller
- Platen Tilt Servo Controller
- Scanning Faraday Controller
- Right Elevator Controller
- Left Elevator Controller
- Orienter Controller
- Uniformormity Controller
- Gauge Controller
- Right Arm Controller
- Left Arm Controller
- Scanning Faraday/Rotating Platen Controller
- Endstation Pneumatic Interface
- Right Handler Pneumatic Interface
- Left Handler Pneumatic Interface
- Linear Motor Servo Controller

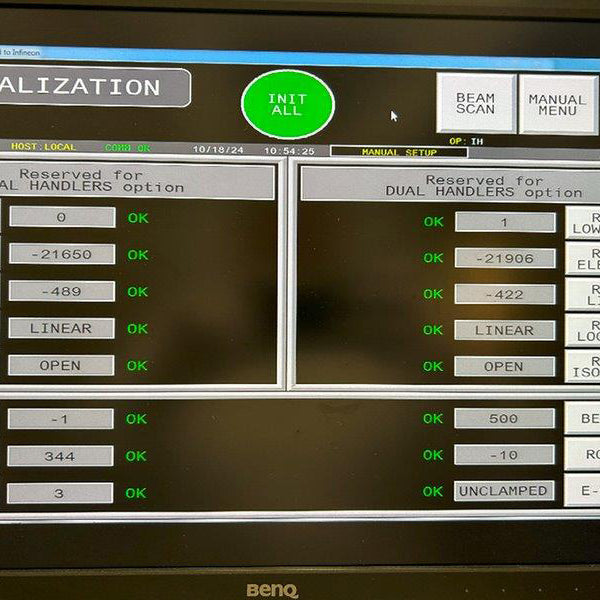

Control System:
- Computer: Win7
- Software: V15.10.12
- Light Tower

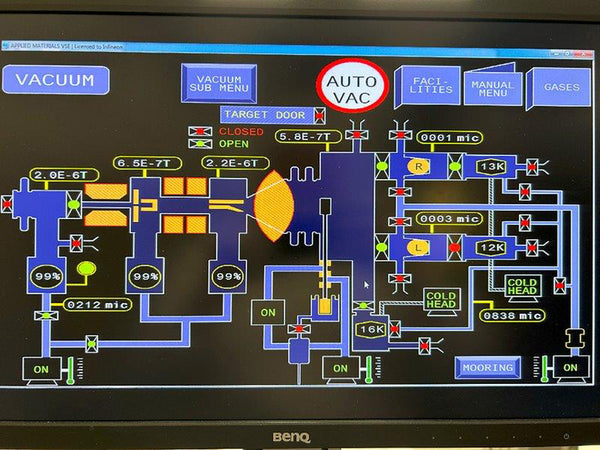

High Vac Pumps
- Source Turbo: Pfeiffer
- Analyzer Turbo: Pfeiffer
- Scanner Turbo: Pfeiffer
- Endstation Cryo
- LoadLock right: Cryo
- LoadLock left: Cryo

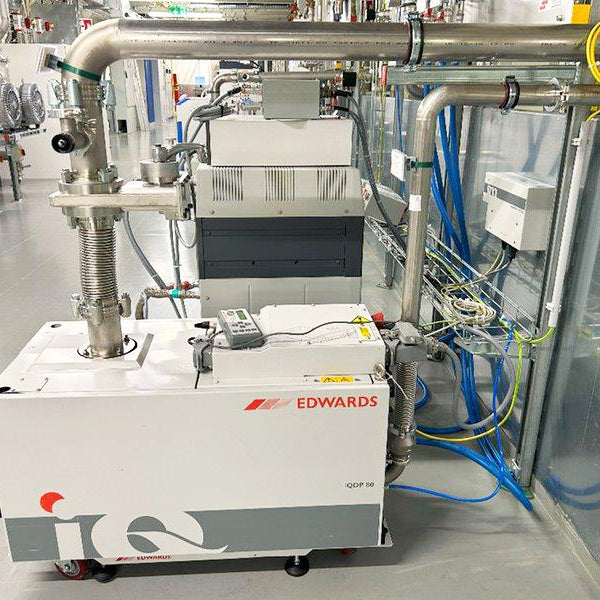

Dry Roughing Pumps
- Source/Terminal: Edwards Setup
- Differential Seal: Busch Scroll Fossa 15

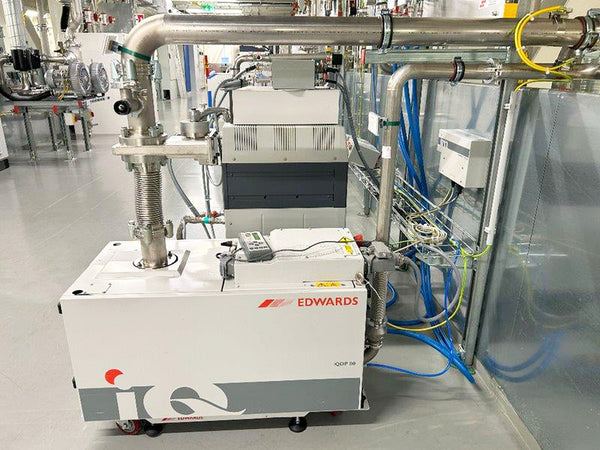

- End station / Load Lock: Edwards Setup

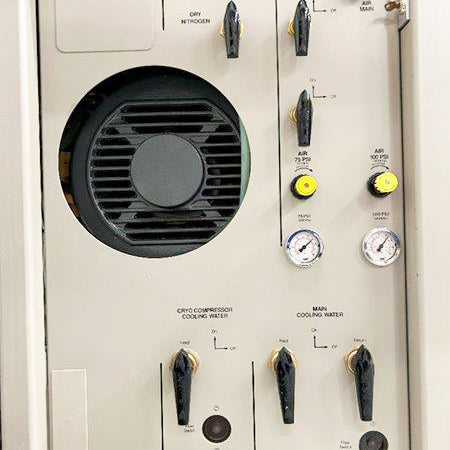

Remote Facility Rack

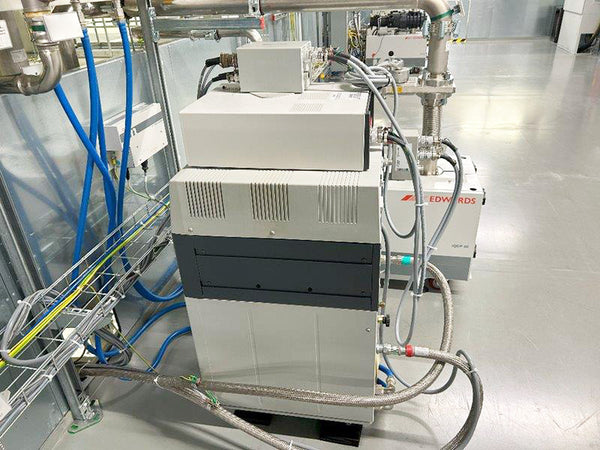

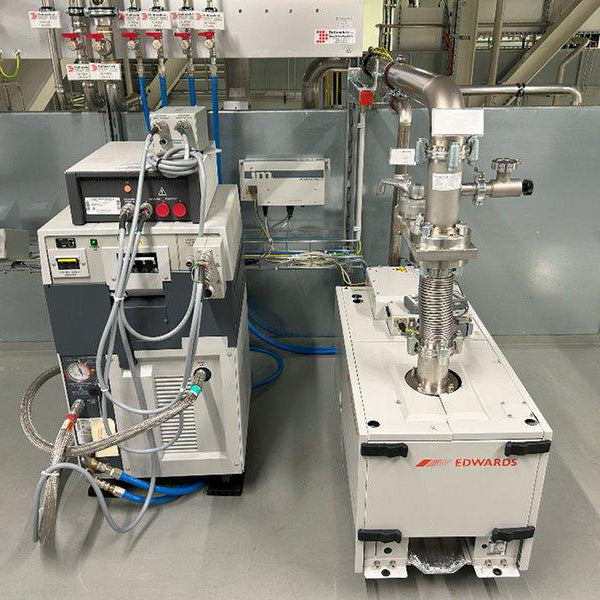

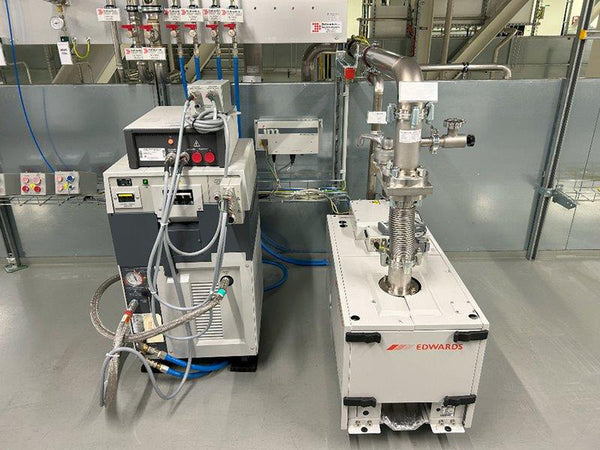

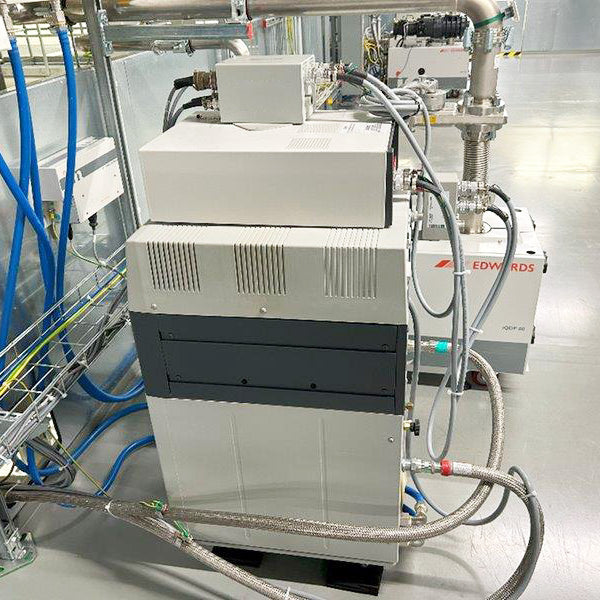

- Cryo Comp: 9700A

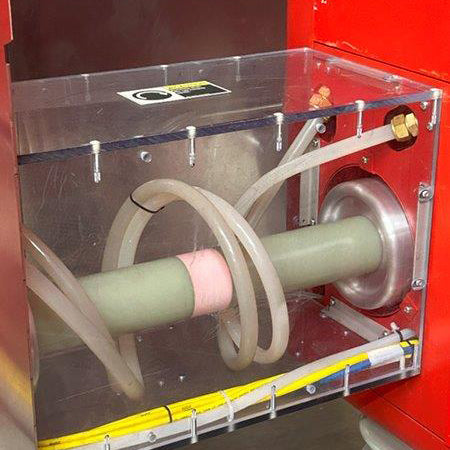

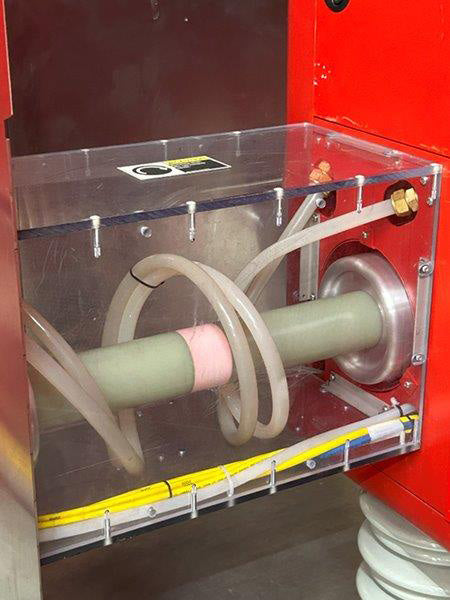

- Motor Alternator
- DI Waterpump
2000 Vintage
