Asset #: 126339

Make: Applied Materials

Model: PI 9500

Wafer Sizes: 6 inch

Applied Materials PI 9500 Ion Implanter, 6"
- Belt Drive
- 60 Hz
- Utilities: Top feed
- Water fittings: Imperial
- Remote distance: 6m umbilical
- Layout: Thru wall
- Wafer cassette: 26 wafers
- Leybold Turbo pumps
- Ebara A07V Mech pump
- CTI Cryo pump, rear cryo compressor missing, 9600 model
- Helium line length: 15 m
- Factory interface: SECS / GEM
- Tilt angle: Variable 0-7 degree

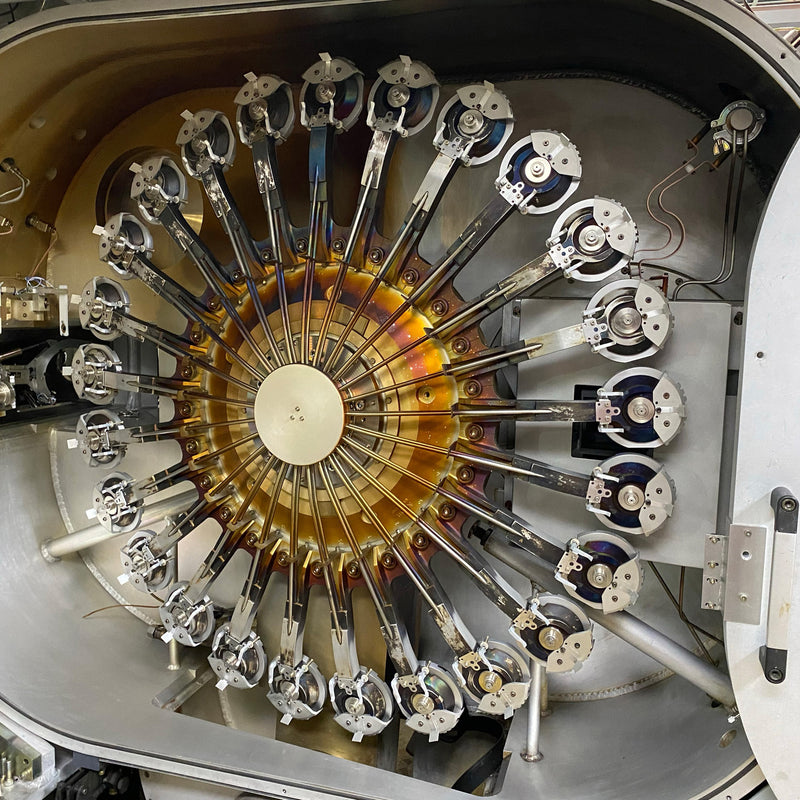

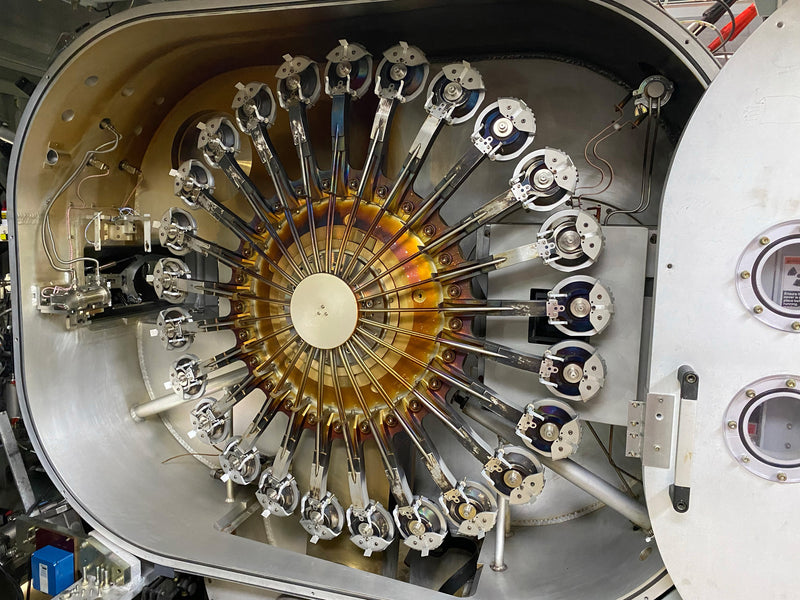

- Standard 25 wfr wheel
- Plasma Flood System: HDPFS
- Beamline: Standard
- Source type: Bernas
- Front plate: Tungsten
- Extraction type: Single bellows
- Source chamber liners
- MRS Chamber Liners
- Gas position 1: Boron (gas module missing)
- Gas position 2: n/a (gas module missing)
- Gas position 3: Phosphine
- Gas position 4: Arsine
Missing:
- Wafer Loader Blade Control PCB
- Spin Control PCB
- Spin/Scan Control PCB
- MRS turbo
- PFG Argon feed through Wheel chamber
- Rear Cryo
- Spin Motor gear/coupler
- Blade carriage bearing arm
- Front monitor

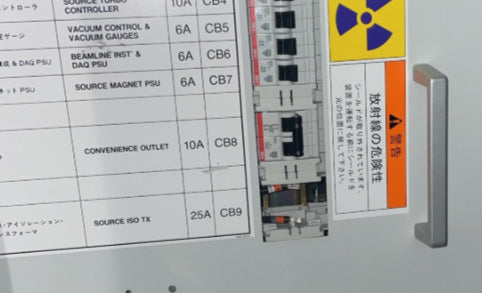

- Isolation Transformer Breaker (term PD)
- Scan arm work
- PFG Filament PSU
- Filament PSU

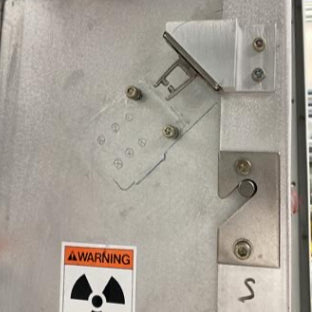

- Beam stop Shield Interlock switch
- Wheel Index PCB (Wheel Chamber)
- Missing two Wheel chamber Plexiglas windows
- Wafer on Blade sensor
- Fast Wheel Index Sensor
- Gas Modules
- TFT monitor upgrade
Parts Machine
1995 Vintage
