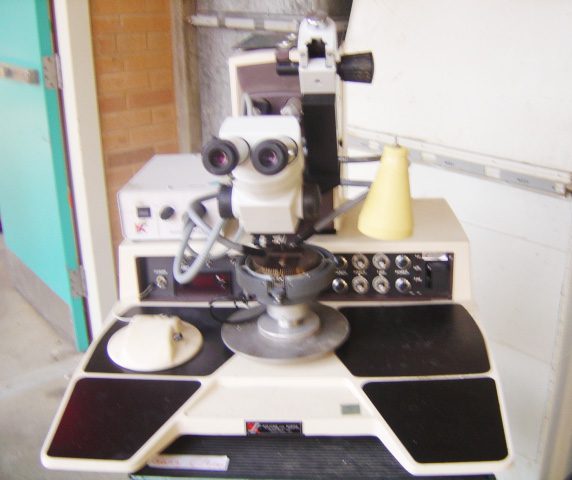

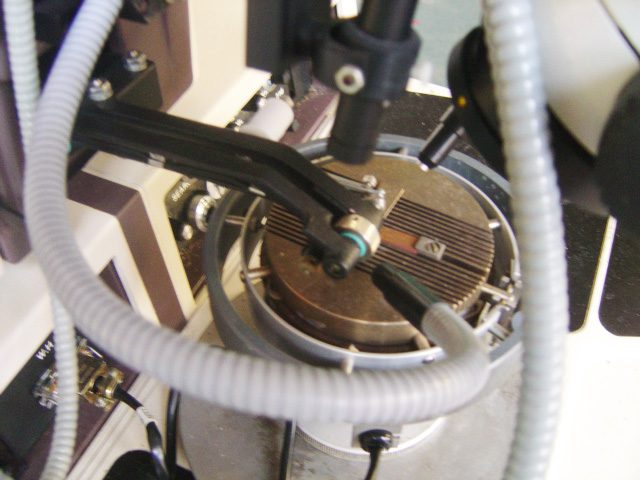

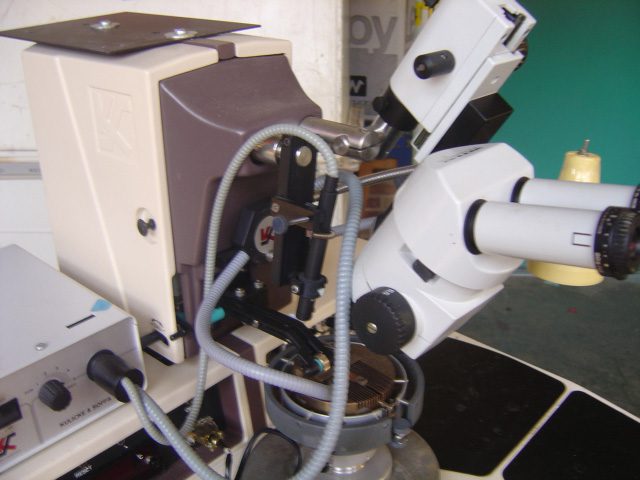

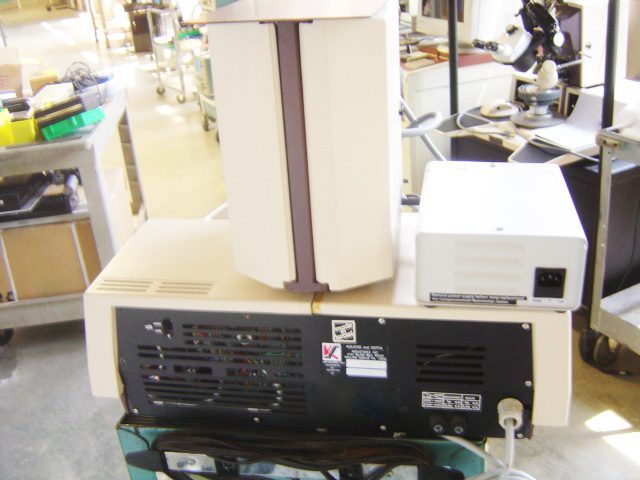

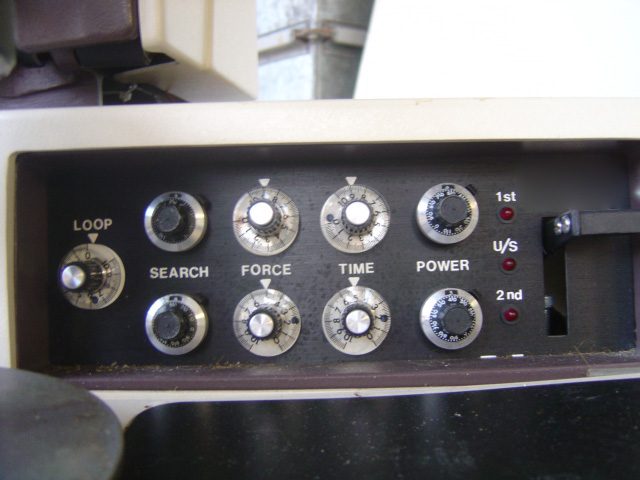

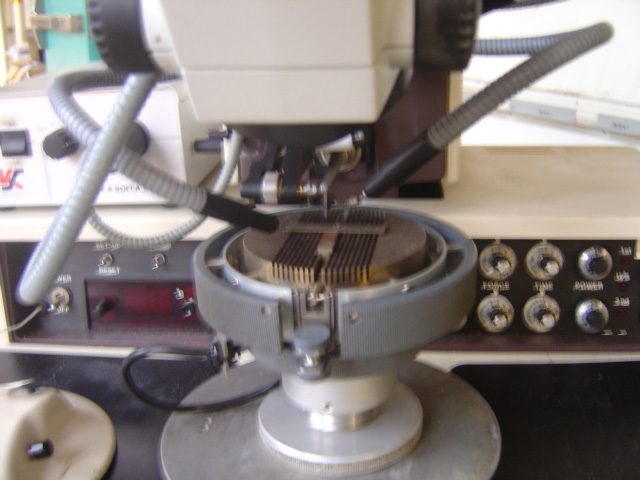

K&S 4123 Wire Bonder
K&S 4123 Wire Bonder
K&S 4123 Wire Bonder
K&S 4123 Wire Bonder
K&S 4123 Wire Bonder
K&S 4123 Wire Bonder
K&S 4123 Wire Bonder

K&S 4123 Wire Bonder

Asset #: 65895

Make: K&S

Model: 4123

Last Confirm Date: May 06, 2025

K&S 4123 Wire Bonder
- Wire Diameter Range : Gold - 0.5 to 3.0 mils (12.7 to 76.2 µm)
- Aluminum - 1.0 to 3.0 mils (25.4 to 76.2 µm)
- Spool Size: TC-1 Gold Ribbon: .05 mil x 2 mils to 1 mil x 5 mils (12.7 µm x
63.5 µm to 25.4 µm x 127 µm) max.
- Performance Cycle Time: 850 ms (incl. 100 ms bond time)
- Bond Force: 5 to 160 gr
- Bond Time: 10 to 100 ms
- Ultrasonic Power: Low: 1.3 W. max. High: 2.0 W. max
- Machine Wire Trajectory: 30 / 45
- Throat depth: 5" (127 mm)
- Reset to overtravel, overall: 0.20: (5.1mm)
- Search / Loop height range: 0.015" under reset to 0.015" above Overtravel
- Table Motion: Gross: 6.5" diameter Fine: 0.5" diameter Bonding area:
3.75" x 3.75"
- Chessman Ratio: 6:1
- Tail Length: Constant, mechanically adjustable
- Optics: B&L Scope, Top mounted
- Temperature Range: 50 to 400 C

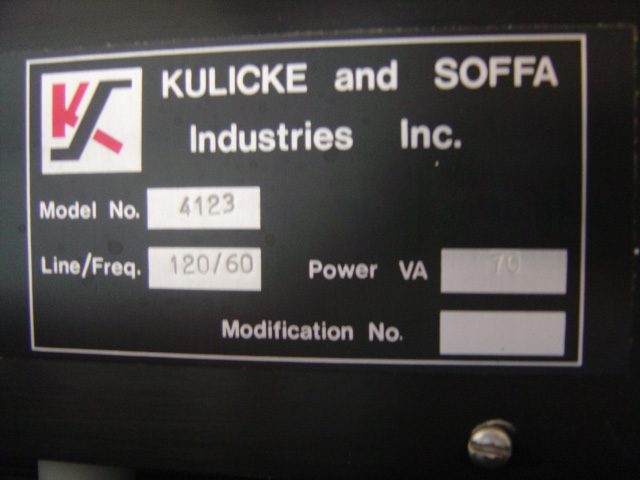

- Electrical Requirements: 120 VAC 50 / 60 Hz 55 VA max
