Asset #: 153537

Make: ASM

Model: M Feeder II

Last Confirm Date: April 17, 2026

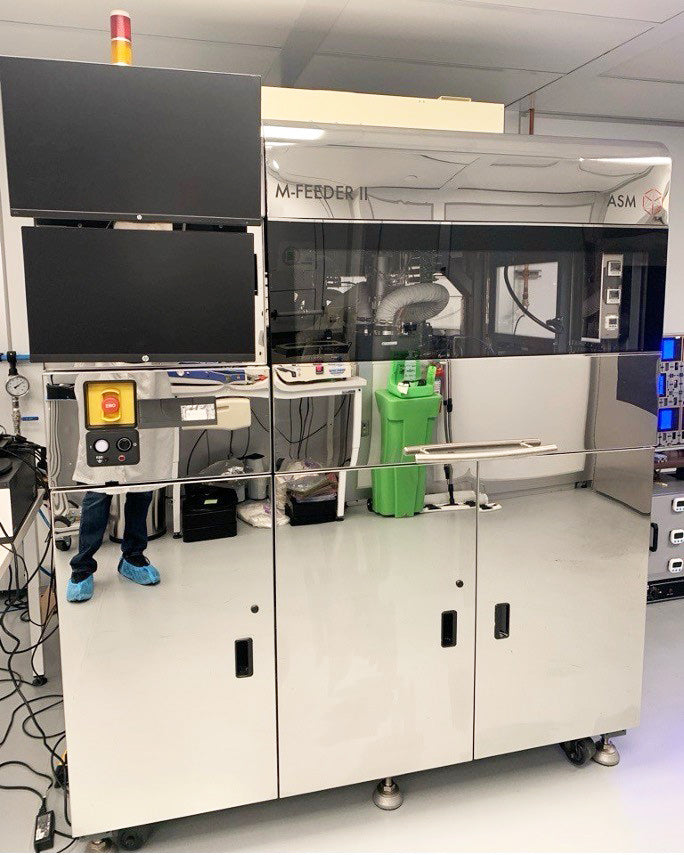

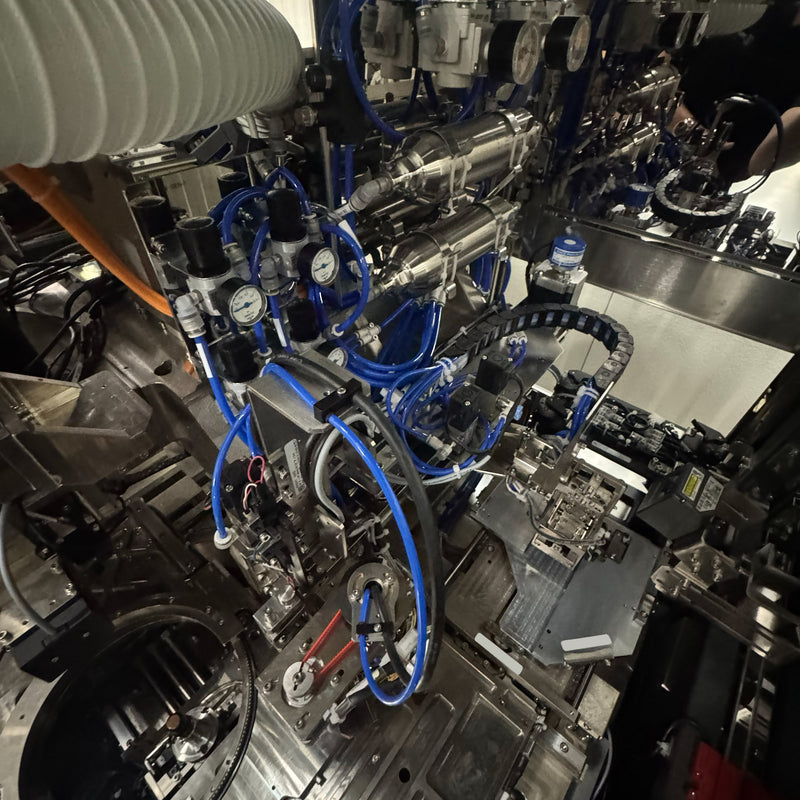

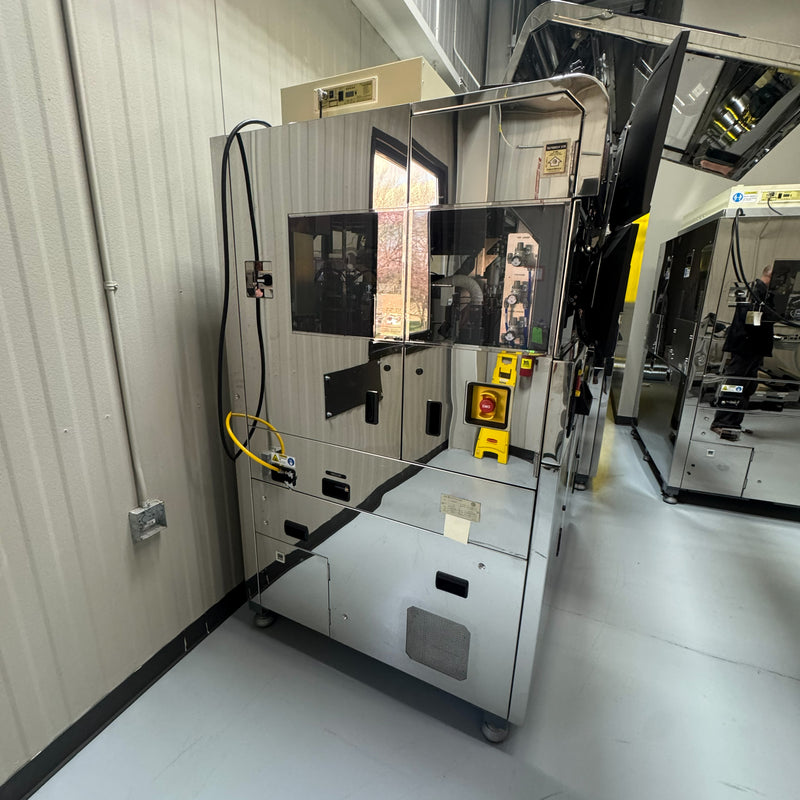

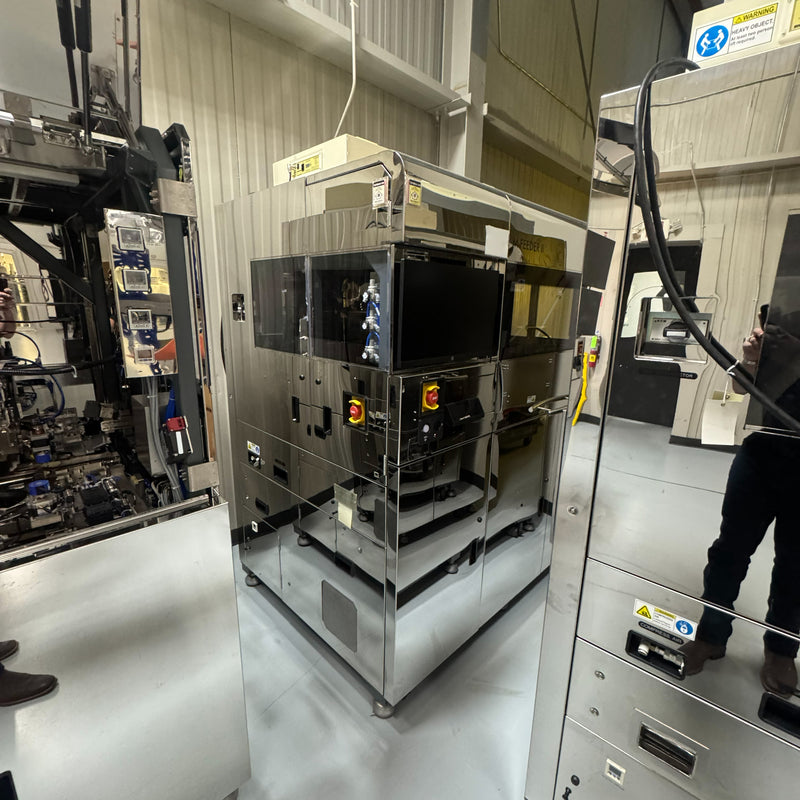

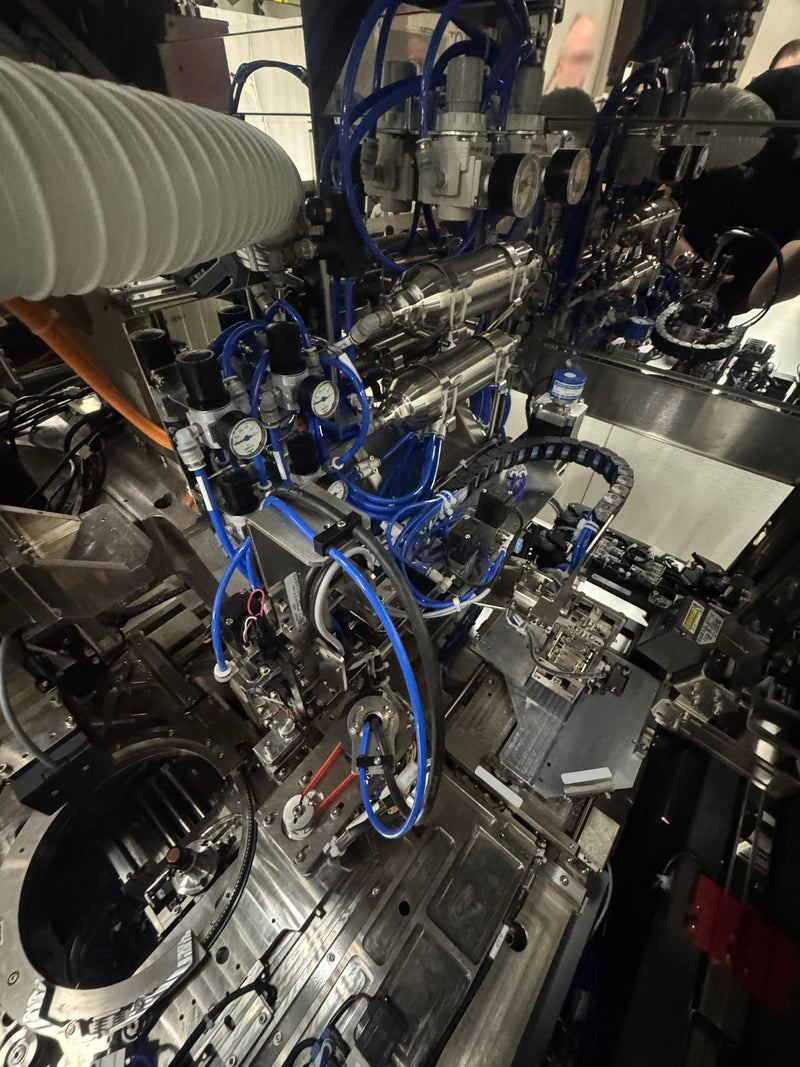

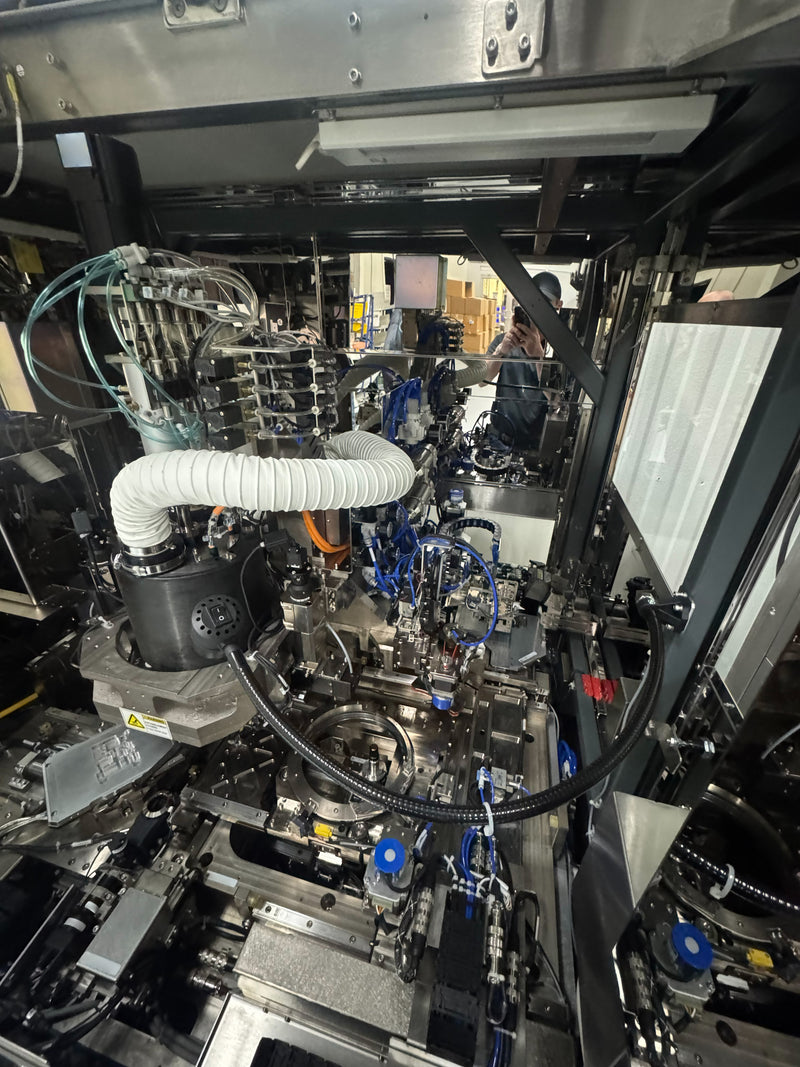

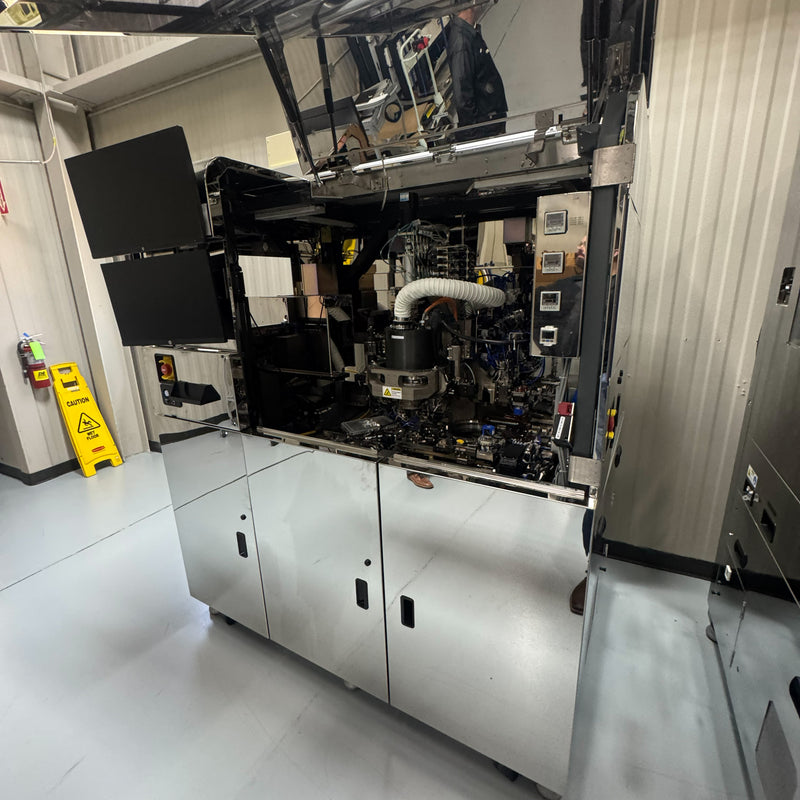

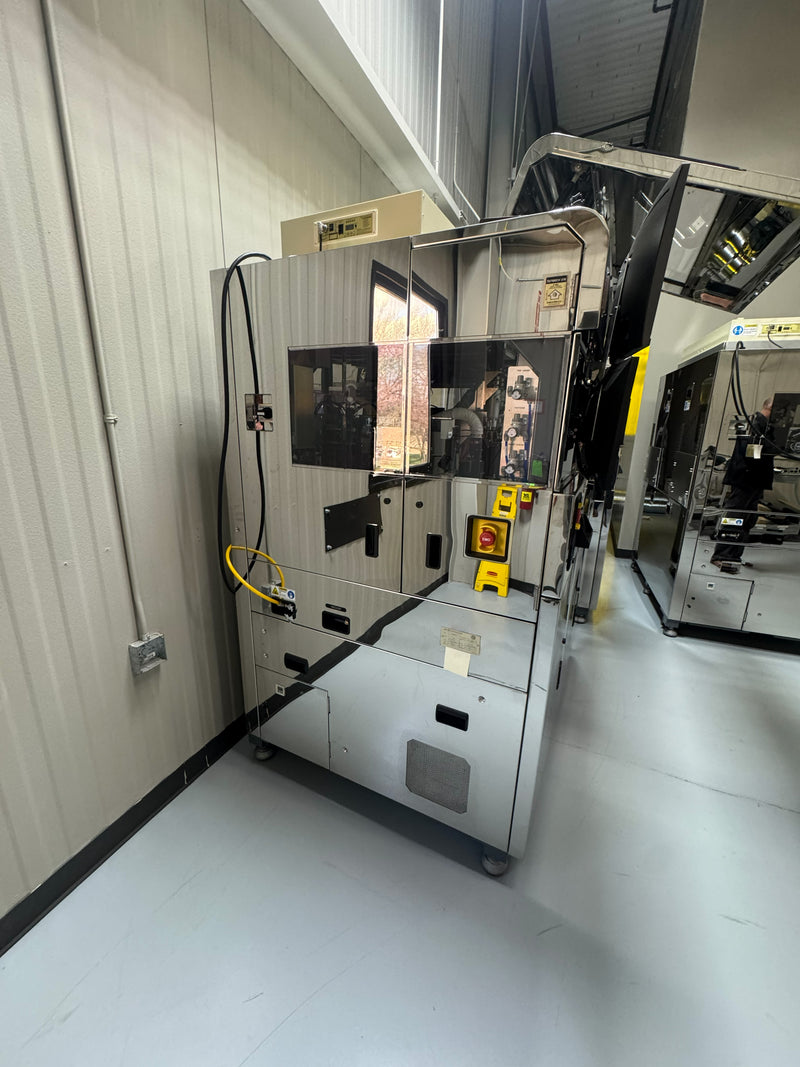

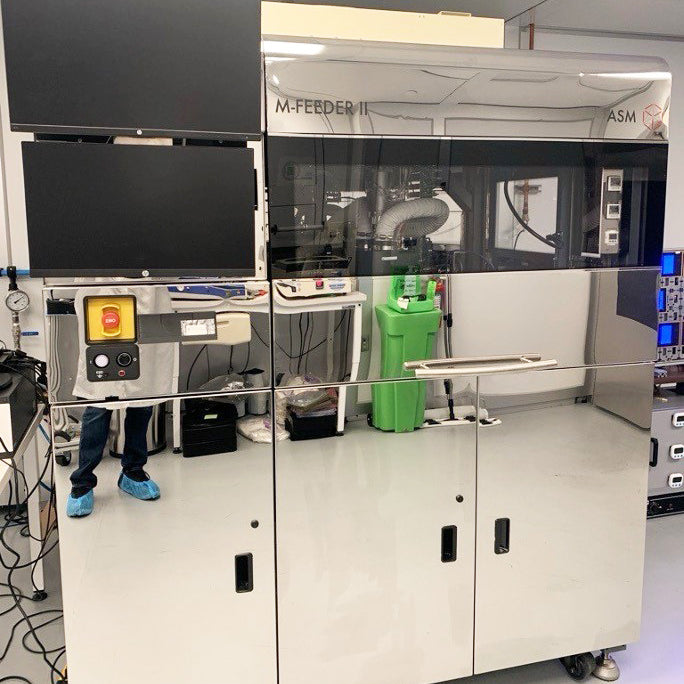

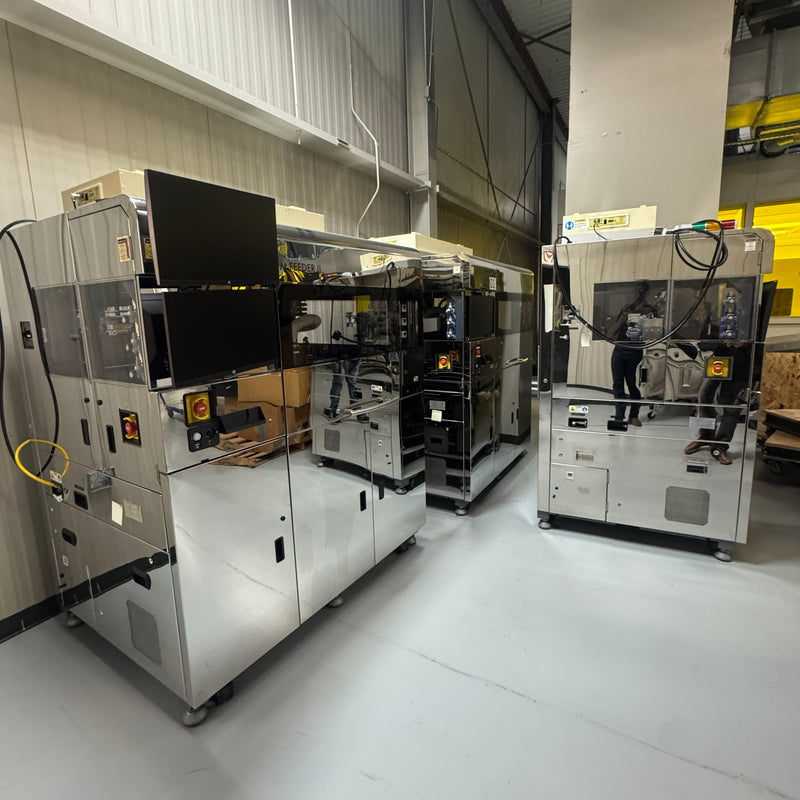

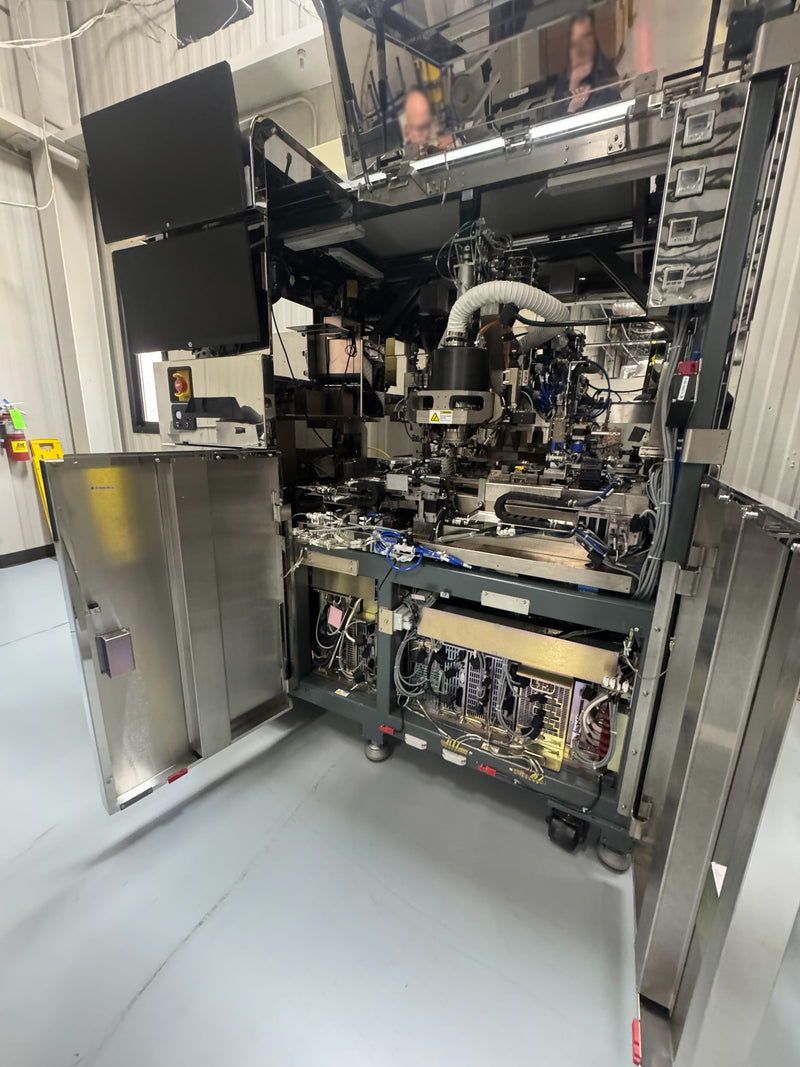

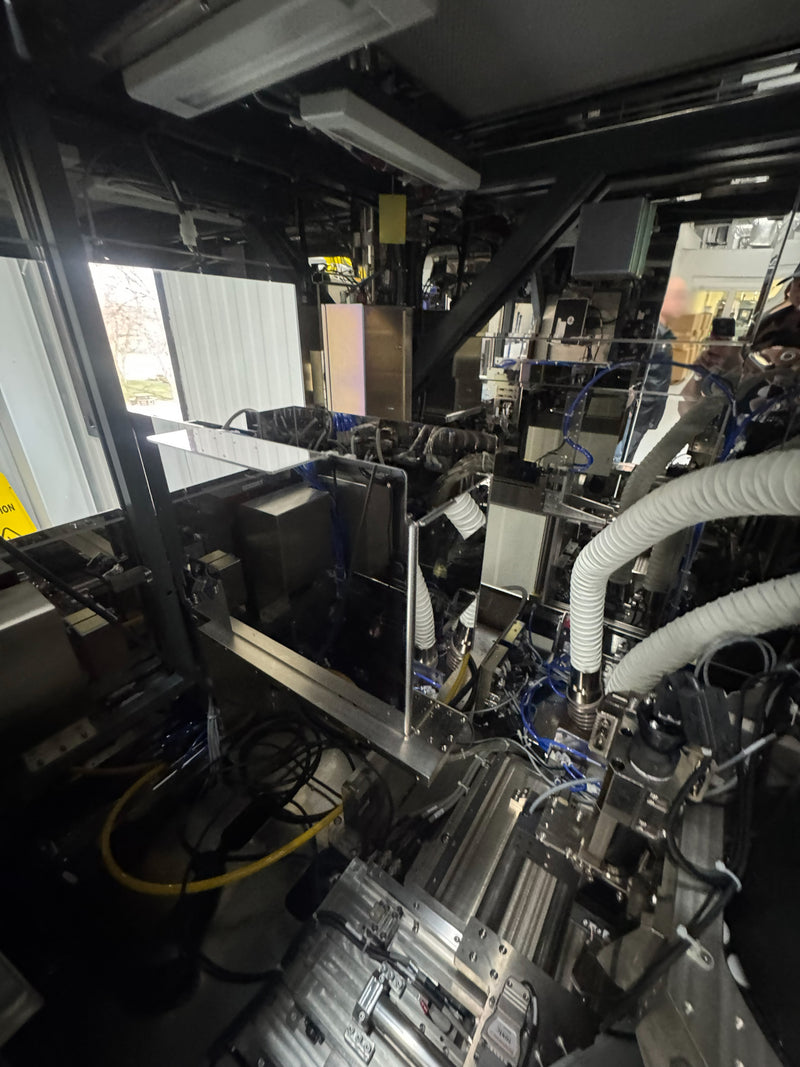

ASM M Feeder II Die Sorter / Bonder
- Configured for Manual Panel Loading
- Configured for Direct Die Placement onto Display Panel
System Performance:
- XY placement: ± 0.4 mil (10 um) @ 3g* - Die rotation: ±1°@ 3g* - Global array angle: ±0.01o* - Bonding cycle: 72 ms* Material Handling: - Die size: 90 x 90 - 500 x 500 um - Die thickness: 3.5 x 3.5-19.7 x 19.7 mil / Min 50 um - Input material: Standard JEDEC tray - No. of tray handling: 2 - Carrier size: Max 60 x 60 x 1.5mm (With 50 x 50mm effective bonding area) Bondhead System:

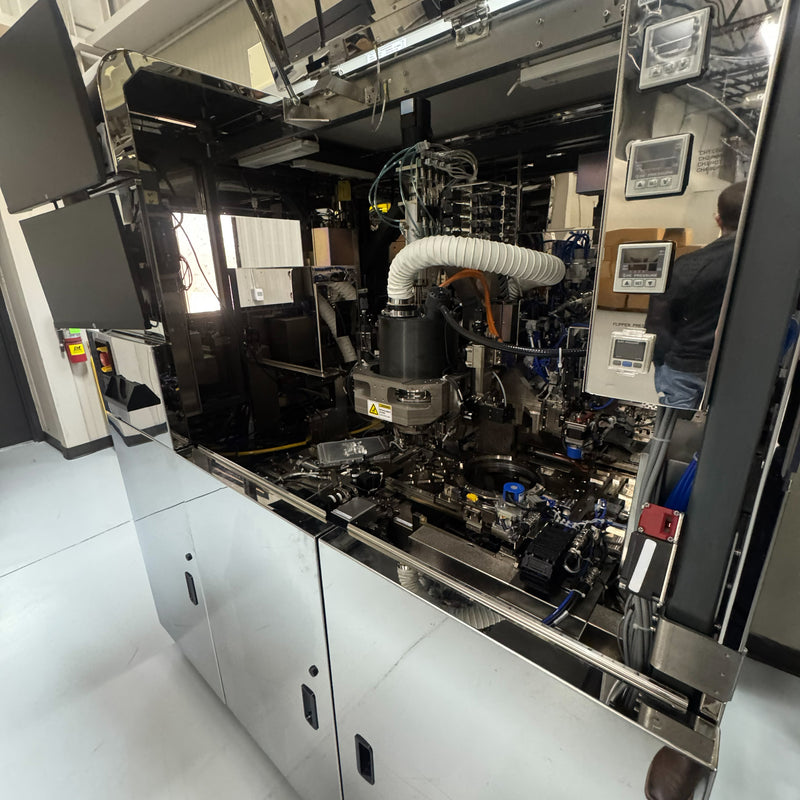

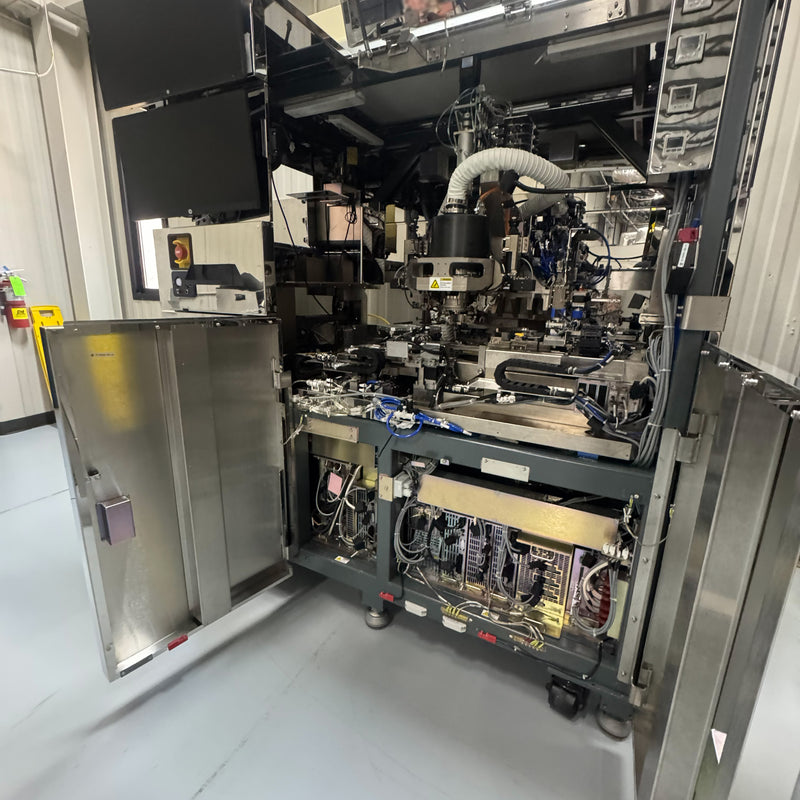

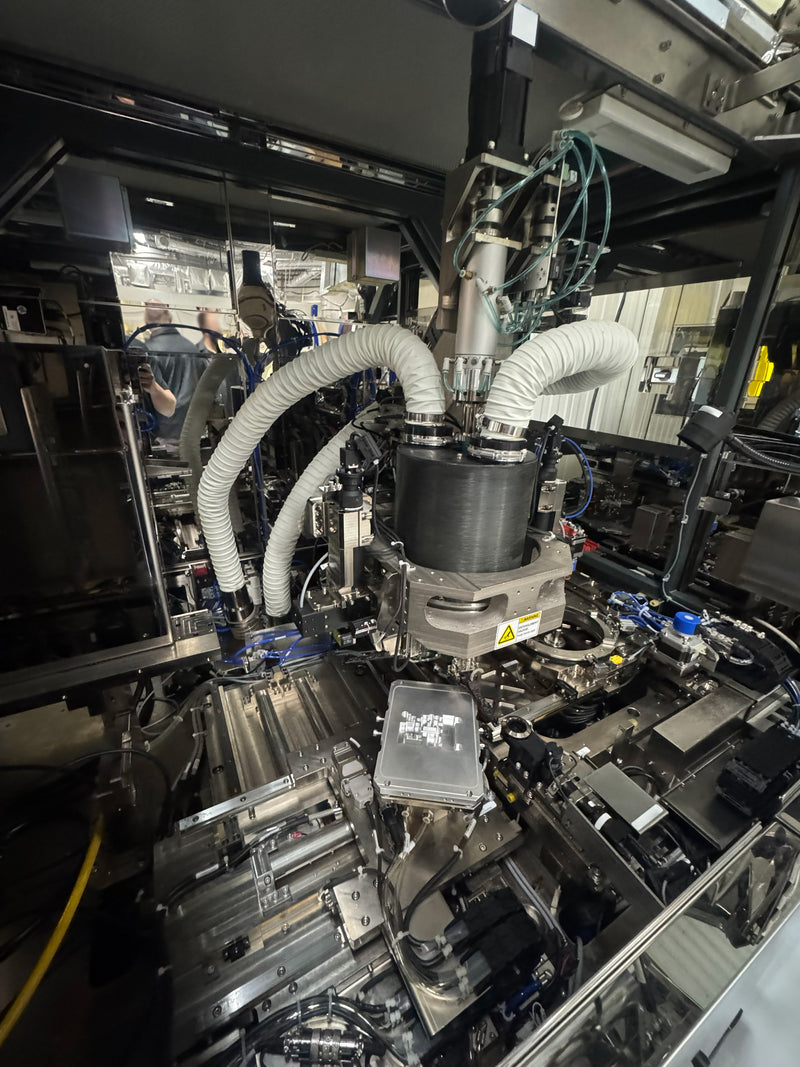

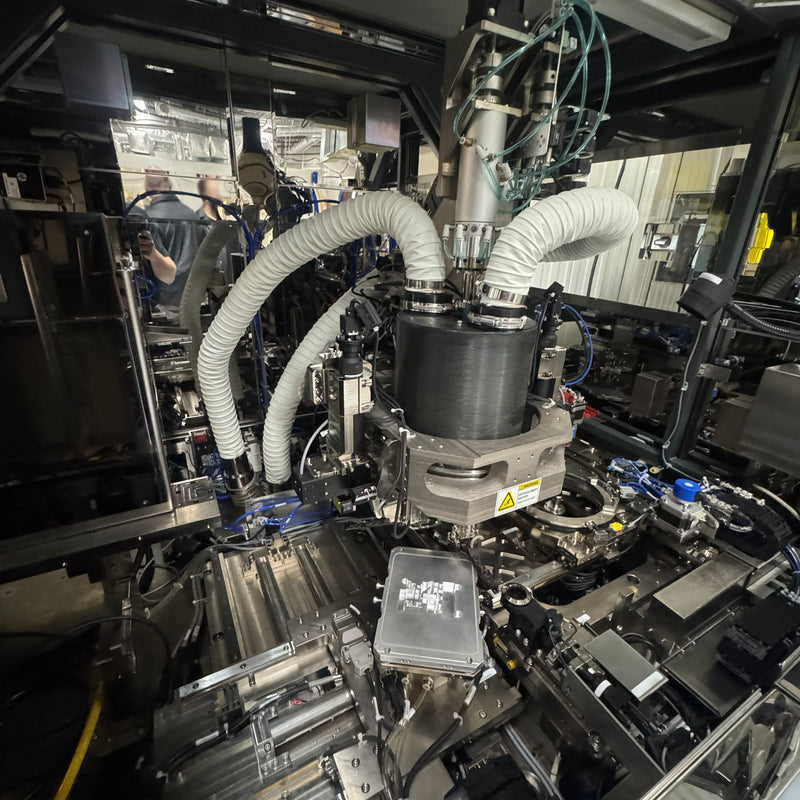

- Bondhead Type: Single bondhead with 4 arms

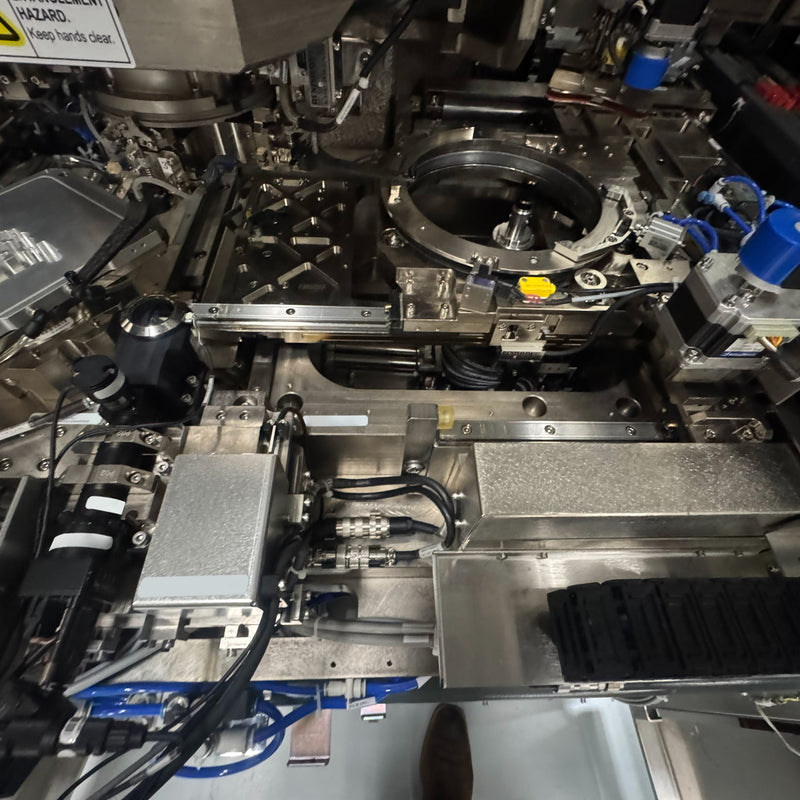

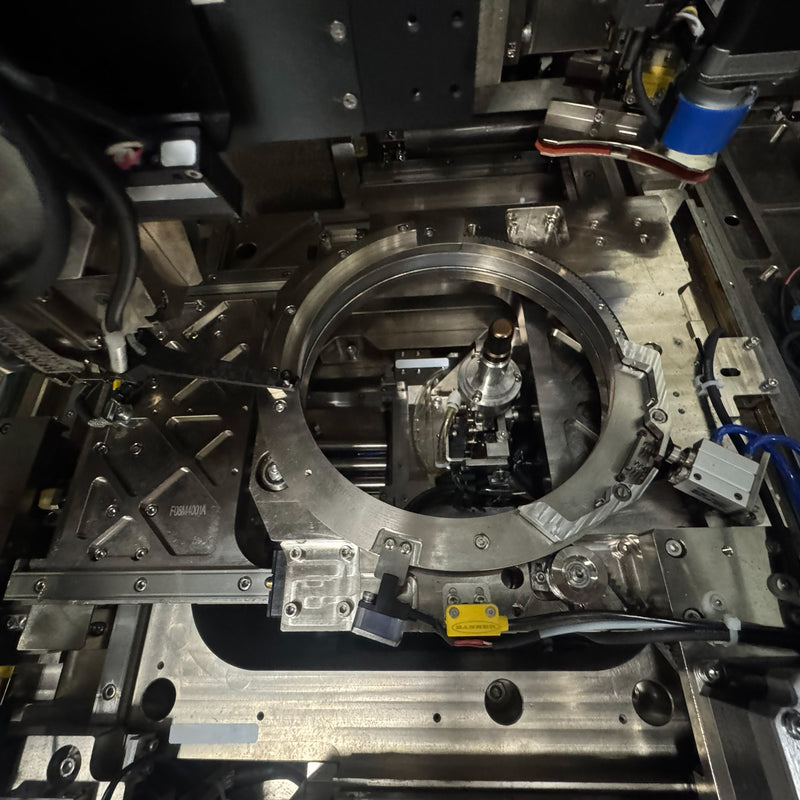

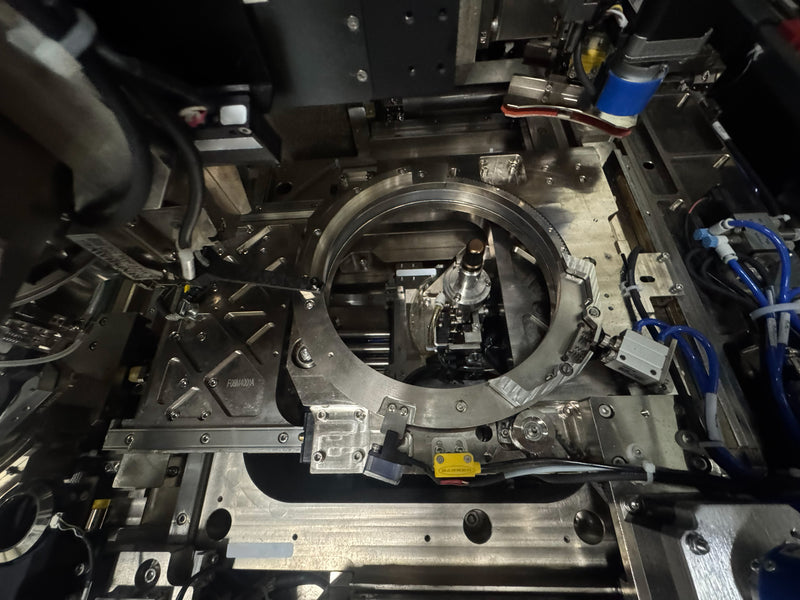

Wafer System: - Wafer type: Foton ring - Wafer ring size (OD): 7.33" - Expanded wafer size: 5.9" PR System - Image mode: Color - Grey level: 256 grey level Facilities Requirement

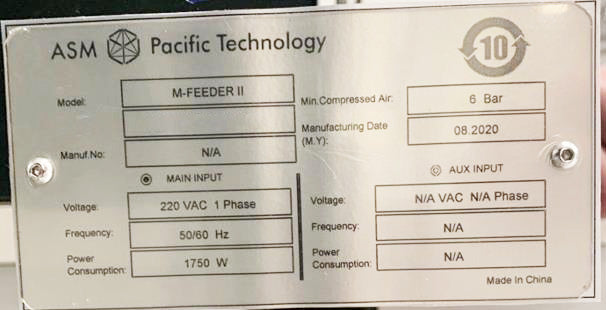

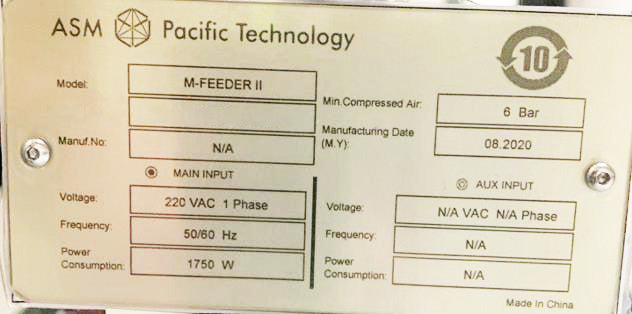

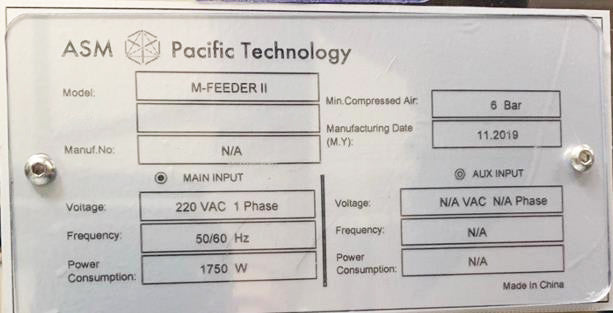

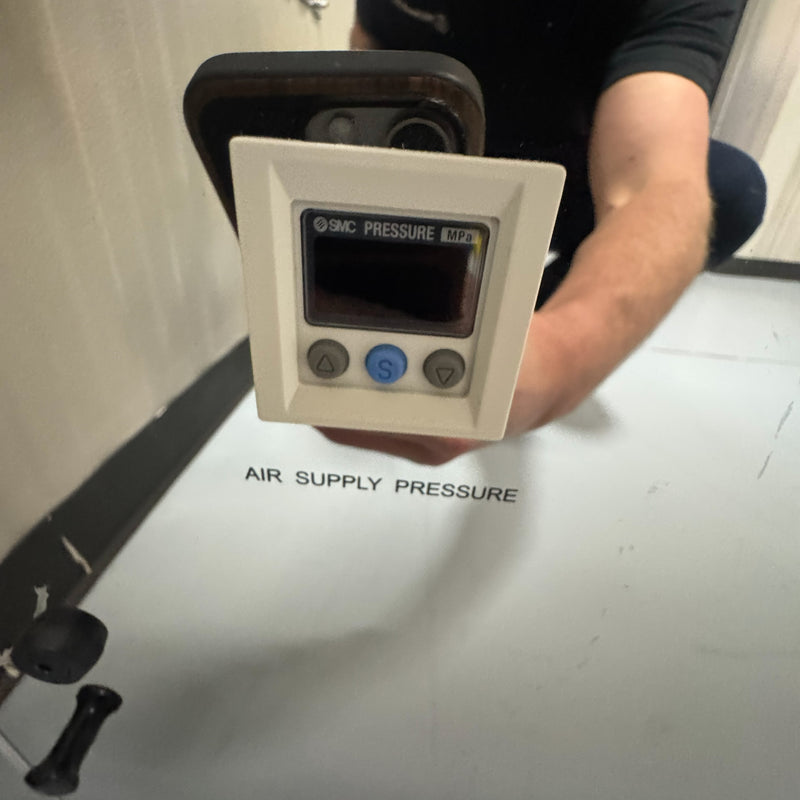

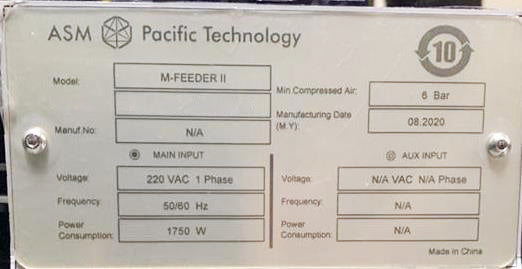

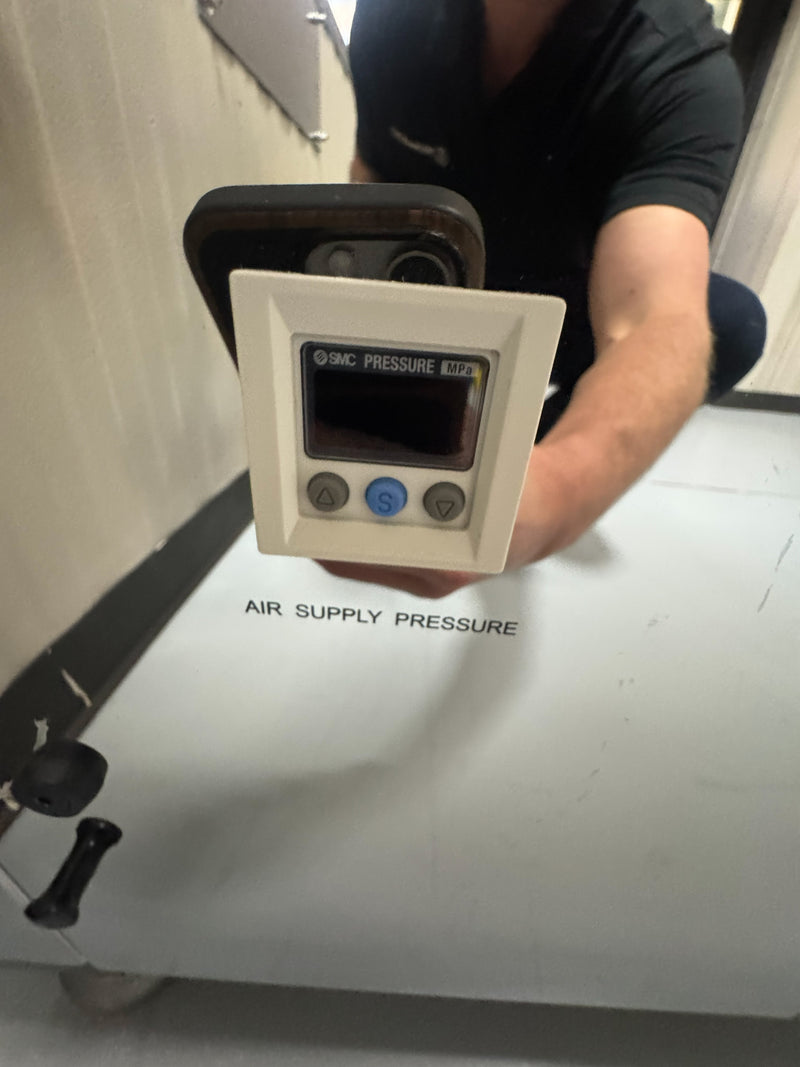

- Voltage: 220 Vac, Single Phase - Optional: 110 Vac - Frequency: 50/60 Hz - Compressed air: 6 bar - Air consumption: 700 LPM @ 6bar - Vacuum pump: Option - Full load current: 24A @ 220V

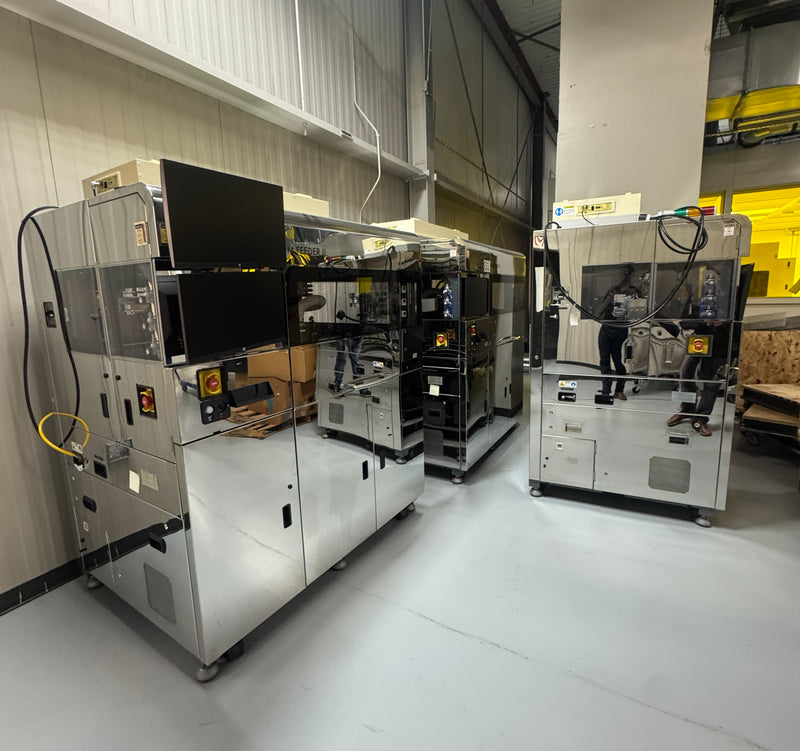

2019 (1), 2020 (3) Vintage
